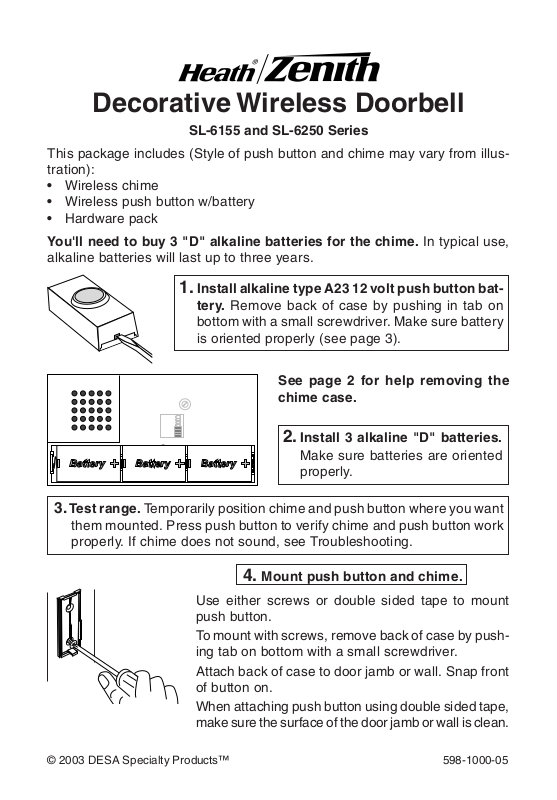

Heath Zenith SL-6250, SL-6155 User Manual

Decorative Wireless Doorbell

SL-6155 and SL-6250 Series

This package includes (Style of push button and chime may vary from illustration):

• Wireless chime

• Wireless push button w/battery

• Hardware pack You'll need to buy 3 "D" alkaline batteries for the chime. In typical use,

alkaline batteries will last up to three years.

1.Install alkaline type A23 12 volt push button bat-

tery. Remove back of case by pushing in tab on

bottom with a small screwdriver. Make sure battery is oriented properly (see page 3).

See page 2 for help removing the chime case.

2.Install 3 alkaline "D" batteries.

Make sure batteries are oriented properly.

3. Test range. Temporarily position chime and push button where you want

them mounted. Press push button to verify chime and push button work properly. If chime does not sound, see Troubleshooting.

4. Mount push button and chime.

Use either screws or double sided tape to mount push button.

To mount with screws, remove back of case by pushing tab on bottom with a small screwdriver.

Attach back of case to door jamb or wall. Snap front of button on.

When attaching push button using double sided tape, make sure the surface of the door jamb or wall is clean.

The chime can be mounted vertically or horizontally (depending on model) using 2 holes in back of case, or using one keyhole and one mounting hole. It is highly recommended to use at least two mounting screws with anchors.

It is recommended to secure chime to wall using screws and anchors through both holes.

Snap cover onto chime as shown.

Note: Model SL-6250 is packaged as a set. Mount shelf using keyholes on rear of unit and 2 large screws provided.

Warning: Model SL-6250 may be used as a shelf and has a load rating of 5 lbs. (2.25 kg). All other chimes are not load rated.

Pry with a small screwdriver to remove case before installing.

To remove cover after base is mounted, firmly grasp cover and pull.

Keyholes

Code and Tune Settings

Note: Most installations will not require you to change any jumpers on your chime and push button.

The push button and chime communicate by using a code that can be changed by removing and/or adding jumpers on both the push button and chime. The code is factory set; however, there are 128 selectable codes that allow you to expand your system and prevent outside interference. Other wireless products may cause interference and the system may not function properly. Follow the instructions below for setting a new code.

1. Open the cases and locate the jumpers on both the push button and chime (See illustration on page 3).

2. The push button and chime both have eight different jumper locations. The jumper positions 1 through 7 are used for setting the code.

3. To change the code, add and/or remove jumpers as needed. It is recommended to only change one jumper at a time and then check to see if system is functioning properly. Note: Jumpers in positions 1 through 7 must be exactly the same for both the push button and chime for this system to function.

Code Settings

-2-

598-1000-05

Your Heath

/Zenith wireless chime has different selectable tunes: Ding (one

Tune Settings

note), Ding-Dong (two note), or Westminster (eight note) (Available on selected Heath®/Zenith chimes). The factory setting is for the Ding-Dong tune (or Westminster, when available). This tune can be changed by following the instructions below.

• Ding (one note tune) Push Button: Add a jumper to location 8.

• Ding-Dong (two note tune) Push Button: Remove jumper from location 8. Chime: Remove jumper from location 8.

• Westminster (Eight note tune) (Available on selected Heath®/Zenith chimes) Push Button: Remove jumper from location 8. Chime: Add a jumper to location 8.

Note: All models have both front and back door tune capabilities. You may purchase any Heath

/Zenith wireless push button for a second entrance. We

recommend the back door use the Ding tune and the front door use the Ding-Dong tune (or Westminster tune, available on selected Heath®/Zenith chimes). Models that include two push buttons will come factory set for front and back doors. Decals on the rear of the push button will indicate its setting.

Push Button Battery Replacement

Chime Volume

Control

Install an alkaline type A23 12 Volt battery. See diagram inside push button for correct battery orientation.

Inside Chime

598-1000-05

12345678

Tune Setting (Not used on

all models)

12345678

Inside Push

Button

-3-

* Code Settings 1-7

Must Match Both Push Button and

Chime

Tune Setting

Note: Some models might require the use of tweezers to remove and replace the jumpers.

Troubleshooting

Chime does not sound:

• Make sure push button and chime codes are the same (See pages 2 and 3).

• Check orientation of push button battery (See page 3).

• Check charge of push button and chime batteries, replace if necessary.

Batteries seem OK, but the chime does not work when installed:

• Do not mount chime or push button on metal or near metal studs. This reduces the transmitter range. Use 1/4" to 1/2" (6 to 13 mm) wood shims to move chime or push button off metal surface.

• Concrete floors may reduce range. Move chime away from floor.

•Try locating chime closer to push button.

The range of the wireless chime can vary with location, temperature and battery condition.

Technical Service

If you experience a problem, follow this guide. You may also want to visit our Web site at: www.desatech.com. If the problem persists, call* for assistance at 1- 800-858-8501, 7:30 AM to 4:30 PM CST (M-F). You may also write* to: DESA Specialty Products™ P.O. Box 90004, Bowling Green, KY 42102-9004 ATTN: Technical Service Specialty Products

* If contacting Technical Service, please have the following information available: Model Number, Date of Purchase, and Place of Purchase.

No Service Parts Available for this Product

(Do Not Send Products)

Regulatory Information

This device (SL-6195-RX, WB-94A-TX, or WB-97-TX) complies with Part 15 of the FCC Rules and RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The user is cautioned that changes or modifications not expressly approved by the party responsible for regulatory compliance could void the user’s authority to operate the equipment.

-4-

598-1000-05

This is a "Limited Warranty" which gives you specific legal rights. You may

FIVE YEAR LIMITED WARRANTY

also have other rights which vary from state to state or province to province. For a period of five years from the date of purchase, any malfunction caused by factory defective parts or workmanship will be corrected at no charge to you. Batteries are not covered. To obtain a refund or a replacement, return the product to the place of purchase. Not Covered - Repair service, adjustment and calibration due to misuse, abuse or negligence, light bulbs and other expendable items are not covered by this warranty. Unauthorized service or modification of the product or of any furnished component will void this warranty in its entirety. This warranty does not include reimbursement for inconvenience, installation, setup time, loss of use, or unauthorized service. This warranty covers only DESA Specialty Products™ assembled products and is not extended to other equipment and components that a customer uses in conjunction with our products. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY, REPRESENTATION OR CONDITION OF MERCHANT ABILITY OR THAT THE PRODUCTS ARE FIT FOR ANY PARTICULAR PURPOSE OR USE, AND SPECIFICALLY IN LIEU OF ALL SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES. REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF THE CUSTOMER AND THERE SHALL BE NO LIABILITY ON THE PART OF DESA SPECIALTY PRODUCTS™ FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO ANY LOSS OF BUSINESS OR PROFITS, WHETHER OR NOT FORESEEABLE. Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Retain receipt for warranty claims.

DESA Specialty Products™ reserves the right to discontinue and to change specifications at any time without notice without incurring any obligation to incorporate new features in previously sold products.

598-1000-05

-5-

Campanilla Decorativa Inalámbrica

Serie SL-6155 y Serie SL-6250

Este paquete tiene (El estilo del pulsador y de la campana puede variar de la ilustración):

• Campana Inalámbrica

• Pulsador inalámbrico con batería

• Paquete de ferretería

Usted deberá comprar 3 pilas alcalinas “D” para el timbre. Con un uso normal, las pilas alcalinas durarán hasta tres años.

1.Instalar pila alcalina de botón tipo A23 de 12

voltios. Extraer la parte posterior de la caja

presionando la aleta en el botón con un destornillador pequeño. Asegurarse que la pila esté orientada correctamente (ver la página 9).

Vea la página 7 para ver cómo quitar la caja de la campana.

2.Coloque las 3 pilas alkalinas

“D”. Asegúrese de que estén

correcta-mente colocadas.

3. Pruebe el alcance. Ponga provisionalmente la campana y el pulsador en

la posición donde los quiera instalar. Presione el pulsador para verificar que la campanay el pulsador funcionen apropiadamente. Si la campana no suena, vea Análisis de Averías.

-6-

598-1000-05
