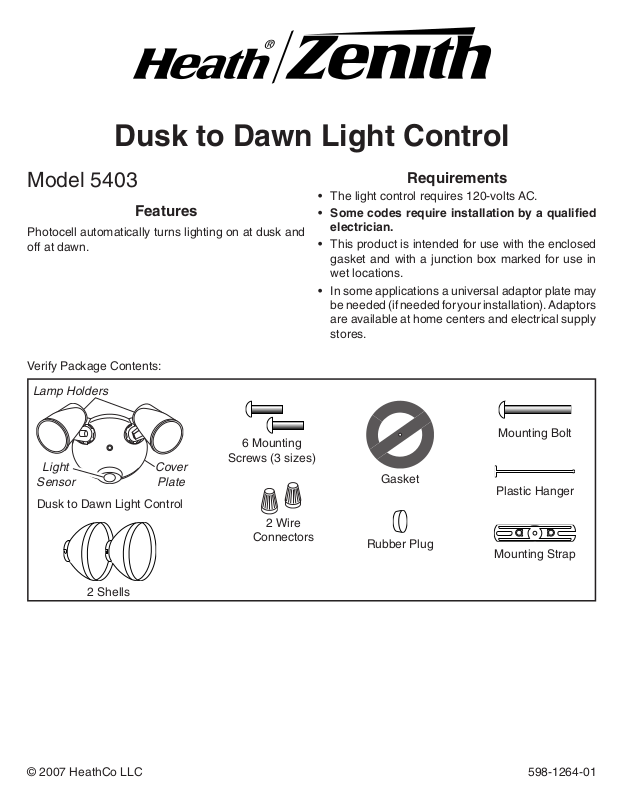

Heath Zenith 5403 User Manual
Dusk to Dawn Light Control
Model 5403
Features
Photocell automatically turns lighting on at dusk and
off at dawn.

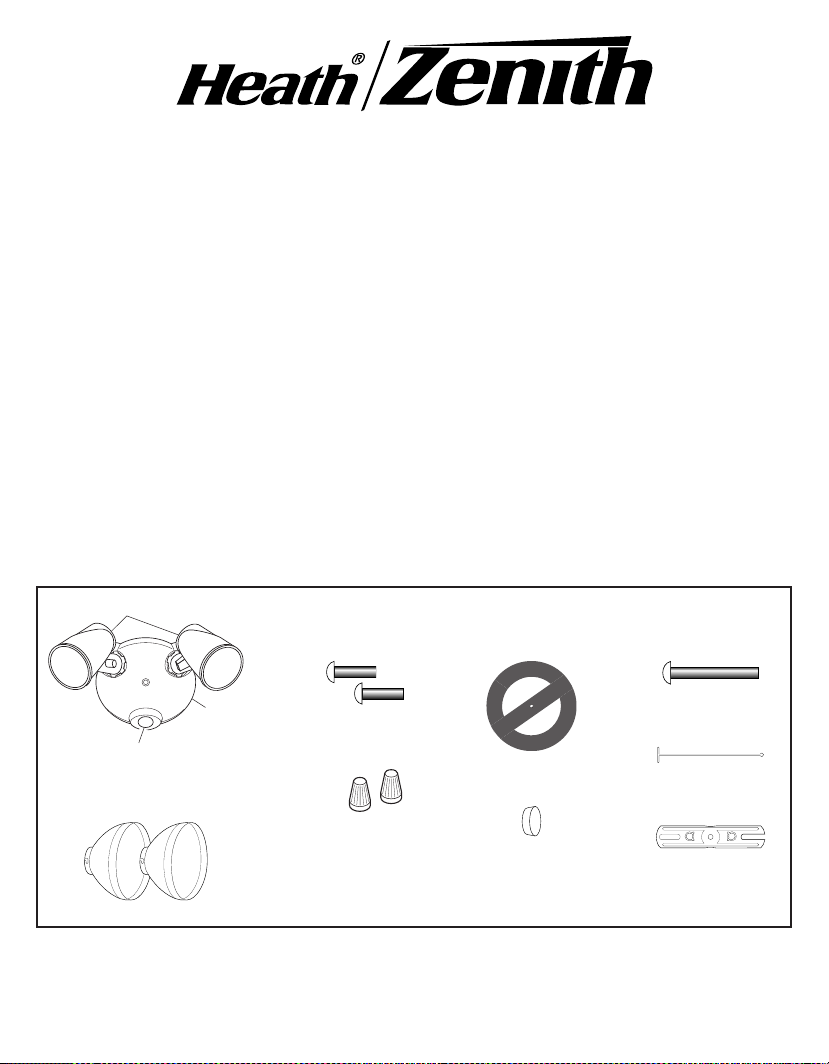

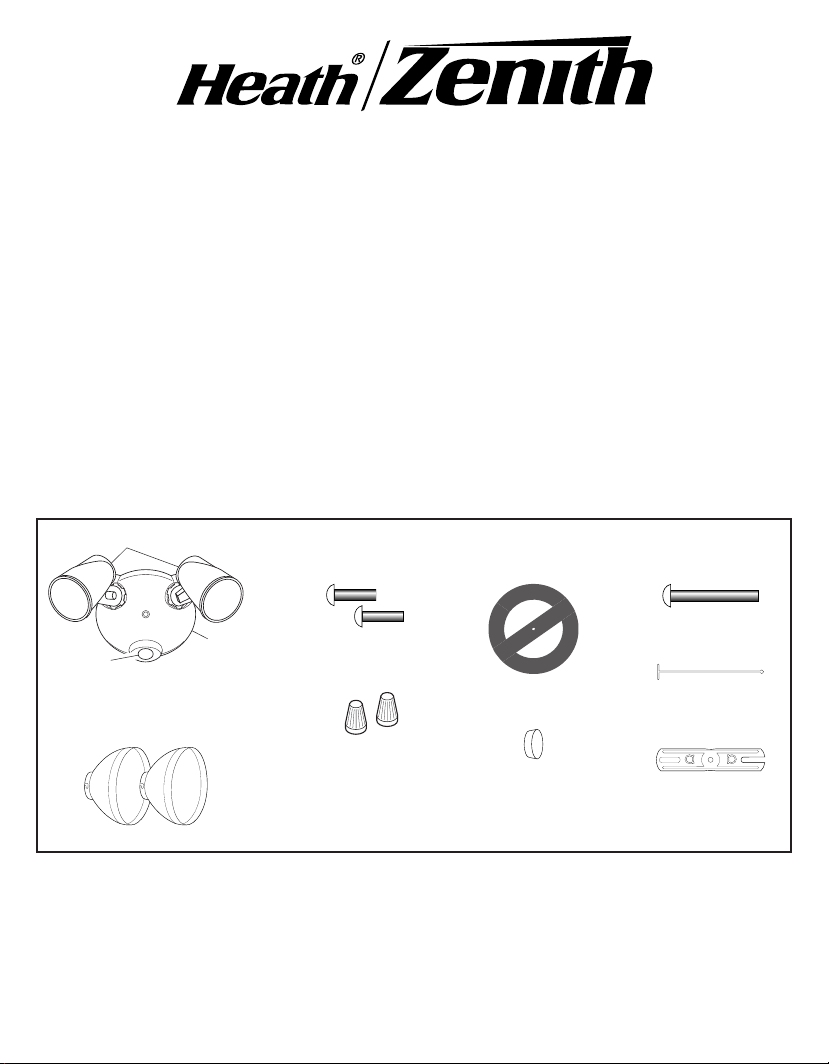

Verify Package Contents:
Lamp Holders
6 Mounting
Light
Sensor
Dusk to Dawn Light Control
2 Shells
Cover
Plate
Screws (3 sizes)
2 Wire
Connectors
Requirements
• The light control requires 120-volts AC.
• Some codes require installation by a qualified
electrician.
• This product is intended for use with the enclosed
gasket and with a junction box marked for use in
wet locations.
• In some applications a universal adaptor plate may
be needed (if needed for your installation). Adaptors
are available at home centers and electrical supply
stores.
Mounting Bolt
Gasket
Rubber Plug
Plastic Hanger
Mounting Strap
© 2007 HeathCo LLC 598-1264-01
INSTALLATION
For easy installation, select an existing light operated
by a wall switch for replacement.
IMPORTANT: Avoid mounting light control in an
extremely dark area. This may cause the lights to
stay on all the time.
For best performance, mount the fixture about 8 feet
(2.4 m) above the ground.

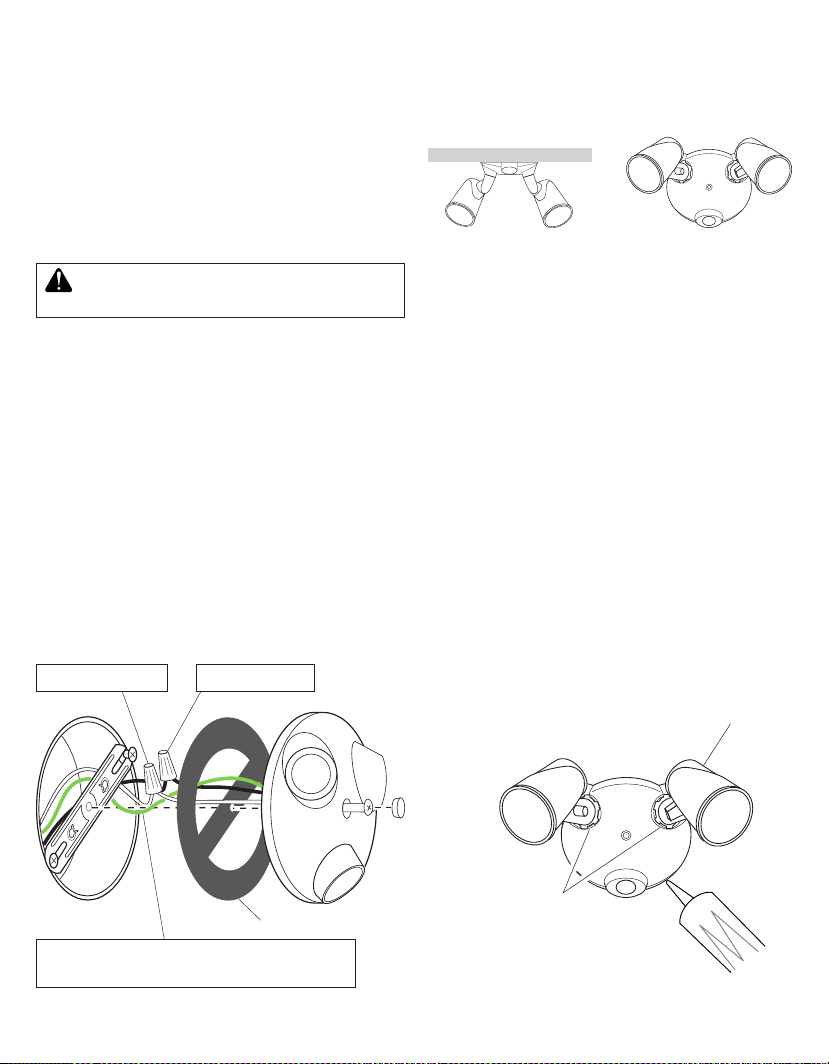

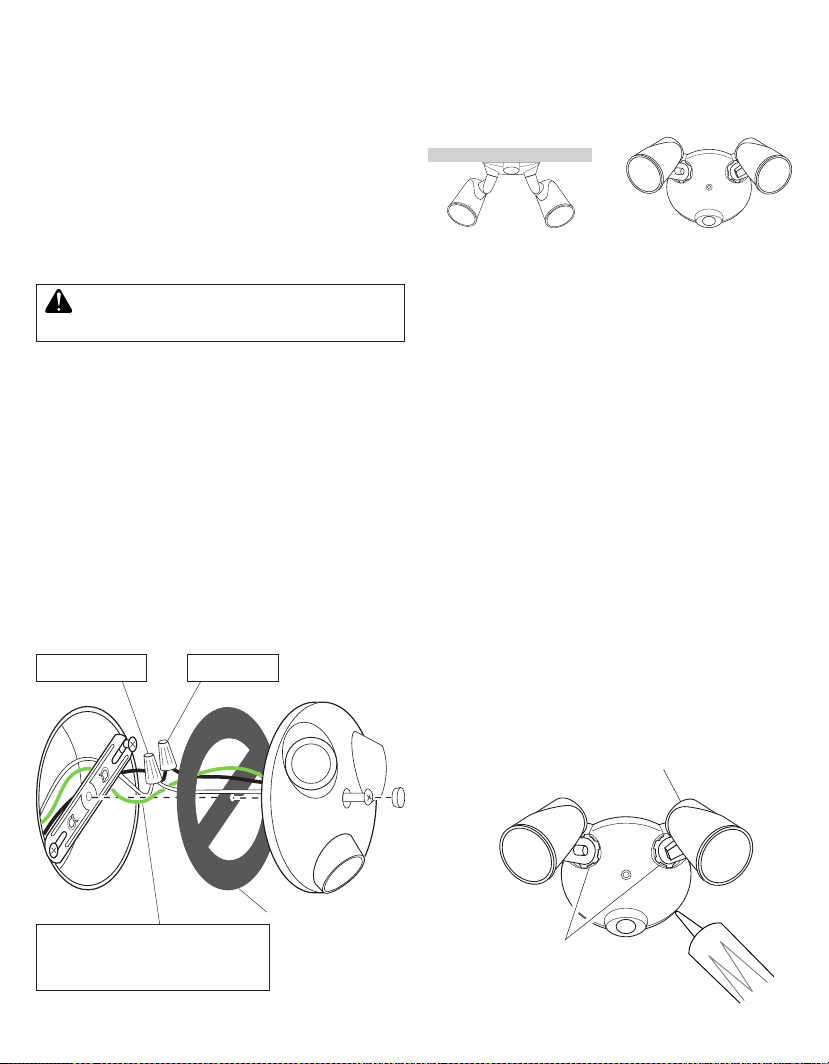

Mount the Light Control
IMPORTANT: For under eave installation, the
light sensor needs to face toward the changing
light source.
Wire the Light Control
WARNING: Turn power off at the fuse or
circuit breaker.
1. Remove the existing light fixture.
2. Install the mounting strap as shown using two
screws that fit your junction box.
3. The plastic hanger can be used to hold the fixture
while wiring. The small end of the plastic hanger
can be threaded through the hole in the center of
the cover plate. The small end then goes into one
of the slots on the mounting strap.
4. Route the light control’s wires through the large
gasket hole.
5. Connect the junction box wires to the light control
wires. Twist together and secure with a wire connector.
White to White
Black to Black
Eave Mount Wall Mount
1. Align the light control cover plate and cover plate
gasket. Secure with the mounting bolt.
2. Align the three slots in the decorative shell with the
lamp holder pins. Push the shell in and then twist
clockwise to lock. Repeat for other shell.
3. Push the Rubber Plug firmly into place.
4. If not installed on a weatherproof box or if an adaptor plate (not included) was used, caulk the wall
plate and mounting surface with silicone.
5. Adjust the lamp holders by loosening the lock nuts
but do not rotate the lamp holders more than 180°
from the factory setting. When screwing in the
floodlamps, do not overtighten.
Avoid water damage and
electrical shock - keep lamp
holders below horizontal.
Lock Nuts
Junction box ground wire to
green ground screw on fixture.
Gasket
2 598-1264-01
TEST AND ADJUSTMENT
Turn on the circuit breaker and light switch.
Monitor light control to verify that the lights come on
at night and turn off during the day.
Adjust lamp holders as needed.
WARNING: Risk of fire. Do not aim the lamps
at a combustible surface within 3 ft. (1 m).
Electrical Load ............Up to 300 Watt Maximum
Power Requirements ..120 VAC, 60 Hz
Operating Modes ........Dusk to Dawn
HeathCo LLC reserves the right to discontinue products and to change specifications at any time without
incurring any obligation to incorporate new features
in products previously sold.
SPECIFICATIONS
TROUBLESHOOTING GUIDE
SYMPTOM POSSIBLE CAUSE SOLUTION
Lights will not come on. 1. Light switch is turned off.
2. Floodlight is loose or burned out.
3. Fuse is blown or circuit breaker is
turned off.
4. Daylight turn-off is in effect.
5. Incorrect circuit wiring, if this is a
new installation.
Lights stay on continuously. Light control is mounted in a dark
location.
Lights flash on and off. 1. Light may be leaking through the
floodlamp reflectors.
2. Light control may be sensing shadows.
1. Turn light switch on.
2. Check floodlight and replace if
burned out.
3. Replace fuse or turn circuit breaker
on.
4. Recheck after dark.
5. Verify wiring is correct.
Relocate light control to an area that
receives more light.
1. Replace the lamps with new high
quality PAR 38 lamps.
2. Relocate light control to an area
away from shadows.
Incandescent [Up to 150 Watt
maximum each lamp holder.]
3598-1264-01
TECHNICAL SERVICE
Please call 1-800-858-8501 (English speaking only) for assistance
before returning product to store.
If you experience a problem, follow this guide. You may also want to visit our Web site at: www.hzsupport.
com. If the problem persists, call* for assistance at 1-800-858-8501 (English speaking only), 7:30 AM to 4:30
PM CST (M-F). You may also write* to:
HeathCo LLC
P.O. Box 90004, Bowling Green, KY 42102-9004
ATTN: Technical Service
* If contacting Technical Service, please have the following information available: Model Number, Date of
Purchase, and Place of Purchase.
No Service Parts Available for this Product
TWO YEAR LIMITED WARRANTY
This is a “Limited Warranty” which gives you specific legal rights. You may also have other rights which
vary from state to state or province to province.
For a period of two years from the date of purchase, any malfunction caused by factory defective parts
or workmanship will be corrected at no charge to you.
Not Covered - Repair service, adjustment and calibration due to misuse, abuse or negligence, light
bulbs, batteries, and other expendable items are not covered by this warranty. Unauthorized service
or modification of the product or of any furnished component will void this warranty in its entirety. This
warranty does not include reimbursement for inconvenience, installation, setup time, loss of use, unauthorized service, or return shipping charges.
This warranty covers only HeathCo LLC assembled products and is not extended to other equipment
and components that a customer uses in conjunction with our products.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING ANY WARRANTY, REPRESENTATION OR CONDITION OF MERCHANT ABILITY OR
THAT THE PRODUCTS ARE FIT FOR ANY PARTICULAR PURPOSE OR USE, AND SPECIFICALLY
IN LIEU OF ALL SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF THE CUSTOMER AND THERE SHALL
BE NO LIABILITY ON THE PART OF HEATHCO LLC FOR ANY SPECIAL, INDIRECT, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO ANY LOSS OF BUSINESS OR
PROFITS, WHETHER OR NOT FORESEEABLE. Some states or provinces do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply
to you. Please keep your dated sales receipt, it is required for all warranty requests.
4 598-1264-01
