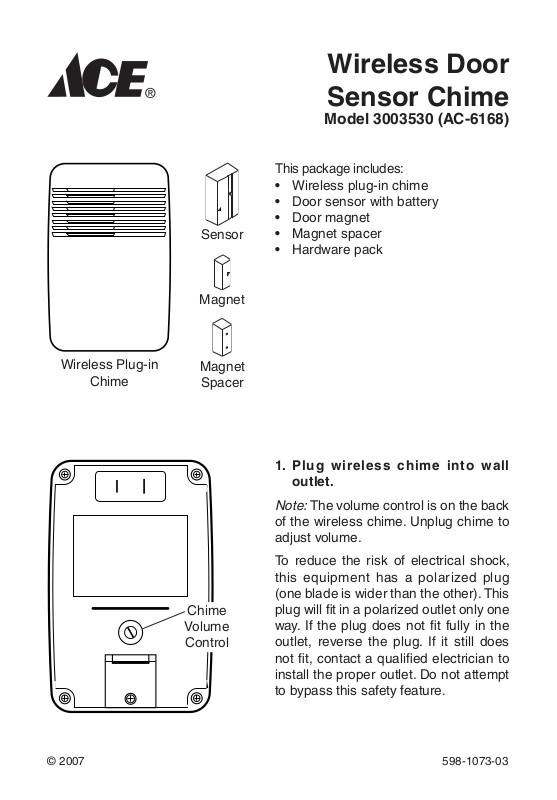

Heath Zenith 3003530 User Manual
Sensor
Magnet
Wireless Door
Sensor Chime
Model 3003530 (AC-6168)

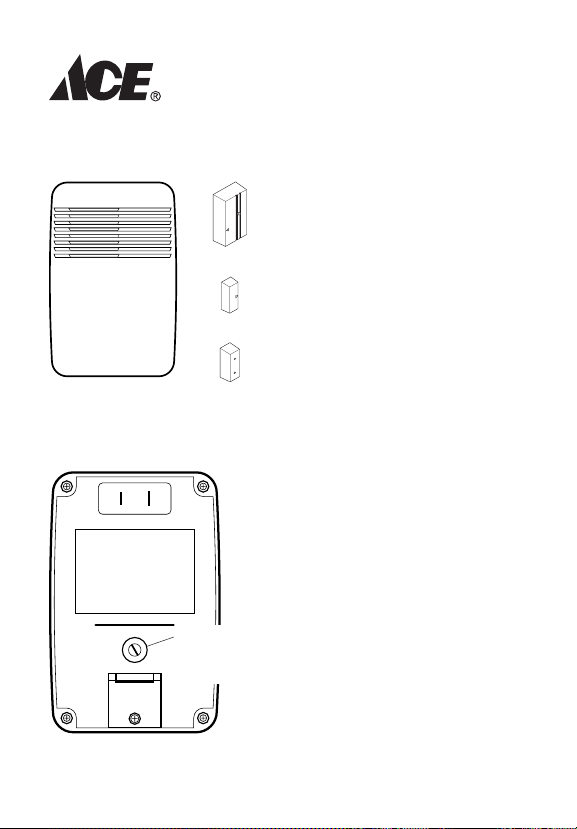

This package includes:
• Wireless plug-in chime
• Door sensor with battery
• Door magnet
• Magnet spacer
• Hardware pack
Wireless Plug-in
Chime
© 2007 598-1073-03
Magnet
Spacer
Chime
Volume
Control
1. Plug wireless chime into wall
outlet.
Note: The volume control is on the back
of the wireless chime. Unplug chime to
adjust volume.
To reduce the risk of electrical shock,
this equipment has a polarized plug
(one blade is wider than the other). This
plug will fit in a polarized outlet only one
way. If the plug does not fit fully in the
outlet, reverse the plug. If it still does
not fit, contact a qualified electrician to
install the proper outlet. Do not attempt
to bypass this safety feature.
Installation

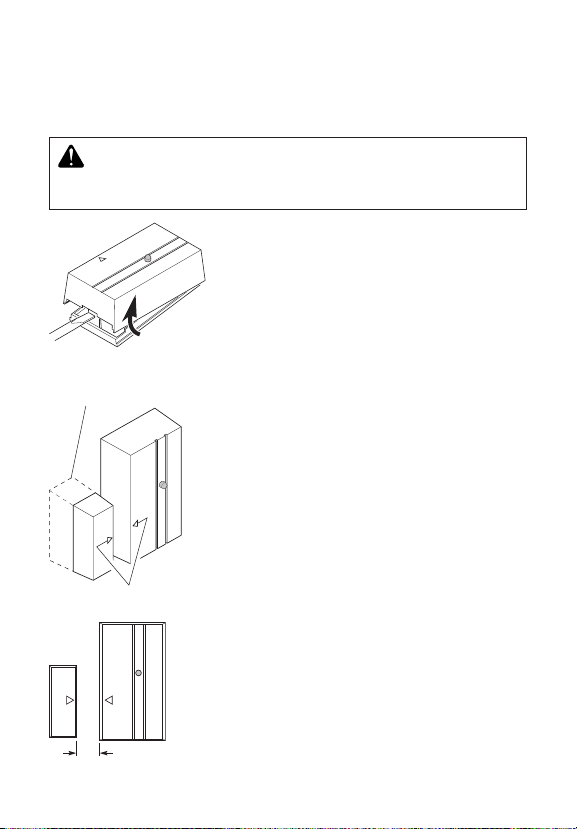

Important considerations: The sensor must be mounted to the door jamb. The
magnet should be attached to the door. Sensor is for indoor use only.
WARNING: To prevent possible SERIOUS INJURY or DEATH:
• NEVER allow small children near batteries.
• If battery is swallowed, immediately notify doctor.
Use Optional
Spacer if Needed
Alignment Arrows
1/2" Maximum
2. Install alkaline type A23 12 volt push button
battery (included).
pushing in tab on bottom with a small screwdriver. See diagram inside sensor for correct
battery orientation.
3. Select mounting location. The maximum gap
between sensor and magnet is 1/2" (13 mm).
The arrows located on the face of each component must be aligned and facing toward each
other. The magnet must be beside the sensor.
Note: If the magnet is recessed, use spacer to
ensure proper alignment.
4. Test range. Before mounting, hold sensor and
magnet in selected location and verify operation. While holding the sensor still, move the
magnet away from the sensor to simulate door
being opened. Verify red LED on sensor flashes
momentarily and chime sounds. Note: If sensor
does not operate correctly, see Troubleshooting
Guide.
-2- 598-1073-03
Remove back of case by
Use Optional
Spacer if Needed

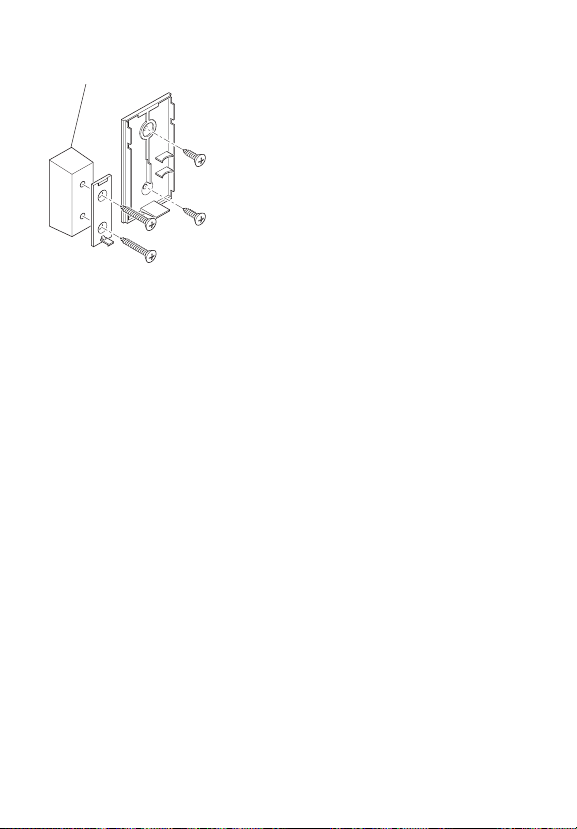

5. Mount sensor.
Screw Mounting: Attach sensor back cover to
wall using two short screws (provided). Snap
sensor onto back cover.
Tape Mounting: Apply foam tape to the sensor
back cover. Stick sensor back cover to frame of
door in desired position. Snap sensor onto back
cover.
6. Mount magnet. Repeat step 5 to attach magnet
(and spacer if needed) to door using two screws
(provided). Note: If using spacer, use the two
long screws (provided).
-3-598-1073-03
Tune Settings
Your wireless chime has different selectable tunes: Ding (one note), Ding-Dong
(two note), or Westminster (eight note) (Available on selected chimes). The
factory setting is for the Ding-Dong tune (or Westminster, when available). This
tune can be changed by following the instructions below.
• Ding (one note tune)
Sensor: Add a jumper to location 8.
• Ding-Dong (two note tune)
Sensor: Remove jumper from location 8.
Chime: Remove jumper from location 8.
• Westminster (Eight note tune) (Available on selected chimes)
Sensor: Remove jumper from location 8.
Chime: Add a jumper to location 8.
Note: All models have both front and back door tune capabilities. You may
purchase any ACE® wireless push button for a second entrance.

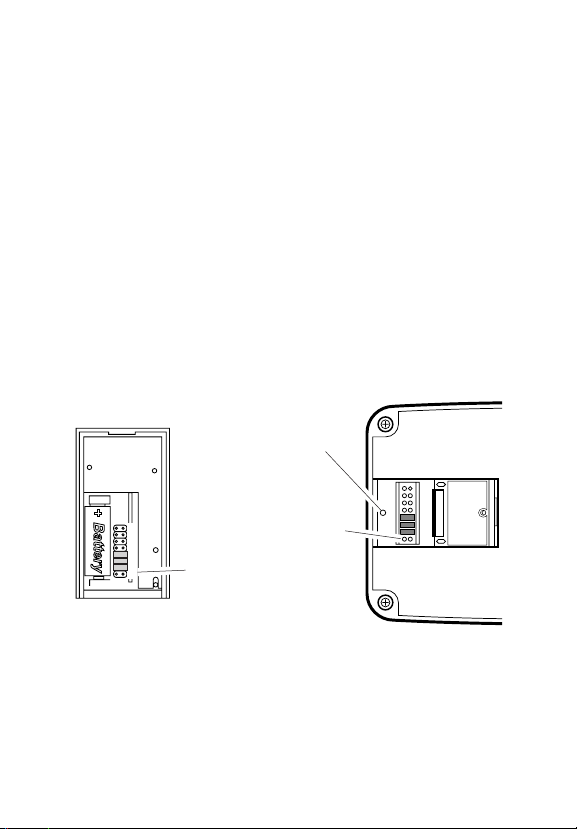

Remove screw to
open access door
12345678
1234 5678
Inside
Sensor
Tune Setting (Not
used on all models)
Tune Setting
Back of Chime
Note: Some models might require
the use of tweezers to remove and
replace the jumpers.
-4- 598-1073-03
A. Chime does not sound:
Troubleshooting
• Red light on the sensor does not light. Check battery polarity. Replace the
sensor battery.
• Red light on the sensor does light. Make sure sensor and chime codes
are the same (see Code Setting below). Make sure the plug-in chime has
power going to it.
B. Chime sounds when not intended (false triggers): Chime is receiving
interference from another wireless device; change the code setting (see
Code Setting below).
C. Battery seems OK, but the chime does not work when installed:
• Do not mount the sensor on metal or near metal studs. This reduces the
sensor range. Use 1/4" to 1/2" (6 to 13 mm) wood shims to move the sensor off the metal surface.
• Concrete floors may reduce range. Move chime away from floor.
• Try different locations for the chime closer to the sensor.
D. Code Setting:
It is recommended to only change one code position at a time and then check
to see if system is functioning properly.
1. Unplug chime from power source.
2. Open the cases and locate the jumpers on both the sensor and chime.
3. The sensor and chime both have eight different jumper locations. Jumper
positions 1 through 7 are used for setting the code.
-5-598-1073-03
Continued
4. To change the code, either:
• Add a jumper to the same location on both the sensor and the chime
or...
• Remove a jumper from the same location on both the sensor and the
chime or...
• Move a jumper on the sensor from one location to another. Move the corre-
sponding jumper on the chime to match the new location in the sensor.
Example: Move jumper at location “5” to location “4” on both the sensor
and the chime.
Note: Jumpers in positions 1 through 7 must be exactly the same for both
the sensor and chime for this system to function.
Note: Unit will come factory set with jumpers in locations 5, 6, and 7 on the
sensor and on the chime.
The range of the wireless chime can vary with location, temperature, and
battery condition.

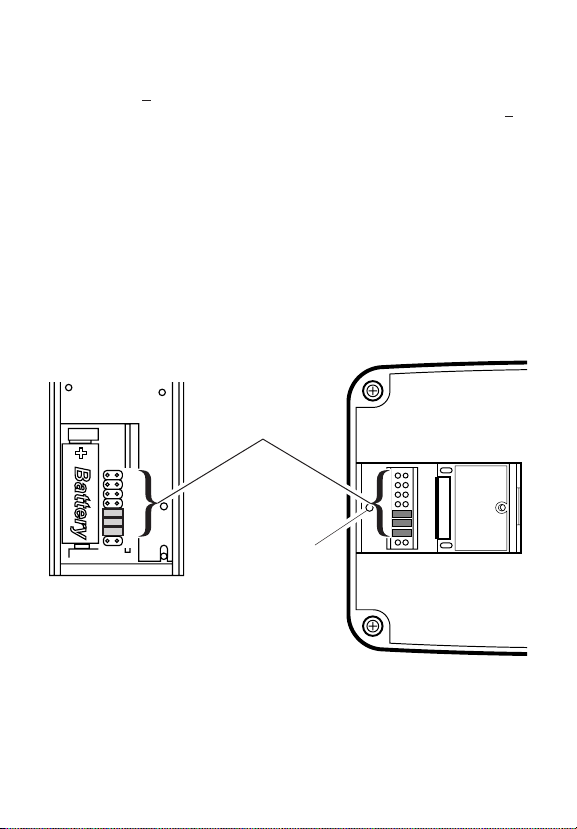

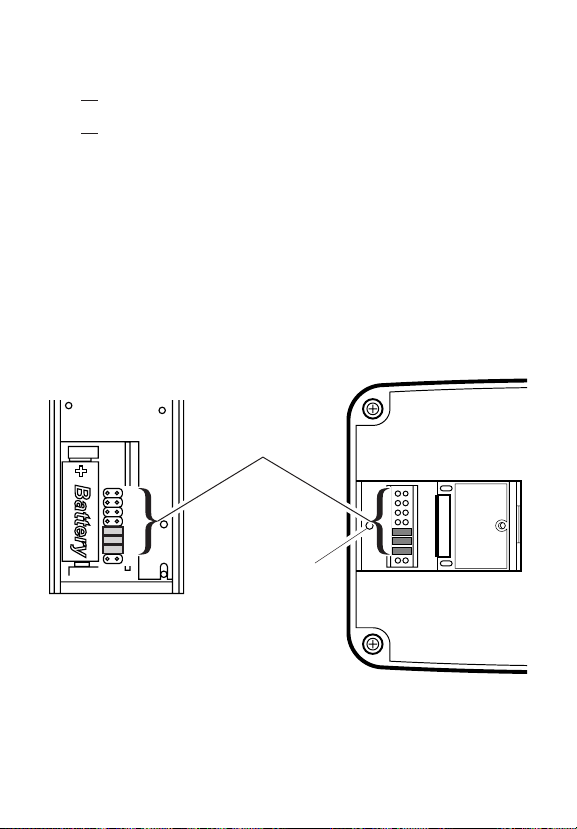

* Code Settings 1-7
Must Match Both
Sensor and Chime
12345678
12345678
Remove
screw to open
access door
Inside
Sensor
Back of Chime
Note: Some models might require the use of
tweezers to remove and replace the jumpers.
ACE® reserves the right to discontinue and to change specifications at any time without notice
without incurring any obligation to incorporate new features in previously sold products.
-6- 598-1073-03
Please call 1-800-858-8501 (English speaking only) for assistance
If you experience a problem, follow this guide. You may also want to visit our
Web site at: www.hzsupport.com. If the problem persists, call* for assistance
at 1-800-858-8501, 7:30 AM to 4:30 PM CST (M-F). You may also write* to:
HeathCo LLC
P.O. Box 90004, Bowling Green, KY 42102-9004
ATTN: Technical Service
* If contacting Technical Service, please have the following information available:
Model Number, Date of Purchase, and Place of Purchase.
before returning product to store.
No Service Parts Available for this Product
Regulatory Information
This device complies with Part 15 of the FCC Rules and RSS-210 of Industry
Canada. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
The user is cautioned that changes or modifications not expressly approved by
the party responsible for regulatory compliance could void the user's authority
to operate the equipment.
Technical Service
This is a “Limited Warranty” which gives you specific legal rights. You may also have
other rights which vary from state to state or province to province.
For a period of five years from the date of purchase, any malfunction caused by factory
defective parts or workmanship will be corrected at no charge to you.
Not Covered -
negligence, light bulbs, batteries, and other expendable items are not covered by
this warranty. Unauthorized service or modification of the product or of any furnished
component will void this warranty in its entirety. This warranty does not include
reimbursement for inconvenience, installation, setup time, loss of use, unauthorized
service, or return shipping charges.
This warranty covers only ACE® assembled products and is not extended to other equipment and components that a customer uses in conjunction with our products.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY, REPRESENTATION OR
CONDITION OF MERCHANT ABILITY OR THAT THE PRODUCTS ARE FIT FOR ANY
PARTICULAR PURPOSE OR USE, AND SPECIFICALLY IN LIEU OF ALL SPECIAL,
INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF THE CUSTOMER
AND THERE SHALL BE NO LIABILITY ON THE PART OF ACE® FOR ANY SPECIAL,
INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, INCLUDING BUT
NOT LIMITED TO ANY LOSS OF BUSINESS OR PROFITS, WHETHER OR NOT
FORESEEABLE. Some states or provinces do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply
to you. Please keep your dated sales receipt, it is required for all warranty requests.
FIVE YEAR LIMITED WARRANTY
Repair service, adjustment and calibration due to misuse, abuse or
-7-598-1073-03
Detector
Imán
Campana
inalámbrica para el
detector de puerta
Model 3003530 (AC-6168)
Este paquete tiene:
•
Campana inalámbrica enchufable
• Detector de puerta con batería
• Imán para la puerta
• Espaciador del imán
• Paquete de accesorios
Campana inalámbrica
enchufable
© 2007 598-1073-03 S
Espaciador
del imán
Control del
Volumen de
la Campana
1. Enchufe la campana inalámbrica
en el tomacorriente de la pared.
Nota: El control del volumen está en
el reverso de la campana inalámbrica.
Para cambiar el volumen desenchufe
la campana.
Para reducir el riesgo de choque eléctrico, este equipo tiene un enchufe polarizado (una patilla es más ancha que la
otra). Este enchufe podrá insertarse en
un tomacorriente polarizado solamente
de una manera. Si el mismo no entra
completamente en el tomacorriente,
invierta el enchufe. Si aún no encaja
completamente, póngase en contacto
con un electrista competente para qua
éste instale el tomacorriente correcto.
No trate de suprimir esta característica
de seguridad.
-8- 598-1073-03
