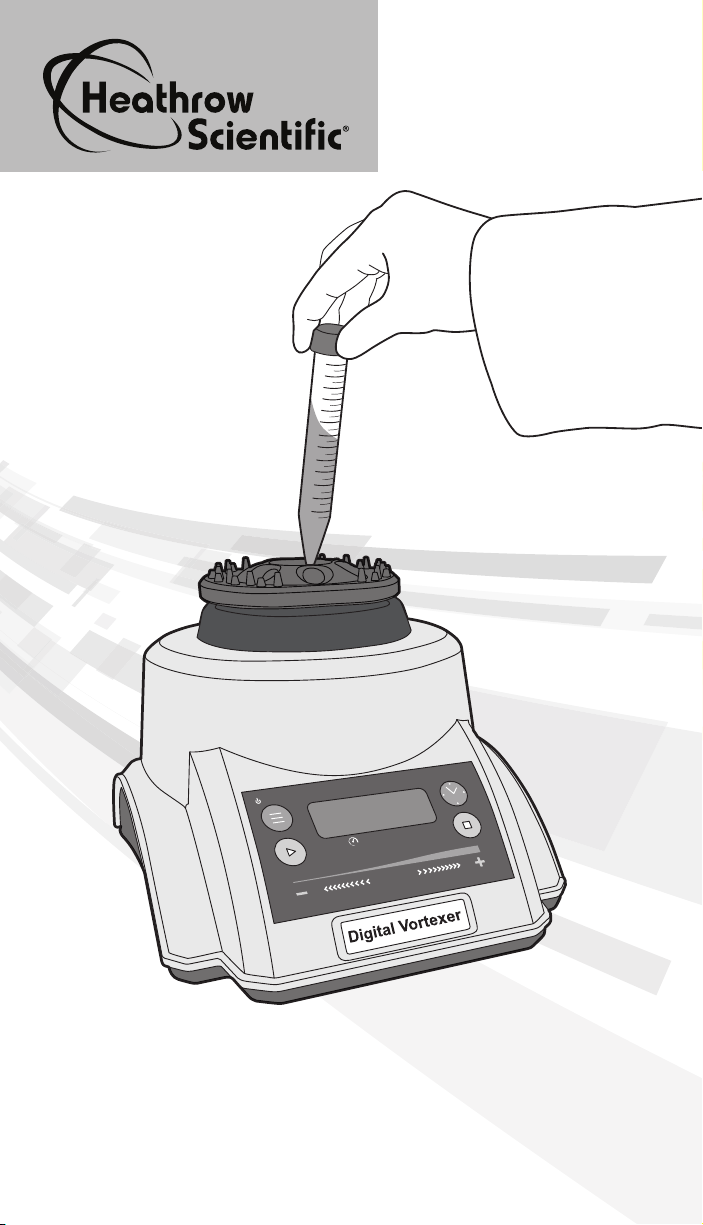

Page 1
Instruction
Manual
Digital
Vortexer
/SELECT
TIME
TIME
TOUCH & SLIDE
Page 2
Table of Contents
Safety Precautions ............................................................. 3
Technical Data
Supplied Equipment ......................................................... 5
Environmental Ratings ...................................................... 6
Compliance Guidelines ..................................................... 7
EC Declaration of Conformity ........................................... 8
UKCA Declaration of Conformity ...................................... 9
Display ............................................................................. 10
Operation ........................................................................ 11
Troubleshooting .............................................................. 12
Maintenance .................................................................... 12
Warranty .......................................................................... 13
Return for Repair ............................................................. 14
Disposal Responsibilities ................................................. 14
2
Page 3
Safety Precautions
This vortex unit is intended for use as a general-purpose laboratory
instrument for the mixing together or agitating different compounds
for laboratory purposes. This vortex unit is intended to be operated
by laboratory personnel.
This instruction manual cannot address all safety hazards. It is the
responsibility of the user to consult and observe all health and safety
precautions and to assess the instrument’s suitability to the task.
Caution!
Before starting the device for the rst time, please read this instruction manual carefully. This manual contains important information,
safeguards, and operating instructions.
1. Always completely inspect the device including the rotor for damage (broken or cracked housing and base, loose fasteners, damage from solvents, etc.) before connecting the power cord and
before each use. Do not use this device if any damage is found.
2. Do not attempt to disassemble any part of the centrifuge.
3. Never use this product in any manner inconsistent with these
instructions.
4. This product is intended to be used indoors only.
5. Use only the power adapter and grounded (earthed) power cords
delivered with the product, use of other power adapters and
grounded power cords will void the warranty. Only plug the power cable into properly grounded (earthed) electrical sockets.
6. This vortex unit is intended for conical bottom tubes, by pressing
the tube to the various vortex pockets to vortex/agitate the tube
contents.
7. Observe general laboratory safety precautions and regulations
when using this product.
8. Do not move unit while it is operating.
9. Do not immerse the product in water. Injury due to shock or re
may result.
10. Do not ever vortex anything without a securely fastened lid.
11. Follow all precautions from the Material Safety Data Sheet
(MSDS) for any reagent you use with this instrument.
3
Page 4
12. Do not use solvent or ammable liquids near this or other
electrical equipment.
13. Do not vortex ammable, explosive, or corrosive materials.
14. Do not operate in a hazardous or ammable environment.
15. Do not use any solvent on the unit that may attack plastic or
cause cracks in the rotors or corrode metal parts in the rotors.
16. Always work in a manner which endangers neither the user nor
any other person.
17. Should the instrument fail to work to specication, immediately
stop using it. Clean and troubleshoot the instrument according
to the instructions under “Trouble Shooting” before any further
use of the instrument. Contact an authorized dealer or the
manufacturer if trouble persists.
18. Do not attempt to stop a running unit manually. Doing so can
cause the unit to fail and will void the warranty.
19. Only use original manufacturer’s parts, AC adapters any other
spare parts.
20. Repairs are to be performed by trained and authorized service
personnel only. Contact Heathrow Scientic® LLC.
21. Opening the instrument housing or improper use of the
instrument voids the warranty. If there is a failure during the
warranty period, contact Heathrow Scientic® LLC for warranty
service.
22. Do not attempt to use units that have not been correctly installed
or repaired.
23. Do not attempt to disassemble or modify this product.
24. Store at room temperature in a dry area. Do not expose to
sunlight, moisture, or extreme temperatures for prolonged
periods of time.
25. Caution: Exposure to certain chemicals can damage unit causing
corrosion, crazing, and cracking of housing.
26. Always operate the unit on a level surface for best performance
and maximum safety.
Warning!
If the unit is not used as recommended by the manufacturer, the
overall safety will be impaired.
4
Page 5
Warning!
Check MSDS, wear required Personal Protective Equipment, and
observe all applicable local and national regulations before dispensing
and disposing of hazardous sample.
Warning!
The laboratory procedure should ensure that no person or hazardous
substances are present within a 24” zone around the device when
operating.
Warning!
Do not perform maintenance or service without rst completely.
Warning!
Do not use the unit in a hazardous atmosphere or with hazardous materials for which the unit was not designed. Also, the user should be
aware that the protection provided by the equipment may be impaired
when used incorrectly.
Warning!
ONLY use power cords and power adapter supplied with unit!
Warning!
Do not remove conical tube bottom from vortex pocket while running,
tube can y off out of control.
Technical Data
Supplied Equipment (Spare part item numbers):
Note: consumables (tubes, reagents, etc.) to be used within their
expiration date and are NOT INCLUDED with this product.
— Digital Vortexer
— Digital Vortexer Replacement Silicone Cap (120924)
— Universal AC power adapter with 4 plugs (120922)
5
Page 6
Environmental Ratings:
Note: For Indoor use
Altitude: Up to 2,000 m, Atmospheric Pressure: 80kPA – 107kPA
Operating Temperature: 2°C to 40°C
Maximum Relative Humidity:
80% RH up to 31°C decreasing linearly to 50% RH at 40°C
Environmental Storage and Transport Conditions:
Storage temperature: -20°C – 55°C
Atmospheric pressure: 80kPa – 107kPa Relative
humidity: ≤ 80% RH noncondensing
Precipitation: both unpacked vortexer and vortexer in
original packaging must be protected from precipitation
Dimensions: 201 mm x 155 mm x 142 mm (7.9”L x 6.1”W x 5.6”H)
Weight: 2.40 kg (5.2 lbs.)
Capacities: Unit was designed for any conical bottom tubes up
to 50 mL. Larger tubes with conical bottoms can be used for
mixing compounds with a maximum suggested time of 30
seconds.
Weight Limit of Sample: Do not exceed 500 grams / 1.1lbs.
Intermittent operation force: Press down on the Vortex plate
with approx. 900 grams / 2 pounds of force to activate the
intermittent operation. Applying excessive force can damage the
Vortexer.
Speed Range and Maximum Time for Operating
Modes:
Continuous mode:
RPM: RPM selection will range from 600 – 2,600 at increments of
200 (per the touch slide control).
Time: total run time limited to 50 hours.
6
Intermittent mode:
RPM: RPM selection will range from 600 – 3,600 at increments of
200 (per the touch slide control).
Time: total run time limited to 1 minute.
Speed Range:
Intermittent: 600 RPM – 3,600 RPM
Continuous: 600 RPM – 2,600 RPM
Electrical:
Power Adapter rating:
Input: 100 – 240VAC, 1.2A, 50/60Hz
Output: 12VDC, 3.0A, 36.0W
Power Unit rating:
Input: 12VDC
Current (under load): Approx. 2A Power: Approx. 20W
Page 7
Warning!
When plugging the power adapter into any outlet/socket. Only use
grounded (earthed) electrical outlets/sockets.
Compliance Guidelines:
This mark is the conrmation that the unit conforms to the EU
guidelines and has been tested according to the following EU
Declaration of Conformity.
Conforms to:
Safety Standards and Directives:
710213
EN/IEC 61010-1:2010 + A1:2019
EN/IEC 61010-2-051:2021/A11:2021
UL Std. 61010-1, 3rd Ed., Rev. July 19, 2019
2022 UL Std. 61010-2-051: 4th Ed., June 27, 2019
CAN/CSA C22.2 No. 61010-1-12 (R2022)
CAN/CSA C22.2 No.61010-2-051:2021/A11:2021
2014/35/EU (Low Voltage Directive)
2012/19/EU (WEEE)
2015/863/EU (RoHS)
EMC Standards:
EN/IEC 61326-1:2021
FCC Part 15, Subpart B: 2015
ICES-003, Issue 7 October 2020
This product has been tested to the requirements of CAN/
CSA C22.2 No. 61010-1 3rd edition, including Amendment 1,
or a later version of the same standard incorporating the same
level of testing requirements.
7
Page 8
Manufacturer: Heathrow Scientific® LLC, 620 Lakeview Parkway, Vernon Hills, IL 60061 USA
EC Declaration Of Conformity
European Contact: Emergo, Europe, Princessegracht 20, 2514AP, The Hague, The Netherlands
Product: Digital Vortexer
Product Model No(s): 120805, 120806, and 1208XX (XX = “00 – 04” or “07 – 50”)
This unit has been constructed and conforms to the following:
EMC Standards and Directives:
EN/IEC 61326-1:2021
FCC Part 15, Subpart B: 2015
ICES-003, Issue 7 October 2020
2014/35/EU (Low Voltage Directive)
2012/19/EU (WEEE)
RoHS (EU 2015/863)
Safety Standards and Directives:
EN/IEC 61010-1:2010 + A1:2019
EN/IEC 61010-2-051:2021/A11:2021
UL Std. 61010-1, 3rd Ed., Rev. July 19, 2019
2022 UL Std. 61010-2-051: 4th Ed., June 27, 2019
CAN/CSA C22.2 No. 61010-1-12 (R2022)
CAN/CSA C22.2 No.61010-2-051:2021/A11:2021
Signed:
Gary Kamees
Title: Vice President Product Development/Manufacturing
Location: Vernon Hills, IL
Date of Issue: March 2024
Note: Changes or modifications to the product not expressly approved by the manufacturer could
void the user’s authority to operate the equipment.
8
Page 9
Manufacturer: Heathrow Scientific® LLC, 620 Lakeview Parkway, Vernon Hills, IL 60061 USA
UKCA Declaration Of Conformity
European Contact: Emergo Consulting (UK) Ltd., Compass House, Viston Park Histon, Cambridge CB24 9BZ
Product: Digital Vortexer
Product Model No(s): 120805, 120806, and 1208XX (XX = “00 – 04” or “07 – 50”)
This unit has been constructed and conforms to the following:
Directives and Regulations:
Electrical Equipment (Safety) Regulations 2016
The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
The Electromagnetic Compatibility Regulations 2016
EMC Standards and Directives:
EN/IEC 61326-1:2021
FCC Part 15, Subpart B: 2015
ICES-003, Issue 7 October 2020
Safety Standards:
EN/IEC 61010-1:2010 + A1:2019
EN/IEC 61010-2-051:2021/A11:2021
UL Std. 61010-1, 3rd Ed., Rev. July 19, 2019
2022 UL Std. 61010-2-051: 4th Ed., June 27, 2019
CAN/CSA C22.2 No. 61010-1-12 (R2022)
CAN/CSA C22.2 No.61010-2-051:2021/A11:2021
Signed:
Gary Kamees
Title: Vice President Product Development/Manufacturing
Location: Vernon Hills, IL
Date of Issue: March 2024
Note: Changes or modifications to the product not expressly approved by the manufacturer could
void the user’s authority to operate the equipment.
9
Page 10

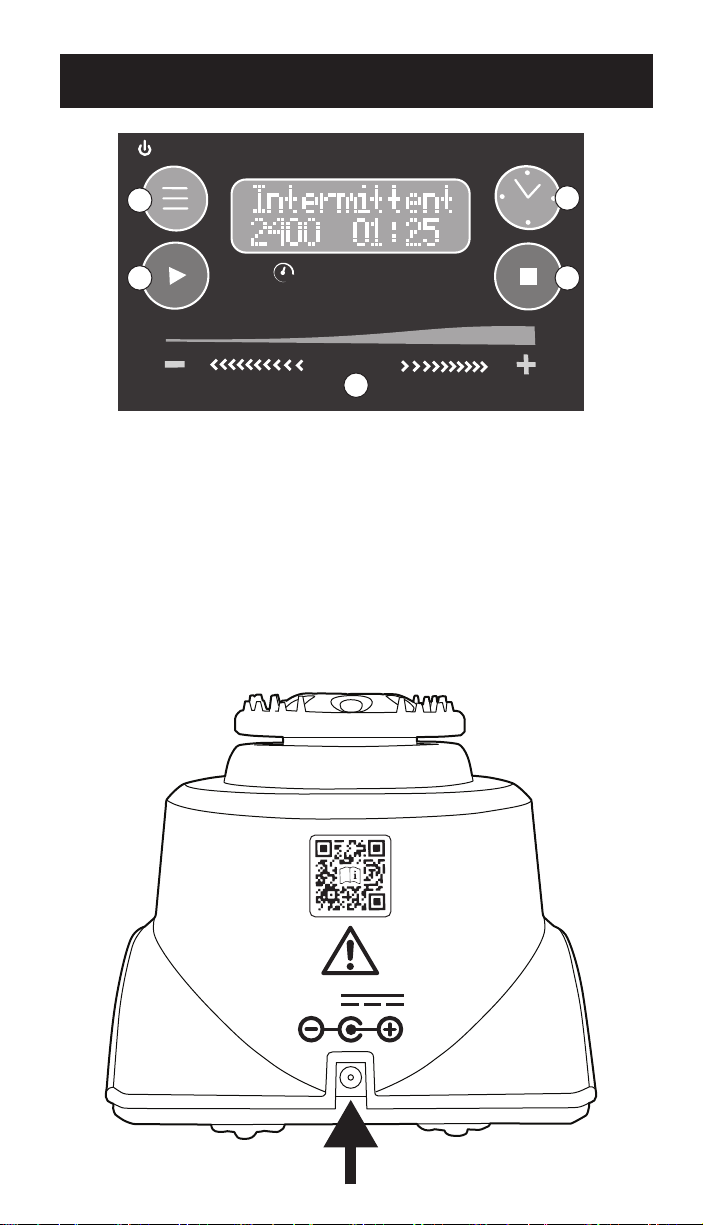

Display
/ SELECT
TIME
1
2
TOUCH & SLIDE
TIME
5
1. Power and Select
2. Play Button (used to start unit)
3. Time Control
Electric Plug Location
Plug power cord in bottom center of unit as shown below.
4. Stop
5. Touch & Slide to increase or
decrease current selection
3
4
10
12V
Page 11
Operation
1. Remove the contents from the package examining them carefully
for breakage, defects or missing parts.
2. Place the product on a clean sturdy, level surface at least 12” (30
cm) away from the edge of the counter and other moving equipment. Make sure the AC power adapter and cords are clear of
hot surfaces and other hazards. Ensure no person or hazardous
substances are within a 24” zone around the product.
3. Make sure the product has ventilation and is not encased in any
material that will limit airow. An overheating situation could occur.
4. Position product so that it is easy to disconnect from mains outlet.
5. Plug the DC cord into the rear of the unit and the AC cord an
approved outlet.
6. ONLY use Heathrow supplied power cord and adapter.
7. Do not unplug unit is in motion.
Prior to every use:
— Inspect unit for cracks, missing pieces, and or any damage that
would result in an impaired performance and notify manufacturer
BEFORE use.
— Make sure the power switch on the rear of the unit is set to “O”
which stands for “OFF”.
11
Page 12
Operating Instructions
/SELECT
TIME
TIME
TOUCH & SLIDE
1. Make sure unit is on acceptable work surface and connect to power,
unit will produce an audible beep when it is connected to power.
2. Display will show program mode, speed in rpm, and time.
3. For continuous mode press Play and the unit will turn on.
4. Turn unit on with power button, hold power button for a moment to
turn on (audible beep).
5. Once mode is chosen, RPM display will ash. To set speed use
Touch & Slide to desired number.
6. If time control is desired press time control button. Number value will
ash when ready to set, use Touch & Slide to enter number. Timer has
two setting modes: in seconds “s” or in minutes “m”. “s” displayed
/ Minutes & Seconds setting: max is 59 minutes : 59 seconds “m”
displayed / Hours & Minutes setting: max is 50 hours : 00 minutes

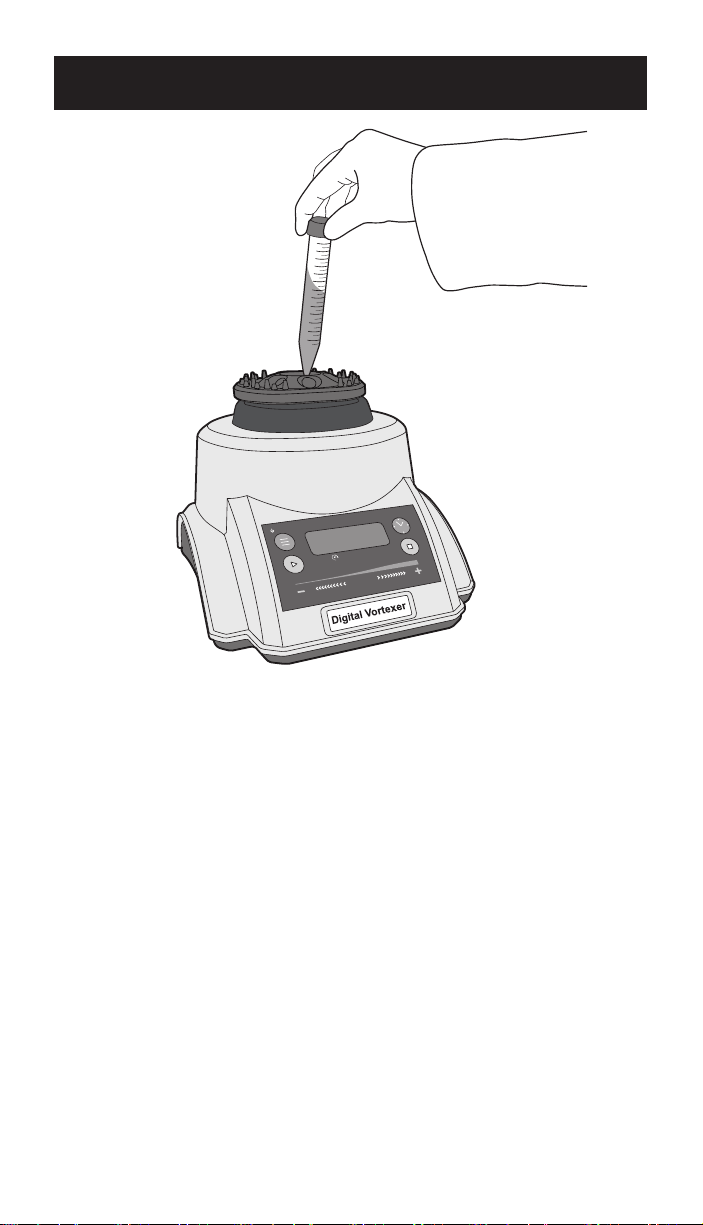

7. For intermittent mode a tube must be pressed into the vortex pocket
to activate the unit, unit will run until time runs out or tube is removed
from vortex pocket.
8. Turn unit off same way it is turned on.
12
Page 13
Troubleshooting
Trouble Resolution
No power present - Verify that the proper AC input power cord is
securely plugged into the power adapter.
- Verify that the proper AC input power cord
is fully plugged into a powered wall outlet. A
blue indicator light will illuminate on the power
adapter indicating that it has power.
- Verify that the round low voltage output cable of
the AC adapter is plugged into the device.
- Verify that the power switch on the rear of the
device is turned on.
Unit or display
is not operating
normally
- Turn off the unit, wait 1 minute to allow the
internal components to discharge and reset, and
then turn power on.
Maintenance
Vortex unit is normally maintenance-free. Clean unit only when it is
not plugged into an electrical outlet. When necessary, the housing
and rotor can be wiped using a damp cloth and a mild, non-corrosive
detergent.
Warning!
Do not use any solvent on the unit that may attack plastic or cause
cracks in the rotor. Ensure the rotor is protected from corrosion
and mechanical damage. The rotor must be cleaned with a neutral
cleaning liquid.
If hazardous material is spilled on the unit and or leaked into the unit,
do not run the device unless it is safe to do so.
13
Page 14
Warranty
IN NO EVENT WILL HEATHROW SCIENTIFIC® LLC’S OBLIGATION
UNDER THIS WARRANTY EXCEED THE PRICE OF THE PRODUCT.
Limited Warranty
Heathrow Scientic® LLC warrants that your Vortex Unit will be free
from defects in workmanship and material for ve years from the date of
purchase.
If you believe that there is a defect in the product, you must, during
the warranty period, notify Heathrow Scientic® LLC, provide proof of
purchase, and return the product to Heathrow Scientic® LLC with a
Return Authorization form. To obtain a Return Authorization form, please
call 1-847-816-5070. If Heathrow Scientic® LLC is properly notied and,
after inspection, conrms that there is a defect and the warranty period has
not expired, Heathrow Scientic® LLC will repair, modify, or replace the
product, at its sole option, at no charge.
OTHER THAN THIS LIMITED WARRANTY, HEATHROW SCIENTIFIC®
LLC MAKES NO WARRANTIES, EXPRESS OR IMPLIED, WITH
RESPECT TO THE QUALITY OR PERFORMANCE OF THE PRODUCT,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE
WHICH ARE HEREBY DISCLAIMED AND EXCLUDED. HEATHROW
SCIENTIFIC® LLC WILL IN NO EVENT BE LIABLE FOR ANY LOSS OF
USE, LOSS OF PROFITS, CONSEQUENTIAL, SPECIAL, EXEMPLARY
OR PUNITIVE DAMAGES.
THIS WARRANTY DOES NOT COVER:
• ANY DEFECT OR DAMAGE CAUSED BY IMPROPER OR
UNREASONABLE USE OF THE PRODUCT. (THE PRODUCT IS
DESIGNED FOR USE ONLY BY TRAINED LABORATORY TECHNICIANS.
USE BY ANYONE ELSE WILL VOID THIS WARRANTY.)
• ANY PRODUCT THAT HAS BEEN, IN HEATHROW SCIENTIFIC® LLC’S
SOLE JUDGEMENT, TAMPERED WITH, ALTERED, OR REPAIRED BY
ANYONE OTHER THAN HEATHROW SCIENTIFIC® LLC.
• ANY PRODUCT THAT IS INOPERATIVE BECAUSE OF: (a) WEAR
OCCASIONED BY USE, (b) NEGLIGENCE, (c) ACCIDENT, (d)
INCORRECT MAINTENANCE, OR (e) USE UNDER ABNORMAL
CONDITIONS OF TEMPERATURE, DIRT OR CORROSION, OR USE
WITH ABRASIVE OR CORROSIVE MATERIALS.
• ACCESSORY PARTS, SUCH AS RUBBER AND PLASTIC PARTS THAT
ARE DAMAGED BY LIQUIDS OR MISUSE.
14
Page 15
Return for Repair
Important:
Transporting hazardous materials without a permit is a violation of
federal law.
Heathrow Scientic® LLC will not accept any product return that is
not appropriately cleaned and decontaminated. In the unlikely event
of repair, or when damage to the unit necessitates return, contact
Heathrow Scientic® LLC, obtain return authorization, and complete
a Heathrow decontamination form BEFORE sending your product for
service.
Disposal Responsibilities
Important:
The equipment you purchased may contain hazardous substances
that could impact the environment. Per regulations on electronic
devices in the European Community, you must use the appropriate
disposal systems to avoid exposure of these substances to the
environment. The disposal systems will reuse or recycle hazardous
materials from your equipment responsibly.
The crossed-out wheeled bin symbol invites you to
use those systems.
If you need more information on the collection, reuse and recycling
systems, please contact your local or regional waste administration.
You can also contact us for more information on the environmental
performance of our products.
15
Page 16
16
620 Lakeview Parkway • Vernon Hills, IL 60061
Phone: 1-847-816-5070 • Fax: 1-847-816-5072
Email: [email protected]
Web: www.heathrowscientic.com
All rights reserved.
02/2024
©Heathrow Scientic® LLC
Loading...
