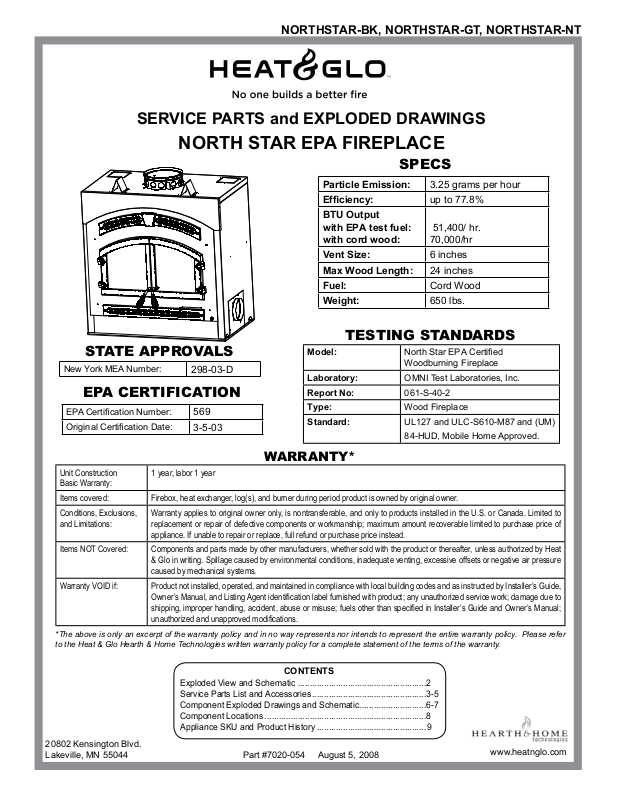

Page 1
NORTHSTAR-BK, NORTHSTAR-GT, NORTHSTAR-NT
SERVICE PARTS and EXPLODED DRAWINGS
NORTH STAR EPA FIREPLACE
SPECS
Particle Emission: 3.25 grams per hour
Efciency: up to 77.8%
BTU Output
with EPA test fuel:
with cord wood:
Vent Size: 6 inches
Max Wood Length: 24 inches
Fuel: Cord Wood
Weight: 650 lbs.
51,400/ hr.
70,000/hr
TESTING STANDARDS
STATE APPROVALS
New York MEA Number:
298-03-D
EPA CERTIFICATION
EPA Certication Number:
Original Certication Date:
Unit Construction
Basic Warranty:
Items covered: Firebox, heat exchanger, log(s), and burner during period product is owned by original owner.
Conditions, Exclusions,
and Limitations:
Items NOT Covered: Components and parts made by other manufacturers, whether sold with the product or thereafter, unless authorized by Heat
Warranty VOID if: Product not installed, operated, and maintained in compliance with local building codes and as instructed by Installer’s Guide,
*The above is only an excerpt of the warranty policy and in no way represents nor intends to represent the entire warranty policy. Please refer
to the Heat & Glo Hearth & Home Technologies written warranty policy for a complete statement of the terms of the warranty.
1 year, labor 1 year
Warranty applies to original owner only, is nontransferable, and only to products installed in the U.S. or Canada. Limited to
replacement or repair of defective components or workmanship; maximum amount recoverable limited to purchase price of
appliance. If unable to repair or replace, full refund or purchase price instead.
& Glo in writing. Spillage caused by environmental conditions, inadequate venting, excessive offsets or negative air pressure
caused by mechanical systems.
Owner’s Manual, and Listing Agent identication label furnished with product; any unauthorized service work; damage due to
shipping, improper handling, accident, abuse or misuse; fuels other than specied in Installer’s Guide and Owner’s Manual;
unauthorized and unapproved modications.
569
3-5-03
WARRANTY*
Model: North Star EPA Certied
Woodburning Fireplace
Laboratory: OMNI Test Laboratories, Inc.
Report No: 061-S-40-2
Type: Wood Fireplace
Standard: UL127 and ULC-S610-M87 and (UM)
84-HUD, Mobile Home Approved.
20802 Kensington Blvd.
Lakeville, MN 55044
CONTENTS
Exploded View and Schematic ......................................................2
Service Parts List and Accessories ................................................3-5
Component Exploded Drawings and Schematic ............................6-7
Component Locations ....................................................................8
Appliance SKU and Product History ..............................................9
Part #7020-054 August 5, 2008
www.heatnglo.com
Page 2
NORTHSTAR-BK, NORTHSTAR-GT, NORTHSTAR-NT
27-1/2"
12-3/8"
24"
2.0"
Ceramic Blanket
1
3
4
5
6
2
10
12
11
9
8
7
14
15
13
Figure 2.1 - North Star Fireplace Diagram
Page 2
Part number list on following page.
7020-054
August 5, 2008
Page 3
NORTHSTAR-BK, NORTHSTAR-GT, NORTHSTAR-NT
Service Parts & Accessories
North Star FP
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide
model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
How to Order:
To order the entire assembly, order the top line part number only.
To order an individual part from an assembly, order the part(s) listed in the indented portion.
Item Description Part No. Comments Serial
Exploded View Parts List - Numerical Order
1 Starter Plate Assembly SL1
8 inch Starter Section 22069B Y
2 Manifold Tube Set TUBES-480
Manifold Clip/Screws (4) 832-0661 Y
3 Blanket, 1 inch thick 832-3401 Cut to size Y
4 Bafe, Fiberboard SRV480-0510 Y
5 Firebrick Set (Figure 7.2) BRICK-480
Firebrick, Single SRV7000-306
6 Fascia (Figure 6.2) FASCIA-NS Fascia Plate Only
7 Louver, Top, Cast, Black (Figure 6.2) SRV480-7100
Louver Top Assembly (Figure 6.2) 480-5320 Gold Trim
480-5380 Nickel Trim
Louver, Trim, Lower (Figure 6.3) 480-1720 Gold
480-1840 Nickel
Louver, Trim, Upper (Figure 6.3) 480-1710 Gold
480-1830 Nickel
8 Louver, Bottom, Cast, Black (Figure 6.2) SRV480-7090
Louver Bottom Assembly (Figure 6.3) 480-5310 Gold Trim
480-5370 Nickel Trim
Louver, Trim, Bottom (Figure 6.3) 480-1700 Gold
480-1820 Nickel
9 Door Assembly 480-5010 Black
480-5270 Gold Trim
480-5330 Nickel Trim
Door Trim, Bottom, Right (Figure 6.1) 480-1670 Gold
480-1790 Nickel
Door Trim, Side (Figure 6.1) 480-1690 Gold
480-1810 Nickel
Door Trim, Top, Left (Figure 6.1) 480-1660 Gold
480-1780 Nickel
Door Trim, Top, Right (Figure 6.1) 480-1650 Gold
480-1770 Nickel
Door Trim, Bottom, Left (Figure 6.1) 480-1680 Gold
480-1800 Nickel
Gasket, Door Rope, 1/2 in., 10 ft 834-4170 Y
Glass Frame Top 480-1440
Beginning Manufacturing Date: 2-17-03
Ending Manufacturing Date:
Stocked
at
Depot
Number and
Date
August 5, 2008
7020-054
Page 3
Page 4
NORTHSTAR-BK, NORTHSTAR-GT, NORTHSTAR-NT
Service Parts & Accessories
North Star FP
Beginning Manufacturing Date: 2-17-03
Ending Manufacturing Date:
IMPORTANT: THIS IS DATED INFORMATION. The most current information is located on the Heat & Glo web site at
www.heatnglo.com. When ordering, supply serial and model numbers to ensure correct part.
How to Order:
To order the entire assembly, order the top line part number only.
To order an individual part from an assembly, order the part(s) listed in the indented portion.
Item Description Part No. Comments Serial
Number and
Date
Glass Frame Bottom 480-1450
Washer 3/8 SAE, 3 ea 832-0990
10 Glass Assembly 480-5430 13-24/25 x 12-1/5 Y
Gasket, Rope, 1/4 in., 10ft 834-1460 Cut to size Y
11 Door Handle Assembly HANDLES-480
Cam Latch 32084
Door Handle, Right SRV480-0520
Door Handle, Left SRV480-0530
Key, Latch Cam, 5/8 in. 430-1151
Set Pin 1/8 X 5/8 7000-163
12 Spring Handle, Door, 1/2 in. 832-0620 Gold Y
250-8330 Nickel
13 Timer Assembly (Figure 7.1) 480-5150
Gasket, Timer 480-1240
Timer Replacement SRV480-1940 Y
14 Wiring Harness SRV480-0990 Y
15 Blower Replacement 812-4900 Y
Stocked
at
Depot
Service Parts Alpabetical Order
Bafe Protection Channel 480-2100
Blower Access Panel 433-0450
Bracket, Blower 414-0600
Bracket, Snap Disc Mounting 410-2521
Chimney Air Kit CAK4A
Clamp Connector 230-1670
Control, Front Cover 480-1920
Face Board Assembly Kit 480-5440
Fan Speed Control SRV7000-143 Y
Header Shield 480-1130
Hearth Strip 480-1190
Junction Box Cover Plate 480-1050
Knob Black 19942 Y
Latch, Magnet 229-0631
Light Switch 480-1260
Light Switch Cover Plate 480-1270
Page 4
7020-054
August 5, 2008
Page 5
NORTHSTAR-BK, NORTHSTAR-GT, NORTHSTAR-NT
Service Parts & Accessories
North Star FP
IMPORTANT: THIS IS DATED INFORMATION. The most current information is located on the Heat & Glo web site at
www.heatnglo.com. When ordering, supply serial and model numbers to ensure correct part.
How to Order:
To order the entire assembly, order the top line part number only.
To order an individual part from an assembly, order the part(s) listed in the indented portion.
Item Description Part No. Comments Serial
Number and
Manual Bag Assembly (Includes Warranty Card,
Clamp Connector, Owners Manual, 1/2”Spring
Handles, 1/4” Spring Handle, Light Switch, Light
Switch Cover Plate, EPA Label, Fan Speed Control, Touch-up-Paint)
Outside Air Hood, 6 in. 480-5170
Outside Air Shield 33271 Y
Paint, Touch-Up, Matte Black 7000-304
Plate, Cover, Outer Can 480-1300
Slider Control Assembly 480-5410
Snap Disc 480-1730 Y
Standoff Top 480-1040
Termination Cap, Outside Air, 6 inch 480-1160
Unit Collar 659-125
SRV480-1140 Black
SRV480-1140 Gold
SRV480-1950 Nickel
Beginning Manufacturing Date: 2-17-03
Ending Manufacturing Date:
Stocked
at
Depot
Retro Supersede/Notes
Date
Accessories
Fascia Template HHT-Template
Fire Screen MESH-HHT Y
Lintel Bar LINTELBAR-HHT
Fastener Packs
Nut, 8-32, PKG 40 226-0060/40
Rivnut Repait Kit RIVNUT-REPAIR Y
Screw 1/4-20 x 5/8, PKG 24 220-0440/24
Screw 8-32 x 3/8, PKG 40 225-0500/40 Y
Screw, PH 8-32 x 1/2 220-0030
Screw, HWH MS 1/4-20 x 3/4 220-0080
Washer, SAE, #10 227-0080
Washer, 1/4 SAE 28758
August 5, 2008
7020-054
Page 5
Page 6
NORTHSTAR-BK, NORTHSTAR-GT, NORTHSTAR-NT
35
33
32
34
31
2
36
37
44
39
40
41
42
43
Figure 6.1 - Door Trim
Nbr Description SKU Mod?
31 Door Trim, Bottom, Left, Gold
Door Trim, Bottom, Left, Nickel
32 Door Trim, Bottom, Right, Gold
Door Trim, Bottom, Right, Nickel
33 Door Trim, Side, Gold
Door Trim, Side, Nickel
34 Door Trim, Top, Right, Gold
Door Trim, Top, Right, Nickel
35 Door Trim, Top, Left, Gold
Door Trim, Top, Left, Nickel
480-1680
480-1800
480-1670
480-1790
480-1690
480-1810
480-1650
480-1770
480-1660
480-1780
*
If part has been modied, please refer to
the Service Parts List for details.
*
Nbr Description SKU Mod?
6 Fascia FASCIA-NS
36 Louver, Bottom, Cast, Black, No Trim
Louver, Bottom, Cast, Black, Nickel Trim
37 Louver, Top, Cast, Black, No Trim
Louver, Top, Cast, Black, Nickel Trim
SRV480-7090
480-5370
SRV480-7100
480-5380
*
Figure 6.2 - Fascia Assembly
Figure 6.3 - Louver Trim
Nbr Description SKU Mod?
39 Louver Trim, Bottom, Gold
Louver Trim, Bottom, Nickel
40 Nut, 8-32, Keps 226-0060 / 40
41 Louver Top Assembly, Gold
Louver Top Assembly, Nickel
42 Louver Trim, Upper, Gold
Louver Trim, Upper, Nickel
43 Louver Trim, Lower, Gold
Louver Trim, Lower, Nickel
44 Louver Bottom Assembly, Gold
Louver Bottom Assembly, Nickel
480-1700
480-1820
480-5320
480-5380
480-1710
480-1830
480-1720
480-1840
480-5310
480-5370
*
Page 6
7020-054
August 5, 2008
Page 7
NORTHSTAR-BK, NORTHSTAR-GT, NORTHSTAR-NT
3
3
3
3
3
3
1
1
1
1
1
3
3
4 4
2
2
24 in.
(610mm)
12-3/8 in.
(314mm)
2 in.
(51mm)
27-1/2 in.
(699mm)
45
46
51
52
47
48
53
54
55
56
49
50
57
58
Nbr Description SKU Mod?
45 Screw, 8-32 x 1/2” 220-0030
46 Washer 227-0080
47 Timer Arm
48 Screw, 6-32 x 1/4”
49 Timer Mount Plate
50
Timer Assembly
51 Chamber, Timer Air
52 Timer Hinge Rod
53 Door, Timer Air
54 Timer Rod Guide
55 Timer Door Linkage
56 Air Control Arm
57 Guide Pin Sleeve
58 Set Collar
available only in assembly
available only in assembly
available only in assembly
480-5150
available only in assembly
available only in assembly
available only in assembly
available only in assembly
available only in assembly
available only in assembly
available only in assembly
available only in assembly
If part has been modied, please refer to
the Service Parts List for details.
*
*
August 5, 2008
Figure 7.1 - Timer Replacement Assembly SRV480-1940
Figure 7.2 - Brick Assembly, #BRICK-480
7020-054
# Brick Size Qty.
In Set
1 13-1/2” x 4-1/2” x 1-1/4” 5
2 13-1/2” x 4-1/2” x 1-1/4”
2
w/ 1-1/2” chamfer
3 12” x 4-1/2” x 1-1/4” 8
4 12-1/2” x 4-1/2” x 1-1/4” 2
Figure 7.3 - Ceramic Blanket
Page 7
Page 8
NORTHSTAR-BK, NORTHSTAR-GT, NORTHSTAR-NT
Termination Cap
supplied with
fireplace
6 in. (152mm) rigid
or flex pipe
Open/Close
Knob for
outside air
CLOSE
OPEN
Screwdriver Slot
Screws
COMPONENT LOCATIONS
Figure 8.1 Accessing Fan Motor
Page 8
Figure 8.2 Outside Air Installation
Figure 8.3 General Operating Parts
Automatic Combustion
Control Handle
Outside Air Control
Handle
7020-054
August 5, 2008
Page 9
NORTHSTAR-BK, NORTHSTAR-GT, NORTHSTAR-NT
APPLIANCE SKU
SKU No. Appliances Begin Mfg Begin SN End Mfg End SN Comments
NORTHSTAR-BK North Star, Black Door 2-25-03 1525029
NORTHSTAR-GD North Star, Gold Door 5-2-03 1525050 4-28-04 1526053
NORTHSTAR-GT North Star, Gold Trim Door 7-9-04 1526346
NORTHSTAR-NT North Star, Nickel Trim Door 7-9-04 1526347
PRODUCT HISTORY
Date Serial No. ECO Description of Change
7-17-03 1525228 45373 Add Heat-N-Glo logo to cast doors
9-1-03 1525369 46304 Change CAK4A label to say is required with SL300 series pipe
10-1-03 1525410 46583 Remove three tabs of top outer can
10-6-03 1525423 46500 Remove bend from timer door linkage make part 2 5/8” long
12-22-03 1525713 46679 Modied outside air and auxiliary air rings; moved wire access panel
1-15-04 1525796 47232 Add legs to cover plate, eliminate 3 holes, add slots to outer can top
4-12-04 1526030 48136 Screen removed from outside air kit; mesh designed into termination cap
5-13-04 1526119 47038 Change xed handle design to insure positive lock
6-11-04 1526194 47740 Changed a high temperature snap disc with a lower setting
7-28-04 1526378 48828 Added gasket and making simpler to easier to assemble
8-9-04 1526432 49195 Modied air shutoff door for more postive placement by adding fasteners to
hold gasket
9-16-04 1526779 49533 Change hole size in door hinge bracket for more tolerance
10-13-04 1526866 48733 Added gasket to convection air shutoff for better seal
10-26-04 1526866 48164 Replace timers with more durable and reliable timer
1-12-05 1527022 50127 Created new outside air termination cap with an extend ange to eliminate
wind issues
4-21-05 1527281 51086 Remove rivnuts from part and use screws
6-8-05 1527464 51667 Stove box label now has barcode capability
9-6-05 1527743 51881 Add label to prevent installer rocking in Fascia
12-21-05 71528384 51338 Replaced long rivnuts with long hex rivnuts in manifold chambers
3-31-06 none 53140 Added non-combustible face board to insulation kit
6-6-06 0071529000 54284 Serial label now has a prex of 007 in front of the number
August 5, 2008
7020-054
Page 9
Loading...
