Designer Line
Gas Fireplaces
It’s quite a claim to make, we
know—that no one builds a
better re. So consider the facts.
We invented the direct vent gas fireplace, basically revolutionizing an entire industry. We’re the most award-winning brand in
the business and we hold more patents than any competitor.
But we’re more than just brainy. We’re also beautiful. Known
for one-of-a-kind details, unique shapes and imaginative sizes.
All stylishly integrated into whole hearth systems that deliver
the very latest home fashion trends.
Innovation & design. They fuel everything we do. Like our
Designer Line of gas fireplaces, each one a perfect example of
brains and beauty at work. It’s a collection sure to ignite a few
ideas of your own.
FireBrick
metal. A one-piece, seamless firebox that looks
just like masonry.
IntelliFire
providing a pilot flame only when needed.
Also supplies a back-up battery system during
a power outage.
®
Generates 25% more heat than
™
Reduces gas consumption by
MystiFire
textured burner molded directly into the hearth
refractory. Improves flame height, and best
replicates a woodburning ash bed.
Clean face design. Lets materials like brick,
stone and tile come flush to the firebox edge for
a seamless, finish and maximum view of the fire.
®
burner. Concealed, multi-level,
Innovation & Design
It’s why no one builds a better re
Cerona® Good looking & hard working
Cerona-36 shown with Cultured
Stone dry stack ledgestone,
Chateau Deluxe front in new
bronze and arch trim stone.
Cerona shown with natural
knotty alder Sonoma mantel,
marron brown marble and
Valencia front in new bronze
Aged Brass
Black
Arched elegance, robust heat and high efciency—it’s a powerful
combination. We took serious heat output and stylishly wrapped it in a classic,
authentic arched firebox – formed from our patented FireBrick material. And it’s
extremely efficient. Available in 36" and 42" models.
Cerona-42 shown with
Apollo painted cast stone
surround and Galleria doors
in aged brass.
Graphite
New Bronze
Chateau Front
Decorative Fronts and Doors
available in aged brass, black, graphite and new bronze.
Valencia FrontChateau Deluxe Front Galleria Doors
Cyclone Custom shown
with custom bar application
Is it a replace or is it art? Both. This award-winner captures the magic
and power of fire, with a twist: a single flame spirals upward, dancing inside
a sleek glass cylinder. Available two ways: as a preassembled system for easy
installation, or a customizable model to build into your own design or fixture.
Cyclone® The art & science of re
Cyclone System shown with brushed
copper decorative front (also available in
brushed nickel) and custom Bisazza tile.
Brushed Nickel
Escape-42 shown with
bronze Firescreen front and
Prairie Ridge companions,
Sierra log shelf and Cultured
Stone’s Blended Textures.
Black
Pewter
We started with the best in mind, then made it even better. First
we removed all visible sheet metal, then added innovation after innovation, like
accent lighting, FireBrick technology and clean face design.
Firescreen front is available unadorned,
or with Prairie Ridge companions or
Carriage Hill companions. Choose black,
bronze or pewter.
Escape™ First class & second to none
Bronze
Carriage Hill companions
Escape-36 shown with
Avalon cast mantel
Black
Pewter
Let the elegance of an arch transform any room. This graceful arched
fireplace, accentuated by clean face design, and a variety of fronts can go almost
anywhere—perfect for kitchen, bar, bath or owner’s suite.
Bronze
Brushed Nickel
Crescent shown with brushed nickel bun warming doors and arch.
Crescent®A tasty addition & a welcome retreat
Decorative Fronts and Doors
Choose bun warming doors
in black and brushed nickel,
or Estate front or Reserve front
in black, bronze and pewter.
Crescent shown with black
bun warming doors.
Estate front
Reserve front
There’s an opportunity for a replace around every corner.
Designed to slip into corners and tight spots, this compact arched fireplace
transforms any room where space is an issue, coziness a must.
Essence front
(with Classic interchangeable
decorative panel)
Waverly Panels
Mission Panels
DF-CRES2-BK front
Crescent II shown with auburn-stained maple Bella cabinet
with custom wine rack and bronze Reserve front.
Bronze
Brushed Nickel
Rubbed Copper
Brass
Pewter
Black
Decorative Fronts
Choose Reserve front in
bronze, pewter and rubbed
copper, Essence front in
bronze, brushed nickel, pewter
and polished brass or
DF-CRES2-BK in black
Crescent® ll Limited space & endless possibility
Bella cabinet nishes
Auburn
Maple
Natural
Maple
Unnished
Maple
Auburn
Oak
Honey
Oak
Natural
Oak
Auburn
Cherry
Natural
Cherry
Unnished
Cherry
Innity® It goes & goes & goes.
There’s one replace that goes where
others can’t. The one gas fireplace that vents
greater distances and with more elbows than
any other—up to 50 feet horizontal and 40 feet
vertical with up to 8 elbows.
Innity shown with basic
front, custom marble
surround and mantel.
Bravo® Casual & sophisticated
A traditional hearth experience–with some added spark.
Whether you are looking for a Southwestern-style Kiva or a contemporary
arched fireplace, the Bravo will add a special accent to your home.
Bravo shown with Rio Bravo front
and Taos surround.
Also available:
DF-Aztec front in black.
Bravo shown with pewter DF-Bravo front and Luxor surround
Soulstice Intimately sized & luxuriously crafted
Soultice shown with
bronze Firescreen front and
Carriage Hill companions,
Sutton mantel shelf and
custom walnut travertine
four-piece surround.
Firescreen front is available
unadorned or with Carriage
Hill companions (shown
in photo). Choose black,
bronze or pewter.
Black
Bronze
Relax. We’ve thought of everything. A complete menu of
premium features beautifully wrapped in a petite fireplace footprint—the
ideal combination for a owner’s suite.
Pewter
Everest®
Tall, bold
& handsome
Everest shown with Atlas
Cast Stone surround and
standard black front.
Take your replace to new heights. Enjoy European-inspired design
that’s tall and slim, both classic and contemporary

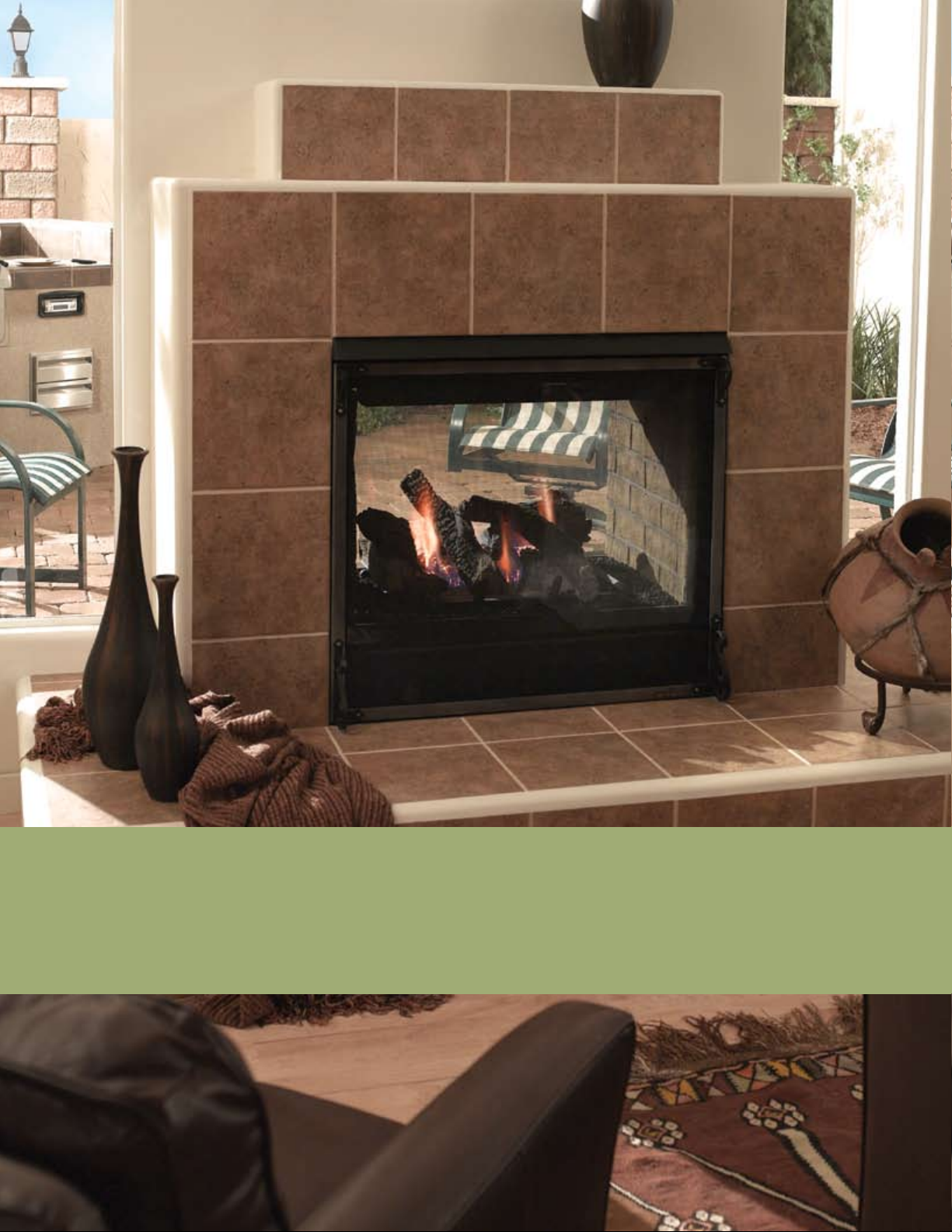

Twilight Inside comfort & outdoor living.
Twilight interior shown with black Firescreen front
and Carriage hill companions and custom tile.
Twilight exterior shown with
standard exterior front and
custom tile.
Exterior Front
in black only
The best of both worlds. The first-ever indoor/outdoor see-through
fireplace that adds the warmth and beauty of a clean-burning fireplace to
two spaces at once.
Interior Fronts and Doors
Choose Basic front (in black),
Essence front (in black,
bronze, brushed nickel,
pewter and polished brass)
or Firescreen Front (in black,
bronze and pewter).
Black
Bronze
Basic Front
Brushed Nickel
Essence Front
Pewter
Firescreen Front
Polished Brass
Cyclone System
49-1/2
[1258]
47
[1195]
30-1/8
[767]
28-1/4
[718]
5-1/4
[134]
1/2
[12]
(2)
2-1/2
[63]
5-3/4
[146]
GAS LINE
ACCESS
ELECTRICAL
ACCESS
GAS LINE
ACCESS
41-1/8
[1069]
SLIP SECTION
FIRESTOP
32-3/4
[831]
41-3/8
[1050]
17
[430]
2
[51]
2-3/4
[71]
2-1/4
[57]
1-1/4
[33]
34-1/2
[876]
15-1/8
[308]
54-1/8
[1376]
12
[304]
2-5/8 [66]
3-1/2
[90]
3-1/2 [90]
50-7/8 [1292]
31
[788]
46
[1168]
36 [914]
1 [24]
MINIMUM 12"
VERTICAL REQUIRED
GAS
ACCESS
ELECTRICAL
ACCESS
72-1/8
[1831]
24
[609]
2-5/8
[66]
4-1/4 [107]
11-5/8 [296]
3-5/8
[91]
MINIMUM 24"
VERTICAL
REQUIRED
GAS LINE
ACCESS
ELECTRICAL
ACCESS
41-3/8
[1052]
1
[24]
42
[1068]
56-7/8 [1445]
37
[939]
52
[1320]
2/1/4 [56]
9-1/4 [235]
GAS LINE
ACCESS
MINIMUM 12" VERTICAL
RISE REQUIRED BEFORE
90° ELBOW
71
[1803]
48-1/8 [1223]
47-1/8
[1196]
27-3/4
[704]
35-7/8
[912]
39-1/2
[1005]
6-3/4 [170]
54
[1372]
38-5/8
[981]
GAS LINE
ACCESS
2-1/8
[54]
7 [178]
MINIMUM 6" VERTICAL
RISE REQUIRED BEFORE
90° ELBOW
60-1/2
[1537]
41-1/8 [1046]
43
[1092]
23-1/2
[595]
30-1/4
[767]
33-7/8
[860]
6-5/8
[169]
34-1/2
[877]
49-7/8
[1268]
1-1/8
38-1/4
34-1/2 [876]
47-3/8
ACCESS
GAS LINE
6 [153]
9 [230]
38-1/2
2-3/8
[1203]
[978]
[972]
[61]
[29]
39-1/2
[1003]
6-3/4
[170]
3-7/8 [99]
GAS LINE
ACCESS
30-3/4
[782]
22-1/4
[565]
Cyclone Custom
Escape 36
Cerona-36
Front ViewSide View
Front ViewSide View Front ViewSide View
Side View Side View Bottom View
Escape 42
Cerona-42
Specifications
Crescent
Front ViewSide View
Front ViewSide View
Crescent II
Front ViewSide View
Front ViewSide View
5-1/2 [139]
2-1/8
[54]
GAS LINE
ACCESS
34-1/16
[866]
36-1/8
[918]
23-15/16
[608]
28-13/16
[732]
4-11/16
[118]
45-7/16
[1154]
44-3/8
[1127]
5-1/4
[134]
5-7/8
[149]
39-1/2
[1003]
35-3/4
[908]
35-1/4 [895]
38-1/4 [971]
5-3/16
[132]
23-13/16
[605]
42-7/8
[1089]
38-7/8
[987]
5-3/4 [145]
GAS LINE
ACCESS
2-1/8
[55]
31-1/8
[790]
24-3/4
[630]
4
[102]
31-1/8
[790]
36 [913]
Bravo
C
L
36
[914]
76
[1930]
GAS LINE
ACCESS
2-7/8
[74]
7-1/8
[182]
34-3/8 [875]
43-1/2
[1104]
2-1/4
[57]
4-3/4
[121]
32-5/8
[829]
21-1/2
[547]
38-5/8
[981]
21-1/2
[546]
36-1/4 [919]
41-7/8 [1062]
42-1/8 [1070]
35-5/8 [905]
GAS LINE
ACCESS
46-3/4
[1187]
Twilight
Soulstice
Front ViewSide View
Front ViewSide View Front ViewSide View
Indoor Front ViewSide View Outdoor Front View
EverestInfinity
Front ViewSide View
MODEL
Cyclone System 49-1/2 50 28-1/4 28-5/8 11-7/8 28-5/8 15-7/8 16-3/8 7-7/8 x 34-1/2 x .20 15,000
Cyclone Custom 41-3/8 41-3/8 17 17-1/2 17 17-1/2 17 17-1/2 7-7/8 x 34-1/2 x .20 15,000
Escape 36 34-1/2 46 50-7/8 51-1/2 50-7/8 51-1/2 21 22 36 x 30 27,000-41,000
Escape 42 41-3/8 52-1/2 56-7/8 57-1/2 48 57-1/2 21 22 42 x 36 35,000-52,000
Cerona-36 49-7/8 50-1/2 41-1/8 42-1/8 28-1/2 42-1/8 21-3/4 22-1/4 30-1/4 x 23-1/2 25,000-37,500 (NG)
Cerona-42 54 54-1/2 48-1/8 49-1/8 35-3/8 49-1/8 21-3/4 22-1/4 35-7/8 x 27-3/4 32,000-48,000 (NG)
Crescent 43-1/8 43-5/8 34-1/2 35-1/2 25-3/8 35-1/2 19-1/4 19-3/4 27-3/4 x 28-1/2 29,500
Crescent II 30-3/4 37 23-1/4 24-1/2 4-1/2 24-1/2 15-1/8 15-5/8 15-1/2 x 21 8,000-11,500
Everest 50 50-1/2 34-1/16 35-1/16 17-7/8 35-1/16 20-7/8 21-3/8 26-7/8 x 33-3/8 23,000-33,000
Bravo 43-1/2 44 34-3/8 35-3/8 12-1/8 35-3/8 24-3/4 24-1/4 30-1/2 x 28 23,000
Innity 39-1/2 40 38-1/4 39-1/4 22-3/16 39-1/4 19-1/2 20 31-1/2 x 19-1/2 35,000
Soulstice 32-1/2 33 36 37 25-1/2 37 16-1/4 16-1/4 31 x 21-1/4 12,000-17,500
Twilight II
Dimensions in diagrams are in inches and millimeters. Dimensions in table are in inches. Product information is not complete and is subject to change without notice.
Product installation must adhere strictly to instructions shipped with product. We recommend measuring individual units at installation. Assumes the use of 1/2"
sheetrock. NOTE: Combustible material should not cover the face. Make sure you do NOT cover the decorative door opening.
Refer to installation manual for detailed specifications on installing this product. Heat & Glo reserves the right to update units periodically. The flame and ember
appearance may vary based on the type of fuel burned and the venting configuration used. Actual product appearance, including flame, may differ from product
images.
HEIGHT FRONT WIDTH BACK WIDTH DEPTH
Actual Framing Actual Framing Actual Framing Actual Framing
46-3/4 Exterior
38-5/8 Interior
47-1/4 Exterior
41-1/4 Interior
41-7/8 44 41-7/8 44 24 23 36-1/4 x 35-7/8 38,000
GLASS SIZE
BTU/HOUR INPUT
(NG)
For complete information and valuable
assistance on these models contact us at:
20802 Kensington Boulevard
Lakeville, MN 55044
(888) 427-3973 (952) 985-6000
web:heatnglo.com
A brand of Hearth & Home Technologies Inc
HNG-1017U-0308
Loading...
