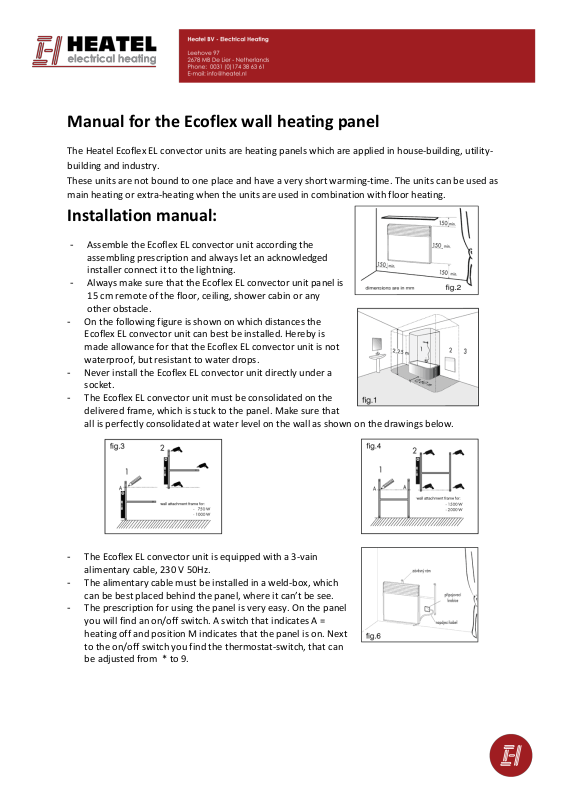

Manual for the Ecoflex wall heating panel
The Heatel Ecoflex EL convector units are heating panels which are applied in house-building, utilitybuilding and industry.
These units are not bound to one place and have a very short warming-time. The units can be used as
main heating or extra-heating when the units are used in combination with floor heating.
Installation manual:
- Assemble the Ecoflex EL convector unit according the
assembling prescription and always let an acknowledged
installer connect it to the lightning.
- Always make sure that the Ecoflex EL convector unit panel is
15 cm remote of the floor, ceiling, shower cabin or any
other obstacle.

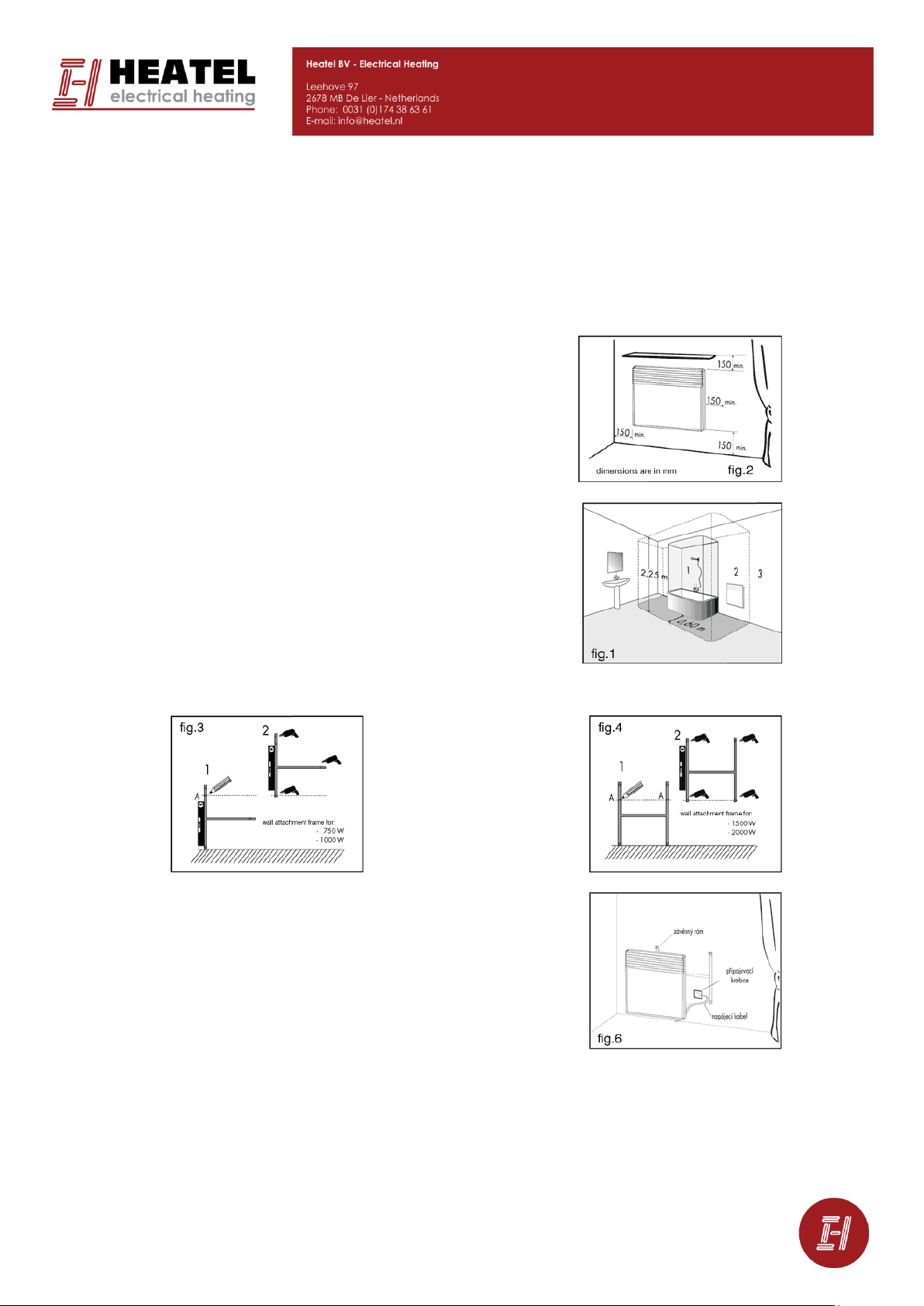

- On the following figure is shown on which distances the
Ecoflex EL convector unit can best be installed. Hereby is
made allowance for that the Ecoflex EL convector unit is not
waterproof, but resistant to water drops.
- Never install the Ecoflex EL convector unit directly under a
socket.
- The Ecoflex EL convector unit must be consolidated on the
delivered frame, which is stuck to the panel. Make sure that
all is perfectly consolidated at water level on the wall as shown on the drawings below.
- The Ecoflex EL convector unit is equipped with a 3-vain
alimentary cable, 230 V 50Hz.
- The alimentary cable must be installed in a weld-box, which
can be best placed behind the panel, where it can’t be see.
- The prescription for using the panel is very easy. On the panel
you will find an on/off switch. A switch that indicates A =
heating off and position M indicates that the panel is on. Next
to the on/off switch you find the thermostat-switch, that can
be adjusted from * to 9.
Page 2

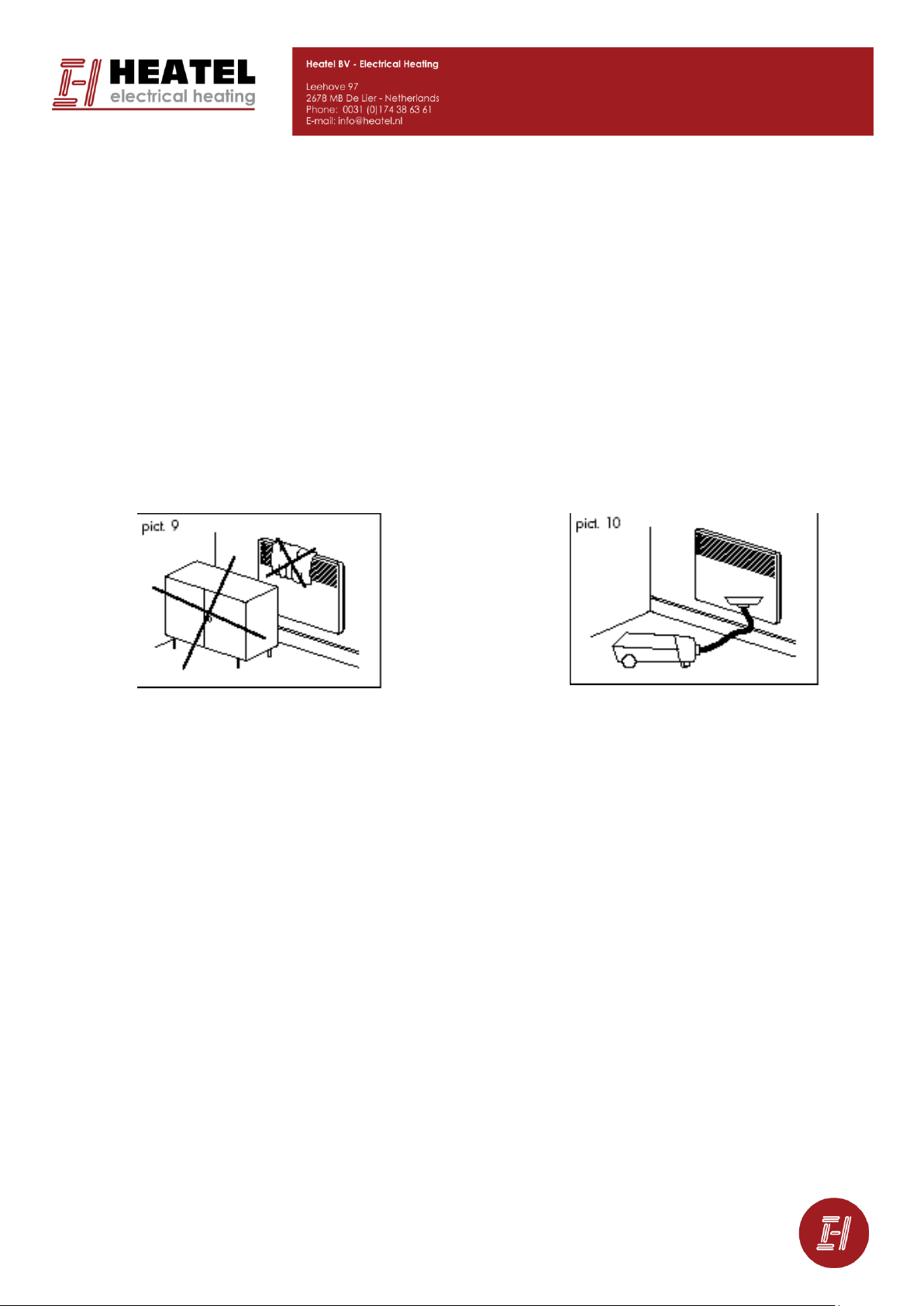

Never hang a towel on the Ecoflex EL convector unit, never
drape a curtain over the panel and never put bathroom
furniture right next or in front of the Ecoflex EL convector unit. All
this can cause fire. Clean the panel, before the heating season,
with a vacuum cleaner.
-
We wish you a lot of enjoyable warmth with your Ecoflex wall heating panel.
