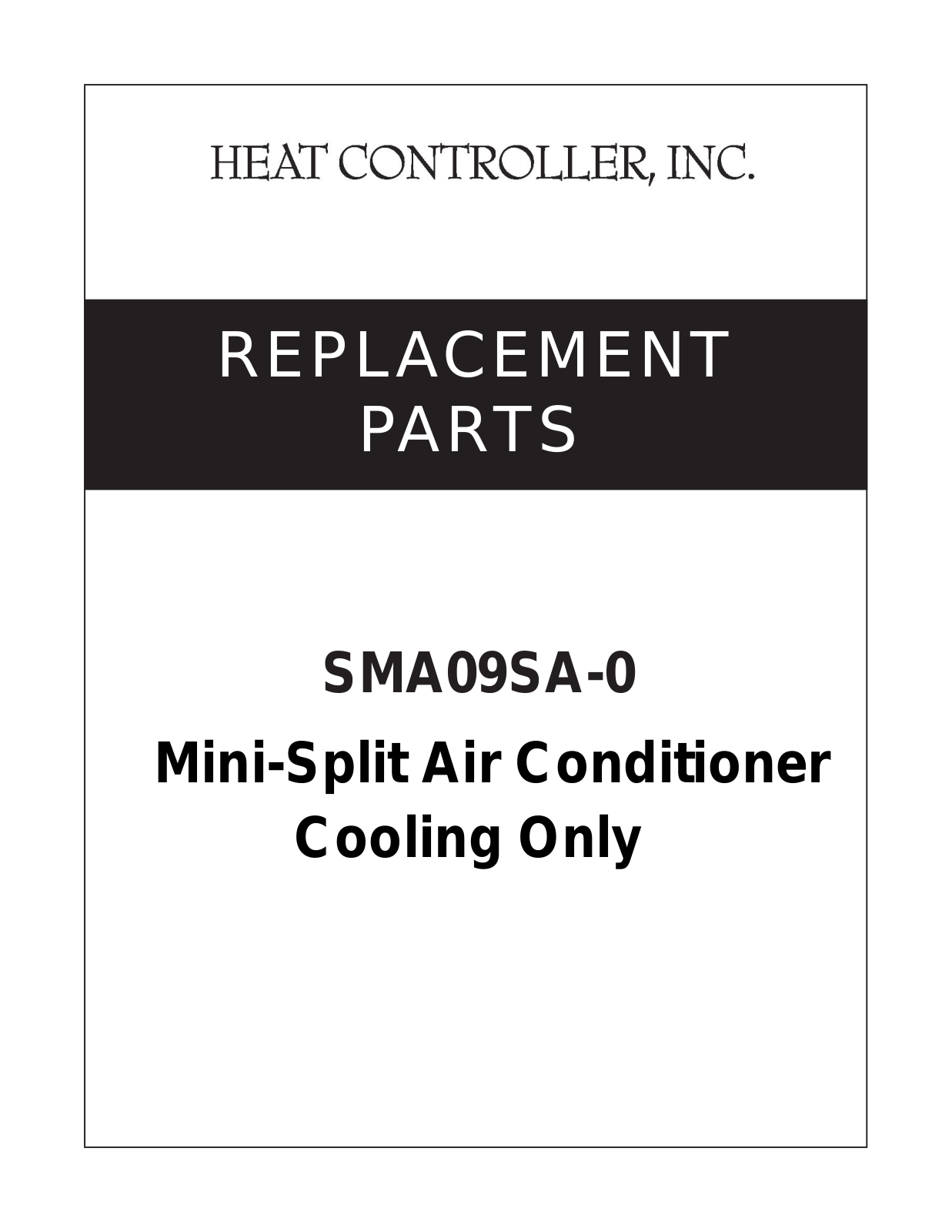

REPLACEMENT
PARTS
SMA09SA-0
Mini-Split Air Conditioner
Cooling Only

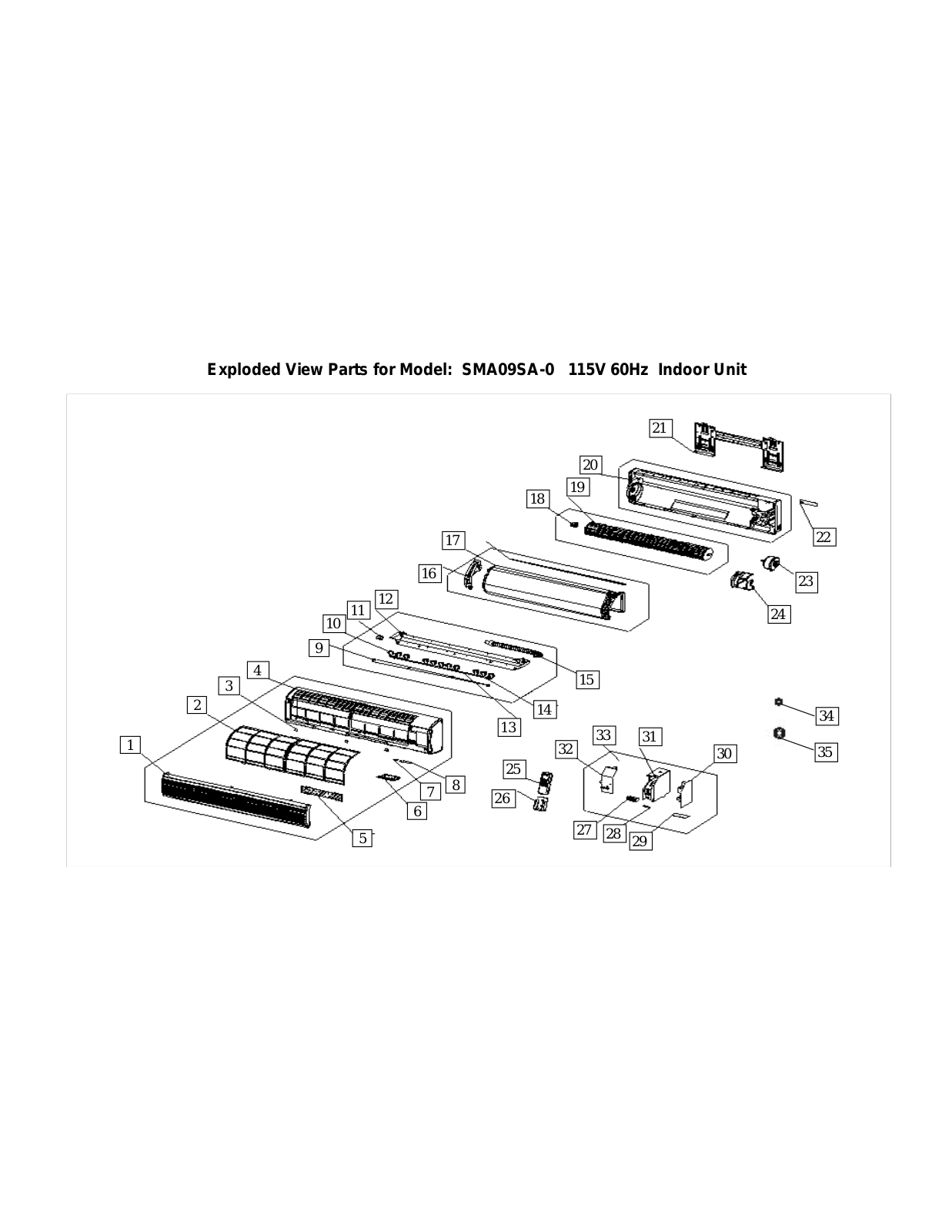

Exploded View Parts for Model: SMA09SA-0 115V 60Hz Indoor Unit
21
20
19
18
17
16
12
11
10
9
4
3
2
13
1
25
8
7
6
5
26
14
32
27
15
33
28
31
30
29
22
23
24
34
35

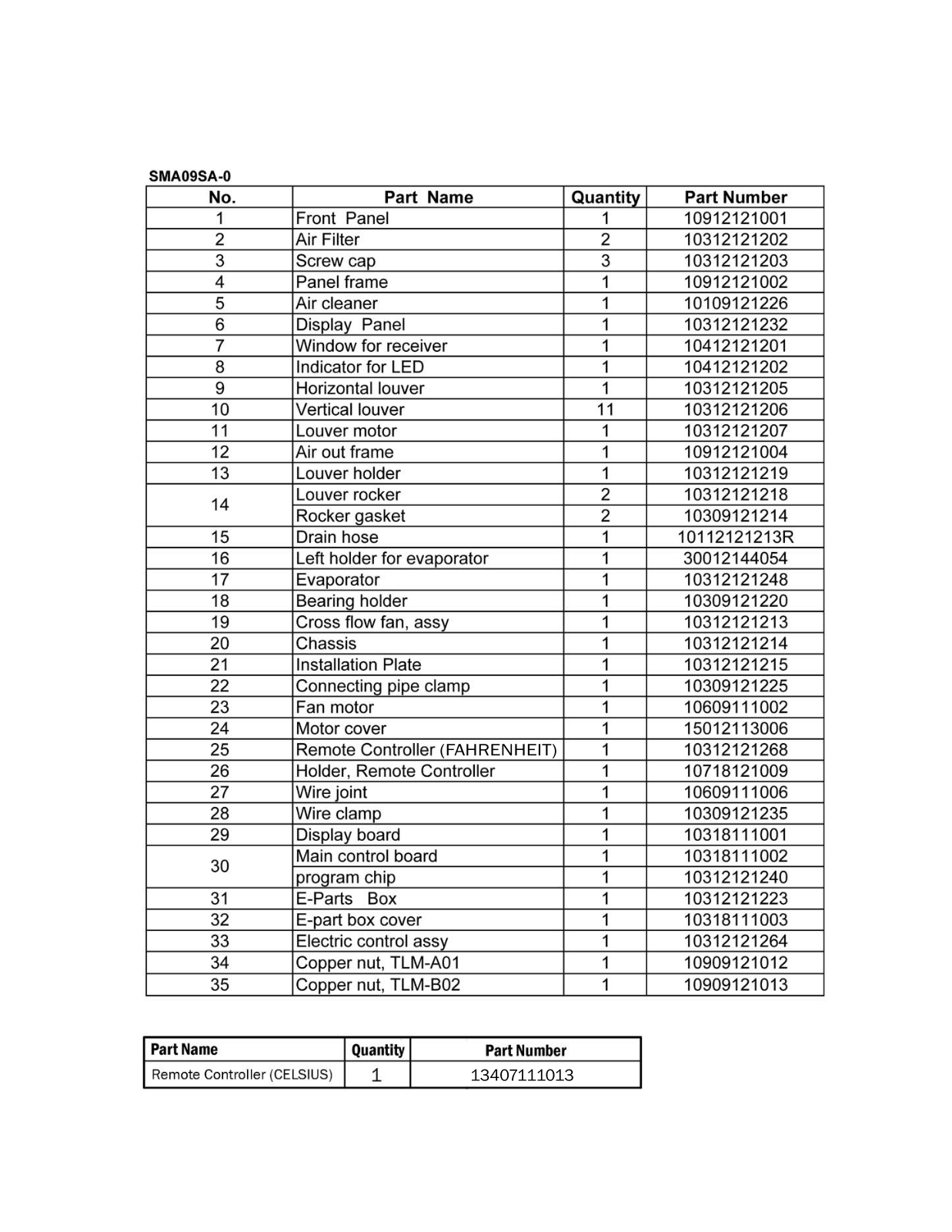

(FAHRENHEIT)
13407111013

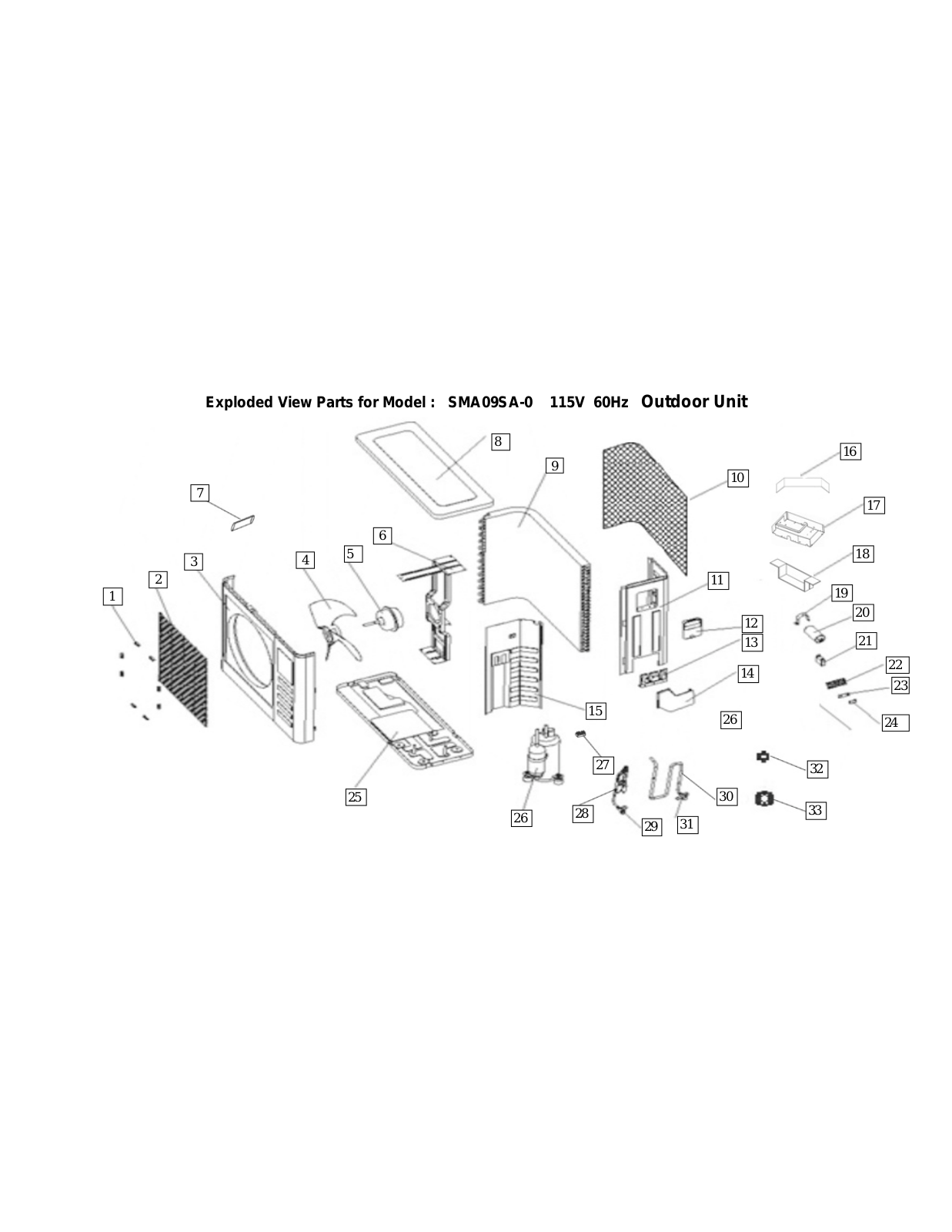

Exploded View Parts for Model : SMA09SA-0 115V 60Hz Outdoor Unit
8
9
7
6
3
2
1
4
5
15
10
11
12
13
14
26
16
17
18
19
20
21
22
23
24
25
26
28
27
29
32
30
33
31
SMA09SA-0
s

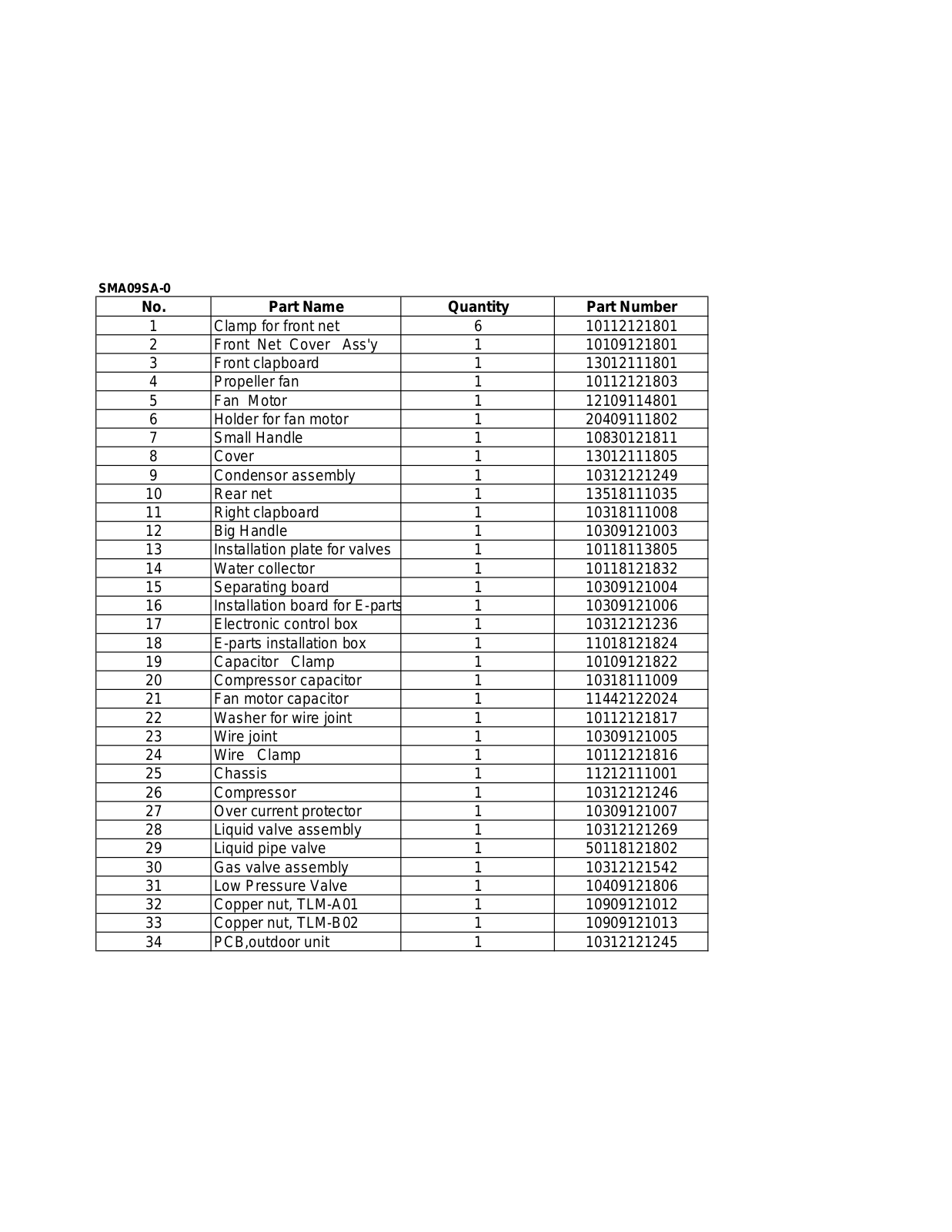

No. Part Name Quantity Part Number
1 Clamp for front net 6 10112121801
2 Front Net Cover Ass'y 1 10109121801
3 Front clapboard 1 13012111801
4 Propeller fan 1 10112121803
5 Fan Motor 1 12109114801
6 Holder for fan motor 1 20409111802
7 Small Handle 1 10830121811
8 Cover 1 13012111805
9 Condensor assembly 1 10312121249
10 Rear net 1 13518111035
11 Right clapboard 1 10318111008
12 Big Handle 1 10309121003
13 Installation plate for valves 1 10118113805
14 Water collector 1 10118121832
15 Separating board 1 10309121004
16 Installation board for E-part
1 10309121006
17 Electronic control box 1 10312121236
18 E-parts installation box 1 11018121824
19 Capacitor Clamp 1 10109121822
20 Compressor capacitor 1 10318111009
21 Fan motor capacitor 1 11442122024
22 Washer for wire joint 1 10112121817
23 Wire joint 1 10309121005
24 Wire Clamp 1 10112121816
25 Chassis 1 11212111001
26 Compressor 1 10312121246
27 Over current protector 1 10309121007
28 Liquid valve assembly 1 10312121269
29 Liquid pipe valve 1 50118121802
30 Gas valve assembly 1 10312121542
31 Low Pressure Valve 1 10409121806
32 Copper nut, TLM-A01 1 10909121012
33 Copper nut, TLM-B02 1 10909121013
34 PCB,outdoor unit 1 10312121245
06/08

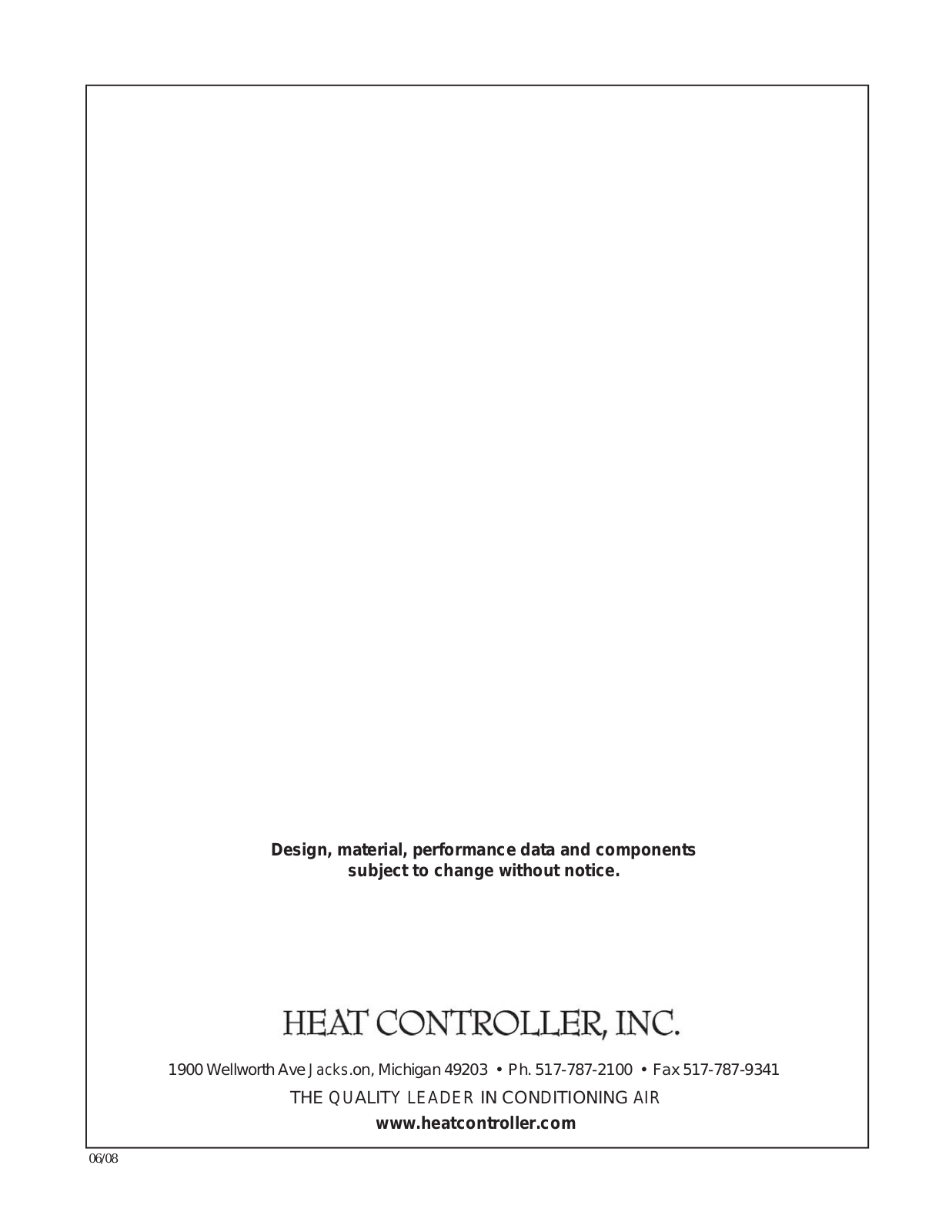

Design, material, performance data and components
