HEAT CONTROLLER, INC.
Owner’s Manual
Room Air Conditioner with R-410A:
RAD-123G
Heat Controller, Inc. • 1900 Wellworth Ave. • Jackson, MI 49203 • (517)787-2100 • www.heatcontroller.com
CONTENTS
1. SAFETY PRECAUTIONS..................................................................2
2. IMPORTANT SAFETY INSTRUCTIONS ..........................................4
3. NORMAL SOUNDS ...........................................................................5
4. AIR CONDITIONER FEATURES .......................................................5

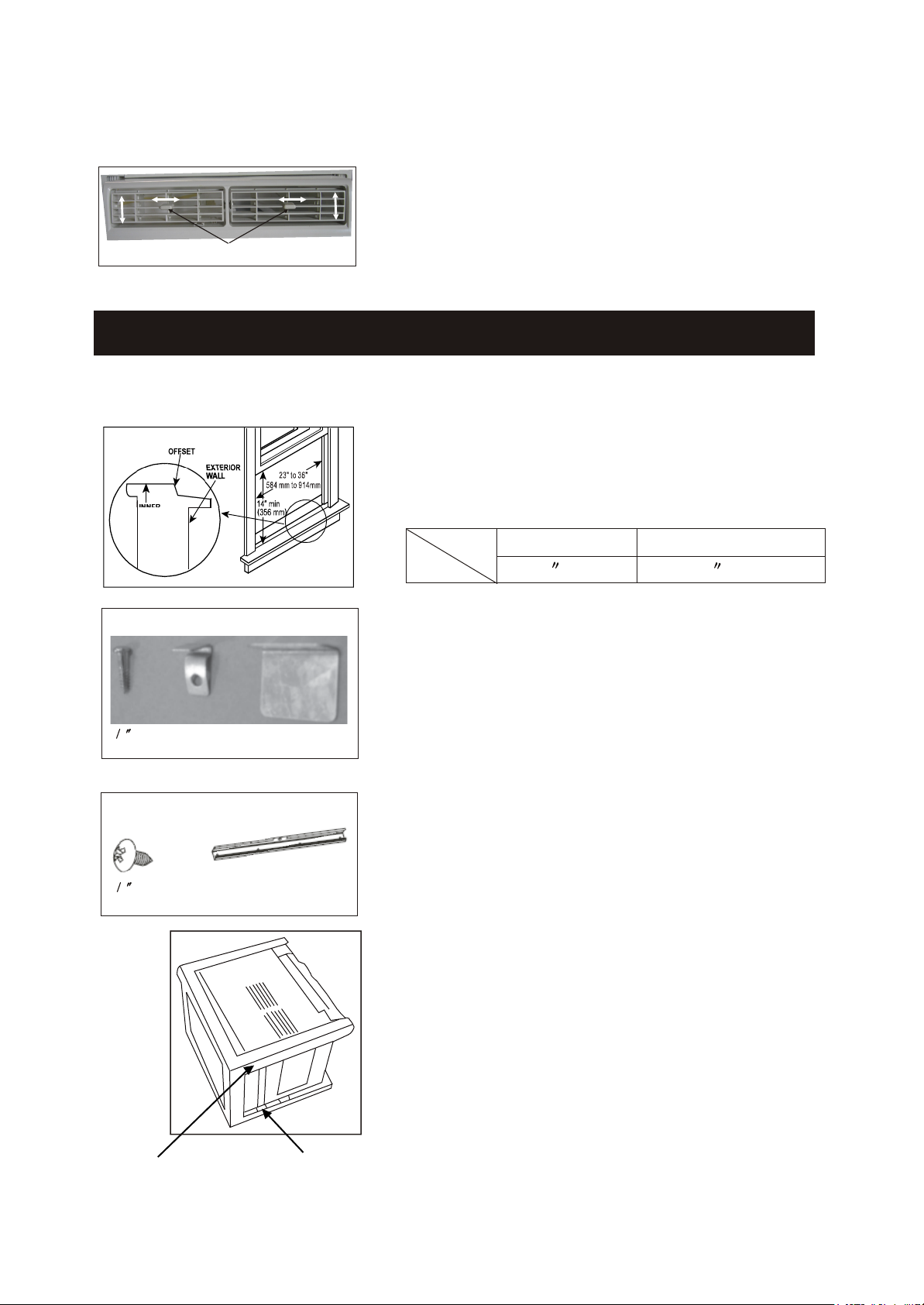

5. INSTALLATION INSTRUCTIONS......................................................10

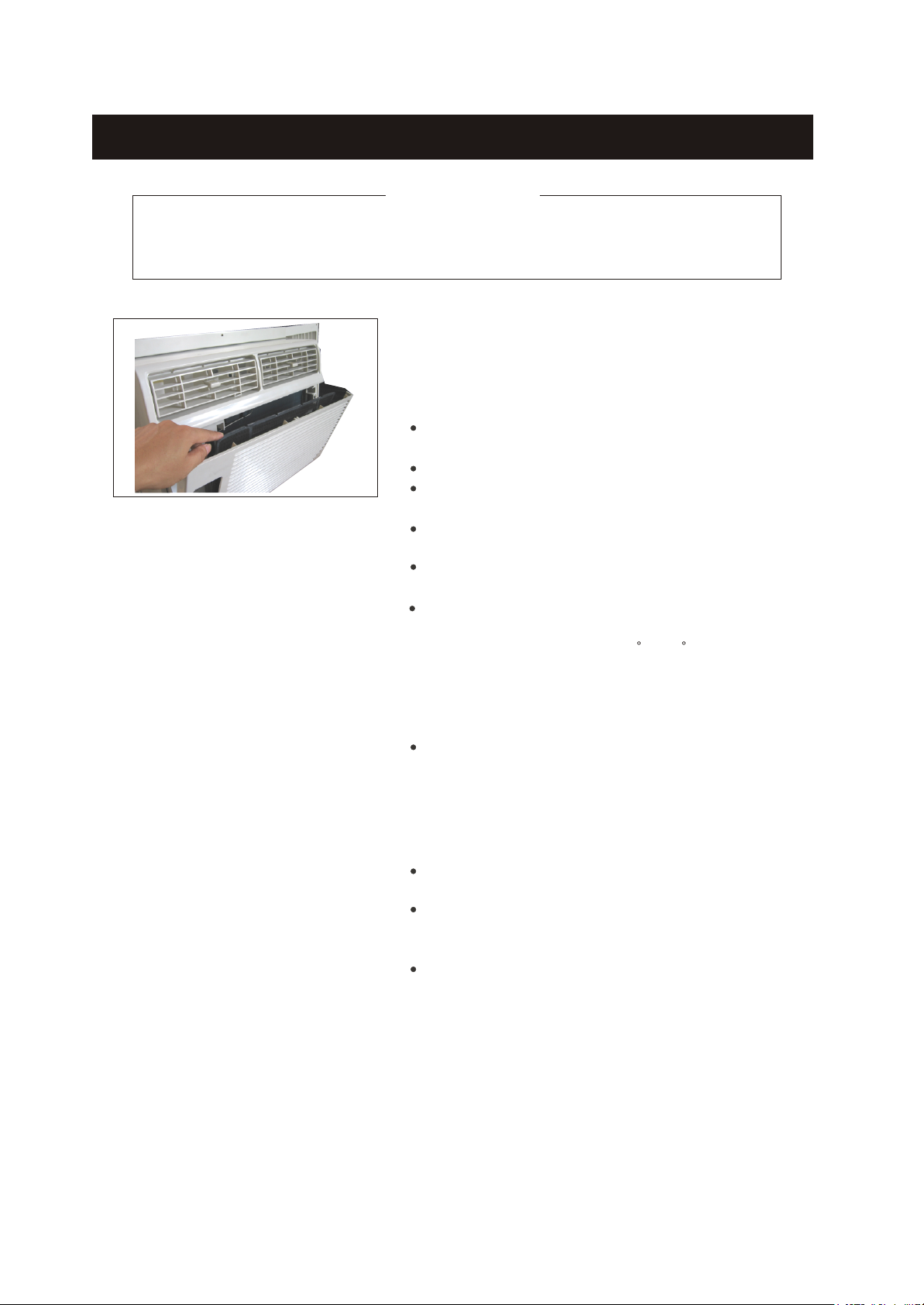

6. CARE AND CLEANING ....................................................................14
7. TROUBLESHOOTING TIPS...............................................................15
Read This Manual
Inside you will find many helpful hints on how to use and maintain your air conditioner
properly. Just a little preventive care on your part can save you a great deal of time
and money over the life of your air conditioner. You'll find many answers to common
problems in the chart of troubleshooting tips. If you review our chart of Troubleshooting
Tips first, you may not need to call for service at all.
!
CAUTION
Contact the authorised service technician for repair or maintenance of this unit.
Contact the installer for installation of this unit.
The air conditioner is not intended for use by young children or infirm persons
without supervision.
Young children should be supervised to ensure that they do not play with the air
conditioner.
If the power cord is to be replaced, replacement work shall be performed by
authorised personnel only.
Installation work must be performed in accordance with the national wiring
standards by authorised personnel only.
NOTE:
All the illustrations in this manual are for explanation purpose only. Your air
conditioner may be slightly different. The actual shape shall prevail.
1
Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions
must be followed. Incorrect operation due to ignoring of instructions may cause harm or
damage. The seriousness is classified by the following indications.
WARNING
!
CAUTION
!
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to property.
Meanings of symbols used in this manual are as shown below.
Never do this.
!
!!
Plug in power plug
properly.
Otherwise, it may cause electric
shock or fire due to excess heat
generation.
!!
Do not modify power cord
length or share the outlet
with other appliances.
It may cause electric shock or
fire due to heat generation.
!!
!!
Always ensure effective
earthing.
Incorrect earthing may cause
electric shock.
!!
Unplug the unit if strange
sounds, smell, or smoke
comes from it.
It may cause fire and electric
shock.
!!
Keep firearms away.
It may cause fire.
Always do this.
WARNING
!
Do not operate or stop the
unit by inserting or pulling
out the power plug.
It may cause electric shock or fire
due to heat generation.
Do not operate with wet
hands or in damp
environment.
It may cause electric shock.
Do not allow water to run
into electric parts.
It may cause failure of machine
or electric shock.
Do not use the socket if it is
loose or damaged.
It may cause fire and electric
shock.
Do not use the power cord
close to heating appliances.
It may cause fire and electric
shock.
Do not damage or use an
unspecified power cord.
It may cause electric shock or fire.
If the power cord is damaged, it
must be replaced by the manufac turer or an authorised service
centre or a similarly qualified per son in order to avoid a hazard.
Do not direct airflow at
room occupants only.
This could damage your health.
!!!!
Always install circuit
breaker and a dedicated
power circuit.
Incorrect installation may cause
fire and electric shock.
Do not open the unit
during operation.
It may cause electric shock.
Do not use the power cord near
flammable gas or combustibles, such
as gasoline, benzene, thinner, etc.
It may cause an explosion or fire.
!!
Ventilate room before operating air
conditioner if there is a gas leakage from
another appliance.
It may cause explosion, fire and, burns.
Do not disassemble or modify unit.
It may cause failure and electric shock.
2
When the air filter is to be
removed, do not touch the
metal parts of the unit.
CAUTION
!
Do not clean the air
conditioner with water.
!!
Ventilate the room well when
used together with a stove,
etc.
It may cause an injury.
!!
When the unit is to be
cleaned, switch off, and turn
off the circuit breaker.
Do not clean unit when
power is on as it may cause
fire and electric shock, it may
cause an injury.
!!
Stop operation and close
the window in storm or
hurricane.
Operation with windows
opened may cause wetting
of indoor and soaking of
household furniture.
Do not place obstacles
around air-inlets or inside
of air-outlet.
Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
Do not put a pet or house
plant where it will be
exposed to direct air flow.
This could injure the pet or
plant.
!!
Hold the plug by the head
of the power plug when
taking it out.
It may cause electric shock
and damage.
!!
Ensure that the installation bracket of
the outdoor appliance is not damaged
due to prolonged exposure.
An oxygen shortage may occur.
Do not use for special
purposes.
Do not use this air conditioner to
preserve precision devices, food,
pets, plants, and art objects.
It may cause deterioration of
quality, etc.
!!
Turn off the main power
switch when not using the
unit for a long time.
It may cause failure of product
or fire.
!!
Always insert the filters
securely. Clean filter once
every two weeks.
It may cause failure of
appliance or accident.
If bracket is damaged, there
is concern of damage due to
falling of unit.
Do not use strong detergent such as wax or
thinner but use a soft cloth.
Appearance may be
deteriorated due to change
Do not place heavy object on the
power cord and ensure that the cord
is not compressed.
There is danger of fire or
electric shock.
of product color or
scratching of its surface.
!!
Use caution when unpacking and
installing. Sharp edges could cause injury.
Operation without filters may
cause failure.
Do not drink water drained
from air conditioner.
It contains contaminants and
could make you sick.
!!
If water enters the unit, turn the unit off at the power
outlet and switch off the circuit breaker. Isolate
supply by taking the power-plug out and contact a
qualified service technician.
3
IMPORTANT SAFETY INSTRUCTIONS
NOTE The power supply cord with
this air conditioner contains a current
detection device designed to reduce
the risk of fire.
Please refer to the section Operation
of Current Device for details.
In the event that the power supply
cord is damaged, it cannot be
repaired-it must be replaced with a
cord from the Product Manufacturer.
Power supply cord
with 3-prong grounding plug
and current detection device
,
Do not, under any
circumstances, cut,
remove, or bypass
the grounding prong.
,
WARNING
Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
Avoid fire hazard or electric shock. Do not use an extension cord or an
adaptor plug. Do not remove any prong from the power cord.
WARNING
Be sure the electrical service is adequate for the model you have
chosen. This information can be found on the serial plate, which
is located on the side of the cabinet and behind the grille.
Be sure the air conditioner is properly grounded. To minimize
shock and fire hazards, proper grounding is important. The power
cord is equipped with a three-prong grounding plug for protection
against shock hazards.
Your air conditioner must be used in a properly grounded wall
receptacle. If the wall receptacle you intend to use is not adequately
grounded or protected by a time delay fuse or circuit breaker,
have a qualified electrician install the proper receptacle.
Ensure the receptacle is accessible after the unit installation.
Do not run air conditioner without side protective cover in place.
This could result in mechanical damage within the air conditioner.
Do not use an extension cord or an adapter plug.
For your safety
Electrical Information
Operation of Current Device
The power supply cord contains a current device that senses damage to the power cord. To test your power
supply cord do the following:
1. Plug in the Air Conditioner.
2. The power supply cord will have TWO buttons on the plug head. Press the TEST button, you will notice a
click as the RESET button pops out.
3. Press the RESET button, again you will notice a click as the button engages.
4. The power supply cord is now supplying electricity to the unit. (On some products this it also indicated by
a light on the plug head.)
NOTES:
Do not use this device to turn the unit on or off.
Always make sure the RESET button is pushed in for correct operation.
The power supply must be replaced if it fails reset when either the TEST button is pushed, or it cannot be
reset. A new one can be obtained from the product manufacturer.
If power supply cord is damaged, it cannot be repaired. It MUST be replaced by one obtained from the
product manufacturer.
4
NORMAL SOUNDS
High Pitched Chatter
High efficiency compressors
At the front of the unit, you may
Sound of Rushing Air
hear the sound of rushing air
being moved by the fan
may have a high pitched chatter
during the cooling cycle.
Vibration
Unit may vibrate and make noise
because of poor wall or window
construction or incorrect installation.
Pinging or Switching
Droplets of water hitting condenser
during normal operation may cause
Gurgle/Hiss
Gurgling or hissing noise may
be heard due to refrigerant
passing through evaporator
during normal operation.
pinging or switching sounds.
NOTE: All the pictures in this manual are for explanation purposes only. The actual shape of the
air conditioner you purchased may be slightly different, but the operations and functions
are almost the same.
AIR CONDITIONER FEATURES

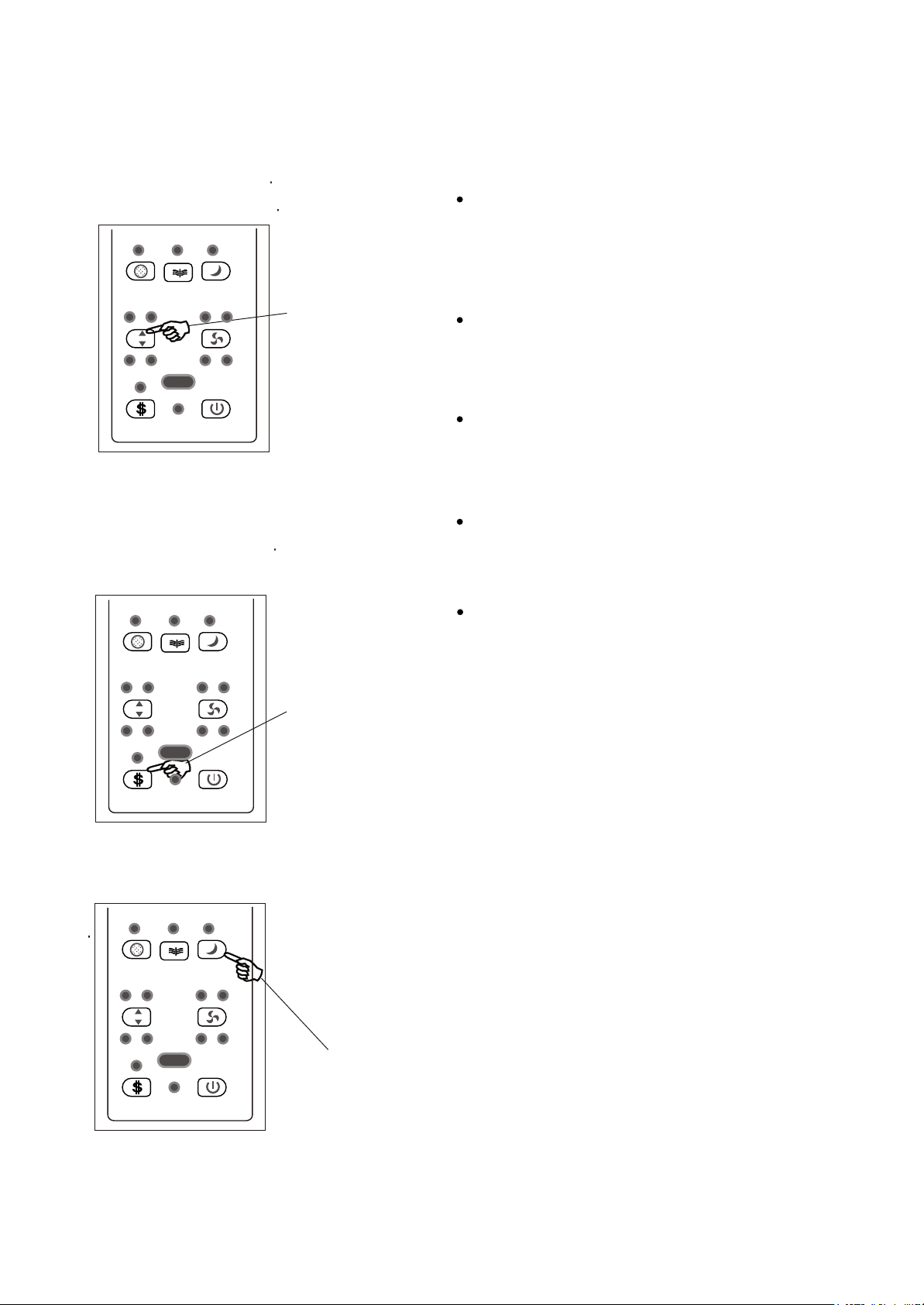

ELECTRONIC CONTROL OPERATING INSTRUCTIONS
Before you begin, thoroughly familiarize yourself with the control panels as shown below and all its
functions, then follow the symbol for the functions you desire. The unit can be controlled by the
unit control alone or with the remote controller.
ADJUSTS
TEMPERATURE
OR TIME
ACTIVATES
TIMER
CHECK FILTER
RESET BUTTON
SETS MODE
ENERGY
SAVER MODE
TTeemmpp
TTi i mme err
On On
Timer Timer
Check Check
CleanClean
CoolCool
Fan Fan Dry Dry
Energy Energy
Saver Saver
AirAir
Mode Mode
Follow Follow
Filter Filter
AutoAuto LowLowAutoAuto
Me Me
T T eem m pp
TTii mmeerr
OffOff
SleepSleep
Med Med HighHigh
On/OffOn/Off
ADJUSTS
TEMPERATURE
OR TIME
DISPLAYS
TEMPERATURE
OR TIME
CLEAN AIR MODE
(on some models)
SLEEP MODE
SET FAN SPEED
Fan Fan
FOLLOW ME INDICATOR
(on some models)
TURNS UNIT
ON OR OFF
HighHigh
Temp/TimerTemp/Timer
Timer Timer
Check Check
Filter Filter
Dry Dry
Med Med
Energy Energy
Saver Saver
OffOff
Mode Mode
Follow Follow
Sleep Sleep
Clean
Clean
Air
Air
CoolCool
AutoAuto
Low Low
AutoAuto
Fan Fan
On/OffOn/Off
Me Me
On On
Fan Fan
UNIT CONTROL(1)
UNIT CONTROL(2)
5
AIR CONDITIONER FEATURES(CONTINUED)
NOTE: The following instructions represent the Unit Controls, the same instructions can be used
for the Remote Control.
TO TURN UNIT ON:
CleanClean
Mode Mode
AirAir
Follow Follow
Me Me
SleepSleep
Fan Fan
Med Med HighHigh
On/OffOn/Off
Check Check
Filter Filter
CoolCool
AutoAuto LowLowAutoAuto
Fan Fan Dry Dry
Energy Energy
Saver Saver
TO CHANGE TEMPERATURE
SETTING:
TTe em mpp
TTiimmeerr
On On
Timer Timer
TTeemm pp
TTiimmeerr
OffOff
DO THIS:
Press to raise
CleanClean
AirAir
SleepSleep
Check Check
Filter Filter
CoolCool
AutoAuto LowLowAutoAuto
DO THIS:
Press the On/Off button.
NOTE:
Press or hold either Left( <) or Right (>) button
until the desired temperature is seen on the
display. This temperature will be automatically
maintained anywhere between 62 F(17 C) and
86 F(30 C). If you want the display to read the
actual room temperature, see To Operate on
Fan Only section.
Press to lower
Mode Mode
Fan Fan
TO ADJUST FAN SPEEDS:
CleanClean
Mode Mode
AirAir
Follow Follow
Me Me
SleepSleep
Fan Fan
Med Med HighHigh
On/OffOn/Off
Check Check
Filter Filter
CoolCool
AutoAuto LowLowAutoAuto
Fan Fan Dry Dry
Energy Energy
Saver Saver
NOTE:
Used to select the Fan Speed in four stepsAuto, Low, Med or High. Each time the button
is pressed, the fan speed mode is shifted.
DO THIS:
Press to select
appropriate fan
speed
6
AIR CONDITIONER FEATURES(CONTINUED)
TO SELECT THE
OPERATING MODE:
CleanClean
Mode Mode
AirAir
Follow Follow
Me Me
SleepSleep
Fan Fan
Med Med HighHigh
On/OffOn/Off
Check Check
Filter Filter
CoolCool
AutoAuto LowLowAutoAuto
Fan Fan Dry Dry
Energy Energy
Saver Saver
TO USE THE ENERGY
SAVER FEATURE:
CleanClean
Mode Mode
AirAir
Follow Follow
Me Me
SleepSleep
Fan Fan
Med Med HighHigh
On/OffOn/Off
Check Check
Filter Filter
CoolCool
AutoAuto LowLowAutoAuto
Fan Fan Dry Dry
Energy Energy
Saver Saver
DO THIS:
Press the Mode
button.
DO THIS:
Press the button
NOTE:
To choose operating mode, press the Mode button.
Each time you press the button, a mode is selected
in a sequence that goes from Auto, Cool, Dry and
Fan. The indicator light beside will be illuminated
and remained on once the mode is selected.
To operate on Auto feature:
In this mode, the fan speed cannot be adjusted, it
starts automatically at a speed according to the
room temperature. If the room does not get too
warm, it will stay at Low speed.
To operate on Fan Only:
Use this function only when cooling is not desired,
such as for room air circulation or to exhaust stale
air(on some models). (Remember to open the vent
during this function, but keep it closed during
cooling for maximum cooling efficiency.) You can
choose any fan speed you prefer.
During this function, the display will show the actual
room temperature, not the set temperature as in the
cooling mode.
To operate on Dry mode:
In this mode, the air conditioner will generally
operate in the form of a dehumidifier. Since the
conditioned space is a closed or sealed area, some
degree of cooling will continue.
NOTE:
In this mode, the fan will continue to run for 3 minutes
after the compressor shuts off. The fan then cycles
on for 2 minutes at 10 minute intervals until the room
temperature is above the set temperature, at which
time the compressor turns back on and cooling stars.
SLEEP FEATURE:
CleanClean
Mode Mode
AirAir
Follow Follow
Me Me
SleepSleep
Fan Fan
Med Med HighHigh
On/OffOn/Off
Check Check
Filter Filter
CoolCool
AutoAuto LowLowAutoAuto
Fan Fan Dry Dry
Energy Energy
Saver Saver
DO THIS:
Press Sleep
button
NOTE:
In this mode the selected temperature will increase by
OO
2 F/1(or 2) C 30 minutes after the mode is selected.
The temperature will then increase by another
OO
2 F/1(or 2) C
after an additional 30 minutes. This new
temperature will be maintained for 6 hours before it
returns to the originally selected temperature. This
ends the Sleep mode and the unit will continue to
operate as originally programmed. The Sleep mode
program can be cancelled at any time during operation
by again pressing the Sleep button.
7
AIR CONDITIONER FEATURES(CONTINUED)
TIMER: AUTO START/
STOP FEATURE:
TT eemmpp
TT iimmeerr
On On
TT eemmpp
TT iimmeerr
OffOff
Timer Timer
DO THIS:
Check Check
CleanClean
AirAir
Filter Filter
CoolCool
AutoAuto LowLowAutoAuto
Mode Mode
SleepSleep
Fan Fan
Press Timer
button
CHECK FILTER FEATURE:
TTeemmp p
TTiimmeerr
On On
Timer Timer
TTeemmpp
TTiimmeerr
OffOff
DO THIS:
Press Check
Check Check
CleanClean
AirAir
Filter Filter
CoolCool
AutoAuto LowLowAutoAuto
SleepSleep
Filter button
NOTE:
First press the Timer button, the indicator light
besides word On illuminates. It indicates the Auto
Start program is initiated.
Press or hold the Left arrow or Right arrow to change
the Auto time by 0.5 hour increments, up to 10 hours,
then at 1 hour increments up to 24 hours. The control
will count down the time remaining until start.
The selected time will register in 5 second and the
system will automatically revert back to display the
previous temperature setting.
Turning the unit ON or OFF at any time will cancel the
Auto Start/Stop function.
NOTE:
This feature is a reminder to clean the Air Filter for
more efficient operation. The LED(light) will illumi nate after 250 hours of operation. To reset after
cleaning the filter, press the Check Filter button and
the light will go off.
Mode Mode
Fan Fan
CLEAN AIR FEATURE:
(on some models)
T Te emmpp
TT iimmeerr
Check Check
AutoAuto
Filter Filter
On On
Timer Timer
CleanClean
CoolCool
Mode Mode
TT eemmpp
TT iimmeerr
OffOff
SleepSleep
AirAir
LowLowAutoAuto
Fan Fan
DO THIS:
Press Clean
Air button
NOTE:
Press the Clean Air button, the ion generator is ener gized and will help to remove pollen and impurities
from the air, and trap them in the filter.
8
AIR CONDITIONER FEATURES(CONTINUED)

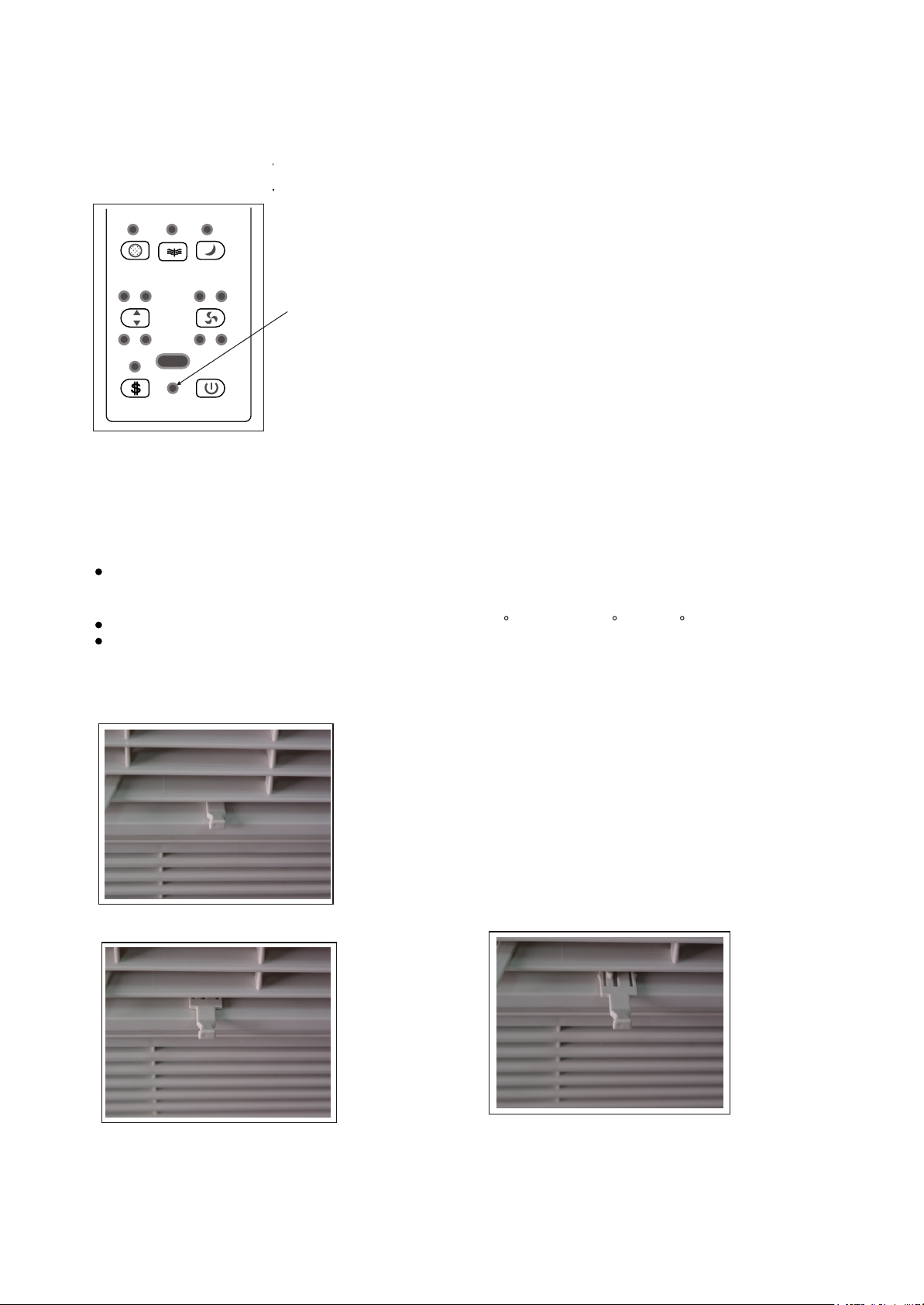

FOLLOW ME FEATURE:
(on some models)
Mode Mode
CleanClean
AirAir
Follow Follow
Me Me
SleepSleep
Med Med HighHigh
On/OffOn/Off
Fan Fan
Light flashing
Check Check
Filter Filter
CoolCool
AutoAuto LowLowAutoAuto
Fan Fan Dry Dry
Energy Energy
Saver Saver
ADDITIONAL THINGS YOU SHOULD KNOW
Now that you have mastered the operating procedure, here are more features in your control that
you should become familiar with.
The Cool circuit has an automatic 3 minute time delayed start if the unit is turned off and on
quickly. This prevents overheating of the compressor and possible circuit breaker tripping.
The fan will continue to run during this time.
The control will maintain any set temperature within 2 F, between 60 F and 90 F degrees.
The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius.
To convert from one to the other, press and hold the Left and Right Temp/Timer buttons at the
same time, for 3 seconds.
NOTE:
This feature can be activated from the remote
control ONLY. The remote control serves as a
remote thermostat allowing for the precise
temperature control at its location.
To activate the Follow Me feature, point the remote
control towards the unit and press the Follow Me
button. T
he remote display is actual temperature
at its location. The remote control will send this
signal to the air conditioner every 3 minutes interval
until press the Follow Me button again.
If the unit
does not receive the Follow Me signal during any 7
minute interval, the unit will beep to indicate the
Follow Me mode has ended.
The actual temperature can be displayed at the unit
by pressing the Fan Only mode. When in the Cool
mode, the unit display indicates the set temperature.
Fresh Air Vent Control(on some models):
The Fresh Air Vent allows the air conditioner to:
1. Recirculate inside air - Vent Closed (See Fig.1)
2. Draw fresh air into the room- Vent Open (see Fig.2)
3. Exchange air from the room and draws fresh air into
the room - Vent and Exhaust Open (see Fig.3)
Figure 1 (VENT CLOSED)
Figure 2 (VENT OPEN)
Figure 3 (VENT & EXHAUST OPEN)
9
Air Directional Louvers
The louvers will allow you to direct the air flow Up
or Down(on some models) and Left or Right
throughout the room as needed. Pivot horizontal
louvers until the desired Up/Down direction is
obtained.
Center Handles
Move the Center Handles from side to side until the
Air Direction
desired Left/Right direction is obtained.
INSTALLATION INSTRUCTIONS
Your air conditioner is designed to install in standard double hung windows with opening widths of
23 to 36 inches(584mm to 914mm) (See Fig.1).
Fig. 1
WINDOW SILL
INTERIOR
WALL
Mounting Hardware
3 4 Screws
(7)
Lock Frame
(2)
Top Rail Hardware
Wooden Windows
Sash Lock
(1)
Lower sash must open sufficiently to allow a clear vertical
opening of following size (see Table 1).Side louvers and the
rear of the AC must have clear air space to allow enough
airflow through the condenser,for heat removal. The rear of
the unit must be outdoors, not inside a building or garage.
Table 1
10000~12000Btu/h
Size
Model
5000~8000Btu/h
14 (356mm) 15-1/2 (394mm)
NOTE: Save Carton and these Installation Instructions
for future reference. The carton is the best way to store unit
during winter, or when not in use.
TOOLS NEEDED:
Phillips Screw Driver
Drill(If pilot holes are needed)
CAUTION: When handling unit, be careful to avoid cuts from
sharp metal edges and aluminum fins on front and rear coils.
NOTE: The top rail hardware and the following Fig.A,
Fig.B and Fig.C are not applicable to the units more
than 10000Btu/h.
3 8 Screws
(4)
Packaging
Top Rail
(1)
Fig.A
Top Rail
Before installing unit, the top rail must be assembled
on the unit (For <10000Btu/h models only).
Tool Needed: Phillips Screwdriver
A: Remove the air conditioner from the carton and place
on a flat surface.
B: Remove top rail from the rear of the packaging material
as shown in Fig. A.
10
Fig.B
HOW TO INSTALL
Fig.C
C: Align the hole in the top rail with those in the
top of the unit as shown in Fig.B
D: Secure the top rail to the unit with the 3/8
Screws as shown in Fig.C.
NOTE: For safety reasons, all four(4) screws
MUST be securely fastened.
,,
NOTE: Top rail and Sliding Panels at each side are offset to provide the proper pitch to the rear of
(5/16 ). This is
not using the Side Panels for any reason, this pitch to the rear must be maintained.
Place unit on floor, a bench or a table. There is a Left and Right Window Filler Panel- be sure
1
to use the proper panel for each side. When installed the flange for securing the panel in place to
the window sill will be facing into the room.
A. Hold the Accordion Panel
in one hand and gently
pull back the center to free
the open end. See Fig.1.
,,
Fig.1
necessary for proper condensed water utilization and drainage. If you are
Fig.2A
Fig.2B
Fig.3
B. Slide the free and (I section)
of the panel into the cabinet
as shown in Fig. 2A, 2B & 3.
Slide the panel down., Be
sure to leave enough space
to slip the top and bottom of
the frame into the rails on
the cabinet.
11
Fig.4
Fig.5
Fig.6
C. Once the panel has been installed on the side of the
cabinet, make sure it sits securely inside the frame
channel by making slight adjustments. Slide the top
and bottom ends of the frame into the top and bottom
ends of the frame into the top and bottom rails of
the cabinet. Fig.4.
D. Slide the panel all the way in and repeat on the other
side.
NOTE: If storm window blocks AC, see Fig. 13.
2
Keep a firm grip on the air conditioner, carefully
place the unit into the window opening so the bottom
of the air conditioner frame is against the window
sill (Fig.5). Carefully close the window behind the top
rail of the unit.
Fig.7
Fig.8
3
Extend the side panels out against the window
frame (Fig.6).
4
Place the frame lock between the frame
extensions and the window sill as shown
(Fig.7). Drive 3 / 4 (19mm) locking screws
through the frame lock and into the sill
(Fig.8).
NOTE: To prevent window sill from splitting,
drill 1 / 8 (3mm) pilot holes before driving
screws.
,,
,,
12
Fig.9
5
Drive 1 / 2 (13mm) locking screws through frame
,,
holes into window sash (Fig.9/10)
6
To secure lower sash in place, attach right angle
sash lock with 3 / 4 (19mm) screw as shown(Fig.11).
,,
Fig.13
Fig.12
Fig.10
Fig.11
7
Cut foam seal and insert in the space between the
upper and lower sashes (Fig.12).
If AC is Blocked by Storm Window
Add wood as shown in Fig.13, or remove storm
window before air conditioner is installed.
Storm window
frame or other
obstruction
Sash
,,
11/2 MIN
(38 mm)
Board
thickness
as required,
for proper
pitch to rear,
along entire
sill. Fasten
with nails or
screws.
If Storm Window Frame must remain, be sure the
drain holes or slots are not caulked or painted shut.
Accumulated Rain Water or Condensation must be
allowed to drain out.
Removing AC From Window
Turn AC off, and disconnect power cord.
Remove sash seal from between windows, and
unscrew safety lock.
Remove screws installed through frame and frame
lock.
Close (slide) side panels into frame.
Keeping a firm grip on air conditioner, raise sash
and carefully rock air conditioner backward to
,
,
,
,
drain any condensate water in base of unit. Be
carefully not to spill any remaining water while
lifting unit form window. Store parts WITH air
conditioner.
13
CARE AND CLEANING
CAUTIONCAUTION
Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit
before cleaning to prevent chock or fire hazards.
Air Filter Cleaning
The air filter should be checked at least once a
month to see if cleaning is necessary. Trapped
particles in the filter can build up and cause an
accumulation of frost on the cooling coils.
Push the vent handle to the Vent Closed position
(where applicable).
Open the front panel.
Grasp the filter by the center and pull up and
out.
Wash the filter using liquid dishwashing deter gent and warm water. Rinse filter thoroughly.
Gently shake excess water from the filter. Be
sure the filter is thoroughly dry before replacing.
Or, instead of washing you may vacuum the
filter clean.
Note: Never use hot water over 40 C(104 F) to
cl ean th e ai r fil ter. Never attempt to operate the
unit without the air filter.
Cabinet Cleaning
Be sure to unplug the air conditioner to prevent
shock or fire hazard. The cabinet and front may
be dusted with an oil-free cloth or washed with
a cloth dampened in a solution of warm water
and mild liquid dishwashing detergent. Rinse
thoroughly and wipe dry.
Never use harsh cleaners, wax or polish on the
cabinet front.
Be sure to wring excess water from the cloth before
wiping around the controls. Excess water in or around
the controls may cause damage to the air conditioner.
Plug in air conditioner.
Winter Storage
If you plan to store the air conditioner during the winter,
remove it carefully from the window according to the
installation instructions. Cover it with plastic or return it
to the original carton.
14
TROUBLESHOOTING TIPS
Before calling for service, review this list. It may save you time and expense. This list includes common
occurrences that are not the result of defective workman-ship or materials in this appliance.
Problem
Air conditioner
does not start
Air from unit does
not feel cold
enough
Air conditioner
cooling, but room
is too warm- ice
forming on cooling
coil behind
decorative front.
Air conditioner
cooling, but room
is too warm- NO
ice forming on
cooling coil behind
decorative front.
Solution
Wall plug disconnected. Push plug firmly into wall outlet.
House fuse blown or circuit breaker tripped. Replace fuse with time delay type or
reset circuit breaker.
Plug Current Device Tripped. Press the RESET button.
Control is OFF. Turn Control ON and set to desired setting.
O
Room temperature below 17 C(62 F). Cooling may not occur until room temperature
rises above 17 C(62 F).
O
O
O
Temperature sensing element touching cold coil, located behind air filter. Straighten
tube away from coil.
Reset to a Lower temperature.
Compressor shut-off by changing modes. Wait approximately 3 minutes and listen for
compressor to restart when set in the COOL mode.
O
Outdoor temperature below 18 C(64 F). To defrost the coil, set FAN ONLY mode.
O
Air filter may be dirty. Clean filter. Refer to Care and Cleaning section. To defrost,
set to FAN ONLY mode.
Thermostat set too cold for night-time cooling. To defrost the coil, set to FAN ONLY
mode. Then, set temperature to a Higher setting.
Dirty air filter- air restricted. Clean air filter. Refer to Care and Cleaning section.
Temperature is set too High, set temperature to a Lower setting.
Air directional louvers positioned improperly. Position louvers for better air distribution.
Front of units is blocked by drapes, blinds, furniture, etc. - restricts air distribution.
Clear blockage in front of unit.
Doors, windows, registers, etc. Open- cold air escapes. Close doors, windows, registers.
Air conditioner turns on
and off rapidly
Noise when unit is
cooling
Water dripping
INSIDE when
unit is cooling.
Unit recently turned on in hot room. Allow additional time to remove Stored heat from
walls, ceiling, floor and furniture.
Dirty air filter- air restricted. Clean air filter.
Outside temperature extremely hot. Set FAN speed to a Higher setting to bring air past
cooling coils more frequently.
Air movement sound. This is normal . If too loud, set to a slower FAN setting.
Window vibration - poor installation. Refer to installation instructions or check with installer.
Improper installation. Tilt air conditioner slightly to the outside to allow water drainage.
Refer to installation instructions - check with installer.
15
Problem
Water dripping
OUTSIDE when
unit is cooling.
Solution
Unit removing large quantity of moisture from humid room. This is normal during
excessively humid days.
Remote Sensing
Deactivating
Prematurely
(some models)
Room too cold
Remote control not located within range. Place remote control within 20 feet & 180 ,
radius of the front of the unit.
Remote control signal obstructed. Remove obstruction.
Set temperature too low. Increase set temperature.
16
Design, material, performance data and components
subject to change without notice.
HEAT CONTROLLER, INC.
1900 Wellworth Ave., Jackson, Ml 49203
THE QUALITY LEADER IN CONDITIONING AIR
www.heatcontroller.com
12/2009
Ph. 517-787-2100 Fax 517-787-9341
Loading...
