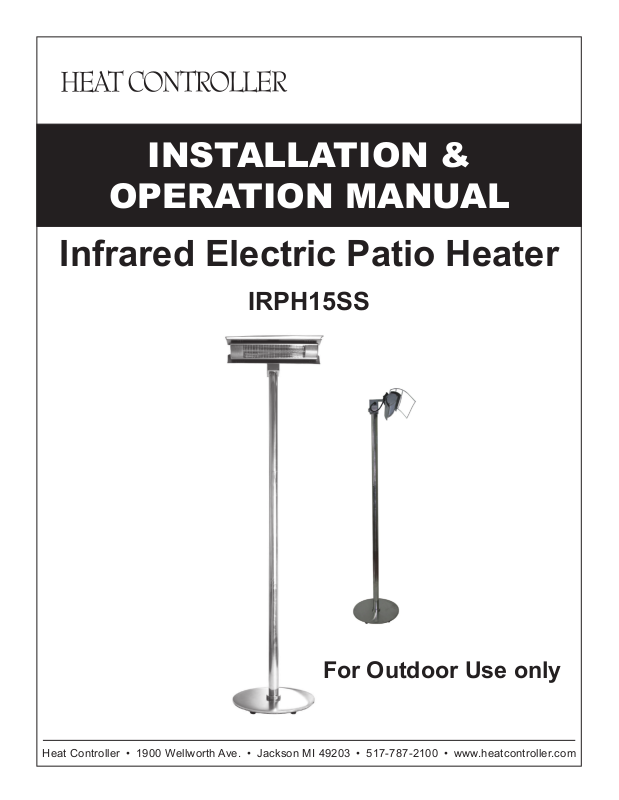

INSTALLATION &
OPERATION MANUAL
Infrared Electric Patio Heater
IRPH15SS
For Outdoor Use only
Heat Controller • 1900 Wellworth Ave. • Jackson MI 49203 • 517-787-2100 • www.heatcontroller.com
Installation & Operation Manual Infrared Electric Patio Heater Heat Controller
WARNINGS
This electric appliance produces infrared heat and failure to follow warnings and
instructions can cause a re or injury.
READ AND SAVE THESE INSTRUCTIONS!
WARNING
FIRE OR EXPLOSION HAZARD
• Failure to follow safety warnings exactly could
result in serious injury or property damage.
• Do not store or use gasoline or other ammable
vapors or liquids in the vicinity of this appliance.
• Do not store any of the following ammable
materials on, or allow them to come in contact
with, the unit: rags, fabrics ,spray or aerosol cans,
cleaning compounds, plastics or plastic containers,
paper products, gasoline, kerosene, lighter uid.
• Do not install the heater close to furniture, curtains
or other ammable items. Allow at least 36 inches
(1 meter) between the heater and ammable items.
• Do not cover or otherwise obstruct the heater.
WARNING
PERSONAL INJURY HAZARD
• Do not touch the heater during operation. Burn or
scald injury could result.
• Keep children away from the heater. Never leave
an unsupervised child near the heater.
• Do not use the heater if the power cord is
damaged. Contact an authorized servicer or
electrician to replace the cord prior to use.
WARNING
INSTALLATION & USE
To avoid property damage, personal injury or
death due to electrical shock, all instructions in this
Installation and Operation manual.
• All local, regional and national electric codes and
local construction codes must be observed in the
installation of the heater.
• The power outlet must be properly polarized and
grounded.
• Be sure the voltage listed on the heater’s
nameplate is the same as the voltage at the
installation site.
• Do not use the heater if the power cord is
damaged. Contact a qualied service agency or
electrician to replace the cord prior to use.
• Remove the plug from the power outlet and wait
until the heater is sufciently cool before cleaning it.
• Because of injury risk, the heater should be
operated only by individuals knowledgeable about
the operation and familiar with the warnings and
cautions listed in this manual.
• Because of injury risk, this heater is not intended
for use by persons with reduced physical, sensory
or mental capabilities.
WARNING
PERSONAL INJURY HAZARD–SERVICE
• To avoid property damage, personal injury or death
due to electrical shock, do not service the unit
without rst unplugging the unit from the wall outlet
and allowing adequate time for the unit to cool down.
• Service must be performed only by a qualed
service technician.
CAUTION
• Never use with an extension cord or multi-socket.
• Use extreme caution whenever the heater is left
operating and unattended.
• Do not install the heater immediately below a wall
socket outlet.
• Do not use a timer or other device that
automatically turns on the unit.
• Do not use the heater with an external voltage
regulator such as a dimmer or speed controller.
2
Heat Controller Infrared Electric Patio Heater Installation & Operation Manual
When using electrical appliances, basic precautions
should always be followed to reduce the risk of re,
electrical shock and injury to persons, including the
following:
1. Fully read through the operation and assembly
instructions before operating the heater. Be sure to
keep this manual in a safe place for future reference.
2. This heater is designed for outdoor use only.
3. Conrm that the supply voltage indicated on the
rating plate of the heater corresponds to the local
voltage before you connect the heater. The power
supply to the heater should correspond to the relevant
regulations of the power supply companies and the
regional construction/building code regulations.
4. This heater is hot when in use. To avoid burns do
not let bare skin touch hot surfaces. If provided, use
handles when moving this heater. Keep combustible
materials, such as furniture, pillows, bedding, papers,
clothes and curtains at least 3 feet (1m) from the front
of the heater and keep them away from the sides and
rear of the unit.
10. To disconnet the heater, press the red switch on the
side of the unit to the OFF (O) position, then remove
the plug from outlet.
11. To clean, remove the plug from the power outlet and
wait until the heater is sufciently cooled.
12. Connect to properly grounded outlets only.
13. Do not insert or allow foreign objects to enter any
ventilation or exhaust opening as this may cause an
electric shock or re, or damage the heater.
14. To prevent a possible re, do not block air intakes or
exhaust in any manner. Do not use on soft surfaces,
such as a bed or other furnishings, where openings
may become blocked.
15. This heater has hot and arcing or sparking parts
inside. Do not use it in areas where gasoline, paint or
ammable liquids are used or stored.
16. Use this heater only as described in this manual. Any
other use not recommended by the manufacturer may
cause re, electric shock or injury to persons.
5. Extreme caution is necessary when any heater is used
by or near children, and whenever the heater is left
operating and unattended.
6. Always unplug heater when not in use.
7. Do not operate any heater with a damaged cord or
plug or after the heater malfunctions, or has been
dropped or damaged in any manner. Return heater to
authorized service facility for examination, electrical or
mechanical adjustment, or repair.
8. This heater is designed for outdoor use. It is not
intended for use in bathrooms, laundry areas and
similar indoor locations. Never locate heater where it
may fall into a bathtub, pool or other water container.
9. Do not run cord under carpeting. Do not cover cord
with throw rugs, runners or similar coverings. Locate
cord away from trafc area and where it will not creat
a tripping hazard. Do not let the cord hang over the
edge of a table or counter, or touch hot surfaces.
17 Always plug the heater into a wall outlet/receptacle.
Never use with an extension cord or re-locatable
power tab (outlet/power strip).
18. This heater is for use with 120 volt power supply. The
cord has a plug as shown at A in Figure 1. An adaptor
as shown in Figure 1 is available for connecting threeblade grounding type plugs to two-slot receptacles.
The green grounding lug extending from the adaptor
must be connected to a permanent ground such as
a properly grounded outlet box. The adaptor should
not be used if a three-slot grounded receptacle is
available.
Figure 1
Grounding Methods
SAVE THESE INSTRUCTIONS!
3
Installation & Operation Manual Infrared Electric Patio Heater Heat Controller
MOUNTING AND OPERATING INSTRUCTIONS
SPECIFICATIONS
Congratulations on your purchase of the Comfort-Aire®
Electric Portable Infrared Patio Heater.This heater utilizes
medium-wave technology that heats people and objects,
not the air, and is unaffected by wind. For best results and
your safety, follow the instructions carefully. Do NOT modify
this product in any way as the manufacturer will not accept
liability for improper use.
ASSEMBLING THE UNIT (Follow diagrams below)
1. Thread the 6 leveling feet into
the holes around the bottom
of the base. (Figure 1)
2. Attach the anged column
to the base with (4) M8
bolts, using the supplied hex
wrench. (Figure 1)
Model: IRPH15SS
Voltage: 120V AC
Emitter (Lamp): IRRL15120
(Medium wave infrared)
Power : MAX 1500W
Height: 82 inches (2100mm)
Width: 24 inch base (600mm)
7. Pull gently on the cable at the bottom of the base to keep
it taut. Fix the cable to the base with the cable clamp and
(2) M4 screws.
(Figure 5)
3. Mount the lamp to the terminal
box with M6 screw and nut.
(Figure 2)
4. Connect the terminal box to
the upper column with (4)
M5 bolts. Be sure to feed the
attached power cord into the
upper column. (Figure 3)
5. Connect the center column to
the upper column by screwing
clockwise. Do not overtighten.
6. Insert the cable plug into the
cable socket. Feed the cord
through the lower column and
out the bottom of the base.
Connect the center column to
the lower column byscrewing
clockwise. Do not overtighten. (Figure 4)
4
Heat Controller Infrared Electric Patio Heater Installation & Operation Manual
OPERATION
1. Plug the power cord into a GFCI protected outlet
2. Turn ON the heater by pressing the red switch mounted on the side
of the heater to the ON (I) position–it willl illuminate red when the heater is ON.
3. To turn OFF the heater, press the red switch on the side of the heater to the OFF
(O) position. The switch will no longer be illuminated.
4. Remove the plug from the power outlet whenever the heater is not being used.
Coil the power cord when the heater is not being used, so that it is not a safety
hazard.
5. Allow the heater to cool down after use.
6. The heater should be stored in a dry location when not in use. Particular care
should be taken to ensure that the plug is not subjected to water or damp
conditions–electric shock could result.
CLEANING AND STORAGE
1. Your heater is a robust aluminum unit with a strong mast and base, and requires
only minimal maintenance. There are no user serviceable parts inside.
2. Before cleaning, turn the unit OFF and remove the plug from the power outlet.
Wait until the heater has cooled down.
3. Clean with a lint-free cloth or a soft brush.
4. Never use abrasive cleaners, scrubbing brushes or chemical cleaners on the
heater, column or base.
WARNING
PERSONAL INJURY HAZARD
5. To protect against electric shock and danger of death, do not immerse cord, plug,
or any part of the heater in water or other liquid.
6. Store the heater in a dry location when not in use. Take special care to ensure
that the plug is not subjected to damp or wet conditions during storage.
5
Owner’s Manual Electric Patio Heater Heat Controller
MAINTENANCE & SERVICE
1. Repairs must be carried out by authorized specialists to ensure electrical safety.
Contact an authorized servicer or a qualied electrician if repairs are needed.
2. For heating element replacement, contact the manufacturer, its service agent or a
qualied technician.
WARNING
PERSONAL INJURY HAZARD
3. Improper repairs could result in death or personal injury to users. USERS
SHOULD NOT ATTEMPT TO MAKE REPAIRS.
CAUTION
Do not handle lamp with bare hands. Remove any nger marks with a soft cloth
and methylated spirits or alcohol. Finger marks will burn into quartz causing
premature lamp failure. Outer casing can reach high temperatures.
6
Limited Express Warranty
Comfort-Aire® Infrared Heaters
RESIDENTIAL INSTALLATION/USE:
LIMITED ONE (1) YEAR PARTS EXPRESS WARRANTY
Heat Controller warrants all parts of the Infrared Heaters to
be free from defects in workmanship and materials for normal
residential use and maintenance for one (1) year from the date
of purchase by the original consumer.
LIMITED THREE (3) YEAR EXPRESS WARRANTY ON BULB
Heat Controller warrants the heater bulb to be free from defects
in workmanship and materials for normal residential use and
maintenance for three (3) years from the date of purchase by
the original consumer.
COMMERCIAL INSTALLATION/USE:
LIMITED ONE (1) YEAR PARTS EXPRESS WARRANTY
Heat Controller warrants all parts of the Infrared Heaters to
be free from defects in workmanship and materials for normal
commercial use and maintenance for one (1) year from the date
of purchase by the original consumer.
The Express Limited Warranties described above apply only
when the Infrared Heater is installed and operated per Heat
Controller installation and operating instructions for normal use.
EXCEPTIONS
The Limited Express Warranty does not cover normal
maintenance—Heat Controller recommends that regular
inspection/maintenance be performed according to the
Installation and Operation Manual. Additionally, labor charges,
diagnostic charges, transportation charges for replacement parts,
replacement of the bulb, or any other service calls/repairs are
not covered by this Limited Warranty. It also does not cover any
portion or component of the system that is not supplied by Heat
Controller, regardless of the cause of failure of such portion or
component.
CONDITIONS FOR WARRANTY COVERAGE
• Unit must be operated according to Heat Controller operating
instructions included with the unit and cannot have been
subjected to accident, alteration, improper repair, neglect or
misuse, or an act of God (such as a ood)
• Installation must be according to Heat Controller installation
instructions
• Rating plate has not been altered or removed
• Unit is not operated in a corrosive environment
• Performance cannot be impaired by use of any product not
authorized by Heat Controller, or by any adjustments or
adaptations to components
• Damage has not been a result of inadequate wiring or
voltage conditions, use during brown-out conditions, or circuit
interruptions
DURATION OF WARRANTY & REGISTRATION
The warranty begins on the date of purchase by the orginal
consumer. The consumer must register at www.heatcontroller.
com within 90 days of purchase. The consumer must retain a
receipted bill of sale as proof of warranty period. Without this
proof, the express warranty begins on the date of shipment from
the factory.
REMEDY PROVIDED BY THE LIMITED EXPRESS WARRANTY
The sole remedy under the Limited Warranty is replacement of
the defective part. If replacement parts are required within the
period of this warranty, Heat Controller replacement parts shall
be used; any warranty on the replacement part(s) shall not affect
the applicable original unit warranty. Labor to diagnose and
replace the defective part is not covered by this Limited Express
Warranty. If for any reason the replacement part/product is no
longer available during the warranty period, Heat Controller
shall have the right to allow a credit in the amount of the current
suggested retail price of the part/product instead of providing
repair or replacement.
LIMITATION OF LIABILITY
1. There are no other express or implied warranties. Heat
Controller makes no warranty of merchantability. We do not
warrant that the unit is suitable for any particular purpose or
can be used in buildings or rooms of any particular size or
condition except as specically provided in this Installation
and Operation document. There are no other warranties,
express or implied, which extend beyond the description in
this document.
2. All warranties implied by law are limited in duration to the
one-year term of the Parts Warranty. Your exclusive remedy
is limited to the replacement of defective parts. We will not
be liable for any consequential or incidental damages caused
by any defect in this unit.
3. This warranty gives you specic legal rights and you may
also have other rights which vary from state to state. Some
states do not allow limitation on how long an implied warranty
lasts or do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitations or exclusions
may not apply to you.
4. No warranties are made for units sold outside the continental
United States and Canada. Your distributor or nal seller may
provide a warranty on units sold outside these areas.
5. Heat Controller will not be liable for damages if our performance
regarding warranty resolution is delayed by events beyond our
control including accident, alteration, abuse, war, government
restrictions, strikes, re, ood, or other acts of God.
HOW TO OBTAIN WARRANTY SERVICE OR PARTS
If you have a warranty claim or service question, contact Heat
Controller at 517-787-2100. Have the model number and date
of purchase available for this call. Do not return your unit to the
store where it was purchased.
Owner responsibilities are set forth in the
instruction manual—read it carefully.
7
Design, material, performance specications and components
subject to change without notice.
:HOOZRUWK$YH-DFNVRQ0,3KZZZKHDWFRQWUROOHUFRP
07/1/2013
Loading...
