HEAT CONTROLLER

INSTALLATION INSTRUCTIONS

FOR UPFLOW & DOWNFLOW/HORIZONTAL HIGH EFFICIENCY CONDENSING GAS FURNACES GLUB/GLDB SERIES

U.L. recognized fuel gas and CO (carbon monoxide) detectors are recommended in all applications, and their installation should be in accordance with the manufacturer’s recommendations and/or local laws, rules, regulations, or customs.

92-24161-93-01

SUPERSEDES 92-24161-93-00

INSTALLATION CHECK LIST

REFER TO INSTALLATION INSTRUCTIONS

GAS SUPPLY

Adequate pipe size

orrect supply pressure (during furnace operation)

Manifold pressure

No gas leaks

L.P. Kit Number (if applicable)

ELECTRICAL

115 V.A.C. supply (Single Circuit)

Polarity observed

Furnace properly grounded

Adequate wire size

FURNACE INSTALLATION

Adequate clearance to combustibles

Adequate clearance for service (at front)

DUCT STATIC PRESSURE

in. w.c. on heating speed

in. w.c. on cooling speed

Air temperature rise

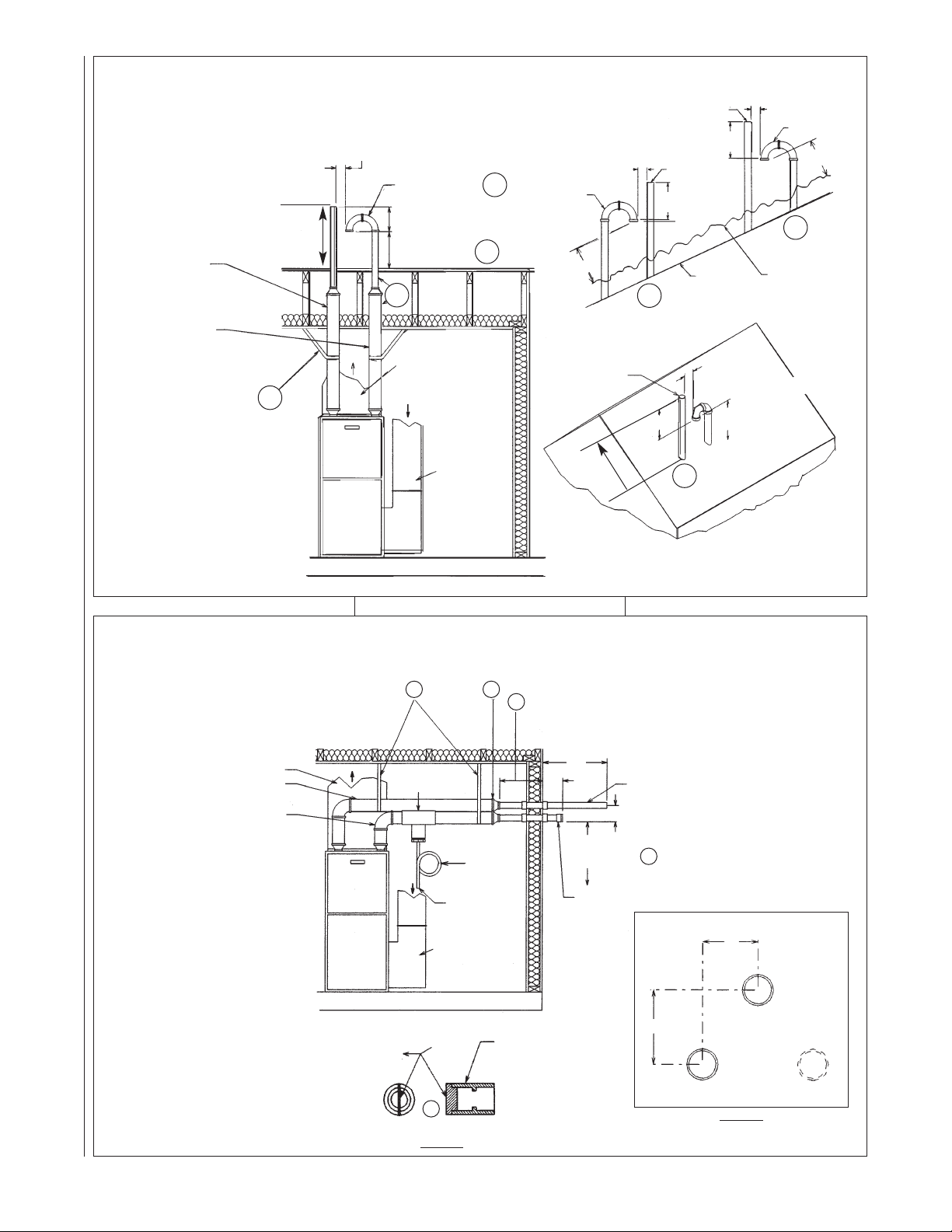

TERMINATIONS – DIRECT VENT

VERTICAL

ntake – 12" min. above roof/snow level

Correct relationship – exhaust to intake

HORIZONTAL/VERTICAL – CONCENTRIC (RXGY-E03A)

Intake – 12" min. above roof/snow level

Intake “Y” rotated above center

Exhaust sloped toward furnace

HORIZONTAL – STANDARD (RXGY-D02, -D02A, -D03, D03A)

Correct relationship – exhaust to intake

12" min. above grade/snow level

HORIZONTAL – ALTERNATE (RXGY-D02, -D02A, -D03, D03A)

Correct relationship – exhaust to intake

Above anticipated snow level

VENTING – NON-DIRECT VENT

in. diameter – exhaust pipe

ft. of pipe – exhaust

CONDENSATE LINE

Trap filled with water

Vented

Sloped toward drain

Condensate drain line hoses connected and clamped

Freeze protection (if necessary)

VENTING – DIRECT VENT

in. diameter – intake pipe

in. diameter – exhaust pipe

ft. of pipe – intake air

no. of elbows – intake air

ft. of pipe – exhaust pipe

no. of elbows – exhaust pipe

Exhaust vent temp.

no. of elbows

TERMINATION – NON-DIRECT VENT

VERTICAL

12" min. above roof/snow level

HORIZONTAL – STANDARD

12" min. above grade/snow level

HORIZONTAL – ALTERNATE

Above anticipated snow level

Model Number

Serial #

Date of Installation

SAFETY INFORMATION

WARNING

USE ONLY WITH TYPE OF GAS APPROVED FOR THIS FURNACE.

EFER TO THE FURNACE RATING

R PLATE.

WARNING

NSTALL THIS FURNACE ONLY IN

I A LOCATION AND POSITION AS SPECIFIED IN THE LOCATION

EQUIREMENTS AND

R CONSIDERATIONS SECTION OF THESE INSTRUCTIONS. PROVIDE ADEQUATE COMBUSTION AND VENTILATION AIR TO THE FURNACE SPACE AS SPECIFIED IN THE VENTING SECTION OF THESE INSTRUCTIONS.

WARNING

PROVIDE ADEQUATE COMBUSTION AND VENTILATION AIR TO THE FURNACE SPACE AS SPECIFIED IN THE COMBUSTION AND VENTILATION AIR SECTION OF THESE INSTRUCTIONS.

WARNING

COMBUSTION PRODUCTS MUST BE DISCHARGED OUTDOORS. CONNECT THIS FURNACE TO AN APPROVED VENT SYSTEM ONLY, AS SPECIFIED IN VENT PIPE INSTALLATION SECTION OF THESE INSTRUCTIONS.

WARNING

DO NOT OPERATE THE SYSTEM FOR EXTENDED PERIODS WITHOUT FILTERS. A PORTION OF THE DUST ENTRAINED IN THE AIR MAY TEMPORARILY LODGE IN THE AIR DUCT RUNS AND AT THE SUPPLY REGISTERS. ANY CIRCULATED DUST PARTICLES WILL BE HEATED AND CHARRED BY CONTACT WITH THE FURNACE HEAT EXCHANGER. THIS SOOTY RESIDUE WILL SOIL CEILINGS, WALLS, DRAPES, CARPETS AND OTHER HOUSEHOLD ARTICLES. SOOT DAMAGE MAY ALSO RESULT WITH, OR WITHOUT, FILTERS IN PLACE, WHEN CERTAIN TYPES OF CANDLES ARE BURNED, OR CANDLEWICKS ARE LEFT UNTRIMMED.

WARNING

EVER TEST FOR GAS LEAKS

N WITH AN OPEN FLAME. USE A COMMERCIALLY AVAILABLE SOAP SOLUTION MADE SPECIFICALLY FOR THE DETECTION OF LEAKS TO CHECK ALL CONNECTIONS, AS SPECIFIED IN GAS SUPPLY AND PIPING SECTION OF THESE

NSTRUCTIONS.

WARNING

ALWAYS INSTALL FURNACE TO OPERATE WITHIN THE FURNACE'S INTENDED TEMPERATURE-RISE RANGE WITH A DUCT SYSTEM WHICH HAS AN EXTERNAL STATIC PRESSURE WITHIN THE ALLOWABLE RANGE, AS SPECIFIED IN DUCTING SECTION OF THESE INSTRUCTIONS. SEE ALSO FURNACE RATING PLATE.

WARNING

WHEN A FURNACE IS INSTALLED SO THAT SUPPLY DUCTS CARRY AIR CIRCULATED BY THE FURNACE TO AREAS OUTSIDE THE SPACE CONTAINING THE FURNACE, THE RETURN AIR SHALL ALSO BE HANDLED BY DUCT(S) SEALED TO THE FURNACE CASING AND TERMINATING OUTSIDE THE SPACE CONTAINING THE FURNACE.

WARNING

DO NOT INSTALL THIS FURNACE IN A MOBILE HOME!! THIS FURNACE IS NOT APPROVED FOR INSTALLATION IN A MOBILE HOME. DOING SO COULD CAUSE FIRE, PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

WARNING

WHEN THIS FURNACE IS INSTALLED IN A RESIDENTIAL GARAGE, IT MUST BE INSTALLED SO THE BURNERS AND IGNITION SOURCE ARE LOCATED NO LESS

HAN 18 INCHES ABOVE THE

T FLOOR. THIS IS TO REDUCE THE RISK OF IGNITING FLAMMABLE VAPORS WHICH MAY BE PRESENT IN A GARAGE. ALSO, THE FURNACE MUST BE LOCATED OR PROTECTED TO AVOID PHYSICAL DAMAGE BY VEHICLES. FAILURE TO FOLLOW THESE WARNINGS CAN CAUSE A FIRE OR EXPLOSION, RESULTING IN PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

WARNING

INSTALLATION MUST COMPLY WITH ALL INSTALLATION INSTRUCTIONS INCLUDING:

• PROPER VENT INSTALLATION;

• FURNACE OPERATING UNDER THERMOSTATIC CONTROL;

• RETURN AIR DUCT SEALED TO THE FURNACE;

• AIR FILTERS IN PLACE;

• SET FURNACE INPUT RATE AND TEMPERATURE RISE PER RATING PLATE MARKING;

• MEANS FOR PROVIDING OUTDOOR AIR REQUIRED FOR COMBUSTION;

• RETURN AIR TEMPERATURE MAINTAINED BETWEEN 55°F (13°C) AND 80°F (27°C); AND

• CLEAN FURNACE, DUCT WORK AND COMPONENTS UPON SUBSTANTIAL COMPLETION OF THE CONSTRUCTION PROCESS, AND VERIFY FURNACE OPERATING CONDITIONS INCLUDING IGNITION, INPUT RATE, TEMPERATURE RISE AND VENTING, ACCORDING TO THE INSTRUCTIONS.

WARNING

DUCT LEAKS CAN CREATE AN UNBALANCED SYSTEM AND DRAW POLLUTANTS SUCH AS DIRT, DUST, FUMES AND ODORS INTO THE HOME CAUSING PROPERTY DAMAGE. FUMES AND ODORS FROM TOXIC, VOLATILE OR FLAMMABLE CHEMICALS, AS WELL AS AUTOMOBILE EXHAUST AND CARBON MONOXIDE (CO), CAN BE DRAWN INTO THE LIVING SPACE THROUGH LEAKING DUCTS AND UNBALANCED DUCT SYSTEMS CAUSING PERSONAL INJURY OR DEATH (SEE FIGURE

3).

• IF AIR-MOVING EQUIPMENT OR DUCTWORK IS LOCATED IN GARAGES OR OFF-GARAGE STORAGE AREAS - ALL JOINTS, SEAMS, AND OPENINGS IN THE EQUIPMENT AND DUCT MUST BE SEALED TO LIMIT THE MIGRATION OF TOXIC FUMES AND ODORS INCLUDING CARBON MONOXIDE FROM MIGRATING INTO THE LIVING SPACE.

• IF AIR-MOVING EQUIPMENT OR DUCTWORK IS LOCATED IN SPACES CONTAINING FUEL BURNING APPLIANCES SUCH AS WATER HEATERS OR BOILERS - ALL JOINTS, SEAMS, AND OPENINGS IN THE EQUIPMENT AND DUCT MUST ALSO BE SEALED TO PREVENT DEPRESSURIZATION OF THE SPACE AND POSSIBLE MIGRATION OF COMBUSTION BYPRODUCTS INCLUDING CARBON MONOXIDE INTO THE LIVING SPACE.

NOTICE

IMPROPER INSTALLATION, OR INSTALLATION NOT MADE IN ACCORDANCE WITH THE CSA INTERNATIONAL (CSA) CERTIFICATION OR THESE INSTRUCTIONS, CAN RESULT IN UNSATISFACTORY OPERATION AND/OR DANGEROUS CONDITIONS AND ARE NOT COVERED BY THE UNIT WARRANTY.

NOTICE

IN COMPLIANCE WITH RECOGNIZED CODES, IT IS RECOMMENDED THAT AN AUXILIARY DRAIN PAN BE INSTALLED UNDER ALL EVAPORATOR COILS OR UNITS CONTAINING EVAPORATOR COILS OR GAS FURNACES USED WITH EVAPORATOR COILS THAT ARE LOCATED IN ANY AREA OF A STRUCTURE WHERE DAMAGE TO THE BUILDING OR BUILDING CONTENTS MAY OCCUR AS A RESULT OF AN OVERFLOW OF THE COIL DRAIN PAN OR A STOPPAGE IN THE PRIMARY CONDENSATE DRAIN PIPING.

SAFETY INFORMATION

IMPORTANT!

THE COMMONWEALTH OF MASSACHUSETTS REQUIRES COMPLIANCE WITH REGULATION 248 CMR 4.00 AND 5.00 FOR INSTALLATION OF THROUGH-THEWALL VENTED GAS APPLIANCES AS FOLLOWS:

(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:

1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time

of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors.

a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.

b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide detector with an alarm shall be installed.

2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide

detector is required in accordance with the above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.

3.SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print size no less than one-half (1/2) inch in size “GAS

VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.

4. INSPECTION. The state or local

gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.08(2)(a) 1 through 4.

(b) EXEMPTIONS: The following equipment is exempt from 248 CMR

5.08(2)(a) 1 through 4:

1. The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54 as adopted by the Board; and

2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or structure used in whole or in part for residential purposes.

(c) MANUFACTURER REQUIREMENTS – GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

1. Detailed instructions for the installation of the venting system design or the venting system components; and

2. A complete parts list for the venting system design or venting system.

(d) MANUFACTURER REQUIREMENTS – GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identified “special venting systems”, the following requirements shall be satisfied by the manufacturer:

1. The referenced “special venting system” instructions shall be included with the appliance or equipment installation instructions; and

2. The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed installation instructions.

(e) A copy of installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.

IMPORTANT: All manufacturer products meet current Federal OSHA Guidelines for safety. California Proposition 65 warnings are required for certain products, which are not covered by the OSHA standards.

California's Proposition 65 requires

arnings for products sold in California

w that contain, or produce, any of over 600 listed chemicals known to the State

f California to cause cancer or birth

o defects such as fiberglass insulation, lead in brass, and combustion products

rom natural gas.

All “new equipment” shipped for sale in California will have labels stating that the product contains and/or produces Proposition 65 chemicals. Although we have not changed our processes, having the same label on all our products facilitates manufacturing and shipping. We cannot always know “when, or if” products will be sold in the California market.

You may receive inquiries from customers about chemicals found in, or produced by, some of our heating and air-conditioning equipment, or found in natural gas used with some of our products. Listed below are those chemicals and substances commonly associated with similar equipment in our industry and other manufacturers.

• Glass Wool (Fiberglass) Insulation

• Carbon Monoxide (CO)

• Formaldehyde

• Benzene

More details are available at the Websites for OSHA (Occupational Safety and Health Administration), at www.osha.gov California's OEHHA (Office of Environmental Health Hazard Assessment), at www.oehha.org. Consumer education is important since the chemicals and substances on the list are found in our daily lives. Most consumers are aware that products present safety and health risks, when improperly used, handled and maintained.

and the State of

CONTENTS

afety Precautions ...................................................................................................1

nstallation Check List ..............................................................................................2

afety Information ....................................................................................................3

eneral Information..................................................................................................6

ocation Requirements and Considerations ............................................................8

ucting ...................................................................................................................13

enting and Combustion Air Piping .......................................................................14

ombustion and Ventilation Air ..............................................................................16

ent Pipe Installation..............................................................................................19

Condensate Drain/Neutralizer................................................................................32

Converting Downflow to Horizontal ........................................................................34

Gas Supply and Piping...........................................................................................36

High Altitude Instructions........................................................................................38

Electrical Wiring......................................................................................................41

Accessories............................................................................................................42

Furnace Twinning...................................................................................................42

Start-Up Procedures...............................................................................................46

Air Flow...................................................................................................................48

Maintenance...........................................................................................................51

Troubleshooting......................................................................................................54

Wiring Diagrams................................................................................................55-56

IMPORTANT: TO INSURE PROPER INSTALLATION AND OPERATION OF THIS PRODUCT, COMPLETELY READ ALL INSTRUCTIONS PRIOR TO ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE, MAINTAIN OR REPAIR THIS PRODUCT. UPON UNPACKING OF THE FURNACE, INSPECT ALL PARTS FOR DAMAGE PRIOR TO INSTALLATION AND START-UP.

GENERAL INFORMATION

The GLUB and GLDB series furnaces are design-certified by CSA for use with natural and propane gases as follows:

. As non-direct vent central forced

air furnaces taking combustion air from the installation area or using air ducted from the outside.

2. As direct vent central forced air furnaces with all combustion air supplied directly to the furnace

urners through a special air

b intake system outlined in these instructions.

Install this furnace in accordance with the American National Standard Z223.1 – latest edition entitled “National Fuel Gas Code” (NFPA54) and requirements or codes of the local utilities or other authorities having jurisdiction. This is available

rom the following:

National Fire Protection

Association, Inc. Batterymarch Park Quincy, MA 02269

CSA-INTERNATIONAL 8501 East Pleasant Valley Road Cleveland, Ohio 44131-5575

Install units in Canada in accordance with CSA-B149, local installation codes and authorities having jurisdiction. CSA-B149 is available from:

SA-INTERNATIONAL

C 178 Rexdale Blvd. Toronto, Ontario Canada M9W, 1R3

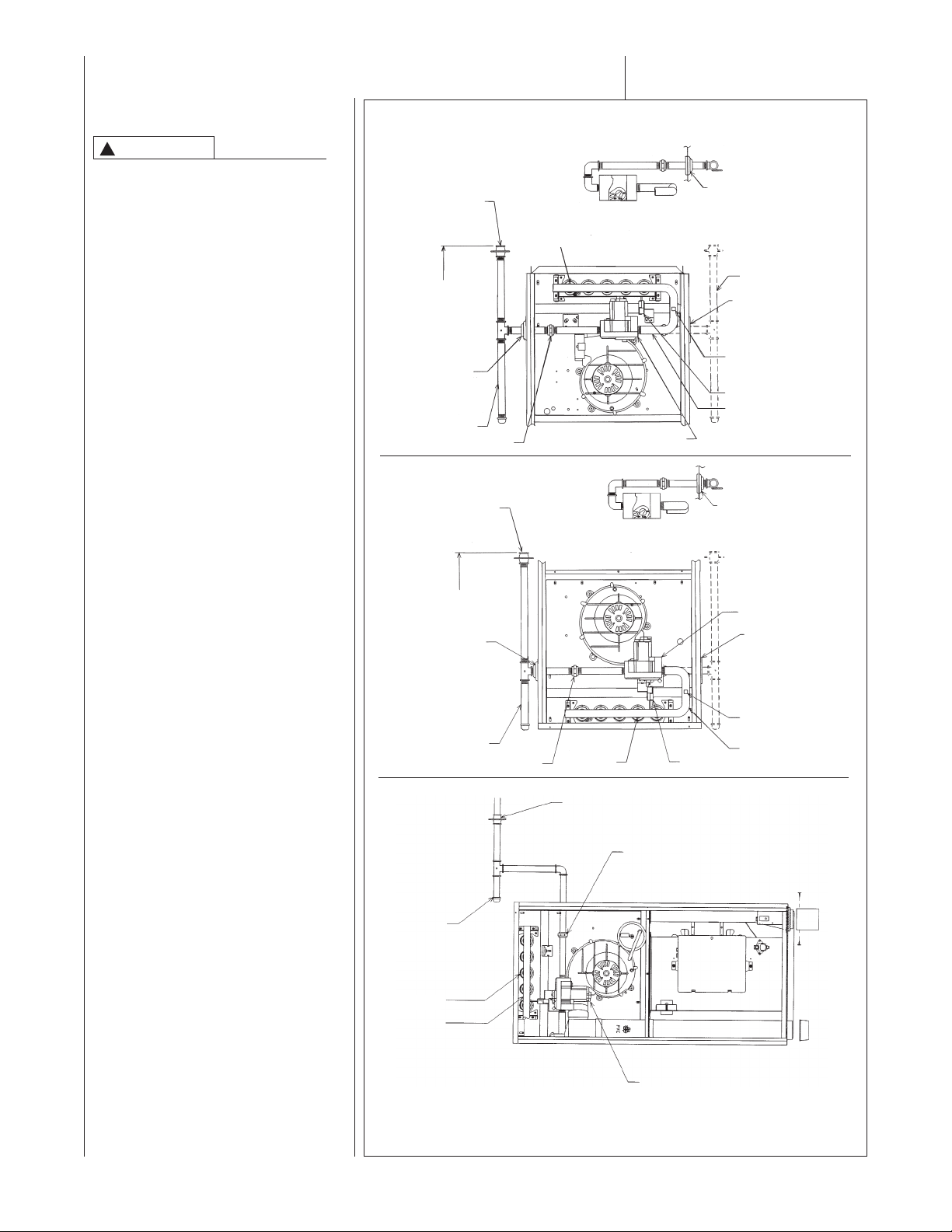

FIGURE 1

UPFLOW FURNACE

FIGURE 2

DOWNFLOW/HORIZONTAL FURNACE

ITEM ITEM

NO. PART NAME NO. PART NAME

1 CONDENSATE TRAP 13 TOP PLATE 2 DOOR SWITCH 14 BURNER 3 JUNCTION BOX 15 IGNITER (HSI ONLY) 4 TRANSFORMER 16 COMBUSTION AIR INLET 5 BLOCKED DRAIN PRESSURE SWITCH 17 GAS VALVE 6 MAIN PRESSURE SWITCH 18 INDUCED DRAFT BLOWER 7 EXHAUST TRANSITION 19 CAPACITOR 8 CONNECTOR 20 LOW VOLTAGE (THERMOSTAT)

9 OUTLET AIR PIPE TERMINAL 10 SHIPPING PLUG 21 CONTROL MOUNTING PLATE 11 FLAME SENSOR 22 BLOWER 12 OVERTEMPERATURE SWITCH

I409 I409

ITEM ITEM

NO. PART NAME NO. PART NAME

1 INDUCED DRAFT BLOWER 14 LOW VOLTAGE TERMINAL (THERMOSTAT) 2 CAPACITOR 15 TRANSFORMER 3 INLET AIR CHASE 16 PRESSURE SWITCH 4 DOOR SWITCH 17 OUTLET AIR PIPE 5 JUNCTION BOX 18 GAS VALVE 6 INLET PIPE CONNECTOR 19 CONNECTOR 7 TOP PLATE 20 EXHAUST TRANSITION 8 CONTROL MOUNTING PLATE 21 CONDENSATE TRAP

9 AUXILIARY LIMIT 22 IGNITER (HSI) 10 SHIPPING PLUG 23 MANIFOLD 11 EXHAUST CONNECTION 24 OVERTEMPERATURE SWITCH 12 BLOWER 25 ROLLOUT SWITCH 13 EXHAUST PIPE EXTENSION 26 FLAME SENSOR

27 BURNER

IMPORTANT INFORMATION ABOUT EFFICIENCY AND INDOOR AIR QUALITY

Central cooling and heating equipment is only as efficient as the duct system that carries the cooled or heated air. To maintain efficiency, comfort and good indoor air quality, it is important to have the proper balance between the air being supplied to each room and the air returning to the cooling and heating equipment.

Proper balance and sealing of the duct system improves the efficiency of the heating and air conditioning system and improves the indoor air quality of the home by reducing the amount of airborne pollutants that enter homes from spaces where the ductwork and/or equipment is located. The manufacturer and the U.S. Environmental Protection Agency’s Energy Star Program recommend that central duct systems be checked by a qualified contractor for proper balance and sealing.

WARNING

3).

NOTICE

FIGURE 3

MIGRATION OF DANGEROUS SUBSTANCES, FUMES, AND ODORS INTO LIVING SPACES

RECEIVING

Immediately upon receipt, all cartons and contents should be inspected for transit damage. Units with damaged cartons should be opened immediately. If damage is found, it should be noted on the delivery papers, and a damage claim filed with the last carrier.

• After unit has been delivered to job site, remove carton taking care not to damage unit.

• Check the unit rating plate for unit size, electric heat, coil, voltage, phase, etc. to be sure equipment

matches what is required for the job specification.

• Read the entire instructions before starting the installation.

Some building codes require extra

• cabinet insulation and gasketing when unit is installed in attic applications.

• If installed in an unconditioned space, apply caulking around the power wires, control wires, refrigerant tubing and condensate line where they enter the cabinet. Seal the power wires on the inside where they exit conduit opening. Caulking is required to prevent air leakage into and condensate from forming inside the unit, control box, and on electrical controls.

• Install the unit in such a way as to allow necessary access to the coil/filter rack and blower/control compartment.

• Install the unit in a level position to ensure proper condensate drainage. Make sure unit is level in both directions within 1/8”.

• Install the unit in accordance with any local code which may apply and the national codes. Latest editions are available from:

“National Fire Protection Association, Inc., Batterymarch Park, Quincy, MA 02269.” These publications are:

• ANSI/NFPA No. 70-(Latest Edition) National Electrical Code.

• NFPA90A Installation of Air Conditioning and Ventilating Systems.

• NFPA90B Installation of warm air heating and air conditioning systems.

• The equipment has been evaluated in accordance with the Code of Federal Regulations, Chapter XX, Part 3280.

LOCATION REQUIREMENTS AND CONSIDERATIONS

GENERAL INFORMATION

WARNING

DO NOT USE THIS FURNACE DURING CONSTRUCTION IF AIR LADEN CORROSIVE COMPOUNDS ARE PRESENT SUCH AS CHLORINE AND FLUORINE. OTHERWISE, PROVISIONS MUST BE TAKEN TO PROVIDE CLEAN, UNCONTAMINATED COMBUSTION AND VENTILATION AIR TO THE FURNACE. FURNACE COMBUSTION AND VENTILATION AIR CONTAMINATED WITH THESE COMPOUNDS FORMS ACIDS DURING COMBUSTION WHICH CORRODES THE HEAT EXCHANGER AND COMPONENT PARTS. SOME OF THESE CONTAMINANTS ARE FOUND IN, BUT NOT LIMITED TO, PANELING, DRY WALL, ADHESIVES, PAINTS, STAINES, VARNISHES, SEALERS, AND MASONRY CLEANING MATERIALS.

WARNING

DO NOT INSTALL THIS FURNACE IN A MOBILE HOME!! This furnace

is not approved for installation in a mobile home. Doing so could cause

FIRE, PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

WARNING

WHEN THIS FURNACE IS INSTALLED IN A RESIDENTIAL GARAGE, IT MUST BE INSTALLED SO THE BURNERS AND IGNITION SOURCE ARE LOCATED NO LESS THAN 18 INCHES ABOVE THE FLOOR. THIS IS TO PREVENT THE RISK OF IGNITING FLAMMABLE VAPORS WHICH MAY BE PRESENT IN A GARAGE. ALSO, THE FURNACE MUST BE LOCATED OR PROTECTED TO AVOID PHYSICAL DAMAGE BY VEHICLES. FAILURE TO FOLLOW THESE WARNINGS CAN CAUSE A FIRE OR EXPLOSION, RESULTING IN PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

1. IMPORTANT: If installing the unit over a finished ceiling or

iving area, be certain to install an

l auxiliary condensate drain pan under the entire unit. This

uxiliary drain pan should extend

a under any evaporator coil installed with the furnace and the

pen portion of the condensate

o drain assembly. See “Condensate Drain/Neutralizer” section for more details.

2. IMPORTANT: If using a cooling evaporator coil with this furnace:

a. be sure the air passes over

the heat exchanger before passing over the cooling coil. The cooled air passing over the warm ambient air inside the heat exchanger tubes can cause condensation inside the tubes resulting in corrosion and eventual failure.

b. install a parallel duct system

to divert all the air from the furnace allowing it to pass over the cooling coil only. Use dampers or other means to prevent chilled air from passing over the heat exchanger.

If these are manual dampers, they must be equipped to prevent heating or cooling operation unless the damper is in the full heat or cool position.

FIGURE 4

HORIZONTAL FURNACE W/HEAT TAPE ON CONDENSATE TRAP

DRAIN PIPE

3. IMPORTANT: Install the furnace level. If it is not level, condensate

annot drain properly, possibly

c causing furnace shut down.

NOTE: These furnaces are approved for installation in attics, as well as alcoves, utility rooms, closets and crawlspaces. Provisions must be made to prevent freezing of condensate.

If this furnace is installed in a garage, attic and/or any unconditioned space, install a self-regulating heat tape around the condensate trap and along the entire length of the condensate drain in the unconditioned space. See Figure 4.

When the condensing horizontal gas furnace is installed in an unconditioned space where the temperature would be capable of reaching close to or below 32°F (0°C). a self-regulating heat tape is required on the condensate drain, along with an insulation wrap. The heat tape should meet the following requirements:

a. The heat tape must be UL

b. The heat tape must be

CAUTION

listed.

installed per the manufacturer’s instructions for the entire length of drain pipe in the unconditioned space.

HEAT TAPE

TRAP

I526

c. The heat tape should be rated

at 5 or 6 watts per foot at

20V.

IMPORTANT: Support this unit when installed. Since this furnace is suitable for attic or crawl space installation, it may be installed on combustible wood flooring or by using support brackets. See

Figure 5.

5. IMPORTANT: If installing in a

utility room, be sure the door is wide enough to:

a. allow the largest part of the

furnace to pass; or

b. allow any other appliance

(such as a water heater) to pass.

6. IMPORTANT: This furnace is not approved or recommended for installation on its back, with access doors facing upwards.

FIGURE 5

HORIZONTAL FURNACE INSTALLED W/SUPPORT BRACKETS

IPE

RAP

NTAKE

ENT

ELECTRICAL CONDUIT

XHAUST

I522

CLEARANCE ACCESSIBILITY

The design of forced air furnaces with input ratings as listed in the tables under Figures 6, 7, and 8 are certified by CSA-International for the clearances to combustible materials shown in inches.

See name/rating plate and clearance label for specific model number and clearance information.

Service clearance of at least 24 inches is recommended in front of all furnaces.

NOTE: Use recommended 24” clearance if accessibility clearances are greater than fire protection clearances.

WARNING

UPFLOW AND HORIZONTAL FURNACES ARE DESIGNCERTIFIED FOR INSTALLATION ON COMBUSTIBLE FLOORS. NOTE, HOWEVER, THAT FURNACES MUST NOT BE INSTALLED DIRECTLY ON CARPETING, TILE OR OTHER COMBUSTIBLE MATERIAL OTHER THAN WOOD FLOORING. INSTALLATION ON A COMBUSTIBLE MATERIAL CAN RESULT IN FIRE, CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

Upflow furnaces are shipped with a bottom closure panel installed. When bottom return air is used, remove the panel by removing the two screws attaching the panel to the front base angle. See Figure 51.

SITE SELECTION

1. Select a site in the building near the center of the proposed, or existing, duct system.

2. Give consideration to the vent system piping when selecting the furnace location. Be sure the venting system can get from the furnace to the termination with minimal length and elbows.

3. Locate the furnace near the existing gas piping. Or, if running a new gas line, locate the furnace to minimize the length and elbows in the gas piping.

4. Locate the furnace to maintain proper clearance to combustibles as shown in the following tables.

WARNING

DO NOT LIFT THE UNIT BY THE HEAT EXCHANGER TUBES. DOING SO CAN CRACK THE HEAT EXCHANGER ASSEMBLY AND CAUSE CO2 TO BE RELEASED INTO THE ENVIRONMENT, WHICH CAN RESULT IN PERSONAL INJURY OR DEATH.

WARNING

COMBUSTIBLE MATERIAL MUST NOT BE PLACED ON OR AGAINST THE FURNACE JACKET. THE AREA AROUND THE FURNACE MUST BE KEPT CLEAR AND FREE OF ALL COMBUSTIBLE MATERIALS INCLUDING GASOLINE AND OTHER FLAMMABLE VAPORS AND LIQUIDS. PLACEMENT OF COMBUSTIBLE MATERIALS ON, AGAINST OR AROUND THE FURNACE JACKET CAN CAUSE AN EXPLOSION OR FIRE RESULTING IN PROPERTY DAMAGE, PERSONAL INJURY OR DEATH. THE HOMEOWNER SHOULD BE CAUTIONED THAT THE FURNACE AREA MUST NOT BE USED AS A BROOM CLOSET OR FOR ANY OTHER STORAGE PURPOSES.

FIGURE 6

CLEARANCE TO COMBUSTIBLES, UPFLOW UNITS

WGTS

BACK TOP FRONT VENT

SIDE SIDE

LEFT RIGHT SHIP

⁄32 0 0 0 1 2* 0 111

⁄32 0 0 0 1 2* 0 117

⁄32 0 0 0 1 2* 0 124

⁄8 0 0 0 1 2* 0 137

⁄32 0 0 0 1 2* 0 148

⁄32 0 0 0 1 2* 0 152

⁄8 2 15 13

⁄2 17

⁄8 2 18

⁄16 2 18

2 DIA.

GAS CONNECTION

⁄32 15

⁄32 19

UPFLOW MODELS MINIMUM CLEARANCE (IN.)

MODEL A B C D E F

⁄2 16

045 17

060 17

075 17

⁄32 19

075 21 19

090 21 19

105 21 19

*A service clearance of at least 24 inches is recommended in front of all furnaces.

AIRFLOW

AIR

⁄8

RETURN

2 DIA.

AIR

SUPPLY

GAS CONNECTION

⁄16

I392

FIGURE 7

CLEARANCE TO COMBUSTIBLES, DOWNFLOW UNITS

WGTS

BACK TOP FRONT VENT

SIDE SIDE

LEFT RIGHT SHIP

⁄8 0 0 0 1 2* 0 111

⁄8 0 0 0 1 2* 0 117

⁄8 0 0 0 1 2* 0 137

⁄8 0 0 0 1 2* 0 148

⁄8 13

⁄8 2 16

⁄8 0 0 0 1 2* 0 160

⁄8 17

⁄8 20

⁄8 2 23

⁄16 2 20

⁄16

2 DIA.

ALT. GAS

CONNECTION

⁄8

⁄32 15

⁄32 19

DOWNFLOW MODELS MINIMUM CLEARANCE (IN.)

⁄2 16

045 17

060 17

MODEL A B C D E F

⁄32 22

⁄2 23

075 21 19

090 21 19

105 24

*A service clearance of at least 24 inches is recommended in front of all furnaces.

AIR

SUPPLY

AIRFLOW

AIR

RETURN

GAS CONNECTION

2 DIA.

NOTE: IN DOWNFLOW CONFIGURATION, OPTIONAL AIR CUTOUT IS NOT PERMITTED.

I393

FIGURE 8

CLEARANCE TO COMBUSTIBLES, HORIZONTAL UNITS

WGTS

BACK TOP FRONT VENT

SIDE SIDE

LEFT RIGHT SHIP

⁄8 0 0 0 1 2* 0 111

⁄8 0 0 0 1 2* 0 117

⁄8 0 0 0 1 2* 0 137

⁄8 0 0 0 1 2* 0 148

⁄8 13

⁄8 2 16

⁄8 0 0 0 1 2* 0 160

⁄8 17

⁄8 20

⁄8 2 23

⁄16 2 20

IMPORTANT: This furnace is not approved or recommended for

installation on its back, with access doors facing upwards.

⁄32 15

⁄32 19

DOWNFLOW MODELS MINIMUM CLEARANCE (IN.)

⁄2 16

045 17

060 17

MODEL A B C D E F

⁄32 22

⁄2 23

075 21 19

090 21 19

105 24

*A service clearance of at least 24 inches is recommended in front of all furnaces.

⁄16

GAS

2 DIA.

CONNECTION

2 DIA.

ALT. GAS

CONNECTION

⁄8

I520

DUCTING

JACKET

DRILL (2) 3/16" DIA. HOLES

8.000

4.875

1.531

roper air flow is required for the

orrect operation of this furnace.

oo little air flow can cause erratic

peration and can damage the heat

xchanger. The duct system must

arry the correct amount of air for

eating and cooling if summer air

onditioning is used.

c Size the ducts according to

acceptable industry standards and methods. The total static pressure drop of the air distribution system should not exceed 0.5" w.c.

NOTE: Return air grilles and warm air registers must not be obstructed

WARNING

NEVER ALLOW THE PRODUCTS OF COMBUSTION FROM THE FLUE TO ENTER THE RETURN AIR DUCTWORK OR THE CIRCULATED AIR SUPPLY. ALL RETURN DUCTWORK MUST BE ADEQUATELY SEALED AND SECURED TO THE FURNACE WITH SHEET METAL SCREWS; AND JOINTS, TAPED. ALL OTHER DUCT JOINTS MUST BE SECURED WITH APPROVED CONNECTIONS AND SEALED AIRTIGHT. WHEN AN UPFLOW FURNACE IS MOUNTED ON A PLATFORM WITH RETURN THROUGH THE BOTTOM, IT MUST BE SEALED AIRTIGHT BETWEEN THE FURNACE AND THE RETURN AIR PLENUM. THE FLOOR OR PLATFORM MUST PROVIDE SOUND PHYSICAL SUPPORT OF THE FURNACE WITHOUT SAGGING, CRACKS, OR GAPS, AROUND THE BASE, PROVIDING A SEAL BETWEEN THE SUPPORT AND THE BASE.

FAILURE TO PREVENT PRODUCTS OF COMBUSTION FROM BEING CIRCULATED INTO THE LIVING SPACE CAN CREATE POTENTIALLY HAZARDOUS CONDITIONS, INCLUDING CARBON MONOXIDE POISONING THAT COULD RESULT IN PERSONAL INJURY OR DEATH.

DO NOT, UNDER ANY CIRCUMSTANCES, CONNECT RETURN OR SUPPLY DUCTWORK TO OR FROM ANY OTHER HEAT PRODUCING DEVICE SUCH AS A FIREPLACE INSERT, STOVE, ETC. DOING SO MAY RESULT IN FIRE, CARBON MONOXIDE POISONING, EXPLOSION, PERSONAL INJURY OR PROPERTY DAMAGE.

IMPORTANT: Some high efficiency

filters have a greater than normal resistance to air flow. This can adversely affect furnace operation. BE SURE TO CHECK AIR FLOW.

IMPORTANT: When using outside air, design and adjust the system to maintain a return air temperature ABOVE 50° F during the heating season.

UPFLOW UNITS

1. Position the unit to minimize long runs of duct or runs of duct with many turns and elbows.

2. Open the return air compartment.

WARNING

UPFLOW FURNACE: A SOLID METAL BASE PLATE MUST BE

NSTALLED IN THE FURNACE

I BOTTOM WHEN USING SIDE RETURN. FAILURE TO INSTALL A BASE PLATE COULD CAUSE THE PRODUCTS OF COMBUSTION TO CIRCULATE INTO THE LIVING SPACE AND CREATE POTENTIALLY HAZARDOUS CONDITIONS, INCLUDING CARBON MONOXIDE POISONING OR DEATH.

a. Cut an opening in the side.

The opening should be cut the full width of the knockouts on the unit. See Figure 9.

NOTE: Where the maximum air flow is 1800 CFM or more, both sides or the bottom must be used for return air.

3. Connect the return duct or return air cabinet to the unit. Make the connection air tight to prevent entraining combustion gases from an adjacent fuel-burning appliance.

4. Be sure to have adequate

space for the unit filter.

NOTE: DO NOT take return air

from bathrooms, kitchens, furnace rooms, garages, utility or laundry rooms, or cold areas.

NOTE: DO NOT use a rear air return.

FIGURE 9

CUTOUT AND DRILL INFORMATION

5. If summer air conditioning is desired, position the indoor coil on the top of the unit. Insure that no air can bypass this coil.

. Connect the supply air plenum to

the furnace plenum opening.

IMPORTANT: If a flexible duct connector must be used, it

be rated for a minimum

MUST temperature of 250°F continuous.

DOWNFLOW UNITS

1. Position the unit to minimize long

uns of duct or runs of duct with

r many turns and elbows.

2. If summer air conditioning is desired, position the indoor coil on the bottom of the unit. Insure that no air can bypass this coil.

3. If installing on a combustible floor

and not using an air conditioning plenum, install the

special non-combustible floor base. See Figure 10.

WARNING

THE DOWNFLOW FURNACE DESIGN IS CERTIFIED FOR INSTALLATION ON A NONCOMBUSTIBLE FLOOR. USE THE SPECIAL BASE SPECIFIED ON THE FURNACE CLEARANCE LABEL. FAILURE TO INSTALL THE SPECIAL BASE MAY RESULT IN FIRE, PROPERTY DAMAGE, PERSONAL INJURY OR DEATH. THIS SPECIAL BASE IS SHIPPED FROM THE FACTORY AS AN ACCESSORY.

4. Connect the furnace to the supply air plenum.

5. Connect the return air ducting to the return air opening at the top of the unit. Make the connection air tight to prevent entraining combustion gases from an adjacent fuel-burning appliance.

6. Be sure to have adequate

space for the unit filter. NOTE: DO NOT take return air

from bathrooms, kitchens, furnace rooms, garages, utility or laundry rooms, or cold areas.

HORIZONTAL UNIT

IMPORTANT: This furnace may only be installed so that when facing the front of the furnace, supply air is discharged on the left hand side.

1. Position the unit to minimize long runs or runs with many turns and elbows.

2. If summer air conditioning is desired, position the indoor coil on the left end of the unit. Insure that no air can bypass this coil.

3. Connect the furnace to the supply air plenum.

4. Connect the return air ducting to the return air opening at the right end of the unit. Make the connection air tight to prevent pulling combustion gases from an adjacent fuel-burning appliance.

FIGURE 10

COMBUSTIBLE FLOOR BASE

5. Be sure to have adequate

space for the unit filter. NOTE: DO NOT take return air

from bathrooms, kitchens, furnace rooms, garages, utility or laundry rooms, or cold areas.

VENTING AND COMBUSTION AIR PIPING

VENTING AND COMBUSTION AIR PIPING*

GENERAL INFORMATION

WARNING

READ AND FOLLOW ALL INSTRUCTIONS IN THIS SECTION. FAILURE TO PROPERLY VENT THIS FURNACE CAN CAUSE CARBON MONOXIDE POISONING OR AN EXPLOSION OR FIRE, RESULTING IN PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

This furnace removes both sensible and latent heat from the combustion flue gases. Removal of latent heat results in condensation of flue gas water vapor. This condensed water vapor drains from the secondary heat exchanger and out of the unit into a drain trap.

When installed as a non-direct vent furnace, only exhaust piping is required and inside combustion air may be used. Refer to section on “

COMBUSTION & VENTILATION AIR

FOR FURNACE INSTALLATIONS.” Direct vent installations require a

dedicated combustion air and venting system. All air for combustion is taken from the outside atmosphere and all combustion products are discharged to the outdoors.

WARNING

IN CANADA, PRODUCTS CERTIFIED FOR INSTALLATION

AND INTENDED TO BE VENTED WITH PLASTIC VENT SYSTEMS (PVC, CPVC) MUST USE VENT SYSTEMS THAT ARE CERTIFIED AND STAMPED TO THE STANDARD FOR TYPE BH GAS VENTING SYSTEMS, ULC S636.

THE COMPONENTS OF THE CERTIFIED MATERIAL MUST NOT BE INTERCHANGED WITH OTHER VENT SYSTEMS OR UNLISTED PIPE/FITTINGS.

PLASTIC COMPONENTS AND SPECIFIED PRIMERS AND GLUES OF THE CERTIFIED SYSTEM MUST BE FROM A SINGLE SYSTEM MANUFACTURER AND NOT

U.S. PIPE & FITTING MATERIAL*

Schedule 40 PVC (Pipe) D1785

Schedule 40 PVC (Cellular Core Pipe) F891

Schedule 40 PVC (Fittings) D2466

SDR-21PVC (Pipe) D2241

SDR-26 PVC (Pipe) D2241

Schedule 40 ABS Cellular Core DWV (Pipe) F628

Schedule 40 ABS (Pipe) D1527

Schedule 40 ABS (Fittings) D2468

ABS-DWV (Drain Waste & Vent) (Pipe & Fittings)

PVC-DWV (Drain Waste & Vent) (Pipe & Fittings)

*Starting in 2007, Canada allows ULC-S636 PVC or CPVC only.

INTERMIXED WITH OTHER SYSTEM MANUFACTURER’S PARTS.

NOTE: INLET AIR PIPING IS NOT CONSIDERED TO BE A PART OF THE “VENTING SYSTEM”. THE REQUIREMENT THAT VENT MATERIAL BE CERTIFIED TO ULC S636 DOES NOT APPLY TO INLET AIR PIPING.

The combustion air and vent pipe fittings must conform to American National Standards Institute (ANSI) and American Society for Testing Materials (ASTM) standards as shown below:

ASTM

SPECIFICATION

D2661

D2665

OVERTEMPERATURE SAFETY SWITCHES

Furnaces are equipped with safety switches in the control compartment to protect against overtemperature conditions caused by inadequate combustion air supply. The switches for the upflow and downflow models are located in the burner compartment. If a switch is tripped it must be manually reset.

WARNING

O NOT JUMPER THESE

EVICES! IF ONE OF THESE

WITCHES SHOULD TRIP, A

UALIFIED INSTALLER, SERVICE

GENCY OR THE GAS SUPPLIER

A MUST BE CALLED TO CHECK AND/OR CORRECT FOR ADEQUATE COMBUSTION AIR SUPPLY. DO NOT RESET THE SWITCHES WITHOUT TAKING CORRECTIVE ACTION TO ASSURE THAT AN ADEQUATE SUPPLY OF COMBUSTION AIR IS MAINTAINED UNDER ALL CONDITIONS OF OPERATION. FAILURE TO DO SO CAN RESULT IN CARBON MONOXIDE POISONING OR DEATH. IF THIS UNIT IS MOUNTED IN A CLOSET, THE DOOR MUST BE CLOSED WHEN MAKING THIS CHECK.

REPLACE THESE SWITCHES ONLY WITH THE IDENTICAL REPLACEMENT PART.

EXISTING VENT SYSTEMS*

*In Canada see ULC-S636 requirements.

When the installation of this furnace replaces an existing furnace that is removed from a vent system serving other appliances, the vent system is likely to be too large to properly vent the remaining attached appliances.

The following steps should be followed with each appliance remaining connected to the original common vent system. Place the appliance to be tested in operation, while the other appliances remaining connected to the common vent system are not in operation. Test the operation of each appliance individually by the following method.

1. Permanently seal any unused openings in the common venting system.

2. Visually inspect the venting system for proper size and horizontal pitch and determine that there is no blockage, restriction, leakage, corrosion or other deficiencies which could cause an unsafe condition.

3. If practical, close all building doors, windows and all doors between the space where the appliances remaining connected to the common venting system are located. Turn on clothes dryers and any appliance not connected to the common venting system. Turn on any exhaust fans, such as range

hoods and bathroom exhausts, so they will operate at maximum speed. Do not operate a summer exhaust fan. Close fireplace dampers.

4. Follow the lighting instructions. Place the appliance being inspected into operation. Adjust the thermostat so the appliance will operate continuously.

5. Test for spillage at the draft hood relief opening after 5 minutes of main burner operation. Use the flame of a match or candle, or smoke from a cigarette, cigar or pipe.

6. After it has been determined that each appliance that remains connected to the common venting system properly vents (when tested as outlined above), return doors, windows, exhaust fans, fireplace dampers and any other gas-burning appliance to their previous conditions of use.

7. If improper venting is observed during any of the above tests, the common venting system must be resized. See vent tables in these instructions

When the furnace is installed in the same space with other gas appliances such as a water heater, be sure there is an adequate supply of combustion and ventilation air for the other appliances. Do not delete or reduce the combustion air supply required by the other gas appliances in this space. See Z223.1, National Fuel Gas Code (NFPA54) for determining the combustion air requirements for gas appliances. An unconfined space must have at least 50 cubic feet (volume) for each 1,000 BTUH of the total input of all appliances in the space. If the open space containing the appliances is in a building with tight construction (contemporary construction), outside air may still be required for the appliances to burn and vent properly. Outside air openings should be sized the same as for a confined space.

JOINING PIPE AND FITTINGS

WARNING

PVC SOLVENT CEMENTS AND PRIMERS ARE HIGHLY FLAMMABLE. PROVIDE ADEQUATE VENTILATION AND DO NOT ASSEMBLE NEAR HEAT SOURCE OR AN OPEN FLAME. DO NOT SMOKE. AVOID SKIN OR EYE CONTACT. OBSERVE ALL CAUTIONS AND WARNINGS PRINTED ON MATERIAL CONTAINERS. FAILURE TO FOLLOW THESE GUIDELINES MAY RESULT IN FIRE, EXPLOSION OR ASPHYXIATION CAUSING PERSONAL INJURY OR DEATH.

All pipe, fittings, solvent cement, primers and procedures must conform to American National Standard Institute and American Society for Testing and Materials (ANSI/ASTM) standards in the U.S.

Pipe and Fittings - ASTM-D1785, D2466, D2665, D2231, D2661 and F628.

PVC Primer and Solvent Cement ASTM-D2564

ABS Pipe and Fittings - Use ABS Primer and Solvent Cement D2235

Procedure for Cementing Joints ASTM-D2855

IMPORTANT: The plastic combustion air and venting components are of PVC. If using ABS piping, ensure that the solvent cement is compatible for joining PVC to ABS components or use a mechanical connection that can withstand the vent temperatures and are corrosion resistant.

CEMENTING JOINTS

Properly seal all joints in the PVC vent using the following materials and procedures.

PVC CLEANER-PRIMER AND PVC MEDIUM-BODY SOLVENT CEMENT

IMPORTANT: After cutting pipe,

remove all ragged edges and burrs. This is important to prevent reduction in pressure drop throughout the system.

1. Cut pipe end square. Chamfer edge of pipe. Clean fitting socket and pipe joint area of all dirt, grease and moisture.

2. After checking pipe and socket for proper fit, wipe socket and pipe with cleaner-primer. Apply a liberal coat of primer to inside surface of socket and outside of pipe. Read instructions included with the primer for proper application.

3. Apply a thin coat of cement evenly in the socket. Quickly apply a heavy coat of cement to the pipe end and insert pipe into fitting with a slight twisting movement until it bottoms out.

NOTE: Cement must be fluid; if not, recoat.

4. Hold the pipe in the fitting for 30 seconds to prevent the tapered socket from pushing the pipe out of the fitting.

5. Wipe all excess cement from the joint with a rag. Allow 15 minutes before handling. Cure time varies according to fit, temperature and humidity.

NOTE: Stir the solvent cement frequently while using. Use a natural bristle brush or the dauber supplied with the can. The proper brush size is one inch.

IMPORTANT: For Proper Installation

DO NOT use solvent cement that has become curdled, lumpy or thickened.

DO NOT thin. Observe shelf precautions printed on containers.

For application below 32°F, use only low-temperature-type solvent cement.

COMBUSTION AND VENTILATION AIR

NON-DIRECT

Cleaning solvents (such as

FURNACE INSTALLATIONS

WARNING

THE FURNACE AND ANY OTHER

UEL-BURNING APPLIANCE

F MUST BE PROVIDED WITH ENOUGH FRESH AIR FOR PROPER COMBUSTION AND VENTILATION OF THE FLUE GASES. MOST HOMES WILL REQUIRE THAT OUTSIDE AIR BE SUPPLIED INTO THE FURNACE AREA. FAILURE TO DO SO CAN CAUSE PERSONAL INJURY OR DEATH FROM CARBON MONOXIDE POISONING.

Adequate facilities for providing air for combustion and ventilation must be provided in accordance with section

5.3, “Air for Combustion and Ventilation” of the National Fuel Gas Code, ANSI Z223.1 (latest edition) or applicable provisions for the local building codes, and not obstructed so as to prevent the flow of air to the furnace.

IMPORTANT: Air for combustion and ventilation must not come from a corrosive atmosphere. Any failure due to corrosive elements in the atmosphere is excluded from warranty coverage.

The following types of installation (but not limited to the following) will require OUTDOOR AIR for combustion, due to chemical exposures:

• Commercial buildings

• Buildings with indoor pools

• Furnaces installed in laundry rooms

• Furnaces in hobby or craft rooms

• Furnaces installed near chemical storage areas.

Exposure to the following substances in the combustion air supply (but not limited to the following) will also require OUTDOOR AIR for combustion:

• Permanent wave solutions

• Chlorinated waxes and cleaners

• Chlorine-based swimming pool chemicals

• Water softening chemicals

• De-icing salts or chemicals

• Carbon tetrachloride

• Halogen type refrigerants

• erchloroethylene)

• Printing inks, paint removers,

varnishes, etc.

• Hydrochloric acid

• Cements and glues

Antistatic fabric softeners for

•

clothes dryers

• Masonry curing and acid washing

materials

Combustion air must be free of acidforming chemicals such as sulphur, fluorine and chlorine. These elements are found in aerosol sprays, detergents, bleaches, cleaning solvents, air fresheners, paint and varnish removers, refrigerants and many other commercial and household products. When burned in a gas flame, vapors from these products form acid compounds. The acid compounds increase the dew point temperature of the flue products and are highly corrosive after they condense.

WARNING

ALL FURNACE INSTALLATIONS MUST COMPLY WITH THE NATIONAL FUEL GAS CODE AND LOCAL CODES TO PROVIDE ADEQUATE COMBUSTION AND VENTILATION AIR FOR THE FURNACE. FAILURE TO DO SO CAN RESULT IN EXPLOSION, FIRE, PROPERTY DAMAGE, CARBON MONOXIDE POISONING, PERSONAL INJURY OR DEATH.

Combustion air requirements are determined by whether the furnace is in an open (unconfined) area or in a confined space such as a closet or small room.

EXAMPLE 1: FURNACE LOCATED IN AN UNCONFINED SPACE

Using indoor air for combustion.

An unconfined space must have at least 50 cubic feet for each 1,000 BTUH of the total input for all appliances in the space. Here are a few examples of the room sizes required for different inputs. The sizes are based on 8-foot ceilings.

TUH Minimum Sq. Feet Typical Room Size

Input With 8' Ceiling With 8' Ceiling

5,000 281 14' x 20' OR 16' x 18'

0,000 375 15' x 25' OR 19' x 20'

5,000 469 15' x 31' OR 20' x 24'

0,000 563 20’ x 28’ OR 24’ x 24’

105,000 657 20' x 33' OR 26' x 25'

If the open space containing the furnace is in a building with tight construction, outside air may still be required for the furnace to operate and vent properly. Outside air openings should be sized the same as for a confined space.

EXAMPLE 2: FURNACE LOCATED IN A CONFINED SPACE

A confined space (any space smaller than shown above as “unconfined”) must have openings into the space which are located in accordance with the requirements set forth in the following subsections A and B. Size the openings by how they are connected to the heated area or to the outside, and by the input of all appliances in the space.

If confined space is within a building with tight construction, combustion air must be taken from outdoors or area freely communicating with the outdoors.

A. USING INDOOR AIR FOR

COMBUSTION

IMPORTANT: Air should not be taken from a heated space with a fireplace, exhaust fan or other device that may produce a negative pressure.

If combustion air is taken from the heated area, the openings must each have at least 100 square inches of free area. Each opening must have at least one square inch of free area for each 1,000 BTUH of total input in the space. Here are some examples of typical openings required.

TUH Free Area

nput Each Opening

5,000 100 square inches

0,000 100 square inches

5,000 100 square inches

90,000 100 square inches

105,000 105 square inches

FIGURE 11

AIR FROM HEATED SPACE

B. USING OUTDOOR AIR FOR

COMBUSTION

IMPORTANT: Do not take air from an attic space that is equipped with power ventilation.

The confined space must communicate with the outdoors in accordance with Methods 1 or 2. The minimum dimension of air openings shall not be less than 3 inches. Where ducts are used, they shall be of the same crosssectional area as the free area of the openings to which they connect.

Method 1 Two permanent openings, one located within 12 inches of the top and one located within 12 inches of the bottom of the enclosure, shall be provided. The openings shall communicate directly, or by ducts, with the outdoors or spaces (crawl or attic) that freely communicate with the outdoors.

a. Where directly communicating with the outdoors or where communicating to the outdoors

GAS

ATER

HEATER

through vertical ducts as shown in Figure 12, each opening shall have a minimum free area of 1 square inch for each 4,000 BTUH of total appliance input rating in the enclosure.

BTUH Free Area Round Pipe

Input Each Opening Size

45,000 11.25 square inches 4"

60,000 15.00 square inches 5"

75,000 18.75 square inches 5"

90,000 22.50 square inches 6"

105,000 26.25 square inches 6"

FURNACE

OTE:

N EACH OPENING SHALL HAVE A FREE AREA OF NOT

ESS THAN ONE SQUARE

L INCH PER 1,000 BTU PER H0UR OF THE TOTAL INPUT

ATING OF ALL

R EQUIPMENT IN THE ENCLOSURE, BUT NOT

ESS THAN 100 SQUARE

L INCHES.

b. Where communicating with outdoors through horizontal ducts, each opening shall have a minimum free area of 1 square inch for each 2,000 BTUH of total input rating of all equipment in the enclosure (Seee Figure 13).

Here are some typical sizes:

BTUH Free Area Round Pipe

Input Each Opening Size

45,000 22.50 square inches 6"

60,000 30.00 square inches 6"

75,000 37.50 square inches 7"

90,000 45.00 square inches 8"

105,000 52.50 square inches 8"

FIGURE 12

AIR FROM ATTIC/CRAWL SPACE

OUTLET AIR IN ATTIC MUST BE ABOVE INSULATION

1 SQ. INCH PER

4000 BTUH

OUTLET AIR

FURNACE

GAS

WATER

HEATER

1 SQ. INCH PER 4000 BTUH INLET AIR

GABLE

VENT

OPTIONAL 1 SQ. INCH PER 4000 BTUH INLET AIR

VENTILATED ATTIC GABLE OR SOFFIT VENTS

12" MAX.

FIGURE 13

OUTSIDE AIR USING A HORIZONTAL DUCT

OUTLET AIR 1 SQ. INCH

FURNACE

GAS

WATER

HEATER

INLET AIR 1 SQ. INCH

12"

MAX.

PER 2000 BTUH

Method 2 (Not Shown) One permanent opening, located within 12 inches of the top of the

nclosure, shall be permitted

here the equipment has

w clearances of at least 1 inch from the sides and back and 6 inches from the front of the appliance. The opening shall directly communicate with the outdoors or communicate through a vertical or horizontal duct to the outdoors or spaces (crawl or attic) that freely

ommunicate with the outdoors,

c and shall have a minimum free area of:

a. 1 square inch for each 3,000 BTUH of the total input rating of all equipment located in the enclosure and

FIGURE 14

OMBUSTION AIR FITTING

TUH Free Area Round Pipe

nput Each Opening Size

5,000 15.00 square inches 4"

0,000 16.67 square inches 5"

5,000 25.00 square inches 6"

90,000 30.00 square inches 6"

105,000 35.00 square inches 7"

b. Not less than the sum of the areas of all vent connectors in the confined space.

If unit is installed where there is an exhaust fan, sufficient ventilation must be provided to prevent the exhaust fan from creating a negative pressure.

Combustion air openings must not be restricted in any manner.

CONSULT LOCAL CODES FOR SPECIAL REQUIREMENTS.

CONNECTION TO FURNACE

IMPORTANT: When indoor

ombustion air is used, the inlet air

c opening at the furnace must be protected from accidental blockage. On upflow models, install a 90° elbow pointing downward in the side inlet air opening or a double elbow pointing downward in the top inlet air opening. On downflow/horizontal models, install a double elbow in the top inlet

ir opening. See Figure 14.

UPFLOW DOWNFLOW/HORIZONTAL

TTACH DOUBLE ELBOW TO TOP INLET

A AIR OPENING OR 90° ELBOW TO SIDE INLET AIR OPENING TO PREVENT

CCIDENTAL BLOCKAGE OF INTAKE

A OPENING. PLUG OPENING NOT USED.

EXHAUST

2" PVC

OUBLE

2" PVC

OUBLE

D ELBOW

TOP OPTION

2" PVC ELBOW

SIDE OPTION

I337 I336

ELBOW*

COMBUSTION AIR

*NOTE: WHEN FURNACE IS INSTALLED IN A HORIZONTAL POSITION ONLY ONE 90° ELBOW IS REQUIRED. INSTALL THE ELBOW SO THE OPEN END IS POINTED DOWNWARD.

ATTACH DOUBLE ELBOW TO INTAKE AIR

OLLAR AND SECURE WITH TWO SHEET

C METAL SCREWS TO PREVENT ACCIDENTAL BLOCKAGE OF INTAKE AIR OPENING.

EXHAUST

VENT PIPE INSTALLATION

NON-DIRECT VENT INSTALLATION

GUIDELINES

IMPORTANT: Failure to correctly follow all venting guidelines may

esult in erratic furnace operation,

r freeze-up of combustion air or exhaust air piping or sooting of the furnace.

All exhaust piping must be installed in compliance with Part 7, “Venting of Equipment,” of the latest edition of the National Fuel Gas Code NPFA54/ ANSI Z223.1-, local codes or ordinances and these instructions.

1. Vertical piping is preferred.

2. All horizontal piping must slope upward a minimum of per foot of run so that condensate drains toward the furnace.

3. All horizontal runs must be supported at least every 4 feet. No sags or dips are permitted.

4. IMPORTANT: Do not common vent with any other appliance. Do not install in the same chase or chimney with a metal or high temperature plastic pipe from another gas or fuel-burning appliance unless the required minimum clearances to combustibles are maintained between the PVC pipe and other pipes.

5. All vent runs through unconditioned spaces where below-freezing temperatures are expected should be insulated with 1-in. thick, medium-density, foil-faced fiberglass. An equivalent “arm-a-flex” or

⁄4 inch

TABLE 1

OR NON-DIRECT VENT APPLICATIONS - AIR FOR COMBUSTION

ROVIDED FROM INDOORS

MAXIMUM ALLOWABLE LENGTH IN FEET OF EACH EXHAUST PIPE AND INTAKE PIPE

NUMBERS OF ELBOWS

FURNACE

INPUT

5,000

60,000

5,000

0,000

105,000

NOTES:

. *N.A. - NOT APPLICABLE.

2. MAXIMUM OF 6 - 90 DEGREE ELBOWS MAY BE USED. DO NOT COUNT ELBOWS REQUIRED FOR ALTERNATE TERMINATION. USE ONLY MEDIUM OR LONG SWEEP ELBOWS.

3. A 45° DEGREE ELBOW IS CONSIDERED ONE ELBOW.

PIPE SIZE

3”

GLUB

3”

GLDB

3” LUB

GLDB

GLUB

3”

GLDB

ERMINATION

”

Standard 60 50

Alternate 50 40

Standard 50 40

Alternate 40 30

tandard 60 50

lternate 50 40

tandard 50 40

Alternate 40 30

Standard 50 40

Alternate N/A N/A

Standard 50 50

lternate 50 40

tandard 50 40

lternate N/A N/A

Standard 60 50

Alternate 50 40

Standard 50 40

Alternate N/A N/A

45° OR 90°

Medium / Long Radius ONLY

1-2 3-4

ELEVATED SINGLE PIPE ALTERNATE TEE TERMINATION

See Figure 16. The tee termination may be elevated up to 24 inches above the wall penetration if required for anticipated snow levels. Use 2 medium-radius, 2-in. PVC elbows and 2-in. PVC pipe, attaching the tee so it is 12 inches from the wall.

FIGURE 15

TEE TERMINAL – FOR STANDARD HORIZONTAL SINGLE PIPE INSTALLATION

VENT

12"

12" MIN. ABOVE

GRADE OR

SNOW LEVEL

FIGURE 16

ALTERNATE HORIZONTAL TERMINATION FOR NON-DIRECT VENT INSTALLATIONS

NOT APPLICABLE TO GLDB75 GLDB90 GLDB105

OUTSIDE WALL

24"

MAX.

12"

ROM

PIPE SUPPORT STRAP

I198

“rub-a-tex” insulation may also be used as long as there is no heat tape applied to the vent pipe. For horizontal runs where water may collect, wrap the vent pipe with self-regulating 3 or 5 watt heat tape. The heat tape must be U.L. listed and installed per the manufacturer’s instructions.

6. The minimum vent pipe length is 5 feet.

STANDARD INSTALLATIONS

The single-pipe system requires an exhaust pipe only. Combustion air may be taken from the furnace installation area or ducted to the furnace area from the outside.

Size the exhaust pipe as specified in Table 1. This table lists the maximum allowable length in feet of the exhaust pipe that may be used for all furnace inputs as related to the number of elbows required and the termination. (See shaded area.)

Vertical through-the-roof installations do not require a vent termination. Use 2-in. PVC pipe extending a minimum of 12 inches above the anticipated level of snow accumulation. See exhaust pipe requirements, Figure 19. When 3-in. vent pipe is used from furnace to the roof, reduce it to 2 inches before penetrating the roof. A maximum of 18 inches of 2-in. pipe may be used below the roof. Maximum exposed vent length above the roof line is 30ⴖ.

Horizontal vent terminations require a 2-in. PVC tee positioned 12 inches from the outside wall. See exhaust pipe requirements, Figure 22. When 3-in. pipe is used from the furnace to the outside wall, reduce it to 2 inches before penetrating the wall. A maximum of 18 inches of 2-in. pipe may be used inside the wall.

An alternate termination may be used as shown in Figure 16 to clear anticipated snow levels. The tee may be raised up to 24 inches above the wall penetration. Use two mediumradius bend, 2-in. PVC elbows and a length of 2-in. PVC pipe so that the elbows are on 24-in. centers.

INSTALLATION CAN CAUSE STRUCTURAL OR EXTERIOR FINISH DAMAGE TO THE BUILDING.

Non-direct venting location requirements are slightly different in some cases than direct venting. Install a non-direct vent with the following minimum clearances. See Figure 17.

1. Locate the bottom of the vent terminal at least 12 inches above grade. Increase the 12-in. minimum to keep the terminal openings above the level of snow accumulation, where applicable.

2. The vent shall not terminate over public walkways or over an area where condensate or vapor could create a nuisance or hazard.

3. 4 feet below, 4 feet horizontally from, or 1 foot above any door, window soffit, under eave vent or gravity air inlet to the building.

4. The vent terminal shall have a minimum horizontal clearance of 4 feet from electric meters, gas meters, regulators and relief equipment.

5. 6 feet from an inside corner formed by two exterior walls – 10 feet is the recommended distance.

6. Locate it 3 feet above any forced air inlet located within 10 feet. Any fresh air or make-up air inlet, such as for a dryer or furnace area, is considered a forced air inlet.

7. Avoid areas where dripping condensate may cause problems, such as above planters, patios, or adjacent to windows where steam may cause fogging.

In addition to the minimum clearances

isted above, the vent location should

l also be governed by the following guidelines.

1. Do not terminate under any kind of patio or deck. If running the

ent under a deck, insulate it to

v insure no condensate freezes and blocks the pipe.

2. Do not locate on the side of a building with prevailing winter

inds. This will help prevent

w moisture from freezing on walls and overhangs (under eaves).

3. Do not extend vent directly through brick or masonry surfaces. Use a rust-resistant sheet metal or plastic backing plate behind vent.

4. Do not locate too close to shrubs as condensate may stunt or kill them.

5. Minimum vertical clearances of 1 foot are recommended for overhangs up to 1 foot horizontal. The vertical clearance should be increased equally for each additional increase in horizontal overhang to a maximum vertical clearance of 6 feet.

6. Caulk all cracks, seams and joints within 6 feet horizontally and above and below vent.

NON-DIRECT VENT TERMINATION LOCATION REQUIREMENTS

CAUTION

MOISTURE IN THE COMBUSTION PRODUCTS CONDENSES AS IT LEAVES THE TERMINATION. THIS CONDENSATE CAN FREEZE ON EXTERIOR WALLS, UNDER THE EAVES, AND ON SURROUNDING OBJECTS. SOME DISCOLORATION IS TO BE EXPECTED. HOWEVER, IMPROPER LOCATION OR

IGURE 17

Natural Gas and Propane Installation Code

National Fuel Gas Code

Canadian Installations

US Installations

Canadian Installations

US Installations

OTHER THAN DIRECT VENT TERMINAL CLEARANCES

DIRECT VENT INSTALLATIONS

WARNING

READ AND FOLLOW ALL INSTRUCTIONS IN THIS SECTION. FAILURE TO PROPERLY VENT

HIS FURNACE CAN CAUSE

T CARBON MONOXIDE POISONING OR AN EXPLOSION OR FIRE, RESULTING IN PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

Direct vent installations require a dedicated combustion air and venting

ystem. All air for combustion is taken

s from the outside atmosphere and all combustion products are discharged to the outdoors. Therefore, no

ventilation or combustion air openings are required.

IMPORTANT: The plastic combustion

air and venting components are of Schedule 40 PVC. If using ABS piping ensure that the solvent cement is compatible for joining PVC to ABS components or use a mechanical connection that can withstand the vent temperatures and are corrosion resistant.

INSTALLATION GUIDELINES

1. Vertical piping is preferred.

2. All horizontal piping must slope upward a minimum of per foot of run so that condensate drains toward the furnace.

3. All horizontal runs must be supported at least every 4 feet. No sags or dips are permitted.

⁄4 inch

TABLE 2

OR DIRECT VENT APPLICATIONS - AIR FOR COMBUSTION PROVIDED FROM OUTDOORS

MAXIMUM ALLOWABLE LENGTH IN FEET OF EACH EXHAUST PIPE AND INTAKE AIR PIPE

ENT TERMINATION

URNACE

NPUT

45,000 2”

90,000

NOTES:

PIPE S

0,000

5,000

GLDB

GLUB

GLDB

05,000

GLDB

. N.A. - NOT APPLICABLE.

2. MAXIMUM OF 6 ELBOWS MAY BE USED. DO NOT COUNT ELBOWS IN ALTERNATE TERMINATION KIT. EDIUM OR LONG SWEEP ELBOWS MAY BE USED.

3. A 45 DEGREE ELBOW IS CONSIDERED ONE ELBOW.

4. CONCENTRIC TERMINATION NO. RXGY-E03/RXGY-E03A IS FOR THRU-THE-ROOF OR THRU-THE-WALL ENTING.

5. USE KITS RXGY-DO2/D02A (2"), RXGY-G02 (2"), OR RXGY-D03/D03A (3") FOR STANDARD OR ALTERNATE

THRU-THE-WALL VENTING.

6. USE KITS RXGY-D04/D04A FOR ALTERNATE VENTING OF 120,000 BTUH UNITS WITH LONG RUNS.

7. KIT NUMBERS CONTAINING SUFFIX “A” ARE APPROVED FOR INSTALLATION IN CANADA.

8. NO SCREENS MAY BE USED TO COVER COMBUSTION AIR AND EXHAUST.

ERMINATION

IZE

tandard/Concentric RXGY-D02/RXGY-D02A/RXGY-E03A/RXGY-G02 60 50

lternate RXGY-D02/RXGY-D02A 50 40

Standard/Concentric RXGY-D02/RXGY-D02A/RXGY-E03A/RXGY-G02 50 40

”

3 LUB

3“

3“ LUB

3“

”

“

Alternate RXGY-D02/RXGY-D02A 40 30

Standard/Concentric RXGY-D03/RXGY-D03A/RXGY-E03A/RXGY-G02 50 40

Alternate RXGY-D03/RXGY-D03A 50 40

tandard/Concentric RXGY-D03/RXGY-D03A/RXGY-E03A/RXGY-G02 50 40

lternate RXGY-D03/RXGY-D03A 40 30

tandard/Concentric RXGY-D03/RXGY-D03A/RXGY-E03A/RXGY-G02 50 40

Alternate Not Applicable N/A N/A

Standard RXGY-D03/RXGY-D03A/RXGY-E03A/RXGY-G02 50 40

Alternate RXGY-D03/RXGY-D03A 50 40

Standard RXGY-D03/RXGY-D03A/RXGY-E03A/RXGY-G02 50 40

Alternate Not Applicable N/A N/A

Standard RXGY-D03/RXGY-D03A/RXGY-E03A/RXGY-G02 50 40

Alternate RXGY-D03/RXGY-D03A 50 40

tandard RXGY-D03/RXGY-D03A/RXGY-E03A/RXGY-G02 50 40

Alternate Not Applicable N/A N/A

IT RECOMMENDED

RXGY-D0* Kits for

(

orizontal Venting Only)

NUMBER OF ELBOWS

45 or 90 Degrees

Medium / Long Radius ONLY

1 - 2 3 - 4

5. For horizontal runs where water may collect, wrap the vent pipe with self-regulating 3 or 5 watt heat tape. The heat tape must be U.L. listed and installed per the manufacturer’s instructions.

6. The minimum vent pipe length is 5 feet.

Size the exhaust and combustion air intake pipes as specified in Table 2. This table lists the maximum allowable length in feet of the exhaust and combustion air intake pipes that may be used for all furnace inputs as related to the number of elbows required and the termination (see shaded area).

7. The maximum exposed vent length (above the roof line) is 30ⴖ.

COMBUSTION AIR FOR DIRECT VENT INSTALLATIONS

THE COMBUSTION AIR SYSTEM DESIGNED FOR THIS FURNACE MUST BE USED.

When this furnace is installed as a direct vent forced air furnace, all combustion air is supplied directly to the burner through a special air inlet system outlined in these instructions. This system consists of field-supplied Schedule 40 or 26 SDR-PVC pipe and one of the following horizontal vent termination kits: RXGY-D02 or D02A, RXGY-D03 or D03A, or RXGY-E03A.

NOTE: Schedule 40 ABS-DWV pipe and fittings may be used as an alternate to PVC pipe for the combustion air inlet and vent pipes.

The combustion air for this furnace is supplied directly from the outdoors through the combustion air inlet system.

When the furnace is installed in the same space with other gas appliances, such as a water heater, be sure there is an adequate supply of combustion and ventilation air for the other appliances. Do not delete or reduce the combustion air supply required by the other gas appliances in this space. See Z223.1, National Fuel Gas Code (NFPA54) for determining the combustion air requirements for gas appliances. An unconfined space must have at least 50 cubic feet (volume) for each 1,000 BTUH of the total input of all appliances in the space. If the open space containing the appliances is in a building with tight construction (contemporary construction), outside air may still be required for the appliances to burn and vent properly. Outside air openings should be sized the same as for a confined space.

STANDARD TERMINATIONS

STANDARD VERTICAL TERMINATIONS

COMBUSTION AIR PIPING

Use two medium-radius sweep elbows to keep the inlet downward to prevent entry of rain. See Figure 20 for the proper relationship of combustion air to exhaust termination.

STANDARD HORIZONTAL TERMINATIONS

OMBUSTION AIR PIPING

When 3-in. pipe is used between the furnace and outside wall, reduce it to 2 inches before penetrating the wall. Up to 18 inches of 2-in. pipe may be used inside the wall.

The standard horizontal intake air termination for all models is a 2-in. PVC coupling with a wind deflector vane (provided) attached. Cut a

⁄4-in. length of 2-in. PVC pipe. Connect this pipe and another 2-in. PVC coupling to the coupling at the wall. The outer coupling must terminate 4 inches from the wall. See Figure 21, Detail B, for vane location. Attach vane in vertical position with PVC solvent.

IMPORTANT: To ensure proper furnace operation, the supplied vane must be installed in the vertical position as shown in Figure 21, Detail B.

The combustion air inlet terminal must be located with respect to the exhaust terminal as shown in Figure 21, Detail C.

IMPORTANT: All furnaces with horizontal air intakes, except those using concentric vent kit RXGY-E03A, must have a drain tee assembly and trap installed as close to the furnace as possible. This is to drain any water that may be in the combustion air pipe to prevent it from entering the furnace combustion chamber.

These parts are included in kits RXGY-D02 or D02A (for 2-in. pipe), RXGY-D03 or D03A (for 3-in. pipe). Attach the trap to the bottom of the tee with PVC solvent. Connect the other end to a suitable drain, as to the downstream of a condensate trap on the furnace.

STANDARD VERTICAL TERMINATIONS

EXHAUST VENT PIPING

Vertical through-the-roof vent applications do not require an exhaust terminal. The exhaust vent must terminate at least 12 inches above the combustion intake air termination. The exhaust vent for models with inputs of 60,000 through 105,000 BTUH is 2-in. PVC pipe.

Refer to Table 2 for proper application. See Figure 24.

STANDARD HORIZONTAL TERMINATIONS

EXHAUST PIPING

For direct vent systems the standard termination is 2-in. PVC pipe extending 12 inches from the wall for furnaces with inputs from 60,000 to 105,000 BTUH. Install a 2-in. coupling

t the outside wall to prevent the

a termination from being pushed inward. When 3-in. pipe is used between the furnace and outside wall, reduce to 2 inches before penetrating the wall. The standard termination is 2-in. PVC pipe extending outward 12 inches from the wall for models with inputs of 45,000 to 105,000 BTUH. See Figure 21, Detail B.

The combustion air and exhaust terminations must be at least 12 inches above grade and must be oriented with respect to each other as shown in Figure 21. Refer to section on alternate venting options when higher snow levels are anticipated.

ALTERNATE TERMINATIONS

ALTERNATE HORIZONTAL DIRECT VENT TERMINATIONS

KIT NOS. RXGY-D02, -D02A, -D03, D03A

The combustion air and exhaust terminations may be raised a maximum of 60/24 inches above the wall penetration to maintain the required 12 inch clearance above grade or snow level respectively. See Figure 18. Size the pipe length according to Table 2.

IMPORTANT: The following guidelines must be met when extending beyond 24 inches of pipe on the exterior of the structure:

• Size the entire vent system according to the alternate, not standard, termination shown in Table 2.

• Insulate the entire length of vent pipe, between the elbow where the pipe exits the wall and the elbow where the termination is made, with

closed-cell insulation, such as

Arm-a-Flex” or “Rub-a-Tex” with a

“ minimum of 1/2” thickness.

• All elbows installed on the exterior of the building must be of the long sweep nature.

• As required for the horizontal piping ran within the structure, any pipe ran horizontal outside the structure must slope upward a minimum of 1/4” per foot run so that condensate drains toward the furnace.

From the top elbow in the exhaust pipe, extend a length of PVC pipe outward so that it terminates exactly 12 inches from the wall. See Figure

18.

FIGURE 18

LTERNATE HORIZONTAL DIRECT VENT TERMINATION

OT APPLICABLE TO

LDB75

LDB90

LDB105

3” MAX. NOTE: 3-1/2”

AX. WHEN

M D04 KIT IS

SED.

EE DETAIL A

60”

MAX.

24”

MAX.

XHAUST VENT

" PVC FOR MODELS WITH INPUTS OF 45,000 AND

05,000 BTU. ELBOWS AND RISERS ARE 2" PVC.

”

IPE

UPPORT

TRAP

" PVC ELBOWS AND RISER

ODELS WITH INPUTS OF 45,000

HRU 105,000 BTU.

T USE KIT NO. RXGY-D02 WHEN 2" PIPE

IS USED BETWEEN FURNACE AND OUTSIDE WALL. USE KIT NO. RXGY-D03 WHEN 3" PIPE IS USED.

The 45,000 BTUH unit only uses kit RXGY-D02 or D02A. The 60,000 BTUH and 75,000 BTUH units may use kits RXGY-D02 or D02A or RXGY-D03 or D03A depending on pipe lengths and number of elbows. See Table 2.

The following are parts lists for the RXGY-D02 or D02A, RXGY-D03 or D03A alternate horizontal direct vent termination kits:

RXGY-D02/D02A

1. 2-in. tee with reducer assembly

⁄2-in. PVC 6-in. dia. trap

3. PVC vane

4. 2-in. PVC elbow

5. 1

⁄2-in. PVC nipple with coupling

6. PVC strap

7. vent template

3”

4”

IN.

INTAKE

EXHAUST / INTAKE RELATIONSHIP

EXHAUST

DETAIL B

OPTIONAL

INTAKE

RXGY-D03/D03A

1. 3-in. tee with reducer assembly

⁄2-in. PVC 6-in. dia. trap

3. PVC vane

4. 2-in. PVC elbow

5. PVC strap

6. vent template

RXGY-D02A

1. 2” Tee assembly w/ connection

⁄2” PVC-5” diameter trap

3. Wind deflector vane

4. Vent template

RXGY-D03A

1. 3” Tee assembly w/ connection

⁄2” PVC-5” diameter trap

3. Wind deflector vane

4. Vent Template

⁄2” drain

I339

CONCENTRIC TERMINATIONS

VERTICAL/HORIZONTAL CONCENTRIC VENT KIT NO. RXGY-E03A

his kit is for vertical/horizontal

T intake air/vent runs and may be installed through roofs and sidewalls. One 5” diameter hole is required for the installation. See Figure 19 for the general layout. Complete installation instructions are included with the kit.

NOTE: The following IPEX brand concentric terminations (System 636) may be purchased in the field used in place of factory supplied kits:

3” Concentric Kit – Item # 196006

and

FIGURE 19

ONCENTRIC VENT KIT NO. RXGY-E03A

SIDEWALL ASSEMBLY

FIELD-SUPPLIED STRAP

ITEM No. DESCRIPTION

A 2.5" PVC PIPE SCHEDULE 40 -- 37.125" LONG

B4" PVC PIPE SCHEDULE 40 -- 24" LONG

C3" x 3" x 4" SPECIAL CONCENTRIC FITTING

D3" x 45° STREET ELBOW (FIELD SUPPLIED)

1" MAXIMUM

ROOF INSTALLATION

MAINTAIN 12 IN. MINIMUM CLEARANCE ABOVE HIGHEST ANTICIPATED SNOW LEVEL. MAXIMUM OF 24 IN. ABOVE ROOF.

E PVC RAINCAP

FIGURE 20

STANDARD VERTICAL DIRECT VENTING

PFLOW MODEL SHOWN (TYPICAL FOR DOWNFLOW MODELS)

3" MAX. SEPARATION

COMBUSTION AIR PIPE

12" MIN. SEPARATION

12" MIN. ABOVE ROOF LEVEL

XHAUST PIPE

30ⴖ MAX

ROOF LINE

OMBUSTION AIR PIPE

OTES:

HE COMBUSTION AIR PIPE MUST

TERMINATE IN THE SAME PRESSURE ZONE AS THE EXHAUST PIPE.

INCREASE THE 12-IN. MINIMUM

TO KEEP TERMINAL OPENING

BOVE ANTICIPATED LEVEL OF

A SNOW ACCUMULATION WHERE

PPLICABLE.

HEN 3-IN. DIAM. PIPE IS USED,

REDUCE TO 2-IN. DIAMETER BEFORE PENETRATING ROOF. A MAXIMUM OF

8 IN. OF 2-IN. PIPE MAY BE USED

1 BEFORE PASSING THROUGH ROOF.

SUPPORT VERTICAL PIPE EVERY 6

FEET. EXHAUST TERMINATION - TERMINATE

THE LAST 12 INCHES WITH 2” PVC PIPE

N 45,000 AND 105,000 BTUH MODELS.

0” MAXIMUM EXPOSED VENT

LENGTH.

SUPPLY AIR

RETURN AIR

EXHAUST VENT

12"

COMBUSTION AIR PIPE

MAX.

EXHAUST VENT

12"

MIN.

MAX.

COMBUSTION AIR PIPE

12" MIN.

ROOF LINE

NTICIPATED

A SNOW LEVEL

EXHAUST VENT

30ⴖ MAX

PITCHED ROOF INSTALLATIONS

W LE

407

FIGURE 21

STANDARD HORIZONTAL DIRECT VENTING UPFLOW MODEL SHOWN (TYPICAL FOR DOWNFLOW MODELS)

SUPPLY AIR

EXHAUST PIPE

COMBUSTION AIR PIPE

NOTES:

SUPPORT HORIZONTAL PIPE

EVERY FOUR FEET. WHEN 3 IN. PIPE IS USED REDUCE TO 2 IN.

BEFORE PENETRATING OUTSIDE WALL. 18 IN. MAXIMUM. 2 IN. DIAMETER PIPE MAY

BE USED INSIDE THE WALL. DETAIL “A” - EXHAUST TERMINATION

TERMINATE THE LAST 12 INCHES WITH 2” PVC PIPE ON 45,000 AND 105,000 BTUH MODELS.

INCREASE THE 12 IN. MINIMUM ABOVE

GRADE TO KEEP TERMINAL OPENINGS ABOVE ANTICIPATED LEVEL OF SNOW ACCUMULATION WHERE APPLICABLE.

DETAIL “B”, INSTALL WIND DEFLECTOR

VANE IN 2 IN. PVC COUPLING IN VERTICLE POSITION USING PVC SOLVENT.

THE COMBUSTION AIR TERMINATION MUST BE IN THE SAME PRESSURE ZONE AS THE EXHAUST TERMINATION.

2” OR 3” TEE

W/DRAIN TRAP

COMBUSTION AIR TERMINATION

DETAIL B

CONNECT TO DRAIN

RETURN AIR

VANE

TRAP

2” PVC COUPLING

12”

4”

12” MIN. ABOVE GRADE LEVEL

SEE DETAIL B

SEE DETAIL A

4”

3”

4”

INTAKE

EXHAUST / INTAKE RELATIONSHIP

EXHAUST

DETAIL C

OPTIONAL

INTAKE

I407

IGURE 22

Natural Gas and Propane Installation Code

National Fuel Gas Code

Canadian Installations

US Installations

Canadian Installations

US Installations

DIRECT VENT TERMINAL CLEARANCES≤

LOCATION REQUIREMENTS HORIZONTAL DIRECT VENTS

CAUTION

THE COMBUSTION PRODUCTS AND MOISTURE IN THE FLUE GASES WILL CONDENSE AS THEY LEAVE THE TERMINATION. THE

ONDENSATE CAN FREEZE ON

C THE EXTERIOR WALL, UNDER THE EAVES AND ON SURROUNDING OBJECTS. SOME DISCOLORATION TO THE EXTERIOR OF THE BUILDING IS TO BE EXPECTED. HOWEVER, IMPROPER LOCATION OR INSTALLATION CAN RESULT IN STRUCTURAL OR EXTERIOR FINISH DAMAGE TO THE BUILDING AND MAY RECIRCULATE PRODUCTS OF COMBUSTION INTO THE COMBUSTION AIR TERMINAL AND FREEZE.

The vent must be installed with the following minimum clearances. See Figures 22 & 23.

1. The bottom of the vent terminal and the air inlet shall be located at least 12 inches above grade. Increase the 12-in. minimum to keep the terminal openings above the level of snow accumulation, where applicable.

2. The vent shall not terminate over public walkways or over an area where condensate or vapor could create a nuisance or hazard.

3. The vent terminal shall be located at least one foot from any opening through which flue gases could enter a building.

4. The vent terminal shall be at least 3 feet above any forced air inlet located within 10 feet, except the combustion air inlet of a direct vent appliance.

5. The vent terminal shall have a minimum horizontal clearance of 4 feet from electric meters, gas meters, regulators and relief equipment.

6. Locate the furnace combustion air inlet minimum of 3 feet from the vent of any other gas or fuel burning appliance or clothes dryer to prevent recirculation of the flue gases into the furnace combustion air inlet. The only exception to this requirement is the case of multiventing two or more furnaces, which is covered in the section on multiventing in these instructions.

In addition to the minimum clearances listed above, the vent location should also be governed by the following guidelines.

1. Do not terminate under any

ind of patio or deck. If running

k the vent under a deck, insulate it to insure no condensate

reezes and blocks the pipe.

. Do not terminate behind any area

that may allow the flue products to become stagnant and

ecirculate.

. Do not locate on the side of a

building with prevailing winter winds. This will help prevent moisture from freezing on walls and overhangs (under eaves).

4. Do not extend vent directly through brick or masonry

FIGURE 23

MOISTURE ZONES

surfaces, unless a rust-resistant sheet metal or plastic backing plate behind vent. See Figure 23.

5. Do not locate too close to shrubs as condensate may stunt or kill them.

6. Minimum vertical clearances of 1 foot are recommended for overhangs up to 1 foot horizontal. The vertical clearance should be increased equally for each additional increase in horizontal overhang to a maximum vertical clearance of 6 feet.

7. Caulk all cracks, seams and joints within 6 feet horizontally and above and below vent. See Figure 23.

2 FT. SQ. SHEET METAL PLATE ON BRICK OR MASONRY SURFACE RECOMMENDED, BUT NOT REQUIRED BY CODE.

FIGURE 24

MINIMUM 12" ABOVE AVERAGE

SNOW ACCUMULATION. MAXIMUM

F 24 IN. ABOVE ROOF.

MAXIMUM 1"

DISTANCE

FROM WALL

MINIMUM 12"

ABOVE GRADE

6' MINIMUM

10' RECOMMENDED

WO FURNACE VENTING THROUGH ROOF

FIGURE 25

WO FURNACE VENTING THROUGH WALL

TWO-PIPE VENTING

EXHAUST VENT MODELS 04-06

O BE REDUCED TO

T 2” PVC LAST 12”.

” MINIMUM

3 24” MAXIMUM

CONCENTRIC VENTING

8” MINIMUM 24” MAXIMUM

TWO-PIPE VENTING

” MINIMUM

3 24” MAXIMUM

CONCENTRIC VENTING

8. Painted surfaces must be sound and in good condition with no cracking, peeling, etc. Painted surfaces will require maintenance.

9. Do not expose 3" x 2" reducer/ bushing to outdoor ambient temperatures.

EE CONCENTRIC

S VENT SECTION ON PAGE 23 FOR MORE INFORMATION.

8” MINIMUM 24” MAXIMUM

SEE CONCENTRIC VENT SECTION ON PAGE 23 FOR MORE INFORMATION.

MULTIVENTING

IF VENTING TWO OR MORE FURNACES NEAR EACH OTHER IS REQUIRED, EACH FURNACE MUST BE INDIVIDUALLY VENTED – NO COMMON VENTING IS PERMITTED.

See Figures 24 and 25 for positioning of the terminations. When more than two furnaces are to be vented, there must be at least 4 feet between the first two furnaces and the third, etc.

RXGY-G02 SIDE WALL VENT

XHAUST

AIR INTAKE

2 inch

or 3 inch piping

REDUCING COUPLING, FIELD SUPPLIED. (2” PIPE DOES NOT REQUIRE COUPLING.)

This termination for horizontal venting only.

IMPORTANT: Do not install on the prevailing winter wind side of the

tructure. Observe same clearances

s specified for horizontal, standard termination.

NOTE: Multi-venting-No common venting.

FIGURE 26

ENT KIT INSTALLATION OPTIONS

NOTE: Install the vent and air intake

piping into the vent plate openings. Seal all gaps between the pipes and wall. Be Sure To Use Silicone Sealant to seal the vent pipe to the vent cap to permit field disassembly for annual inspection and cleaning. Also seal all pipe penetrations in wall. To prevent possibility of condensate freeze-up or recirculation, do not

nstall vent kits one above the

i other.

NOTE: The vent illustration in Figure

27 can be used for Non-direct vent terminations also.

FIGURE 27

VENT KIT INSTALLATION OPTIONS

For 90000 thru 105000 BTUH modelsreduce to a length between 12 inches and 30 inches of 2 inch pipe. for 45000 thru 75000 BTUH modelswhen 3 inch pipe is used: reduce last 30 inches to 18 inches of 2 inch pipe. Note: Vent should protrude a maximum of 2-1/4” beyond vent plate. Air intake should protrude a maximum of 1 inch beyond vent plate.

Seal all wall cavities

CONNECTING TO FURNACE

IMPORTANT: Clean and debur all pipe cuts. The shavings must not be allowed to block the exhaust, inlet or condensate drain pipes.

UPFLOW FURNACE

The exhaust pipe connection is a 2-in. female PVC pipe fitting extending through the left side of the furnace top plate. This opening has a protective

ap which should be removed just

c prior to installing the exhaust pipe. When 2-in. pipe is used, connect it directly to this fitting. When 3-in. pipe is used, connect a 2 to 3-in. coupling to this fitting with a short piece of 2-in. PVC pipe.

The inlet combustion air connection is at the right side of the top plate. An alternate combustion inlet air connection may be made on the right side of the jacket. This opening has a plastic cap. A combustion inlet air connection fitting is supplied with the furnace and it must be installed in the furnace by screwing it into the opening. Make sure the rubber “O-ring” supplied with the furnace is used with this fitting. See Figure 28.

FIGURE 28

PFLOW COMBUSTION AIR AND VENT PIPE CONNECTION

“O” RING

OP PLATE

VENT CAP/PLUG

UTLET AIR PIPE

EXHAUST TRANSITION

ONNECTOR

ONDENSATE TRAP

COMBUSTION

IR ADAPTER

NOTE:

HEN COMBUSTION AIR INLET IS IN

W OPTIONAL POSITION SWAP LOCATION OF INLET AIR ADAPTER AND “O” RING

ITH PLUG.

PLUG OPT. COMBUSTION AIR INLET POSITION

INDUCED DRAFT

LOWER

329

DOWNFLOW/HORIZONTAL FURNACE

The exhaust pipe connection is a 2-in. upflow only PVC pipe fitting extending through the right side of the furnace top cover. This opening has a protective cap which should be removed just prior to installing the exhaust pipe. When 2-in. pipe is used, connect it directly to this fitting. When 3-in. pipe is used, connect with a 2- to 3-in. coupling directly to the 2-in. pipe.

The combustion inlet air connection is a 2-in. extruded hole on the left side of the top plate. When a 2-in. pipe is used, attach a 2-in. PVC coupling over this hole with RTV sealant and also add two sheet metal screws through the coupling into the extrusion to secure it in place, and add the required piping. When 3-in. pipe is required, use a 2- to 3-in. coupling and add the required piping. See Figure 29.

FIGURE 29

DOWNFLOW/HORIZONTAL COMBUSTION AIR AND VENT PIPE CONNECTION

TOP PLATE

COUPLING

NOTE: ATTACH COUPLING TO EXTRUDED COLLAR WITH TWO SCREWS. PUT BEAD OF SILICONE AROUND BASE BEFORE MOUNTING COUPLING.

COMBUSTION AIR CHASE

INDUCED DRAFT BLOWER

EXHAUST TRANSITION

VENT CAP/PLUG

PIPE - PVC

CONNECTOR

OUTLET AIR PIPE

I329

CONDENSATE DRAIN/NEUTRALIZER

GENERAL INFORMATION

CAUTION

O NOT RUN DRAIN OUTDOORS.

D FREEZING OF CONDENSATE CAN CAUSE PROPERTY DAMAGE.

IMPORTANT: Do not connect into a

common drain line with an air conditioner evaporator coil drain located below the furnace. A blocked or restricted drain line can result in overflow of the coil pan and negate the furnace blocked drain shutoff control.

FILL TRAP ASSEMBLY WITH WATER BEFORE OPERATING THE FURNACE. This can be done by

removing the drain hose from the trap and pouring about a cup of water into the vent trap. Water will flow into the house drain when the trap is full.

If local codes require, install a condensate neutralizer cartridge in the drain line. Install cartridge in horizontal position only. Also install an overflow line if routing to a floor drain. See Figures 30 and 31.

If no floor drain is available, install a condensate pump that is resistant to acidic water. Pumps are available from your local distributor. If pump used is not resistant to acidic water, a condensate neutralizer must be used ahead of the pump. The condensate pump must have an auxiliary safety switch to prevent operation of the furnace and resulting overflow of condensate in the event of pump failure. The safety switch must be wired through the “R” circuit only (low voltage) to provide operation in either heating or cooling modes.

drain is present, install a riser which is a minimum of 10

⁄16”. If the furnace is

installed in an attic, crawlspace or other

rea where freezing temperatures may

ccur, the furnace drain can freeze

hile shut off for long periods of time.

w Use a solvent cement that is compatible

with PVC material. Cut the drain hoses to the appropriate length and connect to the trap with hose clamps. Tighten the clamps with pliers and check for leaks after attaching.

DOWNFLOW MODELS IMPORTANT: There are two options

when choosing a height for the condensate riser:

FIGURE 30

PFLOW CONDENSATE DRAIN

OTE:

EE UPFLOW MODEL

OTES FOR PIPE

EIGHT

1013/

NEUTRALIZER CARTRIDGE (OPTIONAL)

OVERFLOW LINE (REQUIRED ONLY WHEN OPTIONAL NEUTRALIZER CARTRIDGE IS USED.)

TO FLOOR DRAIN OR CONDENSATE PUMP

CONDENSATE OVERFLOW: With a

⁄4 inch riser installed above the tee,

a blocked drain will result in overflow

rom the riser.

f FURNACE SHUTDOWN: To cause

the furnace to shut down when a blocked drain is present, install a riser which is a minimum of 5 furnace is installed in an attic, crawlspace or other area where freezing temperatures may occur, the furnace drain can freeze while shut off for long periods of time.

Use a solvent cement that is compatible with PVC material.

DRAIN LINE

CONDENSATE TRAP

⁄2”. If the

I408

UPFLOW MODELS

The condensate drain trap is located in the blower compartment on the lefthand side of the jacket. A short piece of

⁄2-in. PVC pipe and a1⁄2-in. tee are provided. Connect the1⁄2-in. pipe to the elbow on the trap and the tee to this pipe so that the open end is upward. Run a drain tube from the bottom of the tee to a floor drain or condensate pump.

IMPORTANT: If installing the unit over a finished ceiling or living area, be certain to install an auxiliary condensate drain pan under the entire unit extending out under the condensate tee.

IMPORTANT: There are two options when choosing a height for the condensate riser:

CONDENSATE OVERFLOW: With a

⁄2 inch riser installed above the tee, a blocked drain will result in overflow from the riser.

FURNACE SHUTDOWN: To cause the furnace to shut down when a blocked

FIGURE 31

DOWNFLOW CONDENSATE DRAIN

CONDENSATE TRAP

DRAIN LINE

NEUTRALIZER CARTRIDGE

(OPTIONAL)

NOTE: SEE DOWNFLOW MODEL NOTES FOR PIPE HEIGHT

OVERFLOW LINE (REQUIRED ONLY WHEN OPTIONAL NEUTRALIZER CARTRIDGE IS USED.)

TO FLOOR DRAIN OR CONDENSATE PUMP

I408

REVERSING THE TRAP

UPFLOW UNITS

The trap may be moved to the right side for right side drainage. Open the knockout for the drain on the right side of the cabinet. Remove the bracket holding the trap from the left side. Seal the left side drain hole with a plug provided in the cloth bag with the furnace. Position the mounting bracket and trap so that the drain

lbow is centered in the hole on

e the right. See Figure 32.

Drill two holes in the cabinet to mount the bracket. Mount the trap and

racket to the right side with the drain

b elbow pointing through the knockout. Connect the noted above. Route the drain hoses behind the control box, cut to the appropriate length, and connect to the trap with hose clamps.

IMPORTANT: DO NOT ALLOW ANY SAGS OR KINKS IN THE HOSES. This prevents proper condensate flow.

IMPORTANT: Do not connect into a common drain line with an air conditioner evaporator coil drain located above the furnace. A blocked or restricted drain line can result in overflow of the coil pan and negate the furnace blocked drain shutoff control.

/2-in. pipe and tee as

insure a good seal in the burner compartment.

A length of

/2” black PVC pipe is also provided in the RXGY-H01 downflow alternate drain kit. Glue one end of the pipe to the elbow in the trap. Cut the pipe so that it extends through the alternate drain hole in the left side of the cabinet one inch (see Figure 33).

onnect the

PVC tee (supplied

/2” with the furnace) to the pipe with a 13/4” riser. Use the 1-5/8” plug

upplied in the RXGY-H01 downflow

s alternate drain kit to seal the right side drainage hole.

IMPORTANT: Do not connect into a

ommon drain line with an air

c conditioner evaporator coil drain located above the furnace. A blocked or restricted drain line can result in overflow of the coil pan and negate the furnace blocked-drain shutoff control.

To convert to left side drainage, remove the long molded hose from

the trap. Remove the double-elbow black molded hose from the trap and exhaust transition and discard. Remove the trap from its mounting bracket, rotate it 180 degrees and mount in place with the drainage elbow pointing to the left. Reattach the long black molded hose. Use the

-9/16” length of black hose included

2 in the RXGY-H01 kit between the trap and exhaust transition. Clamp the hoses tight with white nylon clamps.

FILLING THE TRAP

FILL THE TRAP ASSEMBLY WITH WATER BEFORE OPERATING THE

URNACE. Do this by removing the

drain hose from the trap or from the connection to the secondary coil. Pour about a cup of water into the vent trap. Any excess water flows into the house drain when the trap is full.

NOTE: Fill the trap assembly with water every heating season.

FIGURE 32

UPFLOW OPPOSITE SIDE CONDENSATE TRAP CONNECTION

ROPER DRAIN SLOPE REQUIRED

NO KINKS ALLOWED)

(

CUT DRAIN HOSES AS REQUIRED AND CONNECT TO INLETS ON TOP OF CONDENSATE TRAP

DOWNFLOW UNITS

To convert downflow models to lefthand drain, a kit (RXGY-H01) must be ordered from the distributor. The kit includes a 24” piece of

⁄2” black PVC pipe, a 2-9/16” length of black hose, a 2” rubber grommet, a 1-5/8” plug and instructions. Note the location of the alternate drain hole as shown in Figure 33.

First remove the long molded hose from the trap. Remove the doubleelbow black molded hose from the trap and exhaust transition and discard. Remove the trap from its mounting bracket, rotate it 180°, and mount in place with drainage elbow pointing to the left. Reattach the long black molded hose. Use the 2-9/16” length of black hose included in the kit between the trap and exhaust transition. Clamp the hoses tight with white nylon clamps.

Remove the plug from the 2” alternate drain hole (see Figure 33) and replace it with the 2” rubber grommet supplied in the RXGY- H01 downflow alternate drain kit. Also, remove the 1-5/8” grommet supplied in the primary drain hole and replace it with the 1-5/8” diameter plug that is also supplied in the RXGY-H01 downflow alternate drain kit. Both the hole-plug and grommet must be in place to

IFC MOUNTING

PLATE

CONDENSATE TRAP

FIGURE 33

DOWNFLOW OPPOSITE SIDE CONDENSATE TRAP CONNECTION

DRAIN VENT

DRAIN

EXTENSION

TEE

ALTERNATE DRAIN HOLE LOCATED HEREON JACKET. (REMOVE PLASTIC PLUG AND REPLACE WITHGROMMET).

TO FLOOR DRAIN OR

CONDENSATE PUMP

CONDENSATE TRAP

TO FLOOR

DRAIN

EXISTINGDRAIN HOLE. PLUG WITH 15⁄8” PLUG SUPPLIED IN KIT

ROTATE TRAP 180°AND INSTALL RIGID PIPE FROM ELBOW TO OPPSOITE SIDE OF JACKET AS SHOWN

DRAIN RISER

TEE

DRAIN EXTENSION

I394

CONVERTING DOWNFLOW TO HORIZONTAL

CONDENSATE DRAIN FOR HORIZONTAL INSTALLATION

Refer to Figure 35 for Steps 1-5.

1. This unit is shipped factory ready for downflow condensate trap assembly and drain hoses require conversion for horizontal installation. Remove the existing condensate trap with the unit in the upright

osition.

IMPORTANT: This furnace may only be installed so that when facing the front of the furnace, supply air is discharged on the left hand side.

2. Remove the burner compartment door from the unit.

3. Remove the two screws from the right side of the furnace jacket which support the trap mounting bracket ➂ . Remove the two plastic plugs on either side of the trap outlet hole and discard.

4. Remove the black molded 90°

hose ➂ from the top of the existing trap ➂ and from the furnace collector box. Cut 1.0 inch from the long end of the hose.

5. Remove the double-elbow black molded hose ➂ from the exhaust transition ➂. Discard this hose and the downflow trap. Retain the clamps for future use. Additional clamps are provided in the parts bag if any clamps are damaged during conversion process.

NOTE: The following steps should take place with the furnace in the horizontal position.

installation. The

Refer to Figure 36 for Steps 6-11.

. Locate the parts bag in the

burner compartment. Install two plastic plugs ➅ in the side of the

jacket from bottom side up.

7. Attach the gasket ➇ onto the trap

assembly so that the gasket holes on the gasket line up with

he holes on the trap assembly.

8. Fill the trap assembly ➆ with 1/2

cup of water.

9. Insert the trap assembly with gasket up through the existing hole in the jacket and secure from inside the jacket. Use two screws provided. Screw down into the two “ears” molded into either side of the trap. Snug the trap assembly against the furnace jacket compressing the gasket slightly to eliminate any air leaks. Do not

overtighten!

10. Attach the black molded rubber 90° elbow ➂ to the straight spout

on the trap top using a white nylon clamp ➂ . Attach the other

end of the rubber elbow to the

spout ➂ located on the exhaust transition ➂ using a white nylon

clamp.

11. Attach the 90° end of the molded

hose ➂ to the collector box. Clamp the hose tight with a white

FIGURE 34

HORIZONTAL CONDENSATE DRAIN

NOTE: SEE GENERAL NOTES FOR HORIZONTAL MODELS FOR PIPE HEIGHT.

nylon clamp. Then attach the long end of the molded hose to the 45° elbow molded into the top of the trap assembly. Clamp the hose tight with white nylon

lamp.

IMPORTANT: Tighten all clamp connections with a pair of pliers and check for leaks after conversion is complete.

1. IMPORTANT: There are two

options when choosing a height for the condensate riser:

CONDENSATE OVERFLOW: With a 1

⁄4 inch riser installed above the tee, a blocked drain will result in overflow from the riser.

FURNACE SHUTDOWN: To cause the furnace to shut down when a blocked drain is present, install a riser which is a minimum

of 5

⁄2”. If the furnace is installed in an attic, crawlspace or other area where freezing temperatures may occur, the furnace drain can freeze while shut off for long periods of time.

Use a solvent cement that is compatible with PVC material.

OVERFLOW LINE

(REQUIRED ONLY WHEN

OPTIONAL NEUTRALIZER

CARTRIDGE IS USED.)

TO FLOOR DRAIN OR CONDENSATE PUMP

DRAIN LINE

NEUTRALIZER CARTRIDGE

(OPTIONAL)

CONDENSATE TRAP

I408

I534

CONDENSATE TRAP CONVERSION FROM DOWNFLOW TO

HORIZONTAL INSTALLATION

FIGURE 36

HORIZONTAL POSITION: CONDENSATE TRAP INSTALLATION

FOR HORIZONTAL OPERATION

FIGURE 35

UPRIGHT POSITION: REMOVAL OF EXISTING DOWNFLOW CONDENSATE TRAP

GAS SUPPLY AND PIPING

GAS SUPPLY

WARNING

THIS FURNACE IS EQUIPPED AT THE FACTORY FOR USE ON NATURAL GAS ONLY. CONVERSION TO LP GAS REQUIRES A SPECIAL KIT SUPPLIED BY THE DISTRIBUTOR OR MANUFACTURER. MAILING ADDRESS IS LISTED ON THE

ARRANTY. FAILURE TO USE

W THE PROPER CONVERSION KIT CAN CAUSE FIRE, CARBON MONOXIDE POISONING, EXPLOSION, PROPERTY DAMAGE, PERSONAL INJURY OR DEATH. See the conversion kit index supplied with the furnace. This index identifies the proper LP Gas Conversion Kit required for each particular furnace.

IMPORTANT: Any additions,

changes or conversions required for the furnace to satisfactorily meet the application should be made by a qualified installer, service agency or the gas supplier, using factoryspecified or approved parts.

IMPORTANT: Connect this furnace only to gas supplied by a commercial utility.

IMPORTANT: A U.L. recognized fuel gas and carbon monoxide detector(s) are recommended in all applications, and their installation should be in accordance with the manufacturer’s recommendations and/or local laws, rules, regulations or customs.

FIGURE 37

AS PIPING INSTALLATION

MAIN GAS

VALVE

4 TO 5 FEET ABOVE FLOOR

EQ’D BY

R SOME UTILITIES.

GROMMET

IN NORMAL

( POSITION)

DRIP LEG

UNION

MAIN GAS

VALVE

4 TO 5 FEET ABOVE FLOOR REQ’D BY

OME UTILITIES.

GROMMET (IN NORMAL POSITION)

DRIP LEG

UPFLOW

TOP VIEW OF GAS LINE AND VALVE

IN OPT. POSITION

BURNERS

DOWNFLOW

OP VIEW OF GAS LINE AND VALVE

IN OPT. POSITION

UNION

BURNERS

HORIZONTAL

MANUAL GAS VALVE

GAS VALVE

IGNITOR

GROMMET

NOTE: WHEN GAS LINE IS IN OPT. POSITION,

WAP LOCATION OF

S GROMMET AND PLUG.

OPT. GAS LINE POSITION

LUG

P (IN NORMAL POSITION)

MANIFOLD PRESSURE

IGNITOR

ANIFOLD

GROMMET

NOTE: WHEN GAS LINE IS IN OPT.

OSITION, SWAP

P LOCATION OF GROMMET AND

LUG.

GAS VALVE

PLUG (IN NORMAL POSITION)

MANIFOLD PRESSURE TAP

MANIFOLD

I328

GAS PIPING

Install the gas piping according to all local codes and regulations of the utility company.

If possible, run a separate gas supply line directly from the meter to the furnace. Consult the local gas company for the location of the manual main shut-off valve. The gas

line and manual gas valve must be adequate in size to prevent undue pressure drop and never smaller than the pipe size to the combination gas valve on the furnace.

Refer to Table 3 for the recommended gas pipe size. See Figure 37 for typical gas pipe connections.

UNION

DRIP LEG

BURNERS

MANIFOLD

GAS VALVE

I524

IMPORTANT: DO NOT RUN A FLEXIBLE GAS CONNECTOR INSIDE THE UNIT. Extend the 1/2" black pipe from the gas valve to the outside of the cabinet. Connect any flexible gas connector from there to the gas piping.

Install a ground joint union inside the cabinet to easily remove the

ontrol valve assembly. Install a

c manual shut-off valve in the gas line outside the furnace casing.

The T-valve should be readily accessible to turn the gas supply on or off. Install a drip leg in the gas supply line as close to the furnace as possible. Always use a pipe compound resistant to the action of

iquefied petroleum gases on all

l threaded connections.

IMPORTANT: When making gas pipe connections, use a back-up wrench to prevent any twisting of the control assembly and gas valve.

Any strains on the gas valve can change the position of the gas orifices in the burners. This can cause erratic furnace operation.

IMPORTANT: Do not run a flexible gas connector inside the unit. If local codes allow the use of a flexible gas appliance connector, always use a new listed connector. Do not use a connector which has previously serviced another gas appliance. Massachusetts law requires that all flexibile connectors be less than 36ⴖ.

The gas pipe gasket in the cabinet does not seal around a flexi-ble gas connector. It is important to have all

openings in the cabinet burner compartment sealed for proper furnace operation.

IMPORTANT: ENSURE that the

furnace gas control valve not be subjected to high gas line supply pressures.

DISCONNECT the furnace and its individual shut-off valve from the gas supply piping during any pressure

testing that exceeds 1/2 PSIG. (3.48 kPa).

TABLE 3

ATURAL GAS PIPE CAPACITY TABLE (CU. FT./HR.)

apacity of gas pipe of different diameters and lengths in cu. ft. per hr. with pressure drop of 0.3 in. and specific

C gravity of 0.60 (natural gas).

ominal Length of Pipe, Feet

N Iron Pipe

Size, Inches 10 20 30 40 50 60 70 80

/2 132 92 73 63 56 50 46 43

/4 278 190 152 130 115 105 96 90

1 520 350 285 245 215 195 180 170

-1/4 1,050 730 590 500 440 400 370 350

1 1-1/2 1,600 1,100 890 760 670 610 560 530

After the length of pipe has been determined, select the pipe size which will provide the minimum cubic feet per hour

equired for the gas input rating of the furnace. By formula:

Cu. Ft. Per Hr. Required =

he gas input of the furnace is marked on the furnace rating plate. The heating value of the gas (BTU/FT3) may be

T determined by consulting the local natural gas utility or the LP gas supplier.

however 6⬙ to 7⬙ is recommended. The minimum supply pressure is 11⬙ w.c. for LP gas.

WARNING

NEVER PURGE A GAS LINE INTO THE COMBUSTION CHAMBER. NEVER USE MATCHES, FLAME OR

Gas Input of Furnace (BTU/HR)

eating Value of Gas (BTU/FT

)

pressure regulator to maintain proper manifold pressure.

A manual control is on the valve body. It can be set to only the “ON” or “OFF” positions. The gas valve is a slow-opening valve. See Figure 39.

When energized, it takes 6 to 8 seconds to fully open.

ANY IGNITION SOURCE FOR CHECKING LEAKAGE. FAILURE TO ADHERE TO THIS WARNING CAN CAUSE A FIRE OR EXPLOSION RESULTING IN PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

To check for gas leakage, use an approved chloride-free soap and

FIGURE 39

TYPICAL GAS VALVES

HONEYWELL

CONTROL REGULATOR

KNOB ADJUSTMENT

RESSURE

water solution, an electronic combustible gas detector (see Figure 38), or other approved method.

GAS VALVE

This furnace has a 24-volt operated valve. It has ports for measuring supply pressure and manifold pressure. The valve body contains a

GAS PRESSURE

Natural gas supply pressure should be 5" to 10.5" w.c. LP gas supply pressure should be 11" to 13" w.c.

This pressure must be maintained with all other gas-fired appliances in operation.

CAUTION

ELEVATIONS ABOVE 2000 FT REQUIRE THAT THE FURNACE INPUT RATING BE ADJUSTED AND THAT THE SIZE OF THE BURNER ORIFICES BE RECALCULATED BASED ON ELEVATION AND GAS HEATING VALUE. THE BURNER ORIFICES MAY (OR MAY NOT) NEED TO BE CHANGED. SEE THE SECTION TITLED “HIGH ALTITUDE INSTALLATIONS” OF THIS BOOK FOR INSTRUCTIONS.

The minimum supply pressure to the gas valve for proper furnace input adjustments is 5⬙ w.c. for natural gas,

FIGURE 38

ELECTRONIC COMBUSTIBLE GAS DETECTOR

WHITE RODGERS

LP CONVERSION

NOTE: See Page 47 for Canadian High-Altitude Derate

IMPORTANT: LP gas from trucks used to transport liquid-based fertilizers can contain chemicals that will damage the furnace. Verify that

our gas supplier does not use the

y same trucks to transport materials other than LP.

The valve can be converted to use liquified petroleum (LP) gas by replacing the pressure regulator spring with the conversion kit spring.

his LP kit spring allows the regulator

T to maintain the proper manifold pressure for LP gas. See Figure 40.

NOTE: Order the correct LP conversion kit from the furnace manufacturer. Furnace conversion to LP gas must be performed by a qualified installer, service agency or the gas supplier.

ORIFICE INSTALLATION

LP Gas is a manufactured gas that has consistent heating value across most regions.

The Sea Level input should still be reduced by 3.5-4% per thousand ft. and the orifice size must be selected based on the reduced input selection chart below.

Altitude Orifice Size

0 to 5000ⴕ 1.15 mm

5000ⴕ-8000ⴕ 1.10 mm

To change orifice spuds for either conversion to LP or for elevation:

1. Shut off the manual main gas valve and remove the gas manifold.

2. Replace the orifice spuds.

3. Reassemble in reverse order.

4. Turn the gas supply back on and check for proper operation and manifold pressure. See Figures 41, 42 and 43.

5. Attach the notice label alerting the next service technician that the furnace has been converted to LP gas.

FIGURE 40

TYPICAL LP KIT CONTENTS

ORIFICE ORDERING INFORMATION

Orifice sizes are selected by adding the 2-digit drill size required in the orifice part number. Drill sizes available are 39 through 64; metric sizes available 1.10mm (-90) and

1.15mm (-91):

Orifice Part Number 62-22175-(drill size)

Example 1: #60 drill size orifice required Part # 62-22175-60

Example 2:

1.15mm drill size orifice required Part # 62-22175-91

90+ HIGH ALTITUDE INSTRUCTIONS

The GLUB and GLDB models do not require any changes for high altitude application, except L.P. conversion case.

See the L.P. conversion section on this page.

SETTING GAS PRESSURE

he maximum gas supply pressure

o the furnace should be 10.5" w.c.

atural gas, or 13" w.c. LP gas. The

inimum supply gas pressure to the

as valve should be 5⬙ w.c. natural

as or 11⬙ w.c. LP gas. A properly

alibrated U-Tube manometer is

equired for accurate gas pressure

easurements.

CAUTION

FIGURE 41

MANIFOLD PRESSURE TAP

upply Gas Pressure Measure-

ent. A line pressure tap is on the

nput side of the gas valve. See

igure 40.

1. With gas shut off to the furnace at the manual gas valve outside the unit, remove the input pressure tap plug.

2. Connect a U-Tube manometer to the pressure tap.

3. Turn on the gas supply and operate the furnace and all other gas-fired units on the same gas line as the furnace.

4. Note or adjust the line gas pressure to give:

A. 5⬙ - 10.5⬙ w.c. for natural gas. B. 11⬙ - 13⬙ w.c. for LP gas.

5. Shut off the gas at the manual gas valve and remove the U-Tube manometer.

6. Replace the pressure tap plug before turning on the gas.

If the supply gas line pressure is above these ranges, install an in-line gas regulator to the furnace for natural gas units. With LP gas, have the LP supplier reduce the line pressure at the regulator.

If supply gas line pressure is below these ranges, either remove any restrictions in the gas supply piping or enlarge the gas pipe. See Tables 3 and 4. With LP gas, have the LP supplier adjust the line pressure at the regulator.

CAUTION

TABLE 4

LP GAS PIPE CAPACITY TABLE (CU. FT./HR.)

Maximum capacity of pipe in thousands of BTU per hour of undiluted liquefied petroleum gases (at 11 inches water column inlet pressure). (Based on a Pressure Drop of 0.5 Inch Water Column)

Nominal Length of Pipe, Feet Iron Pipe

Size, Inches 10 20 30 40 50 60 70 80 90 100 125 150

1/2 275 189 152 129 114 103 96 89 83 78 69 63 3/4 567 393 315 267 237 217 196 182 173 162 146 132

1 1,071 732 590 504 448 409 378 346 322 307 275 252 1-1/4 2,205 1,496 1,212 1,039 913 834 771 724 677 630 567 511 1-1/2 3,307 2,299 1,858 1,559 1,417 1,275 1,181 1,086 1,023 976 866 787

2 6,221 4,331 3,465 2,992 2,646 2,394 2,205 2,047 1,921 1,811 1,606 1,496

Manifold Gas Pressure Measurement. Natural gas manifold pressure should be 3.5" w.c. LP gas manifold pressure should be 10.0" w.c. Only small

variations in gas pressure should be made by adjusting the pressure regulator.

1. With the gas to the unit shut off at the manual gas valve, remove the pressure tap plug in the gas manifold. See Figure 41.

2. Connect a U-Tube manometer to this pressure tap. See Figure 42.

3. Turn on the gas supply and operate the furnace.

4. Note or adjust the manifold gas pressure to give:

A. 3.5⬙ w.c. for natural gas. B. 10.0⬙ w.c. for LP gas.

5. To adjust the pressure regulator, remove the regulator cap.

6. Turn the adjustment screw clockwise to increase pressure, or counterclockwise to decrease pressure.

7. Securely replace the regulator cap.

8. Shut off gas at the manual gas valve and remove the U-Tube manometer.

9. Replace the manifold pressure tap plug before turning on the gas.

Example (LP): Input BTU requirement of unit, 120,000

Equivalent length of pipe, 60 ft. = 3/4" IPS required.

FIGURE 42

ANIFOLD PRESSURE READING

FIGURE 43

UPFLOW GROUNDING CONNECTIONS

JUNCTION

BOX

CONDENSATE

TRAP

CONTROL IS GROUNDED

WHEN ATTACHED TO BLOWER

LOW VOLTAGE TERMINALS

IFC MOUNTING PLATE

BLOWER COMPARTMENT

I409-3

ELECTRICAL WIRING

WARNING

TURN OFF ELECTRIC POWER AT FUSE BOX OR SERVICE PANEL BEFORE MAKING ANY ELECTRICAL CONNECTIONS. FAILURE TO DO SO CAN CAUSE ELECTRICAL SHOCK RESULTING IN PERSONAL INJURY OR DEATH.

WARNING

THE CABINET MUST HAVE AN UNINTERRUPTED GROUND ACCORDING TO THE LATEST EDITION OF THE NATIONAL ELECTRICAL CODE, ANSI/ NFPA70- OR IN CANADA, THE CANADIAN ELECTRICAL CODE, CSA-C221 OR LOCAL CODES THAT APPLY. DO NOT USE GAS PIPING AS AN ELECTRICAL GROUND. A GROUND SCREW IS PROVIDED IN THE JUNCTION BOX. FAILURE TO DO SO CAN CAUSE ELECTRICAL SHOCK RESULTING IN PERSONAL INJURY OR DEATH.

sense flame if L1 and L2 are reversed. See Figure 42.

Make all electrical connections in accordance with the latest edition of the National Electrical Code ANSI/NFPA70 and local codes having jurisdiction.

These may be obtained from: National Fire Protection

Association, Inc. Batterymarch Park Quincy, MA 02269

CSA - International 178 Rexdale Blvd. Etobicoke (Toronto), Ontario Canada M9W, 1R3

THERMOSTAT

The room thermostat must be compatible with the integrated furnace control on the furnace. Generally, all thermostats that are not of the “current robbing” type are compatible with the

FIGURE 44

LINE VOLTAGE CONNECTIONS

UT ELECTRONIC CONTROLS 1028-928 CONTROL BOARD

integrated furnace control. The low voltage wiring should be sized as shown.

NOTE: Do not use 24 volt control wiring smaller than No. 18 AWG.

NOTE: An isolation relay can be added to prevent any compatibility problems that may occur. Use a single-pole, single-throw relay with a 24-volt AC coil. The contacts should be rated for .5 amps minimum at 24 volts. See Figure 45.

Install the room thermostat in accordance with the instruction sheet packed in the box with the thermostat. Run the thermostat lead wires inside the blower compartment and connect to low voltage terminals as shown on the wiring diagram. Never install the thermostat on an outside wall or where it will be influenced by drafts, concealed hot or cold water pipes or ducts, lighting fixtures, radiation from

WARNING

THIS FURNACE IS EQUIPPED WITH A BLOWER DOOR SAFETY SWITCH. DO NOT DISABLE THIS SWITCH. FAILURE TO FOLLOW THIS WARNING CAN RESULT IN ELECTRICAL SHOCK, PERSONAL INJURY OR DEATH.

IMPORTANT: The furnace must be

installed so that the electrical components are protected from water (condensate).

Before proceeding with the electrical connections, be certain that the voltage, frequency and phase corresponds to that specified on the furnace rating plate. For single furnace application, maximum overcurrent protection is 15 amperes.

Use a separate fused branch electrical circuit containing a properly sized fuse or circuit breaker. Run this circuit directly from the main switch box to an electrical disconnect that is readily accessible and located near the furnace. Connect from the electrical disconnect to the junction box on the left side of the furnace, inside the blower compartment. For the proper connection, refer to the appropriate wiring diagram located on the inside cover of the furnace control box and in these instructions.

NOTE: UPFLOW MODELS ONLY

The electrical junction box may be moved to the right side if necessary. A knockout is provided. Seal the opposite hole with plug provided.

NOTE: L1 (hot) and L2 (neutral) polarity must be observed when making field connections to the furnace. The ignition control may not

UT ELECTRONIC CONTROLS 1012-925 CONTROL BOARD

INVENSYS CLIMATE CONTROLS ICC-H1MC7-01 HOT SURFACE IGNITION, IFC

FIGURE 45

ISOLATION RELAY

677

ST-A0804-01

fireplace, sun rays, lamps, televisions, radios or air streams from registers. Refer to instructions packed with the thermostat for “heater” selection or adjustment.

ACCESSORIES

FIELD-INSTALLED OPTION ACCESSORIES

ELECTRONIC AIR CLEANER

Line voltage power can be supplied from the screw terminal “EAC” and a line voltage neutral screw terminal on the control board. This will power the electronic air cleaner whenever the circulating air blower is in operation.

HUMIDIFIER

Line voltage power can be supplied from screw terminal “HUM” to a line voltage neutral screw terminal on the control board. This will power the humidifier whenever the burner is on and the circulating air blower is operating in the heating mode.

NOTE: Maximum current – 1.0 amps for each option.

ALTERNATE (LEFT SIDE) DRAIN KIT - RXGY-H01 (DOWNFLOW MODELS ONLY)

FURNACE TWINNING INSTALLATIONS

Twinning operation of two furnaces,

nstalled side-by-side, connected by a

i common duct system with main power supplied by the same source, and controlled by a common thermostat can be done with the UT Electronic Controls 1028-928 integrated control boards.

IMPORTANT: Only twin furnaces with identical control boards.

IMPORTANT: Only bottom returns can be used. No more than two furnaces can share the same supply and return. Furnaces must have same heating and blower capacity. Twinning furnaces must operate off the same phase of power.

It should be noted that both blowers will run simultaneously when there is a call for heating, cooling or fan.

The “OK” LED will flash if twinning is not set up properly.

NOTE: Duct system must be adequate to provide correct airflow to each furnace for supply and return.

UT ELECTRONIC CONTROLS 1028-928 CONTROL BOARD

1. Single Stage Operation (See Figure 46)

a. Control board “ONE” is on

urnace connected to the

f thermostat.

b. The 24 VAC supply to both

control boards must be in phase with each other.

c. Connect the “C,” “W” and

“TWIN” terminals to counterparts on each control.

d. Both control boards must have

witch #3 in the “ON” position.

2. Two Stage Operation

(See Figure 47)

a. Follow above instructions.

Connect “W2” on thermostat to “W” on control board “TWO.”

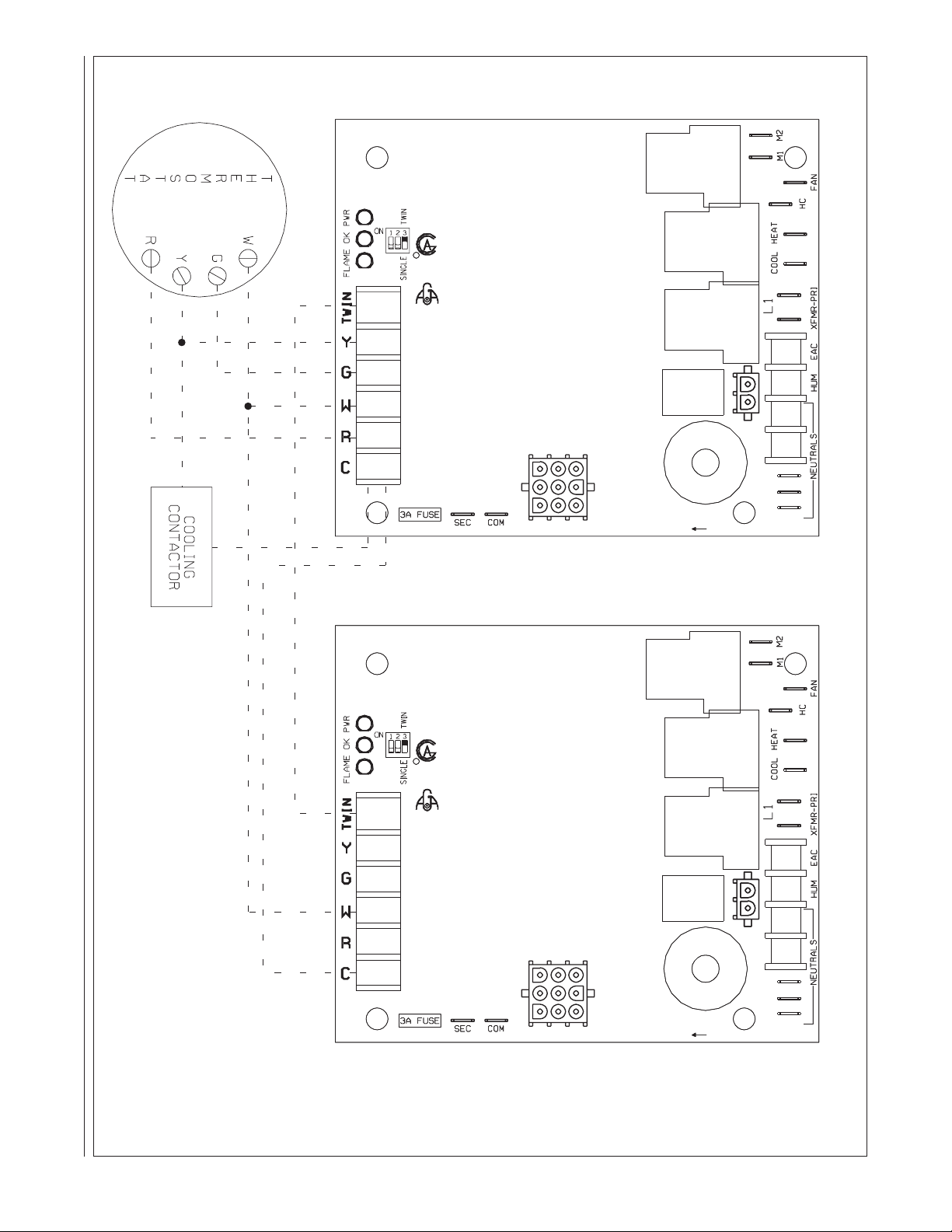

FIGURE 46

T Electronic Controls 1028-928 CONTROL BOARD, TWINNING CONNECTION -- SINGLE STAGE OPERATION

Control Board 1

Control Board 2

FIGURE 47

T ELECTRONIC CONTROLS 1028-928 CONTROL BOARD, TWINNING CONNECTION -- TWO-STAGE OPERATION

Control Board 1

Control Board 2

THE MANIFOLD PRESSURE OF THIS APPLIANCE HAS

BEEN FIELD ADJUSTED TO OBTAIN THE CORRECT

INPUT RATING FOR INSTALLATION AT ALTITUDES

BETWEEN 2,000 FEET AND 4,500 FEET ELEVATION.

LA PRESSION DU DISTRIBUTEUR D'ALIMENTATION

DE CET APPAREIL A ÉTÉ AJUSTÉ SUR LES LIEUX AFIN

D'OBTENIR LA BONNE PUISSANCE D'ENTRÉE POUR

UNE INSTALLATION ENTRE 2000 ET 4500 PIEDS

D'ALTITUDE.

92-24399-01-01

ALTERNATE METHOD FOR CANADIAN

HIGH-ALTITUDE

DERATE

In Canada, unless an orifice change is specifically mandated by local codes, an alternate method of altitude deration through a reduction in manifold pressure is acceptable as described in

able 8.

The information in Table 8 is based on a heating value of 1000 BTU per cubic feet of natural gas, and 2500 BTU per cubic feet of LP gas.

IMPORTANT: Actual input rates must be measured on-site with manifold pressure adjustment to ensure that an actual 10% reduction in input rate is achieved.

nce this field adjustment has been

O made, the label shown in Figure 48 must be affixed in a conspicuous location on the front of the furnace cabinet:

OTE: This label is supplied in the

information packet shipped with each furnace.

TABLE 7

LTERNATE METHOD FOR CANADIANHIGH-ALTITUDE DERATE

A IMPORTANT: 90 Plus Models only. Do not

use this chart for any 80 Plus Models

NATURAL GAS LP GAS

RIFICE

LTITUDEINPUTOUTPUT

5,000

4 60,000

’ - 2000’

2001’ - 4500’

75,000 90,000

05,000

1 120,000

40,500 54,000 67,500 81,000 94,500

108,000

0,500

4 54,000 67,500 81,000

4,500

108,000

36,450 48,600 60,750 72,900 85,050 97,200

ANIFOLD

IZE

RESSURE

503.5” W.C.

#50

3.0” W.C.

ALTITUDE

0’ - 2000’

2001’ - 4500’

INPUT

45,000 60,000 75,000

90,000 105,000 120,000

0,500 54,000 67,500 81,000 94,500

08,000

OUTPUT

40,500 54,000 67,500 81,000 94,500

108,000

6,450 48,600 60,750 72,900 85,050 9

7,200

ORIFICE

SIZE

1.15mm

MANIFOLD PRESSURE

10” W.C.

7.6” W.C.

FIGURE 48

MANIFOLD PRESSURE-CHANGE LABEL

START-UP PROCEDURES

This furnace is equipped with a direct ignition device. Each time the room thermostat calls for heat, the ignitor lights the main burners directly. See the lighting instructions on the furnace.

TO START THE FURNACE

1. Remove the burner compartment control access door.

2. IMPORTANT: Be sure that the manual gas control has been in the “OFF” position for at least five minutes. Do not attempt to manually light the main burners.

. Turn off the furnace electrical power

and set the room thermostat to its lowest setting.

4. Turn the gas control knob to the “ON” position or move the gas control lever to the “On” position.

5. Replace the burner compartment control access door.

6. Turn on the furnace electrical power.

7. Set the room thermostat to a point above room temperature to light the main burners.

8. After the burners are lit, set the room thermostat to a desired temperature.

TO SHUT DOWN THE FURNACE

1. Set the room thermostat to its lowest setting and wait for furnace to shut down.

2. Remove the burner compartment control access door.

3. Shut off the gas to the main burners by turning the gas control knob to the “OFF” position. See Figure 37.

WARNING

SHOULD OVERHEATING OCCUR OR THE GAS SUPPLY FAIL TO SHUT OFF, CLOSE THE MANUAL GAS VALVE FOR THE APPLIANCE BEFORE SHUTTING OFF THE ELECTRICAL SUPPLY. FAILURE TO DO SO CAN CAUSE AN EXPLOSION OR FIRE RESULTING IN PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

SEQUENCE OF OPERATION

UT ELECTRONIC CONTROLS & INVESYS CLIMATE CONTROLS

Integrated Controls with Hot Surface Ignition.

1. Each time the thermostat “W” (Heating) contacts close, the induced draft blower (inducer) begins a prepurge cycle.

2. The air proving negative pressure switch(es) closes.

3. 5 seconds after the pressure

switch(es) close, the hot surface igniter begins heating for 30 seconds to full temperature. The

induced draft blower operates for the complete heating cycle.

4. After the 30-second igniter warm up,

the gas valve opens for an 8-second trial for ignition.

5. The igniter lights the gas burners and stays energized for the first 7

seconds after the gas valve opens.

. 8 seconds after the gas valve opens

he remote flame sensor must

rove flame ignition for one

econd using the process of flame

ectification. If the burners don’t light,

he system goes through another

gnition sequence. It does this up to

our times.

7. The main blower starts approximately 20 seconds after the burners ignite.

8. When the thermostat “W” (Heat Call) ends, the gas valve closes, the burners go out, the induced draft blower stops after a 10-second post-purge, and the negative pressure switch(es) open.

9. The main blower continues until timed off by the setting on the integrated furnace control board.

Sequence if the system doesn’t light or doesn’t sense flame:

1. On a call for heat, the control runs the inducer for 35 seconds to prepurge.

2. 5 seconds into prepurge, the hot surface igniter heats for 30 seconds. The inducer continues to run.

3. After the 30-second igniter warm up, the gas valve opens for an 8-second trial for ignition. The inducer continues and the igniter stays energized.

4. If flame is not sensed during the 8th second after the gas valve opens, the gas valve closes, and the igniter de-energizes.

5. After a 10-second post-purge, the inducer stops and the control verifies that the pressure switch has opened. Once the open pressure switch is confirmed, the control begins the next ignition cycle by energizing the inducer for a pre-purge of 30 seconds. After the 30-second prepurge, the igniter energizes and begins a 30-second warm-up period (inducer is still running). After a 30second igniter warm-up period (60 sec. of ind. running), the gas valve opens and the control looks for a flame signal for up to 8 seconds. If no flame is sensed, the control goes into “self-healing” mode, in which the blower and inducer both run for three minutes before another ignition attempt is made.

NOTE: The following applies only to units manufactured before third Quarter 2003: After 5-second inter-

purge, the control begins a 30second pre-purge followed by a 30second igniter warm-up period (inducer is still running). After the 30-

second igniter warm-up period, the gas valve opens and the control looks for a flame signal for up to 8 seconds. If no flame is sensed, the control goes into “self-healing” mode, in which the blower and inducer both run for three minutes before another ignition attempt is made.

6. The control attempts to ignite up to four times (first attempt followed by three retries). After the fourth failure to ignite, the control goes into a one-hour “soft-lockout,” during which the control will not respond to the thermostat heat call (W). The lockout can be reset by shutting off main power to the furnace for five seconds, or by turning the heat call (W) from the thermostat off and then back on. Note that second and fourth ignition attempts will have a 30second pre-purge followed by a 30second igniter warm-up period. This prevents the igniter from overheating.

7. The above sequence will repeat after a one hour delay. It will continue repeating until ignition is successful or the call for heat is terminated.

8. To reset the lock out, make and

break power either at the thermostat or at the unit disconnect switch for 5 to 10 seconds. It then goes through

another set of trials for ignition.

UT Electronic Controls Direct Spark Ignition

1. Each time the thermostat contacts close, the induced draft blower (inducer) begins a prepurge cycle.

2. The air proving negative pressure switch(es) closes.

3. 30 seconds after the pressure

switch(es) close, the spark igniter energizes. The induced

draft blower operates for the complete heating cycle.

4. After the spark igniter energizes, the gas valve opens for a 8

second trial for ignition.

5. The igniter lights the gas burners.

6. After the gas valve opens the

flame sensor must prove flame ignition for one second using the

process of flame rectification. If the burners don’t light, the system goes through another ignition sequence. It does this up to four times.

7. The main blower starts 20 seconds after the burners ignite.

8. When the thermostat cycle ends, the gas valve closes, the burners go out, the induced draft blower stops after a 10-second post- purge, and the negative pressure switch(es) open.

9. The main blower continues until timed off by the setting on the integrated furnace control board.

Sequence if the system doesn’t light or doesn’t sense flame:

1. On a call for heat, the control runs the inducer for 30 seconds to pre-purge.

2. After the 30-second pre-purge, the spark igniter energizes. The inducer continues to run.

3. After the spark igniter energizes, the gas valve opens for an 8second trial for ignition. The inducer continues and the igniter stays energized.

4. If flame is not sensed within 8 seconds after the gas valve opens, the gas valve closes, the igniter de-energizes and:

. The inducer completes a 10-

econd post-purge, the inducer

s stops, and the control verifies that the pressure switch has opened. Once the open pressure switch is confirmed, the control begins the next ignition cycle by energizing the inducer for a pre-purge of 30 seconds. After the pre-purge, the igniter energizes and the gas valve opens (inducer continues to run). If no flame is sensed on the second attempt, the control goes into a “self-healing” mode, in which the blower and the inducer run for 3 minutes before another ignition attempt is made.

NOTE: The following applies only to units manufactured before third Quarter 2003: After

a 30-second inter-purge (inducer runs continuously), the igniter is energized, and the gas valve opens for 8 seconds. If flame is not sensed in 8 seconds, the gas valve is closed and the igniter deenergizes. If no flame is sensed on this second attempt, the control goes into a “self-healing” mode, in which the blower and inducer run for 3 minutes before another ignition attempt is made.

6. The control attempts to ignite up to four times (first attempt followed by three retries). After the fourth failure to ignite, the control goes into a one-hour “soft-lockout” during which the control will not respond to the thermostat heat call (W). The lockout can be reset by shutting off main power to the furnace for five seconds, or by turning the heat call (W) from the thermostat off and then back on.

7. The above sequence will repeat after a one hour delay. It will continue repeating until ignition is successful or the call for heat is terminated.

8. To reset the lock out, make and break power either at the thermostat or at the unit disconnect switch for 5 to 10 seconds. It then goes through another set of trials for ignition.

TABLE 8

METER TIME

ETER TIME IN MINUTES AND SECONDS FOR NORMAL INPUT RATING OF FURNACES

INPUT SIZE

BTU/HR CU. FT. MIN. SEC. MIN. SEC. MIN. SEC. MIN. SEC. MIN. SEC.

45,000 TEN 12 0 13 20 13 50 14 40 33 20

60,000 TEN 9010 0 10 24 11 0 25 0

75,000 TEN 7 12 80819 8 48 20 0

0,000 TEN 60640 70720 16 40

05,000 TEN 5 10 5 40 60620 14 20

20,000 TEN 4 30 50510 5 30 12 30

METER

ONE 1 12 1 20 1 23 1 28 3 20

ONE 0 54 101316230

ONE 0 44 0 48 0 50 0 53 20

ONE 0 36 0 40 0 42 0 44 1 40

ormula: Input BTU/HR =

ADJUSTING OR CHECKING FURNACE INPUT

The maximum gas supply pressure to the furnace should be 7" w.c. for natural gas. The minimum gas supply pressure for purposes of input adjustment to the furnace should be 5" w.c.

A properly calibrated magnehelic gauge or manometer is required for accurate gas pressure readings.

The manifold pressure should be set at 3.5" w.c. for natural gas. Only small variations in the gas flow should be made by means of the pressure regulator adjustment. In no case should the final manifold pressure vary more than plus or

QUIPPED FOR NATURAL OR LP GAS

EATING VALUE OF GAS BTU PER CU. FT.

00 1000 1040 1100 2500 (LP)

NE 0 31 0 34 0 36 0 38 1 26

NE 0 27 0 30 0 31 0 33 1 15

eating Value of Gas (BTU/FT

Time in Seconds (for 1 cu. ft.) of Gas

x 3600 x correction factor

)

ratings apply. For high altitudes (elevations over 2,000 ft.), see conversion kit index for derating and orifice spud sizes.

Checking furnace input is important to prevent over firing beyond its design-rated input. NEVER SET INPUT ABOVE THAT SHOWN ON THE RATING PLATE. Use the following table or formula to determine input rate. Start the furnace and measure the time required to burn one cubic foot of gas. Prior to checking the furnace input, make certain that all other gas appliances are shut off, with the exception of pilot burners. Time the meter with only the furnace in operation.

minus 0.3" w.c. from the abovespecified pressures. To adjust the pressure regulator, remove the regulator cap and turn the adjustment screw clockwise to increase pressure or counterclockwise to decrease pressure. Then replace the regulator cap securely. Any necessary major changes in the gas flow rate should be made by changing the size of the burner orifices.

To change orifice spuds, shut off the manual gas valve and remove the gas manifold. On LP gas furnaces, the LP gas supply pressure must be set between 11" and 14" w.c. by means of the tank or branch supply

SETTING INPUT RATE

The furnace is shipped from the factory with #50 orifices. They are sized for natural gas having a heating value of 1075 BTU/cu. ft. and a specific gravity of .60.

Since heating values vary geographically, the manifold pressure and/or gas orifice size may need to be changed to adjust the furnace to its nameplate input. Consult the local gas utility to obtain the yearly average heating value and orifice size required to fire each individual burner at 15,000 BTU/HR.

regulators. The furnace manifold pressure should be set at 10" w.c. at the gas control valve. For elevations up to 2,000 feet, rating plate input

NOTE: Refer to the National Fuel Gas Code for high altitude rate adjustment above 2,000 ft.

AIR FLOW

he importance of proper air flow over the

T heat exchanger cannot be over emphasized.

CAUTION

IT IS IMPORTANT THAT EACH DUCT SYSTEM BE SIZED AND INSTALLED FOR THE SPECIFIC APPLICATION BY PROPERLY APPLYING THE

PPROPRIATE INDUSTRY ACCEPTED

A STANDARD. IF LESS THAN MINIMUM STANDARDS ARE APPLIED, THE EQUIPMENT USER COULD EXPECT TO EXPERIENCE HIGHER UTILITY BILLS, MAJOR COMPONENT FAILURE, VARYING DEGREES OF AIR NOISE OR OTHER UNSATISFACTORY ISSUES, OVER WHICH THE MANUFACTURER HAS NO CONTROL.

TEMPERATURE RISE CHECK

To determine if the air flow is correct, make a temperature rise check.

1. Insert a thermometer in the supply

air duct as close to the furnace as possible yet out of a direct line from the heat exchanger. See Figure 49.

2. Insert a thermometer in the return air

duct as close to the furnace as possible.

3. Operate the furnace.

4. When the thermometer in the supply

air duct stops rising (approximately five minutes), subtract the return air temperature from the supply air temperature. The difference is the temperature rise.

5. Compare the measured temperature

rise to the approved temperature rise range listed on the furnace name plate. See Figure 50.

If the measured temperature rise is above the approved range, the air flow is too low. More air must be moved by speeding up the blower, by removing restrictions in the duct system, or by adding more supply or return air duct. If the measured temperature rise is below the approved range, the air flow is too much. Use lower speed tap on the multi-speed blower.

FIGURE 49

EMPERATURE RISE MEASUREMENT

FIGURE 50

TYPICAL FURNACE NAME PLATE

INSTALLER MUST ADJUST THE TEMPERATURE RISE TO THIS

MIDDLE" POINT AS CLOSELY AS

" POSSIBLE. ALSO, THE TEMPERATURE RISE SHOULD NEVER BE ABOVE OR FALL BELOW THE STATED RANGE. DOING SO COULD CAUSE DAMAGE TO THE HEAT EXCHANGER OR INTERMITTENT OPERATION WHICH COULD CAUSE INJURY OR DEATH AND WILL VOID THE MANUFACTURER'S WARRANTY FOR THIS PRODUCT.

AIR CONDITIONING DIVISION

FORT SMITH, ARKANSAS

WARNING

THE MEASURED TEMPERATURE RISE SHOULD BE AS CLOSE TO THE MIDDLE OF THE STATED RANGE AS POSSIBLE. FOR EXAMPLE, IF THE RISE RANGE IS 40 TO 70 DEGREES, THE MOST IDEAL RISE WOULD BE 55 DEGREES (THE MIDDLE OF THE RISE RANGE). IN ALL APPLICATIONS, THE

ABLE 10

90 PLUS AIR FLOW PERFORMANCE – GLUB & GLDB MODELS

Model

GLUB45-E3A 11 x 7 Med. Hi 1140 1110 1085 1045 1010 950 890

GLUB60-E3A 11 x 7 Med. Hi 1060 1025 990 960 925 880 835

GLUB75-E3A 11 x 7 Med. Hi 1090 1050 1010 970 925 875 825

GLUB75-E4A 11 x 10 Med. Hi 1535 1512 1488 1453 1418 1373 1327

GLUB90-E5A 12 x 11 Med. Hi 1666 1637 1606 1554 1501 1456 1407

GLUB105-E5A 12 x 11 Med. Hi 1710 1665 1620 1570 1540 1475 1410

GLDB45-E3A 11 x 7 Med. Hi 1110 1084 1057 1023 989 946 902

GLDB60-E3A 11 x 7 Med. Hi 1164 1122 1080 1044 1008 966 923

GLDB75-E4A 11 x 10 Med. Hi 1555 1516 1477 1440 1402 1349 1295

GLDB90-E5A 12 x 11 Med. Hi 1734 1698 1662 1621 1579 1526 1472

GLDB105-E5A 11 x 10 Med. Hi 1842 1812 1781 1728 1674 1619 1564

Blower Size

IN [MM]

/2 [373] Med. Lo 920 885 850 810 775 730 690

[279 x 178] High 1360 1320 1280 1235 1195 1140 1080

/2 [373] Med. Lo 880 845 815 790 760 715 670

279 x 178] High 1260 1215 1175 1135 1100 1040 985

[

1/2 [373] Med. Lo 880 850 825 785 750 702 655

[279 x 178] High 1300 1255 1210 1160 1110 1055 1005

1/2 [373] Med. Lo 1326 1315 1304 1270 1236 1197 1157

279 x 254] High 1765 1723 1681 1639 1596 1544 1492

[

/4 [559] Med. Lo 1442 1416 1390 1360 1329 1288 1247

[305 x 279] High 2040 1993 1946 1888 1829 1758 1686

/4 [559] Med. Lo 1490 1445 1405 1375 1350 1295 1240

[305 x 279] High 2010 1955 1900 1855 1810 1710 1610

1/2 [373] Med. Lo 890 866 842 811 779 750 721

[279 x 178] High 1383 1350 1317 1274 1230 1171 1112

1/2 [373] Med. Lo 924 895 866 832 798 754 710

[279 x 178] High 1409 1367 1325 1284 1242 1195 1148

1/2 [373] Med. Lo 1338 1309 1280 1253 1225 1185 1145

[279 x 254] High 1743 1696 1649 1604 1559 1501 1442

3/4 [559] Med. Lo 1504 1474 1443 1415 1387 1348 1308

[305 x 279] High 2111 2059 2007 1946 1885 1821 1756

3/4 [559] Med. Lo 1617 1595 1573 1533 1493 1448 1402

[279 x 254] High 2204 2153 2102 2040 1977 1905 1833

Spd Tap

ow 805 780 760 720 685 645 605

ow* 770 740 710 675 645 605 570

ow* 780 745 710 675 640 595 555

ow* 1115 1091 1067 1044 1020 984 948

Low* 1199 1183 1167 1132 1097 1062 1026

ow* 1230 1205 1160 1155 1130 1090 1050

Low* 794 765 735 704 672 633 594

Low* 816 792 767 739 711 686 661

Low* 1126 1097 1068 1036 1003 963 923

Low* 1213 1196 1179 1158 1136 1108 1079

Low* 1324 1309 1294 1272 1250 1221 1191

0.1⬙ 0.2⬙ 0.3⬙ 0.4⬙ 0.5⬙ 0.6⬙ 0.7⬙

Motor HP [W]

External Static Pressure, Water Column

CFM Air Delivery

SETTING BLOWER TIMINGS

The Honeywell UT ELECTRONIC

ONTROLS and Invensys Climate

C Controls IFC’S (Integrated Furnace Controls) have three or four quick connect terminals for connecting the motor speed leads. These are:

1. FAN SPEED — motor runs on

this speed when the thermostat

s in the “FAN ON” position.

2. COOL — connect desired

cooling speed.

3. HEAT — connect desired

heating speed.

4. HEAT/COOL (not available on

UT Electronic Controls-1028-925 control board) or Invensys Climate Controls ICC-H1MC7-01 — connect desired speed when heating and cooling speed are the same.

IMPORTANT: Do not connect any motor speeds to “HEAT” and “COOL” if you use the “HEAT/COOL” terminal.

5. If heating and continuous fan

speed are the same, “piggyback” jumper across “FAN” and “HEAT” terminals.

See Figures 51, 52 & 53 for instructions for setting the blower “OFF” timings.

If cooling speed and fan speed are desired to be the same, this may be accomplished by not connecting “Y” to the integrated furnace control.

If desired for cool, fan and heat to all be the same speed, then “piggyback” jumper “H/C” to “FAN” and do not connect “Y” to the integrated furnace control. Do not connect anything to “H” or “C.”

FIGURE 51 UT Electronic Controls 1028-928 BLOWER OFF TIMINGS

TWINSINGLE

OTE: SWITCH 3 IS USED FOR

N TWINNING APPLICATIONS.

402

OFF TIME SWITCH 1 SWITCH 2

90 SEC. OFF ON

120 SEC. OFF OFF

60 SEC. ON OFF

80 SEC. ON ON

FIGURE 52 UT Electronic Controls 1012-925A & Invensys Climate Controls ICC-H1MC7 BLOWER OFF TIMINGS

(TIMER IS RED BLOCK

N BOARD)

I335

OFF TIME SWITCH 1 SWITCH 2

90 SEC. OFF ON

120 SEC. OFF OFF

160 SEC. ON OFF

180 SEC. ON ON

FIGURE 53 UT Electronic Controls 1012-925B BLOWER OFF TIMINGS

GAS FURNACE (DIRECT DRIVE) INSTRUCTIONS FOR CHANGING BLOWER SPEED

WARNING

DISCONNECT THE ELECTRICAL

UPPLY TO THE FURNACE

S BEFORE ATTEMPTING TO CHANGE THE BLOWER SPEED. FAILURE TO DO SO CAN CAUSE ELECTRICAL SHOCK RESULTING IN PERSONAL INJURY OR DEATH.

The blower motor is wired for blower speeds required for normal operation as shown.

If additional blower speed taps are available (leads connected to “M1” and “M2” on the electronic control), speeds may be changed if necessary to fit requirements of the particular installation. Reconnect the unused motor leads to “M1” or “M2.” Check motor lead color for speed designation.

Heating speeds should not be reduced where it could cause the furnace air temperature to rise to exceed the maximum outlet air temperature specified for the unit.

IMPORTANT: Always check air temperature rise after changing the heating speed for any reason.

MAINTENANCE

WARNING

THESE INSTRUCTIONS ARE INTENDED AS AN AID TO QUALIFIED SERVICE PERSONNEL FOR PROPER

NSTALLATION, ADJUSTMENT

I AND OPERATION OF THIS UNIT. READ THESE INSTRUCTIONS THOROUGHLY BEFORE ATTEMPTING INSTALLATION OR OPERATION. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN IMPROPER INSTALLATION, ADJUSTMENT, SERVICE OR MAINTENANCE, POSSIBLY RESULTING IN FIRE, ELECTRICAL SHOCK, CARBON MONOXIDE POISONING, EXPLOSION, PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

DISCONNECT MAIN ELECTRICAL POWER TO THE UNIT BEFORE ATTEMPTING ANY MAINTENANCE. FAILURE TO DO SO CAN CAUSE ELECTRICAL SHOCK RESULTING IN PERSONAL INJURY OR DEATH.

TABLE 9

FILTER SIZES

PFLOW FILTER SIZES

FURNACE INPUT BOTTOM SIDE

IDTH MBTUH SIZE SIZE

45, 60, 75 15

⁄2"

1" 90, 105 19

DOWNFLOW FILTER SIZES

FURNACE INPUT

IDTH MBTUH

21" 90 12" X 20" 2

45, 60, 75 12" X 20" 2

⁄2"

⁄2" 105 14" X 20" 2

X 25" 15

⁄4"

X 25" 15

⁄4"

IZE QUANTITY

FILTERS

Keep the filters clean at all times. Vacuum dirt from filter, wash with detergent and water, air dry thoroughly and reinstall.

NOTE: Some filters must be resized to fit certain units and applications. See Table 11 and Figures 54 and 55.

1. 21” - 90,000 & 105,000 BTUH units require removal of a

UANTITY

X 25" 1

⁄4"

X 25" 1

⁄4"

3.5-in. segment of filter and frame to get the proper width for a side filter.

2. 24.5” - 105,000 BTUH unit requires removal of a 7" segment of filter and frame to get the proper width for a side filter.

CAUTION

DO NOT OPERATE THE SYSTEM FOR EXTENDED PERIODS WITHOUT FILTERS. A PORTION OF THE DUST

FIGURE 54

BOTTOM PANEL REMOVAL

JACKET ASSEMBLY

SOLID BOTTOM

SCREW (2) REQ’D.

NOTE: BACK FLANGE OF SOLID BOTTOM FITS UNDERNEATH JACKET. SIDES AND FRONT FLANGES FIT OVER FLANGES ON JACKET.

SOLID BOTTOM REMOVAL

JACKET ASSEMBLY

FILTER

FILTER & ROD LOCATION

FILTER ROD

FIGURE 55

DOWNFLOW

ACKET

DRILL (2) 3/16" DIA. HOLES

8.000

4.875

1.531

JACKET

ACKET

NGLE

FILTER ROD SUPPORT A

NGLE

FILTER SUPPORT ANGLE (SEE ANGLE DETAIL)

ATTACH WITH SHEET METAL SCREWS (2 REQÕD)

NGLE DETAIL

CUT-OUT AND DRILL DETAIL

ROD & FILTER SUPPORT ANGLE ASSEMBLY

FILTER AND ROD ASSEMBLY

FILTER ROD SUPPORT ANGLE

FILTER SUPPORT ANGLE

ILTER

ROD

JACKET

I332

I413

UPFLOW

I528

HORIZONTAL

ILTER LOCATIONS

FILTER ROD SUPPORT ANGLE

FILTER SUPPORT ANGLE

SEE ANGLE DETAIL)

(

ILTER ROD

F SUPPORT ANGLE

FILTER

FILTER ROD 45-24095-01

ENTRAINED IN THE AIR MAY TEMPORARILY LODGE IN THE AIR DUCT RUNS AND AT THE SUPPLY REGISTERS. ANY RECIRCULATED DUST PARTICLES WILL

E HEATED AND CHARRED BY

B CONTACT WITH THE FURNACE HEAT EXCHANGER. THIS RESIDUE WILL SOIL CEILINGS, WALLS, DRAPES, CARPETS AND OTHER HOUSEHOLD ARTICLES.

LUBRICATION

IMPORTANT: DO NOT attempt to lubricate the bearings on the blower motor or the induced draft blower motor. Addition of lubricants can reduce the motor life and void the warranty.

The blower motor and induced draft blower motor are permanently lubricated by the manufacturer and do not require further attention.

The blower motor and induced draft blower motor must be cleaned periodically by a qualified installer, service agency, or the gas supplier to prevent the possibility of overheating due to an accumulation of dust and dirt on the windings or on the motor exterior. And, as suggested elsewhere in these instructions, the air filters should be kept clean. Dirty filters can restrict airflow. The motor depends upon sufficient air flowing across and through it to keep from overheating.

SYSTEM OPERATION INFORMATION

Advise The Customer

1. Keep the air filters clean. The heating system will operate better, more efficiently and more economically.

2. Arrange the furniture and drapes so that the supply air registers and the return air grilles are unobstructed.

3. Close doors and windows. This will reduce the heating load on the system.

4. Avoid excessive use of kitchen exhaust fans.

. Do not permit the heat generated

by television, lamps or radios to influence the thermostat operation.

6. Except for the mounting platform, keep all combustible articles 3 feet from the furnace and vent system.

7. IMPORTANT: Replace all blower doors and compartment covers after servicing the furnace. Do not operate the unit without all panels and doors securely in place.

8. Explain proper operation of the system with constant air circulation.

ANNUAL INSPECTION

• The furnace should operate for many years without excessive scale build-up in the flue passageways. However, it is recommended that a qualified installer, service agency, or the gas supplier annually inspect the flue passageways, the vent system and the main burners for continued safe operation. Pay particular attention to deterioration from corrosion or other sources.

• IMPORTANT: It is recommended that at the beginning and at approximately half way through the heating season, a visual inspection be made of the main burner flames for the desired flame appearance by a qualified installer, service agency or the gas supplier. If the flames are distorted and/or there is evidence of back pressure, check the vent and inlet air system for blockage. If there is carbon and scale in the heat exchanger tubes, the heat exchanger assembly should be replaced.

WARNING

HOLES IN THE VENT PIPE OR HEAT EXCHANGER CAN CAUSE TOXIC FUMES TO ENTER THE HOME, RESULTING IN CARBON MONOXIDE POISONING OR DEATH. THE VENT PIPE OR HEAT EXCHANGER MUST BE REPLACED IF THEY LEAK.

• IMPORTANT: It is recommended

that at the beginning of the heating season, the flame sensor be cleaned with steel wool by a qualified installer, service agency or the gas supplier.

• IMPORTANT: It is recommended that at the beginning of the heating season, the condensate trap be inspected for debris or blockage. A blocked condensate trap can cause water to back up into the primary heat exchanger and lead to nuisance tripping of the overtemperature switches.

• IMPORTANT: It is recommended that at the beginning of the heating season, the condensate neutralizer if used be replaced by a qualified installer, service agency or the gas supplier.

• IMPORTANT: It is recommended that an annual inspection and cleaning of all furnace markings be made to assure legibility. Attach a replacement marking, which can be obtained through the distributor, if any are found to be illegible or missing.

REPLACEMENT PARTS

See sheet enclosed with furnace for replacement part information.

TROUBLESHOOTING

Refer to Figures 56 for determining cause of unit problems.

WIRING DIAGRAMS

Figures 57 through 60 are complete wiring diagrams for the furnace and power sources.

FIGURE 56

GO TO

WARNING

INTEGRATED FURNACE CONTROL (IFC)

TROUBLESHOOTING GUIDE

HAZARDOUS VOLTAGE

LINE VOLTAGE CONNECTIONS

DISCONNECT POWER BEFORE SERVICING. SERVICE MUST BE BY A TRAINED, QUALIFIED SERVICE TECHNICIAN.

OTE: Most failures are not due to the IFC. Double check all other

possibilities, including the ground connection, before replacing the IFC.

OTE:

lways verify gas valve inlet and outlet gas

pressure.

KEY TO ABBREVIATIONS

IBM = Indoor Blower Motor IDM = Induced Draft Motor IFC = Integrated Furnace Control PS = Pressure Switch(es) SE = Spark Electrode HSI = Hot-Surface Ignition DSI = Direct-Spark Ignition

FLAME (AMBER) LED CODES

OFF = No Flame Present R

APID BLINK = Unexpected Flame

LOW BLINK = Marginal Flame Sense

TEADY ON = Normal Flame Sense

LINK CODES(GREEN LED)

1 Blink - Soft lockout

eset System power and

start over from beginning

Blinks - PS Circuit open

go to point “F.”

Blinks - Limit circuit open

o to point “D.”

Blinks - PS Circuit closed

o to point “G.”

5 Blinks - Twin Fault (Optional)

*Go to point “H.”

1) Set FAN switch to “AUTO”

2) Set thermostat to call for heat (set temp. differential to greater than 10°F

oes the IDM Energize?

IDM Runs for 30 sec. pre-purge?

park Ignitor Electrode (SE) Energizes

r HSI Ignitor Glowing?

oes Main Bur

ner Light and stay lit?

Is the gas valve energized?

PS dropping out?

Check IFC*

Does IBM star

t on heat speed 20 seconds

after bur

ners light?

Does main burner remain lit until

heat call ends?

Does ther

mostat maintain reasonable room

temperatur

e near setpoint?

Set thermostat to off position (W to C = ØV)

Does gas valve shut off immediately?

Does IDM shut off after ten second post-purge?

Does IBM shut of

f after a max. of 3 min?

END

Heat-mode troubleshooting

“POWER” LED ON?

4V on W to IFC?

s “STATUS” LED blinking,

steady-on, or off?

Check IFC*.

Does IDM run indefinately

Does IDM Run for 60 sec. and then of

f for Five minutes

Check thermostat in “heat” mode,

battery, wire, and connections.

EE BLINK CODES

Check 24V at IFC.

- Check Fuse.

Check Door Switch and Line Power.

- Check Transformer.

Check Breaker.

Check PS contacts

- Check wires for short.

- Check IFC*.

- Check switches and hoses for water or moisture

- For Twinned units, check that both IFCs are set for “TWIN” and wires are connected between “TWIN” terminals.

Check IFC*.

For twinned units, ensure transformers are in phase. (

if out of phase, flame LED will be dim).

For non-twinned units, ensure “TWIN” is in the single (OFF) position.

For Twinned units – ensure both IFC‘s have same part number.

Check PS, PS Hoses, and wires.

Check for blocked vent, excessive vent length or elbows, or b

locked heat exchanger.

- Check IDM wired correctly.

- Ensure against excessive wind, which can open pressure switch.

- If downflow 90+, check aux. limit – shoud be closed

- Check for intermittent P.S. operation.

- Check switches and hoses for water or moisture.

- Check gas supply and manifold pressure.

- Ensure L1 and Neutral not swapped on IFC and junction box.

- Check SE alignment.

- Check orifice or other restrictions to gas flow.

heck flame sense rod (clean with sandpaper).

Check flame carry over.

- Check wires, continuity, and connection between IFC and gas valve.

Ensure 24 V between appropriate pins on connector of IFC.

Ensur

e manual switch on valve is in the “ON” position.

- 90+ check aux. limit open? Should be closed

- 90+ upflow models – check drain pressure switch between IFC and gas valve – should be closed – replace drain pressure switch if drain is not blocked or clear drain if blocked.

- Did a pressure switch open during ignition trial? If yes, go to F

- Did a limit open during ignition trial? If yes, go to D

- Check line voltage between “HEAT” and “NEUTRAL” on IFC.

- Check wires, connections, and continuity between IFC and IBM.

- Check IBM capacitor.

Check IBM.

CHECK:

- grounding on IFC and unit.

- check for proper polarity between L1 & neutral.

- flame sense rod (clean if necessary).

- wire continually between flame sense rod and appropriate pin of connector on IFC

- flame carries across all burners, and all burners stay lit.

CHECK: AIRFLOW - ensure no restrictions, such as dirty filter, dampers, closed registers, etc. LIMITS - ensure good wire and connections between IFC and all limits. Make sure limits ar

e not open when circulating air temperature is within a specified range.

ROLLOUTS

- ensure rollouts or overtemperature limits do not need to be reset. Make sure no flame rollout in burner compartment due to blocked flu or heat exchanger. OVERFIRE - ensure furnace is not overtemperature (temp rise is above stated range). Check gas valve, proper orifice size, gas pressure, etc.

Is Limit circuit or IDM wire through aux. limit open or opening and closing? Note: IFC Status LED should be blinking a Fault Code 3.

Is the IFC sensing a good flame: NOTE: Flame sense light should be steady-on when bur

ners are lit. If flame LED blinking,

or off, flame sense is low or absent.

Ensure thermostat is properly placed and not improperly affected by registers, fans, sunlight, heat through walls, pipes, or wires in walls.

- Check heat anticipator setting. Furnace may need an isolation relay.

- Check installation instructions under section titled “Isolation Relay” for details.

- Verify correct furnace sizing.

NOTE: If IFC goes into lockout (“ST

ATUS LED will blink code “1”), shut

off main power to unit, wait 30 seconds and then reset power.

PROBLEM

STILL

PRESENT

“STATUS” LED

BLINKING

“FLAME” LED BLINKING OR STEADY ON

If “E” did not resolve issue

Double check - Is W off at IFC?

(W to C = ØV?)

Voltage present at gas valve?

- Check gas valve.

SEE BLINK CODES

- Check IFC*.

Check IFC*.

*Most failur

es are not due to the IFC. Double check all other possibilities, including the gr

ound connection or wir

e connections, before

replacing the IFC.

Ensure TSTAT is not in “FAN” position. Is “STATUS” LED blinking? Is “FLAME” LED blinking or steady-on?

**System will attempt to light 4 times. V

oltage is present at gas valve for only 7 seconds during each trial for ignition. The entir

e system will go into a 1 hour lockout after 4 attempts. The main blower and IDM will run 180 seconds between 2nd and 3rd ignition attempts.

- Check line voltage at IDM.

- Check wires and connections between IDM and IFC.

- Ensure line voltage on IDM pins of IFC connector.

- Check IDM capacitor (90+ only).

CHECK BLINK CODES

- Check for open limit or limit circuit.

- Check for intermittent PS operation.

- Check for vent restrictions.

- Ensure vent lengths not excessive or too small diameter.

- Check for blocked heat exchanger.

FOR SPARK IGNITION

- Check SE wire & connections.

- Clean SE with sandpaper. Replace SE if necessary.

f problem persists, check IFC*.

- Check SE gas and proper SE ground.

- Check SE wire for spark arcing to metal before electrode.

FOR HOT SURFACE IGNITION

- Check ignitor connected.

Check ignitor wires.

Check ignitor r

sistance. If open circuit, low or high resistance, replace.

- Check ignitor for fractures or cracking

- Check ignitor placement.

- If problem persists, check IFC*.

START

REPEAT THIS PROCEDURE UNTIL TROUBLE-FREE OPERATION IS OBTAINED.

f “

”

did not

esolve issue.

NO NO

LINKING

YES

STEADY-ON

YES

PREPURGE

IGNITION TRIAL

IBM “ON” DELAY

STEADY HEAT

END HEA

T CALL

POST-PURGE

IBM “OFF” DELAY

STEADY OFF

OFF

92-101654-01-00

GO TO

GLUB/GLDB MODELS W/INTEGRATED FURNACE CONTROL (IFC) UT Electronic Controls 1012-925 (115 VAC IGNITER)

FIGURE 57

LUB MODELS WITH UT ELECTRONIC CONTROLS 1028-928 & SPARK IGNITION

FIGURE 58

GLDB MODELS WITH UT ELECTRONIC CONTROLS 1028-928 & SPARK IGNITION

CM 0909

Heat Controller GLUB 95 Quick Start Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
