SMART-STAT-II Remote Control Kits
- Installation and Operating Instructions -
INTRODUCTION
The remote control system can be operated thermostatically or manually from the transmitter. The system
operates on radio frequencies (RF) within a 20 foot range.
This remote control kit has a hand held transmitter that
can be used as a remote on/off or as a thermostat. The
transmitter display shows the current room temperature, target temperature, timer setting, on/off status,
low battery indicator, current time and burner/valve operation. Electrical ratings for the receiver are: 110 VAC,
60 Hz.
INSTALLATION PRECAUTIONS
This remote control kit is tested and safe when installed
in accordance with this installation manual. Installation of this kit MUST be done by a qualified service
technician. It is the responsibility of the installer to read
all instructions before starting installation and to follow
these instructions carefully during installation. Modification of the remote control system or any of its components will void the warranty and may cause a fire
hazard.
NOTE: The factory installed junction box in the
gas fireplace must be wired with 110 VAC before
installing this kit. See Installation Instructions section.
CAUTION: All wiring should be done by a qualified
electrician and shall be in compliance with local codes
and with the National Electric Code ANSI/NFPA No.
70-current (in the United States), or with the current
CSA C22.1 Canadian Electric Code (in Canada).
WARNING: DO NOT CONNECT 110-120 VAC
WIRING TO THE GAS CONTROL VALVE OF
THIS APPLIANCE.
FCC REQUIREMENTS
WARNING: CHANGES OR MODIFICATIONS TO
THIS UNIT NOT EXPRESSLY APPROVED BY
THE PARTY RESPONSIBLE FOR COMPLIANCE
COULD VOID THE USER'S AUTHORITY TO
OPERATE THE EQUIPMENT.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance
with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
- Consult the dealer or an experienced radio TV technician for help.
Canadian Equipment Requirements
This digital apparatus does not exceed the (Class A/
Class B)* limits for radio noise emissions from digital
apparatus set out in the Radio Interference Regulations
of the Canadian Department of Communications. Le
present appareil numerique n'emet pas de bruits
radioelectriques depassant les limites applicables aux
appareils numeriques (de la class A/de la class B)*
prescrites dans le Reglement sur le brouillage
radioelectrique edicte par le ministere des Communications du Canada.
This device complies with RSS-210 of Industry and Science Canada. Operation is subject to the following two
conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Printed in U.S.A. Copyright 2002,
Hearth Technologies Inc.
20802 Kensington Boulevard, Lakeville, MN 55044
100-906B 4/02
1
INSTALLATION INSTRUCTIONS
ACCESS HOLE
COVER
PLATE
110 VAC
SERVICE
REMOTE RECEIVER
Installing Electrical Service to the Junction Box
WARNING: TURN ELECTRICAL POWER OFF
AT THE CIRCUIT BREAKER BEFORE BEGINNING THIS INSTALLATION.
NOTE: Some appliances do not have a cover plate.
Instead, there is a hole through which the Romex clamp
is attached to the outer wrap.
1. Remove the electrical cover plate from the lower
side of the fireplace. Remove the knock-out from
the plate and attach the Romex clamp (screws to
the outside) (see Figure 1).
Important: The remote receiver should be positioned close to front in right or left corner where
ambient temperatures do not exceed 1700 F.
The remote receiver is powered by 110-120VAC. It plugs
into a standard polarized duplex receptacle.
Locating Receiver and Operating Functions
This remote receiver can be positioned under the firebox in the control compartment of the fireplace if ambient temperatures do not exceed 1700 F. This system is
designed to remotely operate the gas valve.
RECEIVER WIRING INSTRUCTIONS
Incorrect wiring connections WILL cause damage to the
gas valve or electronic module operating the gas appliance and may also damage the remote receiver.
Wiring Millivolt Valves
Connect the remote receiver by connecting each of the
two wires leading from the remote receiver to either of
the two wire TH terminals on the gas valve (see Figure 2). Normally it does not matter which wires go to
which terminal.
Figure 1
2. Feed the electrical service wires through the Romex
clamp and secure the wires to the clamp.
3. Using the wire nuts provided, connect the service
wires to the junction box. The black wires to the
black service wire, the white wires to the white service wire, and the service ground wire to the ground
stud of the junction box.
4. Re-attach the cover plate to the outside of the fireplace.
WARNING: LEAVE ELECTRICAL POWER OFF
AT THIS TIME. DO NOT RESTORE POWER UNTIL THE REMOTE CONTROL SYSTEM IS COMPLETELY INSTALLED.
TERMINAL BLOCK ON
MILLIVOLT GAS VALVES
THERMOPILE/
PILOT LIGHT
WALL
SWITCH
REMOTE RECEIVER
Figure 2. Wiring Millivolt Valves
Alternative Wiring for units with a wall switch
Disconnect the wall switch wire from the TH terminal on
the valve and connect this wire to male connector supplied on the receiver. Connect remaining female connector from receiver to the TH terminal on the valve.
2
Wiring Electronic Spark Ignitions
The remote control receiver can be wired, in series, to a
24VAC transformer, which controls an electronic ignition module (see Figure 3).
NOTE: The remote receiver will only respond to
the transmitter when the 3-position slide button on
the remote receiver is in the Remote position. If
the system does not respond to the transmitter on
initial use, see section Matching Security Codes.
1. Connect the neutral wire from the 24VAC transformer
to the TR (transformer) terminal on the Electronic
Module.
2. Connect the hot wire from the 24VAC transformer to
either of the wires from the remote receiver.
3. Connect the other wire from the receiver to the TH
(thermostat) terminal on the Electronic Module.
ELECTRONIC MODULE
TR
TH
NEUTRAL WIRE
24VAC
HOT WIRE
110/24VAC
TRANSFORMER
120VAC
1. With the slide switch in the ON position, the system
is on.
2. With the slide switch in the REMOTE position, the
system only operates if the remote receiver receives
commands from the transmitter.
3. With the slide switch in the OFF position, the system
is off.
NOTE: The slide switch should be placed in the OFF
position if you will be away from your home for an extended period of time. Placing the switch in the OFF
position also functions as a safety “lock out” by turning
the system off and rendering the remote receiver inoperative.
TRANSMITTER
Important: Before operating remote control, transmitter and receiver must have matching security
codes. See section ‘Matching Security Codes’.
Important: Review ‘Communication-Safety Features’
under ‘Transmitter Safety Features’ section. The communication safety features shut down the fireplace system when a potentially unsafe condition exists.
REMOTE RECEIVER
Figure 3. Wiring Electronic Spark Ignitions
The remote receiver has a 3-position slide switch: OFF/
REMOTE/ON (see Figure 4).
ANTENNA
LEARNING
BUTTON
SLIDE
SWITCH
Figure 4. Remote Receiver
OFF
REMOTE
ON
Important: Review ‘Auto Shutdown’ section. This
safety feature shuts down the fireplace after 9 hours of
continuous operation, in ON mode only .
Important: New or fully charged batteries are essential for proper operation of the multi-function transmitter. The transmitter operates on 2 AAA-size 1.5V batteries. Use Alkaline batteries for longer battery life and
maximum operational performance.
Insert 2 AAA-size 1.5V batteries into the battery compartment on the back of the transmitter . When the batteries are correctly inserted, the screen will display
numbers (see Figure 5 for LCD Display Screen).
NOTE: If the transmitter is activated from a very cold
condition it may be necessary to allow the transmitter
to stabilize to room temperature (could take up to 15
minutes) before accurate room temperatures are displayed on the screen.
NOTE: LCD screen is equipped with a “backlite” for
easier viewing of LCD screen. Backlite illuminates when
a function button is depressed. Af ter 5 seconds elapses,
LCD screen will return to its normal state.
3
1. LOW - Battery power low. Replace batteries within two weeks.
2. TIMER - Indicates time remaining before system shuts off, when timer-programmed,
9 - hour maximum setting.
3. MODE - Indicates operation MODE of system. ON indicates the system is on, either
manually or thermostatically. THERMO indicates the system will automatically cycle
ON/OFF, depending on programmed SET temperature. OFF indicates the entire system is
turned off.
4. SET - Indicates desired SET room temperature
for THERMO operation.
5. FLAME - Indicates burner/valve operational.
6. CLOCK - Indicates the current time in AM/PM.
7. ROOM - Indicates CURRENT room temperature.
O
8.
F - Indicates degrees Fahrenheit (0C indicates
degrees Celsius).

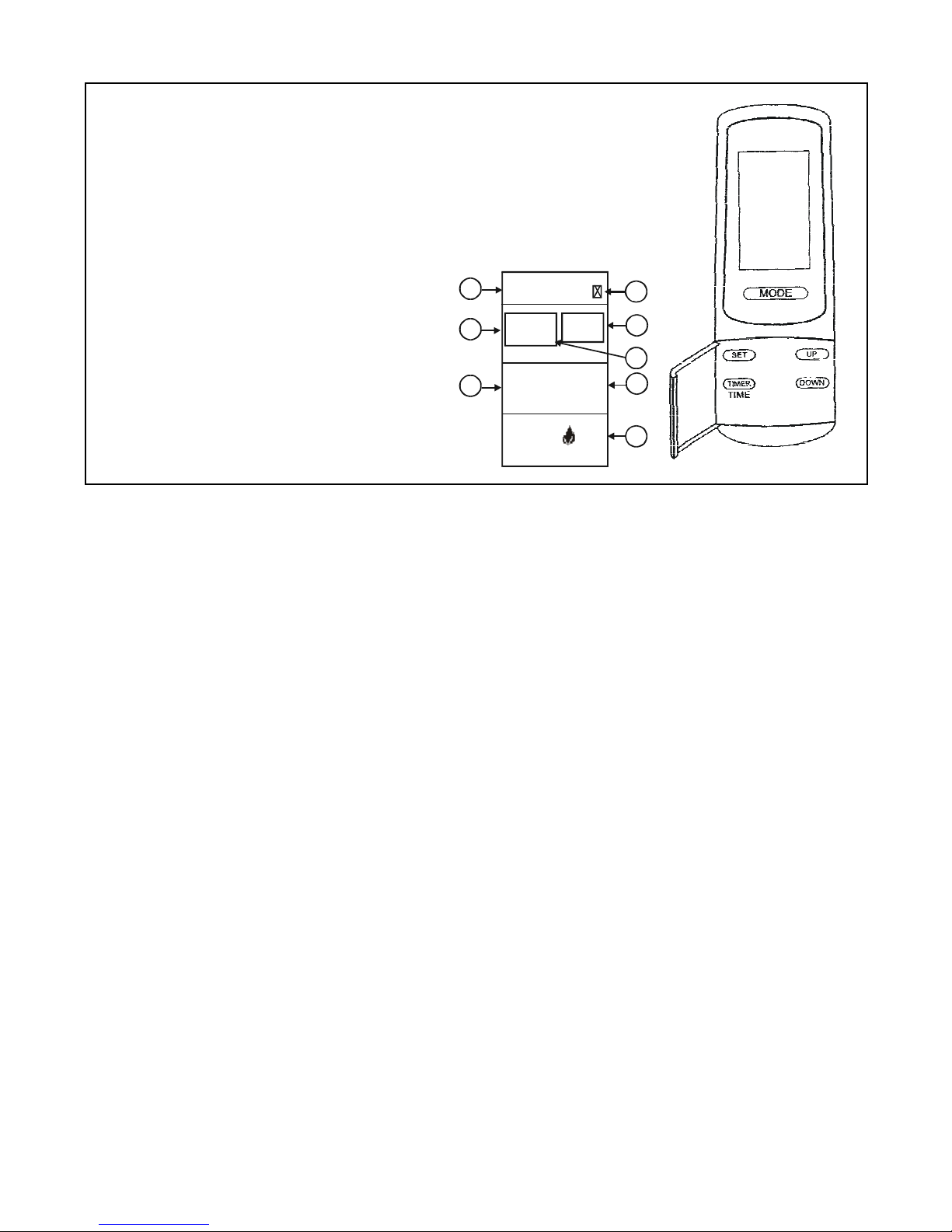

Figure 5. Transmitter LCD Display Screen
LCD DISPLAY SCREEN
F
AM
ON
OFF
70
SET
3:00
TIMER
FLAME
F
THERMO
3
7
72
ROOM
6
8:00
1
4
8
2
5
MATCHING SECURITY CODES
It may be necessary to program the remote receiver
to the security code of the transmitter upon initial use,
if batteries are replaced, or if a replacement transmitter is purchased from your dealer. To program the remote receiver:
1. Set the slide button on the receiver to the REMOTE
position.
2. Push the LEARN button (one beep will be heard)
on the top of the remote receiver.
3. Then press the MODE button on the transmitter.
Several beeps indicate the transmitter’s code has
been programmed into the receiver. When an existing receiver is matched to a new transmitter, the
new security code will overwrite the old one. NOTE:
When the LEARN button is depressed, “beeping”
sounds should be heard. If no “beeping” is heard
check to see that the receiver has 110-120VAC
power to it.
If you are unsuccessful in matching the security code
on the first attempt, wait 1-2 minutes before trying
again.
OPERATING INSTRUCTIONS
To operate the system, press the MODE button (Figure 5) on the transmitter to select the operational
MODE desired.
• ON indicates the system is on, either manually, timed
or thermostatically.
• THERMO indicates the system will automatically
cycle ON/OFF, depending on programmed set temperature.
• OFF indicates the entire system is turned off.
Transmitter Settings
Flip open the plastic cover on the front of the transmitter to expose the “SET” buttons.
NOTE: Flashing numbers on the display indicate the
system is waiting for input, such as using the UP and
DOWN buttons to program a new setting. If no change
is made to flashing digits within 15 seconds, the system will complete the procedure last programmed and
reset the display to its normal state.
Setting the Clock
1. Press and hold the TIMER/TIME button on the
transmitter for more than two seconds. The hour
digit(s) will begin flashing (see Figure 5, Location
#6).
2. Press the UP or DOWN button until the desired
hour is displayed in AM or PM.
3. After setting the desired hour, press and release
the TIMER/TIME button again to set the minutes;
the minute digits will begin flashing.
4. Press the UP or DOWN button until the desired
minutes are displayed.
5. Press and hold the TIMER/TIME button again for
more than two seconds. The time digits will cease
flashing, indicating the clock has been successfully set. You may also press the SET button on
the transmitter to stop the time digits from flashing
and set the time.
Figure 6. Setting Button/Child Proof Lockout
Setting 0F/0C Scale
The factory setting for temperature is degrees Fahrenheit
(0F). T o change this setting to degrees Centigrade (0C):
1. Remove the battery cover on the back of the transmitter and locate the “setting button” at the top center of battery compartment (see Figure 6).
2. Push setting button and 0F will begin flashing on the
LCD screen (see Figure 5, Location #4).
3. Push the DOWN button on the transmitter to change
0
F to 0C.
4. Push “setting button” on transmitter and Centigrade
(0C) degree readings will display on LCD screen.
5. Repeat this process to change back to Fahrenheit
(0F) reading, this time pushing the UP button.
NOTE: LCD screen will return to normal state if setting button is not pushed within 15 seconds.
Setting Desired Room Temperature Thermo Operations
This remote control system can be thermostatically
controlled when the transmitter is in the THERMO mode.
(THERMO must be displayed on the screen). The transmitter will “sense” the room temperature every two minutes automatically turning the fireplace ON or OFF thermostatically . To set the desired room temperature:
1. Press the MODE button to place the transmitter
into THERMO mode. THERMO ON or OFF will display.
2. Press the UP or DOWN button to select the desired
room temperature. The highest SET temperature is
990 F (320 C). The lowest SET temperature is 450 F
0
C).
(6
NOTE: T o prevent repeated thermo-cycling of the gas
appliance, the sensing unit in the transmitter will only
activate the remote receiver when the temperature
change exceeds 2
0
F (10 C) above or below the SET
(desired) temperature.
When the transmitter is in the THERMO mode, it should
be kept away from direct sources of heat such as fireplaces, incandescent lighting and direct sunlight. Leaving the transmitter in direct sunlight, for example, will
cause it to read the room temperature higher than it
actually is.
Setting the Countdown Timer
This remote control system can operate with a built-in
countdown timer when the transmitter is in the ON or
THERMO modes (THERMO or ON must be displayed
on the LCD screen).
1. Press and release the TIMER/TIME button on the
transmitter. The word TIMER and 0:15 flash on the
screen (see Figure 5, Location #2).
2. Press the UP and DOWN button to begin advancing
through each of the countdown time options. A vailable countdown times are 15 min, 30 min, 45 min, 1
hour, 1 hr 30 min, and each additional half hour up
to nine hours.
3. T o set the TIMER, press the SET button on the transmitter. If the system is ON, it will remain on until the
“time” has expired. If the system is in the THERMO
mode, it will cycle on and off as the room temperature requires until the “time” has expired.
NOTE: When the timer is used in the THERMO mode,
the THERMO operation will discontinue when the “time”
has expired.
Low/Battery Indicator
An “X” outlined by a battery on the right side of the LCD
screen will appear when battery power has dropped
significantly. At this time, approximately two weeks of
battery power remains.
5
Child Proof Lockout (CP)
The transmitter contains a “Child Proof” lockout feature
that prevents unauthorized use of the remote control.
To access the “Child Proof” activation button, remove
cover on BACK of transmitter. To activate LOCKOUT:
1. Press and hold in the “setting button” for 5 seconds. The letters CP will display on the LCD screen
(see Figure 6). This prevents the activation of fireplace. When any function button is pressed ON/
OFF etc. the letter CP will display on the LCD
screen.
To deactivate LOCKOUT:
1. Press and hold in the “setting button” for 5 seconds. The LCD will display CP until 5 seconds have
elapsed, and then the LCD screen will return to its
normal state.
TRANSMITTER SAFETY FEATURES
It is recommended that the TRANSMITTERS always be
located within a 20 foot operating range of the fireplace,
preferably in the same room in which the fireplace system is located. The TRANSMITTER features several
safety features that alert the user when the TRANSMITTER is placed outside the 20 foot normal operating range.
seconds beeping will go on indefinitely until reset.
To “reset” the RECEIVER and operate the fireplace system:
1. Press the MODE button on the transmitter. The
word ON must display on the LCD screen. The COMMUNICATION -SAFETY operation is overridden and
the system will return to normal operation depending on the MODE selected at the transmitter.
We recommend the user check the batteries in the
TRANSMITTER to make sure the voltage is no less than
2.7 volts.
Auto Shutdown
This remote control has an Auto Shutdown feature incorporated into its system. When the transmitter MODE
is in the ON position the fireplace will continuously operate for 9 hours. After 9 hours, the fireplace will shut
down. To relight the fireplace:
1. Press the MODE button.
The Auto Shutdown signal comes from the transmitter.
The transmitter must be positioned within a 20 foot operating range for the Auto Shutdown feature to operate.
SYSTEM CHECK
Communication-Safety Features
This remote control has a COMMUNICATION-SAFETY
function built into its software. It provides an extra margin of safety when the TRANSMITTER is out of the normal 20 foot operating range of the receiver. It is also
activated when the batteries become weak or are removed from the transmitter.
In the THERMO-UPDATING feature (only in the
THERMO or TIMER modes) the transmitter normally
reads the ROOM temperature every 2 minutes. In addition to checking the temperature, the transmitter sends
a signal to the receiver indicating that the transmitter
and its batteries are still active.
In the COMMUNICATION-SAFETY feature, at all times
and in all OPERATING MODES the transmitter sends a
signal every fifteen (15) minutes to the receiver, indicating that the transmitter is within the normal operating
range of 20 feet.
Should the receiver NOT receive a transmitter signal every
15 minutes (COMMUNICATION-SAFETY feature), the RECEIVER will begin a 2 HOUR (120 minute) countdown
timing function. If during this 2 hour period, the receiver
does not receive a signal from the transmitter, the RECEIVER will shut down the fireplace being controlled by
the receiver. The RECEIVER will then emit a series of
rapid “beeps”. Then, after 10 rapid “beeps”, the RECEIVER
will continue to emit a single “beep” every 4 seconds until
a transmitter signal is again received. The intermittent 4
Millivolt Valves
Light the appliance following the lighting instructions
that came with the fireplace. Confirm that the pilot flame
is on. It must be in operation for the main gas valve to
operate.
1. Slide the 3-position button on the remote receiver to
the ON position. The main gas flame (i.e., the fire)
should ignite.
2. Slide the button to OFF. The flame should extinguish
(the pilot flame will remain on).
3. Slide the button to REMOTE (the center position),
then press the MODE button on the transmitter to
change the system to ON. The main gas flame should
ignite.
4. Press the MODE button on the transmitter to change
the system to OFF. The flame should extinguish (the
pilot flame will remain on).
5. Press the MODE button on the transmitter to change
the system to THERMO.
6. Advance the SET temperature on the transmitter
to a temperature of at least 20 F (10 C) above the
ROOM temperature displayed on the LCD screen
and the system flame will ignite.
7. Set the SET temperature to at least 20 F (10 C) below
the room temperature and the system flame will extinguish. Thereafter, it should continue to cycle on
6
and off thermostatically approximately every two minutes as the ROOM temperature changes, but only
when the temperature differential between ROOM and
SET temperatures differs at least 20 F (10 C). The 20 F
differential is the factory setting.
Electronic Ignition System
1. Slide the 3-position button on the remote receiver to
the ON position. The spark electrode should begin
sparking to ignite the pilot (the pilot may ignite after
only one spark). After the pilot flame is lit, the main
gas valve should open and the main gas flame should
ignite.
2. Slide the button to OFF. The main gas flame and
pilot flame should BOTH extinguish.
3. Slide the button to REMOTE (the center position).
4. Then press the MODE button on the transmitter to
change the system to ON. The spark electrode
should begin sparking to ignite the pilot. After the
pilot is lit, the main gas valve should open and the
main gas flame should ignite.
5. Press the MODE button on the transmitter to OFF.
The main gas flame and pilot flame should BOTH
extinguish.
6. Press the MODE button on the transmitter to change
the system to THERMO.
7. Advance the SET temperature on the transmitter to
temperature of at least 20 F (10 C) above the room
temperature displayed on the LCD screen and the
system flame will ignite.
8. Set the SET temperature to at least 20 F (10 C) below
the room temperature and the system will extinguish.
Thereafter, it should continue to cycle on and off thermostatically approximately every two minutes as the
ROOM temperature changes, but only when the temperature differential between ROOM and SET temperatures differ at least 20 F (10 C). The 20 F differential is the factory setting.
Timer Operation
The countdown timer will operate in either the manual
ON or THERMO mode. Once the fireplace system is in
an operating mode, set the countdown timer to turn off
in 15 minutes. The timer function will allow operation to
continue until the “countdown time” on the LCD screen
expires. After 15 minutes elapses, the system should
turn off.
GENERAL INFORMATION
Transmitter Wall Bracket
The transmitter can be hung on a wall using the bracket
provided. Locate the bracket on an inside wall sufficiently
far away from direct sources of heat such as a fireplace, incandescent lighting, or sunlight so it detects
ambient room temperatures, not a single heat source. If
the bracket is installed on a solid wood wall, drill 1/8”
pilot holes and install with the screws provided. If it is
installed on a plaster/wallboard wall, first drill two 1/4”
holes into the wall, then use a hammer to tap in the two
plastic wall anchors flush with the wall, then install the
screws provided.
Battery Life
Life expectancy of the alkaline batteries in the transmitter should be at least 12 months. Check batteries annually. When the transmitter no longer operates the remote receiver from a distance it did previously (i.e., the
transmitter’s range has decreased) the batteries should
be checked.
Specifications
Batteries: Transmitter - 3V 2 ea.; AAA 1.5V, Alkaline
Remote - 110-120 VAC; 60Hz
Operating Frequency: 303.8 MHZ
FCC ID No.’s: Transmitter - K9L300ITX
Receiver - K9L3003RX
Canadian ISC ID No.’s:
Transmitter - 2439 102 760
Receiver - 2439 102 760A
This REMOTE CONTROL SYSTEM is warranted
for 12 months from the date of purchase or installation to the original purchaser to be free from defects in materials and workmanship. Damage to
the SYSTEM caused by accident, misuse, abuse,
or installation error whether performed by a contractor, service company, or owner, is not covered
by this warranty. Seller will not be responsible for
labor charges and/or damage incurred in installation, repair, replacement or for incidental or con-
Limited Warranty
sequential damages. Batteries and any damage
caused by them are not covered by this warranty.
Some states, provinces, and nations do not allow
exclusion or limitations of incidental or consequential damages, so the above limitations or exclusions may not apply. This warranty gives you specific legal rights. You may have other rights that
vary by state, province or nation.
7
Loading...
