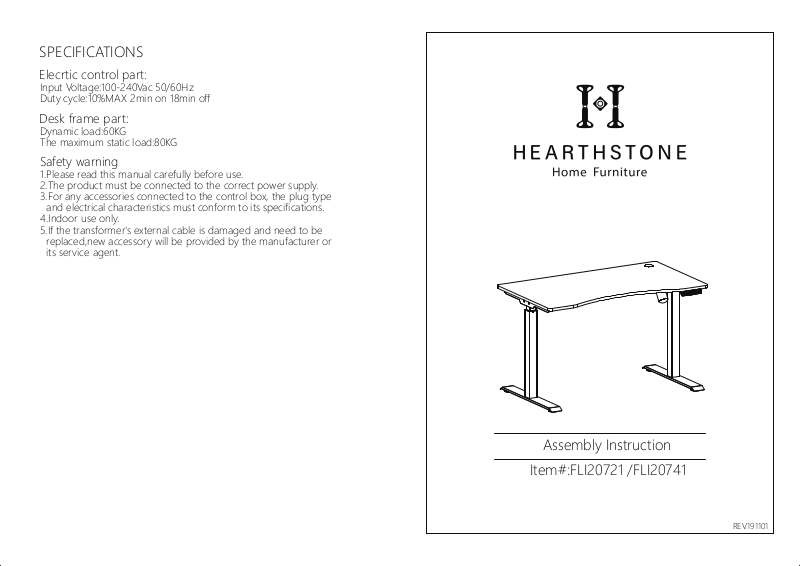

Page 1

SPECIFICATIONS

Elecrtic control part:

Input Voltage:100-240Vac 50/60Hz Duty cycle:10%MAX 2min on 18min off

Desk frame part:

Dynamic load:60KG

The maximum static load:80KG

Safety warning

1.Please read this manual carefully before use.

2.The product must be connected to the correct power supply.

3.For any accessories connected to the control box, the plug type and electrical characteristics must conform to its specifications.

4.Indoor use only.

5.If the transformer's external cable is damaged and need to be replaced,new accessory will be provided by the manufacturer or its service agent.

Assembly Instruction

Item#:FLI20721 /FLI20741

REV.191101

Page 2

INSTALLATION INSTRUCTION

DIRECTIONS FOR USEINSTALLATION INSTRUCTION

HARDWARE INCLUDED

QTY:4

M6*12

QTY:2

M6*16

TOOLS INCLUDED

QTY:8

M8*30

QTY:4

QTY:1

ST4.2*16

TOOLS REQUIRED

Reset original status: Press" "and" "in 10 seconds till hear a bee sound , now the system into factory default data.

Limited height setting:Press" "and" "key for 5 seconds till heard a bee sound , limited height setting success.

(minimum limited height＜96，maximum limited height＞97).

Lock and unlock:Press" "and " S " key for 5 seconds , Screen display "LOC" , system locked up,Press" "and " S " key for 5 seconds, screen display "LOC" turn to number ,system unlocked.

0 Metric 1 Inch

0 shut down 1 The most insensitive 8 The most sensitive

Use or adjust the basement height

Long pressing desk running,

hands off desk stop running

Click desk running, second

click to stop running

Indicate shutting 2min/18 min

duty recycle,controller under temperature protection

Indicate start 2min/18min

duty recycle

0 shut down 1 0.5° 2 1.0° 3 1.5° 4 2.0° 5 2.5° 6 3.0° 7 3.5° 8 4.0°

Click“S”key to back, setting success

Pressing “S” key for 5 second till digital screen display “S-1“ , press “ ” or “ ” key to choose

S-1

Metric and Inch exchange

S-2

Gyroscope anti collision sensitivity

S-3

Current up anti collison sensitivity

S-4

Current down anti collison sensitivity

S-5

Basement height

S-6

“S”key height operation choose

S-6

Operation duty recycle

S-8 Desk surface decline sensitivity Select

Click “S” Key

Advanced Function Settings

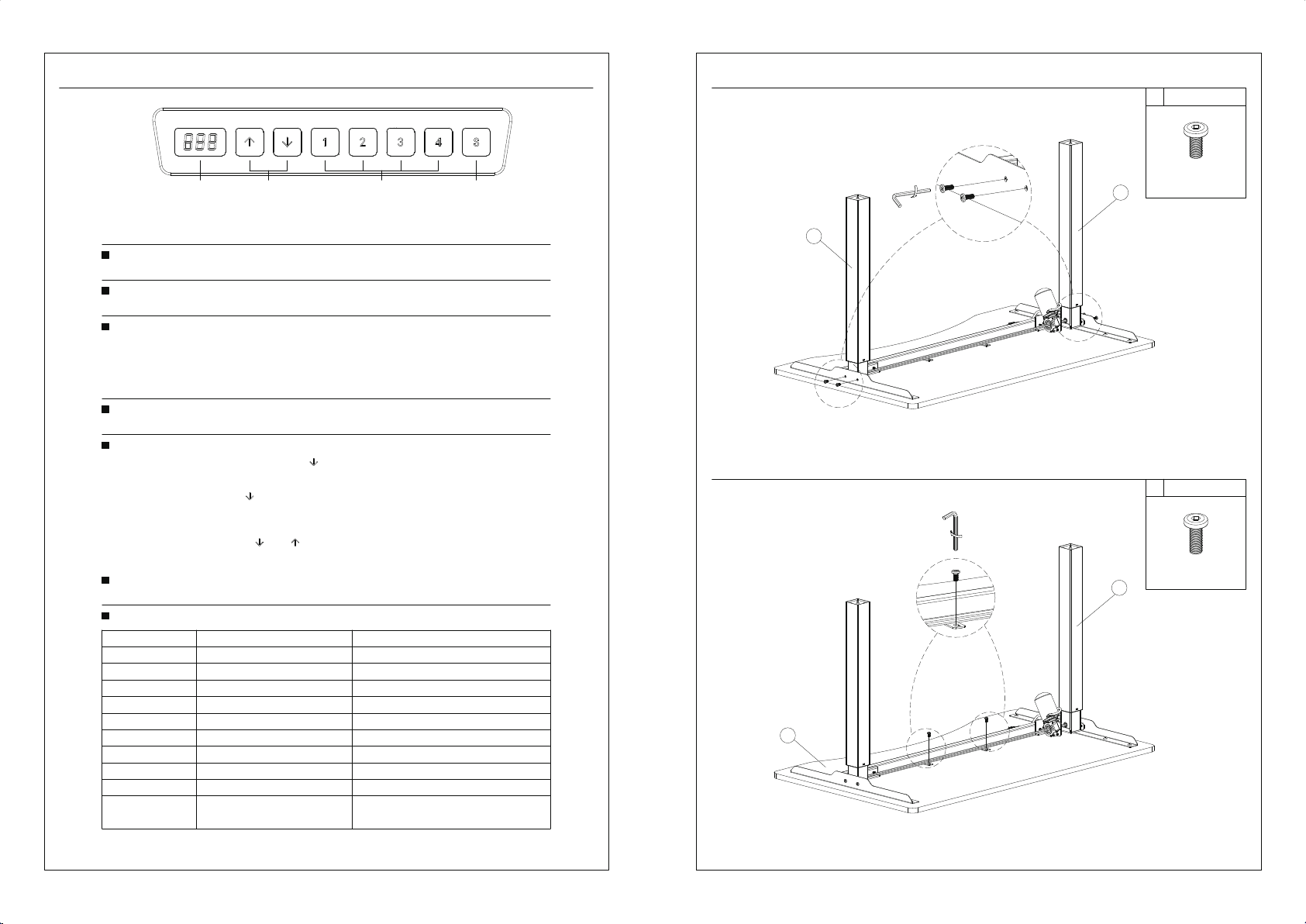

Page 3

DIRECTIONS FOR USE

STEP 1

INSTALLATION INSTRUCTIONINSTALLATION INSTRUCTION

QTY:4

Display Screen

The whole handset surface is a button panel. If there is no press within 30 seconds, the screen is locked and 1/2/3/4/S keys are locked correspondingly, you should press Up or Down key first,it can be used when the display screen light up.

Up&Down key Memory key Set key

Display Screen

Display the height value of the desk.

Up & Down Keys

Please keep pressing UP/DOWN key to adjust desk height until you get an optimum height.

Memory Key （1/2/3/4）

After seting memory keys, the desk can lift automatically to memory height.

※ How to set memory mode

Click the "S" key when running to a specific point. The display screen displays "S-" and "-" flashes. At this time, press "1-4" button to store the position to the corresponding label. the memory height is successfully saved,Then light press 1/2/3/4, the desk moves to memory height automatically.

Set Key(S)

Press the "S" key when memory bits and internal parameters need to be set.

Initialization

1.When"RST”is on the display screen, press the" "button until the desk frame reaches its lowest point. After hearing the "di" sound and desk frame rebounds, initialization is completed.

(P.S. The button cannot be released during this operation, otherwise the initialization will fail)

2.Forced initialization: Press the" "button until the desk frame reaches its lowest point, then release the button and press it again for about 5 seconds until hear the "di" sound and desk frame rebound, and the initialization is completed.

3.Restore the factory settings: When new controller is changed or the parameters need to be restored to the factory settings, press the" "and" "buttons simultaneously, you will hear the first “di” sound after about 5 seconds and second “di” sound after 10 seconds. When the display screen shows "RST", please operate refer to the No.1 item.

Safety Function

When the desktop is on the rise or down, encountered reverse resistance,the desk will rebound.

Handset shows error code and solution

Error code

E1,E6,E7

E11,E21

E12,E22

E14~E17,E24~E27 E18,E28

HOT

power fault

nsynchronous height over 1cm

handset fault

Anticollision alert desktop sloping

Motor defect

controller fault

motor fault overloading reduce the loading

overtime operation

Fault cause

Solution change power

Implement the initialization operation 1

Unplug and replug the cable of hand set

Rebound reminder , normal condition

check the desktop

inspect the motor wire

Exchange the controller

change motor

Automatic recovery after stop using for 20 minutes

STEP 2

M6*12

QTY:2

M6*16

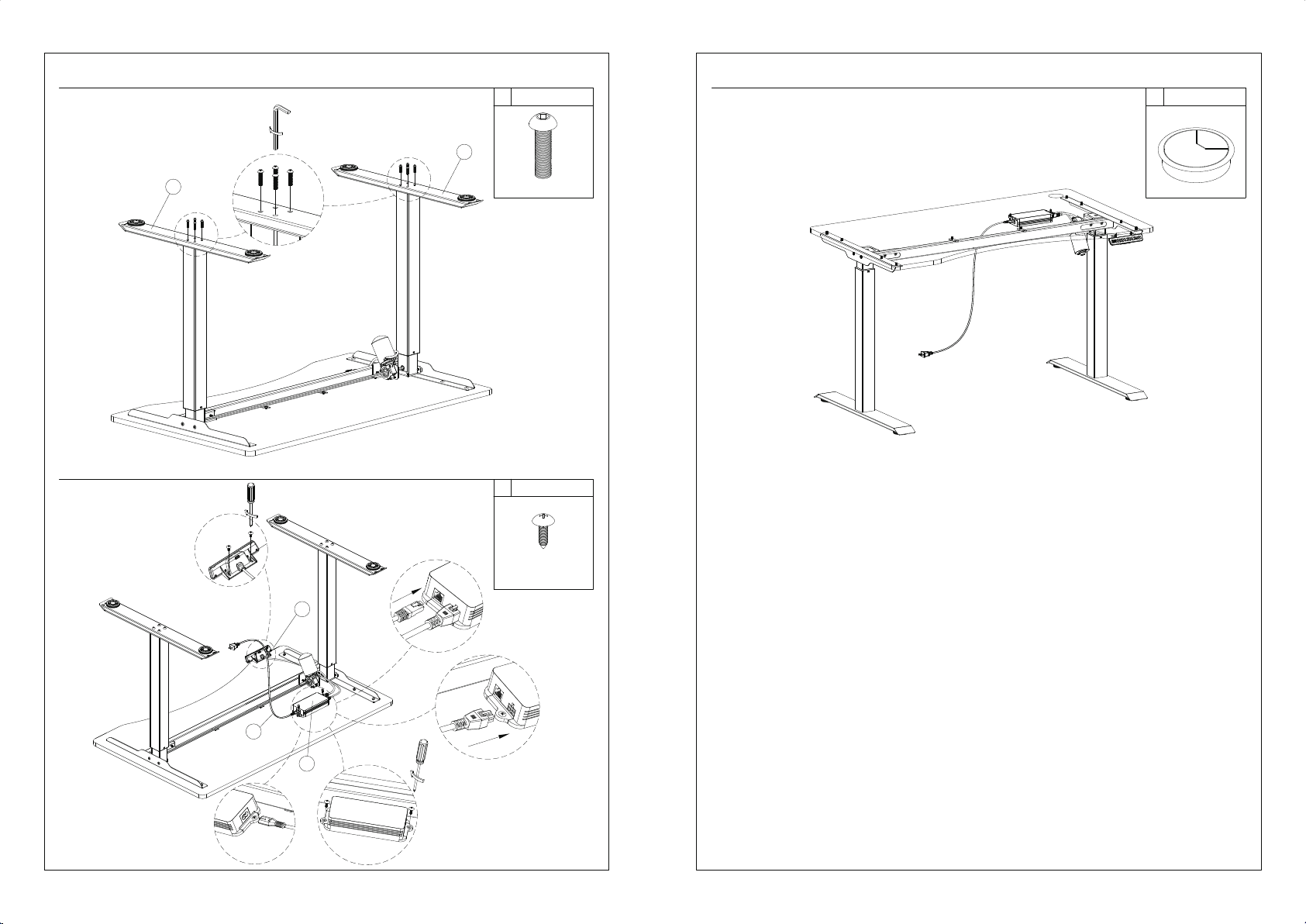

Page 4

STEP 3

INSTALLATION INSTRUCTIONINSTALLATION INSTRUCTION

QTY:8

STEP 5

QTY:1

STEP 4

M8*30

QTY:4

ST4.2*16
