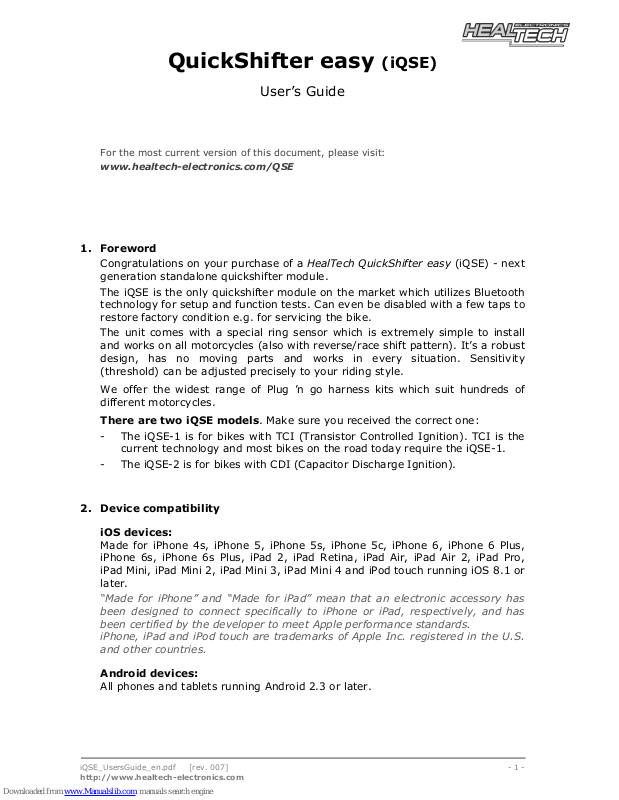

QuickShifter easy (iQSE)
User’s Guide
For the most current version of this document, please visit:
www.healtech-electronics.com/QSE
1. Foreword
Congratulations on your purchase of a HealTech QuickShifter easy (iQSE) - next
generation standalone quickshifter module.
The iQSE is the only quickshifter module on the market which utilizes Bluetooth
technology for setup and function tests. Can even be disabled with a few taps to
restore factory condition e.g. for servicing the bike.
The unit comes with a special ring sensor which is extremely simple to install
and works on all motorcycles (also with reverse/race shift pattern). It’s a robust
design, has no moving parts and works in every situation. Sensitivity
(threshold) can be adjusted precisely to your riding style.
We offer the widest range of Plug ’n go harness kits which suit hundreds of
different motorcycles.
There are two iQSE models. Make sure you received the correct one:
- The iQSE-1 is for bikes with TCI (Transistor Controlled Ignition). TCI is the
current technology and most bikes on the road today require the iQSE-1.
- The iQSE-2 is for bikes with CDI (Capacitor Discharge Ignition).
2. Device compatibility
iOS devices:
Made for iPhone 4s, iPhone 5, iPhone 5s, iPhone 5c, iPhone 6, iPhone 6 Plus,
iPhone 6s, iPhone 6s Plus, iPad 2, iPad Retina, iPad Air, iPad Air 2, iPad Pro,
iPad Mini, iPad Mini 2, iPad Mini 3, iPad Mini 4 and iPod touch running iOS 8.1 or
later.
“Made for iPhone” and “Made for iPad” mean that an electronic accessory has
been designed to connect specifically to iPhone or iPad, respectively, and has
been certified by the developer to meet Apple performance standards.
iPhone, iPad and iPod touch are trademarks of Apple Inc. registered in the U.S.
and other countries.
Android devices:
All phones and tablets running Android 2.3 or later.
Page 2
- 2 -
3. How to Setup the unit
1. Install the module and sensor as per the supplied Install Guide.
2. Install the QuickShifter easy (iQSE) free app on your device.
In the App Store or Play Store, search for HealTech to find the app.
3. Turn the ignition key ON.
The iQSE LED light should light up in GREEN color then change to solid RED.
This confirms that the unit has power and ready for use.
If the LED turns off in a short while or does not light up, you need to have
the engine running to establish the Bluetooth connection.
4. Open the iQSE app and connect to the module from the app as
instructed. The pairing code is always 4325 for the iQSE.
5. Start the Setup Wizard in the app and follow the instructions on the
screen.
6. Take a test ride and fine-tune the settings. For information about the setup
parameters, refer to the help texts you see in the iQSE app at the bottom of
each menu screens.
4. How to use the QuickShifter
- You may do clutchless upshifts only during acceleration, i.e. at partial to full
throttle, well above idle speed.
- Always use the clutch under these conditions:
selecting first gear
finding neutral
shifting to 2
nd
gear if it’s not smooth without clutch on your bike
during deceleration/braking
when hitting the rev limiter
when the engine does not pull
- You may do clutchless downshifts with partial throttle from the higher (4-6)
gears only if the shifts are smooth and effortless on your bike and the shift
lever is not stiff. Otherwise, use the clutch for downshifts.
- Be sure you always do quick, confident and complete shift movements with
your foot, until the lever stops. Adjust the shift lever position if necessary to
ensure effortless and complete shift movement with your foot.
When the power is cut, there's a limited time (typically less than 90ms)
while the gearbox is being unloaded and clutchless shift is possible. After
this time the gearbox is loaded again due to engine braking. If you change
the gear slowly, you may hit false neutral or you can't make the shift at all.
- If the shifts are not smooth, do not stress your gearbox. Use the clutch until
you make the necessary changes.
Page 3
- 3 -
5. Frequently Asked Questions
Please read our iQSE FAQ before sending a question:
http://www.healtech-electronics.com/app/iqse/faq_en
6. Troubleshooting
In case of problems or concerns, please check out our Troubleshooting Guide:
http://www.healtech-electronics.com/app/iqse/trb_en
7. LED status codes
Solid RED Unit is powered up.
Engine is not running or RPM signal is not received.
Solid GREEN Unit is powered up.
Engine is running (RPM signal is received).
Flashing RED Error detected.
Connect to the application to see the problem.
Flashing GREEN Bluetooth interface is in standby (typically, while riding).
Cycle the ignition key if you wish to connect.
Alternating color Shift signal detected, data is sent to the module or firmware
update is in progress.
8. Warranty
Disclaimer: Do not attempt to install the product if you don’t have basic
mechanical skills. HealTech Electronics Ltd. and its distributors shall not be
liable for any loss or damage caused by improper installation or setup. Please
read the instructions carefully.
If the gearshifts are not smooth, do not stress your gearbox. Use the clutch
until you make the necessary changes.
To ensure trouble-free operation from the start, all units have been extensively
tested prior to shipment. For this reason, please make sure you followed the
install steps carefully and check the connections and settings before you report
a problem.
The product is covered by our 2-year replacement warranty from the date of
purchase.
The warranty does not apply to product that has been subjected to misuse,
fitted incorrectly or there’s a visible damage e.g. from a crash.
