NOTE TO INSTALLERS
Always Read Instructions Before Use
Leave this Operator Manual attached to the auto belay.
The Operator Manual contains information relating to the
safe use of the TRUBLUE Speed Auto Belay and includes all
product registration and warranty information. This document may only be removed by the end user. Ensure that this
Operator Manual is readily available to operators at all times
Head Rush Technologies TRUBLUE Speed Operator Manual
P/N 11764-04
Head Rush Technologies products are covered by a number of patents, including
U.S. Patents 8,490,751; 8,851,235; 9,016,435; 8,851,235 and D654,412
& corresponding patents/applications in the USA and in other countries worldwide.

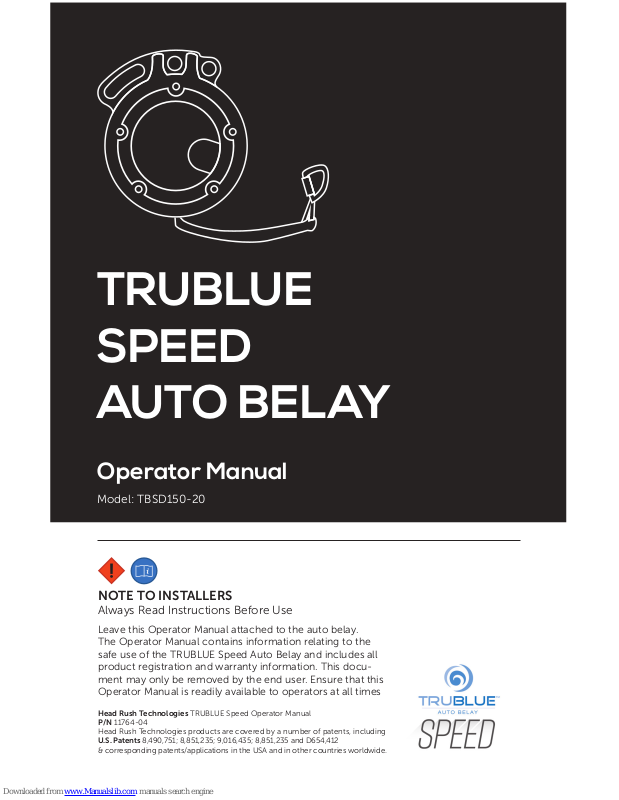

TRUBLUE
SPEED
AUTO B E L AY
Operator Manual
Model: TBSD150-20

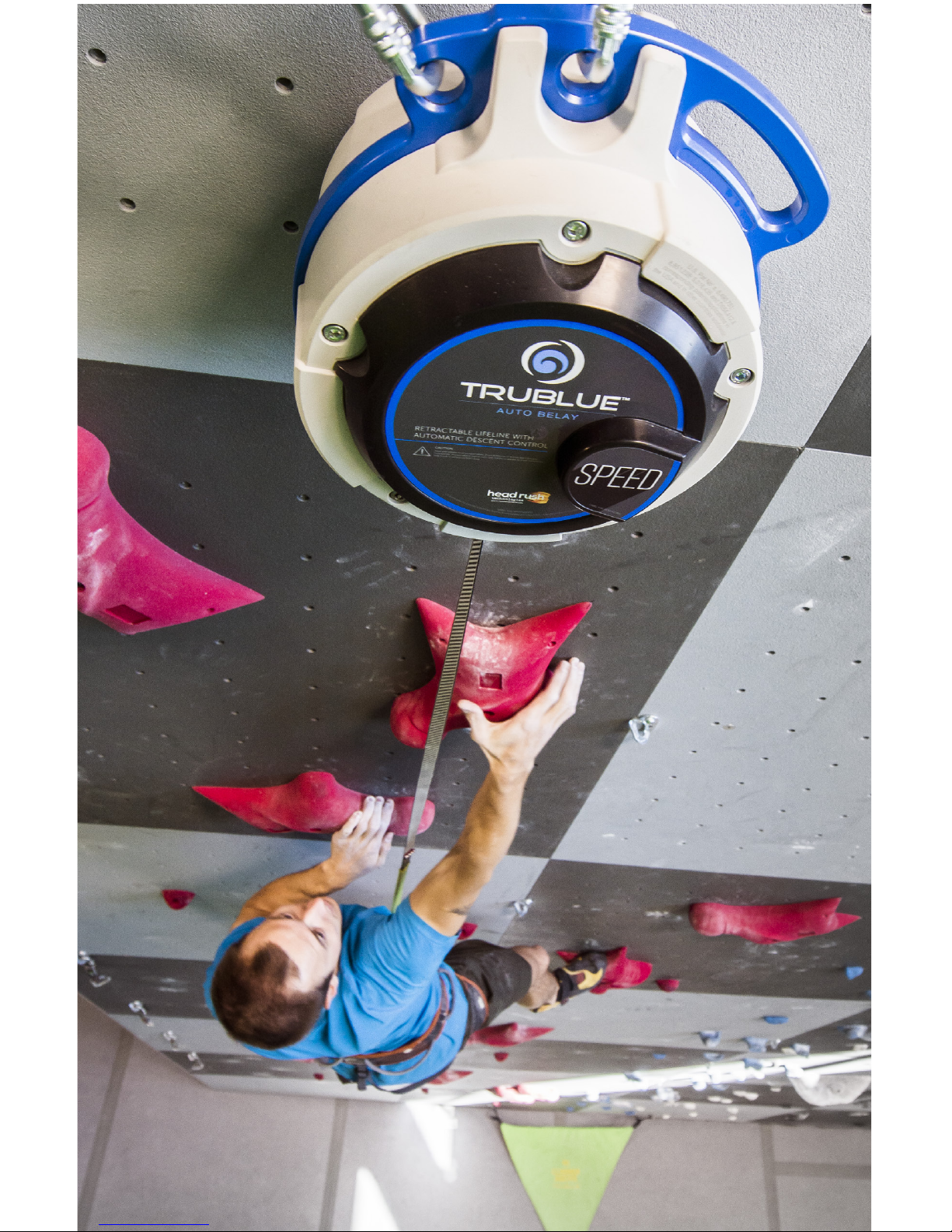

Page 2
Page 3
IMPORTANT SAFETY NOTICE
Speed Climbing Is a Dangerous Activity
Read Before Installation & Operation
The practice of Speed climbing diers from other forms of rock climbing in that a) Climbers can gain height very quickly, and b) Climbers
are focused on speed and sometimes don’t pay enough attention to
the safety systems provided by an operator.
Because of this fundamental dierence, Speed climbers MUST be supervised
at all times to ensure that the lanyard/rope always keeps up with the pace
of the climber. In addition, operators MUST have a communication system in
place to alert a climber if a webbing fails to retract or retracts slower than the
climber ascends.
If a climber significantly exceeds the pace of his/her rope or lanyard, an unprotected fall from height can occur. A FALL FROM HEIGHT MAY RESULT IN
SERIOUS INJURY OR DEATH.
Any device that fails to retract or keep pace with the climber must be removed
immediately from service and diagnosed by the operator. If items external to
the device (see below for examples) are responsible for retraction problems,
these must be corrected before placing the TRUBLUE Speed device back into
service. If items external to the device have been removed, and retraction
problems persist, immediately send the device to your nearest authorized
Head Rush Technologies service center.
Examples of external items that could prevent or aect retraction of a
TRUBLUE Speed device:
Foreign bodies becoming lodged in the nozzle.
Route marking tape interfering with the webbing and/or becoming
lodged in the nozzle.
Protruding handholds, climbing wall features or climbing equipment
interfering with lanyard retraction.
3
www.headrushtech.com | +1-720-565-6885
Page 4
TABLE OF CONTENTS
1.0 SAFETY INFORMATION
6
1.1 Health and Safety 6
1.2 Symbols Used in this Manual 7
2.0 WARRANTY CONDITIONS
8
2.1 Customer Responsibility 8
3.0 CERTIFICATION
10
3.1 Standards 10
4.0 DESCRIPTION
11
5.0 SPECIFICATIONS
12
6.0 AUTO BELAY PARTS
13
6.1 Label 13
6.2 Location of Labels 14
6.3 Icon Descriptions 15
7.0 UNPACKING
17
7.1 Precautions 17
7.2 Receipt of the Auto Belay 17
7.3 Unpacking the Auto Belay 17
7.4 Storage 18
8.0 INSTALLATION
19
8.1 Precautions 19
8.2 Standards 19
8.2.1 Anchor Points
20
8.2.2 Harness
20
8.2.3 Secondary Connectors
20
8.2.4 Selecting a Location
21
8.2.5 Outdoor Installations
21
8.3 Mounting 22
8.3.1 Mounting Points
22
8.3.2 Orientation
23
9.0 OPERATION
24
9.1 Operator Training 25
9.2 User Instruction 25
9.3 Climbing Harness 27
9.4 Carabiner Use 27
9.4.1 Operation
27
9.4.2 Secondary Connections
28
4
www.headrushtech.com | +1-720-565-6885
Page 5
10.0 INSPECTION & MAINTENANCE
29
10.1 Annual Recertification 29
10.2 Scheduled Maintenance 29
10.2.3 Safety Precautions
30
10.3 Daily Inspection 30
10.4 Weekly Inspection 30
10.4.1 Inspection Procedure
31
10.4.2 Webbing Wear
32
10.5 Six Month Inspection 35
10.5.1 Inspection Procedure
35
10.5.2 Webbing Inspection
35
10.6 Nozzle Replacement 36
10.7 Webbing Line Replacement 38
10.7.1 Safety Precautions
38
10.7.2 Webbing Line Replacement Procedure
38
10.8 Replacement Parts 40
10.9 Troubleshooting 41
10.10 Transportation 41
11.0 MANUFACTURER’S DETAILS
42
5
www.headrushtech.com | +1-720-565-6885
Page 6
1.0 SAFETY INFORMATION
Failure by the operator to heed any and all instructions, warnings and
cautions for the correct installation, operation, care and maintenance of
the TRUBLUE Speed Auto Belay may result in death and/or serious injury.
TRUBLUE Speed Auto Belay Model TBSD150-20 12.5 meter and 16 meter and
associated equipment are designed and specified for use in the recreational
climbing industry as a controlled descent device. Use of the TRUBLUE Speed
Auto Belay for any purposes other than that intended by the manufacturer is
not permitted. Owners and operators of the TRUBLUE Speed Auto Belay are
responsible for the safety and supervision of any person using the TRUBLUE
Speed Auto Belay and are required to undergo training in the correct installation and operation of the device prior to any use. These instructions must be
made readily available to the operator at all times. Prior to installation and use,
all owners and operators must have read and shown to have understood all
instructions, labels, markings, and safety information pertaining to the installation, operation, care, and maintenance of the TRUBLUE Speed Auto Belay
system, its component parts, and all associated hardware. Failure to do so can
result in death, serious injury and equipment damage.
1.1 Health and Safety
Owners and operators must abide by all Standards, International, Federal, State
and Provincial laws, and any specific health and safety regulations pertaining to
the installation and use of this product.
6
www.headrushtech.com | +1-720-565-6885
Page 7
1.2 Symbols Used in this Manual
The following safety symbols are used throughout this manual to highlight potential dangers. One or more precautions may be associated with practices and
procedures described within this manual. Failure to adhere to any precautions
highlighted can result in death, serious injury, or equipment damage.
Ensure that you read and understand all safety procedures related to the working environment and the task you are performing.
DANGER
Indicates a hazardous situation exists that, if not avoided, will result in
serious injury or death.
WARNING
Indicates a potentially hazardous situation that, if not avoided, could
result in serious injury or death.
CAUTION
Indicates a potentially hazardous situation that, if not avoided, may
result in injury or equipment damage.
NOTE
Indicates an action that must be taken to ensure personal safety and
prevent damage to property or equipment.
CARE FOR THE ENVIRONMENT
Take care to minimize impact on the environment when carrying out
this procedure.
7
www.headrushtech.com | +1-720-565-6885
Page 8
2.0 WARRANTY CONDITIONS
The TRUBLUE Speed Auto Belay Device is warranted against factory defects in
materials and workmanship (excluding specific Field Replaceable Wear Parts see “Replacement Parts” section below) for a period of two (2) years from date
of purchase. This warranty applies only to the original purchaser, and is contingent upon the owner/operator maintaining and using the device in accordance with TRUBLUE Speed Auto Belay instructions, including the requirement
to continue to maintain annual re-certification as described in this Operator
Manual. This Warranty is in lieu of all other warranties, express or implied.
The sole remedy for breach of this warranty, or for any claim in negligence
or strict liability in tort, is the repair or replacement of any defective parts by
Head Rush Technologies (Manufacturer). Upon notice in writing, Head Rush
Technologies will promptly repair or replace all defective items. Head Rush
Technologies reserves the right to have any defective equipment returned to
its facility, transportation pre-paid, for inspection before making a repair or
replacement.
This Warranty is null and void if parts other than genuine parts are used, or if
any modifications or services have been performed on the device by anyone
other than an authorized Head Rush Technologies servicing agent. This warranty does not cover any damages resulting from abuse to the device, damage
in transit, or any other damage beyond the control of Manufacturer. Head
Rush Technologies makes no warranties in respect to trade accessories or
component parts which are not made by Head Rush Technologies. Head Rush
Technologies expressly excludes from this Warranty the replacement of specific Field Replaceable Wear Parts (see “Replacement Parts” below) which include
the nozzle, the webbing (line) kit, carabiners and/or any anchors supplied with
the product.
No person, agent or Distributor is authorized to give any warranty, other than
the one herein expressed, on behalf of Head Rush Technologies, or to assume for it any liability pertaining to such products. Head Rush Technologies
expressly disclaims any implied guarantee of merchantability, or claim as to
whether the device is suited for a particular purpose. Purchaser agrees that
Head Rush Technologies shall not be held liable to Purchaser/Operator for
damages of any kind, including but not limited to, lost or projected profits,
equipment down time, or any losses considered to be caused by non-operation or servicing/re-certification down time of the equipment.
2.1 Customer Responsibility
The following items are considered to be the responsibility of the Customer
and are therefore non-reimbursable under the terms of the warranty.
Product installation.
Normal maintenance, including daily, weekly and bi-annual inspections.
8
www.headrushtech.com | +1-720-565-6885
Page 9
Normal replacement of service items.
Replacements required because of abuse, misuse or improper opera-
tional habits of the operator.
Field replaceable wear parts.
Normal deterioration due to use and exposure.
The installer and operator must fully understand these instructions. Any
questions must be submitted in writing to Head Rush Technologies.
Adherence to the Operator Manual, manufacturer’s instructions, and advice
given by authorized Head Rush service technicians is the responsibility of the
buyer, installer, and operator.
9
www.headrushtech.com | +1-720-565-6885
Page 10
3.0 CERTIFICATION
3.1 Standards
NOTE
If the TRUBLUE Speed Auto Belay is resold outside of the country of destination, the reseller must provide instructions for use, service, maintenance
and repair in the language of the country of use.
The TRUBLUE Speed Auto Belay can be used as a climbing/descent system
device only in combination with other components (harness, mounting hardware, etc.). It shall not be deemed suitable for use until it is ensured that the
entire system complies with the requirements of appropriate regional, state,
and federal directives/standards.
The TRUBLUE Speed Auto Belay conforms to Regulation (EU) 2016/425 and
complies with the following prevailing Safety regulations:
AS/NZS 1891: Industrial fall-arrest systems and devices – Part 3: Fall
arrest devices
CSA Z259.2.3-99: Descent Control Devices
EN 341: 2011 Class 1A: Personal protection equipment against falls from
a height – Descender devices
ANSI/ASSE Z359.4: Safety Requirements for Assisted-Rescue and
Self-Rescue Systems, Subsystems and Components.
EN 360:2002: Personal protective equipment against falls from a height
- Retractable type fall arresters
Section 4.5: maximum force <6kN for 136kg capacity
EU Declaration of Conformity:
EU Declaration of Conformity can be downloaded at this website address:
https://headrushtech.com/resources/declarations-of-conformity.html
Body controlling the manufacture of this PPE:
TÜV SÜD Product Service GmbH
Ridlerstraße 65
80339 München, Germany
Notified body performing the CE type exam:
TÜV SÜD Product Service GmbH
Ridlerstraße 65
80339 München, Germany
10
www.headrushtech.com | +1-720-565-6885
Page 11
4.0 DESCRIPTION
The TRUBLUE Speed Auto Belay is a controlled descent device designed
specifically for use in the climbing industry. The TRUBLUE oers a maximum
descent height of 12.5 m (41 ft) or 16 m (52.5 ft) based on webbing length
selected for your device. TRUBLUE Speed Auto Belays are suitable for climber
weights ranging from 10 - 136 kg (22 - 300 lbs).
The design of the TRUBLUE permits simple installation and removal and
incorporates an advanced self-regulating brake system and automatic line
retraction. The patented braking mechanism oers climbers a smooth descent
with a minimal variation in descent rate of both children and adults. There are
no wearing parts in the brake mechanism, ensuring that reliability remains high
while maintenance and operating costs are kept to a minimum.
To protect the longevity of the TRUBLUE, installation, care and use of the
TRUBLUE Speed Auto Belay must be carried out in accordance with the instructions in this manual. The theoretical lifespan of the TRUBLUE Speed Auto
Belay is unlimited with proper care and performing the required annual service
maintenance. For planning purposes, we recommend a planned lifespan of 15
years.
11
www.headrushtech.com | +1-720-565-6885
Page 12
5.0 SPECIFICATIONS
MODELS TRUBLUE Speed: TBSD150-20
CERTIFICATION
IN ACCORDANCE WITH EN 341:2011-1A AND
EN 360:2002
DIMENSIONS 380 x 320 x 216 mm (15 x 12.6 x 8.5 in)
NET WEIGHT 19.75 kg (44 lbs)
MATERIALS CASING Aluminum Alloy
INTERNAL PARTS Zinc plated steel
NOZZLE Modified Acetal plastic
NOZZLE INSERT 304 Stainless Steel
LINE 12.5 m: Polyamide/UHMWPE
16 m: UHMWPE/Polyamide
MODELS MINIMUM MAXIMUM
MOUNTING
HEIGHT
(NOZZLE TO
GROUND)
TBSD150-20 12.5M
(black webbing handle)
7.5m (24.6 ft) 12.5m (41.0 ft)
TBSD150-20 16M
(blue webbing handle)
12.0m (39.4 ft) 16.0m (52.5 ft)
CLIMBER WEIGHT ALL MODELS 10 kg (22 lbs) 136 kg (300 lbs)
OPERATING
TEMPERATURE
ALL MODELS -4° C (25° F) 60° C (140° F)
ALL MODELS (DRY) -10° C (14° F) 60° C (140° F)
STORAGE
TEMPERATURE
ALL MODELS -20° C (-4° F) 60° C (140° F)
DESCENT SPEED ALL MODELS ------------ 2.0 m/s (6.5 ft/s)
METRIC UNITS ARE THE CONTROLLING UNITS OF MEASURE IN THIS
MANUAL. IMPERIAL UNITS ARE PROVIDED AS A COURTESY AND HAVE
BEEN ROUNDED. IF THE OWNER/OPERATOR/INSTALLER MUST MAKE
ANY UNIT CONVERSIONS, THE METRIC UNITS SHOULD BE REFERENCED.
12
www.headrushtech.com | +1-720-565-6885
Page 13

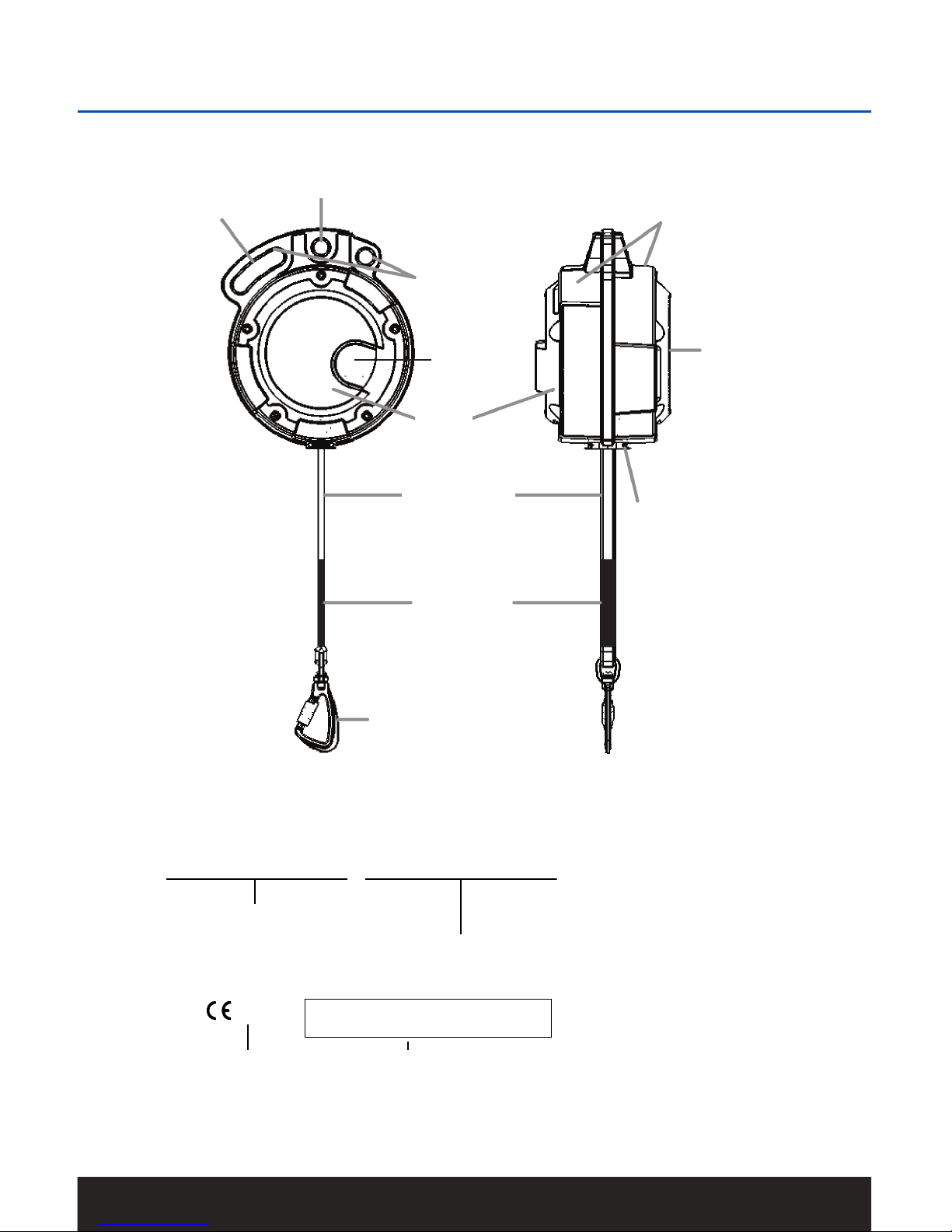

6.0 AUTO BELAY PARTS
PRIMARY MOUNT
HANDLE
COVER
(FRONT)
CASING
COVER
(BACK)
NOZZLE
WEBBING LINE
CARABINER
BUMP OUT
SECONDARY
MOUNT
(UNLOADED)
WEBBING
HANDLE
*not to scale*
6.1 Label
TBSD150-20 SN#######
Model number
Unit serial number
EN standard and
device classification
Notified body
for CE type
examination
IN ACCORDANCE WITH EN 341:2011-1A
AND EN 360:2002
0123
13
www.headrushtech.com | +1-720-565-6885
Page 14

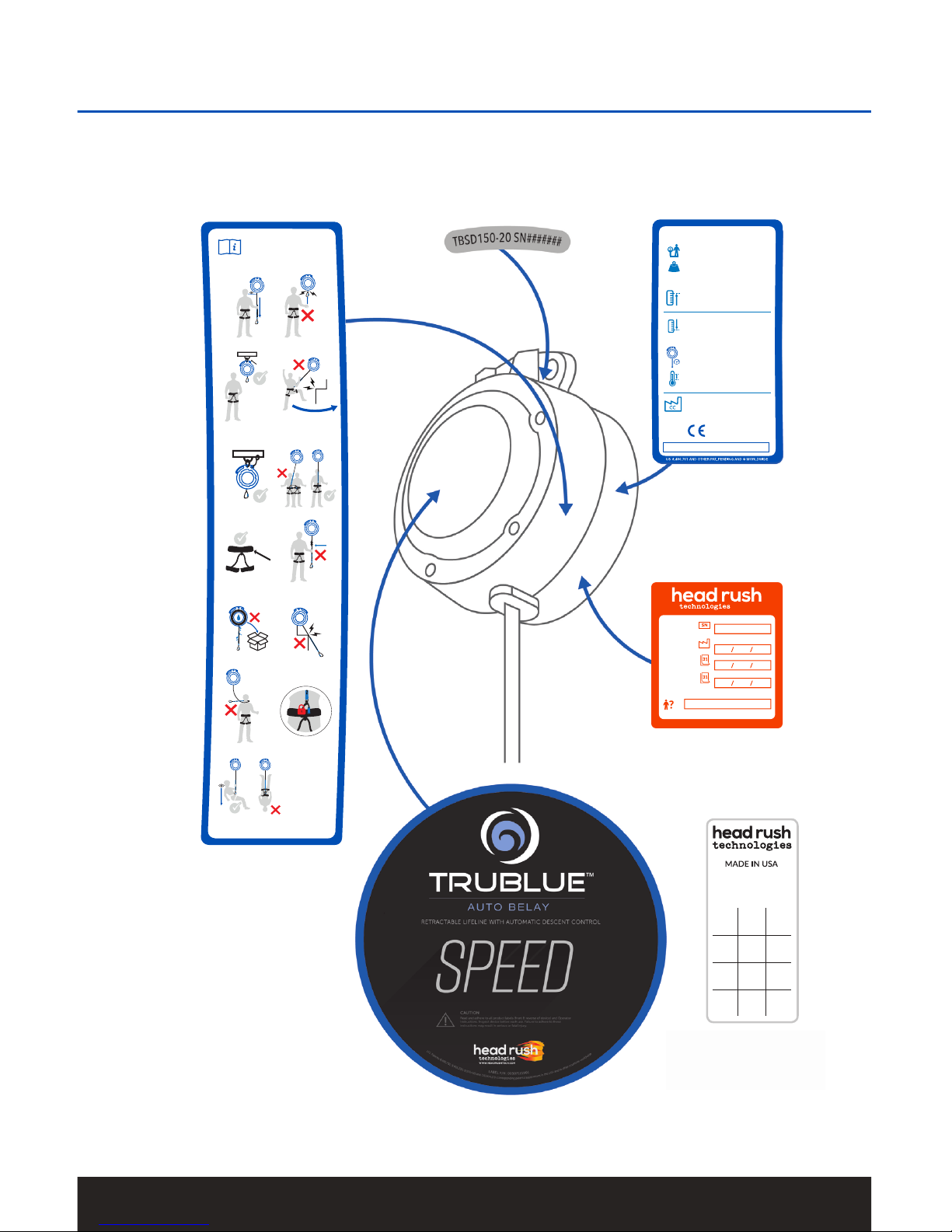

6.2 Location of Labels
INFORMATION LABEL
SERIAL NUMBER LABEL
SPECIFICATION LABEL
COVER LABEL
CERTIFICATION LABEL
MODEL: TBSD150-20
RATED BODY WEIGHT:
10 to 136kg (22 to 300lbs)
DEVICE WEIGHT:
18.5 kg (41 lbs
MOUNTING HEIGHT*:
12.5 m black webbing end: Max. 12.5 m
(41.0 ft)
16 m blue webbing end: Max. 16.0 m
(52.5 ft)
12.5 m black webbing end: Min. 7.5m
(24.6 ft)
16 m blue webbing end: Min. 12 m (39.4
ft)
* Mounting heights are measured from nozzle to ground
MAXIMUM DESCENT RATE:
2.0 m/s (6.6 ft/s)
TEMPERATURE RANGE:
Operating: -4°C to 60°C (25°F to 140°F)
Operating (Dry): -10°C to 60°C (14°F to
140°F)
HEAD RUSH TECHNOLOGIES
1835 38th Street
Boulder, Colorado 80301, USA
www.headrushtech.com
0123
IN ACCORDANCE WITH EN341:20111A AND EN 360:2002
11762-04
1.
2.
4.
6.
8.
10.
12.
13.
11.
9.
3.
5.
7.
EN 12277,
UIAA 105,
EN 361
10053-06
ALWAYS READ AND FOLLOW
THE WARNINGS AND
INSTRUCTIONS FOR USE
TBSD150-20 only
EN 362/EN 12275
10024-02
SERIAL NUMBER:
MANUFACTURE DATE:
RECERTIFICATION DATE:
NEXT RECERT REQUIRED:
BY:
YYYY
Jan.
Apr.
Jul.
Oct.
Feb.
May
Aug.
Nov.
Mar.
Jun.
Sept.
Dec.
WEBBING DATE OF
MANUFACTURE LABEL
(Attached to Webbing)
14
www.headrushtech.com | +1-720-565-6885
Page 15
6.3 Icon Descriptions
Device Weight Only one user at a time
Body Weight
EN 12277
,
UIAA 105
,
EN 361
Harness standards
Descent Rate
Do not alter the line. Do
not clamp, knot or tie on
additional line
Country of Manufacture
Do not store the line
inside the device wet
Temperature Range
Never install the device
where the line passes
over sharp edges, high
friction areas
Minimum Height
Never permit line to wrap
around or become entangled with neck, arms,
or legs
15
www.headrushtech.com | +1-720-565-6885
Page 16

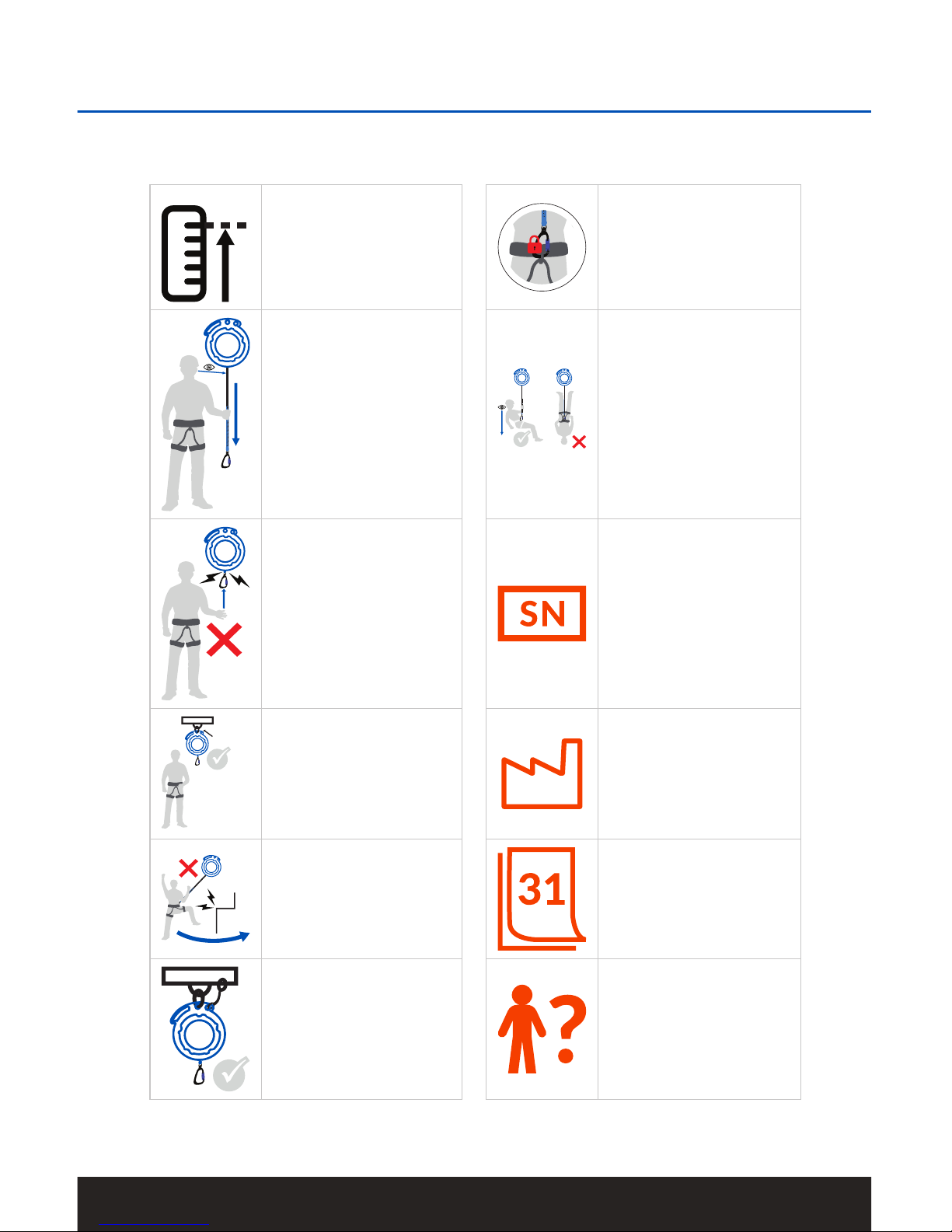

Maximum Height
Connect the carabiner
to the designated belay
loop of your harness,
making sure the gate is
locked
Inspect the Webbing
Check descent path is
clear, Always land with
slightly bent knees to
absorb landing
Do not let TBSD150-20
(The TRUBLUE Speed
only) retract uncontrolled
Serial number
EN 362/EN 12275
Minimum connector
strength for installation
Manufacture Date
Avoid swing falls into
objects
Date
Primary connector
taught, secondary backup connector loose
Technician
16
www.headrushtech.com | +1-720-565-6885
Page 17
7.0 UNPACKING
7.1 Precautions
LEAVE THIS USER MANUAL ATTACHED TO THE AUTO BELAY
UNTIL INSTALLATION IS COMPLETE
The Operator Manual contains information relating to the safe use of the
TRUBLUE Speed Auto Belay and includes all product registration and warranty information. The Operator Manual document may only be removed
by the end user. Ensure this manual is readily available to Auto Belay users
at all times.
DO NOT DISPOSE OF PACKAGING
The cardboard box and internal packaging are required for the return of
the Auto Belay for the annual Certification inspection. Please keep packaging in a safe place until required.
7.2 Receipt of the Auto Belay
The TRUBLUE Speed Auto Belay is packaged in a recycled cardboard box and
contains:
1 x TRUBLUE Speed Auto Belay Model TBSD150-20
1 x 12.5 m (41 ft) or 1 x 16 m (52.5 ft) Webbing Lower Line
1 x Carabiner or EN 362 connector attached to the Webbing Lower Line
1 x Operator Manual
The Auto Belay is shipped with the line and carabiner attached and does not
require any further assembly.
7.3 Unpacking the Auto Belay
To unpack the Auto Belay:
1. Upon receipt of Auto Belay, inspect for signs of shipping damage or
contamination. If Auto Belay shows any signs of damage or mishandling
contact your Head Rush Technologies distributor.
2. Check that all labels axed to Auto Belay are present and legible.

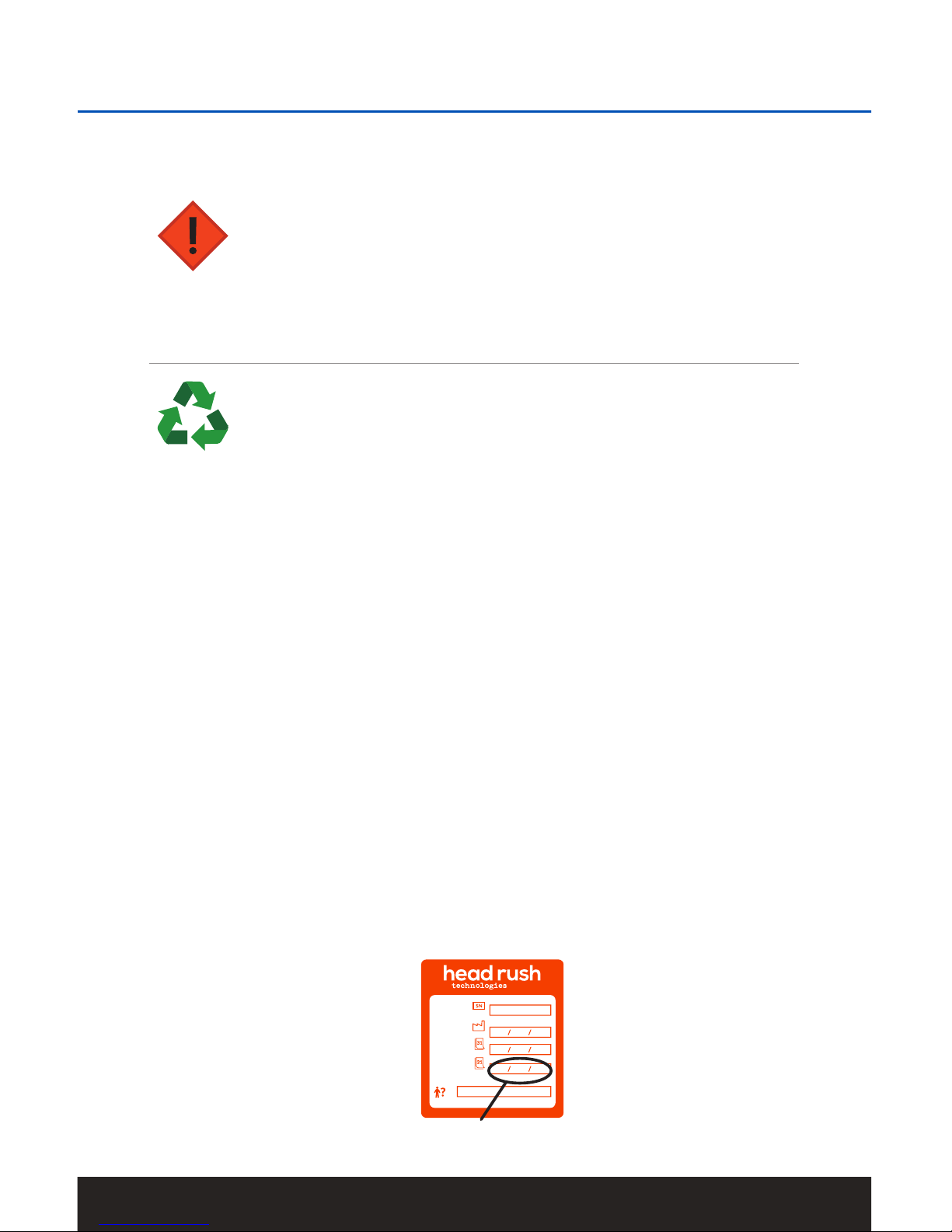

10024-02
SERIAL NUMBER:
MANUFACTURE DATE:
RECERTIFICATION DATE:
NEXT RECERT REQUIRED:
BY:
Do not use the Auto Belay after date shown here.
17
www.headrushtech.com | +1-720-565-6885
Page 18
3. Check the Certification Label for the ‘Next Recertification Required’
date. If the date shown has passed or the label is missing or illegible, the
Auto Belay must not be put into service.
4. Register your Auto Belay online at headrushtech.com/register.
PRODUCT REGISTRATION MUST BE COMPLETED
Product Registration is critical for receiving product notifications, recertification notices, and up-to-date information for the safe use of the
TRUBLUE Speed Auto Belay. Registration is fast and easy and can be done
online at www.headrushtech.com/registration.
5. Read the Operator Manual and familiarize yourself with all aspects of
installation, operation, care and maintenance.
7.4 Storage
If the Auto Belay is to be left unused for longer than two weeks, ensure the unit
is clean and dry and line is fully retracted into the unit.
When returning the Auto Belay to duty after an extended period of inactivity,
always carry out a full inspection and operational check.
DO NOT STORE IN WET CONDITION
After exposure to water or damp conditions thoroughly clean and dry the
Auto Belay. Ensure Auto Belay is not left with wet webbing line retracted
inside the casing. If the webbing is wet and the device is to be stored, remove the nozzle and pull all the webbing out until the shackle is exposed.
Insert a pin through the line to prevent retraction, and allow the webbing
to dry naturally away from open fire or heat source.
Always store in a clean and dry environment.
18
www.headrushtech.com | +1-720-565-6885
Page 19
8.0 INSTALLATION
8.1 Precautions
ALWAYS USE DESIGNATED MOUNTING POINTS
Never install the Auto Belay using any part of the device apart from the
designated mounting points. Incorrect mounting can result in serious
injury or death.
ALWAYS USE THE CORRECT MOUNTING HEIGHT
Failure to install the device at the correct mounting height could result in
damage to the device or loss in device performance.
MOUNTING

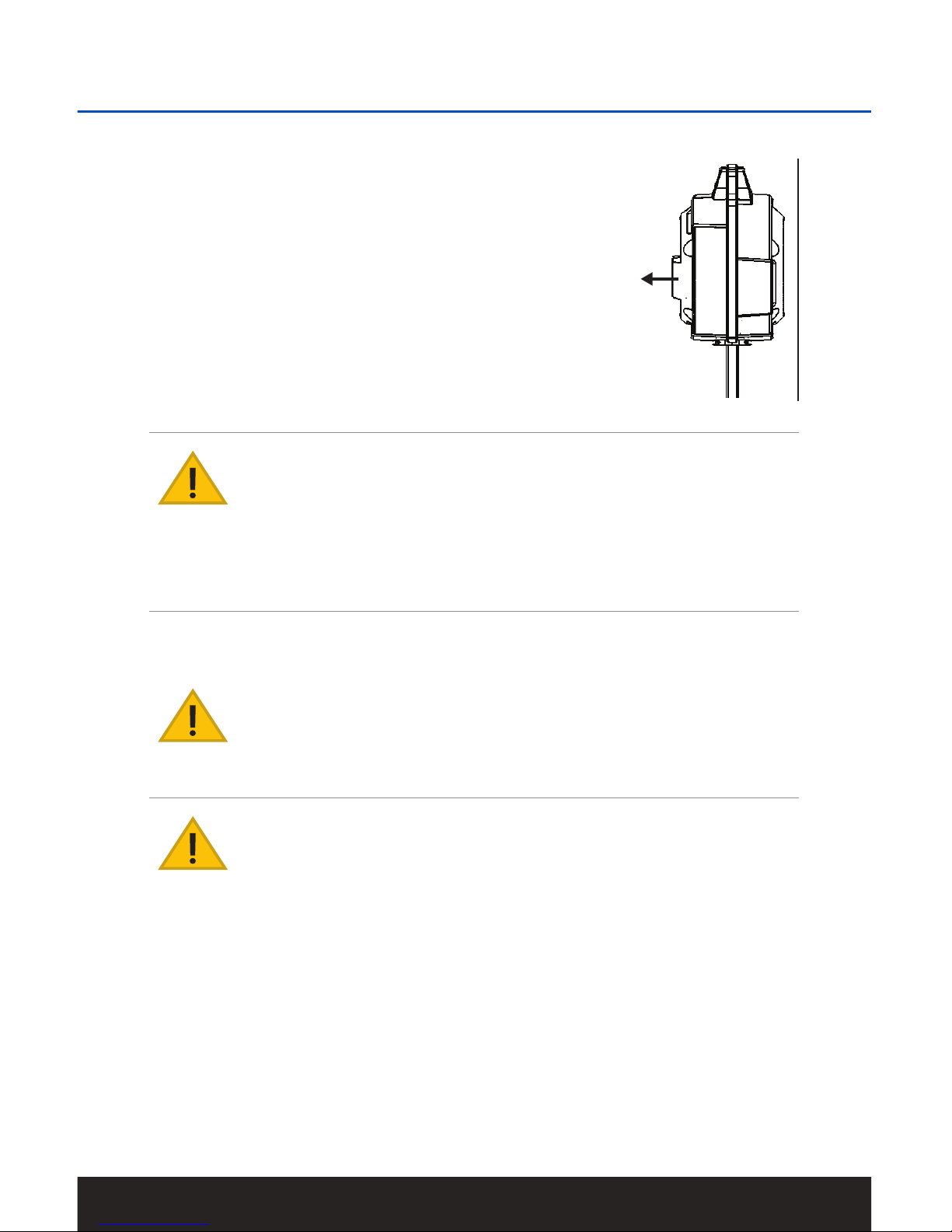

Always mount the TRUBLUE Speed Auto Belay unit so that the front cover
with the bump out is facing away from the wall. See Section on Mounting
(pg 22).
HARD IMPACTS MAY RESULT IN STRUCTURAL DAMAGE
Dropping of, or hard impacts to, the Auto Belay can result in serious
damage to mounting points and internal parts and may compromise safety
of operation. If the Auto Belay is subject to a hard impact, remove it from
duty and return to a service agent for inspection.
HEAVY ITEM 20 KG 44.1 LBS
Take care when lifting the Auto Belay. Take care not to drop the device as
this may result in serious injury or equipment damage.
ALWAYS MOUNT VERTICALLY
Always mount the Auto Belay vertically with the nozzle pointing downwards and the line exiting the bottom of the device. Failure to do so will
result in incorrect operation and compromise User safety.
HARMFUL CONTACT
Do not allow solvents, acids, sharp edges etc. to get into contact with
the device, especially the webbing. If in contact, the Auto Belay must be
inspected.
8.2 Standards
Prior to installation, all Operators must be familiar with the requirements of all
relevant Standards for anchor points, hardware and equipment used with the
TRUBLUE Speed Auto Belay.
19
www.headrushtech.com | +1-720-565-6885
Page 20
8.2.1 ANCHOR POINTS
All anchor points and connectors used with a TRUBLUE Speed Auto Belay
must conform to any federal or state requirements for such devices.
Head Rush Technologies requires anchor points to have a minimum load capacity of 10 kN (2200 lbs) in expected directions of application. Other national
and international standards for anchor points may apply and require higher
load capacity. Consult with the authority having jurisdiction for your required
load capacity.
The locaon and anchor points for the TRUBLUE Speed Auto Belay should comply
with the following:
Anchor points are not to be used by additional devices or as attach-
ments for hardware not associated with the Auto Belay installation.
Anchor points should be of a suitable size to correctly install any
mounting hardware.
8.2.2 HARNESS
All harnesses used in conjunction with the TRUBLUE Speed Auto Belay must be
of the correct size and fit, be in serviceable condition, and comply with one of
the following standards:
EN 361 - Personal protective equipment for prevention of falls from a
height – Full body harness.
EN 813 - Personal protective equipment for prevention of falls from a
height – Sit harness.
EN 12277 - Type A. Full Body Harness.
EN 12277 - Type B. Small Full Body Harness.
EN 12277 - Type C Sit Harness.
8.2.3 SECONDARY CONNECTORS
All secondary connectors and hardware used in the installation of the
TRUBLUE Speed Auto Belay must conform to the requirements of:
EN 362 - Types of connectors for personal protection.
EN 12275 - Types of connectors for mountaineering.
All connectors, hooks, D-rings and shackles used to mount the TRUBLUE
Speed Auto Belay must be of compatible size, shape and strength for the
mounting point to which they are attached.
20
www.headrushtech.com | +1-720-565-6885
Page 21
8.2.4 SELECTING A LOCATION

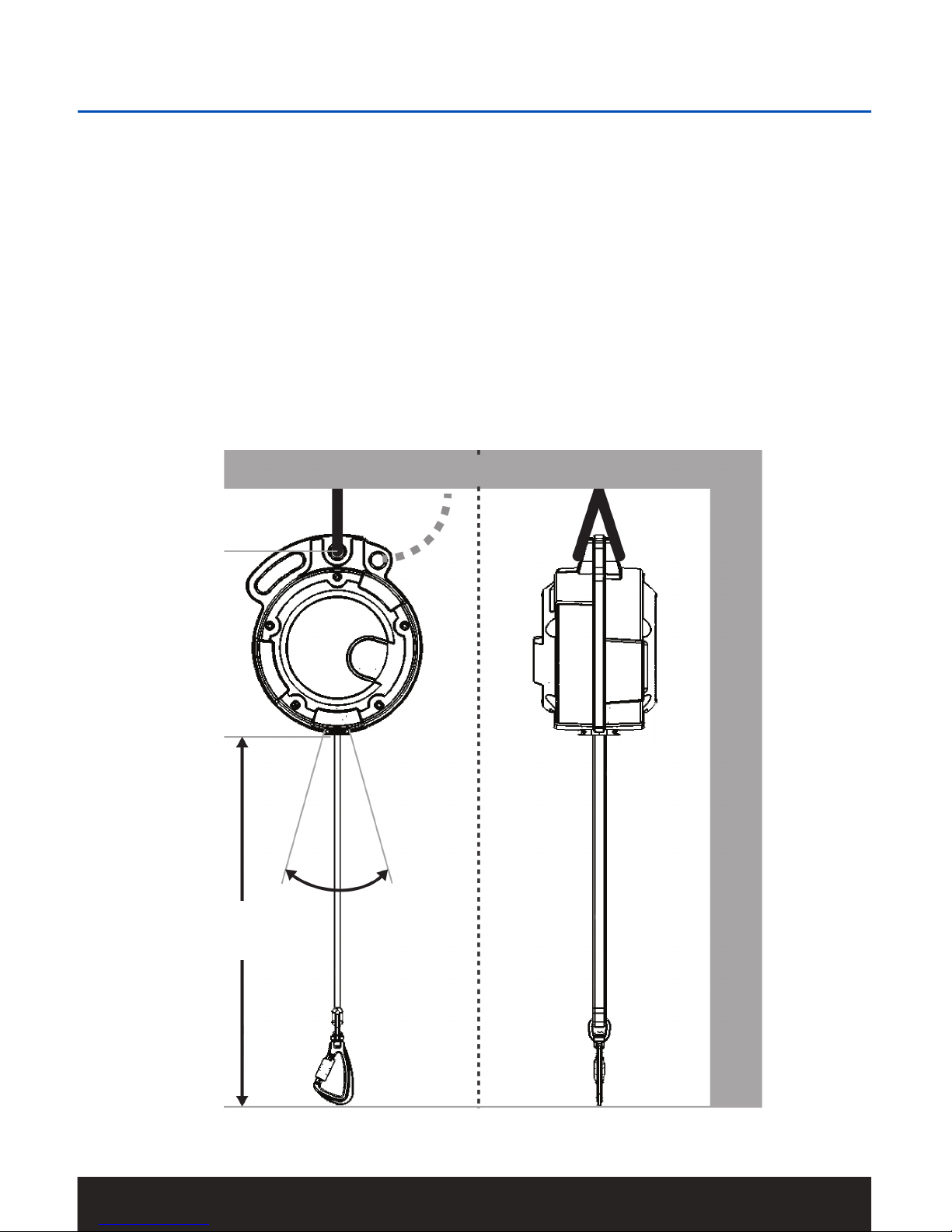

The TRUBLUE Speed Auto Belay is to be mounted at the top of the climbing
route with the nozzle and webbing line pointed down.
When selecting a location to mount the Auto Belay, always check:
The Auto Belay will hang vertically over the climbing route with the noz-
zle pointing down.
All paths that can be used by the climber when connected to the Auto
Belay are free of sharp edges and high-friction surfaces that may damage the webbing line.
Ensure that the descent path and landing area are free of other climbers,
pedestrians or obstacles that may cause entanglement or restrict the
climber’s ascent or descent.
The Auto Belay is free to pivot in all directions and should not bind the
mountings or be able to impact upon the surrounding structure.
8.2.5 OUTDOOR INSTALLATIONS
The TRUBLUE Speed Auto Belay may be installed outdoors.
It is recommended that in wet or high-variable temperature environments, the
Auto Belay is protected from the direct ingress of water or foreign objects.
NOTE
Prolonged exposure to the elements will increase the risk of internal
corrosion and degradation of the webbing line, resulting in increased
operation and servicing costs. Increased inspections are required in these
types of environments.
21
www.headrushtech.com | +1-720-565-6885
Page 22
8.3 Mounting
With a suitable location for the Auto
Belay selected, it can be mounted only
using the methods and hardware described in this manual. When mounting
the Auto Belay be aware of the following
precautions:
Mount the TRUBLUE Speed with
the bump out on the front side
cover facing AWAY from the
climbing wall.
MOUNTING HEIGHT
When mounting the device, the distance between the nozzle and the
ground must be no higher than 12.5 m (41 ft) for the 12.5 m webbing and
between 12 m (39.5 ft) and 16 m (52.5 ft) for the 16 m webbing. Exceeding
the allowable mounting height in either the 12.5 m of 16 m Speed devices
will result in damage to the device. Mounting the 16 m Speed device lower
than 12 m (nozzle to ground), will compromise reliability in retraction.
8.3.1 MOUNTING POINTS
USE ONLY THE DESIGNATED MOUNTING POINTS
Use only the correct mounting points. Use of incorrect points can result in
equipment damage.
Ensure all mounting hardware is secure but free to pivot in mounting point.
ALWAYS MOUNT THE FRONT SIDE COVER WITH THE BUMP
FACING OUT
The front side cover with the bump out should be mounted facing away
from the climbing wall to avoid excess wear on the device or the wall.
The TRUBLUE Speed Auto Belay is manufactured with a single central pivot
mounting point, an oset secondary mounting point and formed handle located at the top of the casing. These mounting points are located on the central
plate and are located to ensure the unit hangs centrally and vertically with the
line nozzle pointing down.
The Side Covers are a sacrificial protective cover designed to prevent damage
to both the device and any adjacent surface. Should the covers become excessively worn, damaged, or aesthetically unpleasing, they may be replaced by
the user. Details of replacement parts may be found in the Replacement Parts
section of this manual.
Front Side Cover
with Bump Out
*face away from
climbing wall*
22
www.headrushtech.com | +1-720-565-6885
Page 23
It is preferred to install the Auto Belay by using the central mounting point, as
shown below, with a longer, non-loaded secondary mount utilizing the oset
mount or handle mounting points. Ensure mounting hardware is secure and
the unit is free to pivot in all directions.
Other mounting options are available. Contact Head Rush Technologies for
more information.
8.3.2 ORIENTATION
Always mount the Auto Belay with the round covers parallel to the face of the
climbing wall and the front cover with bump out facing away from the climbing
wall. Mounting in this direction will allow the Auto Belay to swing laterally and
minimize the wear on the webbing line, nozzle assembly and mounting points.
MAX. LINE EXTENSION
(vertical distance from
nozzle to ground)
Line swing
to minimize
webbing and
nozzle wear
Mounting Dimensions
FRONT VIEW
SIDE VIEW
CLIMBING WALL
CEILING
Ground
23
www.headrushtech.com | +1-720-565-6885
Page 24
9.0 OPERATION
Owners and purchasers of the TRUBLUE Speed Auto Belay are responsible for
the safety and supervision of any person using this equipment and are required
by the manufacturer to read, understand and follow all instructions in this
Operator Manual regarding the correct installation and operation of the Auto
Belay prior to any use.
UNSAFE OPERATION
Remove Auto Belay from service immediately if there is any concern over
its correct operation or user safety.
Do not return Auto Belay to service until it has been inspected and completed a recertification inspection and test by an approved Head Rush
Technologies Service Agent.
DO NOT ALLOW UNCONTROLLED RELEASE OF THE WEBBING
TO OCCUR.
Such a release can potentially injure other climbers in the area and damage the device. If such a release of webbing occurs, temporarily stop use
immediately and conduct the following inspections based on inspection
procedures outlined in this manual:
Check that the webbing still retracts properly. Send the unit in for ser-
vice if it does not retract.
Inspect the entire webbing and carabiner for damage. Replace if dam-
aged.
Inspect the plastic portions of the nozzle for cracks. Replace if cracked.
Place the device back in service if it passes all inspections.
EMERGENCY RESPONSE PLAN
Owners and operators must have devised an emergency rescue plan for
any climber in distress at all sites operating TRUBLUE Speed Auto Belay
Devices. Operators must inform Users of the Auto Belay of the procedure
for rescuing a climber in distress prior to climbing.
STOP USE IMMEDIATELY IF ANY OF THE FOLLOWING OCCUR:
Excessively fast webbing wear is noticed. Check unit mounting and
replace webbing. Place the device back in service and check that fast
webbing wear is resolved.
The descent speed increases from its normal level. Wait for the device
to cool down. Place the device back in service if descent speed has
returned to its normal level.
The device stops retracting webbing. Send the unit in for service.
24
www.headrushtech.com | +1-720-565-6885
Page 25
EXTERNAL ITEMS PREVENTING RETRACTION
Any device that fails to retract or keep pace with the climber must be removed immediately from service and diagnosed by the operator. If items
external to the device (see below for examples) are responsible for retraction problems, these must be corrected before placing the TRUBLUE
Speed device back into service. If items external to the device have been
removed, and retraction problems persist, immediately send the device to
your nearest authorized Head Rush Technologies service center.
Examples of external items that could prevent or aect retraction of a
TRUBLUE Speed device:
Foreign bodies becoming lodged in the nozzle.
Route marking tape interfering with the webbing and/or becoming
lodged in the nozzle.
Protruding handholds, climbing wall features or climbing equipment
interfering with lanyard retraction.
9.1 Operator Training
All personnel involved in the operation of the Auto Belay must be trained and
deemed competent in the following aspects of TRUBLUE Speed Auto Belay
operation:
Transportation and storage.
Installation, use of attachment points and attachment methods and
hardware.
Inspection, cleaning, and scheduled servicing of the Auto Belay, its
component parts and associated attachment hardware.
9.2 User Instruction
NEVER CLIMB WITHOUT BEING CORRECTLY ATTACHED
Ensure the carabiner is attached to the belay loop of the harness and the
latch is fully closed and the gate engaged before starting to climb. A gate
check must be performed after every connection.
Failure to do so can result in serious injury or death.
SPEED CLIMBING OPERATION
Speed climbers must be supervised at all times while using the TRUBLUE
Speed Auto Belay. Operators must have a system in place to alert a climber
if a webbing fails to retract or retracts slower than the climber. A slack line
fall may result in serious injury or death.
25
www.headrushtech.com | +1-720-565-6885
Page 26
WARNING
Climbing is considered a strenuous activity. If you have any physical or
medical conditions that may aect your climbing ability consult a medical
professional prior to participation.
POTENTIAL FOR PARTICIPANT ENTANGLEMENT
Potential for participant entanglement exists during descent. Ensure all
loose items that may become tangled are tightened or removed before
using the Auto Belay. A risk assessment should be completed at the installation site to determine the necessary PPE for climbers.
Prior to clipping in, all climbers must be instructed in the safe use of the Auto
Belay. Operators are to ensure all climbers are familiar with the site rescue plan
in the event the climber becomes distressed.
Prior to climbing the user must be aware of, and completely understand, the
following precautions:
Check Auto Belay operation by pulling out a short section and allowing
it to retract.
If the Auto Belay stops retracting for any reason while attached, STOP
CLIMBING. If there is no slack in the line, jump onto the webbing and
the Auto Belay will descend. Notify the operator immediately.
If the Auto Belay line fails to retract, do not clip into the Auto Belay
and request assistance.
Check the climbing harness is correctly fitted and tightened.
Check the carabiner from the Auto Belay line is connected to the desig-
nated loop on the climbing harness and the gate is properly closed.
Ensure the carabiner latch gate is facing away from the climber.
Never start descent from above the Auto Belay.
Prior to descent, ensure descent path and landing area are free of peo-
ple and obstructions.
Avoid swinging while descending.
Always descend feet first using feet to fend o obstacles and prepare for
landing.
After climbing, reattach the connector to the belay gate an appropriate
connection point at the bottom of the wall.
26
www.headrushtech.com | +1-720-565-6885
Page 27
9.3 Climbing Harness
USE AN APPROVED HARNESS
Always use a climbing harnesses complying with the standards specified
in this manual. Ensure the harness is appropriate for use, in a serviceable
condition and correctly fitted. Always follow the harness manufacturer’s
instructions for fit, care and use.
9.4 Carabiner Use
On some models, a triple locking self closing carabiner is supplied as an integral part of the descent line. The carabiner must be checked and be in serviceable condition before any use. Ensure the carabiner is only loaded along its
vertical direction.
NOTE
If the integral carabiner is damaged or unserviceable, the complete webbing line must be replaced. Use only genuine TRUBLUE replacement parts.
9.4.1 OPERATION
Triple lock carabiners are opened by sliding the gate down, rotating the gate’s
collar and pushing the gate open towards the center of the carabiner.
Attach the carabiner to the correct loop on the harness with the latch
facing away from the user.
Allow the latch to snap shut, ensuring the collar has rotating back and is
locked. Ensure that no clothing, webbing or other objects are obstruct-
ing the gate or latch.
Double check that the latch is secure.

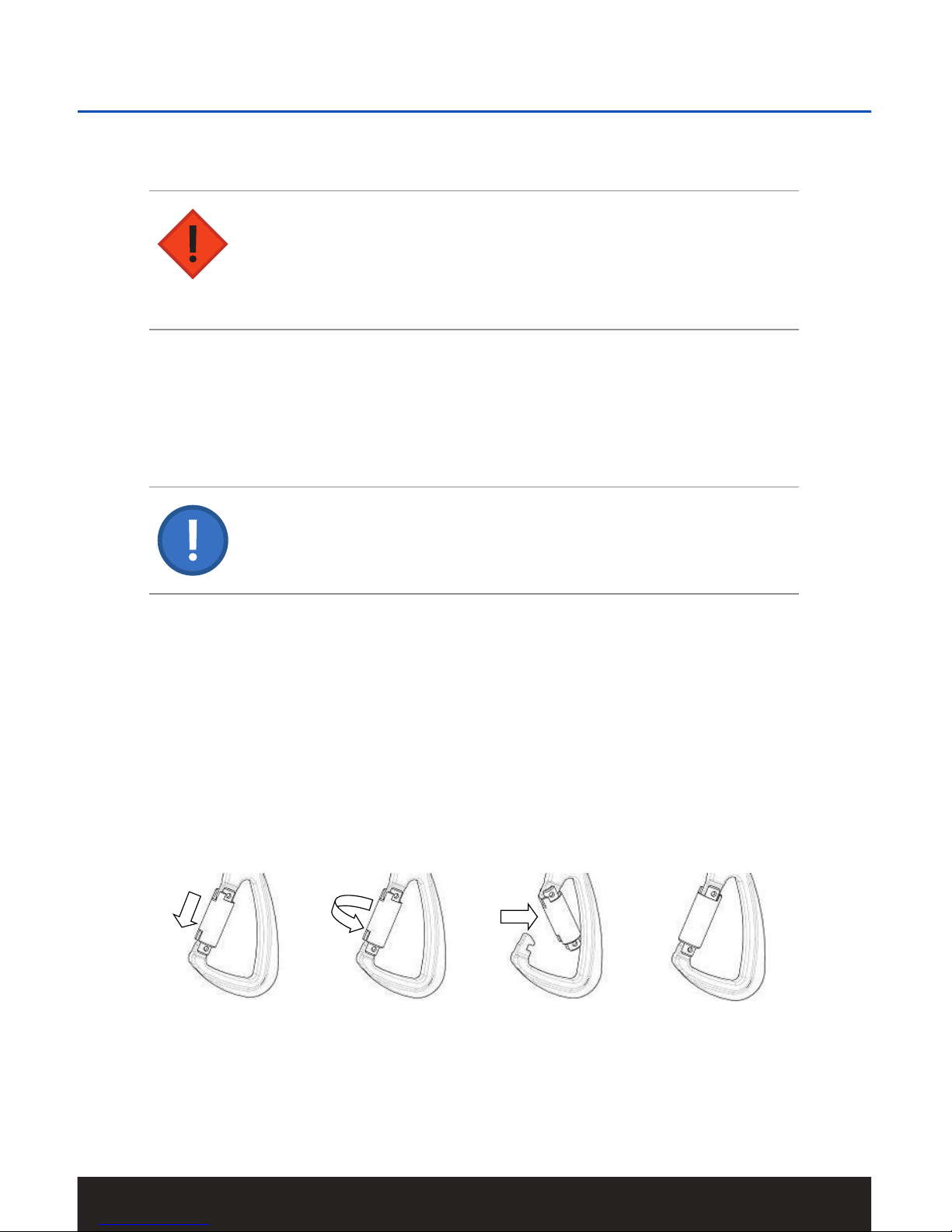

Step 1 – Slide Step 2 - Twist Step 3 – Depress Step 4 – Release
Carabiner Operaon
27
www.headrushtech.com | +1-720-565-6885
Page 28
9.4.2 SECONDARY CONNECTIONS
Based on the site risk analysis, a secondary connector may be recommended
to be used with an Auto Belay. Head Rush Technologies oers several options
for secondary connectors, or continuous connection systems.
28
www.headrushtech.com | +1-720-565-6885
Page 29
10.0 INSPECTION & MAINTENANCE
10.1 Annual Recertification
DO NOT OPERATE AFTER THE DATE SHOWN ON THE CERTIFI
CATION LABEL
Operation of a TRUBLUE Speed Auto Belay without a current Certification
Label visible will is strictly forbidden. Severe bodily injury or death may
occur.

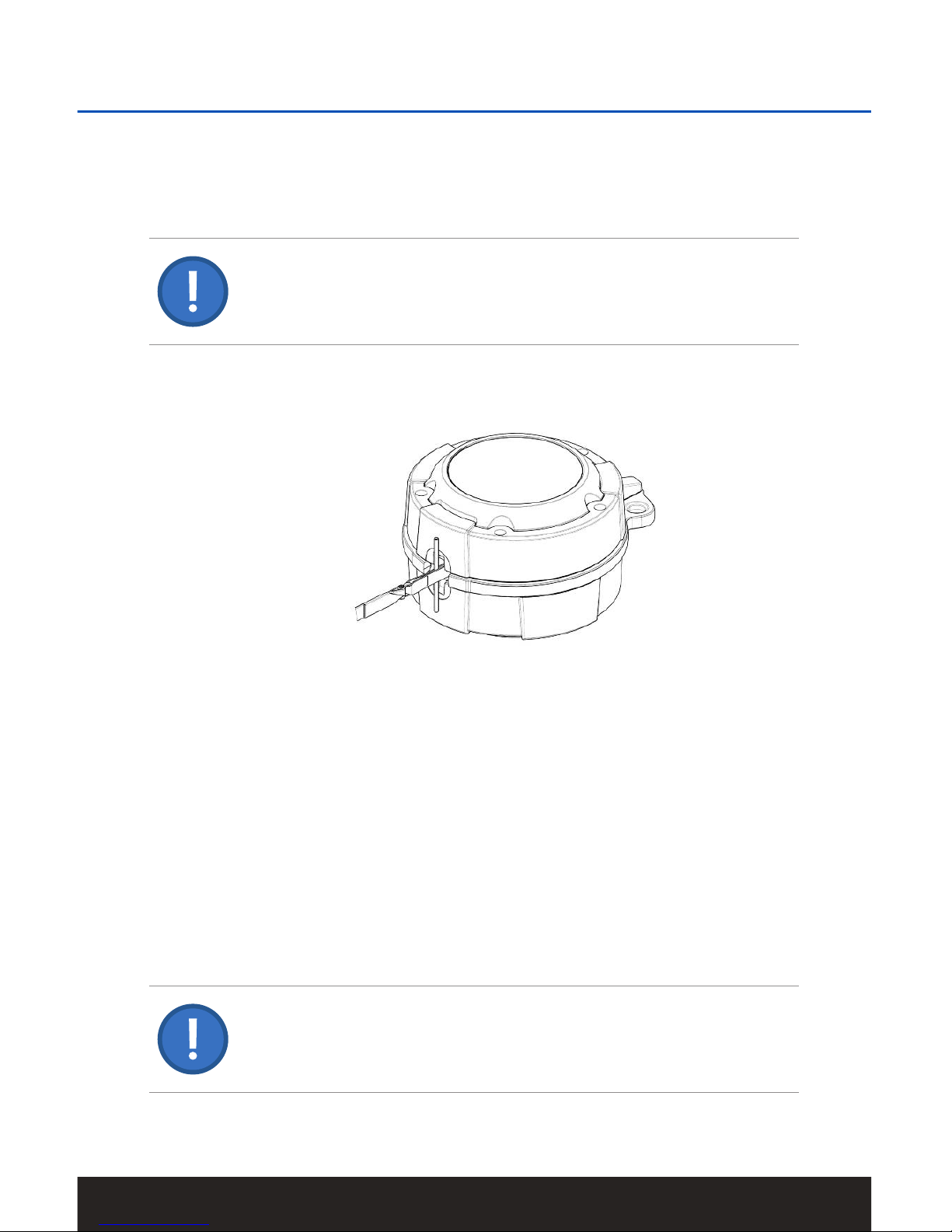

SHIPPING
When shipping the TRUBLUE Speed Auto Belay for recertification or
service, place it in the box with the bump out on the front cover facing up
and the white foam facing up.
The TRUBLUE Speed Auto Belay requires an annual service and recertification
inspection to be carried out by an authorized Head Rush Technologies service
agent.
The Certification expiration date is shown on the Certification Label located on
the side of the front casing. Dismount the Auto Belay and return to the Manufacturer at the address shown at the back of this Manual or to an Authorized
Service Center prior to the expiration date.

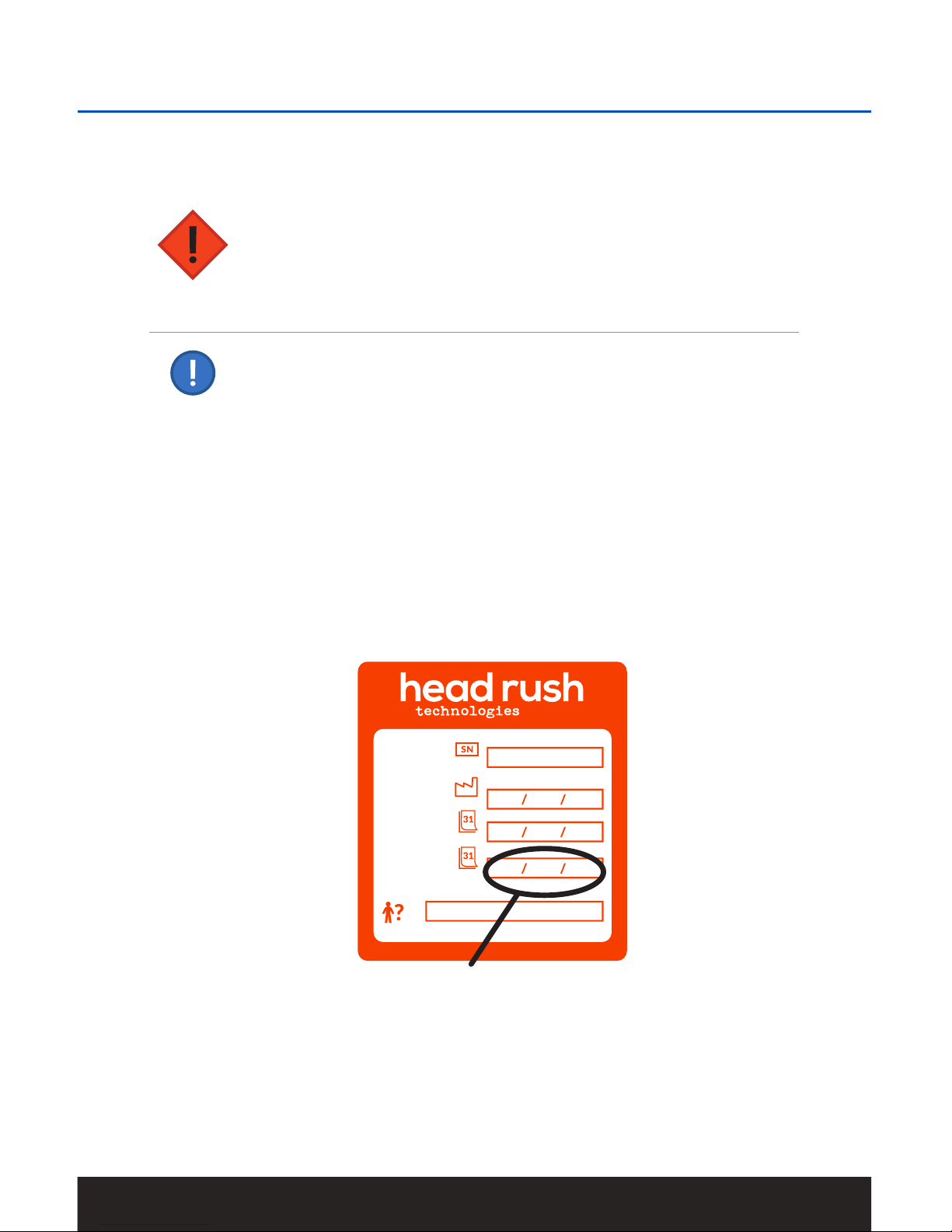

10024-02
SERIAL NUMBER:
MANUFACTURE DATE:
RECERTIFICATION DATE:
NEXT RECERT REQUIRED:
BY:
Do not use the Auto Belay after date shown here.
10.2 Scheduled Maintenance
The following inspection and service actions must be carried out by the operator or operator-trained sta. All personnel performing these actions must be
trained in the correct procedures and deemed competent to do so.
29
www.headrushtech.com | +1-720-565-6885
Page 30
NO UNAUTHORIZED SERVICING
Do not attempt to carry out any maintenance, repair or service actions not
detailed in the User Manual.
Any unauthorized maintenance, repair or modifications to the Auto Belay
will compromise safety, render the unit not fit for use, and void the warranty provisions.
NOTE
Inspect in a clean environment. If Auto Belay has been removed from its
operational location for service, ensure that the service area is clean and
free from contaminants.
Ensure unit is securely placed on a sturdy work table and that side covers
are not subject to damage.
10.2.1 SAFETY PRECAUTIONS
HEAVY OBJECT 20 KG 44.1 LBS
Ensure the Auto Belay device is secured during service to prevent accidental damage or injury from dropping.
CAUTION SPRING LOADED PARTS
The webbing assembly is spring loaded and will rapidly return into the
device if released. This may result in damage or injury.
MAGNETIC PARTS
The Auto Belay contains strong magnets. Always ensure working environment is free of loose ferrous materials. Ingress of metal objects may
compromise belay operation.
10.3 Daily Inspection
The daily webbing inspection must include at least a visual inspection sucient to evaluate the wear and integrity of the device’s webbing. Please see
“Webbing Wear” below for a detailed description of when a webbing should be
taken out of service. The inspection may be performed from the ground if the
webbing can be adequately inspected. Ensure that the line fully retracts and
that consistent tension if felt throughout retraction.
10.4 Weekly Inspection
The TRUBLUE Speed Auto Belay must be inspected weekly for correct operation and overall condition. The weekly inspection may be carried out with the
unit in place or removed to a sturdy work table.
30
www.headrushtech.com | +1-720-565-6885
Page 31
10.4.1 INSPECTION PROCEDURE
Ensure adequate lighting and unrestricted access is available to permit a thorough inspection of all areas of the Auto Belay. This inspection should be completed either with the Auto Belay dismounted or by climbing to the location of
the Auto Belay and anchoring in, so you may visually inspect the unit and the
entire length of webbing.
1. Clean any dust, dirt or contamination o the casing and fittings with a
clean cloth.
DO NOT USE SOLVENTS OR ABRASIVES
Clean with a cloth only. Do not use any cleaners, solvents or abrasives on
any part of the Auto Belay or its associated equipment.
2. Visually inspect the casing, mounting holes and plastic covers for wear,
impact damage, cracking, deformation and corrosion. Replace any
damaged items or remove Auto Belay from service.
3. Check all safety labels are in place and in good condition.
4. Check date on Certification Label is current.
5. Inspect the condition of the carabiner, checking for:
Wear and damage.
Correct operation of the locking mechanism.
Smooth operation of the carabiner swivel.
If the carabiner gate or swivel does not automatically lock or rotate,
lubricate per the carabiner manufacturer’s recommendations, which
include a dry, wax-based or PTFE-based lubricant, until fully operational. If full functionality cannot be restored, replace the entire webbing
assembly.
6. Slowly pull out the entire length of webbing from the unit. As webbing is
withdrawn, inspect for:
Damage, cuts or abrasion to stitching.
Cutting, wear and abrasion to the surface of webbing.
Discoloration, fading or chalking of the surface.
Heat and friction damage such as hard or shiny areas.
Contamination from dirt or chemicals.
Twisting or knotting.
Replace webbing if any signs of wear or damage are present.
7. Allow the webbing to slowly retract into the casing – checking the retraction action is strong and smooth.
31
www.headrushtech.com | +1-720-565-6885
Page 32
8. Complete and file ‘Weekly Inspection Log’ documentation.
9. Return Auto Belay device to service.
10.4.2 WEBBING WEAR
INSPECT WEBBING DAILY
Webbing in your TRUBLUE must be evaluated on a daily basis. A detailed
description of when a webbing should be taken out of service is included
in the Wear Tables below. Webbing MUST be taken out of service by the
time the webbing resembles the stage of wear designated in the Wear
Tables. Continued use of webbing with wear at or beyond the designated
stage of wear below may result in serious injury or death.

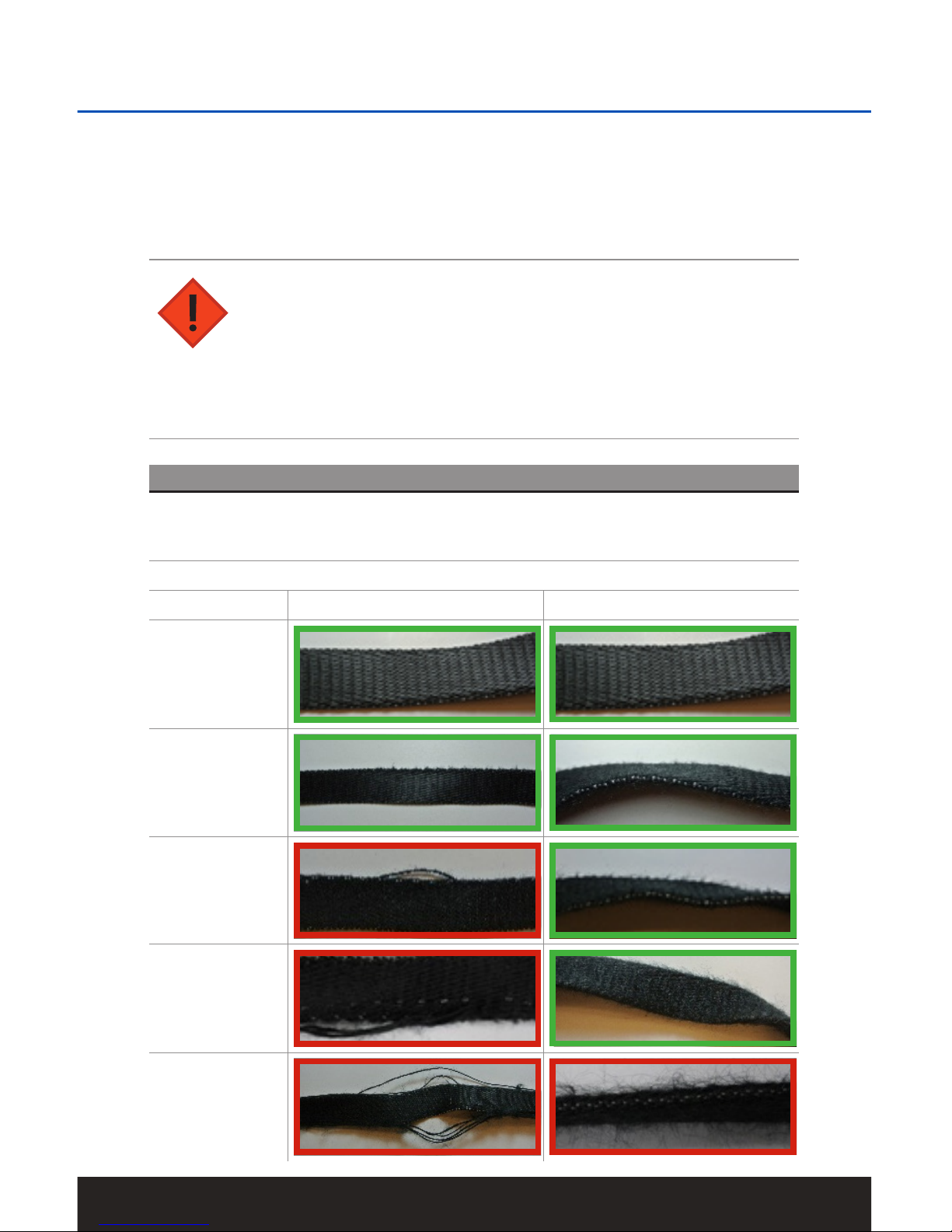

WEAR TABLES
Webbing pictures outlined in red in the tables below show webbing that MUST be
taken out of service and replaced immediately to continue using your TRUBLUE.
The green outlined photos show webbing that can be kept in operation.
TRUBLUE 12.5 m
Degree of Wear Edge Wear Face Wear
NEW
STAGE 1
STAGE 2
STAGE 3
STAGE 4
32
www.headrushtech.com | +1-720-565-6885
Page 33

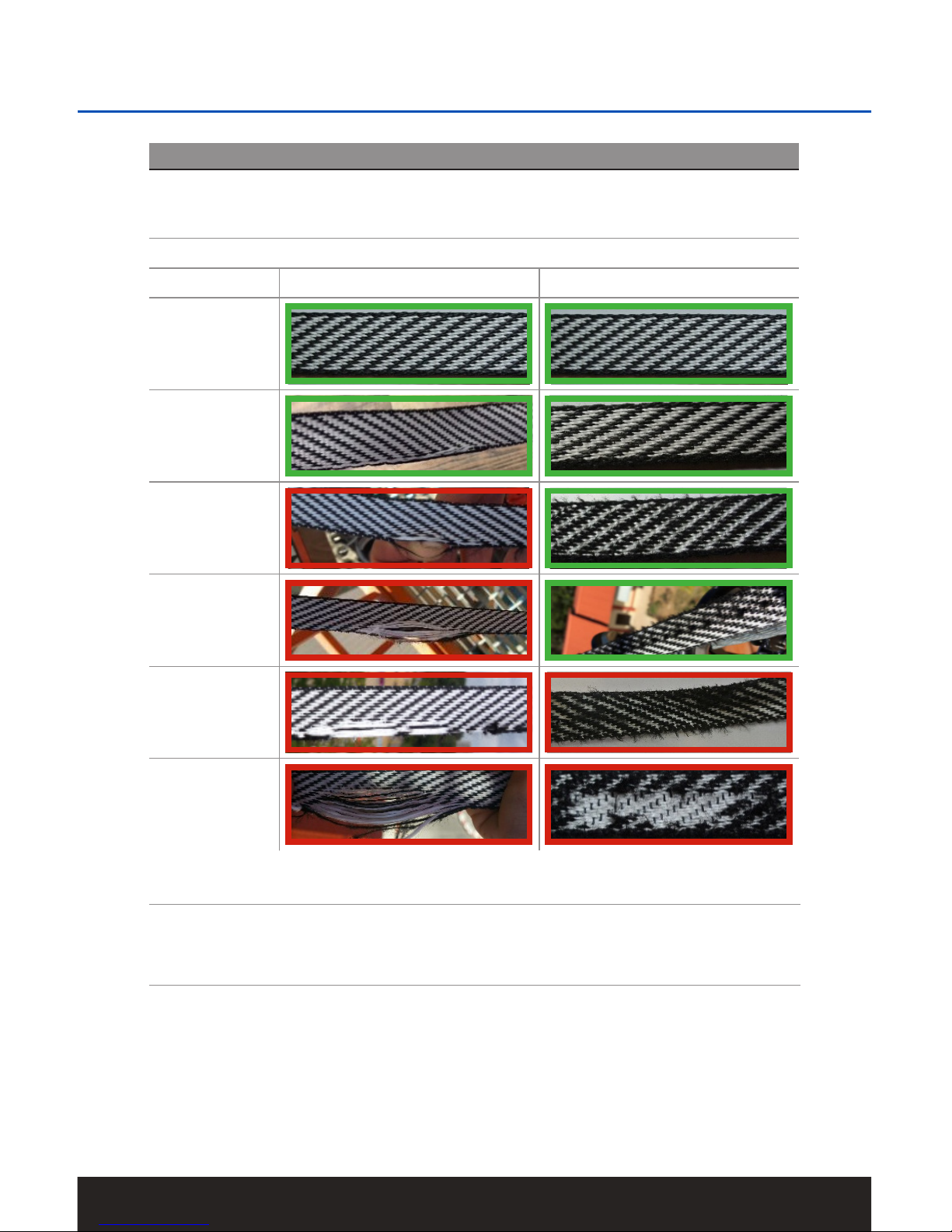

WEAR TABLES
Webbing pictures outlined in red in the tables below show webbing that MUST be
taken out of service and replaced immediately to continue using your TRUBLUE.
The green outlined photos show webbing that can be kept in operation.
TRUBLUE 16 m
Degree of Wear Edge Wear Face Wear
NEW
STAGE 1
STAGE 2
STAGE 3
STAGE 4
STAGE 5
MOLDY WEBBING
Any webbing showing signs of mold should be taken out of service.
33
www.headrushtech.com | +1-720-565-6885
Page 34
TROUBLESHOOTING WEBBING WEAR
Symptoms Potential Causes Potential Solutions
WEBBING
FACE WEAR
SIDE WEAR
& LOOP
FAILURE
Climbers are excessively
swinging as they descend
Mark out auto belay boundaries so climbers
do not pendulum greatly as they descend.
Stainless steel nozzle
insert is damaged
Inspect nozzle insert for burrs and other
damage. If damage found, replace nozzle.
TRUBLUE is mounted
incorrectly
Ensure that the TRUBLUE is mounted ac-
cording to Operator Manual, whether single
or dual-point mounting. Make sure that
the TRUBLUE is not angled. Always mount
TRUBLUE vertically with nozzle pointed
down and sides parallel to wall.
Foreign objects, includ-
ing dirt and/or dust have
introduced damage to
webbing assembly
Make sure to cover the TRUBLUE when not
in use. Wipe the webbing with a dry cloth
daily, after use.
Normal use of TRUBLUE
Parts and webbing wear over time with normal
operation, replace webbing as necessary.
WEBBING
FACE WEAR
SIDE WEAR
LOOP
FAILURE
& HAND GRIP
WEAR
Webbing is rubbing on the
wall (overhang or corner
of wall)
Move the TRUBLUE so the webbing does
not rub on the wall/corner.
Webbing is rubbing on
a hold
Look for problem holds. Move the hold. Do
not place large holds immediately below
TRUBLUE.
Foreign objects, includ-
ing dirt and/or dust have
introduced damage to
webbing assembly
Make sure to cover the TRUBLUE when not
in use. Wipe the webbing with a dry cloth
daily, after use.
Normal use of TRUBLUE
Parts and webbing wear over time with normal
operation, replace webbing as necessary.
BAR TACK
DAMAGED
Climbers are able to
climb too close to
TRUBLUE
Ensure that climbers cannot climb high enough
to contact the bar tacks with the nozzle.
Remove holds below TRUBLUE or mount the
TRUBLUE higher.
UV FADED
WEBBING
Sun is damaging webbing
Remove TRUBLUE at the end of day or cover
unit and webbing after use.
HAND GRIP
WEAR
Hand grip is rubbing
against wall/holds
Look for problem holds. Move the hold.
Normal use of TRUBLUE
Parts and webbing wear over time with nor-
mal operation, replace webbing as necessary.
WEBBING IS
MOLDY/
DISCOLORED
Webbing is not being
dried after being used in
wet conditions
Whenever using the TRUBLUE in wet
conditions, take the unit down at the end
of the day, extend the webbing in a sanitary
environment, and allow webbing to dry
outside of the unit.
34
www.headrushtech.com | +1-720-565-6885
Page 35
10.5 Six Month Inspection
The TRUBLUE Speed Auto Belay requires an in depth six (6) month inspection
by the Operator to maintain its safe and ecient operation. For the six month
inspections the unit must be dismounted and removed to a sturdy work table.
10.5.1 INSPECTION PROCEDURE
1. Dismount the Auto Belay (refer to Installation Instructions).
2. Clean Auto Belay using a clean cloth.
3. Carry out Steps 1 through 6 of the ‘Weekly Inspection’.
4. Remove the nozzle – Refer to “To remove the nozzle assembly” section.
5. Inspect Nozzle Assembly for the following:
Excessive wear to slot, which could aect retraction of the webbing.
Splitting, cracking and deformation.
Correct fit in housing.
10.5.2 WEBBING INSPECTION
1. With Nozzle assembly removed, refer to “To remove the nozzle assembly,” pull out the complete webbing line, including approx. 100 mm (4
in) of the drum lead.
Place a suitable pin through the loop in the drum lead, above the
joining link to prevent it retracting back into the unit.
2. Inspect both the upper (drum) webbing and the webbing line by passing
the webbing slowly through your hands under a good light. Inspect the
webbing for:
Damage to stitching (cuts or abrasion).
Cuts to webbing, especially to edges.
Abrasion across the surface of the webbing, wear and fraying, espe-
cially to the edges and the webbing loops.
UV degradation – although dicult to detect, visual indications are
discoloration, fading and chalking of the webbing surface.
Chemical attack, this can result in soft or weak fibers, color change
or flaking of the surface.
Heat or friction damage, indicated by hard fibers or glazing of the
surface.
Contamination from dirt, grit, sand or rust.
Twisting, knotting or permanent deformation of webbing.
Replace the webbing if any signs of damage or deterioration are present.
35
www.headrushtech.com | +1-720-565-6885
Page 36
3. Inspect the webbing joining shackle. Ensuring that:
The shackle pin is secure and straight – do not attempt to tighten or
loosen.
NOTE
The shackle pin is secured with thread locking compound and any attempt
to turn will compromise its security.
The shackle is undamaged and in the correct orientation.
The webbing around the link is not worn or damaged.
Webbing Retaining Pin
4. Remove the pin and allow the drum lead to slowly retract into the cas-
ing. Inspecting the webbing as it retracts and ensuring that the webbing
line does not twist.
5. Refit the nozzle – Refer to “To refit the nozzle assembly” section.
6. Complete the “Six Month Inspection” documentation.
7. Return Auto Belay to service.
10.6 Nozzle Replacement
If the nozzle assembly shows signs of excessive wear that could impede retraction of the webbing, damage, or poor fit it must be replaced.
USE ONLY GENUINE TRUBLUE REPLACEMENT PARTS
36
www.headrushtech.com | +1-720-565-6885
Page 37
ALWAYS REPLACE NOZZLE AS A PAIR
If nozzle requires replacement, always replace as a matched pair – do not
mix worn and new nozzle pieces.

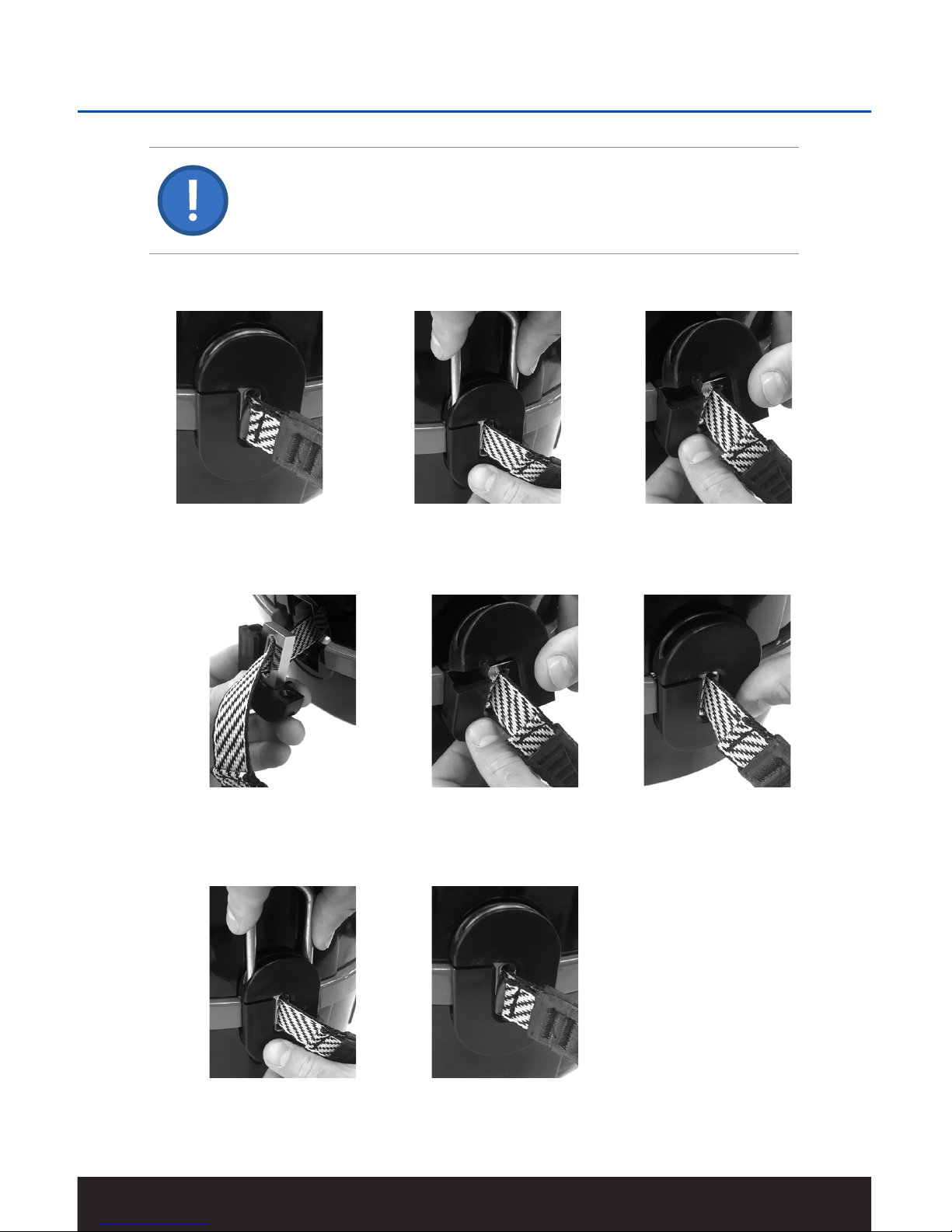

To remove the nozzle assembly:
1
Assembled nozzle
2
Remove alignment pin
3
Li and remove the two
halves.
To refit the nozzle assembly:
1
Ensure webbing is
free of twists when
aligning nozzle insert
2
Join nozzle housing
halves with nozzle
insert
3
Press halves and nozzle insert into place
4
Insert alignment pin
5
Press alignment pin
into place
37
www.headrushtech.com | +1-720-565-6885
Page 38
10.7 Webbing Line Replacement
If the lower webbing line shows signs of wear, damage or contamination then
it will need to be replaced. The short webbing loop inside the device does not
receive wear under normal operation and is not inspectable by the operator.
Replace Line as follows:
10.7.1 SAFETY PRECAUTIONS
DO NOT ALLOW LINE OR DRUM LEAD TO RETRACT INTO
HOUSING
With nozzle removed take care to not permit uncontrolled retraction of
drum lead or webbing line into casing. Uncontrolled retraction will result
in internal damage and require repair by the manufacturer.
USE ONLY GENUINE TRUBLUE REPLACEMENT PARTS
10.7.2 WEBBING LINE REPLACEMENT PROCEDURE
To replace the webbing line:
1. Remove the Auto Belay from service and place securely on the work
bench.
2. Remove the nozzle – Refer to “To remove the nozzle assembly”.
3. While holding Auto Belay securely, pull out the webbing line until the
end of the drum lead and the joining shackle are exposed.
4. Locate the loop in the drum lead, approx. 150 mm (6 in) past the link
- Place a suitable pin through the loop in the drum lead to prevent it
retracting back inside the casing.
38
www.headrushtech.com | +1-720-565-6885
Page 39

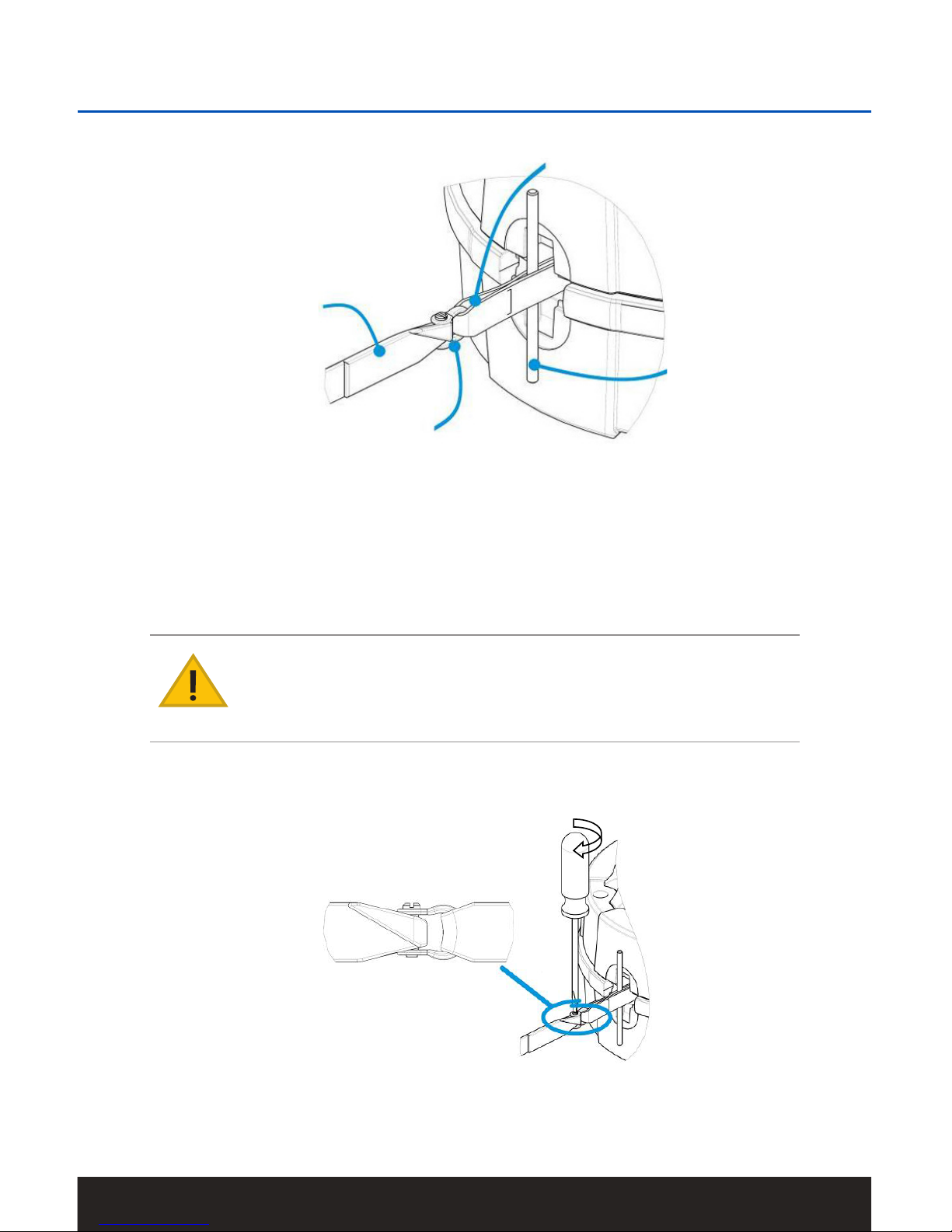

DRUM LEAD
PIN
WEBBING JOINING SHACKLE
WEBBING LINE
Webbing joining link parts
5. Unscrew the shackle pin.
6. Remove webbing line and complete shackle assembly from the drum
lead.
7. Fit new shackle supplied with the line – Ensure the loop part of the
shackle is fitted to the drum lead.
THREAD LOCKING COMPOUND
Ensure the factory applied thread locking compound is present on the
shackle pin threads. Do not reuse the Shackle Pin.
8. Fit the new webbing line, passing the threaded shackle pin through the
loop as shown on the next page.
TORQUE = 2 Nm
Correct shackle fit
39
www.headrushtech.com | +1-720-565-6885
Page 40
9. Tighten the shackle pin to 2 Nm (18 lb-in), ensuring the threads are
fully engaged and the end of the pin is flush with the joining shackle as
shown.
10. Remove the holding pin and allow the new line to slowly retract until
drum lead and joining link is inside casing. Ensure that the webbing line
does not twist.
Once shackle pin is tightened, it must not be loosened or re-tightened.
This will break the locking compound and the shackle pin may become
loose. The shackle pin must be replaced if the retaining compound is
compromised.
Ensure that the webbing line feeds squarely and without twists when
retracting back into the auto belay.
Failure to do so may result in equipment failure, serious injury or death to
participants.
11. Refit the nozzle – Refer to “To refit the nozzle assembly” section.
12. Slowly retract the webbing line into the casing, checking the action is
smooth and adequate spring resistance is felt.
13. Once line is fully retracted, pull out line a short distance using reason-
able force and allow it to retract. Repeat two to three times to ensure
line is firmly wound onto the drum.
14. Return Auto Belay to service and check for correct operation.
10.8 Replacement Parts
Your TRUBLUE Speed Auto Belay is fitted with a number of user replaceable
parts that may be refitted without the need to return the device to an authorized Head Rush Technologies Service Center. Always follow the Manufacturer’s instructions as detailed in this User Manual and any Part Replacement
Guide supplied when undertaking replacement of a part.
NOTE
For optimal performance of your TRUBLUE Speed Auto Belay, only use
genuine TRUBLUE parts and accessories.
To order replacement parts or accessories, contact your authorized Head Rush
Technologies Distributor or go to https://store.headrushtech.com.
40
www.headrushtech.com | +1-720-565-6885
Page 41
10.9 Troubleshooting
Refer to http://headrushtech.com/troubleshooting for troubleshooting instructions or contact your authorized Head Rush Technologies Distributor or
Service Center.
10.10 Transportation
When shipping the TRUBLUE Speed Auto Belay for recertification or
service, place it in the box with the bump out on the front cover facing up
and the white foam facing up.
To ensure safe shipment of your auto belay, it should only be shipped in an
authorized TRUBLUE Speed packaging (box and packing material). If you have
misplaced your original packaging, purchase replacement packaging from an
authorized Head Rush Technologies Distributor or Service Center, or online at
https://store.headrushtech.com. When shipping the unit back to an authorized
Head Rush Technologies Service Center, place it in the box with the front cover with bump facing UP and the white foam facing UP. You will be responsible
for the cost of any damage and necessary repairs due to shipping your auto
belay in unauthorized packaging.
CARE FOR THE ENVIRONMENT
Reuse the original packaging when shipping Auto Belay.
41
www.headrushtech.com | +1-720-565-6885
Page 42
42
www.headrushtech.com | +1-720-565-6885
ADDRESS
Head Rush Technologies
1835 38th Street
Boulder, CO 80301
USA
CONTACT DETAILS
+1-720-565-6885
www.headrushtech.com
[email protected]
11.0 MANUFACTURER’S DETAILS
To find a Service Center outside the U.S., visit headrushtech.com/distributors/
service-centers.
EU importers may apply their name and address on the device to comply with
government regulations next to the specification label.
For Recertification or unscheduled service or repairs, return your TRUBLUE
Speed Auto Belay to your nearest Head Rush Technologies Authorized Service
Center or to the Manufacturer at the address shown below.
Page 43
Page 44
+1-720-565-6885 www.headrushtech.com [email protected]
REGISTER YOUR DEVICE
Get automatic updates on recertification and product information – visit
headrushtech.com/register
ANNUAL RECERTIFICATION IS REQUIRED
Please keep the shipping box for your device. For instructions on annual
recertification, visit headrushtech.com/recertification
March 2019
Loading...
