Photomatix Pro User Guide

Introduction

Photomatix Pro works with photographs of the same scene taken under dierent exposure settings, often called “bracketed” images in reference to the auto-bracketing exposure functions available on many camera models. If you have not taken bracketed photos, you can start using Photomatix Pro with the sample images available from the download page of the Photomatix Pro website – http://www.hdrsoft.com. Use the information in Section 1, Taking Photos for HDR to try Photomatix with your own images.

This manual contains information about how to use Photomatix Pro to adjust images using dierent Tone Mapping or Exposure Fusion methods. All of the methods are accessed from one window within the application, making it easy to try dierent settings to achieve the results you want. Refer to Section 2,

Loading and Pre-Processing Images and Section 3, Adjusting Images Using Tone Mapping or Exposure Fusion for detailed information about the dierent settings that are available.

Photomatix Pro User Guide 1

1 Taking Photos for HDR

The shooting phase is essential for getting good results with Photomatix. To photograph a high contrast scene, you need to take several exposures in order to capture information in both the highlights and the shadows of the scene. The exposures taken must properly cover the dynamic range of the scene, especially the shadows.

The number of photos you need depends on the scene. It also depends on the Exposure Value (EV) spacing separating the photos. If you take them in one-EV steps (e.g., -1, 0, +1 EV), you will need more photos than if you take them in two-EV steps (e.g., -2, 0, +2 EV). We recommend shooting in two-EV steps whenever possible.

High contrast scenes can be grouped into roughly two types depending on their dynamic range:

• Medium dynamic range scene: Most landscapes and other types of outdoor scenes fall into this category. Three exposures taken in two-EV steps (i.e. –2, 0 +2 EV), or ve exposures taken in one-EV steps, are usually sucient for this type of scene.

• High dynamic range scene: A typical example is the interior of a room with a view outside the window on a sunny day. You need to take at least ve exposures in two-EV steps (or nine exposures in one-EV steps) to capture this type of scene, but you may need more. Taking the exposures manually is recommended in these cases.

Three exposures of a medium dynamic

range scene, taken in two-EV steps

The source photographs for HDR processing can be taken with digital or lm-based cameras. The only requirement is that the exposure can be adjusted when taking pictures. If you use a lm-based camera, you will need to scan the photographs into your computer before processing them (refer to Section 1.3).

Photomatix Pro User Guide 2

1.1 Setting up the Camera

• Set your camera to Aperture priority (A setting) so only the shutter speed varies between the exposures.

• Select a low ISO, such as ISO 100 or lower.

• Turn o the ash. The ash may try to balance the exposure of

all the images, when the goal is a range of exposures.

• Mount the camera on a tripod whenever possible. Even though Photomatix Pro oers automatic alignment of handheld photos, using a tripod is always better.

DSLR cameras and some compact digital cameras oer Automatic Exposure Bracketing (AEB). This enables you to automatically take three or more exposures in a row; one at the proper exposure, one or more underexposed, and one or more overexposed. Follow these steps if your camera oers AEB mode:

• Select the Continuous shooting mode on the camera’s

drive setting. Consult your camera manual for model-specic instructions for using this setting.

Canon Rebel XTi/400D LCD showing

AEB with +/-2 increments selected

• Set the camera to Auto Exposure Bracketing (AEB)

• If possible, use the camera’s self-timer setting, or a cable

release to minimize camera shake.

AEB settings on a Nikon D80

(3 shots with +/- 2EV)

Note

• Set the exposure increment to +/- 2 for optimal exposure

range. If your camera does not oer +/- 2 exposure increments, select the maximum possible. Consult the camera manual for model-specic instructions for choosing this setting.

The continuous shooting mode may not always be the best strategy because camera shake may build up. It is recommended to use a method that ensures the least possible shake for each single shot, such as mirror lock-up functionality, if available.

1.2 Selecting the Exposures

To get good results with HDR processing, your capture sequence must include photos that correctly expose highlights and photos that correctly expose shadows. The latter is especially important to prevent noise from showing in the processed HDR image.

In the lightest photo of the sequence, the darkest shadows should be at least in the mid-tones. To check this, use your camera’s histogram preview in playback mode. In your most overexposed photo, the left part of the histogram should be empty until 1/3rd of the histogram’s width. If this is not the case, add one or more photos taken with longer exposure times. Another option is to re-shoot the exposure sequence with the normal exposure set one or more EVs higher if your most underexposed image in the exposure sequence was too dark. This is the case when the histogram of your darkest image is completely empty on the right half.

The number of exposures needed depends on the dynamic range of the scene, in addition to the exposure increment. For most outdoor scenes, three exposures taken at +/- 2 exposure increments is sucient, provided the scene does not include the sun. However, for the interior of a room with a bright view out the window, you will need at least ve images taken with an exposure increment of +/- 2, or nine images taken with an exposure increment of +/- 1.

In scenes with extreme dierences between light and dark details, you should change the exposures manually to ensure you capture a wide enough range to cover your scene.

Photomatix Pro User Guide 3

1.3 Using Film-Based Cameras

• Follow the camera setup listed at the top of Section 1.1 and the tips on selecting exposures in Section

1.2. Keep in mind that you will not have the option of previewing the live histogram to determine your

exposure range.

• Scan lm or slides, not prints. Photo labs attempt to make the best print from each of your source images,

and you will not achieve good results scanning these for HDR generation.

• Turn o your scanner’s auto-exposure options. This allows you to manually control the exposure.

• Make sure you select the Align images option in Photomatix Pro when combining your images.

Photomatix Pro User Guide 4

2 Loading and Pre-Processing Images

This section describes how to load and merge bracketed image les of a scene taken under dierent exposure settings as well as how to load single images into Photomatix Pro.

2.1 Merging Bracketed Images

Photomatix Pro merges bracketed images that are in 8 bit or 16 bits/channel mode, as well as Camera RAW les.

Supported le types include JPEG, TIFF, PSD, DNG, and RAW les from many camera models. The list of supported camera models for RAW les changes frequently. You can check the the Photomatix Pro FAQ page on the HDRsoft website at http://www.hdrsoft.com/support/raw.html to determine whether or not your camera model is supported.

2.1.1 Loading Bracketed Images

To load bracketed image les, do one of the following:

• Drag and drop the les into Photomatix Pro

• Use the Workow Shortcuts area or the File menu to load

the les

Note

The term “bracketed images” refers to images of the same scene taken under different exposure settings. This manual uses the term “bracketed images” to simplify how these images

are dened. It also applies to the case

when you have not used the Automatic Exposure Bracketing function of the camera to take the exposures.

Note

Drag the image les for the exposure sequence at the same time, so the les

are properly processed by the merge.

Dragging and Dropping Bracketed Image Files

To drag and drop a group of image les to Photomatix Pro:

• Windows: Drag the les from Windows Explorer and drop

them on the open Photomatix Pro program.

• Macintosh: Drag the les from the Finder and drop them

on the Photomatix Pro icon on your Dock.

Note

Newer camera models may not be supported by older versions of Photomatix Pro. To ensure your camera is supported, upgrade to the latest version.

Note

If you have Lightroom, use the Lightroom Export Plug-in to load images into Photomatix Pro. Refer to Section 5 for more information.

Photomatix Pro User Guide 5

Using the Workow Area or the File Menu

To load images using the Workow Shortcuts Area or the File menu:

1. Click Load Bracketed Photos in the Workow Shortcuts area

Select Load Bracketed Photos from the File menu.

The Select bracketed photos dialog displays.

Note

If you check the Show intermediary

32-bit HDR image box, you will be

able to save the pre-processed 32-bit

image in an HDR image le format such

as Radiance or OpenEXR. Saving the 32-bit HDR image is useful when you want to be able to process the image with other tone mapping settings later without having to pre-process and merge your bracketed photos again. However, you will still need to preprocess and merge the photos if you want to use exposure fusion.

You will have to click the Tone Mapping / Fusion button to go to the next step if you check this box.

Selecting bracketed photos

2. Drag and drop the les into the Selecting bracketed photos

dialog

Click Browse. A dialog displays prompting for location of the

les.

3. Select the les to load, using one of the following methods:

• Click the rst le, then press and hold the Control key (Windows) or Command key (Mac). While holding down the Control or Command key, click each of the other les you wish to select.

• Click the rst le, then press and hold the Shift key. While holding the Shift key down click the last le. This will select all the les in-between the rst and last le.

4. Click Open (Windows) or Select (Mac).

5. Click OK to pre-process the les.

Entering Exposure Values

Note

The order of the les in a bracketing

sequence does not matter.Photomatix

Pro systematically sorts the image les

based on the exposure information retrieved from the EXIF data. If the exposure information is not available in EXIF data, Photomatix Pro uses the relative brightness levels of the photos.

If the exposure information cannot be located in the metadata of the image les, Photomatix Pro displays a dialog prompting for input of the relative Exposure Values for each image. Photomatix Pro also displays this dialog if two or more source images share the same exposure information.

Photomatix Pro User Guide 6

2.1.2 General Pre-Processing Options

After the bracketed images are selected, the pre-processing settings for the images may be customized before the 32-bit HDR image is generated. Refer to the following list for a description of the available options for merging bracketed images:

Alignment Options

The Align source images option is checked by default. It corrects misalignment problems when the camera moves slightly between the bracketed frames. Hand-held photographs and even some images shot with a tripod have camera movement.

• By correcting horizontal and vertical shifts: Faster method, but only corrects for translation movements.

• By matching features: Corrects for rotation, translation and scaling dierences, as well as perspective distortion if included. Recommended for hand-held shots.

• Include perspective correction: Requests that the alignment by matching features corrects for perspective distortion in addition to correcting for translation, rotation and scaling dierences.

• Crop aligned images: Checked by default. Removes the unused borders that appear when the images are shifted to correct for mis-registration. Leave this box unchecked if you need the resulting image to have the same width and height as the source images.

• Maximum shift: Sets the maximum mis-registration shift that the alignment attempts to correct for, and is expressed as a percentage of the image dimensions. This setting does not need adjusting in most cases. A situation when adjusting this setting may be useful is when the camera barely moved between the bracketed shots. In this case, setting a maximum shift lower than 12% will restrict the number of alignment corrections searched, thereby reducing the risk of selecting an improper alignment correction.

Selecting pre-processing options

Note

The Align source images option should not be checked when your source images are stitched panoramas or when they are "fake exposures" derived from a single

RAW le.

Deghosting Options

The Remove ghosts option addresses the problem of artifacts that appear when combining images of a dynamic scene. For example, if the moving subjects are people walking, the people appear multiple times in the combined image as if there were “ghosts”. This is why artifacts arising from movements in the scene are commonly referred to as “ghosting” and the attempt to eliminate them as “deghosting”.

• With selective deghosting tool: Activates the Selective Deghosting Tool, which lets you select ghosted regions and choose the exposure used for each ghosted region.

• Automatically: Automatically detects ghosted zones in the merged image.

• Detection: Sets the criteria for determining if a pixel is or is not ghosted when using automatic deghosting.

The deghosting option is effective for images processed with Tone Mapping or with the default Exposure Fusion method. It is not effective for the other Exposure Fusion methods.

Photomatix Pro User Guide 7

Note

Noise Reduction Options

The Reduce noise option processes source photos with high-quality noise reduction and is recommended when processing RAW les directly in Photomatix.

• Strength: Increases or decreases the strength of the noise reduction relative to the automatically determined value based on the noise level in the image. Values range from 50% to 150%.

Reduce Chromatic Aberrations

The Reduce Chromatic Aberrations option automatically corrects color fringing due to chromatic aberrations of the lens. Checking this option is recommended, given that chromatic aberrations tend to show around high contrast edges, and are particularly an issue for HDR images.

2.1.3 Using the Selective Deghosting Tool

The Selective Deghosting Tool lets you select the portions of the image that require processing for removing ghosting due to the movement of the subject. Photomatix Pro uses the image that it deems the best exposed for the selected area as the default image for deghosting. You may change the image to one of your choice using the tool.

Select With selective deghosting tool from the Remove ghosts preprocessing options to access the Selective Deghosting tool. To use the Selective Deghosting tool, click and drag the mouse to draw a line around the region that requires deghosting. Ensure the selection is a fully closed loop with a dashed line.

Selective Deghosting tool

Photomatix Pro User Guide 8

Right-click (Windows) or control-click (Mac) inside the selected region and select Mark selection as ghosted area from the pop-up menu. The line around the selected region changes from dashed to solid to indicate

that the area has been selected for deghosting.

At any time, use the Brightness slider to increase or decrease the brightness of the image. Or, use the Zoom slider to zoom in and out.

If necessary, you can remove a region from the deghosting selection. Control click or right click inside an already marked region and click Remove selection from the pop-up menu.

You may also change the image used as the default image for deghosting. Control-click or right-click inside an already marked region and click Set another photo for selection from the pop-up menu. The tool displays a pop-up menu with a list of the available exposures. Select an exposure value from the list.

Note

The photo that the tool automatically sets for the selection is not always the most appropriate exposure choice. It is thus a good idea to check whether changing to another photo produces a better deghosting result.

To view a preview of the deghosted image, click Preview deghosting.

Photomatix Pro User Guide 9

To make more selections or modify existing regions selected for deghosting, click Return to selection mode. You may continue selecting regions of the image and previewing the results until you are satised with the results.

Click OK to apply the deghosting to the image or click Cancel to stop merging the images.

2.1.4 Pre-Processing Options for RAW Files

Photomatix Pro oers additional pre-processing options for RAW les.

The White Balance options let you change the white balance, if desired, and preview the eect of changing it. The default value is "As Shot", which takes the white balance read from the EXIF metadata. To adjust the white balance, select a pre-dened value from the White Balance drop-down list or type a color temperature in Kelvin in the text box.

Click Preview sample to view the eect of the white balance change on the source image.

The Color primaries HDR image drop-down list provides options for converting the RAW data from the camera's native color space to the display prole of the selected value. AdobeRGB is the default value and is appropriate when you want to print the resulting image. If you would like to display the resulting image only on the web and do not intend to print it, then select sRGB to avoid having to convert the image from AdobeRGB to sRGB.

Preprocessing Options

Photomatix Pro User Guide 10

2.2 Working with Single Image Files

Photomatix Pro supports Tone Mapping of single image les. To load a single image le:

1. Drag the image le to the Photomatix Pro application (Windows) or icon on your Dock (Mac).

Select Open from the File menu. A le browser window displays. Navigate to the le and open it.

2. To process the image using Tone Mapping, click Tone Mapping from the Workow Shortcut bar.

If the le is a JPG, a dialog will show to let you decide whether to reduce the noise on your image before tone mapping. If desired, check Do not ask me again to skip this dialog and use your Yes or No selection for all single JPGs that you process with Tone Mapping. If you need to re-enable the dialog later, access the Photomatix Pro Preferences to change the setting. The Preferences are available from the View menu (Windows) or Photomatix Pro menu (Mac).

2.2.1 Options for Single RAW Image Files

When your single image is a RAW le, Photomatix must rst convert the RAW data. The following options are available for pre-processing the RAW data.

The Reduce noise option processes the converted RAW le with high-quality noise reduction. It is checked by default as reducing noise is always recommended when processing RAW les. The Strength slider lets you increase or decrease the strength of the noise reduction relative to the automatically determined value based on the noise level in the image. Values range from 50% to 150%.

The Reduce chromatic aberrations option automatically corrects color fringing due to chromatic aberrations of the lens.

Reducing noise on a single image

JPEG le

Note

Tone mapping with the Details Enhancer method makes any noise present in the image much more visible, so it is a good idea to pre-process your image with noise reduction before tone mapping.

RAW Processing Options dialog box

Click Preview sample to view the eect of the white balance change on the source image.

The Color Space drop-down list provides options for converting the RAW data from the camera's native color space to the display prole of the selected value. AdobeRGB is the default value and is appropriate when you want to print the resulting image. If you do not intend to print the image, select sRGB for web-only images to avoid having to convert the image from AdobeRGB to sRGB.

Photomatix Pro User Guide 11

3 Adjusting Images Using Tone Mapping or Exposure Fusion

Photomatix Pro provides access to HDR Tone Mapping and Exposure Fusion methods in one window. The window includes a preview, so you can see how adjustments to settings or changing the adjustment method aect the result. This section describes the workow for adjusting and processing images and details the Tone Mapping and Exposure Fusion settings.

3.1 Image Adjustment Workow

After you have preprocessed and merged your source images (or opened a single image le), the next steps are:

1. Adjust the image to your liking: Photomatix Pro oers dierent Tone Mapping and Exposure Fusion methods. Most methods oer dierent adjustment settings. Refer to Sections 3.3 through 3.6 for detailed descriptions of the settings.

You can use presets for easier image adjustment. Refer to Section 3.2.2 for more information about using presets.

2. Process the image: When you are satised with the adjustments, click on the Process button located at the bottom of the Adjustment window to process the image at original resolution with the selected settings.

Note

Exposure Fusion is only available when bracketed photos were loaded. When a single image is loaded only tone mapping is available.

3. Save the image: When you have processed the image, you can save it. Select File - > Save As. Navigate to the folder where the le should be stored. Use the default le name or enter a name in the File name eld. Select a le type:

• TIFF – 16bit: best choice for further processing

• TIFF – 8bit: for use in applications that cannot work

with 16 bit, or for avoiding too large a le size on disk

• JPEG: for use on the web without further editing

If you would like to view the le with a photo viewing application, you can click Open Saved Images with. Accept the default program or select a program from the drop-down list. If the program is not on the list, click Add application, navigate to the folder containing the program, select the program and click

Open.

Note

To undo changes made during the adjustment process, click the undo arrow

at the bottom of the adjustments panel. To redo adjustments, click the redo arrow to reapply changes.

Note

The settings are automatically embedded in the saved processed image. To view the settings, click View Settings from the Workﬂow Shortcuts bar.

Photomatix Pro User Guide 12

Undoing Adjustments and Reprocessing an Image

After processing an image, you can return to Tone Mapping or Exposure Fusion to make further changes if you are not satised with the results.

You may undo processing using one of the following methods:

• Select Undo Tone Mapping or Undo Exposure Fusion from the Process menu. Photomatix Pro returns the image to its original state.

• Click Tone Mapping/Fusion from the Workow Shortcut bar or select Tone Mapping/Fusion to return to the image adjustment window.

3.2 Image Adjustment Windows

3.2.1 Preview Window

The Preview Window provides a preview of the tone mapped or fused image as you adjust the settings, as well as the following controls.

Note

For the Details Enhancer method of Tone Mapping and the Adjust method of Exposure Fusion, the preview is not always an accurate representation of the nal tone mapped image.

Previewing image adjustments

• Size Ratio: The radio buttons at the top of the Preview dialog may be used to select the preview size

related to the size of the original. For instance, 1/4 displays the preview one quarter the size of the original image.

• Zoom: The Zoom slider scales the selected size ratio by a percentage.

• Preview: The Preview checkbox quickly toggles between a preview of the tone mapped image (the

default) and the original image. Use this to compare the eects of the changes with the original.

• Selection Mode: Checking the selection mode checkbox enables you to select an area of the

preview and replace it with one of the source images. See section 3.7 for details.

• Floating Histogram: The tone mapping Histogram is a oating window that contains four selectable tabs to improve analysis of the image: Luminance, Red, Green, and Blue. In addition, move the mouse back and forth across the histogram to display Level, Count, and Percentile information. If the histogram is turned o, enable it by selecting 8-bit Histograms from the View menu.

Photomatix Pro User Guide 13

3.2.2 Preset Thumbnails Panel

The Preset Thumbnails area provides access to built-in settings, each with its own corresponding thumbnail image. The built-in presets are “factory” settings showing various eects. The thumbnails provide a way to quickly view the eect of the settings on the image.

Using the Preset Thumbnails Panel to Adjust an Image (shown in horizontal mode)

The following built-in presets are available:

• Enhancer – Default: Default settings for Details Enhancer.

• Compression – Default: Default Tone Compressor settings.

• Fusion – Default: Default settings for Fusion Adjust.

• Enhancer – Smooth: Eect that produces a smooth image by avoiding too much contrast enhancement in the highlights, which is useful, for instance, to prevent a blue sky from turning dark grey-blue.

• Compression – Deep: darker, more compressed Tone Compressor settings that result in an image with more pronounced colors.

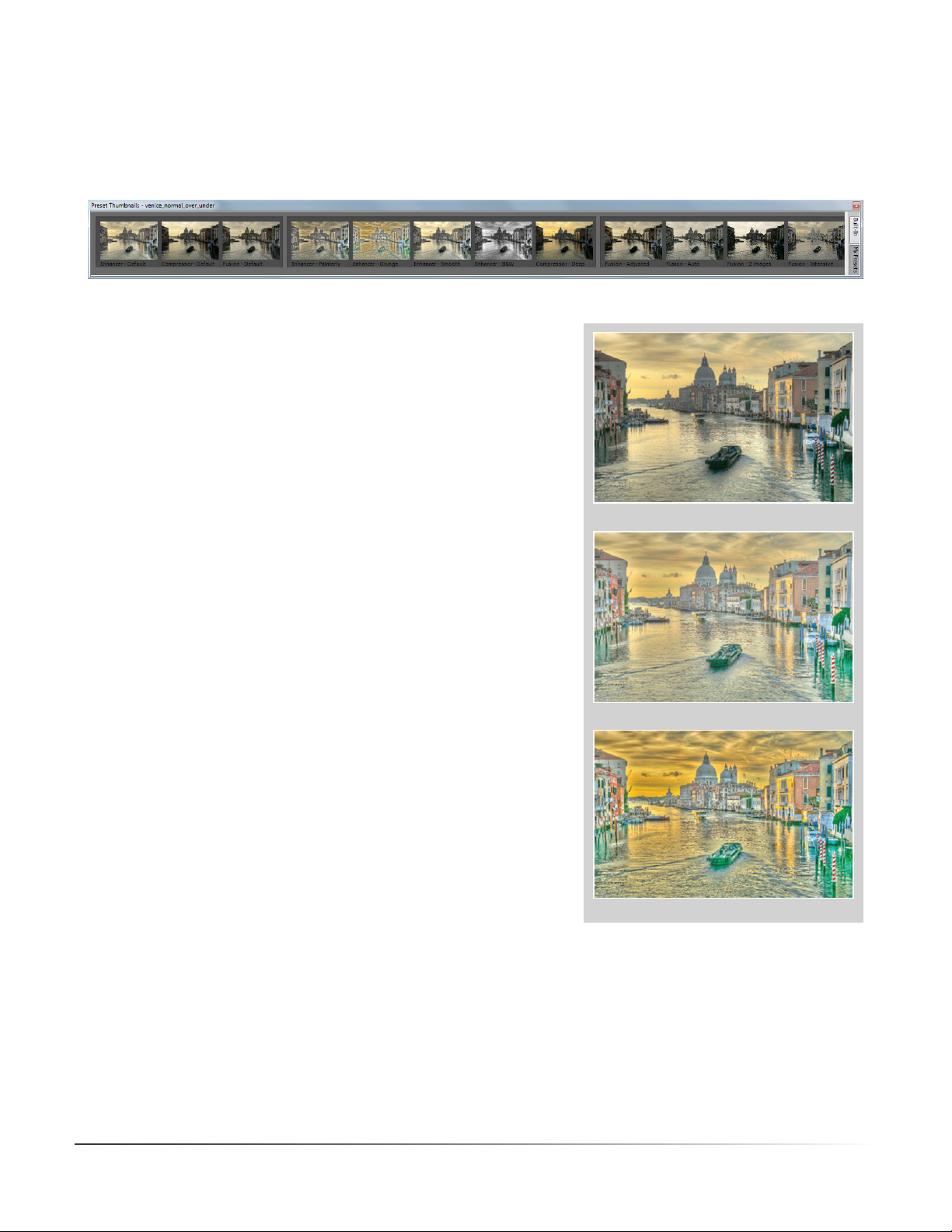

Enhancer - Default example

• Enhancer – Painterly: See second image on the right.

• Enhancer – Grunge: See third image on the right.

• Enhancer – B&W: Monochrome image, which is achieved by

setting the Color Saturation to zero

• Fusion – Adjusted: Default Exposure Fusion method with adjusted settings

• Fusion – Auto: Quick access to Fusion Auto, as opposed to selecting Exposure Fusion and Auto.

• Fusion – 2 Images: Default Fusion 2 Images options.

• Fusion – Intensive: Default Fusion Intensive settings

To use built-in presets, click Built-in on the Preset Thumbnails panel. The thumbnails display with a label describing the preset. Click the desired thumbnail to refresh the preview image and view the results.

You may also access custom presets that you have saved when adjusting your images (refer to Saving Custom Presets below for more information on how to save these). To use the custom presets, click My Presets on the Preset Thumbnails panel.

To toggle the orientation of the Preset Thumbnails panel between horizontal and vertical, select Toggle Preset Thumbnails Orientation from the View menu. To toggle display of the Preset Thumbnails panel, select View Preset Thumbnails from the View menu.

Enhancer - Painterly example

Enhancer - Grunge example

If you prefer that the Preset Thumbnails panel does not show by default, you can set it as option in Preferences. You can access the Photomatix Pro Preferences from the View menu (Windows) or Photomatix Pro menu (Mac).

Photomatix Pro User Guide 14

Saving Custom Presets

There are two ways to save custom presets as an XMP le for future use; during the image adjustment phase or after Tone Mapping or Exposure Fusion is complete.

To save custom presets during image adjustment:

1. In the Adjustments panel, click the Presets drop-down list.

2. Select Save Settings from the list.

3. Enter a name for the preset in the File name eld and click

Save.

To save the processing selections as a preset after Tone Mapping or Exposure Fusion processing:

1. Click Save Settings from the Workow Shortcuts bar or select Save Settings from the File menu.

A dialog prompts for the le name.

2. Enter the le name and click OK.

If you save the preset in the default location (which is the Presets folder of the Photomatix Pro application), the preset is automatically added to the Presets combo-box list, and also shows on the “My Presets” tab of the Preset

Thumbnails Panel.

Note

3.3 Tone Mapping Details Enhancer Settings

General Settings

• Strength: Aects the degree to which contrast and detail are enhanced in the image. A value of 100 gives the maximum amount of enhancement. To get a more natural eect, move the slider to the left. The default value is 70.

• Color Saturation: Controls the saturation of the RGB color channels. The greater the saturation, the more intense the color. Move the slider right or left to change the setting. A value of 0 produces a grayscale image. The value aects each color channel equally. The default value is 46.

• Luminosity: Controls the compression of the tonal range, which has the eect of adjusting the global luminosity level. Move the slider to the right to boost shadow details and brighten the image. Move it to the left to give a more “natural” look to the resulting image. The default value is 0.

• Detail Contrast: Controls the amount of contrast applied to detail in the image. Move the slider to the right to increase the contrast of the details and give a sharper look to the image. Note that increasing the contrast also has a darkening eect. Move the slider to the left to decrease the contrast of details and brighten the image.

• Lighting Adjustments: Aects the overall 'look', controlling the extent to which the image looks natural or surreal. When the Lighting Eects Mode box is unchecked, move the slider to the right to make the image look more natural and to the left to make it look more 'painterly' or 'surreal'.

• Lighting Eects Mode: The checkbox lets you switch between two modes for the Lighting Adjustments setting, where each mode produces slightly dierent results. Checking the box tends to produce results with a type of 'Magic Light' eect. Note that ner control is not possible in Lighting Eects mode.

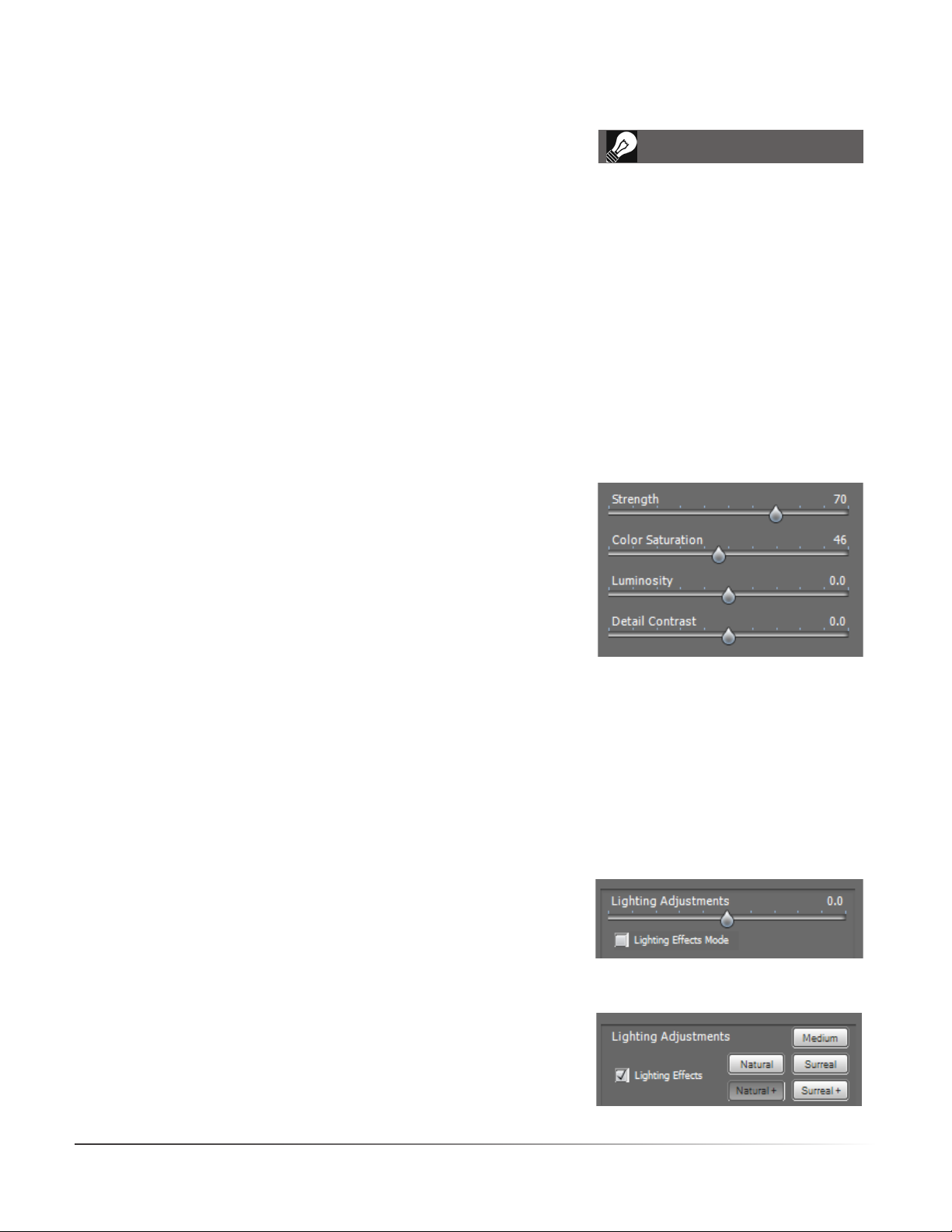

Details Enhancer – General settings

Details Enhancer –

Lighting Adjustment settings

Details Enhancer – Lighting Eects Mode

Photomatix Pro User Guide 15

More Options

• Smooth Highlights: Reduces the contrast enhancements in the highlights. The value of the slider sets how much of the highlights range is aected. This control is useful for preventing white highlights from turning grey or uniform light blue skies becoming dark blue-grey. It is also useful for reducing halos around objects placed against bright backgrounds. The default value is 0.

• White Point – Black Point: These sliders control how the minimum and maximum values of the tone mapped image are set. Moving the sliders to the right increases global contrast. Moving them to the left reduces clipping at the extremes. The White Point slider sets the value for the maximum of the tone mapped. The Black Point slider sets the value for the minimum of the tone mapped image.

The default value is 0.25% for the White Point setting and 0% for the Black Point setting.

• Gamma: Adjusts the mid-tone of the tone mapped image, brightening or darkening the image globally. The default value is 1.0.

• Temperature: Adjusts the color temperature of the tone mapped image relative to the temperature of the HDR source image. Move the slider to the right to give a warmer, more yellow-orange colored look. Move the slider to the left for a colder, more bluish look. A value of 0 (default) preserves the original color temperature of the HDR source image.

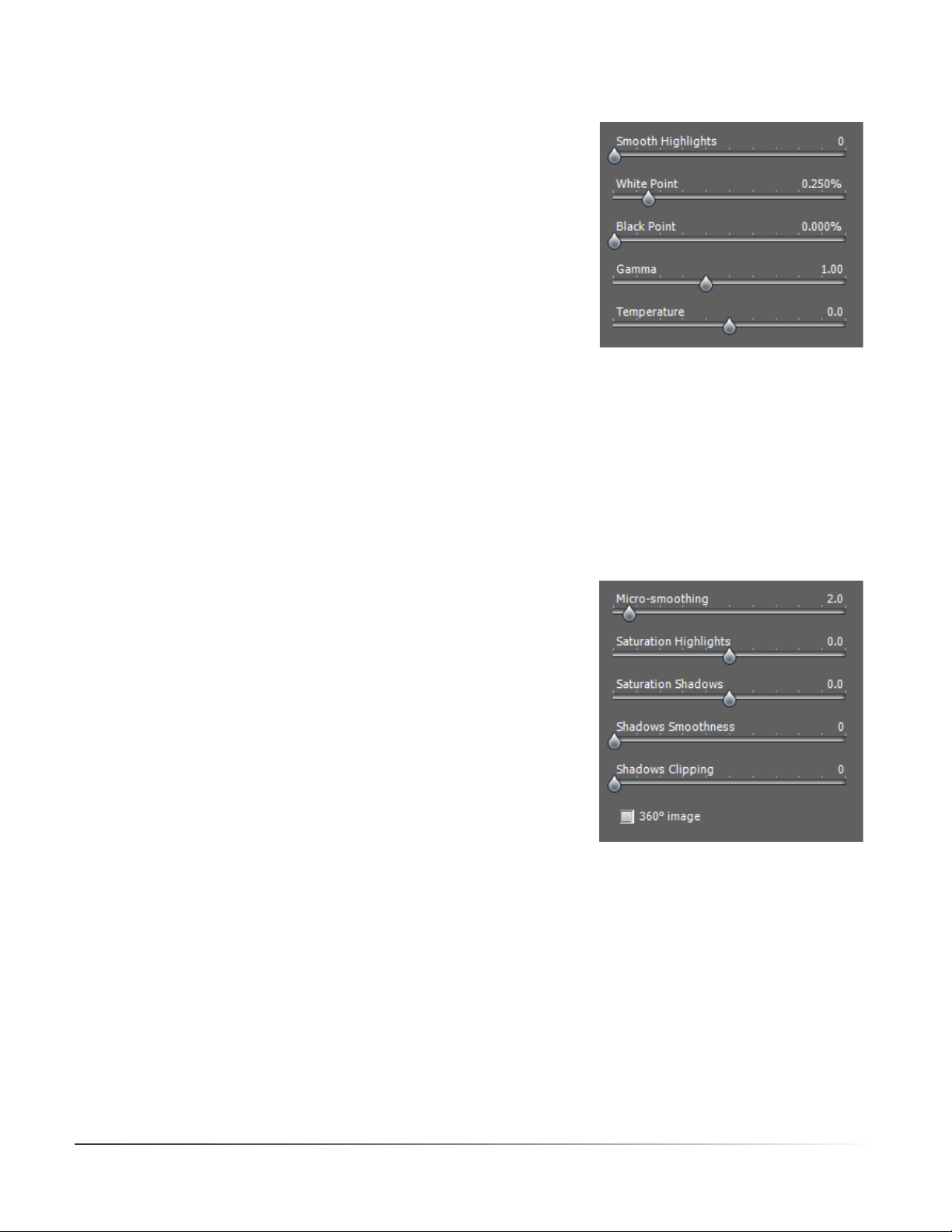

Details Enhancer – More Options

Advanced Options

• Micro-smoothing: Smoothes local detail enhancements. This has the eect of reducing noise in the sky, for instance, and tends to give a “cleaner” look to the resulting image. The default value is 2.

Important note: The Loupe may not properly show the eect of the Micro-smoothing setting when the area magnied is uniform. If you want to see the eect of the Micro-smoothing setting at 100% resolution on a uniform area such as the sky, you will have to select an area that contains an object in the scene in addition to the sky.

• Saturation Highlights: Adjusts the color saturation of the highlights relative to the color saturation set with the Color Saturation slider. Values higher than 0 increase the color saturation in the highlights. Values lower than 0 decrease it. The default value is 0.

• Saturation Shadows: Adjusts the color saturation of the shadows relative to the color saturation set with the Color Saturation slider. Values higher than zero increase the color saturation in the shadows. Values lower than zero decrease it. The default value is 0.

• Shadows Smoothness: Reduces the contrast enhancements in the shadows. The value of the slider sets how much of the shadows range is aected. The default value is 0.

• Shadows Clipping: The value of the slider sets how much of the shadows range is clipped. This control may be useful to cut out noise in the dark area of a photo taken in a low-light situation. The default value is 0.

Details Enhancer – Advanced Options

• 360º image: Checking this option eliminates the seam between the left and right sides of a panorama viewed in a 360º panoramic viewer. The seam would otherwise show because Details Enhancer takes into account local contrast, assigning dierent tonal values to the right and left parts of the image. The default value is unchecked. Note that this option is not enabled when the image is in portrait mode, as the option is intended for panoramas.

Photomatix Pro User Guide 16

3.4 Tone Mapping Tone Compressor Settings

• Brightness: Adjusts the overall brightness of the tone mapped image. The default value is 0.

• Tonal Range Compression: Controls the compression of the tonal range. Move the slider to the right to shift both shadows and highlights toward the mid-tones in the tone mapped image. The default value is 0.

• Contrast Adaptation: Adjusts the inuence of the average brightness in relation to the intensity of the processed pixel. Move the slider to the right to create more pronounced colors. Move the slider to the left to create a more “natural” look. The default value is 0.

255). The Black Point slider sets the value for the minimum of the tone mapped image (pure black, or level 0). The default values are 0.

• Temperature: Adjusts the color temperature of the tone mapped image relative to the temperature of the HDR source image. Move the slider to the right for a warmer, more yellow-orange colored look. Move it to the left for a colder, more bluish look. A value of 0 (default) preserves the original color temperature of the HDR source image.

• Saturation: Adjusts the color saturation of the tone mapped image. The greater the saturation, the more intense the color. The value aects each color channel equally. The default value is 0.

Tone Compressor Settings

Photomatix Pro User Guide 17

3.5 Exposure Fusion Adjust Settings

• Accentuation: Adjusts the strength of local contrast enhancements. The default value is 0.

• Blending Point: Adjusts the weighting given to the underexposed versus overexposed images. When you move the slider to the right, overexposed images are favored, which has the eect of brightening the image. The reverse applies when you move the slider to the left. The default value is 0.

• Shadows: Adjusts the brightness of the shadows without aecting the highlights. The default value is 0.

• Sharpness: Increases the sharpness and contrast of details in the image. Increasing sharpness may have the side-eect of making noise more visible and of creating thin halo eects around strong luminosity edges. A value of zero adds no sharpness. Values close to the maximum tend to give a surreal look to the image. The default value is 2.

• Color Saturation: Adjusts the saturation of the color channels. The greater the saturation, the more intense the color. A value of -10 produces a grayscale image. The default value is 0.

• White Clip: Species how much the highlights are clipped. Move the slider to the right to increase contrast and remove details in the brightest highlights. The default value is 0.

• Black Clip: Species how much the shadows are clipped. Move the slider to the right to increase contrast but remove details in the darkest shadows. The default value is 0.

• Midtone: Positive values brighten the image but reduce the overall contrast. Negative values darken the image but increase overall contrast. The default value is 0.

• 360º Image: Checking this option eliminates the seam between the left and right sides of a panorama viewed in a 360º panoramic viewer. The seam would otherwise show because Fusion Adjust takes into account local contrast, assigning dierent tonal values to the right and left parts of the image. The default value is unchecked.

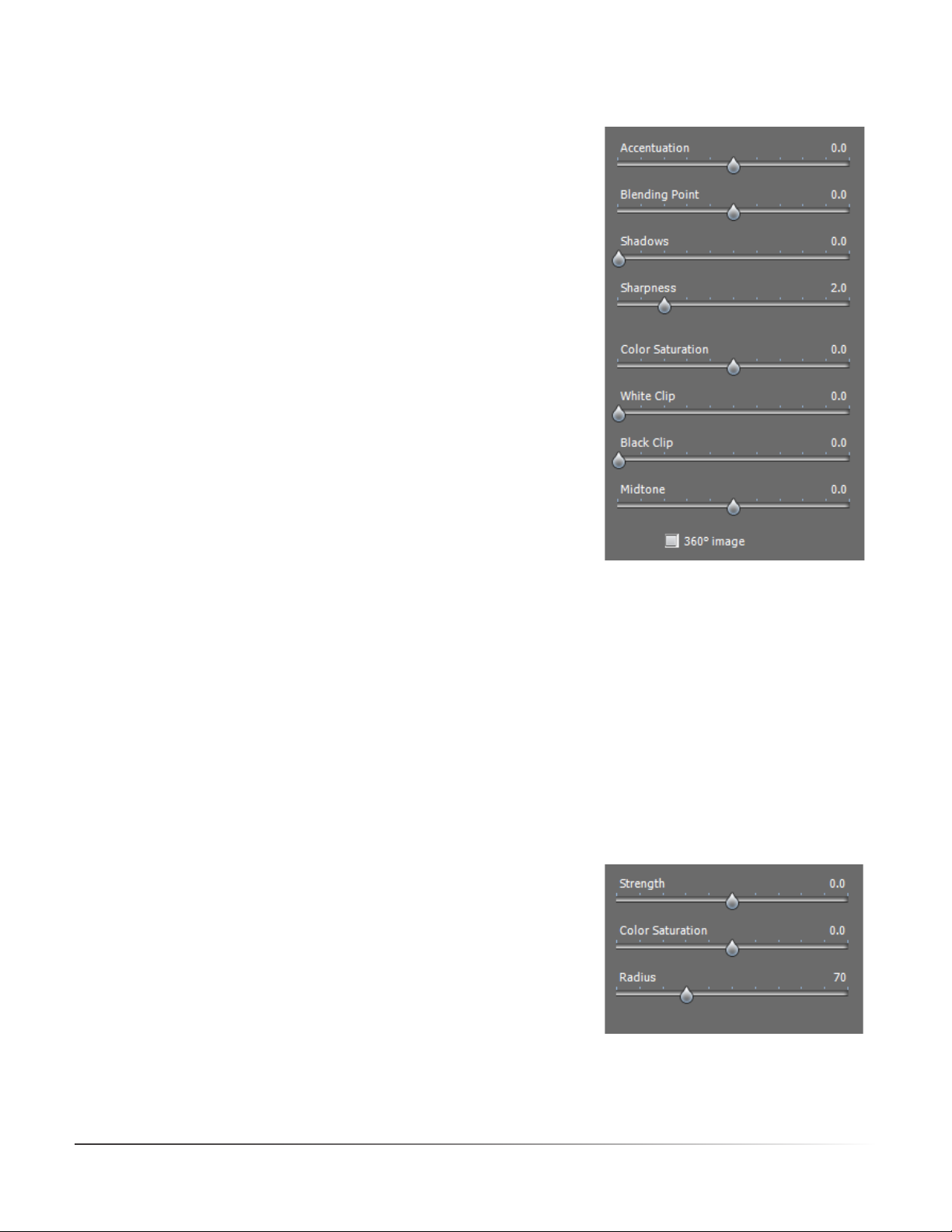

Exposure Fusion Adjust Settings

3.6 Exposure Fusion Intensive Settings

• Strength: Adjusts the strength of local contrast enhancements. The default value is 0.

• Color Saturation: Adjusts the saturation of the color channels. The greater the saturation, the more intense the color. A value of zero produces a grayscale image. The default value is 0.

• Radius: Controls the area used to calculate the weighting of the source images. A higher radius reduces halos, but increases processing times. The default value is 70.

Exposure Fusion Intensive Settings

Photomatix Pro User Guide 18

3.7 Replace Selection with Source

An HDR-processed image might look exactly the way you want, except for one area. For example, the sky might have more contrast or be darker than desired. The “Replace selection with source” feature lets you replace that area with the same area from any one of the source images, to bring the tonemapped or fused image closer to what you want.

3.7.1 Selecting the Area to be Replaced

To enable this feature, click the Selection Mode checkbox. The Polygonal Lasso is the default tool.

We recommend using the Polygonal tool, but you can use the Normal or Magnetic tool if you prefer. Selection works dierently, depending on the tool.

• Polygonal lasso

– Click to set the selection line’s starting point. – Move the mouse and click to create a straight segment, attached to the previous point.

Repeat to create additional segments.

– To close the selection, double-click, or single-click on the starting point.

• Normal lasso

– Click and drag the mouse to draw a freehand selection. – Release the mouse button to close the selection.

Selection Mode checkbox

• Magnetic lasso

– Click and drag the mouse as with the Normal lasso. If an edge is within the Width setting, the selection

path snaps to the edge.

– To close the selection, double-click, or single-click on the starting point.

Choosing a Lasso

– The Polygonal lasso is ideal for areas with straight sides, and good for large areas (because you don’t have

to hold down the mouse button).

– The Normal lasso is good for areas with curved sides. It’s not the best choice for large areas, because you

have to hold down the mouse button as you drag.

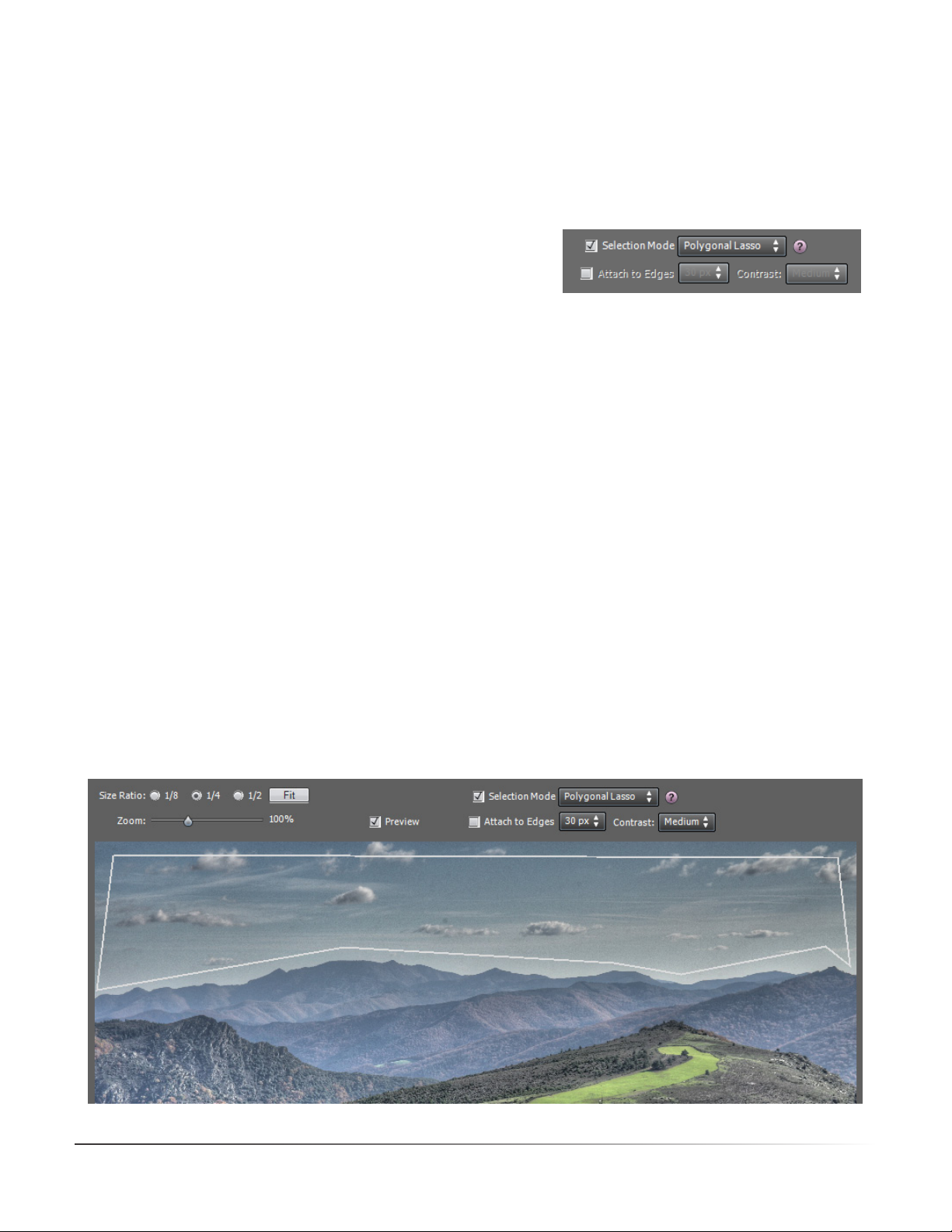

Selection drawn with the lasso tool

Photomatix Pro User Guide 19

3.7.2 Fitting the Selection to the Area’s Edges

The area to be replaced usually has at least one irregular border (such as the mountains in the sample photograph). It’s dicult to draw irregular borders exactly, and you don’t have to. You can draw rough borders, and Photomatix will t them for you.

Finding the edges

The borders of the area you want to replace are almost always at edges — large changes in brightness between adjacent pixels. In the sample photo, the transition between the light sky and the darker mountains is an edge.

Selecting the Attach to Edges checkbox causes Photomatix to search for an edge tting the selection path you drew. The selection path is then redrawn along the edge — in this case, the mountains.

Attach to Edges checkbox

Adjusted selection after clicking on "Attach to Edges"

The Contrast setting (Low, Medium, High) determines whether a change in brightness is large enough to be an edge. The higher the setting, the greater the brightness change has to be.

The Width box (next to the Attach to Edges box) sets the maximum distance Photomatix searches (in pixels) from the original selection path. If Photomatix nds an edge within the Width setting, the selection is redrawn to t the edge. If Photomatix nds a border of the image, the selection is redrawn along the border.

Changing the Width or Contrast setting immediately redraws the selection path to reect the new value.

To undo the edge t, clear the Attach to Edges checkbox.

Photomatix Pro User Guide 20

3.7.3 Replacing the Selected Area

Right-click (Windows) or control-click (Macintosh) anywhere within the selection. A contextual menu appears.

– If you loaded bracketed photos, the menu identies them by their exposure dierence, relative to the

“normal” exposure. Click the photo at the EV you want.

– If you loaded a single image, click "Replace with source".

Replacing the selected area

If you prefer not to see the lines marking your selection, uncheck the Selection Mode checkbox.

To discard the replacement and return to the initial preview, right-click within the selection and select the checkmarked item in the contextual menu.

Returning to the initial preview

Photomatix Pro User Guide 21

4 Automating with Batch Processing

Use batch processing to automatically process image les. The batch processing tool saves time processing many images. Photomatix Pro oers two dierent batch modes:

• Batch Bracketed Photos: Processes bracketed sets using HDR Tone Mapping and/or Exposure Fusion all in one step, which can save you a lot of time when you have many series of photos to process.

• Batch Single Photos: Processes single image les using Tone Mapping.

4.1 Batch Processing Bracketed Photos

This section describes batch processing photos taken under multiple exposure settings.

Batch Processing of bracketed photos

4.1.1 Using Batch Processing

To batch process photos, select Batch Processing from the Automate menu or click Batch Processing from the Workow Shortcuts panel.

To batch process series of bracketed photos, do the following:

1. Click the checkboxes on the left side of the window to select how the images should be processed.

2. Select the number of exposures to combine using the pull-down menu below the checkboxes. For example, select “3” if your bracketed shots consist of three exposures each, such as when you have taken for each scene one photo at median exposure, one underexposed and one overexposed.

Photomatix Pro User Guide 22

3. In the Source area, select the folder where the bracketed photos are located. The les are arranged in alphabetical order. N les at a time are processed with N being the number specied in the previous step.

4. To save the results in a dierent folder than the folder containing the source photos, select the Custom location option in the Destination area at the bottom right of the window.

5. Accept the default of Created under source folder to create a subfolder with the name PhotomatixResults in the source image folder.

6. In the Destination area, select the output le type.

7. Click Run to start batch processing.

While the batch is running, the results display in the area below the Run button.

4.1.2 Batch Processing Settings

Use the Settings buttons to access HDR generation, Tone Mapping, and Exposure Fusion settings. Refer to Sections 3 and 4 for a description of these settings.

The following settings for generating HDR images are specic to batch processing:

• Force Exposure Values spacing to: Forces the EV spacing to the specied value. This option can be used when the exposure information is not available in the EXIF data, if two or more images have the same exposure information, or to force the EV spacing in all cases. In the latter case, the exposure information in the EXIF data is ignored.

• Source images are linear (no tone curve applied): Intended for 16-bit TIFF les that have been converted from RAW les with a RAW converter that allows the image to be left in linear space. Very few RAW converters allow this, so only check this option if you are sure that the tonal values of the images are linear relative to the values of light captured.

• Process strip by strip: Check this option if the source images are large TIFF les. With this option, the HDR image le is created in several passes, processing and loading only one strip of each image into memory at a time. One strip is composed of a limited number of rows set to not exceed approximately 512 MB of RAM. This option is particularly useful when processing large panoramas. Note, though, that the alignment functions are not accessible when the “Process strip by strip” option is used.

Generate HDR image settings

Note

The term “linear” may have a different meaning depending on the RAW converter. For example, in Adobe Camera RAW, linear is relative to the Adobe RGB color space and not to the values of light. Therefore, do not select

this option with les converted with

Photoshop or Lightroom.

Photomatix Pro User Guide 23

4.1.3 Batch Processing Subfolders

When your bracketed series are located in multiple folders, they can all be processed in one run, provided they are in subfolders of the same parent folder. To batch process multiple subfolders, check the

Process subfolders option at bottom of the Source frame on the Batch Processing dialog and select sequentially. When “Process subfolders sequentially” is selected, the batch will process the bracketed image les in one subfolder and

then move on to the next subfolder, all of which are contained in the main parent folder.

All of the subfolders must be contained in the main parent folder for this option to work properly.

Note

Processing Series of Photos with Varying Numbers of Exposures

When your bracketed sets are composed of varying numbers of exposures, you can use “Process subfolders sequentially” to combine the exposures in these sets in one batch run. Place each set in a separate subfolder,

group the subfolders under a parent folder, select Process subfolders sequentially and select All from the pull-down menu for the number of images to process at one time.

Grouped by Exposures Option

If you are processing bracketed photos that will be part of a panorama, you may nd it useful to be able to organize your photos in such a way that all exposures of the same levels are in the same folder. Let’s take as an example a panorama composed of four views that need to be stitched, with each view having been taken under three exposures: -2, 0, +2. You will then have 12 photos, and may need to place them in three separate subfolders composed of four photos each as follows:

• Subfolder1 contains the four photos for the panorama taken at EV -2

• Subfolder2 contains the four photos for the panorama taken at EV 0

• Subfolder3 contains the four photos for the panorama taken at EV +2

If you check “Process subfolders” and select “grouped by exposures”, the batch will combine the rst le of Subfolder1 with the rst le of Subfolder2 and the rst le of Subfolder3. The batch will then combine the second le of Subfolder1 with the second le of Subfolder2 and the second le of Subfolder3, and so on for the third and fourth le of each subfolder.

4.1.4 Advanced Options

The following items are accessed when you click Advanced and click Options to congure automatic selection of bracketed image les.

Click Automatically detect the number of bracketed frames when processing a folder that contains les in addition to those in the set of bracketed frames or when the number of frames in the set varies. Photomatix Pro uses the metadata from the image les to perform automatic detection.

• Specify a range using the two drop-down lists to automatically detect the number of bracketed frames.

• Move the Maximum time between two bracketed frames slider right or left to allow more or less time (read from the metadata). Min is ½ second and max is 64 seconds.

Click Select only part of the frames in bracketed set to load only selected frames from a bracketed set.

• Specify the total number of frames in each set using the drop-down list.

• Select the specic frames to process from the list. Select more than one le by holding down the Ctrl key

and clicking on the desired frames.

Advanced batch processing options

Photomatix Pro User Guide 24

4.2 Batch Processing Single Image Files

Photomatix Pro supports processing of single image les using tone mapping.

To batch process single image les:

1. Click Batch Single Files from the Workow Shortcut bar or select Batch Single Files from the Automate menu.

2. To select the source folder that contains the les, click Select Folder.

3. Navigate to the folder that contains the les and click OK. Photomatix Pro displays the folder/path and the les in the folder.

4. To narrow down the les to process, if needed, hold down the Ctrl key and click the les to process.

5. To process using the details enhancer, click Tone Map with Details Enhancer. Click Settings to customize how the les are processed.

6. To process using the tone compressor, click Tone Map with Tone Compressor. Click Settings to customize how the les are processed.

7. Click the checkboxes for noise and CA correction, if needed.

8. To select a destination folder, click Created under Source Folder to save the images in the same folder as the source les

Click Customized Location to save the images in a dierent folder. Click Choose to select the destination folder. Photomatix Pro displays the folder location.

9. For JPG le output, select the quality from 0 to 100 from the drop-down list, with 100 yielding the largest le size.

10. Click Run. The batch processing status displays.

Batch Tone Mapping on Single Photos

Note

The Batch Single Files feature is intended for automating the processing of a lot of photos. To process a single

image le, load the image le using the information in

Section 3 and Section 4.

Photomatix Pro User Guide 25

5 Tips and Techniques

This section provides tips for working with images in Photomatix Pro. More tips and techniques, and regularly updated information, can be found on the Photomatix Pro FAQ on the HDRsoft website at http://www.hdrsoft.com/support/faq_photomatix.html.

5.1 Integrating Lightroom with

Photomatix Pro

You can export photos for processing in Photomatix Pro directly from Lightroom and reimport them back into the Lightroom library.

The Lightroom Export plug-in to Photomatix is free and included with the Photomatix Pro package. Please refer to the HDRsoft website at http://www.hdrsoft.com/download/lrplugin. html for installation instructions and a short tutorial showing how to use the Lightroom export plug-in for HDR processing in Photomatix Pro.

To remove the watermark, Photomatix Pro requires that the image was not retouched after the watermark was added to it. If the brightness or contrast of the image was changed, or the image was cropped or resized, then Photomatix will not be able to remove the watermark.

Note

5.2 Processing RAW les in Third-Party RAW Converters

When using a third-party RAW converter, develop the RAW images with the following settings. As an example, the screenshots show the settings in Lightroom:

Working with curves in LightroomBasic Settings in Lightroom

• White Balance: Use the same white balance for all source photos.

• Basic settings: Set all to zero. It is particularly important to set the Blacks setting to zero.

• Curves: Parametric and Point Curves should be linear.

• Details: Set the Sharpening Amount to zero

Photomatix Pro User Guide 26

5.3 Dealing with Noise

When you process your photos using Exposure Fusion, the fused image will tend to show less noise than the source images. This is because Exposure Fusion works by directly combining your bracketed photos, thus averaging out noise. However, when you create a 32-bit HDR image, your bracketed photos are assembled in linear space into an image that spans the full range of luminance values captured by the camera. If the lightest photo of your exposure sequence is not bright enough to expose the shadows of the scene, then the noise in the source photographs will be transferred to the HDR image. Noise in the HDR image will then be made more apparent by tone mapping, especially with Details Enhancer as this tone mapping method increases local details.

Though Photomatix Pro includes options to reduce noise, it is still always better to avoid noise at capture time as much as possible. There are two tips to ensure a low noise level:

• Tip 1: Set a low ISO setting (ISO 100 or lower) whenever possible

• Tip 2: Overexpose suciently, ensuring that the lightest image of your exposure sequence has its

shadows in the mid-tones.

5.4 Photomatix Pro and Color Management

Photomatix Pro supports color management even if RAW les are processed. You should use the same working space in Photomatix Pro as you use in other image editors (e.g. Photoshop).

Photomatix supports the three most popular working spaces:

• sRGB: Use if the images are created only for the web.

• Adobe RGB: Popular working space for printing if extremely saturated colors are not used.

• ProPhoto RGB: Wide gamut working space. This should never be used for 8-bit images.

For all JPEG and TIFF les, Photomatix Pro preserves the color spaces of the source les.

Photomatix Pro User Guide 27

Glossary

Mode

Aperture Priority

Bit

Bit Depth

Bracketed images

Chromatic Aberration

(Automatic Exposure Bracketing). DSLR cameras and some compact digital cameras oer this feature. It enables you to automatically take three or more exposures in a row: one at the proper exposure, one or more underexposed, and one or more overexposed.

In Aperture Priority mode, you select the aperture and the camera determines the correct shutter speed for the available light. The shutter speed also depends on ISO sensitivity. This is the right mode for shooting bracketed shots for HDR (refer to Section 1 for more information).

Bits represent digital data in computers. Digital Images are made of bits. A bit depth corresponds to 2^(Bit Depth) levels (e.g. 256 for 8-bit).

The number of bits a le type uses to represent a pixel's color at a given location in an image.

A group of photos taken with the Automatic Exposure Bracketing function of a camera, resulting in photos of the same scene taken with dierent exposures

As the lens focuses dierent wavelengths slightly dierently, chromatic aberration occurs. For example, the purple fringing you often nd around edges (leaves in front of a bright sky).

Contrast Ratio

dSLR

Dynamic Range

EXIF

Exposure

Exposure Fusion

EV (Exposure Value)

Another way to describe the dynamic range of a scene. The ratio between the darkest and brightest areas.

Digital Single Lens Reex camera.

In the context of HDR photography, the total range of light intensity in a scene, from the deepest shadows to the brightest highlights.

The Exchangeable Image File header contains information about the image, the camera, location, date and time and camera settings.

The amount of light that enters a camera for the length of time the shutter is open. Exposure depends on aperture and shutter speed, as well as the camera’s sensitivity to light (controlled by the ISO). "Exposure" is also shorthand for a photograph or frame (a frame of lm).

Combination of photos of the same scene taken under dierent exposure settings in such a way that highlight details are taken from the underexposed photos and shadow details from the overexposed ones.

A measure of exposure which is the equivalent of a stop. In the absolute sense, EV is dened as the exposure from a photo taken at 1 second, f/1, and ISO 100. In the relative sense, the correct exposure is normally 0 EV and any deviation is measured in positive or negative EV from that mark.

Photomatix Pro User Guide 28

HDR

High Dynamic Range.

HDR Image

Histogram

JPEG

Noise

Pixel

Strictly speaking, an HDR image is an intermediary image with 32 bits per color channel (96 bits per pixel). An HDR image is the result of merging photos of the same scene taken under dierent exposure settings and stored in special HDR image format. The 32-bit intermediary HDR image must be processed with tone mapping for proper display on standard monitors and prints. It has become very common to dene "HDR image" as the result of processing the 32-bit HDR image with tone mapping, i.e. the tone mapped output, but this is not technically correct.

Histograms represent brightness distribution in digital images. They help evaluate correct exposure. The y-axis represents the amount of pixels and the x-axis represents the brightness value.

A common image le format with two primary strengths – a relatively small le size and universal compatibility. JPEGs use a lossy compression scheme and should not be edited and re-saved.

Statistical variations inherent in the sensor system cause noise. Noise is always present, but higher sensitivities and smaller sensors usually generate more noise.

Digital pictures consist of pixels, the smallest units. Each pixel has a color that can be represented by 8 or 16 bits or as a oating-point number (32bit HDR).

PPI

RAW File

TIFF

Tone Mapping

Pixels per Inch. Can be used to describe the actual pixels per inch of a print. Often confused with DPI (Dots per Inch), used by color printers to print an image.

A le containing the raw data from the camera sensor. RAW les do not have a color prole or other stylistic preferences permanently applied.

A comprehensive image format that oers lossless compression schemes for smaller le sizes with higher quality. This format is suitable for editing and printing but not publishing on the Web.

Processing a 32-bit HDR image into an image that can be properly viewed on monitors and in prints.

Photomatix Pro User Guide 29

Resources

You can nd more tips, techniques, and regularly updated information in the Photomatix Pro FAQ on the HDRsoft website at http://www.hdrsoft.com/support/faq_photomatix.html.

Photomatix Pro User Guide 30

HDR Soft Pro - 4.1 - Windows User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
