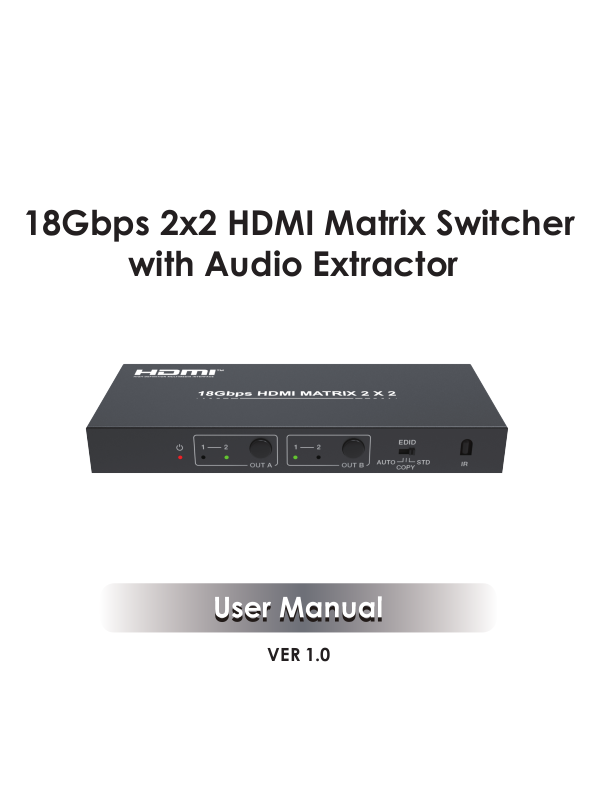

Page 1
18Gbps 2x2 HDMI Matrix Switcher
with Audio Extractor
VER 1.0
Page 2
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this manual
for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electr-ical spikes, surges, electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
Table of Contents
1. Introduction...........................................................................................
2. Features.................................................................................................
3. Package Contents................................................................................
4. Specifications.......................................................................................
5. Operation Controls and Functions......................................................
5.1. Front Panel....................................................................................
5.2. Rear Panel....................................................................................
6. IR Remote...............................................................................................
7. FAQ.........................................................................................................
8. Application Example............................................................................
1
1
1
2
3
3
4
5
5
6
Page 3
1. Introduction
The 18Gbps 2x2 HDMI Matrix switcher supports the transmission of video
signal (up to 4K2K@50/60Hz YCbCr 4:4:4) from two HDMI sources to two
HDMI displays simultaneously. This product supports audio extract from
output A to optical and analog output. It supports three modes of EDID
setting (AUTO, COPY and STD). Flexible control via panel buttons and IR
remote, the corresponding LED indicator on front panel will be illuminated.
2. Features
☆ HDCP2.2 / HDCP1.x, DVI 1.0 compliant.
☆ Support 18Gbps video bandwidth
☆ Video resolution is up to 4K2K@50/60Hz (4:4:4).
☆ Support digital and analog audio extract output from output A
☆ EDID can be selected with AUTO, COPY and STD mode via the selector on
the front panel.
☆ Support analog audio PCM 2.0.
☆ Supported optical audio pass-through format: LPCM 2.0/2.1CH, Dolby 5.1,
Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1,
DTS HD-HRA 5.1.
☆ Support HDR function
☆ Flexible control via panel buttons and IR remote.
3. Package Contents
① 1× 2×2 HDMI Matrix Switcher
② 1× 5V/1A Power Adapter
③ 1× Matrix IR Remote
④ 1× User Manual
1/6
Page 4
4. Specifications
Technical
HDCP Compliance
DVI Compliance
Video Bandwidth 594MHz / 18Gbps
HDMI Video
Resolution
High Dynamic Range
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth 8-bit, 10-bit, 12-bit
HDMI Audio Formats
L/R Audio Formats Analog stereo PCM 2.0
Optical Audio Formats
ESD Protection
Connection
Input ports
Output ports
HDCP 2.2 and HDCP 1.x
DVI 1.0
Up to 4K2K@50/60Hz YCbCr 4:4:4
HDR,HDR 10+,HLD,DOLBY VISION
PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby-TrueHD,
DTS-HD
LPCM[2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS
5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
Human-body Model:
±8kV (Air-gap discharge) , ±4kV (Contact discharge)
2×HDMI Type A [19-pin female]
1×IR Receiver Window
2×HDMI Type A [19-pin female]
1×L/R [3.5mm Stereo Mini-jack]
1×OPTICAL OUT [Optical jack]
2/6
Page 5
Mechanical
Housing
Metal Enclosure
Color Black
Dimensions
Weight
Power Supply
Power Consumption
Operating
Temperature
Storage Temperature
144mm (W)×59.5mm (D)×18mm (H)
208g
Input: AC100~240V 50/60Hz
Output: DC5V/1A (US/EU standard, CE/FCC/UL certified)
2.7W
0°C ~ 40°C / 32°F ~ 104°F
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (non-condensing)

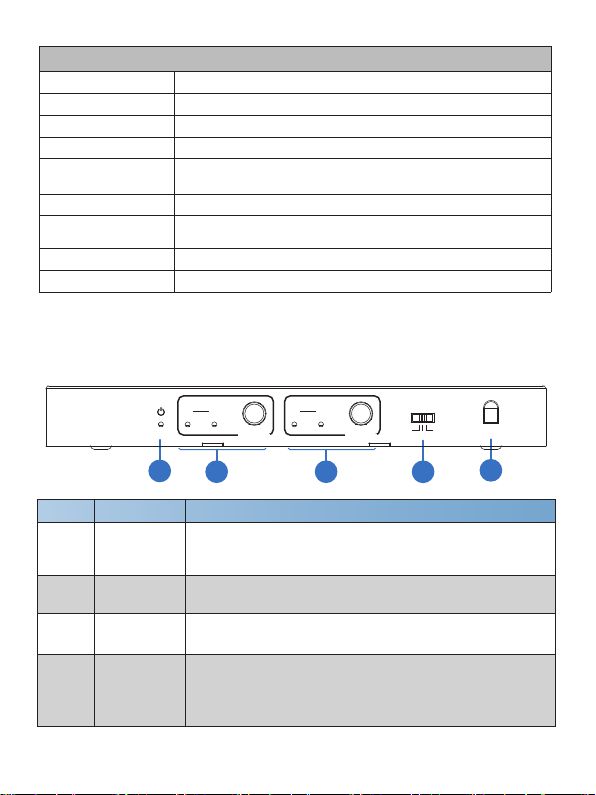

5. Operation Controls and Functions
5.1 Front Panel
Number Function DescriptionName
1 POWER LED
2 OUTPUT A
3 OUTPUT B
EDID AUTO/
4
COPY/STD
1 2
1
1 2
OUT A
2 3
OUT B
EDID
COPY
4
STDAUTO
Power LED indicator.
Notice: The power LED illuminates in red when the product
is working or on standby.
Press the OUT A button to select 1 or 2 input source, the
corresponding LED indicator will illuminate in green.
Press the OUT B button to select 1 or 2 input source, the
corresponding LED indicator will be illuminated in green.
▪ AUTO: When the selector is dialled to the AUTO position,
the product will compare OUT A and OUT B EDID setting
and output the lowest resolution to source devices, then the
source devices will send the signal to all HDMI outputs.
3/6
IR
5
Page 6
Number Function DescriptionName
EDID AUTO/
4
COPY/STD
5 IR
5.2 Rear Panel
▪ COPY: When the selector is dialled to the COPY position,
the product will copy the EDID setting of the HDMI OUT A
display device (If no HDMI OUT A capable EDID is detected,
the product will copy HDMI OUT B) to source devices, then
the source devices will send the signal to all HDMI outputs.
▪ STD: When the selector is dialled to the STD position, the
source devices will send fixed 1080P/60Hz EDID to all
HDMI outputs (audio for PCM 2.0 only).
IR receiver window. It receives IR remote signal of this
product only.
1
Number Function DescriptionName
1 INPUT 1 / 2
2
OUTPUT A / B
AUDIO OUT
3
(OPTICAL /
L/R)
4 DC 5V
OUTPUTINPUT
2
A
1
B
2 3
AUDIO OUT
OPTICAL
Connect to HDMI sources device such as DVD player or
PS4 with an HDMI cable.
Connect to HDMI display device such as TV or monitor with
an HDMI cable.
▪ OPTICAL: Optical audio output port. Connect to audio
amplifier.
▪ L/R: Analog audio output port. Connect to audio amplifier.
Notice: The audio output signal is from OUTPUT A port.
Plug the 5V/1A DC power supply into the unit and connect
the adapter to an AC outlet.
4/6
DC 5V
4
Page 7

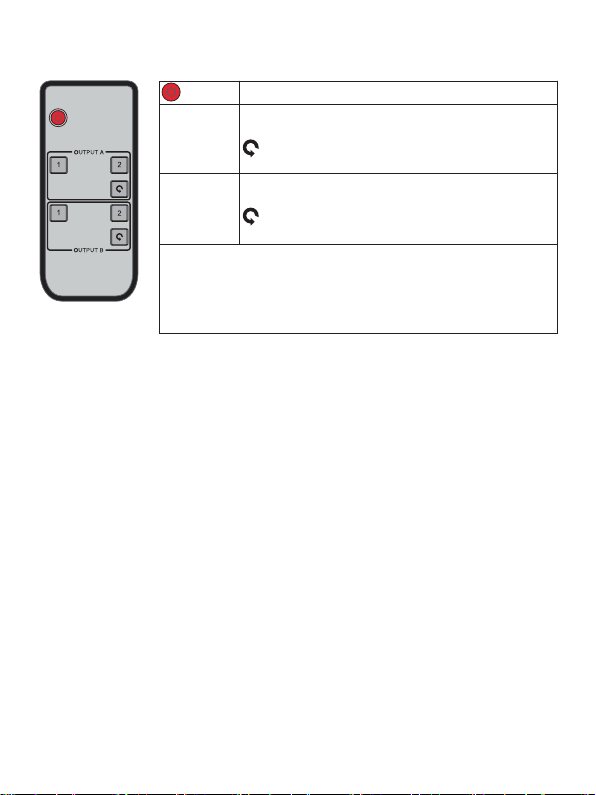

6. IR Remote
Power on the product or set it to standby status.
1/2: Select input 1 or input 2 source signal to
OUTPUT A port.
: Select circularly input 1 or input 2 source
signal to OUTPUT A port.
1/2: Select input 1 or input 2 source signal to
OUTPUT B port.
: Select circularly input 1 or input 2 source
signal to OUTPUT B port.
HDMI Matrix
OUTPUT A
OUTPUT B
Notice: ①: The power LED on the front panel will illuminate in
red when the product is working or on standby.
②: The input source LED on the front panel will illuminate in
blue when OUTPUT A or OUTPUT B is selected by an input
source.
7. FAQ
Q: Does this product require an HDMI cable length for the connection interface?
A: According to HDMI input / output cable length test, the longest HDMI cabel
for 4K2K@60Hz / 8 bit YCbCr 4:4:4 is 5m, the longest HDMI cable for 4K2K@
30Hz / 8-bit is 10m, the longest HDMI cable for 1080p@60Hz / 8-bit is 15m.
The use of “Premium High Speed HDMI” cable is highly recommended.
For using the IR remote, the best distance is 0~7m and the best angle is ± 45°.
5/6
Page 8

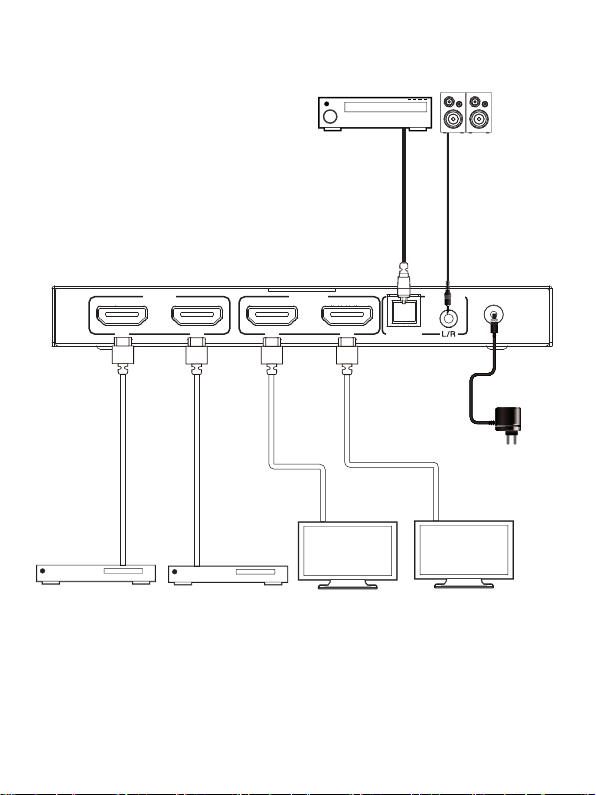

8. Application Example
AV Receiver
2.0 Speakers
1
DVD or Blu-ray Player
2
DVD or Blu-ray Player
6/6
OUTPUTINPUT
BA
OPTICAL
AUDIO OUT
DC 5V
Power Supply
TV
TV
