HDMI CLUX-11HS Operation Manual

Page 1

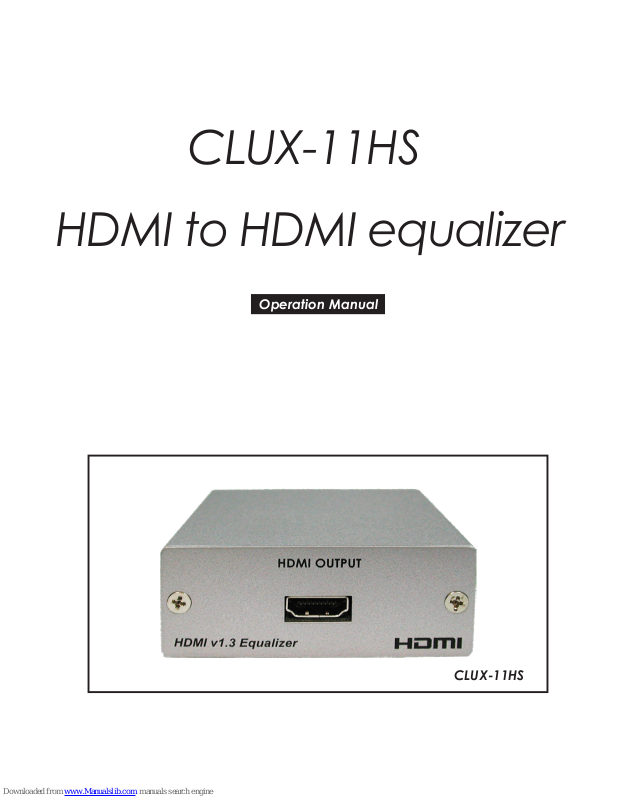

CLUX-11HS
CLUX-11HS
HDMI to HDMI equalizer
Operation Manual
Page 2
1. Introduction................................................................................
2. Features......................................................................................
4. Operation Controls and Functions..........................................
4.1 Front Panel...........................................................................
4.2 Rear Panel............................................................................
5. Connection and Installation.....................................................
6. Specifications............................................................................
TABLE OF CONTENTS
1
1
1
2
2
3
3
3
Page 3
1. Introduction
This is the most advanced solution for HDMI to HDMI equalizer, and a high performance cable equalizer allows HDMI/DVI cable to run up to 40 meters. It corrects digital error and automatically provides equalization up to 40dB to compensate for cable transmission loss. It eliminates digital noise (sparkles) to ensure you the best HDTV picture quality after a long cable transmission.
2. Features
HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant. HDCP is compliant with HDCP1.1 downward compatible to HDCP1.0. HDCP pass through. Operation frequency up to 225MHz (6.75Gbps). Input/output resolutions:
PC: VGA, SVGA, XGA, SXGA, UXGA up to 165MHz HD: 480i/576i, 480p/576p, 720p, 1080i, 1080p
Fully automatic equalization up to 40dB at 825MHz (1.65Gbps), no system
control required.
Extends cable to run up to 40 meters from the source to the equalizer plus
10 meters from the equalizer to the projector, TV/monitor.
Easy to install and to operate.
3. Package Contents
HDMI to HDMI equalizer 5V DC power supply adaptor. Operation Manual.
1
Page 4
2
4. Operation Controls and Functions
4.1 Front Panel
1 HDMI output: Connect the HDMI output port to the HDMI input port of your display.
1 HDMI input: Connect the HDMI input port to the HDMI output port of your source equipment such as DVD player or set-top-box. 2 Power: Plug the 5VDC power supply into the unit and connect the adaptor to AC wall outlet.
4.2 Rear Panel
1 2
DC 5V
HDMI INPUT
1
HDMI OUTPUT
HDMI v1.3 Equalizer
Page 5
3
Input Port Output Port Power Supply Dimensions (mm) Weight(g) Chassis Material Silkscreen Color Operating Temperature
1 x HDMI 1 x HDMI 5V/1A DC (US/EU standards, CE/FCC/UL certified) 72(W) x 76(D) x 30(H) 150 Aluminum Silver 0°C ~ 40°C
6. Specifications
5. Connection and Installation
HDMI
HDMI
HDMI Cable
DVD or Set-Top-Box
HDMI
HDMI
HDMI Cable
HDTV HDMI display LCD TV
OR OR
Page 6
4
Page 7
5
Page 8
20080103 MPM-CLUX11HS
Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD.
