Wireless 2CH Relay
HDL-MPR02-RF.18
www.hdlautomation.com
User manual
User Manual
HDL-MPR02-RF.18
Wireless Relay –User Manual
Document updates:
Version
Date
Description
V1.0
2015.09.05
Finish new document
User Manual
HDL-MPR02-RF.18
Wireless Relay –User Manual
INDEX
1. Overview
........................................................................................................................................
1
1.1 General Information
...........................................................................................................
1
1.1.1 Description
...............................................................................................................
1
1.1.2 Dimensions
..............................................................................................................
1
1.2 Functionalities Description
...............................................................................................
1
1.3 Device Description
.............................................................................................................
2
2. Safety Instructions
.......................................................................................................................
2
3. Technical Data
..............................................................................................................................
3
4. Important Notes
............................................................................................................................
4
5. Software Configuration
................................................................................................................
4
5.1 Basic Information
...............................................................................................................
4
5.1.1 Wireless Setting via Mesh Gateway
...................................................................
4
5.1.2 Device configuration
..............................................................................................
6
5.1.3 Remark
..................................................................................
错误！未定义书签。
5.2 Channel
...............................................................................................................................
7
5.2.1 Channel Information
...............................................................................................
7
5.2.2 Mains frequency
.....................................................................................................
7
5.2.3 Status restore when power on
.............................................................................
7
5.3 Configuration
......................................................................................................................
8
5.3.1 Setting For Keys
.....................................................................................................
8
5.3.2 Remark
.....................................................................................................................
8
5.3.3 Switch type
..............................................................................................................
9
5.3.4 Unqualifiedde
........................................................................................................
11
5.3.5 Delay time
..............................................................................................................
11
5.3.6 Dimming
.................................................................................................................
12
5.3.7 Target
......................................................................................................................
12
5.3.8 Low limit
.................................................................................................................
13
6. Note
..............................................................................................................................................
14
User Manual
HDL-MPR02-RF.18
Wireless Relay – User Manual
1
1. Overview
1.1 General Information
1.1.1 Description
HDL-MPR02-RF.18 wireless 2 channels relay, has 4CH dry contact, can control target by
switch. This module should be configured by wireless gateway.
1.1.2 Dimensions
Wall box
1.2 Functionalities Description
2CH relay output
Support switch on delay, protection delay, switch off delay, switch off delay
The 4CH dry contact supports: mechanical switch and electronic switch, can control
the target, has dimming function
The dry contact supports: mechanical switch, single on, single off, single on/off,
combination on/off, muti-function, parallel switch
Each switch type can set switch mode, dimmable two-way, dimmable increase,
dimmable reduce.
Control type: scene, sequence, universal switch, single channel lighting control,
broadcast scene, broadcast channel, curtain switch, GPRS control switch, panel
17mm
36mm
44mm
User Manual
HDL-MPR02-RF.18
Wireless Relay – User Manual
2
control, security module, z-audio control
Support IEEE.802.15.4
Support online upgrading
Support easy programming

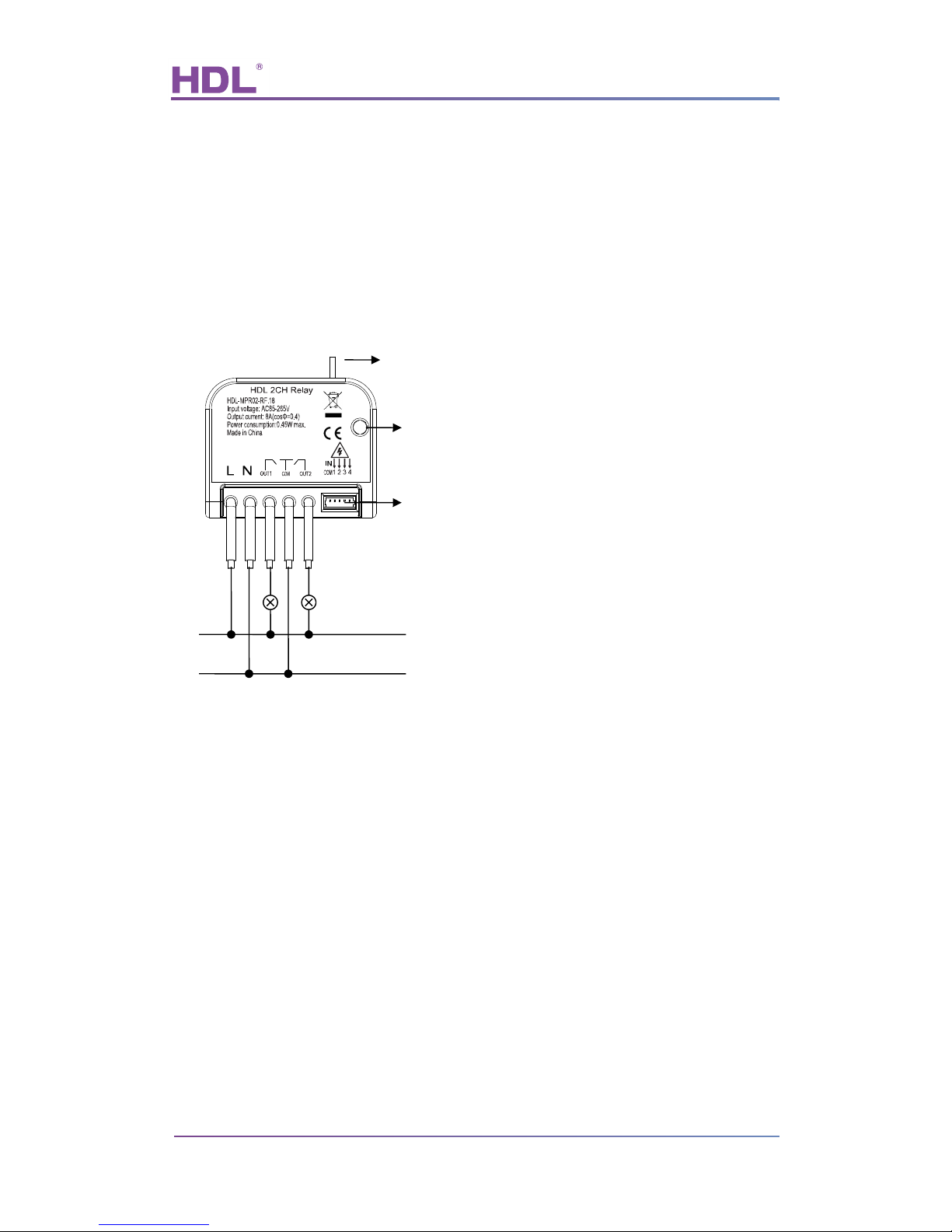

1.3 Device Description
2. Safety Instructions
When power on, cannot touch the power, load, load, dry contact terminal, avoid
electric shock.
Never let the liquids get into the module, it will damage this device.
Ensure good ventilation.
Output channel – The following list is the recommended for output channel. To protect
the relay, please connect a 16A breaker for each channel.
Recommended load type and power (work in AC220V)
Motors 1HP (1HP=746W)
Incandescent lamp load 3500W
Inductive transformer 450W
Programming button: if it is working
properly, the green light will flicker,
press the button three times
continuously, the green light will
flicker quickly, enter the setup mode
(the gateway should enter the setup
mode at the same time,so that can
set the wireless parameters for it)
Dry contact
Programming button
Antenna
L
N
User Manual
HDL-MPR02-RF.18
Wireless Relay – User Manual
3
Electronic transformer 500W
Halogen lamp 3500W
Mercury vapor lamp
*Uncompensated lamp: 700W
*Parallel compensated lamp 700W
Fluorescent lamp T5/T8
*Uncompensated lamp 875W
*Parallel compensated lamp 500W
*DUO lamp 500W
Dulux lamp
*Uncompensated lamp 375W
*Parallel compensated lamp 375W
3. Technical Data
Electrical Parameter:
Input voltage
AC85-265V, 50/60Hz
Output current
8A
Power consumption
Max.0.45W
Wireless transmit power
+10dbm
Wireless receive sensitivity
-90dbm
Indoor communication distance
<=30m
RSSI receive signal receiving
>-80dbm
Wireless central frequency:
WPAN (China)
780 to 786MHz
SRD (Europe)
864 to 870MHz
ISM (North America)
904 to 928MHz
Default band
780MHz
Default PSK
HDL-SecurityKey0
Environmental Condition:
Working temperature
-5%~45%
User Manual
HDL-MPR02-RF.18
Wireless Relay – User Manual
4
Working relative humidity
Up to 90%
Storage temperature
-20%~+60%
Storage relative humidity
Up to 93%
Approved
CE
RoHS
Product Information：
Dimensions
44×36×17 (mm)
Weight
39.7g
Housing material
PC
Installation
Wall box
Protection degree
IP20
Fire and null wire
1.5mm2(the module provides 15cm wire)
Load cable
1.5mm2(the module provides 15cm wire)
Stripping length
5~7mm
4. Important Notes
This module should work with wireless gateway
Connection – Check the connection, avoid short circuit
When power on, cannot touch the power, load and dry contact terminal, avoid the
electric shock
The subnet ID of wireless relay should be same as wireless gateway
5. Software Configuration
5.1 Basic Information

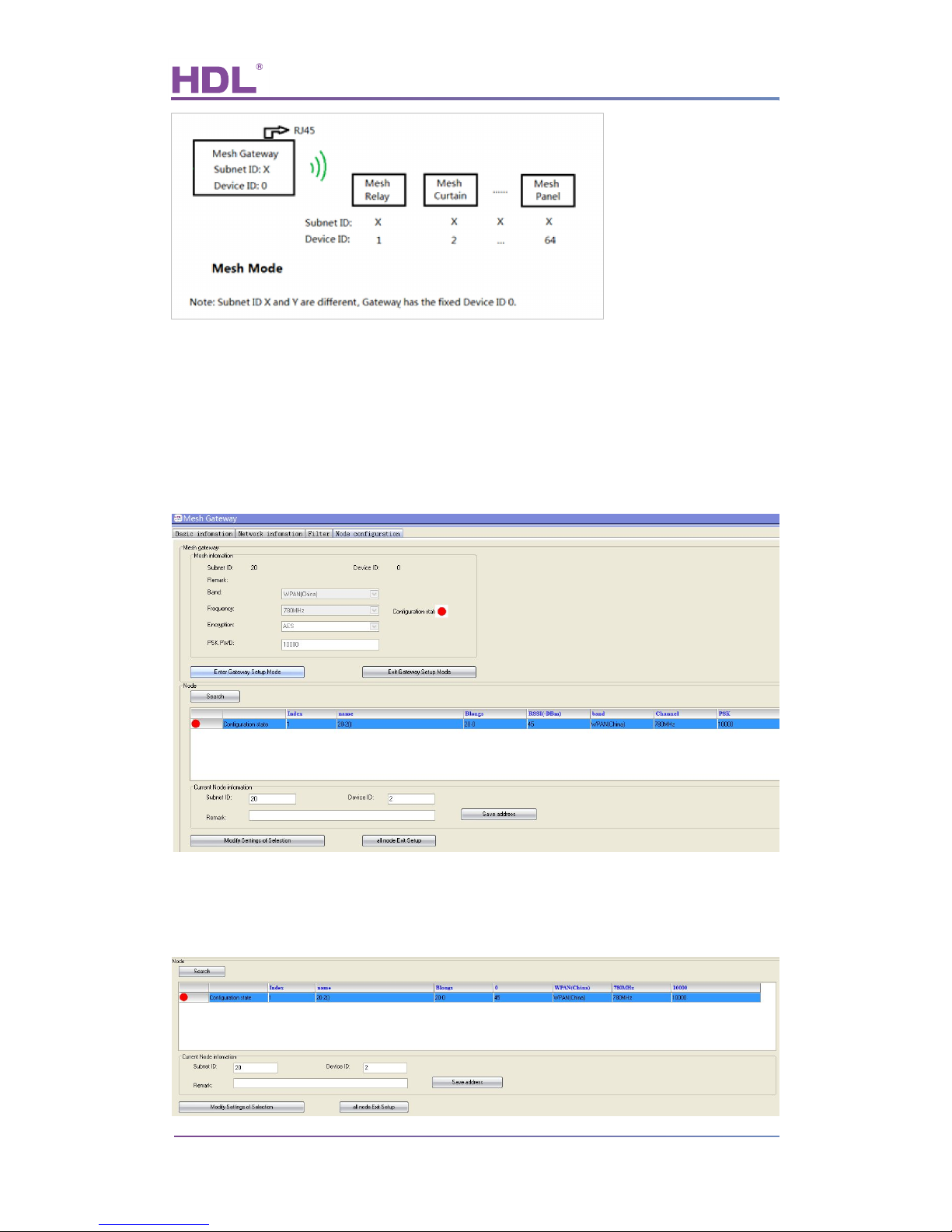

5.1.1 Wireless Setting via Mesh Gateway
Before user can configure the wireless relay normally, need to set the wireless parameters
for it via mesh gateway, and the mesh gateway needs to work in mesh mode.
User Manual
HDL-MPR02-RF.18
Wireless Relay – User Manual
5
1- Set the free frequency and unique PSK PWD for the gateway
2- Press the ‘PROG’ button 3 times continuously, the red LED will flash quickly that means
the gateway enters the wireless setup mode.
3- Press the programming button of wireless 2CH relay 3 times continuously, the green
LED will flash quickly, enter the setup mode.
4- Click the ‘Search’ button, the wireless relay will be shown as below
5- Select the mode, you will be able to change its ID and remark it (the subnet ID must be
same as the gateway)
User Manual
HDL-MPR02-RF.18
Wireless Relay – User Manual
6
6- Click ‘Modify Setting of Selection’, then all its wireless parameters will follow the
gateway’s (Band, Frequency and PSK).
7- Click ‘all Node Exit Setup’, then the wireless devices will exit the wireless setup mode
8- Go to the HDL Buspro setup tool’s main interface to search and add the wireless relay,
then can start to configure it.
5.1.2 Device Information
Displays the device’s information.
User Manual
HDL-MPR02-RF.18
Wireless Relay – User Manual
7

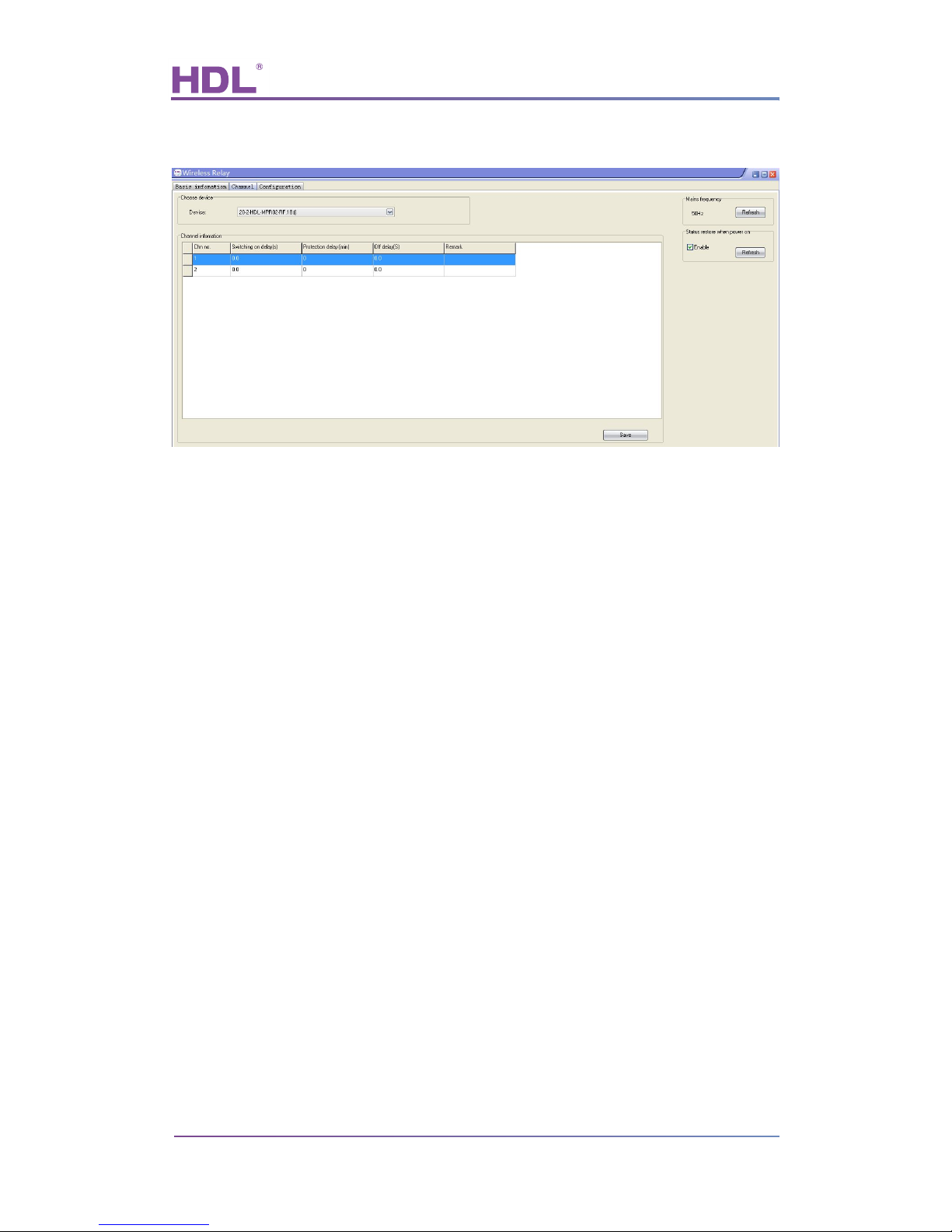

5.2 Channel
5.2.1 Channel Information
Switching on delay: When receives the on command, will not switch on immediately but
after the delay time.
Protection delay: If a protection delay of 1 minute is set, and the relay channel is turned
off, it cannot be turned on again until 1 minute later. This is useful for loads which are not
suitable to be rapidly turned on and off.
Off delay: when receives the off command, will not switch off immediately but after the
delay time.
Remark: Do the remark for easy management.
5.2.2 Mains frequency
It supports 50Hz/60Hz
5.2.3 Status restore when power on
Click ‘Enable’, when power on the wireless relay, it will turn back to the status before
power off.
User Manual
HDL-MPR02-RF.18
Wireless Relay – User Manual
8

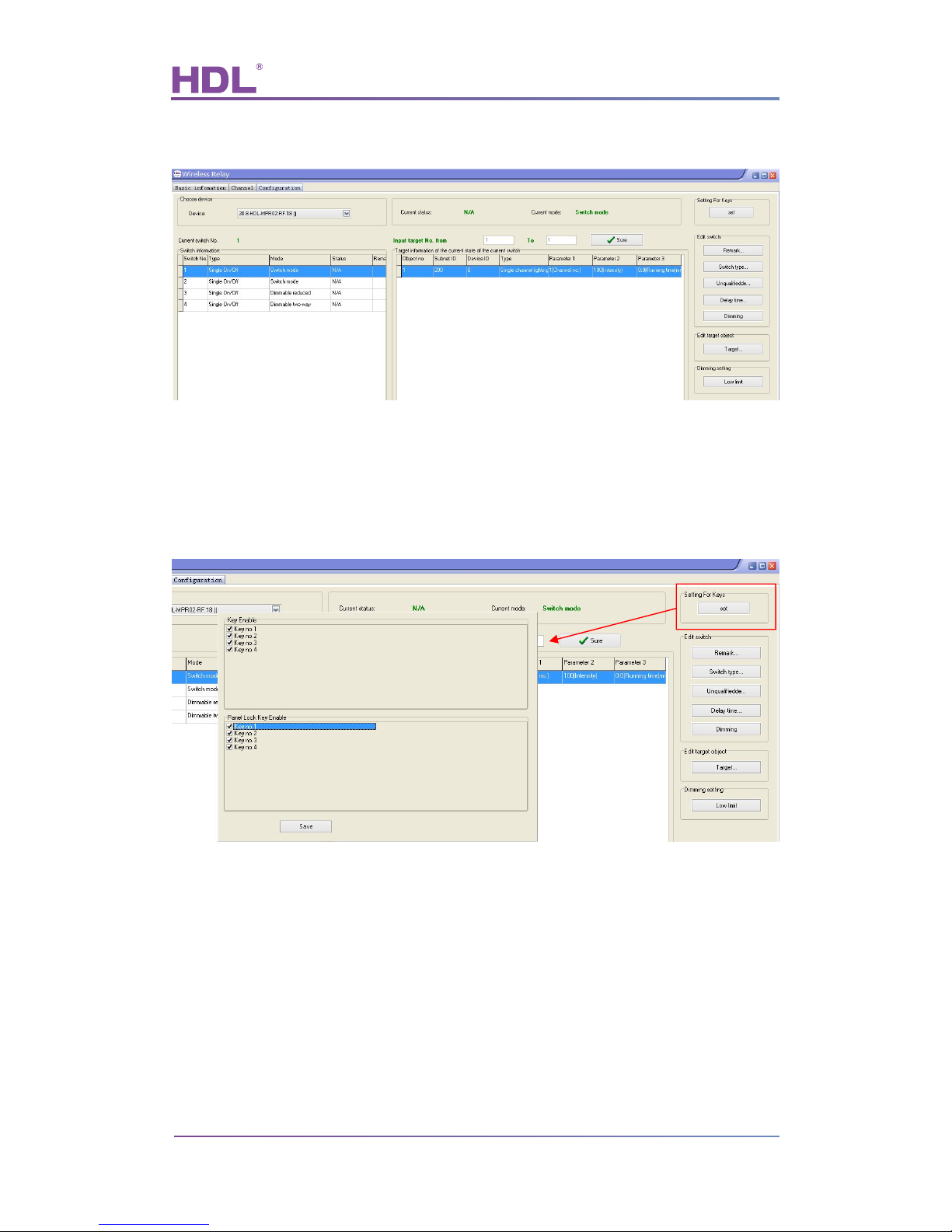

5.3 Configuration
This relay module has 4 dry contact inputs, they have the same functions as wired dry
contact module.
5.3.1 Setting For Keys
Key Enable: enable/disable the channels
Panel Lock Key Enable: If be selected, can use panel to lock/unlock this channel.
5.3.2 Remark
Do the remark for easy management.
User Manual
HDL-MPR02-RF.18
Wireless Relay – User Manual
9
5.3.3 Switch type
Two different Switch types - Momentary and Toggle
You can find two different types of switch from the market.
Momentary Switch - When pressed, it is on, when released, it is off.
If “ Electrical switch ” is selected for this kind of switch, a momentary effect can be
produced.
Toggle Switch–It is bi-stable switch, you can set it on or off.
Generally select “Mechanic switch” mode for this kind of switch.
Switch type:
Mechanic Switch
Send out a command (generally the on command, e.g., light on.) when Switch is
User Manual
HDL-MPR02-RF.18
Wireless Relay – User Manual
10
connected, send out another (generally the off command) when the Switch is
disconnected.
Single on
Assign the Switch can turn on one object only (one channel, or one scene, or one
sequence, etc.)
Single off
Assign the Switch can turn off one object only (one channel, or one scene, or one
sequence, etc.)
Single on/off
Assign the Switch can turn on/off one object only (one channel, or one scene, or one
sequence, etc.)
Combination on
Assign the Switch can turn on multiple objects (channels, scenes, sequence, etc.)
Combination off
Assign the Switch can turn off multiple objects (channels, scenes, sequence, etc.)
Combination on/off
Assign the Switch can turn on/off multiple objects (channels, scenes, sequence, etc.)
Multi-function
Long press – combination off (or dim, if dimming is enabled in the Dry Contact module.
Dim the first object only, though.)
Short press – single on/off
Double click – Combination on
This mode can be used in, maybe, meeting, by double-click all the lighting can be on, by
long-press, all lighting can be off, this can avoid mishandling and so it is more secure.
Parallel Switch
This key mode is originally designed for retrofit project where the end-users want to
implement HDL wireless system, but they want to reserve the existing toggle buttons, the
toggle buttons are to control one public area lighting (e.g., stair lighting) from multiple
places.
User Manual
HDL-MPR02-RF.18
Wireless Relay – User Manual
11
Wiring
Connect the two toggle buttons to two different dry contact channels
Setting
Select “Parallel switch” for both dry contact channels
5.3.4 Unqualifiedde
Each channel can set the mode
Switch mode: on/off control
Dimmable increase: long press to dim up
Dimmable reduced: long press to dim down
Dimmable two-way: long press to dim up, long press again can dim down
5.3.5 Delay time
Only the “Mechanic switch” switch type has the delay time.
User Manual
HDL-MPR02-RF.18
Wireless Relay – User Manual
12

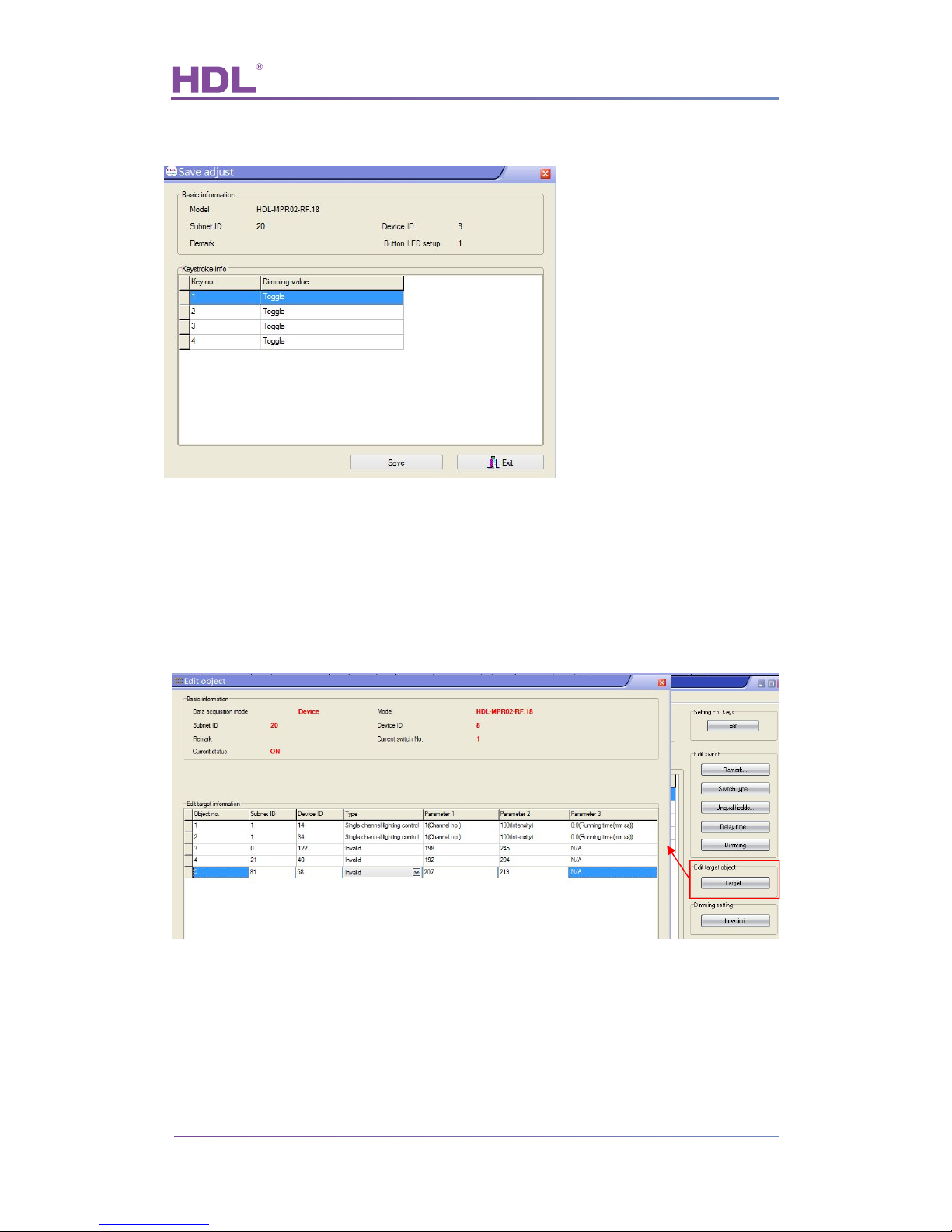

5.3.6 Dimming
Key no. : channel no./ switch no.
Dimming value:
Toggle- when turn on light, the brightness will go to 100%
Memory- save the brightness, when turn on light, the brightness will go to last brightness
before turn off
5.3.7 Target
Can set each channel’s controlled targets, the target’s range is 1~20.
User Manual
HDL-MPR02-RF.18
Wireless Relay – User Manual
13
5.3.8 Low limit
Set the dimming lower limit.
The Lower limit is useful if you would like to skip the low level segment and dim from a
certain level, say 50%. You want to skip it because maybe lower than 50% is impractical
for you or maybe the load quality is not so good and trembles when at low level segment.
User Manual
HDL-MPR02-RF.18
Wireless Relay – User Manual
14
6. Note
……………………………………………………………………………………………………….
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
