4K Vertex² 18Gbps
User Manual 4K Vertex² Rev 1.00
2
4K Vertex² – User Manual
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
3
4K Vertex² – User Manual
Table of content
Vertex² Overview ...................................................................................................................................... 5
Connecting Cables to Vertex² ................................................................................................................... 6
Vertex² Power/Status OLED ...................................................................................................................... 7
Vertex² Menu/Toggle Button .................................................................................................................... 8
Vertex² Info/Exit Button ............................................................................................................................ 9
Vertex² Out1/Up Button ......................................................................................................................... 10
Vertex² Out0/Down Button .................................................................................................................... 11
Help on Jack connections ........................................................................................................................ 12
Help on AUDIO/CEC/ARC/eARC connections ......................................................................................... 13
Vertex² OLED Menu ................................................................................................................................ 14
Accessing Vertex² Web Server ................................................................................................................ 16
Vertex² Web Server Top section ............................................................................................................. 17
Vertex² Web Server INFO Section ........................................................................................................... 18
Vertex² Web Server EDID Section ........................................................................................................... 19
List of Custom EDID available. ................................................................................................................ 20
Vertex² Web Server SCALER Section ....................................................................................................... 24
Vertex² Web Server HDR/DV Section...................................................................................................... 26
Vertex² Web Server OSD Section ............................................................................................................ 30
Vertex² Web Server CEC/RS232 Section ................................................................................................. 32
Vertex² Web Server MACROS Section .................................................................................................... 34
Vertex² Web Server CONFIG Section ...................................................................................................... 35
Updating your Vertex² Firmware via web browser ................................................................................ 38
CONFIG Export section of web server ..................................................................................................... 40
RS232 and IP/Telnet Command List ........................................................................................................ 45
IR Code List .............................................................................................................................................. 55
FAQ .......................................................................................................................................................... 99
Highlight Hardware Features: ............................................................................................................... 102
Highlight Video Features: ...................................................................................................................... 103
Highlight Audio Features: ..................................................................................................................... 104
Highlight Convenience Features: .......................................................................................................... 105
Highlight HDCP Features: ...................................................................................................................... 106
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
4
4K Vertex² – User Manual
Main Specifications ............................................................................................................................... 107
Supported Audio/Video Signals ............................................................................................................ 108
Technical Specifications ........................................................................................................................ 108
Certifications ......................................................................................................................................... 109
Pro Tips ................................................................................................................................................. 110
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
5
4K Vertex² – User Manual
Vertex² Overview
Team HDfury would like to thank you personally for purchasing the 4K Vertex²!
This unique HDMI2.0b device supports up to 4 inputs for true full 4K60 4:4:4 600MHz 18Gbps bandwidth
signals. It will allow you to solve any HDCP error, extract full HDMI audio from any HDMI sources and up
to Atmos HBR over TrueHD from eARC TVs to feed older AVR and Matrix any SD/HD/FHD/UHD/HDR/DV
or PC signals up to 600MHz. Upscale to 4K or downscale to 1080p any channel individually, display
relevant information on OLED/OSD, select between multiple edid banks for each inputs. Inject, replace
or translate HDR metadata and AVI infoframe. It is also capable of auto switching any sources including
X1X, ATV4K, Shield, etc… Based on incoming content type it can send relevant RS232 commands to any
RS232 controllable display. Control can be completed with IR codes, push buttons on the unit, via IP or
RS232 (MAC/WIN/Linux) or through embedded Webserver (for any web browser based device such as
MAC/WIN/Linux computer or Android/iOS phones, tablets and others).
Additionally, Vertex² offers a unique +5V management at output to solve standby issue of any sinks.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
6
4K Vertex² – User Manual
• HDMI/HDCP 1.x devices must be connected to 1080p Downscale TX1 Output
• Make sure that you are using 600MHz certified or tested HDMI 4K cable if you
plan to set up a 4K60 4:4:4 8b/ 4K60 4:2:2 12b 600MHz/18Gbps link in your setup.
Connecting Cables to Vertex²
• Connect Power connector from Power supply (110-240V 1.2A IN & 12V 1A OUT).
• Connect a source via HDMI input cable to ANY HDMI input.
• Connect any other HDMI, sound, IR or RS232 cable that you might need (optional)
• HDMI cable must support 18Gbps if any 18Gbps source/sink is connected (except for Audio Out)
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
7
4K Vertex² – User Manual
Vertex² Power/Status OLED
The Vertex² OLED will turn ON when power supply is applied; Vertex² Logo will be displayed followed by
a similar default infopage to the one represented below.
[192.168.1.117]: Vertex² IP address will be displayed here if LAN CONTROL RJ45 output is connected to
your LAN/WAN router/switcher. mDNS and other way are available if you cycle OLED infopage.
[FW: 0.6]: Firmware Version of Vertex² is reported here.
If any active input is connected, the default OLED infopage will indicate which input is active (IN1 on
above pic). Vertex² will process handshake with the active input and once completed the signal
information will be displayed. 4K50 4:2:2 BT2020 12b LLDV 594MHz 2.2 on above pic.
If any sink is connected at TX0 output, TX0 section of the default OLED infopage will report its EDID
name (LG TV on above pic) and its max supported resolution (4K60 4:4:4 8b BT2020 HDR on above pic)
on the first line. Second line will display the current signal going to it, the small arrow on the right
indicate if signal is Upscaled ↑, Downscaled ↓or passing thru untouched →
[OLED OFF]: Insufficient power, OLED timer expired (default 30s) or OLED OFF. Use the Vertex² power
supply; press any button if OLED timer expired and make sure the OLED is ON (refer to p.35).
[OLED ON]: The Vertex² unit is receiving power and is ready to accept an HDMI signal.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
8
4K Vertex² – User Manual
Vertex² Menu/Toggle Button
The 4K Vertex² offers 2 functions per push button.
[MENU] Wake up from sleep/fade mode and/or Enter Vertex² OLED MENU.
[TOGG] When you are in Vertex² OLED MENU, the TOGGLE button allows you to change and cycle any
setting value.
Note: You can also control and change settings with IR codes, through IP Control or RS232 for
MAC/WIN/Linux or from the embedded Webserver for MAC/WIN/Linux PC or via Android/iOS
smartphone/tablet or any web browser based device.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
9
4K Vertex² – User Manual
Vertex² Info/Exit Button
The 4K Vertex² offers 2 functions per push button.
[INFO] Wake up from sleep/fade mode and/or Cycle OLED infopage: INFO > LAN INFO > HDR INFO > …
[EXIT] When you are in Vertex² OLED MENU, the EXIT button allows you to exit OLED MENU.
Note: You can also control and change settings with IR codes, through IP or RS232 for MAC/WIN/Linux
or from the embedded Webserver for MAC/WIN/Linux PC or via Android/iOS smartphone/tablet or any
web browser based device.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
10
4K Vertex² – User Manual
Vertex² Out1/Up Button
The 4K Vertex² offers 2 functions per push button.
[OUT1] Wake up from sleep/fade mode and/or set and switch active or inactive inputs for TX1 output.
[UP] When you are in Vertex² OLED MENU, the UP button allows you to navigate upward.
Vertex² OLED/OSD will report info for up to two active inputs in default Matrix mode.
Note: You can also control and change settings with IR codes, through IP or RS232 for MAC/WIN/Linux
or from the embedded Webserver for MAC/WIN/Linux PC or via Android/iOS smartphone/tablet or any
web browser based device.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
11
4K Vertex² – User Manual
Vertex² Out0/Down Button
The 4K Vertex² offers 2 functions per push button.
[OUT0] Wake up from sleep/fade mode and/or set and switch active or inactive inputs for TX0 HDMI
output.
[DOWN] When you are in Vertex² OLED MENU, the DOWN button allows you to navigate downward.
Vertex² OLED/OSD will report info for up to two active inputs in default Matrix mode.
Note: You can also control and change settings with IR codes, through IP or RS232 for MAC/WIN/Linux
or from the embedded Webserver for MAC/WIN/Linux PC or via Android/iOS smartphone/tablet or any
web browser based device.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
12
4K Vertex² – User Manual
ADD ON IN/OUT
Not yet used.
SPDIF or L/R Analog
OUT
Extract HDMI sound coming
from any source devices at
Vertex² inputs. SPDIF can also
output ARC from TX0
RS232 IN/OUT
Control Vertex² from
Mac/Win/Linux computer or
command any RS232 capable
display or equipment based
on incoming signal types.
INPUT IR
WINDOW
For local Vertex²
Central control. A
system controller will
connect an IR TX LED
on top here.
INPUT JACK
For a direct
connection from
system controller.
It does not use
LED/Light. For local
Vertex² Central
control.
BACK
FRONT
INPUT IR JACK
For an IR RX cable with LED
receiver. In case, for example,
if IR window is not in line of
sight. For Vertex² Central
control.
Help on Jack connections
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
13
4K Vertex² – User Manual

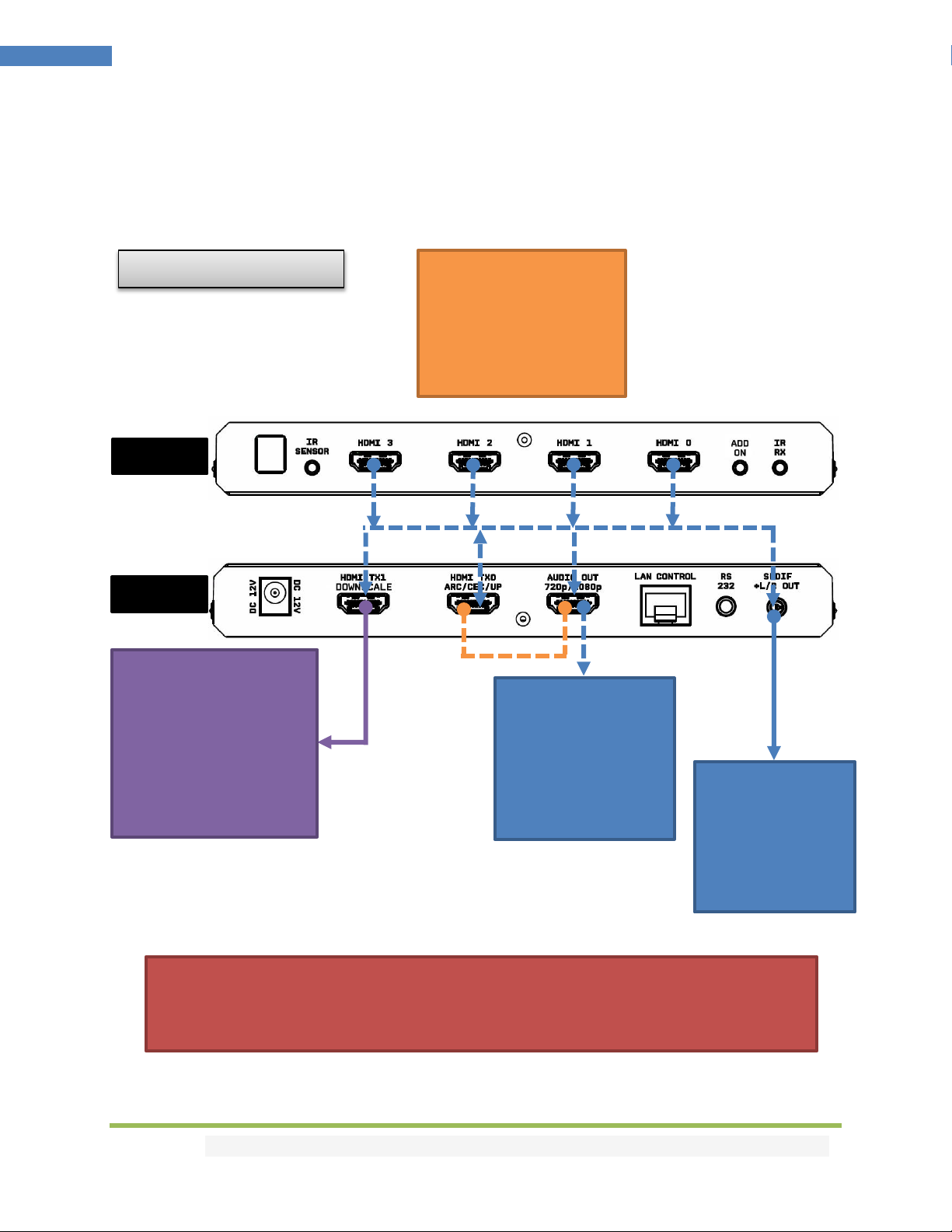

OLDER AVR/SINK
OUTPUT
Any 1080p HDR or SDR only
capable equipment can be
connected to this output and get
full HDMI sound and video.
Make sure the EDID presented by
Vertex² to the sources at inputs
reflects its audio capabilities.
FRONT
BACK
eARC LINK
Vertex² can extract up to Atmos
HBR over TrueHD from capable
eARC TV connected at TX0 and
output it via AUDIO OUT to feed
any AVR input capable of decoding
such format.
HDMI AUDIO
OUTPUT
Self-generated 720p/1080p
video signal that can include
full audio from:
Any source devices at Vertex²
inputs, eARC or ARC from TX0.
SPDIF or L/R
Analog OUT
Extract HDMI sound
coming from any source
devices at Vertex² inputs.
SPDIF can also output ARC
from TX0.
No Audio format manipulation.
Vertex² cannot manipulate Audio and otherwise transform Audio format, what comes IN goes OUT untouched.
Therefor if you plan to extract STEREO, incoming signal from HDMI source at Vertex² inputs should be STEREO.
If incoming signal from HDMI inputs are superior to STEREO (ex ATMOS) then STEREO output cannot be used.
CEC Master is always TX0
Help on AUDIO/CEC/ARC/eARC connections
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
14
4K Vertex² – User Manual

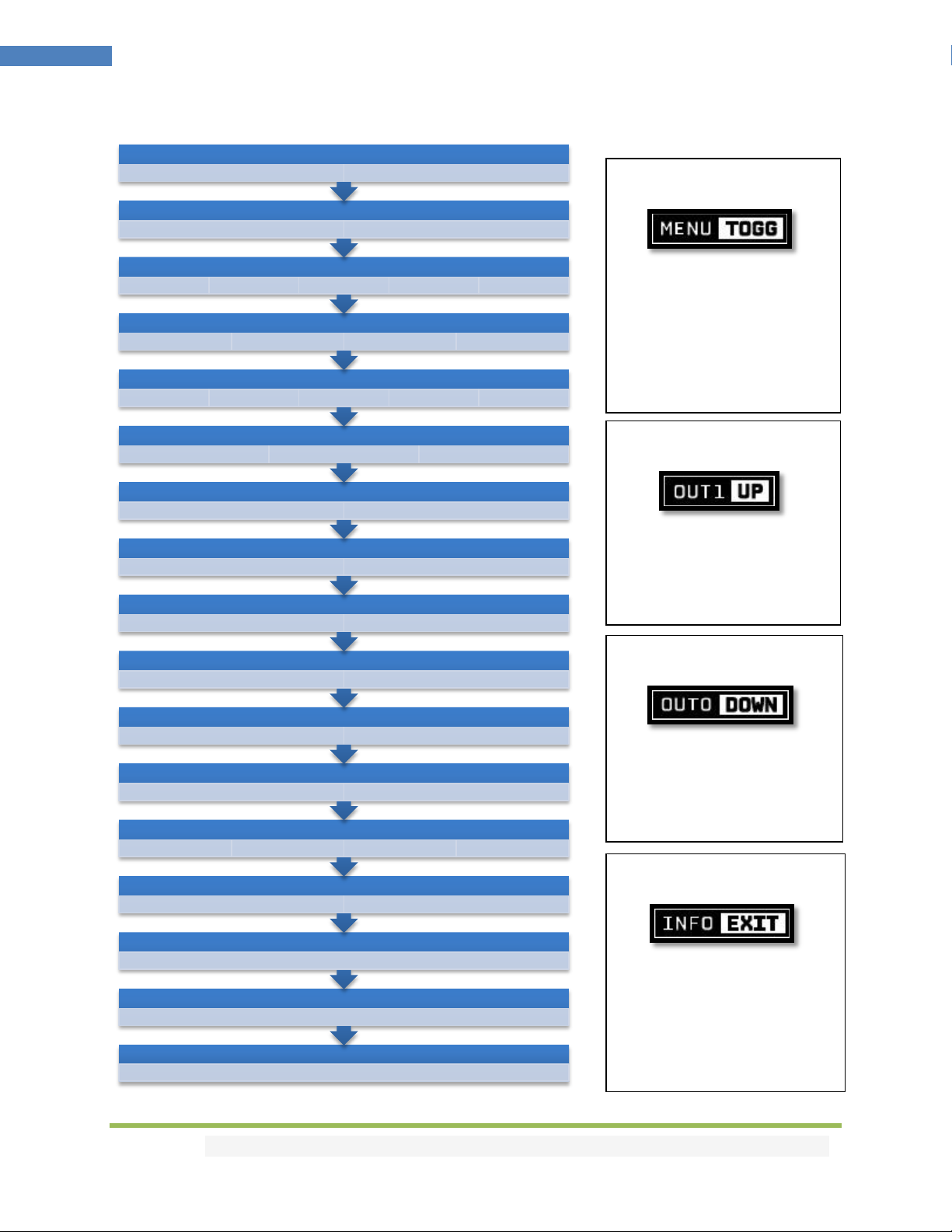

ANALOG TREBLE
0 [-10/+10]
ANALOG BASS
0 [-10/+10]
ANALOG VOLUME
0 [-30/+10]
DHCP
ON OFF
BAUD RATE
1-19200 2-57600 3-115200 4-9600
ARC HBR
ON OFF
CEC LA
0-VIDEO [0x0E] 1-AUDIO [0x05]
CEC
ON OFF
HDCP
AUTO 1.4
MUTE TX1 AUDIO
ON OFF
MUTE TX0 AUDIO
ON OFF
SCALE MODE
NONE AUTO CUSTOM
EDID ALGO
4-MAX ALL 0-NORMAL 1-MAX AUDIO PRIO TX0 PRIO TX1
EDID TABLE
EDID 0 EDID 1 EDID 2 EDID 3
EDID MODE
CUSTOM COPY TX1 COPY TX0 AUTOMIX FIXED
AUTOSWITCH PRIORITY
YES NO
AUTOSWITCH
YES NO
Press MENU once to enter
Vertex² OLED Menu.
Once you are in Vertex² OLED
Menu press the same menu
to TOGGLE choice
Once you are in the Vertex²
OLED Menu. Press the UP
button to navigate upward.
Once you are in the Vertex²
OLED Menu. Press DOWN
button to navigate downward
To EXIT the Vertex² OLED
Menu. Press EXIT button or let
menu idle for a while and it
will EXIT automatically.
Vertex² OLED Menu
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
15
4K Vertex² – User Manual
[Autoswitch] : ON/OFF
[Autoswitch Priority]: ON/OFF
[EDID Mode]: Custom / Copy TX1/Copy TX0/Automix/Fixed
[EDID TABLE]: EDID 0/EDID 1/EDID 2/EDID 3
[EDID Algo]: 4-Max All / 0-Normal / 1-Max Audio / Prio TX0 / Prio TX1
[SCALE Mode]: None / Auto / Custom
[Mute TX0 Audio ]: ON / OFF
[Mute TX1 Audio]: ON / OFF
[HDCP]: AUTO / 1.4
[CEC]: ON / OFF
[CEC LA]: 0-Video [0x0E] / 1-Audio [0x05]
[ARC HBR]: ON/OFF
[Baud Rate]: 1-19200 / 2-57600 / 3-115200 / 0-9600
[DHCP] : ON/OFF
[Analog Volume] : 0 [-30 / +10]
[Analog Bass]: 0 [-10 / +10]
[Analog Treble]: 0 [-10 / +10]
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
16
4K Vertex² – User Manual
Accessing Vertex² Web Server
It is mandatory for accessing Vertex² web server to have an Ethernet cable connected between LAN
CONTROL RJ45 connector and your local router or switcher.
By default Vertex² use DHCP to retrieve an assigned IP automatically. You can set static IP from the
Vertex² webserver config page.
In case you have setup a wrong Static IP and unit is not reachable anymore, you can set DHCP ON from
OLED menu to retrieve access via dynamically assigned IP again (as in default mode).
There is 3 ways of accessing the Vertex² web server:
1. Universal way through IP address:
Simply open up a web browser on any devices located on the same network than the Vertex²
unit and type in the IP address that appears on the Vertex² OLED directly in the address bar of
your web browser. (ex: 192.168.1.137)
2. Hostname access:
Instead of typing IP address directly, you can use the Hostname listed on Vertex² OLED LAN INFO
page (press INFO button to cycle OLED page till you see LAN INFO and Hostname listed).
Simply open up a web browser from any devices located on the same network than the Vertex²
unit and type in the Hostname that appears on the Vertex² OLED directly in the address bar of
your web browser. (ex: http://VERTEX2-XX/)
XX represents the 2 last digits of your Vertex² unit unique serial number.
3. mDNS access:
For iOS/MAC devices, you might want to use mDNS access. Retrieve the mDNS address from
Vertex² OLED LAN INFO page (press INFO button to cycle OLED page till you see LAN INFO and
mDNS address listed). Simply open up a web browser on any MAC/iOS devices located on the
same network than the Vertex² unit and type in the mDNS address that appears on the Vertex²
OLED directly in the address bar of your web browser. (ex: http://VERTEX²-XX.local/)
XX represents the 2 lasts digits of your Vertex² X unit unique serial number.
Please note that only IP address access is universal and should work across any web browser based
devices as long as they are located on the same network. Others methods should work just fine in many
cases but we cannot guarantee that they will always do, in case of issue accessing the webserver, please
use IP address.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
17
4K Vertex² – User Manual
Vertex² Web Server Top section
Immediately upon accessing the webserver you will end up on the default INFO page with the above top
tier section displayed.
From that top tier section you will be able to retrieve the following information (also displayed on
Vertex² OLED default page and once you cycle info page with INFO button to reach LAN page info).
Hostname: Display Vertex² hostname for URL access
mDNS: Display Vertex² mDNS for URL access
IP Address: Display the current IP Address of the Vertex²
FW: Display the current FW running on the Vertex². (ex 0.22)
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
18
4K Vertex² – User Manual
Vertex² Web Server INFO Section
SOURCE: When available, Display active source name currently outputting thru TX0 or TX1 output.
IN TX0/IN TX1: Display the source name original video signal going thru TX0 or TX1 output.
VIDEO TX0/TX1: Display the real video signal (if any operation on it) going out thru TX0 or TX1 output.
AUDIO TX0/TX1: Display the audio signal info going out thru TX0 or TX1 output.
EDID TX0/TX1: Display the EDID max capabilities of any connected sink at TX0 or TX1 output.
PORT SELECTOR: Allow you to select which input is routed to TX0 or TX1 output.
REFRESH: Refresh the current page.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
19
4K Vertex² – User Manual
Vertex² Web Server EDID Section
[COPY TX0 SINK]: Use EDID from the device connected at TX0 output.
[COPY TX1 SINK]: Use EDID from the device connected at TX1 output.
[FIXED EDID]: Use a 4K60 4:2:0 8b 300MHz 2ch Audio EDID.
[CUSTOM]: Define individual EDID for each input from a list of 10 custom and 90 predefined EDID.
[AUTOMIX]: Use dynamic EDID created by a choice of 5 EDID Algo and 14 EDID Flags.
[DOWNLOAD ACTIVE EDID TABLES]: Download any EDID from any inputs or outputs.
[UPLOAD EDID TABLES]: Select an EDID file and a Custom EDID Table# click SEND EDID to upload it.
[REFRESH]: Refresh the current page.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
20
4K Vertex² – User Manual
List of Custom EDID available.
User can select an EDID from all below EDID tables or force the creation of an Automix EDID with below
options.
[FIXED EDID with L/R stereo]
This mode is a 4K60 4:2:0 8b 300MHz stereo EDID table. It can be used as a security EDID to ensure a
picture in every setup/situation. (Except for FHD and 4K30 Max sink device)
[CUSTOM USE]
Pick and use EDID from a selection of preloaded EDID tables or load any EDID bank of your choice. By
default the selected EDID table is a 4K60 4:4:4 600MHz with Full Audio capabilities. When you select an
EDID bank from the dropdown list of 100 different EDID tables available, there is nothing else to do,
once you click one, the EDID of your choice will be loaded and HPD events will reset the signal to present
your selected EDID automatically. Each input can have an individual EDID assigned.
1. CUSTOM 1 [Default FULL no DV] + Full Sound + 3D
2. CUSTOM 2 [FULL + LG DV] + Full Sound + 3D
3. CUSTOM 3 [FULL + VIZIO DV] + Full Sound + 3D
4. CUSTOM 4 [Q9FN ALLM VRR HDR10+] + Full Sound + 3D
5. CUSTOM 5 [SONY A1 LLDV V2] + Full Sound + 3D
6. CUSTOM 6 [LG35C7 DV V1] + Full Sound + 3D
7. CUSTOM 7 [VIZIO M50E1 DV V0] + Full Sound + 3D
8. CUSTOM 8 [LG C8 LLDV] + Full Sound
9. CUSTOM 9
10. CUSTOM 10
11. 4K60-444 600MHz HDR BT2020 All Sound
12. 4K60-444 600MHz HDR BT2020 SPDIF
13. 4K60-444 600MHz HDR BT2020 Stereo
14. 4K60-444 600MHz BT2020 All Sound
15. 4K60-444 600MHz BT2020 SPDIF
16. 4K60-444 600MHz BT2020 Stereo
17. 4K60-444 600MHz All Sound
18. 4K60-444 600MHz SPDIF
19. 4K60-444 600MHz Stereo
20. 4K50-444 600MHz HDR BT2020 All Sound
21. 4K50-444 600MHz HDR BT2020 SPDIF
22. 4K50-444 600MHz HDR BT2020 Stereo
23. 4K50-444 600MHz BT2020 All Sound
24. 4K50-444 600MHz BT2020 SPDIF
25. 4K50-444 600MHz BT2020 Stereo
26. 4K50-444 600MHz All Sound
27. 4K50-444 600MHz SPDIF
28. 4K50-444 600MHz Stereo
29. 4K60-420 12bit HDR BT2020 All Sound
30. 4K60-420 12bit HDR BT2020 SPDIF
31. 4K60-420 12bit HDR BT2020 Stereo
32. 4K60-420 12bit BT2020 All Sound
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
21
4K Vertex² – User Manual
33. 4K60-420 12bit BT2020 SPDIF
34. 4K60-420 12bit BT2020 Stereo
35. 4K60-420 12bit All Sound
36. 4K60-420 12bit SPDIF
37. 4K60-420 12bit Stereo
38. 4K60-420 8-bit 300MHz HDR BT2020 All Sound
39. 4K60-420 8-bit 300MHz HDR BT2020 SPDIF
40. 4K60-420 8-bit 300MHz HDR BT2020 Stereo
41. 4K60-420 8-bit 300MHz BT2020 All Sound
42. 4K60-420 8-bit 300MHz BT2020 SPDIF
43. 4K60-420 8-bit 300MHz BT2020 Stereo
44. 4K60-420 8-bit 300MHz All Sound
45. 4K60-420 8-bit 300MHz SPDIF
46. 4K60-420 8-bit 300MHz Stereo
47. 4K30-444 300MHz HDR BT2020 All Sound
48. 4K30-444 300MHz HDR BT2020 SPDIF
49. 4K30-444 300MHz HDR BT2020 Stereo
50. 4K30-444 300MHz BT2020 All Sound
51. 4K30-444 300MHz BT2020 SPDIF
52. 4K30-444 300MHz BT2020 Stereo
53. 4K30-444 300MHz All Sound
54. 4K30-444 300MHz SPDIF
55. 4K30-444 300MHz Stereo
56. 4K30-RGB 300MHz HDR BT2020 ALL audio
57. 4K30-RGB 300MHz HDR BT2020 SPDIF
58. 4K30-RGB 300MHz HDR BT2020 Stereo
59. 4K30-RGB 300MHz BT2020 ALL audio
60. 4K30-RGB 300MHz BT2020 SPDIF
61. 4K30-RGB 300MHz BT2020 Stereo
62. 4K30-RGB 300MHz ALL audio
63. 4K30-RGB 300MHz SPDIF
64. 4K30-RGB 300MHz Stereo
65. 4K24-422 12-bit HDR BT2020 All Sound
66. 4K24-422 12-bit HDR BT2020 SPDIF
67. 4K24-422 12-bit HDR BT2020 Stereo
68. 4K24-422 12-bit BT2020 All Sound
69. 4K24-422 12-bit BT2020 SPDIF
70. 4K24-422 12-bit BT2020 Stereo
71. 4K24-422 12-bit All Sound
72. 4K24-422 12-bit SPDIF
73. 4K24-422 12-bit Stereo
74. 1080p60-444 12-bit HDR BT2020 All Sound
75. 1080p60-444 12-bit HDR BT2020 SPDIF
76. 1080p60-444 12-bit HDR BT2020 Stereo
77. 1080p60-444 12-bit BT2020 All Sound
78. 1080p60-444 12-bit BT2020 SPDIF
79. 1080p60-444 12-bit BT2020 Stereo
80. 1080p60-444 12-bit All Sound
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
22
4K Vertex² – User Manual
81. 1080p60-444 12-bit SPDIF
82. 1080p60-444 12-bit Stereo
83. 1080p24-444 12-bit HDR BT2020 All Sound
84. 1080p24-444 12-bit HDR BT2020 SPDIF
85. 1080p24-444 12-bit HDR BT2020 Stereo
86. 1080p24-444 12-bit BT2020 All Sound
87. 1080p24-444 12-bit BT2020 SPDIF
88. 1080p24-444 12-bit BT2020 Stereo
89. 1080p24-444 8-bit All Sound
90. 1080p24-444 8-bit SPDIF
91. 1080p24-444 8-bit Stereo
92. 1080i60-444 8-bit All Sound
93. 1080i60-444 8-bit SPDIF
94. 1080i60-444 8-bit Stereo
95. 720p60-444 8-bit All Sound
96. 720p60-444 8-bit SPDIF
97. 720p60-444 8-bit Stereo
98. 480p60-444 8-bit All Sound
99. 480p60-444 8-bit SPDIF
100. 480p60-444 8-bit Stereo
[Automix Mode]:
Create EDID based on mutual capabilities from sinks connected at output so it will always show a picture
and audio (ideal for pass thru). Some Flags can be checked or unchecked so you can force and override
some parameters to match your needs. Ex: If your TV is stereo and your AVR full sound and both are
connected to Vertex² outputs port, then depending of the algo in use, for some of them at least, by
default, Automix will report Stereo as sound capabilities, by checking Full Audio flag you will force
Automix to always report Full Audio no matter the real sound capabilities of the connected sink devices.
Enforceable flags available in Automix mode:
AUDIO Flags: 2.0 Stereo, 5.1 Multi, 7.1 Full Sound, TX0, TX1, Audio Out
HDR Flags: HDR10+, HLG
COLOR Flags: BT.2020/xvYcc, YCbCr Remove, 3D Remove
DV Flags: DV Force Metadata, DV Remove, DV Limit 300MHz
[2.0 Stereo]: Force the mixed EDID to present stereo sound capabilities.
[5.1 Multi]: Force the mixed EDID to present 5.1 multi-channel sound capabilities.
[7.1 Full]: Force the mixed EDID to present Full 7.1 sound capabilities.
[TX0]: Force the mixed EDID to present the max audio capabilities from sink at TX0 output.
[TX1]: Force the mixed EDID to present the max audio capabilities from sink at TX1 output.
[AUDIO OUT]: Force the mixed EDID to present the max audio capabilities from sink at Audio output.
[HDR 10+]: Force the mixed EDID to present HDR10+ support.
[HLG]: Force the mixed EDID to present the HLG support.
[2020/xvYCC]: Force the mixed EDID to present BT2020 and xvYCC support.
[no YCbCr]: Force the mixed EDID to present no support for YCbCr (useful to force RGB).
[no 3D]: Force the mixed EDID to present no support for 3D.
[DV Force Metadata]: Force the mixed EDID to present Dolby Vision support.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
23
4K Vertex² – User Manual
[DV Remove]: Force the mixed EDID to present no support for Dolby Vision.
[DV Limit 300MHz]: Force the mixed EDID to only present support for Dolby Vision at 300MHz.
Selectable algorithms available in Automix mode:
-Min Mixed Capabilities
-Max Audio/Min Video
-TX0 Output Priority
-TX1 Output Priority
-Max Audio/Max Video
Note: All options are also available via IR/IP or RS232
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
24
4K Vertex² – User Manual
Vertex² Web Server SCALER Section
[No Scaling]: Set your unit to No Scaling for the signal to pass-through untouched
[Custom Scaling]: Set your Vertex² unit to Custom Scaling to manually define the scaling parameters.
You can select between various type of resolutions, color space and deep color settings for TX0 Upscale
output port and TX1 Downscale port.
Available Color Space options: Follow Input (default), RGB FULL, RGB BT2020, 4:4:4 BT.709, 4:4:4
BT2020, 4:2:2 BT.709, 4:2:2 BT2020, 4:2:0 BT.709, 4:2:0 BT2020.
Available Deep Color options: Follow Input (default), 8-bit/24-bit, 10-bit/30-bit, 12-bit/36-bit, 16-bit/48bit
Available 1080P60 Upscale options: SCALE to 4K60, REMAIN 1080P60
Available 1080P30 Upscale options: SCALE to 4K30, REMAIN 1080P30
Available 4K60 Downscale options: REMAIN 4K60, SCALE to 1080P60
Available 4K30 Downscale options: SCALE to 4K30, SCALE to 1080P30
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
25
4K Vertex² – User Manual
[SEND]: Upload your custom scaling changes to the Vertex² unit.
[Auto Scaling]: Set your unit to Auto Scaling to use automatic pre-sets for TX1. By default unit will use
auto-sense.
[TX1 4K60 SDR PRESET]: This forces any 4K50 or 4K60 input to come out as 4K60 420 8bit 300MHz or
1080p60 444 12-bit or 1080p60 444 8-bit. A neat profile for people who only have a 300MHz display
with 4K60 420 8-bit support or older HDMI revision equipment that only support 1080p (deep color or
not). If EDID allows the player to send HDMI 2.0 formats, they will be accepted by the display due to
Vertex² scaling/chroma changes.
[TX1 4K60 HDR PRESET]: This forces 4K50 and 4K60 422 HDR input to come out as 4K60 420 12-bit, 4k60
420 8-bit 300MHz or 1080p60 444 12-bit or 1080p60 444 8-bit. A neat profile for people who only have
a 300MHz display with 4K60 420 10 or 8-bit support. If EDID allows the player to send HDMI 2.0 formats,
such as all HDR modes, they will be accepted by the display due to Vertex² scaling/chroma changes.
[TX1 4K30 PRESET]: This forces any 4K24/25/30 to come out as 4K24/25/30 444/RGB 8-bit 300MHz,
1080p30 444 12-bit or 4K24/25/30 422 12-bit 300MHz. A neat profile if you have a 300MHz display. If
EDID allows the player to send HDMI 2.0 formats, they will be accepted by the display due to Vertex²
scaling/chroma changes.
[TX0 NO UPSCALING]: By default when using Auto Scaling, Vertex² will upscale TX0 when possible, to
disable this behavior or to let the sink/display performs the upscaling, you can check this option.
[REFRESH]: Refresh the current page.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
26
4K Vertex² – User Manual
Vertex² Web Server HDR/DV Section
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
27
4K Vertex² – User Manual
[CAPTURED HDR METADATA]: If the source at input is sending HDR InfoFrame metadata then the
information is captured, extracted and displayed in this text box. HDR metadata is also deciphered and
displayed in human readable format.
[CUSTOM HDR METADATA GENERATOR]: This section will allow you to create your own custom HDR
metadata and inject it on the current signal by adding it or replacing the existing HDR metadata.
[Use custom HDR for TX0 and TX1]: Unchecked by default, once activated it will turn ON the HDR mode
of any HDR display. Upon clicking Use custom HDR for TX0 and TX1 the CUSTOM HDR IF that is defined
by dropdowns and input fields below and then created [Create IF] and displayed in the text box in HEX
format gets sent. This way you can define what the InfoFrame actually is. This is stored also in Vertex²
and is persistent over hot-plugs and power cycles. If incoming signal is already HDR, the original HDR
metadata that comes with will be ignored [ignore RX HDR].
[Use custom HDR for TX0 and TX1 when input is HDR10]: Unchecked by default, once activated it will
turn ON the HDR mode of any HDR display only if incoming signal is already HDR, the original HDR
metadata that comes with will be ignored [ignore RX HDR].
[Use custom HDR for TX0 and TX1 when input is HLG]: Unchecked by default, once activated it will turn
ON the HDR/HLG mode of any HDR/HLG display only if incoming signal is already HLG, the original HLG
metadata that comes with the input signal will be ignored [ignore RX HLG]. Ex: render HLG content on
HDR display.
[Use custom HDR for TX0 and TX1 when input is HLG and display has no HLG support]: Unchecked by
default, once activated it will turn ON the HDR mode of any HDR/HLG display only if incoming signal is
already HLG and TV have no support for it. Ex: If two TVs are connected and one if HLG and other nonHLG. Then if you turn off the HLG TV the metadata will be automatically changed.
[Disable output HDR for TX0 and TX1 when input is HDR10]: Unchecked by default, once activated
Vertex² will intercept and cancel all incoming HDR10 metadata, HLG metadata will still pass-thru.
[Disable output HDR for TX0 and TX1 when input is HLG]: Unchecked by default, once activated Vertex²
will intercept and cancel all incoming HLG metadata, HDR10 metadata will still pass-thru.
[Disable all output HDR]: Unchecked by default, once activated Vertex² will intercept and cancel all
incoming HDR metadata. [send nothing]
Note: Disable HDR modes was introduced to allow some JVC PJ owners to apply their own Gamma
curves for HDR content and allow their PJ Dynamic Iris to work when content is HDR and/or HLG. They
can be used with others display that allow custom Gamma Curve to be applied on incoming signal or to
boost nits value for some LG TVs or to render HLG content on HDR display, etc..
[EOTF]: Select between SDR Luminance Range, HDR Luminance Range, HLG ITU-R BT.2100-0 or SMPTE
ST 2084 values to be used in the custom HDR metadata creation.
[Primaries]: Select between DCI P3, ITU-R BT 709-5 or ITU-R BT2020-2 values to be used in the custom
HDR metadata creation.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
28
4K Vertex² – User Manual
[White Point]: Select the white point value to be used in the custom HDR metadata creation.
[Max Luminance]: Select the Max Luminance value to be used in the custom HDR metadata creation
(valid from 1 to 65535)
[MaxCLL]: Select the MaxCLL value to be used in the custom HDR metadata creation (valid from 1 to
65535)
[Min Luminance]: Select the Min Luminance value to be used in the custom HDR metadata creation
(valid from 1 to 65535)
[MaxFALL]: Select the MaxFALL value to be used in the custom HDR metadata creation (valid from 1 to
65535)
[Create IF]: Use the previous defined values to create the Custom HDR metadata.
[Send HDR]: Send the custom created HDR metadata. Please note that Enable Custom HDR or any
Custom HDR modes must be activated first, to stop the sending of the custom HDR metadata, uncheck
Enable Custom HDR. If Enable Custom HDR is activated then by pressing the Send HDR button, the
metadata injection does not stop, it just changes values, useful to avoid TV resync.
[Default Value]: Restore the default HEX value of the custom HDR metadata.
[CAPTURED AVI METADATA]: If the source is sending AVI infoFrame then the information is captured,
extracted and displayed in this text box on GUI. HEX value is deciphered and VIC, Colorimetry and Range
are exposed in human readable format.
[CUSTOM AVI INFOFRAME GENERATOR]: Build and send out any custom AVI Infoframe of your choice.
[Use custom AVI]: Upon clicking Use custom AVI, the IF that is defined in the Custom AVI text box gets
used. This way you can define what the InfoFrame actually is. This is stored also in Vertex² and is
persistent over hotplugs and power cycles. This way customer can for example activate BT2020 mode in
the TV even though content doesn't sent the correct InfoFrame. The AVI mod is really meant for
advanced users only because incorrect values can blank the screen and since the settings are saved even
power up won't help until reset.
[Disable AVI]: When checked, Disable AVI will prevent AVI InfoFrame from source to reach the
connected sink at Vertex² output and also stop sending Custom AVI if set previously. This feature can be
useful for some DVI display or some monitor that do not work well when receiving an AVI InfoFrame.
[VIC]: Select the VIC code to use in the Custom AVI Hex field.
[Primaries]: Select the Primaries value to use in Custom AVI Hex field
[Range]: Select the range value to use in the Custom AVI Hex field.
[Create IF]: Use the previous defined values to create the Custom AVI metadata.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
29
4K Vertex² – User Manual
[Send AVI]: Replaces the current incoming AVI with the custom defined one in the text box. This way
customer can for example activate BT2020 mode in the TV even though content doesn't sent the correct
InfoFrame. This string is also saved in Vertex² and is persistent over hotplugs and power cycles.
The AVI mod is really meant for advanced users only because incorrect values can blank the screen and
since the settings are saved even power up won't help until reset. Please note that upon clicking, Use
Custom AVI will automatically send the current stored AVI metadata value, to stop the sending of the
custom AVI infoframe, uncheck Use Custom AVI. If Use Custom AVI is activated then by pressing the
Send AVI button, the infoframe injection does not stop, it just changes values, useful to avoid TV resync.
[CAPTURED INPUT DOLBY VISION METADATA]: Dolby ID and HEX data from the DV source.
[DOLBY VISION EDID DATABLOCK]: Vertex² will automatically sniff, display and save any Dolby Vision
mandatory string from a connected sink at TX0 output. Once stored, this mandatory string can be used
in Automix to ensure that the DV stream from the source is compatible with the sink. Once the DV string
of a display is saved, you can insert other equipment like an AVR in between in the chain and still have
the right DV signal passthru to the sink. Additionally, the datablock value is fully deciphered in human
readable format.
[SPD INFOFRAME]: Display the captured Source Product InfoFrame.
[AUD INFOFRAME]: Display the captured Audio Format information, if PCM this usually gives the sample
rate and number of speakers, if bitstream then usually this infoframe just inform the default which is
“refer stream header”.
[HVS INFOFRAME: HDMI VENDOR SPECIFIC]: Display HDMI Vendor Specific InfoFrame.
[VSI INFOFRAME: VENDOR SPECIFIC]: Display HDMI2.0 version of HDMI VSIF
[HFV INFOFRAME: HDMI FORUM VSIF]: If the source is sending Vendor Specific Infoframe then the
information is captured, extracted and displayed in this text box on GUI.
[REFRESH]: Refresh the current page.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
30
4K Vertex² – User Manual
Vertex² Web Server OSD Section
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
31
4K Vertex² – User Manual
[OSD SETUP]: Enable or Disable the OSD feature of Vertex².
[OSD FADE]: Set the timer in seconds before OSD fade out, 0 = never (always ON)
[OSD LOCATION X, Y]: Set the X and Y value of the OSD location at 1080p, values are multiplied by 2
when the stream is 4K.
[OSD COLOR FRONT, BACK, LEVEL]: Set the Text Color [FRONT 0-31], Background Color [BACK 0-31] and
Background transparency [LEVEL 0-7] for the OSD.
[OSD INFO]: Select or unselect the information that must be displayed on your Vertex² OSD. Available
options are: Source name, Video Field, Video IF, HDR info, HDR IF, Audio field, RX Video info, RX HDR
info, Ignore Metadata Change.
[OSD MASK SETUP]: Enable of Disable the use of OSD Mask.
[MASK LOCATION x0,y0,x1,y1]: Defines the coordinates of the top left and bottom right corner of your
OSD Mask at 1080p. Values are multiplied by 2 when the stream is 4K
[OSD MASK LEVEL]: Select the level of transparency for your OSD Mask. Value range is from 1 to 7.
[OSD GRAYSCALE]: Select the level of grayscale for your OSD Mask. Value range is from 0 to 15.
[SEND]: For any changes in the above parameters, click SEND to upload them to your Vertex² unit.
[OSD TEXT ENABLE]: Enable or disable the OSD Custom Text, once activated, the custom text defined in
the text field will be displayed on screen.
[NEVER FADE]: If you want to keep the OSD Custom text even after OSD info faded away, make sure this
option is enabled.
[OSD TEXT X,Y]: Set the X and Y value of the OSD Custom Text at 1080p, values are multiplied by 2
when the stream is 4K
[SEND]: For any changes in the above parameters, click SEND to upload them to your Vertex² unit.
[REFRESH]: Refresh the current page.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
32
4K Vertex² – User Manual
Vertex² Web Server CEC/RS232 Section
[ENABLE CEC] must be checked in order to apply the selected dropdown options to the Vertex² unit.
Once activated it allows Vertex² to answer and process CEC requests and commands and appear on the
TV CEC network map. Uncheck it if you do not want Vertex² to answer external CEC requests or process
Internal CEC commands. Unchecking will remove Vertex² from the Root(TV) network map but CEC
commands for connected sinks or sources will still pass-thru.
[CEC TYPE] Video Processor (Default) is the device type to choose if you have an AVR in your setup and
if you want to use that AVR for ARC or CEC.
[CEC TYPE] Audio Processor is the device type to choose if you want Vertex² ARC feature to be ON
(Sound from TV ARC to Vertex² HDMI audio out, 5.1 Optical Out or Jack Analog Stereo output.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
33
4K Vertex² – User Manual
[Enable DD+/ATMOS ARC]: If your AVR is capable of accepting more than Dolby Digital or DTS or if can
take 192khz Audio via its optical input, you can use Vertex² to extract DD+ and Atmos from TV
embedded streaming APPS and forward it to your AVR via the Vertex² HDMI audio out or optical output.
Only a very few AVR on the market can support 192khz via optical in such case, use HDMI audio out to
feed DD+/ATMOS to your AVR input.
[AUTO]: Default ARC sound extraction option, only use ARC or HDMI if AUTO does not perform well with
your TV.
[ARC]: Force Audio OUT to output sound from TX0 ARC
[HDMI]: Force Audio OUT to output sound from any sources at input.
[SEND CEC TEST COMMAND]: Enter the CEC command of your choice in this text field in HEX format.
If you are not sure about how to format your command, we recommend you to visit the very well done
cec-o-matic website made by Kwikwai.
[RS232 COMMAND]: Allow you to test RS232 command to make sure your unit is properly configured
and ready to communicate via RS232.
[RS232 BAUD RATE]: Set the RS232 link speed (default 19200)
[Send Ascii]: Once RS232 command have been entered in Ascii format, use this button to send it out.
[Send Binary]: Once RS232 command have been entered in HEX/Binary, use this button to send it out.
[REFRESH]: Refresh the current page.
Note: CEC/ARC master is TX0, if you want ARC from the TV; you need to connect your TV ARC capable
input to Vertex² HDMI TX0 OUTPUT and set the unit as Audio Processor under Vertex² CEC device type.
Note on eARC: eARC does not rely on CEC, therefor it is not needed to select any CEC options in order to
extract up to Dolby Atmos HBR over TrueHD from capable eARC TV. That is always done automatically
and forwarded to HDMI audio out of the Vertex² so you can feed any AVR input with it.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
34
4K Vertex² – User Manual
Vertex² Web Server MACROS Section
With the help of power users from the community, special automatic and custom macro has been
developed for JVC Projectors. Kindly please refer to instructions posted here. Vertex² now allow to edit
each command individually so you can instruct any RS232 capable display.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
35
4K Vertex² – User Manual
Vertex² Web Server CONFIG Section
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
36
4K Vertex² – User Manual
[AUTOSWITCH INPUTS]: When activated, the new TMDS / Pixel clock Auto switch feature will force the
Vertex² unit to automatically switch to the active signal if the selected signal is lost. It can also auto
switch source that keep sending +5V when in standby such as ATV4K, X1X, Shield and others.
[AUTOSWITCH PRIORITY]: When input priority mode is enabled, as soon as a new active input is
detected, Vertex² will switch to it.
[HDCP VERSION]: Allow you to select/force the HDCP revision of the TX1 Output Port.
[HTPC MODE]: Useful if you have trouble with windows display and icons when resuming from stand-by
mode. Please note that with default firmware HTPC mode is not compatible with HDCP signal. You can
set HTPC mode for each input individually.
[OLED DISPLAY]: Enabled by default, Vertex² OLED display can be turned ON/OFF at will. Some users
might found the Vertex² OLED display visually disturbing in their HT setup. You have the possibility to
turn it off.
[ROTATE 180 DEG]: OFF by default, based on your setup, you might prefer to flip the OLED display, once
activated, this option will flip the Vertex² OLED.
[REVERSE COLORS]: OFF by default, once activated this option will reverse the Vertex² OLED colors.
[OLED FADE]: Allow you to define a custom timing in seconds before OLED FADE, set it to 0 for OLED to
always stay active. Default is 30sec.
[OLED PAGE]: Select the OLED page that will be displayed at startup .
[MUTE TX0 AUDIO]: If you use an AVR at HDMI audio out, you might want to disable sound going to
equipment connected at TX0 output. Here you can mute the TX0 output sound.
[MUTE TX1 AUDIO]: If you use an AVR at HDMI audio out, you might want to disable sound going to
equipment connected at TX1 output. Here you can mute the TX1 output sound.
[IR]: You can globally turn ON or OFF IR support for Vertex²
[ANALOG L/R AUDIO CONTROL]: This option will adjust the Analog Stereo output from this section.
Volume, Bass and Treble control are available.
[SEND]: After Volume, Bass or Treble values changes, click send to apply your changes.
[TEST PATTERN GENERATOR FOR TX0]: Once configured with dropdown field and enabled, this option
will display a test pattern at TX0 output. It can be useful for testing equipment. 480p60, 720p60;
1080p60, 4k24 or 4K60 resolution are available, Pattern can be color bars, ramp1 or ramp2 and HDCP
can be set to none, 1.4 or 2.2
[IP CONFIG]: This section allows you to edit the way Vertex² will retrieve its IP address. Any changes will
only be applied after reboot (power cycle)
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
37
4K Vertex² – User Manual
[DHCP]: When set to ON, Vertex² will retrieve a dynamic IP automatically.
[mDNS]: Set ON/OFF mDNS support for you router/network capabilities and security settings.
[CURRENT IP CONFIGURATION]: Display the current value of IP address, IP mask and IP gateway and
MAC address.
[CONFIGURE STATIC IP]: Enter the IP address, IP mask and IP gateway of your choice for a static IP
setup, DHCP needs to be OFF for using static IP values
[SET IP]: After any changes in IP configuration, click SET IP to validate.
[IP PORT]: Set the IP/telnet port of your choice here (default value is 2220).
[SET PORT]: Click here to apply the IP/telnet port of your choice (Reboot or Power cycle required)
[REBOOT UNIT]: Click REBOOT button to restart Vertex² completely.
[EXPORT CONFIG]: Allow you to export a text file that includes the full list of Vertex² settings and some
setup information that can be useful for support.
[ISSUE HOTPLUG]: Click Send button to perform a soft-reset in your setup.
[CLEAR ALL SETTINGS TO FACTORY DEFAULTS]: Type RESET in the factory def text field and click the
available RESET button to clear all settings to factory defaults. Vertex² power cycle needed.
[EDID FACTORY SETTINGS]: Click the available check box to clear all EDID settings to factory defaults and
type RESET in the test field. Finally click the RESET button and unit EDID will be reset to factory defaults.
[FW UPDATE]: Select the Vertex² firmware file and click SEND to upload it. Wait for Vertex² to reboot
automatically, once Vertex² is rebooted, refresh the webserver page.
[REFRESH]: Refresh the current page.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
38
4K Vertex² – User Manual
Updating your Vertex² Firmware via web browser
The Vertex² Firmware can be updated from any web browser based device.
If you meet any issue updating your Vertex² firmware, please try using Chrome Browser on your device.
You can download the latest Firmware version for your Vertex² device from the Download Tab on the
Vertex² Product page: here. If you are unsure about your Firmware version currently in use, simply refer
to OLED display on your unit. Alternatively, FW version is reported on any header of any page when
accessing the embedded web server.
Once downloaded and extracted, you should have a directory on your computer with the following files
You will have to run Vertex² Update to successfully upgrade your Vertex².
Note: Version number could be different depending on the FW revision you downloaded.
After updating the Vertex² firmware, you will be prompted to refresh the webpage once unit have
rebooted, you won’t see any light or OLED info for about 15s as the unit is restarting and reconfiguring
itself. Once ready, OLED and light will come back on.
Visit Vertex² webserver and browse to the bottom on the CONFIG section.
Click Choose File as shown on the above picture and select Vertex² firmware file.
Once correct Firmware file is selected, its name will appear on the config page. Simply click SEND button
to start flashing the firmware to your unit.
During this process you will see the above message on the footer page of the config section.
Please wait a few seconds and do not disconnect your device while the upgrade process is running.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
39
4K Vertex² – User Manual
Once completed, you will see the above notification.
Simply wait for Vertex² OLED to come back on and click REFRESH.
The top section of the web server and Vertex² OLED should now indicate the new firmware version.
Congratulations, you have successfully updated your Vertex² firmware update and your unit is now
ready to operate with the benefits from the latest software additions.
Public API/DLL: We have created a set of DLL/API package for Vertex² so anyone can interface their
software with Vertex² capabilities and build evaluation, testing, measurement, calibration and content
creation workflows system.
IR/RS232: Vertex² can be fully controlled via IR or from any serial based computer such as Win, Max or
Linux using RS232 interface. Complete list of IR and RS232 commands are included as a text file for
convenience on all Firmware update package.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
40
4K Vertex² – User Manual
CONFIG Export section of web server
By using the [CONFIG] > [EXPORT CONFIG] option, you will be able to save the current Vertex²
configuration and settings in a text file.
The file can then be shared with the community or for support reason.
Exported config file will present the active signal information, the EDID set for each RX and TX as well as
the list of parameters.
{
"product": "VERTEX2",
"time": "28/06/2019 Ã 19:14:13",
"hostname": "VERTEX2-07",
"ipaddress": "192.168.1.150",
"version": "FW: 0.33",
"portseltx0": "0",
"portseltx1": "4",
"RX0": " 1080P50 RGB L 8b 148MHz 1.4",
"RX1": " 1080P50 RGB L 8b 148MHz 1.4",
"TX0": "",
"TX1": " 1080P50 RGB L 8b 148MHz 1.4",
"AUD0": "",
"AUD1": " L-PCM 48kHz --ch 16bit",
"SINK0": "Panasonic-TV EDID: 1080P60 12b ",
"SINK1": "Panasonic-TV EDID: 1080P60 12b ",
"SPD":
"83:01:19:b1:42:72:6f:61:64:63:6f:6d:53:54:42:20:52:65:66:73:77:20:44:65:73:6
9:67:6e:01:00:00",
"SPD1": "",
"edidmode": "custom",
"edidalgo": "Max Audio, Max Video",
"edidtableinp1": "11",
"edidtableinp2": "0",
"edidtableinp3": "0",
"edidtableinp4": "0",
"edidbt2020": "1",
"edidyuvremove": "0",
"edidhdr10": "1",
"edidhlg": "0",
"edidaudioflags": "5.1",
"ediddv": "0",
"ediddvremove": "0",
"ediddvlimit": "0",
"edid3dremove": "0",
"scalemode": "auto",
"tx0autonoupscale": "off",
"tx0scale4k60": "on",
"tx0scale4k60cs": "follow",
"tx0scale4k60dc": "follow",
"tx0scale4k30": "on",
"tx0scale4k30cs": "follow",
"tx0scale4k30dc": "follow",
"tx0scale1080p60": "on",
"tx0scale1080p60upscale": "on",
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
41
4K Vertex² – User Manual
"tx0scale1080p60cs": "follow",
"tx0scale1080p60dc": "8-bit",
"tx0scale1080p30": "on",
"tx0scale1080p30upscale": "on",
"tx0scale1080p30cs": "follow",
"tx0scale1080p30dc": "8-bit",
"tx1scale4k60": "on",
"tx1scale4k60downscale": "on",
"tx1scale4k60cs": "follow",
"tx1scale4k60dc": "follow",
"tx1scale4k30": "on",
"tx1scale4k30downscale": "on",
"tx1scale4k30cs": "follow",
"tx1scale4k30dc": "follow",
"tx1scale1080p60": "on",
"tx1scale1080p60cs": "follow",
"tx1scale1080p60dc": "follow",
"tx1scale1080p30": "on",
"tx1scale1080p30cs": "follow",
"tx1scale1080p30dc": "follow",
"SPD": "",
"SPD1": "",
"AVI": "",
"AUD": "",
"HDR": "",
"HDRCUSTOM":
"87:01:1a:b0:02:00:c2:33:c4:86:4c:1d:b8:0b:d0:84:80:3e:13:3d:42:40:a0:0f:32:0
0:e8:03:90:01:00",
"AVICUSTOM": "82:02:0d:ae:40:c0:60:61:00:00:00:00:00:00:00:00:00",
"HVS": "",
"VSI": "",
"HFV": "",
"DV0": "",
"customhdr": "0",
"customavi": "0",
"disablehdr": "0",
"disableavi": "0",
"hdrcustomhdronly": "0",
"hdrcustomhlgonly": "0",
"hdr10disable": "0",
"hlgdisable": "0",
"hdrcustomhlgonlyauto": "0",
"osdenable": 1,
"osdfadesecs": 15,
"osdx": 20,
"osdy": 945,
"osdcolorfg": 21,
"osdcolorbg": 0,
"osdlevel": 7,
"osdMaskenable": 0,
"osdmaskx": 0,
"osdmasky": 950,
"osdmaskx1": 1920,
"osdmasky1": 1080,
"osdmasklevel": 3,
"osdmaskgray": 10,
"osdtextenable": 0,
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
42
4K Vertex² – User Manual
"osdtextneverfade": 0,
"osdtextx": 20,
"osdtexty": 20,
"osdfieldsource": 1,
"osdfieldvideo": 1,
"osdfieldvideoif": 1,
"osdfieldhdr": 1,
"osdfieldhdrif": 1,
"osdfieldaudio": 1,
"osdfieldrxhdrforce": 0,
"osdfieldrxvideoforce": 0,
"osdfieldignoremetadata": 0,
"osdtextstr": "VERTEX2 by HDFURY 2019",
"cecrequested": "enabled",
"cecla": "video",
"archbr": "0",
"arcforce": "auto",
"earcst": "off",
"arcst": "off",
"baudrate": "19200",
"macroenable": 0,
"macroeverysync": 0,
"macrohdr10mode": 0,
"macrocustomen1": 1,
"macrocustomen2": 1,
"macrocustomen3": 1,
"macrocustomen4": 1,
"macrocustomen5": 1,
"macrocustomen6": 1,
"macrocustomen7": 1,
"macrocustom1mode": 0,
"macrocustom1value": 0,
"macrocustom1action": 0,
"macrocustom2mode": 0,
"macrocustom2value": 1100,
"macrocustom2action": 0,
"macrocustom3mode": 2,
"macrocustom3value": 0,
"macrocustom3action": 0,
"macrocustom4mode": 2,
"macrocustom4value": 1100,
"macrocustom4action": 0,
"macrocustom5mode": 2,
"macrocustom5value": 4000,
"macrocustom5action": 0,
"macrocustom6mode": 2,
"macrocustom6value": 4000,
"macrocustom6action": 0,
"macrocustom7action": 0,
"macrodrhdtv": 0,
"macrodrfilm": 0,
"macrodrbt2020": 0,
"macro3d": 0,
"macroxvcolor": 0,
"macrohlgbt709": 0,
"macrohlgbt2020": 0,
"macrohdr10": 0,
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
43
4K Vertex² – User Manual
"macrohdr10opt": 0,
"macrohdr10bt709": 0,
"enclevel": "0",
"autosw": "0",
"autoswprio": "1",
"iractive": "1",
"htpcmode0": "0",
"htpcmode1": "0",
"htpcmode2": "0",
"htpcmode3": "0",
"macrorep": "0",
"mutetx0": "0",
"mutetx1": "0",
"analogvolume": "0",
"analogbass": "0",
"analogtreb": "0",
"staticip": "staticip 192.168.1.250/255.255.255.0/192.168.1.1",
"activeip": "activeip 192.168.1.159/255.255.255.0/192.168.1.1",
"dhcp": "1",
"tcpport": "2220",
"macaddr": "18:9B:A5:D2:00:01",
"mdns": "1",
"oled": "1",
"oledpage": "0",
"oledrot": "1",
"oledrev": "0",
"oledfade": "30",
"EDIDRX0": "00 ff ff ff ff ff ff 00 25 d4 01 00 01 00 00 00 0a 1c 01 03
80 00 00 78 0a ee 95 a3 54 4c 99 26 0f 50 54 a1 08 00 31 40 45 40 61 40 71 40
81 80 01 00 01 00 01 01 08 e8 00 30 f2 70 5a 80 b0 58 8a 00 50 1d 74 00 00 1e
02 3a 80 18 71 38 2d 40 58 2c 45 00 50 1d 74 00 00 1e 00 00 00 fd 00 0f 90 1e
88 3c 00 00 00 00 00 00 00 00 00 00 00 fc 00 56 45 52 54 45 58 0a 20 20 20 20
20 20 01 ef 02 03 5b 71 57 61 10 1f 60 13 05 14 20 21 22 5d 5e 5f 04 65 66 62
63 64 07 16 03 12 35 0f 7f 07 15 07 50 3d 1e c0 4d 02 00 57 06 01 5f 7e 01 67
7e 01 83 5f 00 00 e2 00 cf e2 0f 09 e3 06 0f 01 e3 05 e3 01 6e 03 0c 00 41 00
b8 3c 20 80 80 01 02 03 04 67 d8 5d c4 01 78 80 03 01 1d 80 18 71 1c 16 20 58
2c 25 00 40 84 63 00 00 9e 66 21 56 aa 51 00 1e 30 46 8f 33 00 50 1d 74 00 00
1e b5",
"EDIDRX1": "00 ff ff ff ff ff ff 00 25 d4 01 00 01 00 00 00 0a 1c 01 03
80 00 00 78 0a ee 95 a3 54 4c 99 26 0f 50 54 a1 08 00 31 40 45 40 61 40 71 40
81 80 01 00 01 00 01 01 08 e8 00 30 f2 70 5a 80 b0 58 8a 00 50 1d 74 00 00 1e
02 3a 80 18 71 38 2d 40 58 2c 45 00 50 1d 74 00 00 1e 00 00 00 fd 00 0f 90 1e
88 3c 00 00 00 00 00 00 00 00 00 00 00 fc 00 56 45 52 54 45 58 0a 20 20 20 20
20 20 01 ef 02 03 5b 71 57 61 10 1f 60 13 05 14 20 21 22 5d 5e 5f 04 65 66 62
63 64 07 16 03 12 35 0f 7f 07 15 07 50 3d 1e c0 4d 02 00 57 06 01 5f 7e 01 67
7e 01 83 5f 00 00 e2 00 cf e2 0f 09 e3 06 0f 01 e3 05 e3 01 6e 03 0c 00 42 00
b8 3c 20 80 80 01 02 03 04 67 d8 5d c4 01 78 80 03 01 1d 80 18 71 1c 16 20 58
2c 25 00 40 84 63 00 00 9e 66 21 56 aa 51 00 1e 30 46 8f 33 00 50 1d 74 00 00
1e b4",
"EDIDRX2": "00 ff ff ff ff ff ff 00 25 d4 01 00 01 00 00 00 0a 1c 01 03
80 00 00 78 0a ee 95 a3 54 4c 99 26 0f 50 54 a1 08 00 31 40 45 40 61 40 71 40
81 80 01 00 01 00 01 01 08 e8 00 30 f2 70 5a 80 b0 58 8a 00 50 1d 74 00 00 1e
02 3a 80 18 71 38 2d 40 58 2c 45 00 50 1d 74 00 00 1e 00 00 00 fd 00 0f 90 1e
88 3c 00 00 00 00 00 00 00 00 00 00 00 fc 00 56 45 52 54 45 58 0a 20 20 20 20
20 20 01 ef 02 03 5b 71 57 61 10 1f 60 13 05 14 20 21 22 5d 5e 5f 04 65 66 62
63 64 07 16 03 12 35 0f 7f 07 15 07 50 3d 1e c0 4d 02 00 57 06 01 5f 7e 01 67
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
44
4K Vertex² – User Manual
7e 01 83 5f 00 00 e2 00 cf e2 0f 09 e3 06 0f 01 e3 05 e3 01 6e 03 0c 00 43 00
b8 3c 20 80 80 01 02 03 04 67 d8 5d c4 01 78 80 03 01 1d 80 18 71 1c 16 20 58
2c 25 00 40 84 63 00 00 9e 66 21 56 aa 51 00 1e 30 46 8f 33 00 50 1d 74 00 00
1e b3",
"EDIDRX3": "00 ff ff ff ff ff ff 00 25 d4 01 00 01 00 00 00 0a 1c 01 03
80 00 00 78 0a ee 95 a3 54 4c 99 26 0f 50 54 a1 08 00 31 40 45 40 61 40 71 40
81 80 01 00 01 00 01 01 08 e8 00 30 f2 70 5a 80 b0 58 8a 00 50 1d 74 00 00 1e
02 3a 80 18 71 38 2d 40 58 2c 45 00 50 1d 74 00 00 1e 00 00 00 fd 00 0f 90 1e
88 3c 00 00 00 00 00 00 00 00 00 00 00 fc 00 56 45 52 54 45 58 0a 20 20 20 20
20 20 01 ef 02 03 5b 71 57 61 10 1f 60 13 05 14 20 21 22 5d 5e 5f 04 65 66 62
63 64 07 16 03 12 35 0f 7f 07 15 07 50 3d 1e c0 4d 02 00 57 06 01 5f 7e 01 67
7e 01 83 5f 00 00 e2 00 cf e2 0f 09 e3 06 0f 01 e3 05 e3 01 6e 03 0c 00 44 00
b8 3c 20 80 80 01 02 03 04 67 d8 5d c4 01 78 80 03 01 1d 80 18 71 1c 16 20 58
2c 25 00 40 84 63 00 00 9e 66 21 56 aa 51 00 1e 30 46 8f 33 00 50 1d 74 00 00
1e b2",
"EDIDTX0": "00 ff ff ff ff ff ff 00 34 a9 96 a2 01 01 01 01 00 16 01 03
80 00 00 78 0a da ff a3 58 4a a2 29 17 49 4b 00 00 00 01 01 01 01 01 01 01 01
01 01 01 01 01 01 01 01 02 3a 80 d0 72 38 2d 40 10 2c 45 80 ba 88 21 00 00 1e
02 3a 80 18 71 38 2d 40 58 2c 45 00 ba 88 21 00 00 1e 00 00 00 fc 00 50 61 6e
61 73 6f 6e 69 63 2d 54 56 0a 00 00 00 fd 00 17 3d 0f 44 0f 00 0a 20 20 20 20
20 20 01 dd 02 03 36 72 50 9f 90 14 05 20 13 04 12 03 11 02 16 07 15 06 01 23
09 07 01 78 03 0c 00 40 00 b8 26 2f c0 0a 81 49 ff fc 06 16 08 00 18 00 00 00
00 00 e3 05 1f 01 01 1d 80 d0 72 1c 16 20 10 2c 25 80 ba 88 21 00 00 9e 01 1d
80 18 71 1c 16 20 58 2c 25 00 ba 88 21 00 00 9e 01 1d 00 bc 52 d0 1e 20 b8 28
55 40 ba 88 21 00 00 1e 01 1d 00 72 51 d0 1e 20 6e 28 55 00 ba 88 21 00 00 1e
00 86",
"EDIDTX1": "00 ff ff ff ff ff ff 00 34 a9 96 a2 01 01 01 01 00 16 01 03
80 00 00 78 0a da ff a3 58 4a a2 29 17 49 4b 00 00 00 01 01 01 01 01 01 01 01
01 01 01 01 01 01 01 01 02 3a 80 d0 72 38 2d 40 10 2c 45 80 ba 88 21 00 00 1e
02 3a 80 18 71 38 2d 40 58 2c 45 00 ba 88 21 00 00 1e 00 00 00 fc 00 50 61 6e
61 73 6f 6e 69 63 2d 54 56 0a 00 00 00 fd 00 17 3d 0f 44 0f 00 0a 20 20 20 20
20 20 01 dd 02 03 36 72 50 9f 90 14 05 20 13 04 12 03 11 02 16 07 15 06 01 23
09 07 01 78 03 0c 00 10 00 b8 26 2f c0 0a 81 49 ff fc 06 16 08 00 18 00 00 00
00 00 e3 05 1f 01 01 1d 80 d0 72 1c 16 20 10 2c 25 80 ba 88 21 00 00 9e 01 1d
80 18 71 1c 16 20 58 2c 25 00 ba 88 21 00 00 9e 01 1d 00 bc 52 d0 1e 20 b8 28
55 40 ba 88 21 00 00 1e 01 1d 00 72 51 d0 1e 20 6e 28 55 00 ba 88 21 00 00 1e
00 b6"
}
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
45
4K Vertex² – User Manual
RS232 and IP/Telnet Command List
VERTEX² RS232 AND IP/TELNET COMMAND LIST:
Vertex² RS232 jack expects the following plug signals:
TIP = TX [sends data out from Vertex²]
RING = RX [receives data to Vertex²]
SLEEVE = GND
Parameters: 19200, n, 1, no handshake
If using RS232, each command must start with #Vertex² header and must end with a carriage return \r
or a newline \n
If using IP/TELNET each command must end with a carriage return \r or a newline \n but there is no
need for the #Vertex² header.
Each response will have both carriage return \r and a newline \n added in the format <cr><lf>
Vertex² default IP port is 2210. e.g. 192.168.1.100:2210
Use only lowercase characters
A generic RS232 command to write a value:
#Vertex2 set x y
where #Vertex2 is the header and all commands start with this header
set - indicates value will be written to Vertex²
x - target to be written
y - value or values
A generic RS232 command to read a value:
#Vertex2 get x
where #Vertex2 is the header and all commands start with this header
get - indicates value will be read from Vertex²
x - target to be read
A generic IP command is as above without the #Vertex² header
Full VERTEX² command list:
#vertex2 set insel tx0 tx1
where tx0 and tx1 is [0-3] input port, or [4] for follow
Ex. #vertex2 set insel 2 3
Set tx0 to input 2 and tx1 to input 3
#vertex2 set inseltx0 x
where x is [0-3] input port, or [4] for follow
Ex. #vertex2 set inseltx0 1
Set tx0 to input 1 and keep tx1 as is
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
46
4K Vertex² – User Manual
#vertex2 set inseltx1 x
where x is [0-3] input port, or [4] for follow
Ex. #vertex2 set inseltx1 1
Set tx0 to input 1 and keep tx0 as is
#vertex2 set ipaddr xxx.xxx.xxx.xxx
Sets the static IP address. Active when dhcp is turned off.
Ex. #vertex2 set ipaddr 192.168.1.222
#vertex2 set ipmask xxx.xxx.xxx.xxx
Sets the static IP network mask. Active when dhcp is turned off.
Ex. #vertex2 set ipmask 255.255.255.0
#vertex2 set ipgw xxx.xxx.xxx.xxx
Sets the static IP gateway address. Active when dhcp is turned off.
Ex. #vertex2 set ipgw 192.168.1.1
#vertex2 set dhcp x
Set the dynamic or static IP address selection. Dynamic = dhcp on
where x is [on / off]
Ex. #vertex2 set dhcp off
#vertex2 set tcpport x
Set the TCP port to be listened to for commands. Default is 2200
Requires a reboot to be applied.
Ex. #vertex2 set port 2201
#vertex2 set autosw x
where x is [on / off]
Enables or disables the autoswitch feature
Ex. #vertex2 set autosw off
#vertex2 set autoswprio x
where x is [on / off]
Enables or disables the autoswitch priority feature
Ex. #vertex2 set autoswprio off
#vertex2 set edidmode x
where x is [automix / custom / fixed / copytx0 / copytx1]
Ex. #vertex2 set edidmode automix
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
47
4K Vertex² – User Manual
#vertex2 set edid audio x
where x is [stereo / 51 / full / native / tx1]
Sets the automix EDID audio flag
Ex. #vertex2 set edid audio native
#vertex2 set edid bt2020 x
where x is [on / off]
Sets the automix EDID bt2020 capability addition
Will not remove if existing on the sink - only adds if missing
Ex. #vertex2 set edid bt2020 on
#vertex2 set edid yuvremove x
where x is [on / off]
Sets the automix EDID YUV/YCbCr capability force
Controls if the source sees a YCbCr capable sink
Ex. #vertex2 set edid yuvremove on
#vertex2 set edid hdr10 x
where x is [on / off]
Sets the automix EDID hdr10 capability
Will not remove if existing on the sink - only adds if missing
Ex. #vertex2 set edid hdr10 on
#vertex2 set edid hlg x
where x is [on / off]
Sets the automix EDID hlg capability
Will not remove if existing on the sink - only adds if missing
Ex. #vertex2 set edid hlg on
#vertex2 set edid dv x
where x is [on / off]
Sets the automix EDID Dolby Vision capability
Will not remove if existing on the sink - only adds if missing
Ex. #vertex2 set edid dv on
#vertex2 set edid dvremove x
where x is [on / off]
Sets the automix EDID to remove DV capability
Ex. #vertex2 set edid dvremove on
#vertex2 set edid dvlimit x
where x is [on / off]
Sets the automix EDID Dolby Vision frequency capability to 300Mhz max
Ex. #vertex2 set edid dvlimit on
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
48
4K Vertex² – User Manual
#vertex2 set edid 3dremove x
where x is [on / off]
Sets the automix EDID to remove 3D capability
Controls if the source sees a 3D capable sink
Ex. #vertex2 set edid 3dremove on
#vertex2 set hdcp x
where x is [14 / auto]
Sets the hdcp level
in auto mode, depending on sink capability uses hdcp 1.4 or 2.2
Ex. #vertex2 set hdcp auto
#vertex2 set scale x
where x is [auto / custom / none]
Sets the scaling style for tx0 (tx1 is always automatic)
In auto mode, optimizes according to the best sink capabilities
Ex. #vertex2 set scale auto
#vertex2 set autonoupscale x
where x is [on / off]
Sets the mode for upscaling in tx0 output. Applies in "scale auto" mode only.
In "scale auto" mode enables/disables upscaling of 1080p content automatically to 4k.
Ex. #vertex2 set autonoupscale off
#vertex2 set edidtableinp0 x
#vertex2 set edidtableinp1 x
#vertex2 set edidtableinp2 x
#vertex2 set edidtableinp3 x
where x is [1 - 100] for edidtableinp0 and [0 - 100] for others
Sets the custom EDID for corresponding input port
For ports 1-3 table number 0 indicates copy port 0 table
Ex. #vertex2 set edidtableinp0 11
#vertex2 set edidalgo x
where x is [0 - 4]
Sets the automix algorithm
0 = Min video, min audio
1 = Min video, max audio
2 = Tx0 priority
3 = Tx1 priority
4 = Max video, max audio [default]
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
49
4K Vertex² – User Manual
Ex. #vertex2 set edidalgo 4
#vertex2 set hdrcustom x
where x is [on / off]
Starts to output custom HDR metadata and ignores any input received HDR metadata.
Overrides all other hdrcustom options
Ex. #vertex2 set hdrcustom on
#vertex2 set hdrcustomhdr10only x
where x is [on / off]
Starts to output custom HDR metadata if and only if the input is HDR10.
This setting is used to replace the incoming HDR10 metadata.
Ex. #vertex2 set hdrcustomhdr10only on
#vertex2 set hdrcustomhlgonly x
where x is [on / off]
Starts to output custom HDR metadata if and only if the input is HLG.
This setting is used to replace the incoming HLG metadata.
Ex. #vertex2 set hdrcustomhlgonly on
#vertex2 set hdrcustomhlgonlyauto x
where x is [on / off]
Starts to output custom HDR metadata if and only if the input is HLG
and the sink has no HLG support.
This setting is used to replace the incoming HLG metadata.
Useful when turning on/off HLG capable sink while non-HLG sink is also connected.
Ex. #vertex2 set hdrcustomhlgonlyauto on
#vertex2 set hdrdisable x
where x is [on / off]
Stops sending any HDR metadata content
Ex. #vertex2 set hdrdisable on
#vertex2 set hdrdisablehdr10only x
where x is [on / off]
Stops sending any HDR metadata content if the input is HDR10
Ex. #vertex2 set hdrdisablehdr10only on
#vertex2 set hdrdisablehlgonly x
where x is [on / off]
Stops sending any HDR metadata content if the input is HLG
Ex. #vertex2 set hdrdisablehlgonly on
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
50
4K Vertex² – User Manual
#vertex2 set avicustom x
where x is [on / off]
Starts to output custom AVI infoframe and ignores any input received AVI metadata.
Ex. #vertex2 set avicustom on
#vertex2 set avidisable x
where x is [on / off]
Stops sending any AVI infoframe content
Ex. #vertex2 set avidisable on
#vertex2 set cec x
where x is [on / off]
Sets the CEC engine
Ex. #vertex2 set cec on
#vertex2 set cecla x
where x is [video / audio]
Sets the CEC engine logical address. For video [14] and for audio [5].
Ex. #vertex2 set cecla audio
#vertex2 set archbr x
where x is [on / off]
Sets the ARC capability to include DD+ / ATMOS over DD+ capability.
Ex. #vertex2 set archbr on
#vertex2 set oled x
where x is [on / off]
Sets the OLED display visibility
Ex. #vertex2 set oled on
#vertex2 set oledrev x
where x is [on / off]
Sets the OLED display reversed colors
Ex. #vertex2 set oledrev on
#vertex2 set oledrot x
where x is [on / off]
Sets the OLED display rotation
Ex. #vertex2 set oledrot on
#vertex2 set oledpage x
where x is [0-4]
Sets the OLED display page
Ex. #vertex2 set oledpage 0
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
51
4K Vertex² – User Manual
#vertex2 set oledfade x
where x is [0-255]
Sets the OLED display fade timer in seconds. After this time OLED goes blank
0 = no fade
Ex. #vertex2 set oledfade 60
#vertex2 set osd x
where x is [on / off]
Enables / disables osd
Ex. #vertex2 set osd on
#vertex2 set osdloc x y
where x is [1 - 1920] and y is [1 - 1080]
Sets the OSD information location coordinates. For 4k the values are 4x
Ex. #vertex2 set osdloc 50 850
#vertex2 set osdfg x
where x is [1 - 31]
Sets the OSD foreground color
Ex. #vertex2 set osdfg 20
#vertex2 set osdbg x
where x is [1 - 31]
Sets the OSD background color
Ex. #vertex2 set osdbg 20
#vertex2 set osdlevel x
where x is [0 - 7]
Sets the OSD opacity level
Ex. #vertex2 set osdlevel 4
#vertex2 set osdfade x
where x is [0-255]
Sets the OSD fade timer in seconds. After this time OSD info disappears
0 = no fade
Ex. #vertex2 set osdfade 20
#vertex2 set osdfield x y
where x is [source / video / videoif / hdr / hdrif / audio / rxhdrforce
rxvideoforce / ignoremetadata] and y is [on / off]
Sets the OSD field parameter visibility
Ex. #vertex2 set osdfield videoif off
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
52
4K Vertex² – User Manual
#vertex2 set osdmaskloc x y x1 y1
where x and x1 are [1 - 1920] and y and y1 are [1 - 1080]
Sets the OSD mask information location coordinates. For 4k the values are 4x
Ex. #vertex2 set osdmaskloc 50 850 1900 900
#vertex2 set osdmask x
where x is [on / off]
Enables / disables osdmask
Ex. #vertex2 set osdmask on
#vertex2 set osdmasklevel x
where x is [0 - 7]
Sets the OSD opacity level
Ex. #vertex2 set osdmasklevel 4
#vertex2 set osdmaskgray x
where x is [0 - 15]
Sets the OSD gray level
Ex. #vertex2 set osdmaskgray 4
#vertex2 set osdtextloc x y
where x is [1 - 1920] and y is [1 - 1080]
Sets the OSD text location coordinates. For 4k the values are 4x
Ex. #vertex2 set osdtextloc 50 20
#vertex2 set osdtextneverfade x
where x is [on / off]
Osd text typically fades together with normal OSD.
This setting can disable fading.
Ex. #vertex2 set osdtextneverfade on
#vertex2 set osdtextstr x
where x max 64 characters
Defines the specific text string to be displayed. Must be in enlosed in quotation
Ex. #vertex2 set osdtextstr "HDFury 2019"
#vertex2 set osdtext x
where x is [on / off]
Enables / disables osdtext
Ex. #vertex2 set osdtext on
#vertex2 set mutetx0audio x
where x is [on / off]
Mute the tx0 hdmi audio output
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
53
4K Vertex² – User Manual
Ex. #vertex2 set mutetx0audio on
#vertex2 set mutetx1audio x
where x is [on / off]
Mute the tx1 hdmi audio output
Ex. #vertex2 set mutetx1audio on
#vertex2 set analogvolume x
where x is [-30 to +10]
Sets the analog L/R audio jack output volume in dB.
Ex. #vertex2 set analogvolume -10
#vertex2 set analogbass x
where x is [-10 to +10]
Sets the analog L/R audio jack output bass level in dB.
Ex. #vertex2 set analogbass 5
#vertex2 set analogtreble x
where x is [-10 to +10]
Sets the analog L/R audio jack output treble level in dB.
Ex. #vertex2 set analogtreble -2
#vertex2 set reboot
Reboots the unit, does not clear any settings
#vertex2 set factoryreset x
where x is [1, 2, 3]
1 = Erase all settings but retain the custom EDID tables
2 = Erase custom EDID tables but retain other settings
3 = ERASE all settings and EDID tables
Ex. #vertex2 set factoryreset 3
#vertex2 set jvcmacro x
where x is [on / off]
Enables / disables JVC macro sending
Ex. #vertex2 set jvcmacro on
#vertex2 set jvcmacrosync x
where x is [on / off]
Enables / disables JVC macro sending on every sync instead of just at start once
Ex. #vertex2 set jvcmacrosync on
#vertex2 set jvcmacrodelay x
where x is [0 - 255]
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
54
4K Vertex² – User Manual
Sets the delay between a mode change and sending the macro command via RS232
Ex. #vertex2 set jvcmacrodelay 25
#vertex2 set jvcmacrohdr10mode x
where x is [0 - 4]
0 = auto
1 = ignore metadata
2 = semiautomatic
3 = custom
Sets the current JVC macro mode
Ex. #vertex2 set jvcmacrohdr10mode 0
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
55
4K Vertex² – User Manual
IR Code List
For convenience, the complete list of IR codes is supplied in Pronto HEX files, it is recommended to
always use the latest IR codes list that is included as a text file format with each firmware update.
Vertex² IR codes have also been submitted to Logitech Harmony and iRule.
vertex2_amutetx0off: NEC 0x78 0x4e
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015
0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 1d0b
vertex2_amutetx0on: NEC 0x78 0x4d
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015
003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 1d0b
vertex2_amutetx1off: NEC 0x78 0x66
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015
0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 1d0b
vertex2_amutetx1on: NEC 0x78 0x65
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015
003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 1d0b
vertex2_arcforcearc: NEC 0x78 0x0d
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
56
4K Vertex² – User Manual
0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015
003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 1d0b
vertex2_arcforceauto: NEC 0x78 0x0c
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015
003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 1d0b
vertex2_arcforcehdmi: NEC 0x78 0x0e
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015
0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 1d0b
vertex2_archbroff: NEC 0x78 0x3e
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015
0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_archbron: NEC 0x78 0x3d
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015
003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_autonoupscaleoff: NEC 0x78 0x40
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015
003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 1d0b
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
57
4K Vertex² – User Manual
vertex2_autonoupscaleon: NEC 0x78 0x3f
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015
0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_autoswoff: NEC 0x78 0x13
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015
0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 1d0b
vertex2_autoswon: NEC 0x78 0x12
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015
0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 1d0b
vertex2_autoswpriooff: NEC 0x78 0x15
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015
003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 1d0b
vertex2_autoswprioon: NEC 0x78 0x14
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015
003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 1d0b
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
58
4K Vertex² – User Manual
vertex2_avicustomoff: NEC 0x78 0x46
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015
0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 1d0b
vertex2_avicustomon: NEC 0x78 0x45
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 1d0b
vertex2_avidisableoff: NEC 0x78 0x48
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015
003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 1d0b
vertex2_avidisableon: NEC 0x78 0x47
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015
0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 1d0b
vertex2_ceclaaudioproc: NEC 0x78 0x3c
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015
003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_ceclavideoproc: NEC 0x78 0x3b
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
59
4K Vertex² – User Manual
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015
0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_cecoff: NEC 0x78 0x3a
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015
0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_cecon: NEC 0x78 0x39
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015
003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_edid3dremoveoff: NEC 0x78 0x34
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015
003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_edid3dremoveon: NEC 0x78 0x33
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015
0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_edidalgo0: NEC 0x78 0x60
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
60
4K Vertex² – User Manual
0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015
003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 1d0b
vertex2_edidalgo1: NEC 0x78 0x61
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015
003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 1d0b
vertex2_edidalgo2: NEC 0x78 0x62
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015
0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 1d0b
vertex2_edidalgo3: NEC 0x78 0x63
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015
0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 1d0b
vertex2_edidalgo4: NEC 0x78 0x64
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 1d0b
vertex2_edidaudio2ch: NEC 0x78 0x20
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015
003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 1d0b
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
61
4K Vertex² – User Manual
vertex2_edidaudio51ch: NEC 0x78 0x21
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015
003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_edidaudio71ch: NEC 0x78 0x22
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015
0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_edidaudioout: NEC 0x78 0x8a
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015
0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_edidaudiotx0: NEC 0x78 0x23
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015
0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_edidaudiotx1: NEC 0x78 0x24
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 1d0b
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
62
4K Vertex² – User Manual
vertex2_edidautomix: NEC 0x78 0x1a
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015
0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 1d0b
vertex2_edidbt2020off: NEC 0x78 0x26
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015
0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_edidbt2020on: NEC 0x78 0x25
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015
003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_edidcopytx0: NEC 0x78 0x1e
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015
0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 1d0b
vertex2_edidcopytx1: NEC 0x78 0x1d
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015
003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 1d0b
vertex2_edidcustom: NEC 0x78 0x1c
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
63
4K Vertex² – User Manual
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015
003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 1d0b
vertex2_edidcustomtable1: NEC 0x78 0x91
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015
003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable10: NEC 0x78 0x9a
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015
0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable100: NEC 0x78 0xf4
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable11: NEC 0x78 0x9b
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015
0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable12: NEC 0x78 0x9c
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
64
4K Vertex² – User Manual
0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015
003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable13: NEC 0x78 0x9d
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015
003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable14: NEC 0x78 0x9e
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015
0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable15: NEC 0x78 0x9f
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015
0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable16: NEC 0x78 0xa0
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015
003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable17: NEC 0x78 0xa1
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015
003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 1d0b
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
65
4K Vertex² – User Manual
vertex2_edidcustomtable18: NEC 0x78 0xa2
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015
0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable19: NEC 0x78 0xa3
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015
0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable2: NEC 0x78 0x92
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015
0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable20: NEC 0x78 0xa4
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable21: NEC 0x78 0xa5
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015
003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 1d0b
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
66
4K Vertex² – User Manual
vertex2_edidcustomtable22: NEC 0x78 0xa6
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015
0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable23: NEC 0x78 0xa7
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015
0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable24: NEC 0x78 0xa8
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015
003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable25: NEC 0x78 0xa9
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015
003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable26: NEC 0x78 0xaa
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015
0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable27: NEC 0x78 0xab
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
67
4K Vertex² – User Manual
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015
0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable28: NEC 0x78 0xac
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015
003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable29: NEC 0x78 0xad
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015
003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable3: NEC 0x78 0x93
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015
0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable30: NEC 0x78 0xae
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015
0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable31: NEC 0x78 0xaf
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
68
4K Vertex² – User Manual
0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015
0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable32: NEC 0x78 0xb0
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015
003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable33: NEC 0x78 0xb1
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015
003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable34: NEC 0x78 0xb2
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015
0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable35: NEC 0x78 0xb3
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015
0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable36: NEC 0x78 0xb4
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 1d0b
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
69
4K Vertex² – User Manual
vertex2_edidcustomtable37: NEC 0x78 0xb5
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015
003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable38: NEC 0x78 0xb6
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015
0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable39: NEC 0x78 0xb7
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015
0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable4: NEC 0x78 0x94
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable40: NEC 0x78 0xb8
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015
003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 1d0b
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
70
4K Vertex² – User Manual
vertex2_edidcustomtable41: NEC 0x78 0xb9
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015
003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable42: NEC 0x78 0xba
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015
0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable43: NEC 0x78 0xbb
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015
0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable44: NEC 0x78 0xbc
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015
003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable45: NEC 0x78 0xbd
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015
003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable46: NEC 0x78 0xbe
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
71
4K Vertex² – User Manual
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015
0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable47: NEC 0x78 0xbf
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015
0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable48: NEC 0x78 0xc0
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable49: NEC 0x78 0xc1
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015
003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable5: NEC 0x78 0x95
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015
003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable50: NEC 0x78 0xc2
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
72
4K Vertex² – User Manual
0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable51: NEC 0x78 0xc3
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015
0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable52: NEC 0x78 0xc4
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable53: NEC 0x78 0xc5
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable54: NEC 0x78 0xc6
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable55: NEC 0x78 0xc7
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015
0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 1d0b
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
73
4K Vertex² – User Manual
vertex2_edidcustomtable56: NEC 0x78 0xc8
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable57: NEC 0x78 0xc9
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015
003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable58: NEC 0x78 0xca
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable59: NEC 0x78 0xcb
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015
0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable6: NEC 0x78 0x96
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015
0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 1d0b
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
74
4K Vertex² – User Manual
vertex2_edidcustomtable60: NEC 0x78 0xcc
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable61: NEC 0x78 0xcd
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015
003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable62: NEC 0x78 0xce
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable63: NEC 0x78 0xcf
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015
0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable64: NEC 0x78 0xd0
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable65: NEC 0x78 0xd1
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
75
4K Vertex² – User Manual
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015
003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable66: NEC 0x78 0xd2
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015
0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable67: NEC 0x78 0xd3
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015
0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable68: NEC 0x78 0xd4
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable69: NEC 0x78 0xd5
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015
003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable7: NEC 0x78 0x97
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
76
4K Vertex² – User Manual
0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015
0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable70: NEC 0x78 0xd6
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015
0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable71: NEC 0x78 0xd7
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015
0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable72: NEC 0x78 0xd8
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable73: NEC 0x78 0xd9
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015
003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable74: NEC 0x78 0xda
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015
0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 1d0b
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
77
4K Vertex² – User Manual
vertex2_edidcustomtable75: NEC 0x78 0xdb
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015
0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable76: NEC 0x78 0xdc
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable77: NEC 0x78 0xdd
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015
003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable78: NEC 0x78 0xde
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015
0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable79: NEC 0x78 0xdf
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015
0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 1d0b
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
78
4K Vertex² – User Manual
vertex2_edidcustomtable8: NEC 0x78 0x98
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015
003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable80: NEC 0x78 0xe0
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015
003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable81: NEC 0x78 0xe1
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015
003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable82: NEC 0x78 0xe2
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015
0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable83: NEC 0x78 0xe3
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015
0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable84: NEC 0x78 0xe4
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
79
4K Vertex² – User Manual
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable85: NEC 0x78 0xe5
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015
003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable86: NEC 0x78 0xe6
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015
0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable87: NEC 0x78 0xe7
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015
0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable88: NEC 0x78 0xe8
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015
003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable89: NEC 0x78 0xe9
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
80
4K Vertex² – User Manual
0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015
003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable9: NEC 0x78 0x99
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015
003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_edidcustomtable90: NEC 0x78 0xea
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015
0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable91: NEC 0x78 0xeb
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015
0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable92: NEC 0x78 0xec
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable93: NEC 0x78 0xed
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015
003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 1d0b
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
81
4K Vertex² – User Manual
vertex2_edidcustomtable94: NEC 0x78 0xee
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015
0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable95: NEC 0x78 0xef
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015
0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable96: NEC 0x78 0xf0
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015
003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable97: NEC 0x78 0xf1
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015
003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 1d0b
vertex2_edidcustomtable98: NEC 0x78 0xf2
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015
0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 1d0b
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
82
4K Vertex² – User Manual
vertex2_edidcustomtable99: NEC 0x78 0xf3
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015
0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 1d0b
vertex2_ediddvlimitoff: NEC 0x78 0x32
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015
0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_ediddvlimiton: NEC 0x78 0x31
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015
003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_ediddvoff: NEC 0x78 0x2e
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015
0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_ediddvon: NEC 0x78 0x2d
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015
003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_ediddvremoveoff: NEC 0x78 0x30
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
83
4K Vertex² – User Manual
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015
003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_ediddvremoveon: NEC 0x78 0x2f
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015
0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_edidfixed: NEC 0x78 0x1b
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015
0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 1d0b
vertex2_edidhdr10off: NEC 0x78 0x2a
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015
0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_edidhdr10on: NEC 0x78 0x29
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015
003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_edidhlgoff: NEC 0x78 0x2c
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
84
4K Vertex² – User Manual
0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015
003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_edidhlgon: NEC 0x78 0x2b
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015
0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_edidrx1follow: NEC 0x78 0x8e
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015
0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_edidrx2follow: NEC 0x78 0x8f
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015
0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_edidrx3follow: NEC 0x78 0x90
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015
003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_edidyuvremoveoff: NEC 0x78 0x27
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015
0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 1d0b
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
85
4K Vertex² – User Manual
vertex2_edidyuvremoveon: NEC 0x78 0x28
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015
003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_hdcp14: NEC 0x78 0x36
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015
0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_hdcpauto: NEC 0x78 0x35
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015
003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 1d0b
vertex2_hdrcustomoff: NEC 0x78 0x42
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015
0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 1d0b
vertex2_hdrcustomon: NEC 0x78 0x41
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015
003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 1d0b
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
86
4K Vertex² – User Manual
vertex2_hdrdisableoff: NEC 0x78 0x44
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 1d0b
vertex2_hdrdisableon: NEC 0x78 0x43
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015
0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 1d0b
vertex2_hotplug: NEC 0x78 0x16
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015
0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 1d0b
vertex2_inputsel0: NEC 0x78 0x00
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015
003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 1d0b
vertex2_inputsel0x: NEC 0x78 0x04
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 1d0b
vertex2_inputsel1: NEC 0x78 0x01
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
87
4K Vertex² – User Manual
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015
003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 1d0b
vertex2_inputsel1x: NEC 0x78 0x05
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 1d0b
vertex2_inputsel2: NEC 0x78 0x02
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015
0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 1d0b
vertex2_inputsel2x: NEC 0x78 0x06
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015
0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 1d0b
vertex2_inputsel3: NEC 0x78 0x03
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015
0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 1d0b
vertex2_inputsel3x: NEC 0x78 0x07
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
88
4K Vertex² – User Manual
0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015
0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 1d0b
vertex2_inputselx0: NEC 0x78 0x08
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015
003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 1d0b
vertex2_inputselx1: NEC 0x78 0x09
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015
003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 1d0b
vertex2_inputselx2: NEC 0x78 0x0a
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015
0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 1d0b
vertex2_inputselx3: NEC 0x78 0x0b
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015
0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 1d0b
vertex2_jvcmacromode0: NEC 0x78 0x69
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015
003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 1d0b
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
89
4K Vertex² – User Manual
vertex2_jvcmacromode1: NEC 0x78 0x6a
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015
0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 1d0b
vertex2_jvcmacromode2: NEC 0x78 0x6b
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015
0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 1d0b
vertex2_jvcmacromode3: NEC 0x78 0x6c
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015
003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 1d0b
vertex2_jvcmacrooff: NEC 0x78 0x67
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015
0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 1d0b
vertex2_jvcmacroon: NEC 0x78 0x68
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015
003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 1d0b
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
90
4K Vertex² – User Manual
vertex2_oledfade0: NEC 0x78 0x5b
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015
0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 1d0b
vertex2_oledfade30: NEC 0x78 0x5a
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015
0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 1d0b
vertex2_oledoff: NEC 0x78 0x50
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015
003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 1d0b
vertex2_oledon: NEC 0x78 0x4f
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015
0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 1d0b
vertex2_oledpage0: NEC 0x78 0x55
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015
003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 1d0b
vertex2_oledpage1: NEC 0x78 0x56
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
91
4K Vertex² – User Manual
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015
0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 1d0b
vertex2_oledpage2: NEC 0x78 0x57
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015
0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 1d0b
vertex2_oledpage3: NEC 0x78 0x58
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015
003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 1d0b
vertex2_oledpage4: NEC 0x78 0x59
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015
003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 1d0b
vertex2_oledpage5: NEC 0x78 0x5c
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015
003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 1d0b
vertex2_oledrevoff: NEC 0x78 0x52
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
92
4K Vertex² – User Manual
0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015
0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 1d0b
vertex2_oledrevon: NEC 0x78 0x51
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015
003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 1d0b
vertex2_oledrotateoff: NEC 0x78 0x54
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015
003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 1d0b
vertex2_oledrotateon: NEC 0x78 0x53
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015
0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 1d0b
vertex2_osdaudiooff: NEC 0x78 0x7e
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015
0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 1d0b
vertex2_osdaudioon: NEC 0x78 0x7f
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015
0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 1d0b
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
93
4K Vertex² – User Manual
vertex2_osdcustomtextoff: NEC 0x78 0x88
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015
003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_osdcustomtexton: NEC 0x78 0x89
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015
003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_osdfade0: NEC 0x78 0x72
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015
0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 1d0b
vertex2_osdfade15: NEC 0x78 0x73
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015
0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 1d0b
vertex2_osdhdrdetailoff: NEC 0x78 0x7a
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015
0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 1d0b
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
94
4K Vertex² – User Manual
vertex2_osdhdrdetailon: NEC 0x78 0x7b
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015
0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 1d0b
vertex2_osdhdrifoff: NEC 0x78 0x7c
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015
003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 1d0b
vertex2_osdhdrifon: NEC 0x78 0x7d
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015
003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 1d0b
vertex2_osdhdrrxonlyoff: NEC 0x78 0x80
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015
003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_osdhdrrxonlyon: NEC 0x78 0x81
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015
003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_osdignoremetadataoff: NEC 0x78 0x84
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
95
4K Vertex² – User Manual
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_osdignoremetadataon: NEC 0x78 0x85
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_osdmaskoff: NEC 0x78 0x87
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015
0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_osdmaskon: NEC 0x78 0x86
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015
0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_osdoff: NEC 0x78 0x70
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015
003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 1d0b
vertex2_osdon: NEC 0x78 0x71
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
96
4K Vertex² – User Manual
0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015
003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 1d0b
vertex2_osdrxvideoonlyoff: NEC 0x78 0x82
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015
0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_osdrxvideoonlyon: NEC 0x78 0x83
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015
0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 1d0b
vertex2_osdsourcenameoff: NEC 0x78 0x74
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015
003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 1d0b
vertex2_osdsourcenameon: NEC 0x78 0x75
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015
003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 1d0b
vertex2_osdvideofieldoff: NEC 0x78 0x76
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015
0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 1d0b
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
97
4K Vertex² – User Manual
vertex2_osdvideofieldon: NEC 0x78 0x77
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015
0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 1d0b
vertex2_osdvideoifoff: NEC 0x78 0x78
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015
003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 1d0b
vertex2_osdvideoifon: NEC 0x78 0x79
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015
003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 1d0b
vertex2_scaleauto: NEC 0x78 0x17
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015
0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 1d0b
vertex2_scalecustom: NEC 0x78 0x18
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015
003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 1d0b
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
98
4K Vertex² – User Manual
vertex2_scalenone: NEC 0x78 0x19
0000 006e 0000 0022 0156 00ab 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015
003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f
0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015
003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 1d0b
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
99
4K Vertex² – User Manual
FAQ
What is the difference between Splitter and Matrix option, what are the options for each mode?
The below picture represents the available options for both mode.
Can we pass-through 4K60 4:4:4 or any HDR signal and have one output at lower resolution ?
Yes, when connected correctly to the right downscale output port (TX1), Vertex² will automatically scale
down UHD to FHD if required by the connected SINK (Display, AVR or others). Similarly it can scale up
FHD to UHD if required by the connected SINK to the upscale port (TX0).
My display is supposed to accept 4K60 4:4:4 signals but it does not work?
For most UHD TV set we tried, there are always extra configuration options to active in order to achieve
a 4K60 4:4:4 600MHz link. For ex, on samsung: in order to enable the 444 colorspace for 4k in Samsung
TV’s you must go to "settings" and "hdmi" and "UHD color" and enable it. Then also you must assign the
HDMI port1 as "PC" in the tools menu. Only after these two steps will 600MHz be accepted. Similar
activation tricks are required on most UHD TV’s. Additionally, most UHD TV’s only have specific ports
that are 600MHz capable.
I have a PC mode on my TV (or a PC monitor) what resolutions are supported for graphics mode?
All PC graphics mode within the 600MHz bandwidth are supported, including ultra-high resolution such
as WQSXGA, QUXGA, QFHD, WQUXGA, 4K.
What output resolution does the Vertex² support in HDTV mode?
All known SD, HD, Full HD and UHD formats are supported including: 480i50,480i60, 480p50, 480p60,
576p50, 576p60, 720p50, 720p60, 720p100, 720p120, 1080i25, 1080i30, 1080p24, 1080p25, 1080p30,
1080p48, 1080p50, 1080p60, 1080p72, 1080p75, 1080p96, 1440p50, 1440p60, 2160p24, 2160p25,
2160p30, 2160p50, 2160p60 (these are examples only, anything within the 600MHz bandwidth is
supported.)
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
100
4K Vertex² – User Manual
What version of HDMI does the Vertex² work with? Do I need HDMI 1.3/1.4a/2.0a/2.0b? Does it
matter?
It does not matter. HDfury Vertex² works with any version of HDMI from 1.0 and up.
Do I need to set anything special in my HDMI source device to set the resolution correctly?
No. The HDfury Vertex² will be detected as 2160p60 4:4:4 capable device by your source and it will
always accept and process the highest quality stream from your source devices. There is no need to set
the HDMI source to any specific resolution.
Is there any latency (delay) introduced to the signal?
Virtually none. The latency added is in the order of a few pixel clocks only. Nothing noticeable at all.
What about long HDMI cable runs? Can I expect issues?
For 600MHz users must use "high speed" cables, or 600MHz/18Gbps certified, ideally the length should
be between 6ft and 12ft for proper 600MHz/18Gbps pass-thru. For 4K30, 1080p or less almost all cables
are ok. HDfury Vertex² acts as a HDMI repeater device. So having HDfury Vertex² in the path will amplify
and recover the signal. You should not need any passive (or active) HDMI amplifiers, especially if you put
the HDfury Vertex² in the middle of your cable run. If you previously had to use an amplifier, the HDfury
Vertex² can most likely take its place. The HDfury Vertex² has been used with 50 foot (and longer) HDMI
cables without issues including copper, active or fiber solutions.
How are the new lossless audio formats via HDMI input handled? E.g. DTS-HD/MA and DD/E-AC3: Are
they stripped down to DTS core or Dolby Digital respectively to fit the requirements of the S/PDIF
standard?
Lossless audio is transmitted through HDMI output only. HDfury Vertex² does not compress or otherwise
downconvert the incoming audio. Only stereo and 5.1 sound can be output via SPDIF output. The analog
output supports stereo only.
How do I hook up the audio from the Vertex² ?
The Vertex² has both analog and digital (TOSLINK) audio output in one connector labeled "SPDIF + L/R".
It's a 2-in-1 connector meaning that you can plug in either a 3.5mm stereo analog jack or a digital miniTOLINK (3.5mm mini-jack) cable and get stereo analog sound or 5.1 Dolby/DTS digital sound out of the
Vertex². See further below for pictures of both types of connectors/cables.
Vertex² 3.5mm mini-TOSLINK digital audio cable:
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
Loading...
