4K Integral
User Manual 4K Integral Rev 1.4
2
4K Integral – User Manual
Table of Contents
Overview …...................................................................................................... 3
Connecting Cables …........................................................................................ 4
Power Status/LED …......................................................................................... 5
Reset HPD/Factory Default…...........................................................................6
EDID Mode Selection .......................................................................................7
CEC Trigger Button ……….................................................................................. 8
Input Switching and Matrix Mode...................................................................9
HDCP Settings………………………..……………………………………………………………………. 10
Audio Settings…............................................................................................... 11
Combo RST + INP to select Custom EDID........................................................ 12
List of Custom EDID available.......................................................................... 13

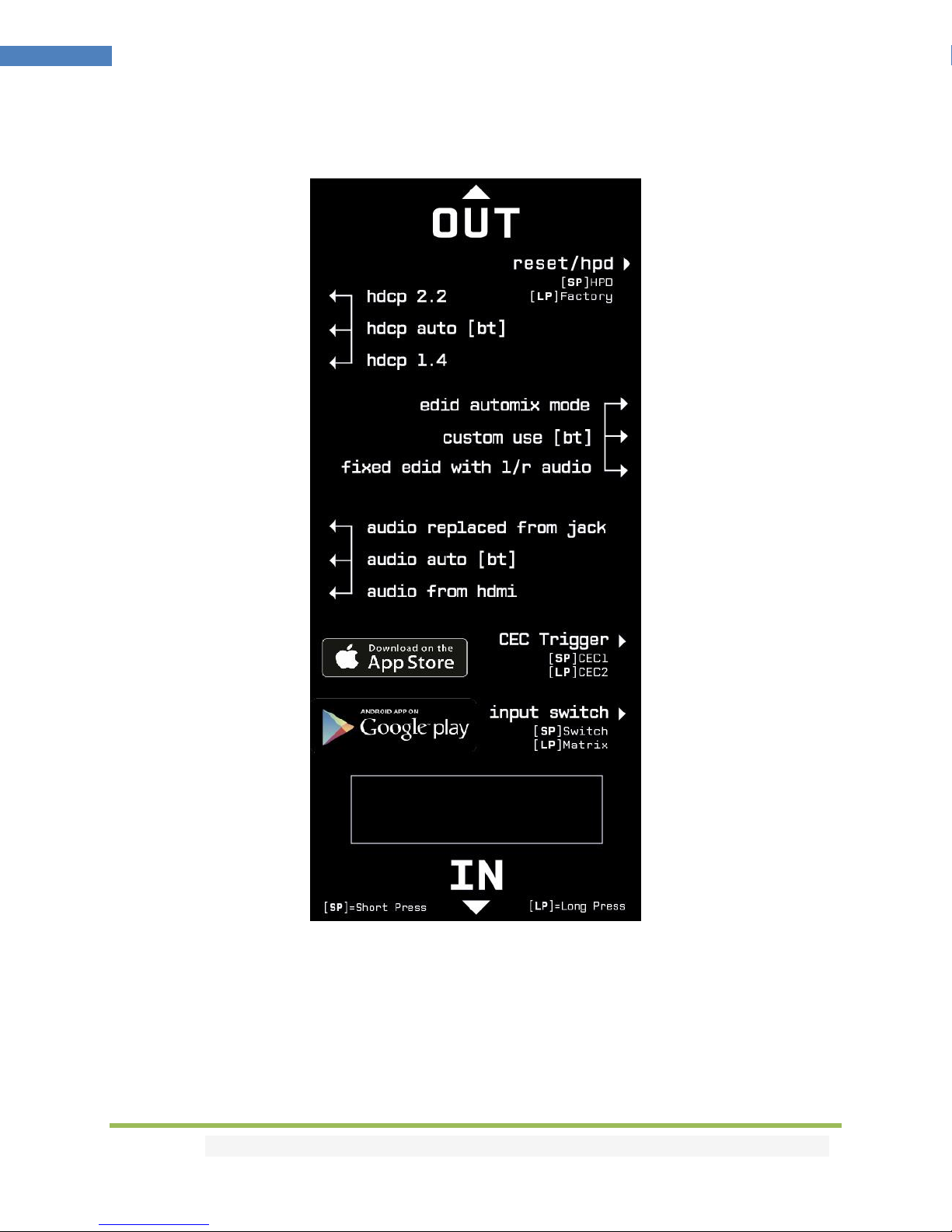

Backside Sticker............................................................................................... 14
Selecting the Windows PC driver for USB GUI and Firmware Update......…… 15

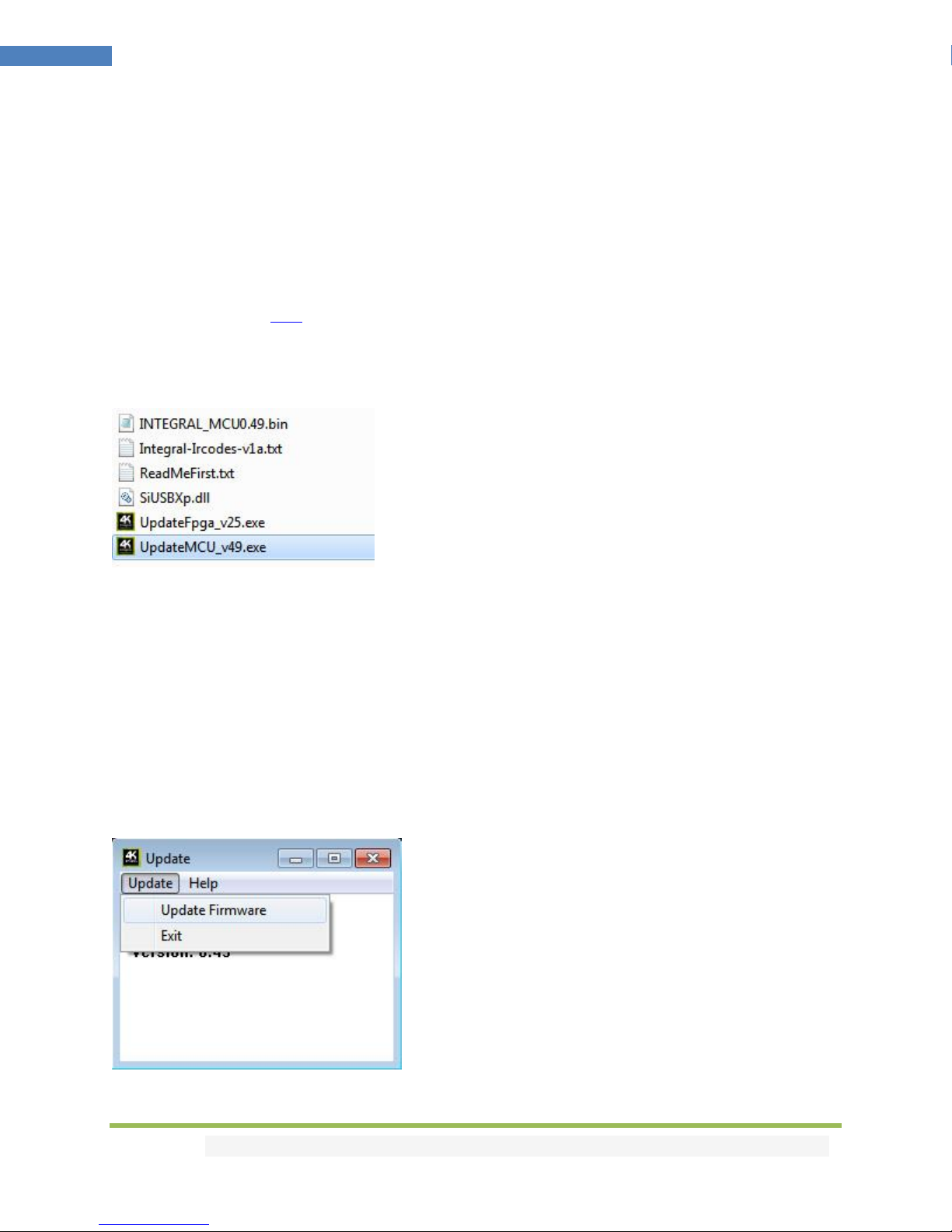

Update the Integral Firmware with a Windows PC...................................…… 16

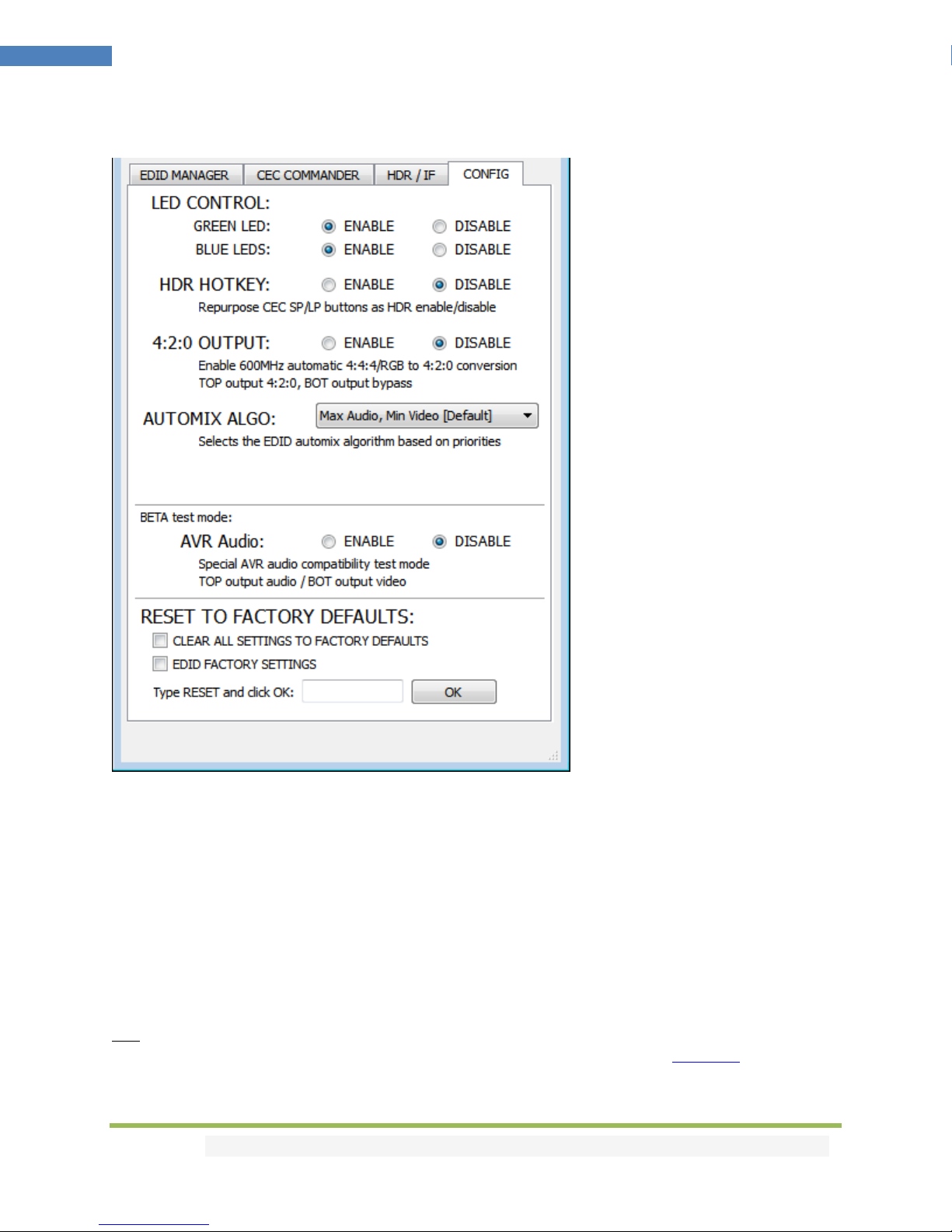

Integral USB GUI for Windows PC..............................................................…… 19
Integral Total Control APP............................................................................... 30
Frequently Asked Questions (FAQ) ................................................................ 32
Specifications................................................................................................... .36
Certifications.................................................................................................... 40
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
3
4K Integral – User Manual
Overview
The HDfury team would like to thank you personally for purchasing the 4K Integral!
This unique HDMI2.0a and HDCP2.2 device supports true full 4K60 4:4:4 600MHz 18Gbps bandwidth
signals. It will allow you to solve any HDCP error, Split any SD/HD/Full HD/4K or PC signals up to
600MHz, replace or extract HDMI audio, Input CEC commands, Update and switch between multiple
edid banks, work as a Matrix, Inject Infoframe and more. Control can be completed with IR codes,
through slide switch or push buttons on the unit, via a wired USB connection to a Windows PC or
through wireless Bluetooth connection with any Smartphone or Tablet running Android or iOS.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
4
4K Integral – User Manual
Connecting Cables
To use your 4K Integral:
• Connect a HDMI input cable to the HDMI input.
• Connect a HDMI output cable to the HDMI output.
• Connect the Integral power supply.
• Connect any additional HDMI input/output cable or any audio input /output cable (optional).
As shipped, the Integral defaults to HDCP1.4 on the Bottom output port. Top Output port can be
configured to any HDCP revision. Make sure that you are using 600MHz certified HDMI 4K cable if you
plan to set up a 4K60 4:4:4 600MHz 18Gbps link in your setup.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
5
4K Integral – User Manual
Power/Status LED
The Integral logo will glow Green when in use. When the Integral first receives an HDMI signal the logo
will quickly turn on, then off, and then on permanently to indicate that the HDCP handshake has been
completed.
The status of the green logo may be used for troubleshooting:
[Logo OFF]: Insufficient power or no incoming signals. Use the Integral power supply, make sure
the source and sink devices are correctly connected and ON.
[Logo BLINKING] (ON for split second, OFF for 5 seconds): The Integral is receiving power and is
ready to accept an HDMI signal.
[Logo ON]: The Integral is powered and receiving and decoding a HDMI signal.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
6
4K Integral – User Manual
Reset HPD (Short Press) or Reset to factory default (Long Press)
The 4K Integral offers 2 functions per push button.
[Short Press] on Reset Button will generate Hot Plug Detection event.
[Long Press] (over 10s for security) will reset the Integral to factory default.
Note: You can also Reset the unit or perform any others control with IR codes, from the USB GUI for
Windows PC or via smartphone/tablet APP for Android and iOS.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
7
4K Integral – User Manual
EDID Mode Selection
EDID slide switch has 3 positions.
Switch should be set to middle position to allow control via USB, IR or Bluetooth device.
[Automix Mode]: Create EDID based on mutual least capabilities so both displays will always show a
picture and audio. You can access advanced options of the Automix mode via the GUI for Windows PC
and Android/iOS APP.
[Custom Use / BT]: Pick and use EDID from a selection of preloaded EDID tables (see p.13) or load any
EDID bank of your choice. By default the selected EDID table is a 4K30 4:4:4 300MHz with Full Audio
capabilities. Leave the slide in this position to allow remote control via USB/IR or Android/iOS APP
and/or to pick and use any of the 25 different EDID tables available (see p.13 for the full list).
[Fixed EDID with L/R Audio]: This mode is a 1080p60 2channel stereo basic table. It can be used as a
security EDID to ensure a picture in every setup/situation.
Note: You can also switch EDID mode and any others control with IR codes, from the USB GUI for
Windows PC or via smartphone/tablet APP for Android/iOS.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
8
4K Integral – User Manual
CEC Trigger Button
CEC Trigger Button allows you to send two custom CEC commands on the HDMI/CEC network.
Integral TOP output port is the CEC master output.
[Short Press] on CEC Trigger Button will send CEC1 command.
[Long Press] (over 2sec) on CEC Trigger Button will send CEC2 command.
By default CEC1 is 0F:04 (Display View On, it will turn ON HDMI/CEC capable unit)
By default CEC2 is 0F:36 (Standby, it will turn OFF HDMI/CEC capable device)
Note: To send LIVE CEC commands or to update the default CEC commands please refer to the USB GUI
software for Windows PC at page 15 or the smartphone/tablet APP for Android and iOS at page 17.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
9
4K Integral – User Manual
Input Switching and Matrix mode
Input Switch / Matrix Mode Button allow you to switch active inputs or enter/exit the Matrix mode.
[Short Press] will switch the active input channels in Splitter Mode and swap/cross signals in Matrix
mode.
[Long Press] (over 2sec) will enter/exit the Matrix Mode (only available for signals up to 4K30 4:4:4
300MHz or 4K60 4:2:0 300MHz).
Blue LEDs on the unit will show the active input channel (when one LED is ON) or Matrix Mode (when
both LEDs are ON).
Note for Matrix Mode:
It is only available for signals up to 300MHz (max 4K30 4:4:4 or 4K60 4:2:0).
Input in this mode is limited to one HDCP 2.2 stream; the other must be HDCP 1.4 or DVI-D.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
10
4K Integral – User Manual
HDCP Settings
HDCP slide switch has 3 positions.
The switch should be set to the middle position to allow control via USB, IR or a Bluetooth device.
[HDCP 2.2 Mode]: In this mode you always have HDCP 2.2 on the TOP output port and HDCP 1.4 on
bottom output port.
[HDCP Auto / BT]: In this mode the Integral unit makes sure that the conversion will always output a
working signal. The bottom output is always HDCP 1.4 but the top output is dynamic.
[HDCP 1.4]: In this mode, you always have a HDCP1.4 signal on both output ports.
Note on HDCP:
Both inputs accept HDCP1.4/2.2. Both outputs can work with HDCP1.4/2.2 devices.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
11
4K Integral – User Manual
Audio Settings
Audio slide switch has 3 positions.
The switch should be set to the middle position to allow control via USB, IR or a Bluetooth device.
[Audio Replaced] from 3.5mm input: HDMI output sound can be replaced by 44.1kHz (or 48kHz) audio
from the 3.5mm input. In the splitter mode both HDMI outputs will offer the new replaced audio from
3.5mm jack. The S/PDIF and L/R outputs of the Integral continue to output the original HDMI audio.
[Audio Auto /BT]: This slide switch position allows change via Bluetooth, IR or via USB. By default, it’s
set to HDMI.
[Audio from HDM]I: HDMI audio pass-through mode.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
12
4K Integral – User Manual
Combo Hold RST + Press INP to select Custom EDID
Since FW 0.55.0.30 Users now have the possibility to select a custom EDID directly from the unit push
buttons by performing the below combo.
HOLD RST button + press INP button X number of times to select custom EDID.
Ex: Hold RST and press 8 times INP button to select EDID table 8 – 4k60-420 12-bit HDR BT.2020 All
Sound from the Custom EDID tables listed on the next page.
Note: User can also select custom EDID banks using IR, USB GUI or Android/iOS APP.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
13
4K Integral – User Manual
List of Custom EDID available.
Since FW 0.55.0.30, User can now select an EDID from all below EDID tables or force the creation of an
Automix EDID with below options.
[FIXED EDID with L/R stereo]
1080p-444 148MHz Stereo
[CUSTOM USE]
1 – Custom Uploaded/Default EDID
2 – 4k60-444 600MHz HDR BT.2020 All Sound
3 – 4k60-444 600MHz HDR BT.2020 Stereo
4 – 4k60-444 600MHz All Sound
5 – 4k60-444 600MHz Stereo
6 – 4k50-444 600MHz HDR BT.2020 All Sound
7 – 4k50-444 600MHz HDR BT.2020 Stereo
8 – 4k60-420 12-bit HDR BT.2020 All Sound
9 – 4k60-420 12-bit HDR BT.2020 Stereo
10 – 4k60-420 12-bit BT.2020 All Sound
11 – 4k60-420 12-bit BT.2020 Stereo
12 – 4k60-420 8-bit 300MHz All Sound
13 – 4k60-420 8-bit 300MHz Stereo
14 – 4k30-444 300MHz All Sound
15 – 4k30-444 300MHz Stereo
16 – 4k30-RGB 300MHz All Sound
17 – 4k30-RGB 300MHz Stereo
18 – 4k24-422 12-bit BT.2020 All Sound
19 – 4k24-422 12-bit BT.2020 Stereo
20 – 1080p-444 148MHz All Sound
21 – 1080p-444 148MHz HDR Stereo
22 – 1080p24-444 All Sound
23 – 1080p24-444 Stereo
24 – 1080I-444 All Sound
25 – 1080I-444 Stereo
[AUTOMIX]
Enforceable flags available in Automix mode:
Stereo, 5.1, Full Sound, YCbCr, BT2020, 3D Remove, HDR
Selectable algorithms available in Automix mode:
Min Mixed Capabilities, Max Audio/Min Video, Top Output Priority, Max Audio/Max Video
Note: All options are also available via IR, USB GUI or Android/iOS APP.
To upload a custom EDID or Sniff EDID from sink device, please refer to GUI section p.19
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this manual.
