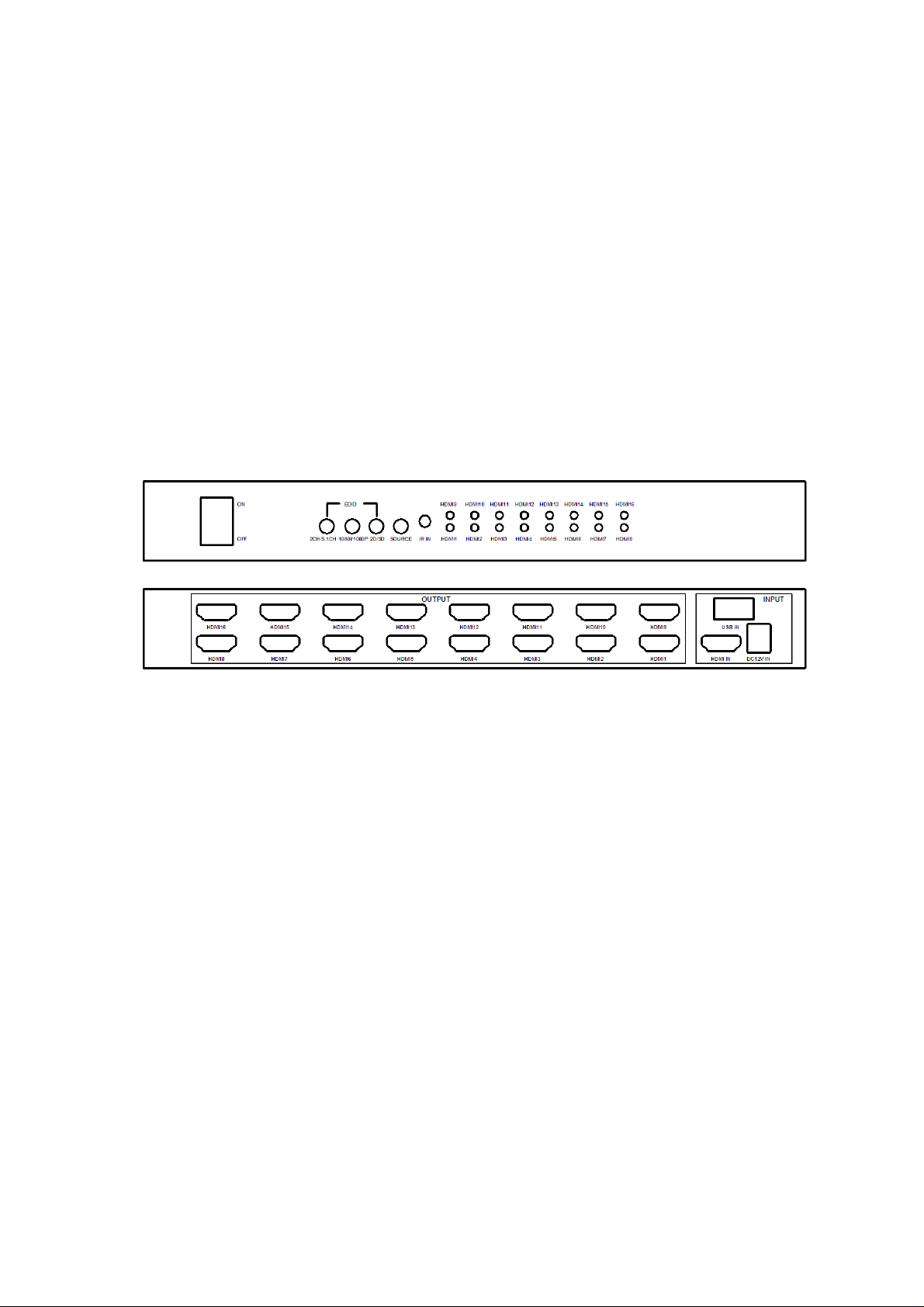

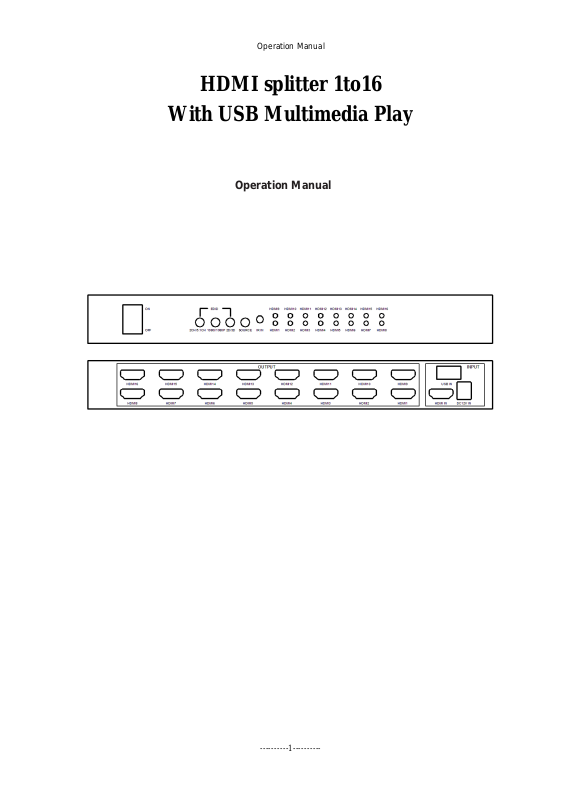

Page 1
Operation Manual
HDMI splitter 1to16
With USB Multimedia Play
Operation Manual
----------1----------
Page 2
Operation Manual
l Introduction
The 1x16 HDMI Splitter use a single HDMI source or USB Multimedia source,
accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split
easily to sixteen HDMI compatible monitors or projectors. The Splitter can also be placed
at the end of a long HDMI cable to regenerate the HDMI signal. It offers HD video
solution for super market; shopping Mall; HDTV, STB, DVD and projector factory; data
control center; information distribution; conference room presentation; education and
training, corporation show room, luxurious house, etc.
l Features
Ø HDMI input signal split to 16 HDMI sink devices.
Ø HDCP 1.2 protocol compliant.
Ø Support deep color 30bit, 36bit, 48bit.
Ø Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Ø Support USB Multimedia Play,
Video Format support MPEG1/2/4, RM,RMVB,MOV
Audio format：WMA,MP3
Images file format: JPEG,BMP,PNG
Ø Digital audio format, as DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD.
Ø Support signal retiming.
Ø Support input up to 15m, AWG26 HDMI standard cable, output up to 15m AWG26 cable.
Ø Need DC 12V power supply.
l Package
Ø HDMI Splitter 1to16 x 1
Ø 12V DC Power Supply adaptor x 1
Ø Remote controller x1
Ø Operation Manual x 1
l Specification
Frequency Bandwidth 2.25Gbps (single link)
HDMI Splitter Input/Output Ports 1 x HDMI Female input port
1 x USB Female input port
16 x HDMI Female output port
Power Supply 12V/3A DC
ESD Protection Human Body Model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
Dimensions (mm) 115(W) X 270 (D) X 45 (H)
Chassis Material Aluminum
Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F
Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F
Relative Humidity 20~90% RH (non-condensing)
----------2----------
Page 3
Operation Manual

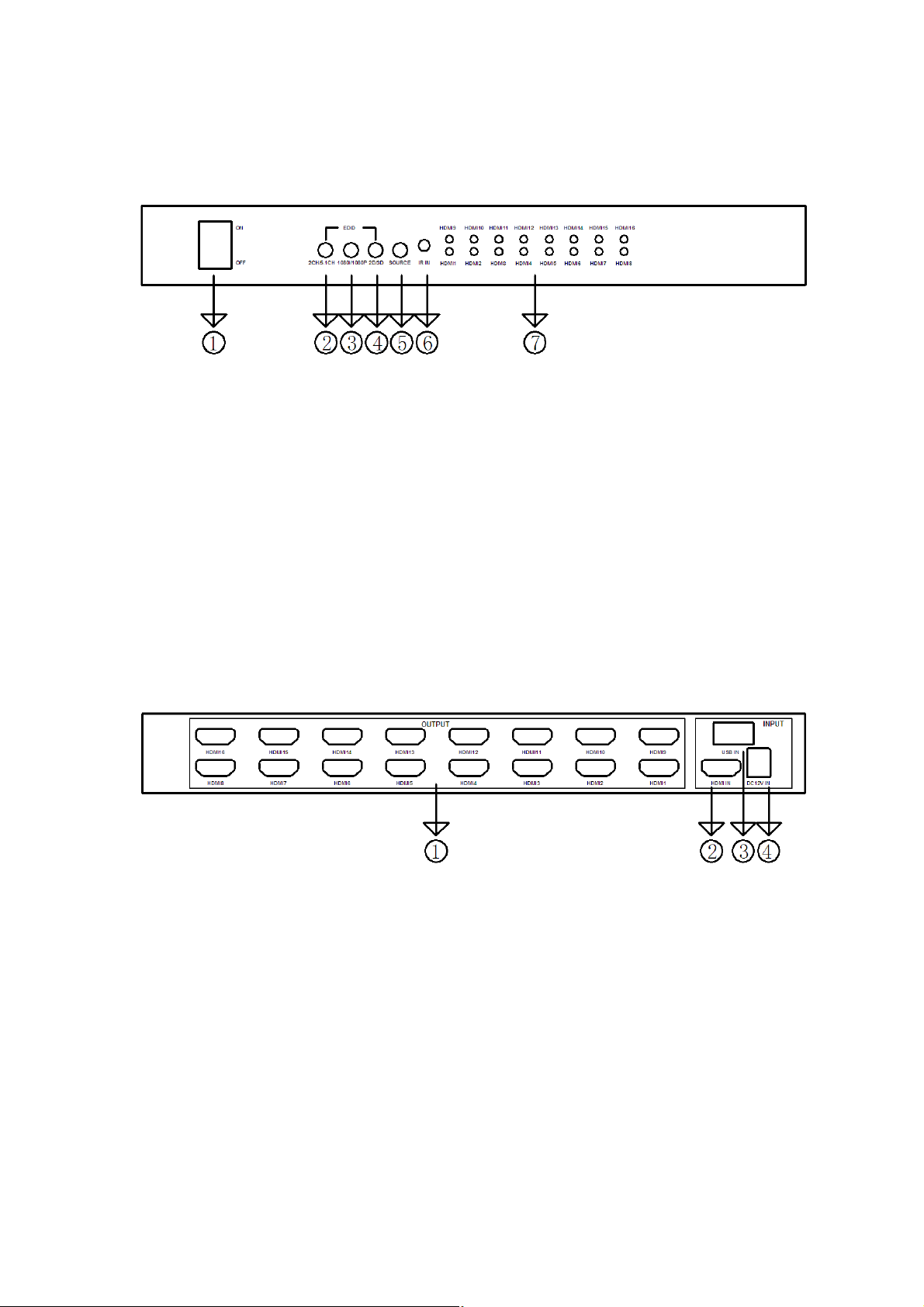

l Operation Controls and Functions
u Front Panel
1) POWER SWITCH: Power ON\OFF Switch.
2) 2CH/5.1CH: Select Audio between 2.1 channel and 5.1 channel.
3) 1080I/1080P:Select Video between 1080i and 1080p
4) 2D/3D: Select Video between 2D and 3D
5) SOURCE: Select input from HDMI and USB
6) IR IN: Remote control signal receive when in USB Multimedia Play mode.
7) HDMI Indicator :When the TV plug in, The corresponding indicator will be light
u Rear Panel
1) HDMI OUTPUT: HDMI Output port 1~16.
2) HDMI INPUT: HDMI input port .
3) USB INPUT:USB Input port
4) Power: Plug the 12VDC power supply into the unit and connect the adaptor to AC
wall outlet
----------3----------
Page 4
Operation Manual

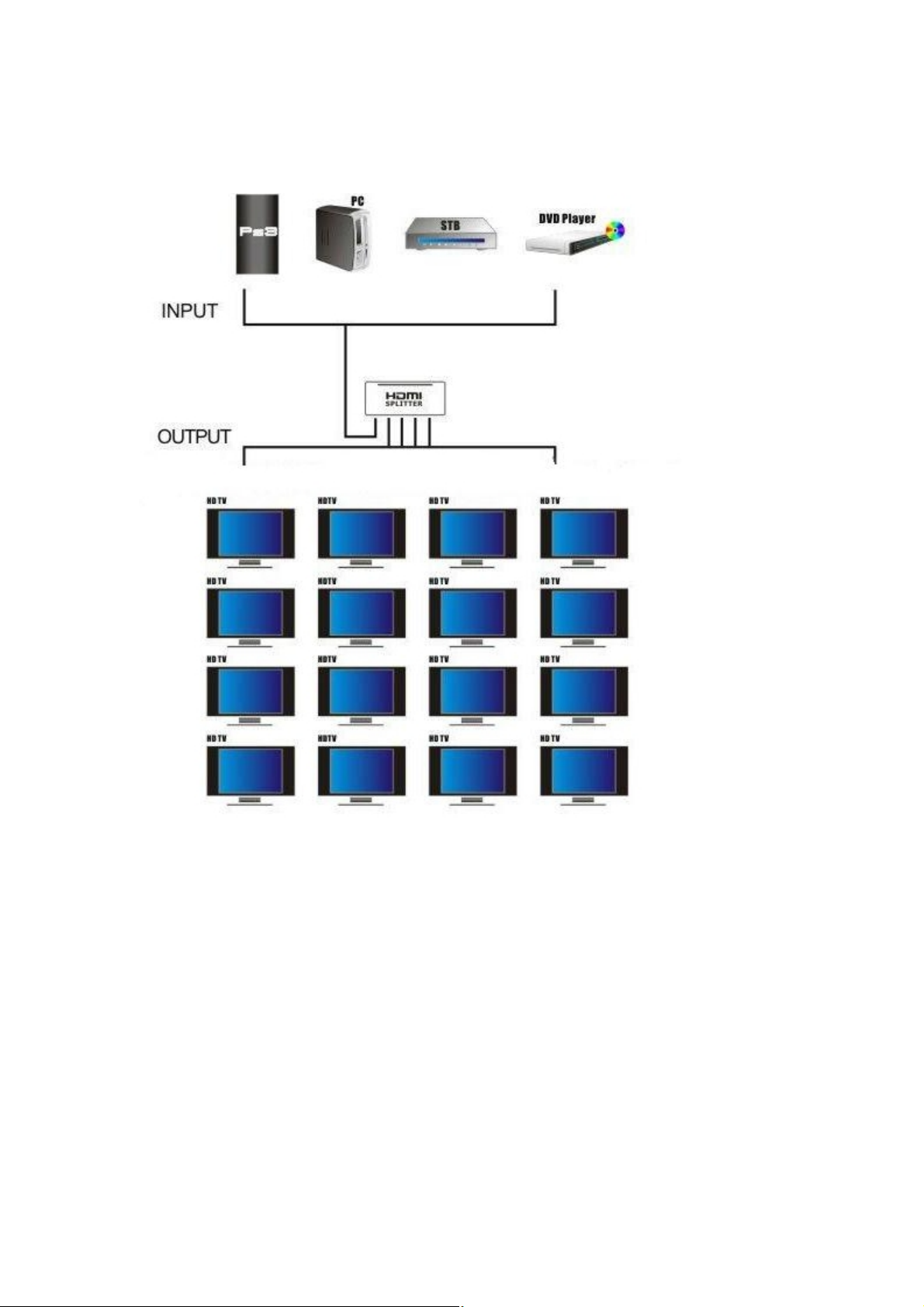

l Connection and Installation
