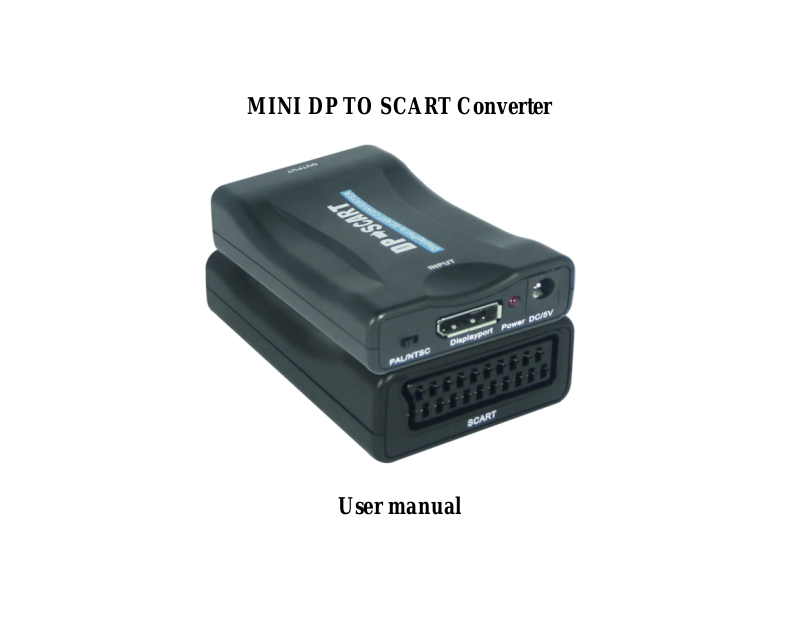

MINI DP TO SCART Converter
User manual
Page 2
Thank you for purchasing this product. For optimum performance and safety, please read these
instructions carefully before connecting, operating or adjusting this product. Please keep this manual for
future reference.
n Introduction
The MINI DP to SCART converter which will convert digital Display Port video and audio signal to
composite video signal and the FL / FR stereo audio signal. Help users convert the high quality of the
DP signal to normal CVBS signal (standard-definition 480i, 576i,).So that can play on CRT TV, VHS
VCR, DVD recorders, etc. The DP to SCART converter support NTSC and PAL TV formats output.
n Features
1. No need to install drivers, portable, flexible, plug and play
2. High quality scaling technology for input resolutions .
3. Support NTSC and PAL two standard TV formats output
4. Support DisplayPort v1.1a, VESA DDM Standard, HDCP v1.3 and EDID v1.4
Page 3
n Package
1. Mini DP to SCART Converter
2. 5V1A DC Power Supply Adaptor
3. Operation Manual
n Specifications
Input ports 1xDisplay Port.
Output ports 1xSCART
Dimensions(mm) 88(D)x58(W)x26(H)
Wight (g) 45
Input Resolution 640x480@60Hz,800x600@60Hz,
1024x768@60Hz,1280x720@60Hz,
1280x1024@60Hz,1360x768@60Hz,
1600x1200@60Hz,1920x1080@60Hz,
Page 4
480i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz,
720p50/60Hz,1080i50/60Hz,
1080p23.97/24/25/50/59.94/60Hz.
CVBS output PAL,NTSC
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
elative Humidity 20 ~ 90% RH (Non-condensing)
Power Consumption (Max) 3W
Page 5
n Operation controls and Fuctions
Front Panel Rear Panel
1) PAL/NTSC Switch: Switch the CVBS output format.
2) Display port Input: Connect the DP to your source equipment such like PC,notebook.
3) LED indicator: When the DC5V power on, the indicator will be light.
4) Power: Plug the 5VDC power supply into the unit and connect the adaptor to AC wall outlet.
5) SCART output: Connect the SCART output to your display equipment(like TV SET).
Page 6
n Application Example
