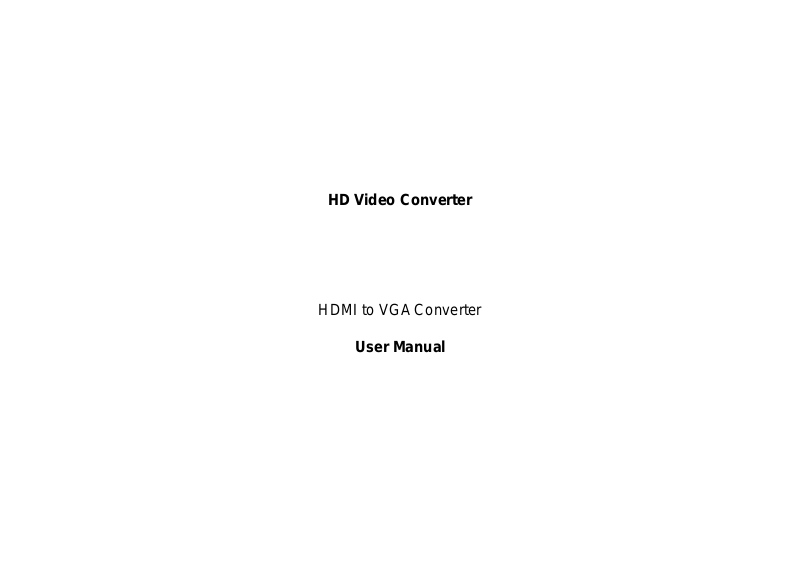

HD Video Converter
HDMI to VGA Converter
User Manual
Introduction:
Thank you for choosing our HDMI to VGA Converter. This will bring you to a wonderful visual experience
world. Please read this manual before using. It will help you make better use or all the features of this
converter.
Free Statement
Users who are not required by the manual operation or use of products not related to this manual, all the
losses caused does not assume any liability for the manufacturer
Manufacturer retains reliability, functionality and system upgrade performance design changes, changes
without prior notice.
@ The user manual of the final interpretation of all manufacturers.
Ⅰ. Introduction
HDMI to VGA is a high-definition video converter which convert HDMI digital signal to VGA analog signal
and analog audio signal .HDMI signals can connect PS3, XBOX360, Blu-ray DVD, HD set-top boxes,
CRT / LED Display ect. So that you can watch HD Video on the normal TV which without HDMI Interface.
HDMI to VGA Converter applied with digital convert chip. Will convert HDMI digital signal to VGA
analog signal. And the signal without any damage. Support HDMI output 1080P/1.3V.
Ⅱ . Product Features
1. No need any software, plug and play
2.All the hardware conversion processing, with images of high definition, good brightness, high image
quality
3. Support HDMI1.3 version (compatible with 1.0/1.1/1.2), automatic detection HDCP
4. Small, mobile and strong
Ⅲ. Technical Parameters
1.HDMI enter ---- HDMI Input formats: 480P/720P / 1080I/1080P/60Hz
2.VGA output :----- VGA Output Resolution: will change with the input of the HDMI signal change.
640*480@60Hz、800*600@60Hz、
1024*768@60Hz、1280*720@60Hz、
1280*768@60Hz、1280*800@60Hz、
1280*1024@60Hz、1360*768@60Hz、
1600*1200@60Hz、 1920*1080@60Hz
(This resolution requires the back-end display
devices support.Output and input synchronization )
3. Audio Output Format: Analog Stereo Audio (0.5 ~ 1.5 Voltsp-p)
4. Power Adapter: AC100 ~ 240V DC output power supply switch DC/5V
HDMI Input VGA Resolution
480P 640X480
720P 1280X720
1080P 1920X1080
Ⅳ. Interface Function
1.HDMI input interface, connect PS3/XBOX360/PC;Graphics / HD player / Blu-ray DVD / HD set-top box /
Notebook computers
2.VGA signal input, connect the projector,(Samsung,
SONY, NEC projectors, etc.) or LCD monitor
3. Audio output interface: connect stereo amplifier or headset
4.DC/5V: Power input interface (DC/5V 600mA)
Ⅴ.Packing List
Accessary Quantity Remark
HDMI TO VGA CONVERTER
DC/5V POWER 1 --
User Manual 1 en
1 --
Ⅶ. Failure check
1. Check the power plug into a socket, the power switch is on DC converter.
2. Detection HDMI cable and VGA cable is good. And make sure HDMI cable support 1.3 and connected
with the converter
3. Signal source output settings for the HDMI channel, whether the back-end VGA display channel
4. Make sure the display support the 1920X1080 resolution. if not , please set to 720P HDMI input
5. Fuzzy image, the display set to automatic identification, or check projection adjusted, HDMI cable
problem
Product Warranty information
Model Purchase Date
Distributor
Information
User
Information
Maintenance
Records
Distributor TEL
Address
User TEL
Address
Descriptions Causes Repaired By Date
1
2
3
