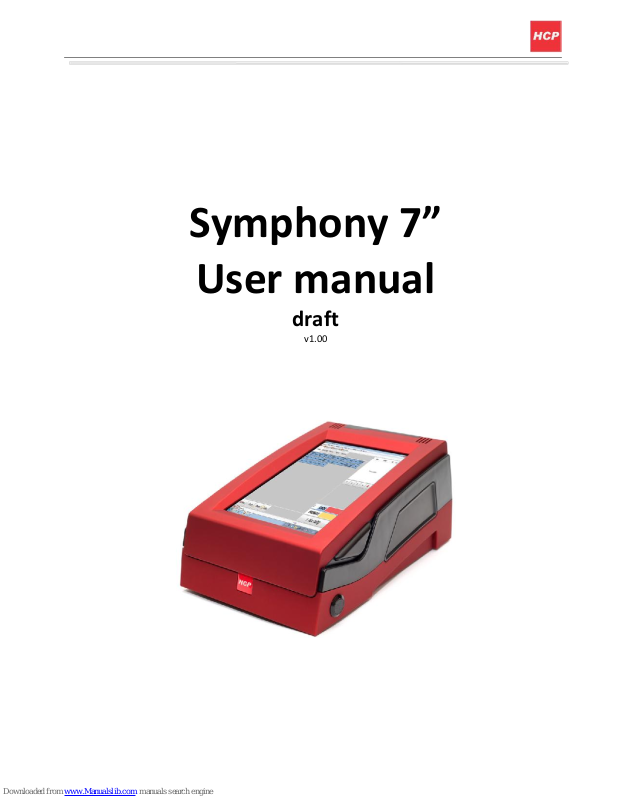

Symphony 7”
User manual
draft
v1.00
Page 2 of 6
About device
Symphony 7” is android device with capacitive touch screen made for use in POS retail systems with user
software.
CPU
AML8726-MX Maximum Frequency 1.5GHZ
RAM memory
1GB DDR3
Flash memory
4GB NANDFLASH
Network
Wireless WIFI i RJ45 LAN connector
Operating system
Android 4.2.2
Display
7” multiple touch capacitive touch screen
Micro SD
Micro SD card up to 32 GB
USB 2.0 port
2x USB2.0 host
COM port - RS232
2xCOM port over mini USB connectors (Rx, TX, GND lines)
Battery
Integrated Li-Ion battery
Power supply
9-12V DC power supply
Table 1. Characteristics of Symphony 7” device
Page 3 of 6
1. Turn on/off/sleep mode
Turn on/off
To turn on device Symphony 7” it is necessary to press and hold button >1s on the right side of device.
To turn off device Symphony 7” it is necessary to press and hold same button more than 2s, after that on
display select “OK” and device will be turned off.
Sleep mode
Device enters “sleep mode” when same button is pressed and hold shortly, like on android mobile phones.
If device is in “sleep mode” to enter normal working mode press and hold same button.
On/Off/sleep button
Figure 1. On/Off/sleep button location
NOTE:
If device won’t turn on, there is a possibility that internal battery is empty. Please connect AC/DC
power adapter and wait for few minutes, and that try to turn it on (press and hold on/off button).
Page 4 of 6
2. Interfaces
1 2 3 4 5 6
Figure 2. Symphony 7” interface location
No
Connector type
Description
1
Power supply connector
DC plug for power supply (9-12VDC)
2
USB1, USB2
USB2.0 host
3
COM1, COM2
RS232 communication interface
4
HDMI
HDMI connector for external monitor
5
MicroSD
Connector for microSD memory card
6
LAN
RJ45 LAN connector
Table 2.Inteface description
Page 5 of 6
3. RS232 COM ports pin-out
Symphony 7” RS232 port has mini USB type connector.
Figure 3. COM1 and COM2 connectors pin-out
COM1 is “devtty1” in android device manager.
No
COM1
Description
1NCNot connected
2
Rx1
Input – Receive
3
Tx1
Output - Transmit
4NCNot connected
5
GND
Signal ground
Table 3. COM1 pin description
COM2 is “devtty2” in android device manager.
No
COM2
Description
1NCNot connected
2
Rx2
Input – Receive
3
Tx2
Output - Transmit
4NCNot connected
5
GND
Signal ground
Table 4. COM2 pin description
Page 6 of 6
4. Example of RS232 adapter cable pin-out mini USB to RJ45
Figure 4. RS232 adapter cable example
NOTE:
This cable can be used to connect Symphony 7” with appropriate software application to fiscal printer.
Pin-out of RJ45 or other type of connector depends on the device that you are connecting.
