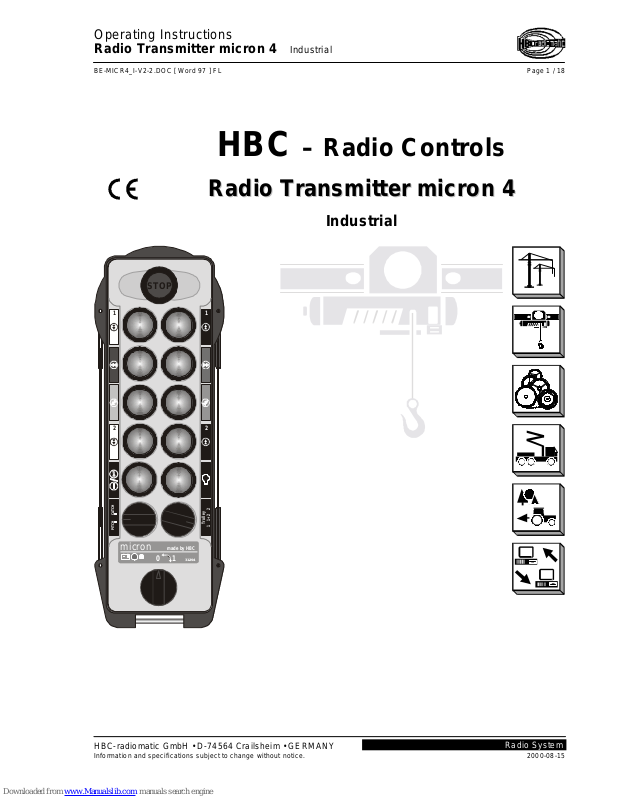

Operating Instructions
Radio Transmitter micron 4 Industrial
BE-MICR4_I-V2-2.DOC [ Word 97 ] FL Page 1 / 18
HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY
Information and specifications subject to change without notice. 2000-08-15
Radio System
HBC – Radio Controls
RRaaddiioo TTrraannssmmiitttteerr mmiiccrroonn 4
4
Industrial
STOP
micron
made by HBC
0 1
31.394
1 1
22
PITC H CATCH
Trol le y
1 1+2 2
Operating Instructions
Radio Transmitter micron 4 Industrial
Page 2 / 18 BE-MICR4_I-V2-2.DOC [ Word 97 ] FL
HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY
2000-08-15 Information and specifications subject to change without notice.
Radio System
Manufacturer : HBC-radiomatic GmbH
Haller Straße 49 - 53
74564 Crailsheim • GERMANY
Tel. +49 ( 0 ) 79 51 – 3 93 - 0
Fax +49 ( 0 ) 79 51 – 3 93 – 50
E-mail: info@radiomatic.com
http://www.hbc-radiomatic.com
HBC radiomatic GmbH is not liable for any misprints or errors! – All rights reserved.
™ radiomatic is a registered German trademark.
© 2000 – 08 , HBC-radiomatic GmbH , D-74564 Crailsheim
No part of any software or of the present document may be reproduced in any manner whatsoever without
the expressed written permission of HBC-radiomatic GmbH.
Operating Instructions
Radio Transmitter micron 4 Industrial
BE-MICR4_I-V2-2.DOC [ Word 97 ] FL Page 3 / 18
HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY
Information and specifications subject to change without notice. 2000-08-15
Radio System
Table of Contents
1 Description ...................................................................................4
2 Safety Instructions........................................................................5
2.1 Pictographs.......................................................................................5
2.2 General Safety Instructions................................................................6
2.3 Operator Safety Instructions..............................................................7
3 Operation......................................................................................8
Scanner (Frequency Selector)............................................................9
3.1 Battery and Battery Charger ............................................................. 10
3.1.1 FuB 3A Transmitter Battery................................................. 10

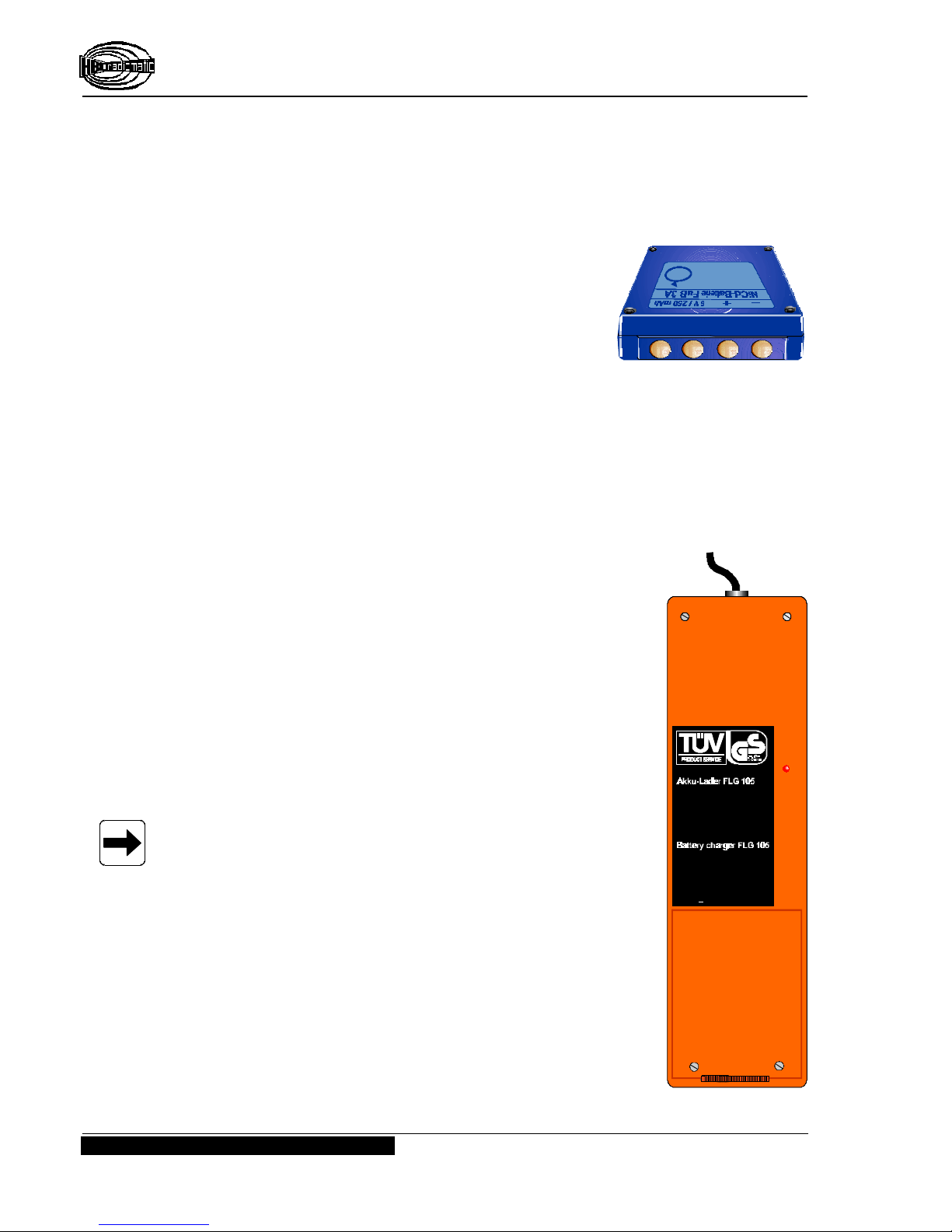

3.1.2 FLG 105 Battery Charger..................................................... 10
3.2 Special Operating Modes (Optional) ................................................. 11

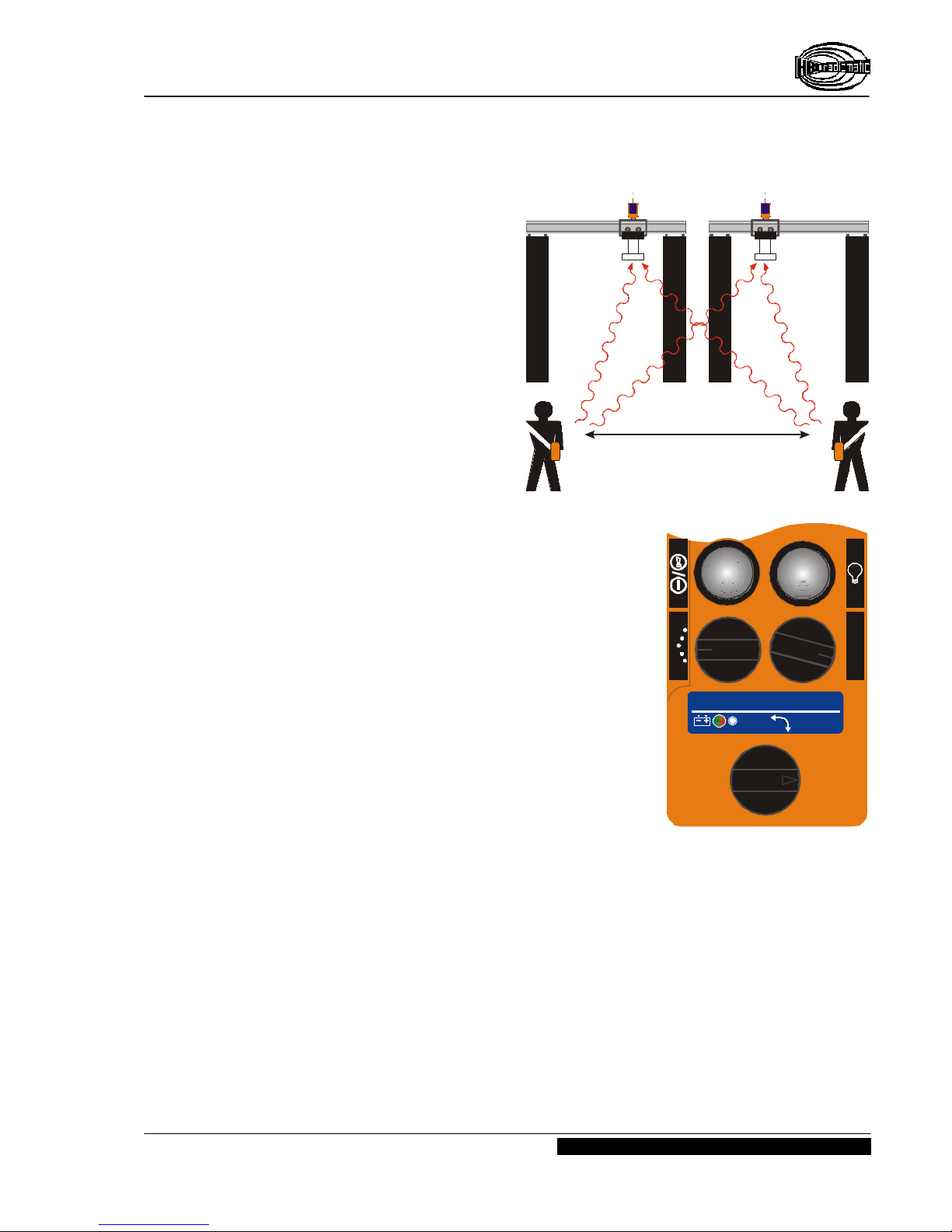

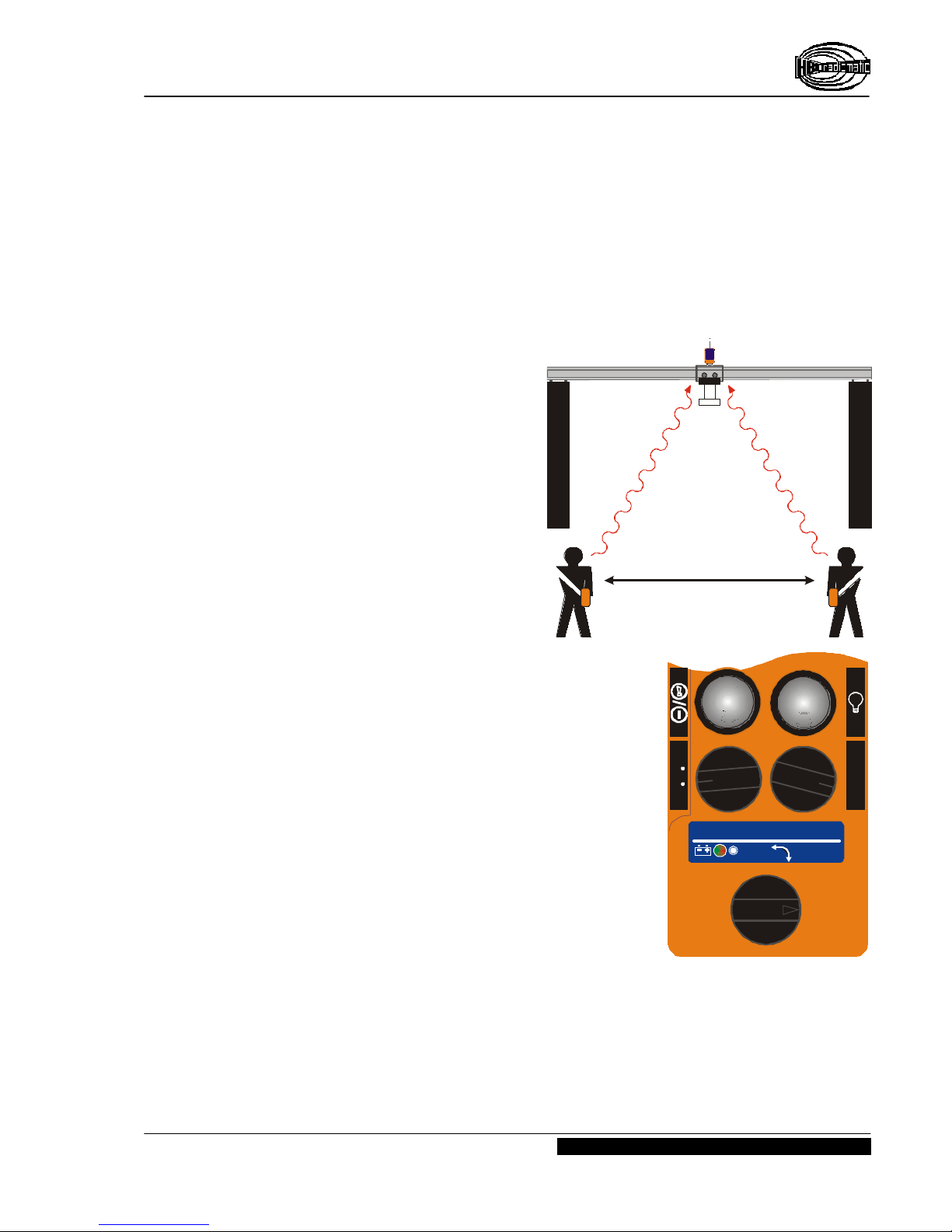

3.2.1 Pitch – Catch ......................................................................11
3.2.2 Pitch – Catch – Tandem Mode .............................................13
4 Fault Correction.......................................................................... 15
5 Maintenance................................................................................16
5.1 In the Event of a Fault......................................................................16
6 Technical Data ............................................................................ 17
Accessories ..................................................................................... 17

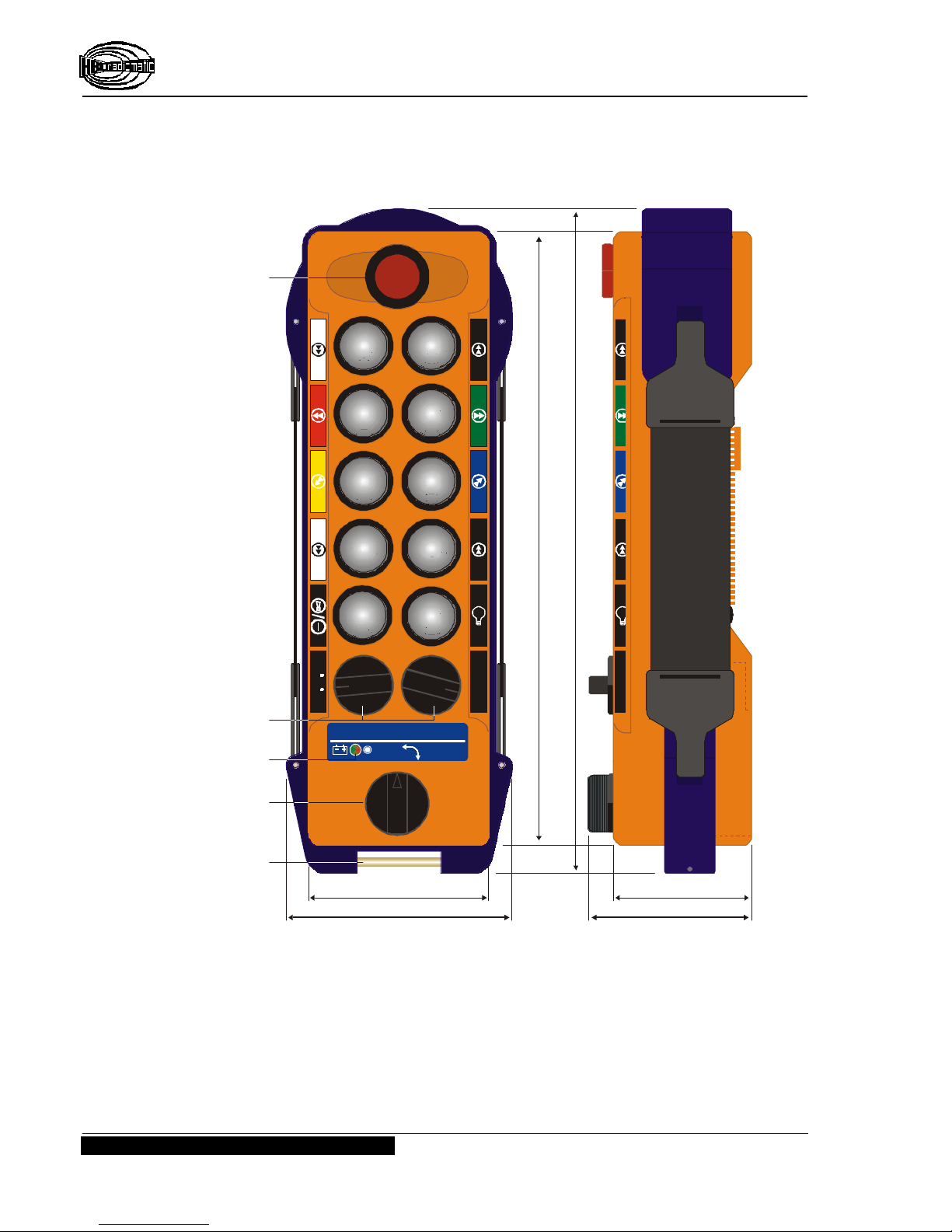

6.1 Dimensions and Operator Controls of micron 4................................18
Operating Instructions
Radio Transmitter micron 4 Industrial
Page 4 / 18 BE-MICR4_I-V2-2.DOC [ Word 97 ] FL
HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY
2000-08-15 Information and specifications subject to change without notice.
Radio System
1 Description
The micron 4 transmitter is designed to transmit command instructions for controlling industrial
cranes and hoists as well as operating machines and plants.
Depending on the type and version selected, up to 24 control commands plus the
integrated STOP commands are available to the operator.
A non-interchangeable system address ensures the functional safety of the radio control
system when operating cranes or machines. This feature is particularly important when
several cranes or machines are in use, for example in halls and shops. The system
address is exclusively allocated to each HBC radio transmitter and its respective
receiver.
It is not possible to activate crane or machine functions using a radio control
system allocated to another crane or machine.
The radio control system consists of the micron 4 transmitter, two rechargeable NiCd
batteries, a battery charger and a receiver with antenna. The receiver housing with
integrated antenna is made of ABS plastic.
The micron 4 is a hand-held transmitter. The observance of handling instructions
ensures operator and worker safety as well as preventing transmitter wear.
The transmitter is powered by 2 rechargeable batteries. The batteries and memory
effect-free battery charger are included.
The transmitter has general telecommunications approvals. It is not necessary to have
or to apply for a license to operate the micron 4 transmitter with the respective receiver.
The transmitter must be operated in the 433,100 MHz to 434,750 MHz range or 869 MHz
to 870 MHz bandwidth. The transmitter is equipped with < 10 mW (average) transmitting
power.
Operating the micron 4 using a different frequency range or transmitting power requires
the approval of the competent regulative authorities for telecommunication.
The following radio receivers may be used in conjunction with the micron 4 transmitter:
FSE 716 FSE 722 B FSE 735
Note:
The improper use, operation or deployment of the device renders the manufacturer
guarantee void of any legal substance!
Operating Instructions
Radio Transmitter micron 4 Industrial
BE-MICR4_I-V2-2.DOC [ Word 97 ] FL Page 5 / 18
HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY
Information and specifications subject to change without notice. 2000-08-15
Radio System
2 Safety Instructions
2.1 Pictographs
The following pictographs will be used throughout the present operating instructions :
Indicates a possible shock hazard
Contacting components under voltage may lead to death. Housing (e.g. hoods and
lids) marked with this symbol may only be opened by qualified electricians after
having disconnected the device from the mains supply (supply voltage, operating
voltage or input terminal voltage).
Indicates safety relevant passages
You will find this pictograph as an indicator for occupational safety measures. The
neglecting of such measures poses a serious hazard.
Always observe the instructions and be particularly attentive and careful.
Avoid any situations that could at any time be a danger to persons or machines.
Indicates important information
This symbol brings your attention to important information on how to secure a long
serviceable life of the radio control system.
Pay attention to the comments and instructions given. Ignoring the information
provided may permanently impair the reliability and operability of the equipment.
Operating Instructions
Radio Transmitter micron 4 Industrial
Page 6 / 18 BE-MICR4_I-V2-2.DOC [ Word 97 ] FL
HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY
2000-08-15 Information and specifications subject to change without notice.
Radio System
2.2 General Safety Instructions
Radio controls facilitate and increase the operating efficiency of cranes and machines.
Nevertheless, the operator must thoroughly understand and be in a position to properly
use a radio control system !
Ø Read the Operating Instructions Manual carefully and thoroughly before working with
the transmitter for the first time !
Ø The operator undertakes to strictly adhere to the instructions and proceedings
described in this manual, as well as to follow the general rules and regulations for
worker safety and accident prevention. Ignoring any such instructions or regulations
could pose a fatal threat to the operator or others.
Ø Keep this manual on location and readily available at all times!
Ø Only authorized and properly trained personnel may operate the transmitter.
Ø Anyone who is under the influence of drugs, alcohol or medication that has a
detrimental effect on a person's reactions may at no time commission, operate,
maintain or repair the transmitter.
Ø Before switching the transmitter on ensure that no-one is or can be endangered by
the initiated operation.
Ø With the first signs of any malfunction related to the operative safety and reliability
of the device, the operator must immediately shut down or not activate the
transmitter. For the purpose of the present manual "shut down" implies :
– switching OFF the transmitter,
– storing the transmitter in a safe place and ensuring no unauthorized access,
– de-energizing the receiver,
– unplugging the connection cable on the receiver !
Ø Defects must be repaired and sources of interference must be removed
immediately !
Ø A defective transmitter may only be repaired by qualified and competent personnel.
Use only original HBC spare parts. The use of any other spares will render the
technical inspectorate approval invalid as well as substantially impede operative
safety.
Ø Observe all periodical tests and inspections that are required by law or
recommended in the present operating instructions !
Ø When using the micron 4 transmitter always observe the regulations and instructions
stipulated in the authoritative worker safety and accident prevention regulations
(VBG 9)
– The micron 4 transmitter has been manufactured in accordance with the
regulations and guidelines stipulated in the German Trade Association's "Safety
and Accident Prevention Regulations for Operating Cranes by Radio Controls"
(VBG 9; ZH 1/547) and pr EN 12077-1.
– The micron 4 transmitter has been tested and approved in accordance with EMC
guidelines and complies with the authoritative standards for emitted interference
and interference immunity.
Ø Use the transmitter cautiously and properly. In particular when using a transmitter to
radio control a machine or crane for the first time.
Operating Instructions
Radio Transmitter micron 4 Industrial
BE-MICR4_I-V2-2.DOC [ Word 97 ] FL Page 7 / 18
HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY
Information and specifications subject to change without notice. 2000-08-15
Radio System
2.3 Operator Safety Instructions
Ø Before beginning crane operation, position yourself so that you have a clear and
complete overview of the working radius of the crane or machine.
Ø To operate, hold the transmitter securely in your hand. Use the optional wrist strap.
Follow these instructions to ensure personal safety.
Ø Depending on your angle or position to the crane or machine, the transmitter control
commands “trolley left” and “trolley right” appear to interchange ! It is essential that
you take your bearings to the crane or machine into due consideration before
operating equipment.
Ø In case of an emergency or any disturbances within the working range of the crane
or machine, switch the transmitter OFF immediately by pressing the STOP
pushbutton. Should the transmitter show signs of technical failure or breakdown,
disconnect the radio control system immediately !
Ø Switch the transmitter OFF during breaks and after finishing work to avoid any
misoperation of crane or machine by unintended activation of the operator controls.
– These precautions are particularly important whenever changing your position or
climbing over an obstacle.
Ø Never leave an activated transmitter unattended. The operator undertakes to follow
and comply with the authoritative regulations for worker safety and accident
prevention (e. g. VBG 9).
Note :
– In the event of an interruption of the radio link during a working cycle – what can
occasionally happen – both transmitter and receiver automatically shut down (socalled "compulsory switch-off").
To reactivate the system release all operator controls, such as pushbuttons or
momentary contacts, and allow the control elements to return to their zero
position. Press the "ON/Horn" pushbutton. The system must be reactivated before
the crane or machine can react to control commands ! This feature hinders any
uncontrolled or unwanted crane or machine movement, should the radio link be
interrupted.
– When operating a crane by means of a radio control system for the first time, you
may miss the physical contact to the crane that you were used to in the operating
stand. As you are no longer in the crane and can no longer sense the starting of
the crane movements as distinctly, crane reactions will appear sluggish or dull.
Operating Instructions
Radio Transmitter micron 4 Industrial
Page 8 / 18 BE-MICR4_I-V2-2.DOC [ Word 97 ] FL
HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY
2000-08-15 Information and specifications subject to change without notice.
Radio System
3 Operation
1. Before commissioning the transmitter or initial
operation, insert the FuB 3A battery into battery
compartment at the back of the transmitter
(inscription must be visible). The battery supplies
the necessary working voltage (6 V DC).

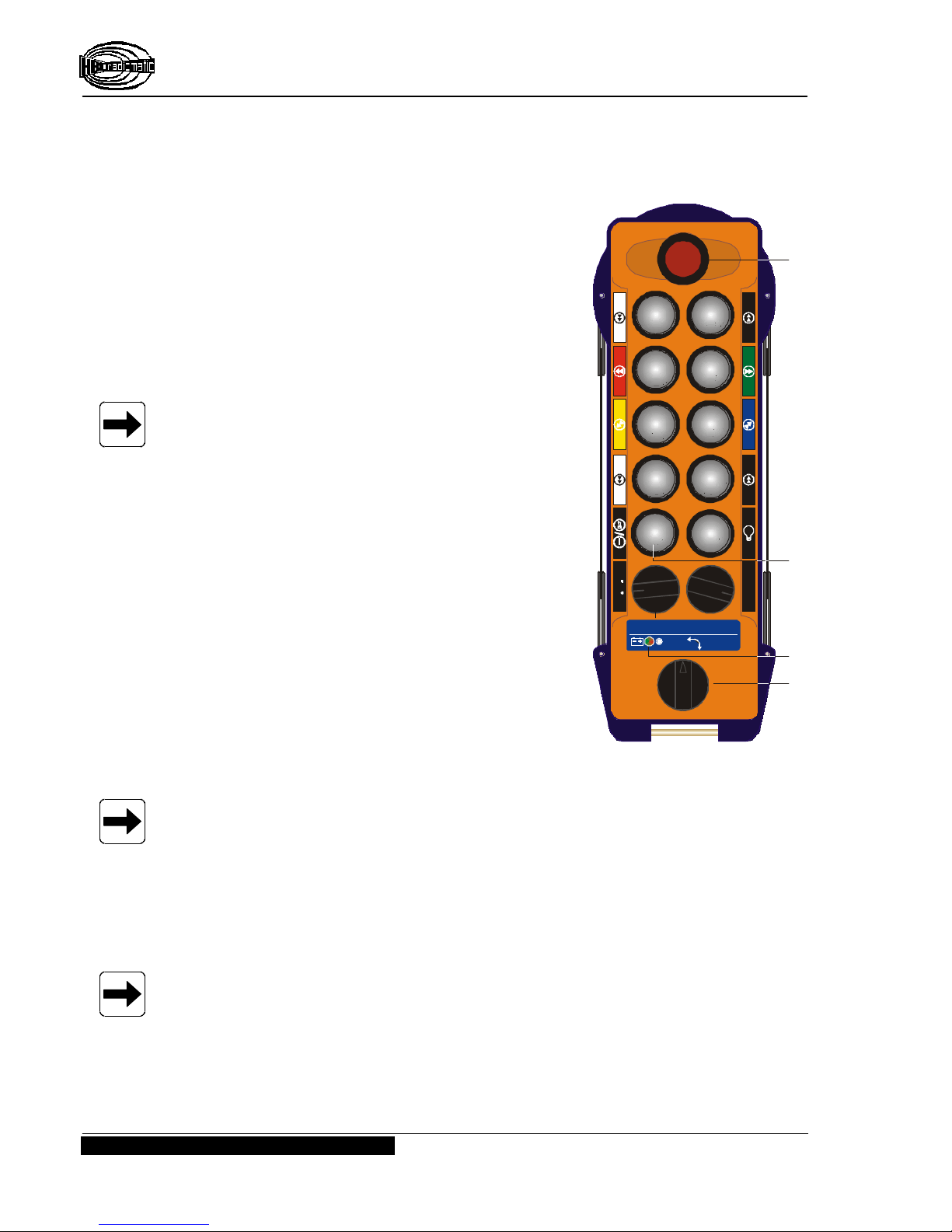

2. Pull STOP pushbutton (pos. À) to unlock.
3. Turn key switch (pos. Á) to the right (position "1").
4. Switch ON transmitter and crane or machine with
"ON/Horn" (pos. Â) pushbutton. The green LED
(pos.Ã) begins to flash, i.e. the transmitter is
operable.
Important Information :
After switching ON the transmitter and before
operating the crane or machine you must always :
– trigger the acoustic signal by pressing the button
"ON/Horn (pos. Â). This warns all colleagues
that the crane or machine is about to move;
– test the operativeness of the STOP pushbutton.
After switching on the transmitter the instrument
indicates a successful radio link to the receiver when
the red LED "HF/RF/H.F./HF" extinguishes and the
green LED "Si" lights up (refer to control light panel on
receiver). The radio control system is ready for use. The
operator can now issue control commands using the
transmitter control elements.
When the battery is nearly empty, the red LED (pos. Ã)
lights up or an acoustic signal sounds. The drained
battery must be immediately replaced by a fully
charged battery and then inserted into the battery charger for recharging (refer to
chapter "Battery and Battery Charger" for further details).
Note :
The transmitter will automatically switch OFF within a few minutes if the operator fails
to replace the drained battery.
Should the operator – intentionally or unintentionally – switch OFF the transmitter with
the STOP pushbutton, proceed as follows to restart the transmitter :
1. Pull STOP pushbutton (pos. À) to unlock.
2. Switch transmitter ON with the "ON/Horn" pushbutton (pos. Â).
Note :
Always use the key switch (pos. Á) to switch the transmitter ON or OFF. Do not
use the STOP pushbutton !
STOP
micron
made by HBC
0 1
31.394
PITCH CATCH
Trolley
1 1+2 2
22
11
À
Á
Â
Ã
File: MICRON4-I.CDR [ Core lDraw 8.0 ] 2 000-06 -19 FL
Operating Instructions
Radio Transmitter micron 4 Industrial
BE-MICR4_I-V2-2.DOC [ Word 97 ] FL Page 9 / 18
HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY
Information and specifications subject to change without notice. 2000-08-15
Radio System
For safety reasons we have equipped the transmitter with an automatic switch-OFF. The
transmitter is automatically put out of circuit after 15 minutes of non-use.
The automatic switch-OFF also saves battery power.
Note:
The automatic switch-OFF does not relieve the operator of his responsibility to turn
OFF the transmitter when not in use !
The micron 4 can be reactivate by means of the "On/Horn“ pushbutton (refer to
illustration on page 8, pos. Â).
Scanner (Frequency Selector)
The transmitter and receiver are equipped with a "Scanner"
(frequency selector) operating mode with 4 radio
frequencies (refer to wiring diagrams).
In the event that a particular channel is being used by
another operator, the transmitter can be programmed to a
different channel by means of the rotary selector switch
located inside the transmitter. The receiver scanner
automatically adjusts the receiver to the selected radio
frequency.
Changing radio control system frequencies :
1. Switch OFF transmitter with "OFF" switch (turn switch
to “0” position).

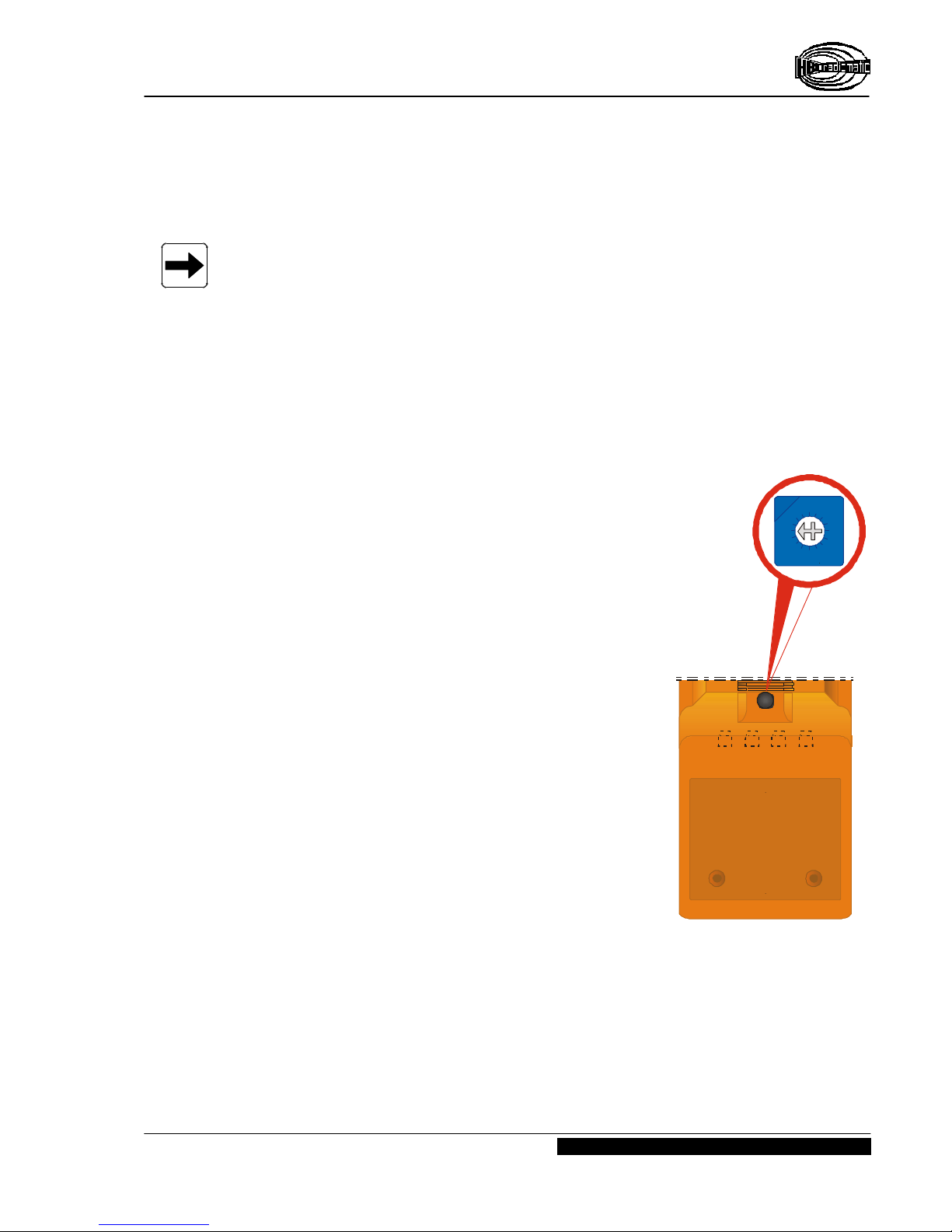

2. Remove protective cap from the back of the
transmitter.
3. To select a new frequency, use a screwdriver (size 0)
and turn the switch clockwise (one step).
4. Replace protective cap.
5. Switch ON transmitter with "ON/Horn" switch (turn
switch to “1” position).
After turning ON the transmitter (do not forget to unlock
STOP pushbutton), the receiver automatically resets the
system to the new frequency selected in less than a
second.
Battery compartment
Remove
protection
cap first !
0 - 3
4 - 7
8 - B
C - F
= RF channel 1-4 with APO
= RF channel 1-4 without APO
= RF channel 1-4, customer, with APO
= RF channel 1-4, customer,
without APO
Fi le:
micron4- I_APO-Fr equenzW ahl.CDR [ CorelD raw 8.0 ] 06-14-2 000 FL
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
Operating Instructions
Radio Transmitter micron 4 Industrial
Page 10 / 18 BE-MICR4_I-V2-2.DOC [ Word 97 ] FL
HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY
2000-08-15 Information and specifications subject to change without notice.
Radio System
3.1 Battery and Battery Charger
3.1.1 FuB 3A Transmitter Battery
The age and ambient temperature are decisive for the
length of the battery application. Older batteries lose
capacity over time. Temperatures under zero also have a
negative effect on battery charge.
The length of serviceable battery life depends on how the
battery is treated. When handled properly the FuB 3A can
exceed 500 charging cycles. Do not totally discharge or
short-circuit contacts as this can permanently destroy the battery.
We recommend recharging the battery only when it is empty, i.e. when the red LED
blinks or an acoustic signal sounds. Always store rechargeable batteries at room
temperature.
3.1.2 FLG 105 Battery Charger
Recharging batteries
1. Connect battery charger to mains (refer to nameplate on
battery charger for details).
2. Insert the adapter for the FuB 3A battery in the charging
compartment of the battery charger.
3. Insert battery with the nameplate facing up into the battery
compartment (pos. Á).
Charging indicator (red LED ; pos. ÀÀ )
LED lit : ..................................... battery charging.
LED off or blinking : .................... battery full, i.e. operable.
LED blinks
when inserting battery : ............... battery totally discharged
or defective.
Note :
– A discharged FuB 3A battery recharges in approx. 2 hours.
Electronics in the battery charger ensure that charging does
not exceed 5 hours.
– The quick charging of NiCd batteries should only take place
at temperatures between +10 °C and +40 °C (50 °F and
104 °F).
– Protect battery contacts against short circuits. Never store
batteries in a tool box or trouser pockets. A bunch of keys
is enough to short the battery. Always use the protective
cap included.
– Use the charger at room temperature (20 °C or 68 °F) and
protect it from extreme heat (direct sun).
++
Ladungnur bei Zimmertemperatur!
Akkueinlegen.
Dauerlicht: Akkuwird geladen.
Blinken:A kkuentnehmen.
Betriebsanl eitung beachten !
For room temperatureonly !
Insert battery.
Steadylight:Charging.
Blinkinglight: Remove battery.
!See opera ting instructions
Á
À
Operating Instructions
Radio Transmitter micron 4 Industrial
BE-MICR4_I-V2-2.DOC [ Word 97 ] FL Page 11 / 18
HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY
Information and specifications subject to change without notice. 2000-08-15
Radio System
3.2 Special Operating Modes (Optional)
This chapter describes special operating modes that are not available with all crane
systems.
If your radio control system is not equipped with the features described, you may ignore
the following and continue with the next chapter.
3.2.1 Pitch – Catch
The "Pitch – Catch" operating mode
allows two or more crane operators
equipped with one transmitter each to
independently use the same crane.
The crane is equipped with a radio
receiver that can receive and monitor
transmitter frequencies.
After activating the receiver all
transmitters have equal access to the
control system.
Releasing the crane ("Pitch")
To release the crane :
1. Turn rotary switch (pos. Á) on
transmitter 1 or transmitter 2 to the
"Pitch" position.
2. For safety reasons we recommend switching OFF
transmitter 1 or transmitter 2 (pos. À). This will avoid
operator errors.
The respective transmitter 1 or transmitter 2 now has no
access to the crane control system.
Taking over control of the crane ("Catch")
To take over the control of the crane turn the rotary
switch (pos. Á) on transmitter 1 or transmitter 2 to the
"Catch" position.
The transmitter with control over the crane retains the
access to the receiver (transmitter 1 or transmitter 2) until
the operator has issued the "Pitch" statement.
Example :
Transmitter 2 has control over the crane control system.
Transmitter 1 is to be given control. The operators must
continue as follows :
1. Turn rotary switch (pos. Á) on transmitter 2 to the "Pitch" position.
2. For safety reasons deactivate transmitter 2, i.e. turn the key switch (pos. À) to the
"0 = OFF" position.
3. Activate transmitter 1, i.e. turn the key switch (pos. À) to the "1 = ON" position.
4. Turn the rotary switch (pos. Á) on transmitter 1 to the "Catch" position.
Transmitter 1 now has sole access to all crane functions.
Crane receiver with
2 reception frequencies
File: C_R-MI.CDR [CorelDraw 6.0] 01-17-2000 FL
"Catch" and "Release"
Transmitter 1 Transmitter 2
micron
made by HBC
0 1
31.394
PITCH CATCH
Trolley
1 1+2 2
Á
À
Operating Instructions
Radio Transmitter micron 4 Industrial
Page 12 / 18 BE-MICR4_I-V2-2.DOC [ Word 97 ] FL
HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY
2000-08-15 Information and specifications subject to change without notice.
Radio System
Note :
– A power loss at the receiver-end activates a general reset of the crane system.
All transmitters have access to the crane radio controls. This implies that the
pitch – catch settings must be readjusted at the transmitter-end.
– Should an operator forget to issue the "pitch" statement and shuts down his
transmitter (transmitter shut down using the STOP pushbutton or technical
failure) the second transmitter has no access to the crane radio control system. In
order to give transmitter 2 access to the radio control system the receiver must
be cut OFF from the supply voltage (master switch) and the crane control system
reactivated as described above.
– A lamp on the crane-end of the control system (optional) indicates whether the
receiver is engaged.
Operating Instructions
Radio Transmitter micron 4 Industrial
BE-MICR4_I-V2-2.DOC [ Word 97 ] FL Page 13 / 18
HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY
Information and specifications subject to change without notice. 2000-08-15
Radio System
3.2.2 Pitch – Catch – Tandem Mode
The "Pitch – Catch – Tandem Mode"
enables two or more crane operators
equipped with one transmitter each to
independently use several cranes.
Each crane is equipped with a radio
receiver that can receive and monitor
transmitter frequencies. After
activating the receivers all
transmitters have equal access to the
control system.
Releasing the crane ("Pitch")
The crane(s) must be released as
follows in order to set the control
system to the starting position :
1. Turn rotary switch (pos. Á) on
transmitter 1 or transmitter 2 to
"0 = Pitch" and hold the switch in this position for at
least one second.
All cranes under control can be accessed by other
transmitters.
2. For safety reasons we recommend switching OFF
transmitter 1 or transmitter 2 (pos. À). This will avoid
operator errors.
The respective transmitter 1 or transmitter 2 now has
no access to the crane control system.
Taking over control of the crane ("Catch")
To take control over a released crane / the released
cranes:
1. Turn rotary switch (pos. Á) on transmitter 1 or
transmitter 2 to the respective position ("A" or "B" or
"A+B" or "B+A").
2. Actuate the pushbutton "ON / Horn" (pos. Â) to take
control over the crane.
The transmitter with control over the crane retains the access to the receiver
(transmitter 1 or transmitter 2) until the operator has issued the "Pitch" statement.
(switch position "0").
Example :
Transmitter 2 has control over the crane(s). Transmitter 1 is to be given control over a
crane/both cranes. The operators must continue as follows :
1. Turn rotary switch (pos. Á) on transmitter 2 to the "0 = Pitch" position.
2. For safety reasons deactivate transmitter 2, i.e. turn the key switch (pos. À) to the
"0 = OFF" position.
3. Activate transmitter 1, i.e. turn the key switch (pos. À) to the "1 = ON" position.
4. Turn the rotary switch (pos. Á) on transmitter 1 to the position "A" or "B" or "A+B" or
"B+A".
Transmitter 1 now has sole access to all crane functions.
Crane B / receiver 2
with scanner and
2 reception frequencies,
address 2
Crane A / receiver 1
with scanner and
2 reception frequencies,
address 1
File: TANDEM_F-Ü_MI.CDR [ CorelDraw 8.0 ] 06-06-2000 FL
Transmitter 2
Pitch and Catch
Transmitter 1
micron
made by HBC
0 1
31.394
0
B A
B+A A+B
Trolley
1 1+2 2
Á
À
Â
Operating Instructions
Radio Transmitter micron 4 Industrial
Page 14 / 18 BE-MICR4_I-V2-2.DOC [ Word 97 ] FL
HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY
2000-08-15 Information and specifications subject to change without notice.
Radio System
Caution :
Should an operator want control over crane B and crane A (rotary switch position
"B+A") and the operator must correct with crane A (switch position "A"), it cannot be
guaranteed that the operator retains control over crane B, i.e. if the operator turns the
rotary switch from position "B+A" to "B" and leaves the switch in position "0 = Pitch"
for longer than one second, he releases crane A.
Note :
– A power loss at the receiver-end activates a general reset of the crane system.
All transmitters have access to the crane controls. This implies that the pitch –
catch settings must be readjusted at the transmitter-end.
– Should an operator forget to issue the "pitch" statement and shuts down his
transmitter (transmitter shut down using the STOP pushbutton or technical
failure) the second transmitter has no access to the crane radio control system. In
order to give transmitter 2 access to the control system the receiver must be cut
OFF from the supply voltage (master switch) and the crane radio control system
reactivated as described above.
– A lamp on the crane-end of the radio control system (optional) indicates whether
the receiver is engaged.
Operating Instructions
Radio Transmitter micron 4 Industrial
BE-MICR4_I-V2-2.DOC [ Word 97 ] FL Page 15 / 18
HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY
Information and specifications subject to change without notice. 2000-08-15
Radio System
4 Fault Correction
Note :
Check the transmitter functions using the cabin or cable controls first !
Problem Possible Cause Remedy
Transmitter does not react
when switched on.
− No power.
− Check the battery
contacts for damage or
contamination.
− Insert a fully charged
battery in battery
compartment.
− Recharge battery
Low-power indicator blinks
after minimal operating
time, i.e. red LED
illuminates.
− Battery contacts are
contaminated or
damaged.
− Battery not charged.
− Battery defective.
− Check battery contacts
for damage or
contamination.
− Fully recharge battery.
− Ensure that recharging
process runs correctly.
− Check transmitter
functions using a fully
charged or replacement
battery.
Operating Instructions
Radio Transmitter micron 4 Industrial
Page 16 / 18 BE-MICR4_I-V2-2.DOC [ Word 97 ] FL
HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY
2000-08-15 Information and specifications subject to change without notice.
Radio System
5 Maintenance
The radio control system is virtually maintenance-free. However, the following points
should be taken into consideration :
Ø Ensure that the STOP pushbutton works smoothly.
Contaminants can reduce or fully block the switch function.
Ø Charge and discharge transmitter batteries regularly.
Ø Never use a high-pressure cleaner or steam jet cleaner to "clean" the transmitter.
Use a soft brush or cloth only !
Note :
Should you have any problems with the radio control system, contact your local
distributor or HBC-radiomatic GmbH.
5.1 In the Event of a Fault
Warning :
Never operate a crane or machine with a faulty or defective radio control system !
Ø Never try to repair the transmitter electronics! Opening the transmitter housing
terminates the manufacturer guarantee.
– Send any defective or faulty equipment to you local distributor or to the
manufacturer. They are experts and have the necessary know-how and OEM
spare parts.
– Always send both transmitter and receiver and enclose a detailed description of
the problem.
– Do not forget to enclose your address and telephone number so that we can get
in touch with you quickly if necessary.
Ø To avoid damage during transport, use the original packing supplied with the
transmitter and receiver, otherwise pack securely. Send the consignment to your
distributor or to the following address :
HBC-radiomatic GmbH
Haller Strasse 49 – 53
D-74564 Crailsheim
GERMANY
Ø Should you chose to deliver a defective radio control system personally to your
distributor or our factory, please call and arrange an appointment.
HBC-radiomatic GmbH
– Customer Services/Repair Service –
Tel.: +49 ( 0 ) 79 51 – 3 93 - 816
Operating Instructions
Radio Transmitter micron 4 Industrial
BE-MICR4_I-V2-2.DOC [ Word 97 ] FL Page 17 / 18
HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY
Information and specifications subject to change without notice. 2000-08-15
Radio System
6 Technical Data
General Technical Data
System micron 4
Max. number of control commands 24, digital and STOP
Unique system addresses over 65,000 combinations
Transmitter-specific Technical Data
Transmitting power: FuS 671/3 < 10 mW ( synthesizer )
Transmitter antenna internal
Battery type FuB 3A ( blue , NiCd )
Power supply with NiCd battery 6V DC / 250 mAh
Battery charge at 50 % duty cycle
at 100 % duty cycle
8 hours
4 hours
Operating temperature range –25 °C to 75 °C ( –13 °F to +167 °F )
Housing material ABS plastic with shock protection
Housing color orange
Dimensions 236 x 87 x 65 mm ( 9.3 x 3.4 x 2.6 " )
Weight approx. 500 g ( 1.0 lb. )
System of protection IP 55 ( Nema 4 )
Accessories
The following accessories are available for the transmitter micron 4 and must be ordered
separately :
Description Order No.
Belt clip for micron transmitter ( standard accessory ) D-500006
NiCd battery FuB 3A, blue, 6V / 250 mAh FuB 3A
Adapter for FuB 3A batteries ( for battery charger ) D-900064
Battery charger FLG 105 ( indicate distribution voltage range ! ) FLG 105
Transmitter labels micron 4, sheet 1 [ 31.397 ] G-900212
Transmitter labels micron 4, sheet 2 [ 31.398 ] G-900213
Transmitter labels micron 4, sheet 3 [ 31.399 ] G-900214
Operating Instructions
Radio Transmitter micron 4 Industrial
Page 18 / 18 BE-MICR4_I-V2-2.DOC [ Word 97 ] FL
HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY
2000-08-15 Information and specifications subject to change without notice.
Radio System
6.1 Dimensions and Operator Controls of micron 4
À
Á
Â
Ã
Ä
STOP switch
2 rotary switches
Dual color LED
– green = "Transmitter ON"
– red = "Charge battery"
Key switch
Rubber shock-protection with belt carrying device
STOP
micron
made by HBC
0 1
31.394
PITCH CATCH
Trolley
1 1+2 2
22
11
À
Á
Â
Ã
Ä
File: MICRON4-I.CDR [ CorelDraw 8.0 ] 2000-08-15 FL
2
1
Trolley
1 1+2 2
236 mm ( 9.3 " )
218 mm ( 8.6 " )
87 mm ( 3.4 " )
50 mm ( 2.0 " )
65 mm ( 2.6 " )
50 mm ( 2.0 " )
Loading...
