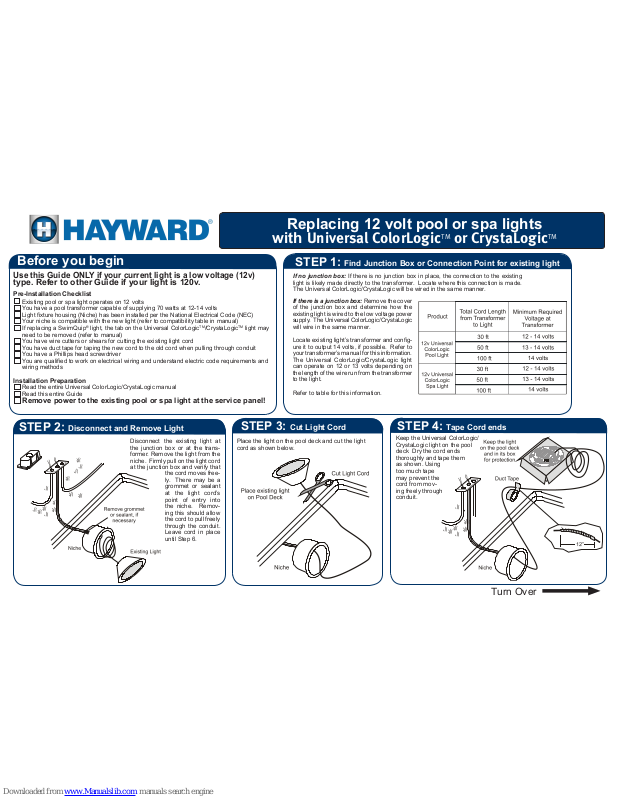

Hayward Universal CrystaLogic™ Replacement Manual

STEP 2: Disconnect and Remove Light

STEP 1: Find Junction Box or Connection Point for existing light

STEP 3: Cut Light Cord

STEP 4: Tape Cord ends

Keep the Universal ColorLogic/
CrystaLogic light on the pool

as shown. Using
too much tape
may prevent the
cord from mov­ing freely through
conduit.

Before you begin

deck Dry the cord ends
thoroughly and tape them

Replacing 12 volt pool or spa lights

with Universal ColorLogicTM or CrystaLogicTM

If there is a junction box: Remove the cover
of the junction box and determine how the
existing light is wired to the low voltage power
supply. The Universal ColorLogic/CrystaLogic
will wire in the same manner.

Locate existing light’s transformer and cong­ure it to output 14 volts, if possible. Refer to
your transformer’s manual for this information.
The Universal ColorLogic/CrystaLogic light
can operate on 12 or 13 volts depending on
the length of the wire run from the transformer
to the light.

Refer to table for this information.

Turn Over

If no junction box: If there is no junction box in place, the connection to the existing
light is likely made directly to the transformer. Locate where this connection is made.
The Universal ColorLogic/CrystaLogic will be wired in the same manner.

Disconnect the existing light at
the junction box or at the trans­former. Remove the light from the
niche. Firmly pull on the light cord
at the junction box and verify that

Place the light on the pool deck and cut the light
cord as shown below.

Pre-Installation Checklist

Installation Preparation

Existing pool or spa light operates on 12 volts
You have a pool transformer capable of supplying 70 watts at 12-14 volts

Light xture housing (Niche) has been installed per the National Electrical Code (NEC)
Your niche is compatible with the new light (refer to compatibility table in manual)

If replacing a SwimQuip® light, the tab on the Universal ColorLogicTM/CrystaLogicTM light may

need to be removed (refer to manual)

You have wire cutters or shears for cutting the existing light cord
You have duct tape for taping the new cord to the old cord when pulling through conduit
You have a Phillips head screwdriver

You are qualied to work on electrical wiring and understand electric code requirements and

wiring methods

Read the entire Universal ColorLogic/CrystaLogic manual
Read this entire Guide

Remove power to the existing pool or spa light at the service panel!

Use this Guide ONLY if your current light is a low voltage (12v)
type. Refer to other Guide if your light is 120v.

the cord moves free­ly. There may be a
grommet or sealant
at the light cord’s
point of entry into
the niche. Remov­ing this should allow
the cord to pull freely
through the conduit.
Leave cord in place
until Step 6.

STEP 6a: Install Light to most Niches

STEP 5: Insert Cell

STEP 6b: Install Light to Pentair Niche

For Pentair® niches, use the included spacer according to the
diagram below. Failure to install the plastic spacer properly may
result in the light being inadequately fastened. Plastic gunite
type niches will not require the spacer.

Refer to the manual for instructions when using a Swimquip
niche.

STEP 9: Install Trim Ring

Install the Trim Ring as shown.

STEP 5: Snake Cord through Conduit

Pull at the junction box
or transformer end to
snake the Universal
ColorLogic/CrystaLogic
cord through the con­duit. Leave slack at
the light end for coiling
cord in the niche. The
coil length should be
adequate for placing the
light on the deck if pool
servicing ever requires
light removal.

STEP 8: Wire to Power Supply

After wiring the
Universal ColorLogic/
CrystaLogic light,
install the cover
and gasket making
sure that there is a
watertight seal.

Some niches may have an
8AWG connection from the
junction box to the niche. If so,
ensure that this connection is
not interrupted when installing
the new light.

092499 RevA

To fasten the Universal ColorLogic/CrystaLogic light to most
niches refer to the diagram below.

Replacing 12 volt pool or spa lights

with Universal ColorLogicTM or CrystaLogicTM

Cut excess cord and make the wiring connection at the junction box or transformer in the same manner
as the old light.

If the new Universal ColorLogic light will be controlled by network communications using a Hayward

Pro Logic controller, an LKBUN1000 coupler must also be installed. Refer to the LKBUN1000

instructions for installation and wiring information.

READ SAFETY INSTRUCTIONS AND COMPLETE SAFETY
CHECKLIST INSIDE FRONT COVER OF MANUAL

Hayward (R) is a registered trademark
ColorLogic (TM) and CrystaLogic (TM) is a trademark
of Hayward Pool Products, Inc.
© 2012 Hayward Pool Products, Inc.

All other trademarks not owned by Hayward are the
property of their respective owners.
Hayward is not in any way affiliated with or endorsed
by those third parties.
