HAYWARD HPC-4, HPC-4-ACT, HPC-4-RC, HPC-4-ACT-RC installation Guide

Hayward

ECOMMAND 4

Automation

Installation Manual

for models

HPC-4

HPC-4-ACT

HPC-4-RC

HPC-4-ACT -RC

www.haywardnet.com

IMPORTANT SAFETY INSTRUCTIONS

!

!

!

When using this electrical equipment, basic safety precautions should always be
followed, including the following:

•

•

•

•

• A green colored terminal marked “Earth Ground” is located inside the wiring

• A wire connector is provided on this unit to connect a minimum 8 A WG (8.4

READ AND FOLLOW ALL INSTRUCTIONS

W ARNING: Disconnect all AC power during installation.

W ARNING: Water in excess of 100 degrees Fahrenheit may be

hazardous to your health.

W ARNING: To reduce the risk of injury , do not permit children to

use this product unless they are closely supervised at all times.

comp
connected to the grounding means provided in the electric supply service
panel with a continuous copper wire equivalent in size to the circuit conductors
supplying the equipment.

mm2) solid copper conductor between this unit and any metal equipment,
metal enclosures of electrical equipment, metal water pipe, or conduit within
5 feet (1.5m) of the unit, to connect the equipment assembly or spa to a
circuit protected by a ground-fault circuit-interrupter .

artment. To reduce the risk of electric shock, this terminal must be

• One bonding lug for US models (two for Canadian models) is provided on the
external surface. To reduce the risk of electric shock, connect the local
common bonding grid in the area of the swimming pool, spa, or hot tub to
these terminals with an insulated or bare copper conductor not smaller than 8
AWG US / 6 AWG Canada.

• All field installed metal components such as rails, ladders, drains, or other
similar hardware within 3 meters of the pool, spa or hot tub shall be bonded to
the equipment grounding bus with copper conductors not smaller than 8 A WG
US / 6 AWG Canada.

• SAVE THESE INSTRUCTIONS

Table of Contents

Introduction Before Y ou Begin................................................................... 1

Installation Step s.................................................................... 1

1. Mounting ECOMMAND 4 Control Center............................................ 2

Equipment T emperature Sensors............................................................ 2

Optional Wireless Remote Control...................................... 2

Optional Base Station............................................................ 3

Optional V alve Actuators........................................................ 3

2. Plumbing Plumbing Configuration.......................................................... 4

3. Electrical Main Service........................................................................... 5

Wiring Grounding and Bonding........................................................ 5

Circuit Breaker Installation and Wiring................................ 6

General Purpose Outlet......................................................... 6

ECOMMAND 4 Control Power .............................................. 6

High Volt age Pool Equipment............................................... 7

Low Volt age Wiring................................................................ 8

4. Configuration Configuration Menu............................................................... 14

5. System Startup Before St artup........................................................................ 24

and Checkout Heater Checkout.................................................................... 24

Service Mode......................................................................... 25

6. Warranty ECOMMAND 4 Limited Warranty ........................................ 28

Introduction

Before You Begin

What’s Included

Before attempting to install the ECOMMAND 4 system, check that the following components have been
included in the package:

ECOMMAND 4 Electronics Unit

(3) T emperature sensors with 15 ft. (5m) cable, hose clamp
(2) Goldline GVA-24 actuators (HPC-4-ACT , HPC-4-ACT -RC only)
(1) Goldline AQL2-BASE-RF/AQL2-SS-RF remote control (HPC-4-RC, HPC-4-ACT -RC only)

What’s NOT Included

Some of the additional items that you may need to complete an installation include:

Circuit br eakers

None are included with control—see page 6 and inside of door for suitable breakers

Wire

4-conductor cable (electronics unit to external chlorination)
Wire/conduit for 100A service from main panel to ECOMMAND 4
Wire/conduit for filter pump and other high voltage loads
Wire for bonding

Miscellaneous

Mounting hardware (screws, etc.) for mounting ECOMMAND 4
V alves (use standard Hayward, Pentair/Compool, or Jandy valves)
Additional valve actuators

Accessory Products - Order Separately

AQL2-SS-RF Wireless Spa Side Remote Control (Included with HPC-4-RC, HPC-4-ACT -RC)
AQL2-BASE-RF Base Station required if using AQL2-SS-RF (Included with HPC-4-RC, HPC-4-ACT -RC)
AQL-DIM Light Dimmer Relay
GV A-24 Valve Actuator
V&A-xx Valve & Actuator (xx=1P (1.5” pos. seal), -2P (2” pos. seal), (Included with HPC-4-ACT,

HPC-4-ACT-RC)

Installation Step s

Details on each installation step are presented on
the following pages:

1. Mounting the equipment (page 2)
ECOMMAND 4 main unit
T emperature sensors
Optional Remote Control
Optional Base Station
V alve actuators (if applicable)

2. Plumbing (page 4)
General Pool Equipment

4. ECOMMAND 4 configuration (page 14)

5. System Startup and checkout (page 24)

High V oltage pool equipment
Low voltage wiring (temperature sen­sors, heater, etc.)

3. Electrical Wiring (page 6)
Main service
Grounding and bonding
Circuit breakers
ECOMMAND 4 control power

1

1. Mounting the Equipment

!

ECOMMAND 4 Control Center

The ECOMMAND 4 is contained in a raintight enclosure that is suitable for outdoor mounting. The
control must be mounted a minimum of 5 ft. (2 meters) horizontal distance from the pool/spa (or more, if
local codes require). The Control Center is designed to mount vertically on a flat surface with the knock­outs facing downward. Because the enclosure also acts as a heat sink (disperses heat from inside the box),
it is important not to block the four sides of the control. Do not mount the ECOMMAND 4 inside a panel
or tightly enclosed area.

When selecting a location, note that the standard cables supplied with the temperature sensors, and valve
actuators (if applicable) are all 15 ft. (5m) long.

Temperature Sensors

Three sensors are included with the ECOMMAND 4. A water sensor and an air sensor must be installed
at all times for proper operation. A solar sensor is required if the solar function is enabled.

Water Sensor

This sensor is used to measure the pool/spa temperature and is installed in the filtration plumbing after the
filter but before either the solar or conventionally fueled heaters—refer to the plumbing overview diagram.

1. Drill a 3/8” (10mm) diameter hole in the PVC piping and remove all chips and burrs.

2. Insert sensor until O-ring collar sits flush on the hole.

3. Position hose clamp over the sensor and gently tighten until O-ring makes an adequate seal. Do not

overtighten.

4. For maximum temperature accuracy , cover the sensor and 3” (6cm) of pipe on either side with

insulation and white paint.

Air Sensor

Mount the air sensor outdoors.

IMPORT ANT : Mount the air sensor out of direct sunlight.

Solar Sensor

For solar applications, mount the sensor near the solar collector array so that it is exposed to the same
sunlight as the collectors. Use additional cable (20 AWG) if necessary.

Optional AQL2-SS-RF Remote Control (included with HPC-4-RC, HPC-4-

ACT-RC)

The ECOMMAND 4 is compatible with AQL2-SS-RF wireless remote control only. The AQL2-SS-RF
is a waterproof portable remote control that is designed to be used in and around the pool/spa area. The
AQL2-SS-RF floats and can be left in the water for easy access. A single AQL2-BASE-RF Base Station
must be installed on the ECOMMAND 4 in order to use this remote control. The maximum distance
between the wireless remote and the base station on the ECOMMAND 4 main control unit is 400 feet
(120m) line of sight or 200 feet (60m) through walls, etc. If in doubt about the distance, test operation
before installing the remote. All wireless models require the user to run the “T each Wireless” routine in the
Settings Menu. This information can be found in the ECOMMAND 4 Operation Manual.

225

Optional Base Station (included with HPC-4-RC, HPC-4-ACT-RC)

OUT

(Common)

IN

(Common)

OUT

OUT

IN

The AQL2-BASE-RF optional base station must be installed if the AQL2-SS-RF is used. T o install the
base station, remove the knockout on the upper left side of the ECOMMAND 4 main control unit, insert
the base station, and then tighten the nut from the inside. Also refer to the Base S tation manual and the
diagram on page 13.

Optional V alve Actuators (included with HPC-4-ACT, HPC-4-ACT-RC)

For optional actuators used with the ECOMMAND 4—note that the internal cams in the actuator may
also have to be adjusted depending on the way the actuator is mounted on the valve and the desired valve
action.

RETURN

SUCTION

IN

3

2. Plumbing

Pool/Spa Setup

Pool and Spa

FILTER

SOLAR BOOST

PUMP

SOLAR
VALV E

HEATER

HEATER
BYPASS

VALVE

(manual)

CELL

FLOW

SWITCH

CHECK

VALVE

PUMP

RETURN

VALV E

WATER

FEATURE

VALV E

SPA

SPA JET

PUMP

SPA

BLOWER

POOL/SPA SUCTION

VALV E

CHECK VALVE

POOL VACUUM

VALV E

MANUAL

VALV E

MANUAL

VALV E

MANUAL

VALV E

ENERGY

FILTER

TWO-WAY

VALV E

SKIM

POP-UP

SPILLOVER

POP-UP

OVERFLOW

POP-UP

RETURN

JET

IN-FLOOR
CLEANER

VALVE

WATER

FEATURE

PUMP

WATER

FEATURE

POP-UP

MAIN

DRAIN

ENERGY

SAVER

PRESSURE

CLEANER

NON-BOOST

PRESSURE

CLEANER

PRESSURE

CLEANER

SUCTION

CLEANER

SENSOR

FILTER

PUMP

Val ve O utputs

Filter Pump
Lights
Aux 1
Aux 2

Pool/Spa Suction
Pool/Spa Return
Valve 3

HIGH VOLTAGE

LIGHTS

LOW VOLTAGE

LIGHTS

FIBER OPTIC

LIGHT SOURCE

COLOR WHEEL

ISOLATED

WATE R

FEATURE

PUMP

TEMPERATURE

SENSOR

CHECK

VALV E

(prevents draining

of raised sp as)

V

of raised spas)

control is used

Pool/Spa system configuration

These systems use a single filter pump and filter. Pool or spa operation is controlled by two 3-way valves
(suction and return). Refer to the diagram below .

High Voltage Relays

TRANSFORMER

SOLAR

TEMPERATURE

if optional Aqua Rite or

Swimpure external chlorination

POOL/SPA

CHECK

ALVE

(prevents draining

POOL

Some important notes regarding the ECOMMAND 4 control of Standard Pool/Spa systems:
In Pool/Spa Config., select:

1. The ECOMMAND 4 can be programmed to accommodate spa spillover, if desired.

2. A conventional heater (gas or heat pump) and solar can be used to heat both the pool and the spa.

3. If the chlorinator cell is plumbed prior to the pool/spa return valve, then both the pool and the spa
can be chlorinated (only when optional external chlorination is used).

4. The water sensor should be installed prior to any heater or solar and will display either the pool or
the spa temperature, depending on the current operation of the pool. The temperature will only be
displayed when the filter pump is running.

5. If any water feature or pressure side cleaner boost pumps are used, be sure to enable the “interlock”
feature (see “Configuration Menu” for details) to ensure that the pumps operate only when the
filter pump is on and the system is in the “pool only” operating mode.

6. The plumbing diagram above is intended to be used as a general guideline and is not a complete
plumbing schematic for the pool.

7. The air sensor must be installed if the freeze protection feature is enabled for the filter, valves or aux
outputs or if the chlorinator is enabled.

4

POOL/SPA

POOL SWEEP
BOOST PUMP

WATER

FEATURE

3. Electrical Wiring

Relays

Input

Subpanel

Valve Connector

Sensor

External Chlorinator

(requires Aqua Rite)

Input

Receiver Connector

Heater Output

Valve3 Pump Spd

Settings Menu

only if filter pump is set to variable
and relay type is set to standard

Move to previous/next configuration menu

Valv e3 Fre eze

Disabled

Toggle between Enabled and Disabled (default) Valve3 Freeze
Move to previous/next configuration menu

for all functions except supe r chl or inate

Valve3 Config.

+ to view/change

Valve3 Function

Solar

Push to access Valve3 options

Rotates between k

Filter, Lights, Aux1 and Aux2

Move to previous/next configuration menu

Move to next menu item

Valve3 Interlock

Disabled

Move to next menu item

for all functions except solar and super chlorinate

Wireless Base

Display/Keypad

High Voltage

Control Power

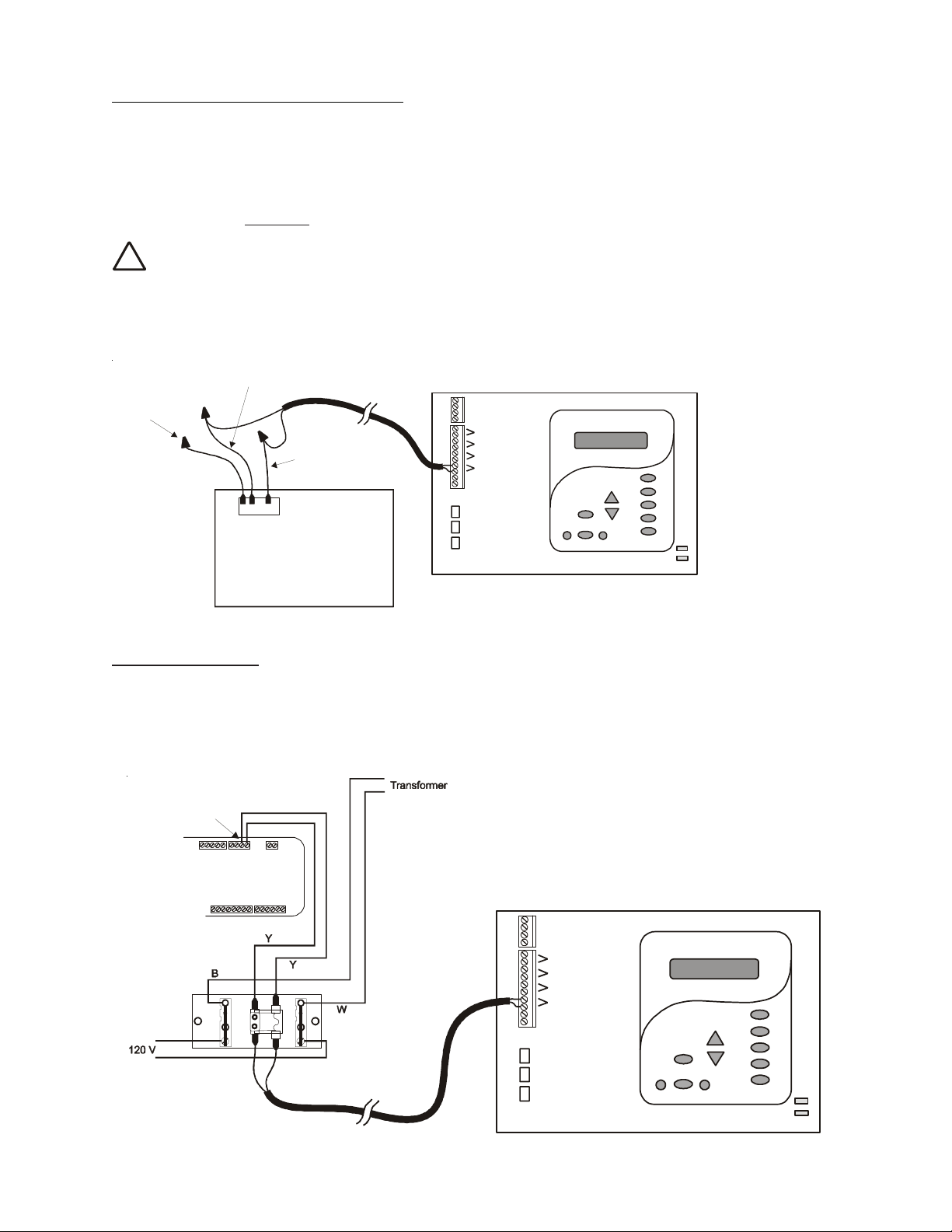

The ECOMMAND 4 Control Center requires both high and low voltage connections. Low voltage
connections will be made to actuators, sensors, remote keypad, etc. High voltage connections will be
made to pumps, lights, etc., as well as providing direct input power to the Control Center. Always:

-Ensure that Power is disconnected prior to doing any wiring

-Follow all local and NEC (CEC if applicable) codes

-Use copper conductors only

Main Service (Power to the Circuit Breaker Subpanel)

The ECOMMAND 4 circuit breaker subpanel is rated for 100A service. Run properly rated conductors
(L1, L2, N, and ground) from the primary house electrical panel to the main power connections on the
ECOMMAND 4 circuit breaker base. The connection at the main house panel should be to a 240VAC
circuit breaker rated at 100A maximum.

Grounding and Bonding

Connect a ground wire from the primary electrical panel to the ECOMMAND 4 ground bus bar. Also
ground each piece of high voltage (120 or 240V AC) equipment that is connected to the ECOMMAND 4
control relays or circuit breakers. The ECOMMAND 4 should also be connected to the pool bonding
system by an 8A WG (6A WG for Canada) wire. A lug for bonding (2 for Canada) is provided on the
outside/bottom of the ECOMMAND 4 enclosure.

5

Circuit Breaker Installation and Wiring

Siemens

Murray

Single

Double

Quad

Twin

GFCB

QP

QP QT

QT QPF

QF3

Torque

MP-T

MP-T

MH-T

MH-T MP-GT LX100FP

25lb-in

25lb-in

Field

Wired

Circuit breakers are to be supplied by the installer . Refer to the circuit breaker chart below for a list of
suitable circuit breakers that can be used. Follow the code and the circuit breaker manufacturer’s rating
requirements regarding the size and temperature rating for wiring. Note that some pool equipment may be
required to be connected to ground fault circuit breakers—check local and NEC (CEC) codes.

Manufacturer

SUITABLE LISTED BREAKERS

Filler Plates

Tightening

General Purpose Outlet

If desired, a duplex receptacle with weatherproof cover (supplied by installer) may be installed in the
knockouts on the lower right side of the ECOMMAND 4 enclosure. Per code, the receptacle should be
a GFCI type. Alternatively , connect a standard receptacle to a GFCB.

ECOMMAND 4 Control Power

The ECOMMAND 4 requires 120VAC, 2A power to operate the control logic circuits. This power
should be connected to a circuit breaker rated at 125% of the intended load or the next higher size
available.

6

Factory

Prewired

120, 2VA

High V olt age (120/240V) Pool Equipment

!

!

240 VAC

Load

120 VAC

Load

Wiring relays for 240 VAC

Pool Equipm ent

Wirin g relays for 120 VAC

Pool Equipm en t

Load

Pool Equipment

N

Pump

G

L1

L2

Lo Speed
Hi Speed
Common
Ground

Aux1 Pump Spd

Settings Menu

only if filter pump is set to variable
and relay type is set to standard

Move to previous/next configuration menu

Aux1 Config.

+ to view/change

Aux1 Function
Manual On/Off

Aux1 Relay

Standard

Push to access Aux options

Toggle between Standard (default) and Dimmer

Move to pr evi o us/ ne x t c on fig ur a tio n menu

Aux1 Interlock

Disable

Aux1 Freeze

Disable

Toggle between Enabled and DisabledAux1 Freeze(default)

Move to next menu item

Move to previous/next configuration menu

for manual on/off, countdown
timer and timeclock functions

Move to next menu item

Rotates between

for all functions except dimmer relay, solar
super chl orinate, and low speed

f
super chl orinate, and low speed

or all functi ons excep t dimmer relay,

!

All ECOMMAND 4 relays are double pole (they make/break both “legs” of 240V circuits) and are rated
at 3HP/30A at 240V (1½HP/30A at 120V). Refer to the diagram below for typical relay wiring.

120 VAC

Wiring GFCB for 120 VAC

WARNING: Do not use the ECOMMAND 4 to control an automatic pool cover.

Swimmers may become entrapped underneath the cover.

T wo speed filter pump: Requires 2 relays (FIL TER plus one of the AUX relays) for proper operation of
both speeds.

the control logic according to the instructions on page 14.

Lights: A ground fault circuit breaker must be used to supply power for high voltage pool/spa lighting.

Low voltage lights will require an external transformer. For lighting systems that have both a light source
and color wheel, connect the light source to the “Lights” relay and then connect the color wheel to one of
the AUX outputs.

IMPORT ANT : Be sur e to follow the wiring diagram below AND to configure

2-Speed

Filter

7

Hayward V ariable Speed Filter Pump: Proper installation of the Hayward TriS tar Variable Speed

power to VSC

Control (VSC) includes high voltage input wiring, communication wiring, and menu configuration/settings.
Refer to the following diagram for proper input wiring to the VSC. W iring from the 220V breaker must
connect through the ECOMMAND 4’s Filter relay . The Filter relay is used to supply input power to the
VSC pump control. The relay will be on when the filter pump output is on. When the filter pump output
is off, the relay will be off. Note that when the filter pump relay is off (power off to the VSC), the
ECOMMAND 4 will not display errors or diagnostics for the pump. The filter pump relay must be on for
diagnostic function.

220 VAC input

Low V oltage W iring

Valve Actuators

The ECOMMAND 4 can control up to three automatic valve actuators. T wo of the valve outputs are
dedicated to the pool/spa suction (V alve2) and return (Valve1) valves. V alve3 is for general purpose use
(solar, water feature, in-floor cleaner , etc.).

For installations with solar heating, Goldline offers the AQ-SOL-KIT -xx solar kit that contains a valve,
actuator, and extra temperature sensor . The “xx” indicates the valve type from the 3 choices below:

-1P 1.5” Positive Seal

-2P 2” Positive Seal
The ECOMMAND 4 is compatible with standard valve actuators manufactured by Hayward, Pentair/

Compool, and Jandy . See diagram on page 5 for the location of valve connectors.

Heater Control

The ECOMMAND 4 provides a set of low voltage dry contacts that can be connected to most gas
heaters or heat pumps with 24V control circuits. Refer to the diagram on the following page for a generic
connection. The manuals supplied with most heaters also include specific wiring instructions for connecting
the heater to an external control (usually identified as “2-wire” remote control). For millivolt or line voltage
heaters, contact Goldline T ech support, 908-355-7995. Refer to the diagrams and the information on the
following pages for more details on the connection to several popular heaters.

8

Generic Heaters

Heater

Kill Switch

Thermostat

Air
Solar

Pool/Spa

Heater

A

Pool/Spa

Heater

to limit sw it ches

remove jumper

white

white

Solar Config.

+ to view/change

Solar

Disabled

Solar-Extend

Disabled

Solar Priority

Disabled

Push to access solar options

Toggle between Enabled and Di sabled (default) Solar

Move to previous/next configuration menu

Move to next menu item or previous/next configuration menu

Move to next menu item

Move to next menu item

if “Solar” is enabled

if “Solar” is enabled

Allow Low Speed

Disabled

Move to

if “Solar” is enabled and
“1-speed Filter” is not selected

1. Wire heater to 120/240V power source per the instructions in the heater manual. The ECOMMAND
4 does NOT control the power going to the heater .

2. Wire the ECOMMAND 4 dry contact heater output per the diagram below . Many internal parts of the
heater can get very hot--see the heater manufacturer’s recommendations on the minimum temperature
rating for wires. If no guidance is given, use 105°C rated wire.

3. Set any ON/OFF switch on the heater to ON.

4. Set the thermostat(s) on the heater to the maximum (hottest) setting.

Laars Heaters

1. Turn power of f to heater.

2. Remove factory jumper from terminal block.

3. W ire ECOMMAND 4 to the heater as shown.

4. Ensure toggle switch is in the ON position.

5. Set heater thermostats to maximum position.

Ignition/Valve

ir

Solar

Fusible Link

9

Hayward Heaters

A

Pool/Spa

Heater

Do not remove jumper

Terminal block located at
electrical junction box

Dipswitch located on heater
circuit board

PK

W

R

BK

R

ONºC

OFF

ºF

A

Pool/Spa

Heater

MINIMAX

Ext.

Switch

Remove

Facto ry Jumpe r

Refer to the instructions in the heater manual for “2-wire Remote Thermostat” operation under “Remote
Control Connections” and the diagram below:

1. Turn off power to heater .

2. Wire ECOMMAND 4 to terminals 1 & 2 (see diagram).

3. Leave jumper attached to terminals 4 & 5.

4. Move “BYP ASS” dipswitch on heater circuit board to “ON” position (up).

5. Turn heater power back on.

6. Switch heater to either “Pool” or “Spa” (it doesn’t make any difference which is selected, the
ECOMMAND 4 will take control).

7. Heater display should be “bO” (for “bypass On).

8. Heater will fire whenever ECOMMAND 4 requests (when ECOMMAND 4 “Heater” LED is illumi­nated).

ir

Solar

Pentair/Purex/MiniMax

1. Turn power of f to heater.

2. Remove factory installed jumper from the “Ext Switch” connector.

3. W ire the ECOMMAND 4 to the “Ext Switch” connector as shown below .

4. The wires to the ECOMMAND 4 must be separated from any line voltage wires. Failure to follow

5. Set the Power (Thermostat Select) switch to either “Pool” or “Spa”.

6. Set the “Pool” and “Spa” thermostats to their maximum settings.

these instructions may cause erratic operation of the heater .

ir

Solar

10

Raypak RP2100 Pool/Spa Heater

!

A

Pool/Spa

Heater

P7

Light Blue

Black

Orange Stripe

StripeBlack

RAYPAK RP2100

millivolt (analog),
run red wires from
Fireman’s Switch
to heater relay.

A

Pool/Spa

Heater

STA-RITE

T erminal

Board

Operating

‘Control

Fireman’s

Switch

Filter Config.

+ to view/change

Filter Pump

1 Speed

Freeze Protect

Enabled

Lowest Speed

10%

Highest Speed

100%

Push to access pump options

Rotates between 1-speed (default), 2-speed and variable speed options

Toggle between Enabled (def ault) and Disabled Freeze Protection

Adjust the lowest speed desired for variable speed operati on

Adjust the highest speed desired for variable speed operation

Move to next menu item

Move to previous/next configuration menu

Move to next menu item or previous/next configuration menu

Move to next menu item

Move to next menu item

if “Variable Sp eed” is sel ected

if “Variable Sp eed” is sel ected

Freeze Temp

38ºF

Freeze Protect

High Speed

Toggle between high speed (default) and low speed

Move to previous/next configuration menu

Move to next menu item

if “Freez e P r otect” is enabled

if “Freez e P r otect” is enabled
and “1-speed Filter ” is n ot selected

1. Turn power of f to heater.

2. Push the mode button to “spa” mode.

3. Set the temperature to the maximum.

4. Push the mode button to “OFF”.

5. Lastly , plug the prewired connector in the P7 position on the board.

IMPORT ANT: The heater will display “OFF” when it is being remotely controlled by the

ECOMMAND 4. Some homeowners see the “OFF” display and, thinking this is a mistake,
change the mode to “POOL” or “SPA” which then disables the remote control by the
ECOMMAND 4. To prevent this: Remove the heater touch pad connector (P5) which will
disable the touchpad.

Orange

ST A-RITE Heater

1. Turn power of f to heater.

2. Remove upper jacket and open the control box.

3. Remove the jumper for the “fireman’s switch.

4. W ire to the ECOMMAND 4 using wire rated for 105°C minimum.

ir

Solar

ir

Solar

11

Drawing is for digital
heater. If heater is a

Hayward V ariable Speed Filter Pump: Refer to the diagram below for proper low voltage communica-

4

2

3
1

GRN

YEL

BLK

RED

GRN
YEL
BLK
RED

VSC

“1” to “1”, “2” to “2”, etc.

A

Pool/Spa

AIR

SENSOR

SOLAR/SPA

SENSOR

POOL/SP A

SENSOR

tion wiring between the ECOMMAND 4 and the Hayward Tristar V ariable Speed Control (VSC).

Connect screw terminals

Use four conductor cable (typically phone cable) for communications connection between the VSC and
the ECOMMAND 4. The maximum wiring distance is 500 feet (160 meters). Note that the terminals on
both the VSC interface board and the ECOMMAND 4 main board are numbered. The terminal connec­tions should be matched between both terminal blocks (connect 1 to 1, 2 to 2, etc.). The communications
cable should be routed through the knockout hole on the left side of the VSC enclosure, and a watertight
fitting should be used to keep water and debris out of the opening. The communications cable should also
be routed away from the ECOMMAND 4 and VSC power connections if possible.

VSC Pump Address Setting

The VSC address must be set to 001 when using the VSC with the ECOMMAND 4. Refer to the TriStar
Pump Owner’s Manual (IS3220VSC) and Hayward document IS3220VSCAQLL for specific instruc­tions on setting the pump address.

Temperature Sensors

The ECOMMAND 4 utilizes 10K ohm thermistor type sensors. Three sensors (water temperature, air
temperature and solar temperature) are included. If the ECOMMAND 4 is being used to control a solar
heating system, the solar sensor is required. The sensors are provided with a 15 ft. cable. If a longer cable
is required, contact the Goldline service dept. for information on suitable cable types and splices. See
page 6 and the diagram below for installation information.

ir

Solar

12

Configuration

Menu-Unlocked

Configuration

Menu-Locked

Press repeatedly until “Configuration Menu” is displayed

Move to co nf igur ati o n m en u ite ms

Move to next menu item

Ext. Chlorinator

Enabled

Display

Salt

Chlor. Config.

+ to view/change

Move to previous/next configuration menu

Move to n ext co nfi g ura ti o n menu

Push to access Chlorinator option

Base Station

Ecommand 4

Aqua Rite

or

Swimpure

(Primary)

Aqua Rite

or

Swimpure

Additional

A

(if required)

Jumper Removed
For Secondary(s)

Jumper Installed

For Primary

YELLOW
BLACK
RED

AQL2-BASE-RF

Base Receiver

Tighten nut

Main PCB

Base Receiver

4
3
2
1

ECOMMAND 4

Aqua Rite

or

Swimpure

green
yellow
black

red

Plug in the pigtail connector from the wireless base station into the “wireless” connector on the main PCB
in the ECOMMAND 4 control unit.

Connecto r for

Goldline Aqua Rite or Hayward Swimpure Chlorinator

The ECOMMAND 4 can control one or more Goldline Aqua Rite or Hayward Swimpure chlorinators
when additional sanitizing capacity is required. A 4 wire connection is used to communicate to the Aqua
Rite/Swimpure and can be wired up to 500' apart. Any outdoor rated 4 conductor cable can be used.
Refer to the wiring diagrams below for proper wiring connection to the Aqua Rite/Swimpure. NOTE:
There must be only 1 "primary" unit. All other Aqua Rite/Swimpure units must be configured as "second­ary".

GREEN

4
3
2
1

(Factory Default)

qua Rite/Swimpure(s)

NOTE: Primary/Secondary jumper is located underneath small circuit board.

(Secondary)

13

GRN

YEL
BLK

RED

4

GRN

3

YEL
BLK

2
1

RED

4. Configuration Setup

Configuration

Menu-Unlocked

Configuration

Menu-Locked

Press repeatedly until “Configuration Menu” is displayed

Move to co nf igur ati o n m en u ite ms

Move to next menu item

Ext. Chlorinator

Enabled

Display

Salt

Chlor. Config.

+ to view/change

Move to previous/next configuration menu

Move to n ext co nfi g ura ti o n menu

Push to access Chlorinator option

After plumbing and wiring are complete, the ECOMMAND 4 MUST BE CONFIGURED before at­tempting to operate. Configuration information is entered at the keypad and “tells” the ECOMMAND 4
what equipment is connected and how each should be controlled.

Accessing the Configuration Menus

Configuring the ECOMMAND 4 requires that you navigate through the Configuration Menu and input
various information. For more detailed information about using the ECOMMAND 4 menu system, refer
to the Operation Manual.

To access the Configuration Menu

Press BOTH buttons SIMULTANEOUSLY for 5 seconds to unlock

NOTE: The configuration menu automatically “locks” after 2 minutes of no buttons being
pressed to prevent unauthorized people from changing the control logic inadvertently and
possibly damaging the pool equipment or causing a “call back” to fix the configuration.

Configuration Menu Items

Each item needs to be programmed and may contain additional sub-menu items. Refer to the following
pages for information on programming.

Toggle between External Chlorinator Enabled and Disabled (default)

Toggle between Display Salt (default) and Minerals

Chlorinator

If the optional external chlorinator is enabled (requires the use of a Goldline Aqua Rite or
Hayward Swimpure chlorinator), the ECOMMAND 4 will automatically chlorinate both the
pool and spa according to the desired output setting (see Settings Menu in the Operation
manual). If disabled (default), all displays relating to the chlorinator will be suppressed.

When the chlorinator is enabled, the ECOMMAND 4 will automatically detect and control
any Aqua Rite/Swimpure(s) that is installed in the system (see page 13).

Display

Allows for the display of salt (default) or mineral values.

14

Pool/Spa Config.

+ to view/change

Pool/Spa Setup

Pool and Spa

Spa Spillover

Enabled

Filter Operation

Spa Spillover

Push to access Pool/Spa options

Rotates between Pool Only (default), Spa Only and
Pool and Spa

(default)

(default)

Move to previous/next configuration menu

Move to next menu item

Move to previous/next configuration menu

if “Pool an d Spa” is selected and
if “Spa Sp il lover” is enabled

Spa - CountDn

00:30

Adjust time setting (Manual On/Off, 0:05, 0:10, 0:15..., (default is 4:00))

Move to next menu item

if “Pool and Spa” is selected

if “Pool an d Spa” is sele ct ed

V1=Aux1, V2=Aux2

Disabled

(default)

if “Pool Only” or “Spa Only” is selected

Filter Off Valve

Change: Enabled

Toggle between Enabled and Disabl ed (default)

if “Pool an d Spa” is se le ct ed

4
2

3
1

GRN

YEL

BLK

RED

GRN
YEL
BLK
RED

VSC

“1” to “1”, “2” to “2”, etc.

A

Pool/Spa

AIR

SENSOR

SOLAR/SPA

SENSOR

POOL/SP A

SENSOR

Toggle between Enabled and Disabled Spa Spillover
Move to next menu item or previous/next configuration menu

Toggle between Pool Only and Spa Spillover options

Toggle between Enabled and Disabled

Move to previous/next configuration menu

Move to previous/next configuration menu

Pool/Spa Setup

If “Pool Only” or “Spa Only” are selected, then the pool/spa valves are not needed and
pushing the POOL/SP A button on the display/keypad will have no effect. If “Pool and Spa”
is selected, then the pool/spa suction and return valve actuators should be connected to the
ECOMMAND 4. Pressing the POOL/SPA button on the display/keypad will allow the
homeowner to alternate between pool and spa operation. For more information on “Pool and
Spa”, refer to the Plumbing section on pages 8.

Spa CountDn

This menu will appear only if Pool/Spa Setup is set to “Pool and Spa”. This setting is the
time, after you manually switch the Pool/Spa valves to “Spa Only”, until the ECOMMAND
4 automatically returns the valves to their previous positions. It is programmed in increments
of 5 minutes, from “Manual On/Off” (0 minutes) to “21:00” (21 hours). The filter is forced on
during this time period.

Spa Spillover

When spa spillover is “Enabled” and “Pool and Spa”, the homeowner will be able to rotate
through “Pool Only” (both suction and return valves switched to pool), “Spa Only” (both
suction and return valves switched to spa) and “Spillover” (suction valve switched to pool
and return valve switched to spa) by successive presses of the “Pool/Spa button.

Filter Operation

If “Spa Spillover” is selected, the ECOMMAND 4 will automatically switch the pool/spa
suction and return valves to “spillover” at the start of the programmed pool filtering time
period or when the super-chlorinate function is turned on. The valves will remain in this
position for the remainder of the super-chlorinate period. This option is usually preferable
because both the pool and spa water will be filtered and sanitized.

15

If “Pool Only” is selected, then the ECOMMAND 4 will switch the pool/spa valves to the

Filter Config.

+ to view/change

Filter Pump

1 Speed

Freeze Protect

Enabled

Lowest Speed

10%

Highest Speed

100%

Push to access pump options

Rotates between 1-speed (default), 2-speed and variable speed options

Toggle between Enabled (def ault) and Disabled Freeze Protection

Adjust the lowest speed desired for variable speed operati on

Adjust the highest speed desired for variable speed operation

Move to next menu item

Move to previous/next configuration menu

Move to next menu item or previous/next configuration menu

Move to next menu item

Move to next menu item

if “Variable Sp eed” is sel ected

if “Variable Sp eed” is sel ected

Freeze Temp

38ºF

Freeze Protect

High Speed

Toggle between high speed (default) and low speed

Move to previous/next configuration menu

Move to next menu item

if “Freez e P r otect” is enabled

if “Freez e P r otect” is enabled
and “1-speed Filter ” is n ot selected

“pool only” position at the start of the programmed pool filtering time period or when the
super-chlorinate function is turned on. This may be desirable on some systems with in-floor
cleaners because it allows the cleaner to operate all the time the pool is being filtered and/or
the super chlorinate is running.

V1=Aux1, V2=Aux2

This menu appears only if the Pool/Spa Setup is “Pool Only” or “Spa Only”. When enabled,
V alve 1 (return) will follow the Aux1 output and Valve 2 (suction) will follow the Aux2 output.
When disabled (default), the return and suction pool/spa valves function normally.

Filter Off Valve Change

This menu appears only if Pool/Spa setup is set to “Pool and Spa - Std”. When enabled
(default), the filter pump will shut off for 35 seconds whenever the Pool/Spa valves are
turning. The pump will NOT shut off when a heater is in Heater Cooldown mode.

Adjust the desired freeze protection temperature (33ºF - 42ºF)

Filter Pump

For 2-speed pumps: When a 2-speed pump is configured, one of the AUX relays must also
be configured to control the low speed motor winding on the pump. Refer to the appropriate
sections in the Installation manual for specific information regarding the control logic for 2­speed and variable speed pump operation.

For the Hayward Tristar variable speed pump: The Filter relay is used to supply input power
to the VSC pump control. The relay will be on when the filter pump output is on. When the
filter pump output is off, the relay will be off. On , off and speed is controlled by commands
sent to the pump.

Lowest Speed

This is the lowest speed that the variable speed pump is allowed to run at. It is used as the
lower limit in the Low Speed Settings Menu. Set lowest speed from 10% (default) to 50%.

16

Highest Speed

Heater1 Config.

+ to view/change

Heater1

Disable

Heater1 Cooldown

Disabled

Heater1 Extend

Disabled

Push to access heater options

Toggle between Enabled and Disabled (default) Heater 1 Cooldown

Toggle between Enabled and Disabled (default) Heater 1 Extend

Move to previous/next configuration menu

Move to next menu item or previous/next configuration menu

Move to next menu item

Move to previous/next configuration menu

if “Heater 1” is enabled

if “Heater 1” is enabled

Allow Low Speed

Disabled

Move to

if “Heater 1” is enabled and
1-speed f i lt er pump is not selected

A

Pool/Spa

Heater

Do not remove jumper

Terminal block located at
electrical junction box

Dipswitch located on heater
circuit board

PK

W

R

BK

R

ONºC

OFF

ºF

A

Pool/Spa

Heater

MINIMAX

Ext.

Switch

Remove

Facto ry Jumpe r

This is the highest speed that the variable speed pump is allowed to run at. It is used as the
upper limit in the High Speed Settings Menu. Also, this is the speed that the pump will run
at during the first 3 minutes of operation anytime the pump has been off for more than 30
seconds. Set highest speed from 20% to 100% (default).

Freeze Protection

Freeze protection is used to protect the pool and plumbed equipment against freeze damage.
If freeze protection is enabled and the AIR temperature sensor falls below the freeze threshold
(see below), the ECOMMAND 4 will turn on the filter pump to circulate the water. If “Pool
and Spa” is selected in the Pool/Spa sub-menu (see page 22), the valves will also alternate
between the pool and spa every 30 minutes and the filter pump will turn off while the valves
are turning. The chlorinator will not operate if freeze protection is the only reason the pump
is running.

Freeze Protection Speed

This menu only appears if freeze protection is enabled and the pump is configured for 2­speed or variable speed pump operation. This is the speed that the pump will run at during
freeze protection operation. Select high (default) or low speed operation.

Freeze Protection Temperature

Select the temperature to be used for freeze protection. T emperature is adjustable from 33ºF

- 42ºF (1ºC - 6ºC). 38ºF (3ºC) is default. This threshold will be used for all outputs that have
freeze protection enabled.

Toggle between Enabled and Disabled (default) Heater 1

Toggle between Enabled and Disabled (default)

next menu item or previous/next configuration menu

Heater1

If the heater is “Enabled”, the heater relay will turn on when the water temperature is less
than the desired temperature setting and the filter pump is running. The desired temperature
is in the “Settings Menu”. If applicable, the homeowner will be prompted to enter separate
“pool” and “spa” settings. Depending on the position of the pool/spa suction valve, the
proper temperature setting will be used.

Heater Cooldown

This feature ensures that the heater cools down before water circulation is stopped. When
enabled, the ECOMMAND 4 will continue to run the filter pump for 5 minutes after the heater
turns off. During this period the filter pump LED will flash and also a “Heater Cooldown,
X:XX remaining” message will scroll on the display.

When the filter pump is running and the heater is on: Pressing the “Filter” button once will
cause the heater to turn off, but the filter pump will continue to run for heater cooldown (filter
LED flashing and message on display). Pushing the filter button a second time will override
the heater cooldown operation and turn the filter pump off.

17

Heater Extend

Solar Config.

+ to view/change

Solar

Disabled

Solar-Extend

Disabled

Solar Priority

Disabled

Push to access solar options

Toggle between Enabled and Di sabled (default) Solar

Move to previous/next configuration menu

Move to next menu item or previous/next configuration menu

Move to next menu item

Move to next menu item

if “Solar” is enabled

if “Solar” is enabled

Allow Low Speed

Disabled

Move to

if “Solar” is enabled and
“1-speed Filter” is not selected

If “Enabled”, the filter extend logic keeps the filter pump running beyond the normal turn-off
time until the pool (or spa) is heated up to the desired temperature setting (see Settings
Menu). Heater extend will NOT cause the filter pump to turn on, it will only delay the turn
off time when the heater is operating.

Allow Low Speed

This menu only appears if the filter is configured for 2-speed or variable speed operation.
During default operation, high speed mode is used whenever the heater is on. If Allow Low
Speed is enabled, low speed will be allowed even if the heater is on.

Toggle between Enabled and Disabled (default) Solar Extend

Toggle between Enabled and Disabled (default) Solar Priority

Toggle between Enabled and Disabled (default)

next menu item or previous/next configuration menu

Solar

If the solar control logic is “Enabled”, several additional steps must be taken to ensure
proper operation of the solar system. If the solar is operated by a valve, then the Valve3
output must be setup for solar logic (page 22). If the solar is operated by a pump, then one
of the AUX relays must be set up for solar logic (page 20). Also, the “solar” temperature
sensor must be installed. This sensor is typically mounted near the collector array and is
used to sense whether sufficient solar heat is available.

If solar is “Enabled”, the valve or solar pump relay will turn on when the water temperature is
less than the desired temperature setting AND the solar sensor is hotter than the water. The
desired temperature is in the “Settings Menu”. If applicable, the homeowner will be prompted
to enter separate pool and spa desired temperature settings. Depending on the position of
the pool/spa suction valve, the proper temperature setting will be used.

Solar Extend

If “Enabled”, the filter extend logic keeps the filter pump running beyond the normal turn-off
time if solar heat is still available. When solar heat is no longer available, both the solar
valve/pump and filter pump will turn off simultaneously. Solar extend will NOT cause the
filter pump to turn on, it will only delay the turn off time when solar is operating.

Solar Priority

If both “Solar Control” and “Heater Control” are enabled, the Solar Priority feature will keep
the conventional heater off whenever solar heat is available. This provides the most cost
effective way of heating the pool. When solar heat is not available, the conventional heater
will operate normally .

18

power to VSC

Allow Low Speed

Lights Pump Spd

Settings Menu

only if filter pump is set to variable
and relay type is set to standard

Move to previous/next configuration menu

Lights Config.

+ to view/change

Lights Function

Manual On/Off

Lights Relay

Standard

Push to access Lights options

Rotates between

Toggle between Standard (default) and Dimmer

Move to previous/next configuration menu

Move to next menu item

Lights Interlock

Disable

Lights Freeze

Disable

Toggle between Enabled and Disabled (default) Lights Freeze

Move to next menu item

Move to next menu item or previous/next configuration menu

f
super chlorinate, and low speed

or all functions except dimmer relay, solar

f
super chlorinate, and low speed

or all functions except dimmer relay,

for manual on/off, countdown
timer and timeclock functions

This menu only appears if the pool filter is configured for 2-speed or variable speed operation.
During default operation, high speed mode is used whenever the solar heater is on. If Allow
Low Speed is enabled, low speed pump operation will be allowed during solar heating except
for the first 3 minutes after solar heat turns on.

Low Speed- Filter, T imeclock, Solar, and Super Chlorinate

Manual On/Off (default), Countdown T imer,

Move to next menu item or previous/next configuration menu

Toggle between Enabled and Disabled (default) Lights Interlock

Select between Settings Menu (default) and the desired pump speed

Lights Function

Although designated as the “Lights” output, the function of the lights relay is similar to the
aux1 and aux2 relays. If pool lights are wired to the lights relay, some options including Solar
function, Low Speed of a 2-Speed Filter Pump, Lights Interlock and Lights Freeze Protection
will not be necessary and should be disabled. If no pool lights are used, the lights relay can
be used to control other pool devices that may require these options. The function of each
option is shown below.

Manual On/Off (default)—the lights relay will alternate between turning on and off when
the LIGHTS button is pressed. There is no automatic control logic.

Countdown Timer—the lights relay will turn on when the LIGHTS button is pressed. The
lights relay will turn off automatically after a programmed time (see Timers Menu in Operation
Manual). The LIGHTS button can also be used to turn the output off.

Low Speed of a 2-speed Filter Pump – the ECOMMAND 4 will turn on the lights relay
whenever the low speed operation of the filter pump is required. It is very important that the
“2-speed” filter pump option be selected under the “Filter Config.” Menu for proper operation.

Timeclock – the lights relay will turn-on and turn-off at the times set for the lights timeclock
in the Timers Menu (see Timers Menu in Operation Manual). The LIGHTS button can also
be used to turn the output on and off.

Solar – the lights relay can operate a solar booster pump which will turn on when the filter
pump is running and solar heat is available and the water is less than the desired temperature
setting. It is important to note that “Solar Control” must be enabled in the “Solar Config.”
menu for proper operation to occur.

19

Super Chlorinate – if “Chlorinator” is enabled, this option allows the user to start a Super

Aux1 Pump Spd

Settings Menu

only if filter pump is set to variable
and relay type is set to standard

Move to previous/next configuration menu

Aux1 Config.

+ to view/change

Aux1 Function
Manual On/Off

Aux1 Relay

Standard

Push to access Aux options

Toggle between Standard (default) and Dimmer

Move to pr evi o us/ ne x t c on fig ur a tio n menu

Aux1 Interlock

Disable

Aux1 Freeze

Disable

Toggle between Enabled and DisabledAux1 Freeze(default)

Move to next menu item

Move to previous/next configuration menu

for manual on/off, countdown
timer and timeclock functions

Move to next menu item

Rotates between

for all functions except dimmer relay, solar
super chl orinate, and low speed

f
super chl orinate, and low speed

or all functi ons excep t dimmer relay,

!

Chlorinate cycle when the Lights button is pressed, rather than using the Settings Menu.
Note that only one button can be assigned to this function.

Lights Relay

This feature allows the user to select either “Standard” (default) or “Dimmer” type relay for
the Lights output. The optional AQL-DIM dimmer kit must be installed if “Dimmer” is
desired. When “Dimmer” is selected, and the Lights output is manually turned on, the “+”
and “-” buttons adjust the level from 20% to 100% (default). The level is saved for the next
time the lights are turned from off to on.

Lights Interlock

If enabled, this feature will override the function (Manual On/Off, Countdown Timer,
Timeclock) selected above and turn the lights relay off when: filter pump is off, first 3
minutes of filter pump operation (allows the pump to prime and get water flowing), when the
pool/spa suction return valves are in any position other than “pool only”, or for the first 3
minutes after solar turns on (allows air in the solar panels to be purged). Interlock is not
available for solar, low speed filter pump, super chlorinate or dimmer .

Lights Freeze Protection

This function helps protect equipment that is wired to the lights relay against freeze damage.
If Freeze Protection is enabled and the AIR temperature sensor falls below the selected freeze
temperature threshold, the ECOMMAND 4 will energize the lights relay . IMPOR T ANT: this
only enables operation of the lights relay during freeze--see the “Filter Pump Config.” menu
to enable freeze protection for the main circulation system.

NOTE: The configuration parameters for the Aux2 output are the same as shown below for Aux1.

WARNING: Do not use the ECOMMAND 4 to control an automatic pool cover.

Swimmers may become entrapped underneath the cover.

Lights Pump Speed

This is the speed of the pump when the Lights output is on. The choices are the Settings
Menu speed and a speed that is unique to the Lights output only. The default selection is
“Settings Menu”. This is the speed of the pump that has been selected in the Settings Menu
for normal filter operation. If an alternate speed is desired when the Lights output is on, push
“+” or “-” and select from “Lowest” to “Highest” in 5% increments.

Low Speed- Filter, T im eclock , Solar , and Super Chlorinate

Manual On/Off (default), Countdown T imer,

Move to next menu item or previous/next configuration menu

Toggle between Enabled and Disabled (default) Aux1 Interlock

Select between Settings Menu (default) and the desired pump speed

20

Aux1 Function

Siemens

Murray

Single

Double

Quad

Twin

GFCB

QP

QP QT

QT QPF

QF3

Torque

MP-T

MP-T

MH-T

MH-T MP-GT LX100FP

25lb-in

25lb-in

Field

Wired

Manual On/Off (default)—the aux relay will alternate between turning on and off when the
aux button is pressed. There is no automatic control logic.

Countdown Timer – the aux relay will turn on when the AUX button is pressed and then will
turn off automatically after a programmed time (see Timers Menu, Operation Manual). The
AUX button can also be used to turn the output off.

Low Speed of a 2-speed Filter Pump – the ECOMMAND 4 will operate the aux relay whenever
the low speed operation of the filter pump is required. It is very important that the “2-speed”
filter pump option be selected under the “Filter Config.” Menu for proper operation.

Timeclock – the aux relay will turn-on and turn-off at the times set for the aux1 timeclock in
the Timers Menu. The AUX button can also be used to turn the output on and off.

Solar – the aux relay operates a solar booster pump which will turn on when the filter pump
is running and solar heat is available and the water is less than the desired temperature
setting. It is important to note that “Solar Control” must be enabled in the “Solar Config.”
menu for proper operation to occur.

Super Chlorinate – if “Chlorinator” is enabled, this option allows the user to start a Super
Chlorinate cycle when the Aux button is pressed, rather than using the Settings Menu. Note
that only one button can be assigned to this function.

Aux1 Relay

This feature allows the user to select either “Standard” (default) or “Dimmer” type relay for
the Aux1 output. The optional AQL-DIM dimmer kit must be installed if “Dimmer” is desired.
When “Dimmer” is selected, and the Aux1 output is manually turned on, the “+” and “-”
buttons adjust the level from 20% to 100% (default). The level is saved for the next time the
aux1 output is turned from off to on.

Aux1 Interlock

If “Enabled”, this feature will override the function (Manual On/Off, Countdown Timer,
Timeclock), selected above and turn the aux1 off when: filter pump is off, first 3 minutes of
filter pump operation (allows the pump to prime and get water flowing), when the pool/spa
suction return valves are in any position other than “pool only”, or for the first 3 minutes
after solar turns on (allows air in the solar panels to be purged). Interlock is not available for
solar, low speed filter pump, super chlorinate or dimmer .

Aux1 Freeze Protection

This function protects the pool, plumbing, and equipment against freeze damage. If Freeze
Protection is enabled and the AIR temperature sensor falls below the selected freeze
temperature threshold, the ECOMMAND 4 will turn on the aux relay to circulate the water.
IMPORTANT: this only enables operation of the AUX output during freeze--see the “Filter
Pump Config.” menu to enable freeze protection for the main circulation system.

Aux1 Pump Speed

This is the speed of the pump when the Aux1 output is on. The choices are the Settings
Menu speed and a speed that is unique to the Aux1 output only. The default selection is
“Settings Menu”. This is the speed of the pump that has been selected in the Settings Menu
for normal filter operation. If an alternate speed is desired when the Aux1 output is on, push
“+” or “-” and select from “Lowest” to “Highest” in 5% increments.

21

Valve3 Pump Spd

Settings Menu

only if filter pump is set to variable
and relay type is set to standard

Move to previous/next configuration menu

Valv e3 Fre eze

Disabled

Toggle between Enabled and Disabled (default) Valve3 Freeze
Move to previous/next configuration menu

for all functions except supe r chl or inate

Valve3 Config.

+ to view/change

Valve3 Function

Solar

Push to access Valve3 options

Rotates between k

Timecloc (default), Solar, In-floor Cleaner,

Filter, Lights, Aux1 and Aux2

Move to previous/next configuration menu

Move to next menu item

Valve3 Interlock

Disabled

Move to next menu item

for all functions except solar and super chlorinate

Toggle between Enabled and Disabled (default) Valve3 Interlock

Select between Settings Menu (default) and the desired pump speed

Valve3 Function

Timeclock (default) – the valve turns on/off at the times set for the valve3 timeclock in the
Timers Menu (see Operations Manual).

Solar – the valve operates when the filter pump is running and solar heat is available and the
water is less than the desired temperature setting. Solar heating must be enabled in the
“Solar Config. menu for proper operation to occur.

In-Floor Cleaner – the valve switches the water returning to the pool between the in-floor
cleaner and the normal return jets which facilitate efficient surface skimming. The valve will
operate the in-floor cleaner for the first half of each clock hour and then switch to the jets/
skimming for the last half of the hour.

Valve3=Filter – the valve operates whenever the Filter relay is on.

Valve3=Lights – the valve operates whenever the Lights relay is on.

Valve3=Aux1 – the valve operates whenever the Aux1 relay is on.

Valve3=Aux2 – the valve operates whenever the Aux2 relay is on.

Valve3 Interlock

If “Enabled”, this feature will override the function (timeclock or in-floor cleaner) selected
above and turn the valve off when: the filter pump is off, first 3 minutes of filter pump
operation (allows the pump to prime and get water flowing), or for the first 3 minutes after
solar turns on (allows air in the solar panels to be purged). Interlock is not available for solar
or super chlorinate.

Valve3 Freeze Protection

This function protects the pool and plumbed equipment against freeze damage. If Freeze
Protection is enabled and the AIR temperature falls sensor falls below the selected freeze
temperature threshold, the ECOMMAND 4 will turn on the valve to allow circulation of the
water . IMPORTANT: this only enables operation of the valve3 output during freeze--see the
“Filter Pump Config.” menu to enable freeze protection for the main circulation system.

22

Pool/Spa Setup

Pool and Spa

Valve3 Pump Speed

All Timeclocks

7-day

Move to previous/next configuration menu

Time Format

12 hour AM/PM

Units

ºF and PPM

Move to previous/next configuration menu

Move to previous/next configuration menu

Toggle between ºF and PPM (default) and ºC and g/L (Metric) options

Reset Config. to

Default Press +

Are you sure?

+ to proceed

Config. reset

Confirmed

Reset all configuration parameters

Move to previous/next configuration

Move to previous/next menu (config. not reset)

Move to previous/next configuration menu

FILTER

SOLAR BOOST

PUMP

SOLAR
VALV E

HEATER

HEATER
BYPASS

VALVE

(manual)

CELL

FLOW

SWITCH

CHECK

VALVE

PUMP

RETURN

VALV E

WATER

FEATURE

VALV E

SPA

SPA JET

PUMP

SPA

BLOWER

POOL/SPA SUCTION

VALV E

CHECK VALVE

POOL VACUUM

VALV E

MANUAL

VALV E

MANUAL

VALV E

MANUAL

VALV E

ENERGY

FILTER

TWO-WAY

VALV E

SKIM

POP-UP

SPILLOVER

POP-UP

OVERFLOW

POP-UP

RETURN

JET

IN-FLOOR
CLEANER

VALVE

WATER

FEATURE

PUMP

WATER

FEATURE

POP-UP

MAIN

DRAIN

ENERGY

SAVER

PRESSURE

CLEANER

NON-BOOST

PRESSURE

CLEANER

PRESSURE

CLEANER

SUCTION

CLEANER

SENSOR

FILTER

PUMP

Val ve O utputs

Filter Pump
Lights
Aux 1
Aux 2

Pool/Spa Suction
Pool/Spa Return
Valve 3

HIGH VOLTAGE

LIGHTS

LOW VOLTAGE

LIGHTS

FIBER OPTIC

LIGHT SOURCE

COLOR WHEEL

ISOLATED

WATE R

FEATURE

PUMP

TEMPERATURE

SENSOR

CHECK

VALV E

(prevents draining

of raised sp as)

V

of raised spas)

control is used

This is the speed of the pump when the Valve3 output is on. The choices are the Settings
Menu speed and a speed that is unique to the Valve3 output only. The default selection is
“Settings Menu”. This is the speed of the pump that has been selected in the Settings Menu
for normal filter operation. If an alternate speed is desired when the V alve3 output is on, push
“+” or “-” and select from “Lowest” to “Highest” in 5% increments.

Toggle between 7-day (default) and Weekend/Weekday time options

This selection affects ALL of the timeclock logic in the ECOMMAND 4. If “7-day” is
selected, each timeclock will have one set of turn-on/turn-off settings that operate every day
of the week. If “Weekend/Weekdays” option is selected then the user can enter one set of
turn-on/turn-off times for the weekend (fixed as Saturday/Sunday) and another set of turn­on/turn-off times for weekdays (Monday through Friday).

Toggle between 12 hour AM/PM (default) and 24 hour time format options

Initiate reset of all configuration parameters

menu (config. not reset)

Use this function to erase all previous system configuration and reset all configuration
parameters back to the factory default values. This function is NOT reversible--be careful.

23

5. System Startup and Checkout

Before Startup

Before starting the ECOMMAND 4 for the first time, be sure that the following items have been com­pleted:

1. Properly rated circuit breakers are installed in the ECOMMAND 4 subpanel.

2. All wiring is performed according to NEC and local codes.

3. The ECOMMAND 4 is properly grounded and bonded.

4. The ECOMMAND 4 is properly configured to control all desired functions.

Program Automatic Operation

Refer to the programming flow chart on the back cover of this manual for a listing of the available menus
and the items included in each menu.

Settings Menu

Heater and/or solar thermostat settings
Chlorinator settings (if applicable)
Day and Time

Timers Menu

Timeclock and/or Countdown timer settings

Heater Checkout

Follow these instructions to verify that the ECOMMAND 4 is properly controlling the heater.

1. Check that the ECOMMAND 4 is calling for the heater to turn on as indicated by the “Heater” LED
being illuminated. If the “Heater” LED is illuminated, go directly to step 2; if not, then check the follow­ing:

• The heater is enabled (Configuration Menu/Heater Config.).

• The heater temperature setting is at least 2ºF greater than the water temperature (Settings Menu /
Pool Heater & Spa Heater).

• The filter pump is running.

• If the pool has solar heat and the solar priority feature is enabled (Configuration Menu/Solar
Config) then solar must be off in order for the heater to fire. The easiest way to force solar off is to
go to the Settings Menu / Pool Solar & Spa Solar and temporarily lower the temperature settings
below the current water temperature.

2. Check that the heater is running. If not, then check:

• Power is supplied to the heater.

• The ECOMMAND 4 control output is properly connected to the heater control (see ”Heater
Control” wiring, page 8).

• Some heaters also have internal switches or jumpers that have to be set correctly for remote
control operation—refer to the heater manual and also “Heater Control” (page 8).

• Heater is turned on (“Kill Switch” is in the “ON” position).

• If a heater bypass valve is installed, check that water is flowing through the heater.

• The heater temperature setting is set as high as possible (usually 104ºF/40ºC). Also note that
some heat pumps actually have be set to the lowest possible temperature.

24

!

3. Once the heater is running, you can verify the “heater cooldown” feature (optional - see Configuration
Menu/Heater Config.) is operating properly:

• Press the “Filter” button once (for 2 speed pumps, this may require 2 pushes of the “Filter”
button).

• The heater should turn off (“Heater” LED off) and the “Filter” LED will flash to indicated heater
cooldown is active.

• The display will periodically indicate that the filter pump is on for heater cooldown and show the
minutes remaining.

• The pump will automatically turn off at the end of the 5 minute heater cooldown period.

For more detailed instructions on control and operation of the ECOMMAND 4 system, refer to the
Operation Manual.

Service Mode

Service mode disables all automatic control operation and is intended to be used when servicing the pool
system. T o enter service mode, push the SER VICE button once on the main unit keypad. This will initially
turn all outputs off and then allow you to turn outputs on/off manually at the main display (only). In service
mode, the buttons on the optional spa side remote will turn outputs off, but will not turn any output on.
Heater control outputs and solar control outputs are prevented from turning on if the water temperature
exceeds 104ºF (40ºC).

Pushing the SER VICE button again will enter a timed service mode. Service operation as described
above will continue for 3 hours, then automatically return to normal operation.

Push the SER VICE button once more to exit out of Service mode.

262728

LIMITED WARRANTY (effective 01/01/09) Goldline warrants its Aqua Rite, Aqua Rite Pro, Aqua Logic, Pro Logic and

E-Command products to be free of defects in materials and workmanship, under normal use and service for a period of
three (3) years. This warranty is applicable from the initial date of installation on private residential swimming pools in
the US and Canada. The warranty is not transferable and applies to the original owner only .

Aqua Trol, commercial installations, installations outside of the US and Canada, accessory products and replacement
parts are covered under the terms of the warranty for a period of one (1) year.

Proof of purchase is required for warranty service. If written proof of purchase is not provided, the manufacturing date
code will be the sole determinant of the date of installation of the product.

T o obtain warranty service or repair, please contact the place of purchase or the nearest Goldline authorized warranty
service center. For more information on authorized service centers please contact the Hayward/Goldline Technical
Service Support Center ( 61 Whitecap Road, North Kingstown RI, 02852) or visit the Goldline web site,
www.goldlinecontrols.com.

W ARRANTY EXCLUSIONS:
1 . Material supplied or workmanship performed by others in process of installation.

2 . Damage resulting from improper installation including installation on pools larger than the product rating.

3 . Problems resulting from failure to install, operate or maintain the product(s) in accordance with the recommendations

contained in the owners manual(s).

4 . Problems resulting from failure to maintain pool water chemistry in accordance with the recommendations in the

owners manual(s).

5. Problems resulting from tampering, accident, abuse, negligence, unauthorized repairs or alternations, fire, flood,
lightning, freezing, external water, degradation of natural stone used in or immediately adjacent to a pool or spa, war
or acts of God.

DISCLAIMER. THE EXPRESS LIMITED WARRANTY ABOVE CONSTITUTES THE ENTIRE WARRANTY OF
GOLDLINE WITH RESPECT T O ITS POOL AUTOMA TION AND CHLORINATION PRODUCTS AND IS IN LIEU OF
ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU

MA

Y ALSO HAVE OTHER RIGHTS WHICH V AR Y FROM STATE TO ST A TE. IN NO EVENT

RESPONSIBLE FOR ANY CONSEQUENTIAL, SPECIAL OR INCIDENTAL DAMAGES OF ANY NATURE
WHATSOEVER, INCLUDING, BUT NOT LIMITED T O, PERSONAL INJUR Y , PROPER TY DAMAGE, DAMAGE TO OR
LOSS OF EQUIPMENT, LOST PROFITS OR REVENUE, COSTS OF RENTING REPLACEMENTS, AND OTHER
ADDITIONAL EXPENSES, EVEN IF THE SELLER HAD BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

SOME STATES DO NOT ALLOW THE EXCLUSION OF LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO

NO WHOLESALER, AGENT, DEALER, CONTRACTOR OR OTHER PERSON IS AUTHORIZED TO GIVE ANY
W ARRANTY ON BEHALF OF GOLDLINE.

THE ABOVE LIMIT ATION OR EXCLUSION MAY NOT APPL Y T O YOU.

SHALL GOLDLINE BE

THIS W ARRANTY IS VOID IF THE PRODUCT HAS BEEN AL TERED IN ANY W A Y AFTER LEA VING THE F ACTOR Y .

ECOMMAND 4 Programming Flow Chart

12 hour or 24 hour time format

ºF or ºC

reset to default

defaultmenu

dayand time

water temperature

air temperature

chlorinatorsetting

salt level

reason pump is running (not scheduled)

reason hi-speed is running (not scheduled)

countdown time remaining

heater control status

system manual off

check system error

filter speed

settings menu

spa heater1 temperature

pool heater1 temperature

spa solar temperature

pool solar temperature

superchlorinate

spa chlorinator setting

pool chlorinator setting

spa high/low speed

pool high/lowspeed

dayand time

backlit display light

beeper

teach wireless remote

wireless channel

timers menu

pool filter pump1 or hi-speed
pool filter pump2 or lo-speed

spa

lights

aux1
aux2

valve3

superchlorinate

diagnostic menu

salt level

water sensor

air sensor

solar sensor

mainsoftware revision

displaysoftwarerevision

filter bridge/vscsoftware revision

RF base software revision

configuration menu

chlorinator

pool/spa

filter

heater1

solar
lights
aux1
aux2

valve3

7-day or weekend/weekday timeclock

denotes conditional items

620 Division St.
Elizabeth, NJ 07207

Copyright © 2008 Goldine Controls

092419A
