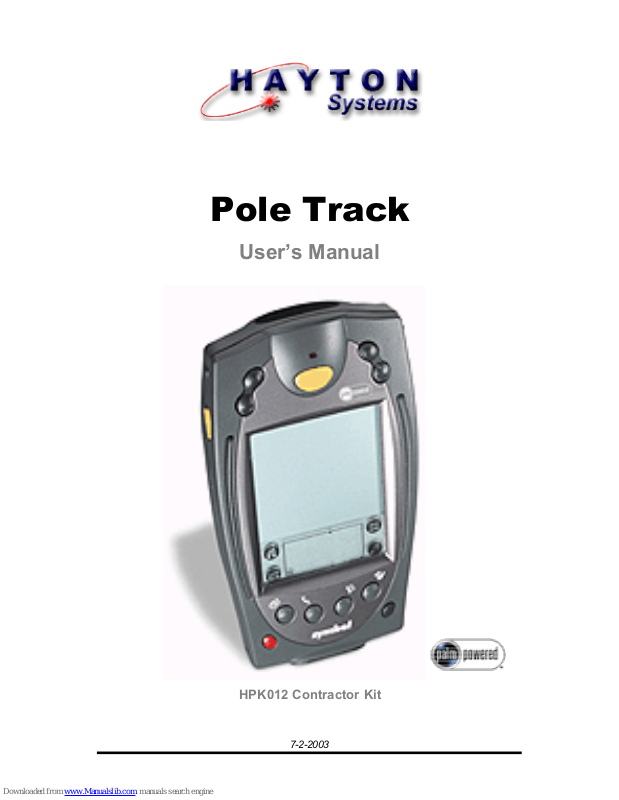

Pole Track

User’s Manual

HPK012 Contractor Kit

This document contains training information specifically designed for the

Hayton Systems Pole Track application. Pole Track is designed and licensed by

Hayton Systems. Any required changes to this document or the application

should be forwarded to Verizon Network Services – Infrastructure Provisioning

Systems Support.

Hayton Systems

3210 Smokey Point Drive #200

Arlington, WA 98223

360-659-5804

fax 360-659-6823

800-990-8360

www.haytonsystems.com

Verizon Approved

by Dennis Brooks

dennis.brooks@verizon.com

972-718-6150

This document contains Hayton Systems Confidential and Proprietary Information. Users shall maintain such Confidential and Proprietary Information in confidence until such information is made publicly available by Hayton Systems. Users shall take reasonable precautions to limit the disclosure of such Confidential and Proprietary Information only to your employees who are necessary to evaluate and/or use such information.

Contents

1. INTRODUCTION......................................................................... 1

2. KIT INFORMATION ................................................................... 2

2.1

Pole Track Kit

3. QUICK START.......................................................................... 6

3.1

Quick Start Installation

3.2

Quick Start Handheld

4. THE HANDHELD TERMINAL.................................................... 10

4.1

Standard Applications

4.2

Scanning Notes

4.3

Entering Text

5. SET DATE AND TIME.............................................................. 14

6. APPLICATION LAUNCHER AND RESTORER................................ 15

7. START POLE TRACK AND ENTER SETTINGS ............................ 16

7.1

Maintaining the List of Auditors

8. TRACKING POLE ASSETS........................................................ 18

8.1

DATA View

8.2

Data View Fields

8.3

Add, Edit, Delete Attachments

9. UTILITIES.............................................................................. 21

10. GPS CHECK UTILITY PROGRAM ........................................... 23

APPENDIX A – GRAFFITI ................................................................. 24

APPENDIX B - DATA FORMATS ........................................................ 25

B.1

Pole Header Record

B.2

Pole Details Record

B.3

Pole Attachment Record

ASCII TABLE ................................................................................ 29

GLOSSARY ...................................................................................... 31

1. Introduction

Power and telecom cables often use the same utility pole. Telecom companies often lease space on poles owned by power companies (and vice versa). Telecom companies pay a significant sum to power companies for this leased space. Telecom lines are often moved and occasionally leased poles are no longer used. Pole Track allows you to inventory poles so the power companies are paid only for the poles actually used.

Pole Track Terminal

Pole Track operates on the Symbol SPT handheld terminal and uses an operating system based on the Palm III operating system. Pole Track terminals include some standard Palm III “organizer” functions, an integrated bar code scanner, and a GPS module.

GPS Module

The GPS (Global Positioning System) module provides precise longitude and latitude coordinates to Pole Track. The GPS module connects to the bottom of the terminal and uses an internal antenna to receive the GPS data from the satellites.

Tracking Poles

The terminal prompts for information about each pole and each pole attachment. The terminal stores the collected pole data and you then send the collected data to the Pole Track server. The server receives the pole data and it uses this data to update its master database.

Summary

Pole Track provides an intuitive and efficient way to track the poles used for telecom cables.

2. Kit Information

Pole Track kits come with everything needed to start tracking telecom poles. In addition to the complete kits you can also order spare parts.

2.1 Pole Track Kit

Pole Track Kit

Part # HPK012

Description

Comments

Part #

Symbol SPT1800 1D Scanner Modem Cradle Cradle Power Supply Power Supply Cord Vehicle Charging Adapter Spare Battery Stylus 5 Pack

with slip case

with cable

for cradle

Lithium Ion

H15019 H15004 H15008 H15009 H15017 H15016 H15013

GPS Adapter

H15025

Modem Adapter Serial/Charging Cable

9-pin to 25-pin

H15012 H15010

SPT Soft Case User’s Manual Hard Carrying Case Quick Start Guide

for terminal & cables

for the entire kit

H15007 HS2151 H15006

N/A

Options:

Jazz 150 Power Inverter SPT to Printer Adapter

for portable printer

H15031 H15030

2.2 Parts List

The Contractor Kit contains these components. Contact Hayton Systems to reorder components or accessories.

H15019

Symbol SPT1800

with 1D Scanner

H15004

Modem Cradle

(with cable)

H15025

GPS Adapter

H15008

Cradle Power

Supply

H15009

Power Supply

Cord (for Cradle)

H15016

Spare Battery (Lithium Ion)

H15013

Stylus 5 Pack

H15012

Modem Adapter

(9-pin to 25-pin)

H15010

Serial/Charging

Cable

H15007

Soft Case for

Terminal and

Cables

H15006

Hard Carrying

Case (for the

entire kit)

HS2151

User’s Manual

2.3 Repair Procedures

Send hardware in need of repair to Hayton Systems for processing. The SPT terminal, modem cradle, and GPS adaptor are the only components considered repairable. All other components are considered as expendable items that are not economical to repair due to their low initial cost.

Contact Hayton Systems at

http://www.haytonsystems.com/support/repairs.htm

(or call 360-403-9194) to begin the repair process. Complete and submit the online Return Authorization (RA) Form. After submitting the RA you will receive an RA number via email. Print two copies of the authorization: one copy for your records and enclose one with hardware being returned. The repair process normally takes three to four weeks.

You can make a copy of this shipping label and use it when returning the equipment.

From:

Name

___________________________ _ Address

___________________________ _ City/State/ZIP

___________________________ _ RMA Number ____________________

To:

Hayton Systems Attn: Wayne Hayton 19007 61st Ave NE Unit 3

Arlington, WA 98223

3. Quick Start

The quick start section is meant to be a reference on how to use the Pole Track system. The remainder of the manual describes each step in greater detail.

3.1 Quick Start Installation

The Pole Track kit includes all of the parts needed to begin operating. Unpack the kit and follow these steps:

1. Plug one end of the phone cord into the

Line-In

port on the back of the

cradle. Plug the other end of the phone cord into a telephone wall jack.

2. Plug the Power Supply into the

VDC

plug on the back of the cradle.

Connect one end of the power cord to the power supply and plug the other end of the power cord into a wall outlet.

3. Place the spare battery into the charging slot on the top of the cradle

(contacts down and facing the back of the cradle). Gently push – DO NOT FORCE -- the battery down until the charging light illuminates (leftmost light on the cradle). A red light means the battery is charging and green means it is fully charged.

4. Remove the terminal from the yellow Soft Case. Do not place the terminal

in the Modem Cradle yet. Press the red button on the terminal to turn it on.

5. Check the battery indicator on the top line of the terminal’s screen. You

should fully charge the battery before using the terminal for the first time (indicator should be completely black). If the battery is not fully charged then place the terminal in the cradle to completely charge the battery (about 30 minutes maximum). The charging light will be red if the battery is charging and green if the battery is fully charged.

6. After the battery has been fully charged you are ready to start setting up the

terminal. Press the red button on the terminal to turn it on.

7. Remove the yellow stylus from the back of the terminal. Follow the on-

screen directions to align the touch screen digitizer.

8. Using the stylus, tap the

Application

Launcher

icon until the

All

category name shows on the upper right corner of the screen.

9. Using the vertical scroll bar on the screen if necessary, find the

Prefs

icon and tap the

Prefs

icon.

10. Set the date and time (if they are not correct) by tapping desired “outlined”

item on the screen and then selecting the correct settings (See

Start

Pole

Track

Enter

Settings

for more details).

11. Pull down the drop menu by tapping on the General category in the top

right corner of the screen.

12. Tap on Digitizer and follow the on-screen instructions to align the touch

screen digitizer. It is extremely important that this is completed

accurately.

13. Tap the

Application

Launcher

icon until the

All

category name shows

on the upper right corner of the screen.

14. Using the vertical scroll bar on the screen if necessary, find the

Restorer

icon. Tap this icon then tap .

15. Once

Restorer

has finished running it may automatically launch ATS

16. At the Application Launcher find the

ATSync

icon (use the vertical

scroll bar on the screen, if necessary) and tap the

ATSync

icon. In ATSync

tap the

icon on the bottom left of the writing pad and then select

from the list of menu options. Your configuration settings

should look like this:

Logon: floyd Password: floyd (tap in the box to be prompted for a password) Server: 143.091.038.150 Alt Server: (should be blank) Port: 4040 LoadBal: (should be unchecked) Resource: gps Autoconn: (should be unchecked)

17. Place the terminal in the cradle and tap the

ATSync

icon on the

application launcher. Place the terminal in the cradle and tap . Note: To set a pre-dialing string contact Hayton Systems and we will walk you through that process.

18. Once the download is complete, tap (session complete). You will then

be back at the main ATSync screen. Tap the Application Launcher icon.

19. If your terminal is an SPT1800*, you must perform the following steps

before using Pole Track or GPS Check:

a. At the Application Launcher, tap on the Pull Down Menu icon. b. On the App menu, tap on Delete c. On the list of applications, tap on PwrDvr35 (you may have to

scroll down to see it) d. Tap on the Delete button e. Tap on the Done button

20. Attach the GPS module to the bottom of the Pole

Track terminal and use the GPS Check application to initialize the GPS module.

Note: initializing the GPS unit for the first time can take up to eight minutes.

Call Hayton Systems if you have any questions.

* The model number appears in the battery well. Remove the battery and quickly note whether the model number says SPT1700-xxxxxx or SPT1800xxxxx. The x’s represent several different configuration numbers and are not important to this task. Do not leave the battery out any longer than necessary or loss of programs and data will occur.

3.2 Quick Start Handheld

1. Connect the Pole Track terminal to the server and download all of the

application related information (see “Quick Start Installation”).

2. To calibrate (align) the touch screen then follow the on-screen directions.

3. If a new version of the application was loaded then the terminal forces you

to enter the initial settings. Enter all the fields on the

Settings

screen. If

there are no auditors in the terminal be sure to add an auditor. After you enter the settings the terminal displays the

Help

screen.

4. Press the DATA button to move to the

main Pole Track data collection screen.

5. Enter the pole data into the main detail

screen. Tap the initials (top line) or the summary line (second line) to activate the

Settings

screen. Tap the

Attachmnts

field to activate the

Attachments

section.

After you enter data the terminal

displays the and buttons.

6. To enter the

Attachments

section tap

the

Attachmnts

field on the details

screen (above). Tap to enter a new record. Each pole record shows only the attachments entered for that pole.

7. To send the Pole Track data to the server press the “UTIL” button and select

. The terminal connects with the Pole Track server and sends its

data. After the terminal successfully uploads its data press

to erase the stored data.

4. The Handheld Terminal

Touch screen technology allows you to use the on-screen keypad or hand-enter data using the writing pad (located on the bottom of the screen). Your terminal also comes with some standard “organizer” applications.

Application Buttons

When running Pole Track these buttons activate functions unique to Pole Track.

DATA view is the main data input and edit screen.

GRID view acts as a quick reference to view the most

pertinent record data.

HELP view displays additional operating information.

UTIL view includes utility functions such as record delete,

audit download, and mass record update.

Application Launcher

Press to switch between application categories and see the list of applications. The terminal stores applications in three areas or categories, namely,

Main

Verizon

, and

System

. Do not modify or move applications in these

categories.

Contrast

Use this button to adjust the display contrast for your current lighting conditions.

Laser Scanner

This laser scanner reads and decodes bar codes.

not

look

directly

into

the

scanning

beam

On/Off

Press this red button to turn the unit on and off. Press and hold the On/Off button to turn the backlight on or off. Use the backlight in low-light conditions but also remember that using the backlight requires more battery power.

Scan Buttons

The three yellow scan buttons activate the bar code scanner. Use the button that is most convenient for you (all three work the same way).

Scroll Buttons

The two scroll buttons allow you to scroll through lists, data entry fields, and sometimes between screens. Use the button most convenient for you (both work the same way).

Touch Screen

The main screen used to display information and enter data. Use only a recommended plastic-tipped stylus when writing on the touch screen.

Writing Pad / Keypad

Use the writing pad to enter handwritten Graffiti characters. Use the left side of the pad to enter alphabetic characters and the right for numeric characters. Graffiti characters are similar to normal characters but require fewer strokes (see Appendix B).

You can also enter data using a pop-up keypad. Tap the “abc” or “123” buttons to activate a pop-up keypad. Keypads make it very easy to enter special characters.

4.1 Standard Applications

The terminal includes several standard applications such as a phone list, to do list, daily planner, calculator, note pad, etc. Neither Verizon nor Hayton Systems support these standard applications. The Verizon server does not backup data from standard applications (you are responsible for backing up your own data). You can use the Palm desktop software provided to allow your PC to communicate with the terminal.

Many third party applications exist for Palm terminals. We highly recommend not

using these applications in your terminal. These applications could have a

detrimental effect on Pole Track and the system may automatically remove these applications during an upload to the host.

4.2 Scanning Notes

The laser scanner works best when held at an angle to the bar code:

If a bar code does not immediately scan then try moving the scanning beam from the top of the bar code to the bottom.

Moving the scanning beam through the bar code (especially “dirty” ones) gives the scanner a better chance to find “good spots” within the bar code.

Right

Wrong

4.3 Entering Text

You can enter information into the data fields in three ways:

• Scan bar codes using the internal laser scanner

• Use the writing pad and hand-enter Graffiti characters

• Enter data characters using the pop-up keypad

Tap “abc”

or “123”

on the

writing pad

to activate

the keypad.

The custom keypad looks like this:

The custom keypad allows you to scroll through the current set of data fields and enter information. Use the Data Field Arrow Keys to move between input

fields. After entering data in the last data field press to return to the DATA view. You can enter information for a single field or for multiple fields.

5. Set Date and Time

When you first turn on the terminal you must calibrate the touch screen and set the date & time.

Tap

Set

Time

Set

Date

fields

to activate

the

time/date

edit screen.

Set Time

Adjust the time values using the up/down arrows. Select the portion of the time to adjust and use the arrow keys

to adjust the value. Press to set the time.

Set Date

Select today’s date (be sure to set select the correct year). Select the current, month, and day, or tap to

move to the current date.

In the future you can always adjust the date and

time. From the application menu tap the Prefs

icon (short for

Pref

erence

) in the

System

category.

6. Application Launcher and Restorer

Palm terminals group applications in categories. Tap

to display the next application category. The current category name appears in the upper right of the screen.

You can also tap the category name to display a category list. Select the desired category from the list.

Tap

Restorer

initiate downloading the latest version of the Pole Track application.

The terminal dials the server and receives the

current Pole Track version. Tap the

PoleTrack

icon to start the application.

To load the current Pole Track application place the terminal in the dock and tap

Restorer

from the

System

category. Follow the instructions and Restorer

initiates communications with the server so that the terminal receives the latest version of Pole Track. After the Pole Track program is received you will be prompted to calibrate the display digitizer.

Category menu

7. Start Pole Track and Enter Settings

After

Restorer

loads a current version of Pole Track you can begin tracking

poles. The terminal automatically starts Pole Track after running

Restorer

ß If a new version of Pole Track was loaded then you see this message.

Otherwise you see the “Welcome!” screen. à

goes to

Welcome!

Screen. à

moves you to

Settings

screen.

Tap to exit Pole Track.

Enter your

Settings

information. Be sure to

verify these settings each time you use the terminal!! Tap the initials on the top line of

any Pole Track screen to access the

Settings

Tap

after entering all

Settings

data.

Select the appropriate region. You cannot change regions if the terminal contains data records (Pole Track displays an error message if you try to do this).

Auditor

Select a name from the drop-down list or tap to add, edit, or delete auditors.

Other Fields

Each field contains a list of valid entries. Choose the desired entry from the list.

After entering the required data press to store the settings and display the

Help

screen. You will then be

ready to use Pole Track.

7.1 Maintaining the List of Auditors

From the

Settings

screen tap the

Auditor

field

to display the list of auditors. Then tap

to enter the

Auditors

section.

The

Auditors

section allows you to maintain

the list of auditors. You can add a new auditor, edit an existing auditor, or delete an auditor.

When you are finished tap to return to the

Settings

screen.

Delete an Auditor

Select the name to delete and tap . Pole Track displays a confirmation prompt prior to deleting an auditor.

Add or Edit an Auditor

Tap to create a new auditor or to edit an existing auditor.

Tap to store the data and return to the Auditors

screen.

8. Tracking Pole Assets

Use the buttons on the bottom of the terminal to access the DATA and GRID views.

8.1 DATA View

In DATA view you can enter or edit records. DATA view shows all data fields for each record.

The number and type of data fields varies depending on the transaction type. The DATA view screen contains the following elements:

8.2 Data View Fields

GPS

The GPS module populates this field with the current GPS longitude and latitude.

SzClTpYr

A summary of the size, class, type, and year fields. Tap this data field to display a new screen that allows you to easily see and enter these four data fields.

Attachment

This field shows the number of attachments entered for this pole. Tap the attachment value to display the attachment list for this Pole record (see

Attachments

section for details).

Owner

These radio buttons allow you to select a single owner for this pole record.

Anchors

Tap this summary field to display the

Edit

Anchors

screen.

Indicators

Select any of the indicators for this pole.

Midspan

The

Midspan

feet/inches height in FFII format where FF is

feet (00-99) and II is inches (00-11). If you enter two digits the terminal adds “00” for inches. If you enter a single digit the terminal adds a leading zero and “00” for inches.

Others

With these edit fields you simply enter the appropriate data.

8.3 Add, Edit, Delete Attachments

The

Attachments

section allows you to

maintain a list of attachments for each pole. You can add a new attachment, edit an existing attachment, or delete an attachment.

Tap the

Attachmnts

field to display the list of

attachments for the current pole.

Attachments List

This screen shows the list of attachments for the current pole. Tap to return

to the data entry screen.

Add or Edit an Attachment

Tap to create a new attachment, or

to edit an existing attachment. Most

data fields use MRU (

ost

ecently

sed)

lists to make data entry faster, easier, and more accurate.

Tap to store the data and return to the Attachments

(list) screen.

Delete an Attachment

Select the attachment to delete and press . Pole Track displays a warning prompt before deleting the attachment.

!! Note !! The

Company

field uses MRU lists that change depending on the

Ownership

field selected. If you select you get an MRU list unique to Verizon. If

you select then you get an MRU list unique to power companies.

9. Utilities

Press the UTIL button to access some very powerful Pole Track utility functions.

This function deletes all the records in the terminal. Pole Track prompts you to confirm the delete before actually deleting the records.

GRID view allows you to mark records using a checkbox next to each record line. Tap this button to delete all marked records. You can also use the pull down list in GRID view to mark and unmark records. Pole Track prompts you for a conformation prior to deleting any records.

This function allows you to search for records based upon selected field criteria. See the

Find

section for more details.

This function displays a reference list of the last ten uploads. You cannot modify this information. The information displayed includes the user ID, time/date stamp, and the number of records uploaded.

This function allows you to define changes for select records. A screen similar to the

Find

screen

allows you to define the record type to modify. This function also allows you to replace selected data in the records matching the search criteria.

Select the field type that you want to update, enter the current value to change, enter the new field value, and tap .

Caution!! This function could cause unwanted changes if you don’t verify the change request prior to updating.

Use this option to communicate with the server. Be sure that you have the proper Dial Settings (dial-up, direct connection, etc.). Your kit includes all the hardware needed for either type of connection.

Version…

Tap this field to view details about your version of Pole Track.

10. GPS Check Utility Program

Use the

GPS

Check

program to cold start the GPS adapter.

GPS

Check

ensures

that the adapter can use the satellites to provide accurate positional information.

Tap the

GPS

Check

icon on the Application Launcher to run GPS check. GPS

Check prompts to ensure that the GPS adapter is securely attached to the terminal, reminds you that the GPS does not function indoors, and cautions that the terminal does not time-out while running GPS Check. Therefore, if you leave the terminal unattended the GPS will completely discharge the terminal’s battery and cause the terminal to lose its program and data.

GPS Check shows how many satellites it can receive and the number of satellites that are usable once the cold start is complete. For example, it may display “Usable Satellites: 4/9”. This indicates that the adapter is aware of nine satellites and can use four of them for positioning information.

A status line provides progress information, namely,

Scanning

for

satellites

Normal

, or

Invalid

. “Normal” and “Invalid” indicate signal quality. If the status

is “Normal” the GPS adapter displays the Longitude and Latitude coordinates. The GPS adapter is then ready to use with Pole Track. If the status is “Invalid”

then the adapter cannot provide coordinates. Tap the

Application

Laucher

close GPS Check.

GPS Check also includes and Elapsed Time feature that displays the amount of time that elapsed for the cold start. A cold start can take as little as one minute or as long as ten minutes.

Appendix A – Graffiti

Space

Backspace

Return

Caps Shift

Caps Lock

Menu Cmd

Cursor Left

Cursor Right

Short Cut

Space

Tap Once to use the shifted characters:

( )

;

‘

“

Tab

< >

[ ]

{ }

Appendix B - Data Formats

Abbrev

Type

Description

Alphabetic

These fields accept alphabetic characters. Pole Track converts lowercase letters to uppercase.

A/N

Alpha-numeric

These fields allow alphabetic, numeric, and some special characters (such as space, period, etc.).

Anchr

Anchors

These fields indicate the number of each type of anchor on the pole. These values are ‘0’ – ‘9’.

GPS

Coordinate

These fields contain longitude or latitude coordinates as read from the GPS module.

Hgt

Numeric

Height in feet and inches. This field must be in F, FF or FFII formats, where:

FF = feet (0-99) II = inches (0-11, defaults to 0)

Numeric

These fields contain only the digits ‘0’ – ‘9’.

Owner

Radio Buttons

These square, labeled fields act like radio buttons. You can only select one from the set.

Y/N

Yes/No

These fields only allow YES or NO values.

(list)

Simple List

A simple list contains a list of the valid items for that field. You must select one of the items in the list.

(mru)

MRU List

Most Recently Used lists allow you to enter data for a field or select the most recently entered values from a list. You can select an item from the list or enter a new value.

B.1 Pole Header Record

These records normally remain the same for a series of pole records. The auditor enters these fields once and the terminal copies these fields to each subsequent pole record. These fields are identified as the pole header since their data normally remains relatively static.

Pole Header

Relatively Static Fields for Pole Records

Field Name

Type

VzE

VzW

Comments

Audit Date

Date

4-4

Default to the data entry date for this pole.

Audit Vendor

A/N

1-40

Name of the vendor company performing the audit.

Auditor Name

(list)

1-40

Name of the individual performing the audit. The “Auditor” section breaks this name into first name (up to 15 chars) and last name (up to 25 chars).

(VzE only) IC-ID

A/N

1-3

----

(VzW only) Jurisdiction

A/N

----

1-2

Wire Center Number

A/N

1-4

Municipality

A/N

(list)

1-25

1-50

Drop list based on IC-ID or Jurisdiction and Wire Center. Wire Centers may contain multiple Municipalities.

Street Name

A/N

(mru)

1-30

1-50

Truncation is OK.

(VzE only) Route

A/N

(mru)

0-20

----

(VzW only) Lead

A/N

(mru)

----

1-14

B.2 Pole Details Record

Pole Details

Fields that Change for Each Pole

Field Name

Type

VzE

VzW

Comments

Pole Number/ID

A/N

1-15

Entered for each pole.

Foreign Route/Lead

A/N

0-12

Enter this value if it is available on the pole.

Foreign Pole ID

A/N

0-15

0-20

In VzW the CO may include the Lead as part of the record.

GPS Latitude

GPS

1-?

Value read from GPS unit.

GPS Longitude

GPS

1-?

Value read from GPS unit.

Pole Size

1-3

Valid values: 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70.

Pole Class

1-3

Valid values: 000, 00, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10.

Pole Type/Treatment

1-1

Part of the Birthmark brand. Enter a best guess if not on the birthmark brand. Required for new poles.

1 = Creosoate (SPC) 2 = Penta (SPP) 3 = Copper Arsenate (CCA) 4 = Cedar (OW) 5 = Steel (OW) 6 = Concrete (OW) 7 = Other (OW)

Year (Birthdate)

4-4

Best guess if not found on birthmark brand. Entered for each pole. Use this value to base mortality (As built) date to drive mat codes for new poles.

Pole Ownership 1

1-1

V = Verizon P = Power C = Cable TV

Pole Ownership 2

1-1

Used if pole is jointly owned.

Midspan Height

Hgt

0,2,4

Height of the lowest Verizon cable at the mid-span towards the CO.

Anchors – Verizon

Anchr

1-1

Blank = 0. Valid values are 0-9.

Anchors – Power

Anchr

1-1

Anchors – CATV

Anchr

1-1

Anchors – Other

Anchr

1-1

B.3 Pole Attachment Record

Pole Attachment

Fields that Change for Each Pole Attachment

Field Name

Type

VzE

VzW

Comments

Ownership

date

1-1

Valid values: C = Cable TV O = Other (includes CLEC/Munies) P = Power V = Verizon

Company Name

A/N

(mru)

1-50

The user can enter a company name or select one from the MRU list. If the user selects a different owner then the MRU changes to the MRU list for that owner.

Attachment Type

(list)

1-20

See note [1] below.

Height

Hgt

0,2,4

Height of the attachment

License No

A/N

0-20

0-11

This optional field is used to uniquely identify the attachment.

[Guy] Guying Required

Y/N

1-1

Defaults to N. NO = guy is not required. YES=guys are missing or required.

[Trim] Tree Trim

Y/N

1-1

Defaults to N. YES=trim trimming is required.

[Tag] VZ Pole Tag

Y/N

1-1

No default (entry must be made). Indicates that the Verizon tag is missing from this pole.

[Dual] Dual Pole

Y/N

1-1

No default (entry must be made). YES=this new pole still has the old pole lashed to it.

[1] Attachment Type: The terminal displays and stores the selected value in upper and lower case for improved readability (it also takes less display space). The terminal sends the upper/lower-case strings and the server converts these strings to all uppercase. The attachment type list contains: COAX, CABLE, GUY, FIBER, POWER SUPPLY, LOOP, STREET LIGHT, POWER PRIMARY, POWER SECONDARY, MUNICIPAL, XCONN/TERMINAL, and OTHER.

ASCII Table

Dec

Hex

Char

Dec

Hex

Char

Dec

Hex

Char

000NULL

432B+

8656V

101SOH

442C,

8757W

202STX

452D-

8858X

303ETX

462E.

8959Y

404EOT

472F/

905AZ

505ENQ

48300

915B[

606ACK

49311

925C\

707BEL

50322

935D]

808BS

51333

945E^

909HT

52344

955F_

100ALF

53355

9660`

110BVT

54366

9761A

120CFF

55377

9862B

130DCR

56388

9963C

140ESO

57399

10064D

150FSI

583A:

10165E

1610DLE

593B;

10266F

1711DC1

603C<

10367G

1812DC2

613D=

10468H

1913DC3

623E>

10569I

2014DC4

633F?

1066AJ

2115NAK

6440@

1076BK

2216SYN

6541A

1086CL

2317ETB

6642B

1096DM

2418CAN

6743C

1106EN

2519EM

6844D

1116FO

261ASUB

6945E

11270P

271BESC

7046F

11371Q

281CFS

7147G

11472R

291DGS

7248H

11573S

301ERS

7349I

11674T

311FUS

744AJ

11775U

3220SP

754BK

11876V 3321!764CL11977W 3422"774DM12078X

3523#784EN12179Y 3624$794FO1227AZ 3725%8050P1237B{ 3826&8151Q1247C| 3927'8252R1257D}

4028(8353S1267E~

4129)8454T127

422A*8555U128

Glossary

Anchor

The count of the number of lines that each company has attached to the pole. Anchors can be owned by Verizon, Power, Cable TV, or Other. Pole Track maintains a separate anchor count (0-9) for each of the four company types.

Anchr

Abbreviation for

Anchor

Anchors

Application Buttons

While in Pole Track these four buttons activate functions unique to Pole Track.

Application Launcher

Press this button (the upper-left button on the writing pad) to switch between application categories. Use application categories to arrange programs in logical groups.

Attachment

Attachments are items mounted on a pole and can include power supplies, streetlights, loops, etc. Pole Track allows you to enter information about the attachments on each pole.

Auditor

Data specific to the person performing the audit (or, the “user”).

Bar Code

A series of bars and spaces used to encode information. Examples of bar codes include the UPC symbols used on retail products, and ISBN bar codes used on books and magazines.

Battery Indicator

The Battery Indicator shows roughly how much battery life remains in the battery pack.

Calibrate

The process the terminal uses to get known stylus positions so the touch screen can accurately “know” the stylus position. When calibrating the digitizer touch the stylus to the center of the bull’s eye marker when prompted.

Hayton Systems HPK012 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
