Hayter Harrier 41 User Manual

Harrier 41 Electric

CODES

309A 311A

OWNER'S HANDBOOK

(English Version)
FROM SERIAL NO’s:
309A001001, 311A001001, HANDBOOK: 309051 (REV .1.)
ISSUE 28.04.04

MAIN FEATURES /SPECIFICATIONS

1

2

3

4

5

6

7

8

9

10

11

1C309L02A

Main Features

1 Handlebar Securing Knob.
2 Switch Cable.
3 Switch Control Unit.
4 Switch Control Lever.
5 Handlebar.
6 Cable Cleat.
7 Grassbag Assembly.
8 Rear Deflector.
9 Serial No. Decal.
10 Height Adjuster Handle.
11 Supply Cable.

Specifications

Code 309A 311A
Supply 220-240V~50Hz 220-240V~50Hz
Rated Input 1.5 kW 1.5 kW
Fuse Rating 13A 13A
Weight 25.5 Kg 25.5 Kg
Cutterblade Speed 2950rpm 2950rpm
Cutting width 410mm 410mm
Cutting height 25 - 65mm 25 - 65mm
Overall dimensions 1,270 x 451 x 1,041mm 1,270 x 451 x 1,041mm
Operator Ear Noise Level Lpa 80 dB (A) Lpa 80 dB (A)
Sound Power Level Lwa 91 dB (A) Lwa 91 dB (A)

Supply cable: (For European specification - 311A only)
Cable - HO5RNF, 3 x 1 sq. mm. Appliance coupler - VDE / CEE7. Mains plug - Fused in accordance

with the above specifications and compliant with the local standards in the country of use. This item is not
included with code 311A mowers due to variation in European mains plug specifications and should be
supplied separately by your Hayter Dealer.

1.2

CONTENTS

1.2 Main Features/Specifications

1.3 Contents

1.4 Introduction

1.5 Warranty

1.6 - 1.9 Safety Precautions

1.9 Safety Symbols

1.9 Decal Symbols

1.10 Assembling the Mower

1.10 - Delivery Checklist

1.10 - Handlebar

1.10 - Grassbag Attachment

1.10 - Supply Cable

1.11 - 1.15 Operating The Mower

1.11 - Electrical Connections

1.11 - Starting

1.11 - Forward Travel

1.11 - Turning

1.12 - Stopping

1.12 - Height of Cut

1.12 - Before Mowing

1.13 - Grassbag

1.13 - Without Grass Collection

1.13 - Heavy Growth

1.13 - Non-Grassed Areas

1.14 - Safe Mower Practice

1.15 - Overloading Protection

1.19 - 1.22 Mower Maintenance

1.19 - Deck Housing

1.19 - Securing Nuts and Bolts

1.19 - Lubrication

1.19 - Motor

1.19 - Switch Control Unit

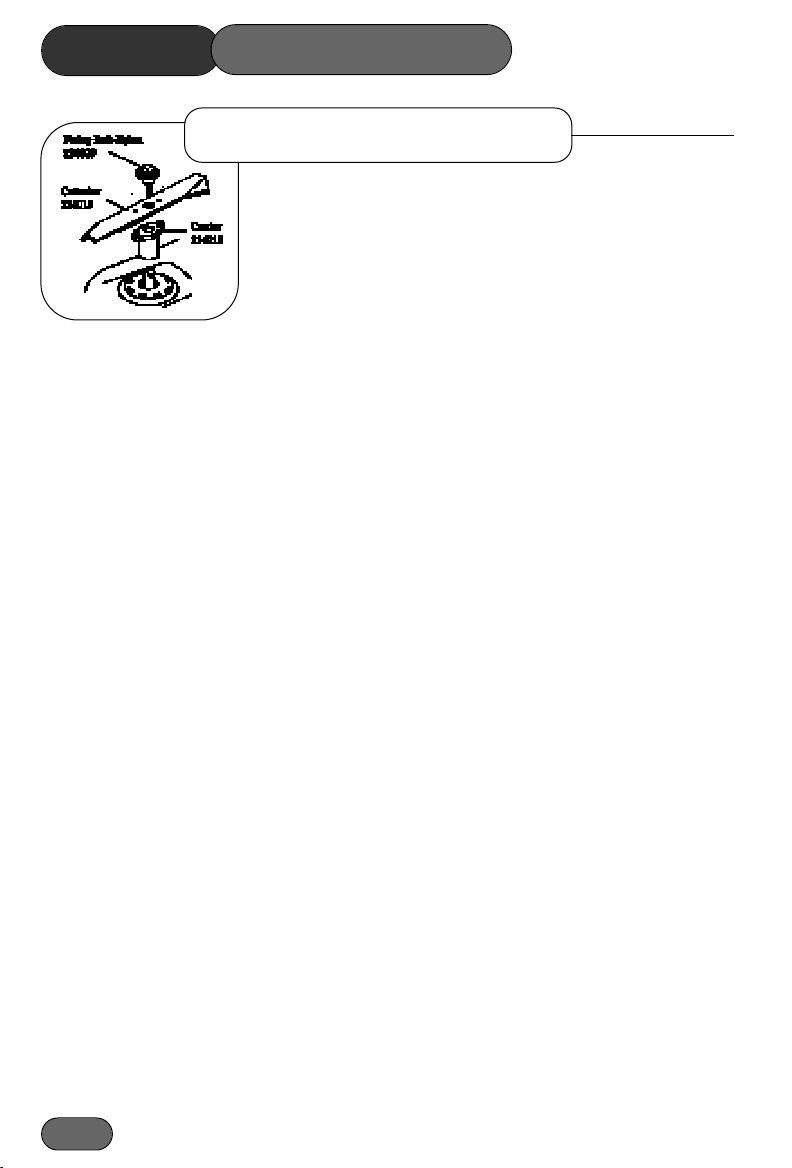

1.20 - Cutterblade Removal

1.20 - Cutterblade Assembly

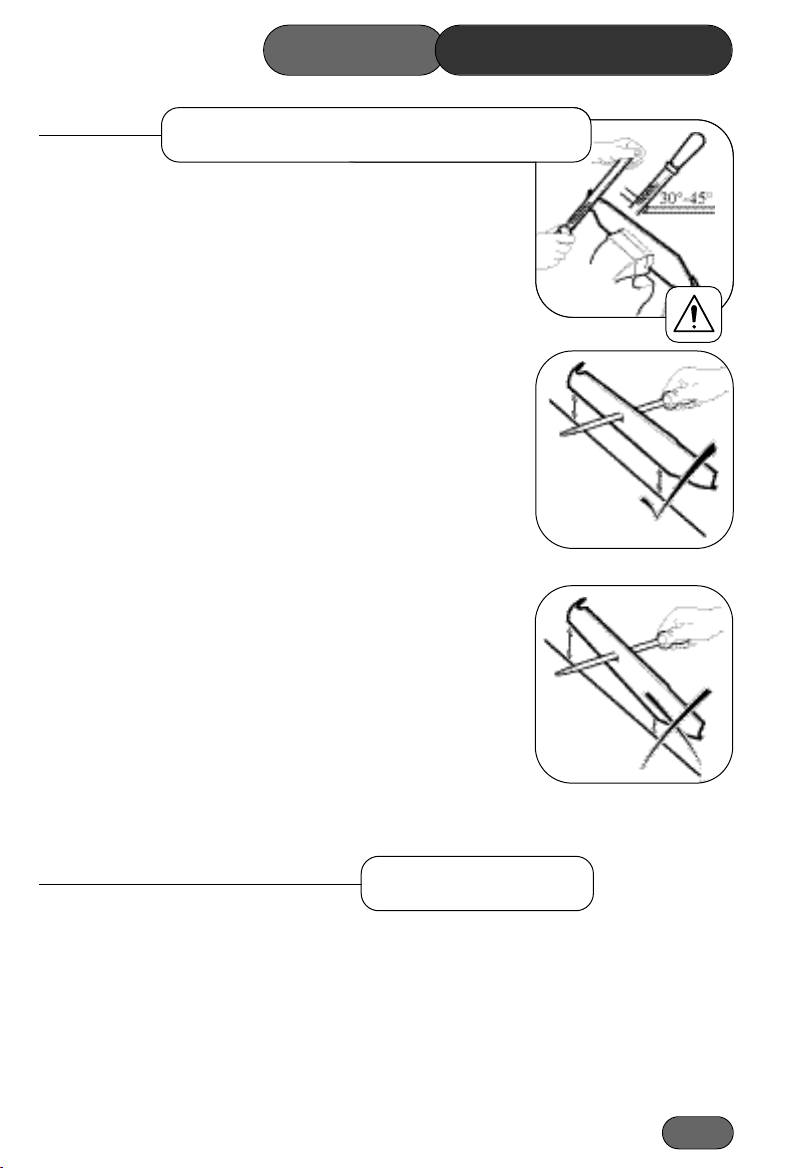

1.21 - Cutterblade Sharpening

1.21 - Supply Cable

1.22 - Storage

1.23 - 1.24 Trouble Shooting

1.25 Declaration of Conformity

1.26 - 1.27 Parts List

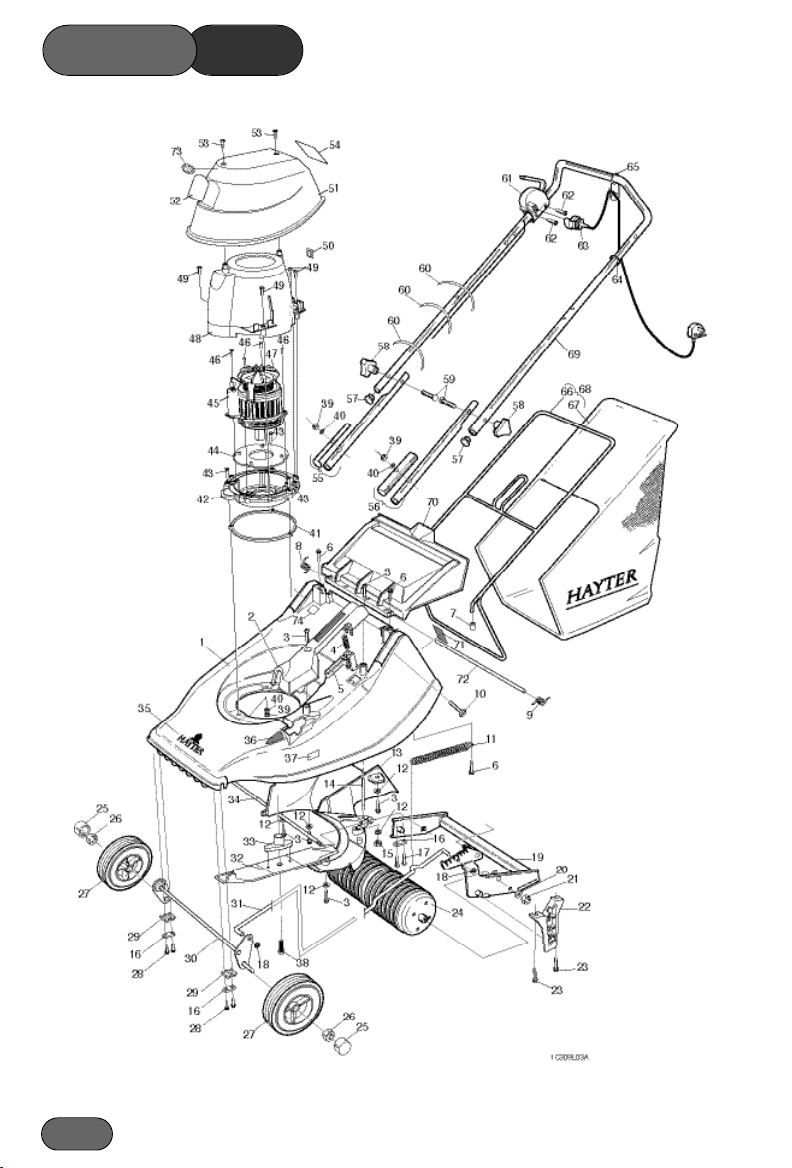

1.28 Parts list Diagram

1.30 - 1.31 Notes

1.32 Customer Info

1.16 - 1.17 - Lawn Care Calendar - Guide Only

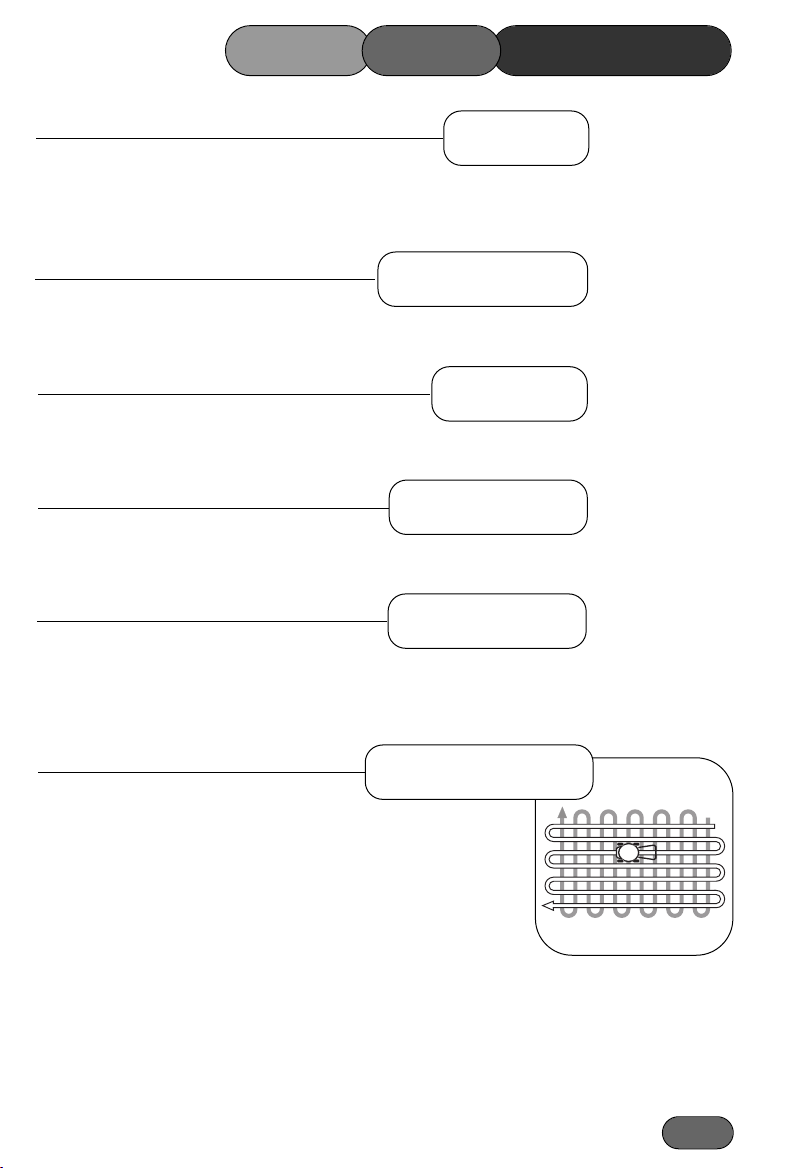

1.17 - Lawn Stripes

1.18 Maintenance Schedule

1.3

INTRODUCTION

Thank you for purchasing a Hayter mower. The following pages are designed to help you gain
safe and efficient service from your mower.

IMPORTANT: This ‘Owners Handbook’ should be regarded as part of the mower as it gives
essential information regarding mower safety, operation, maintenance and specifications. Read
and understand this handbook prior to operating your mower for the first time. Make sure you
are familiar with all the controls and points of regular maintenance. If you have any doubts,
consult your local Hayter authorised dealer who will be pleased to give you assistance.

IMPORTANT: This mower is designed solely for use in a domestic grass cutting environment.
Use in any other way is considered as contrary to the intended use. Compliance with and strict
adherence to the conditions of operation, service and repair as specified in this handbook also
constitute essential elements of the intended use.
This mower should be operated, serviced and repaired only by persons who are familiar with
its particular characteristics and who are acquainted with the relevant safety procedures.

The safety precautions listed in this handbook and all other generally recognised regulations on
safety must be observed at all times.
Any arbitrary modifications carried out to this machine may relieve Hayter Limited of liability
for any resulting damage or injury.

Hayter mowers are robustly constructed and designed for efficient economical performance
under normal mowing conditions. Correct operation and maintenance will ensure a long and
satisfactory service life. Prior to despatch from our factory every effort is made to ensure that
your mower is delivered in perfect condition.

Throughout this handbook all references to left and right are as viewed from behind the han­dlebar, in the direction of forward travel.

This handbook is based on information available at the time of publication.

HAYTER LIMITED reserve the right to amend product specifications without prior notifica­tion.

1.4

WARRANTY

LIMITED WARRANTY

Hayter Limited warrants to the original user/purchaser that this unit shall be free from defects

in material and workmanship under normal use and service for a period of three years from the
date of purchase. The manufacturer of major proprietry components ie. engines, gearbox /
transaxle (where applicable) furnish their own warranty and services are provided through their
authorised network. To qualify for the full benefit of the warranty, the warranty registration card
must be returned within 14 days of purchase. Subject to the conditions and exclusions noted in
this limited warranty, we shall at our option, repair or replace any warranted part during the
applicable period. If you are in doubt or experience any difficulty, please consult a Hayter
Authorised Service Dealer for clarification.

To qualify for the extended warranty (second and third year) of the three year limited warranty
the machine must have annual services carried out by an Authorised Hayter Service Dealer.
These chargeable services should be carried out within 12 and 24 months of the date of purchase.

Excluded from the extended warranty period are those items which are subject to normal wear
and tear e.g. tyres, wheels, cutterblades, belts, cables, grassbags, brush/bristles, batteries and

other consumable wearing parts.

All consumer machines which are fitted with a genuine Hayter friction disc as original
equipment before use, are covered by a Lifetime Warranty against the engine crankshaft
bending. Note: friction washers, blade brake clutch (B.B.C) units and other such devices are not
applicable. Only machines fitted with a genuine Hayter friction disc, which are used in
accordance with the recommended operating and maintenance procedures, are covered.

This warranty does not apply to any unit that has been tampered with, altered, misused, abused or
used for hire, and will become invalid if non genuine Hayter parts are fitted. This warranty does
not cover minor mechanical adjustments unless they are due to defective material or
workmanship. Consult the Owner’s Handbook or a Hayter Authorised Service Dealer for
assistance when making these adjustments.

A warranty period of 90 days applies to machines used for commercial purposes.

To make a warranty claim, return the unit to a Hayter authorised dealer along with proof of
purchase stating the machine serial number and date of purchase. The service receipt(s) or this
Owners Handbook with the 1st/2nd year service boxes fully completed, must be produced as
proof of entitlement to the extended warranty period. Subject to the conditions and exclusions in
this limited warranty, the authorised dealer will, at our option, repair or replace any warranted
part within the duration of the warranty period.

This limited warranty gives you specific legal rights and is in addition to any statutory rights to
which you may be entitled and your statutory rights are not affected by this warranty. If you need
additional information concerning this written warranty, or assistance in obtaining services,
please write to : HAYTER LIMITED, Service Department, Spellbrook, Bishop’s Stortford,

Hertfordshire CM23 4BU

UK ONLY: Details of your local Hayter authorised dealer are contained in Yellow Pages and

the Hayter website www.hayter.co.uk or contact contact:- Freephone 0800 616298.

Issue: 12.08.03

1.5

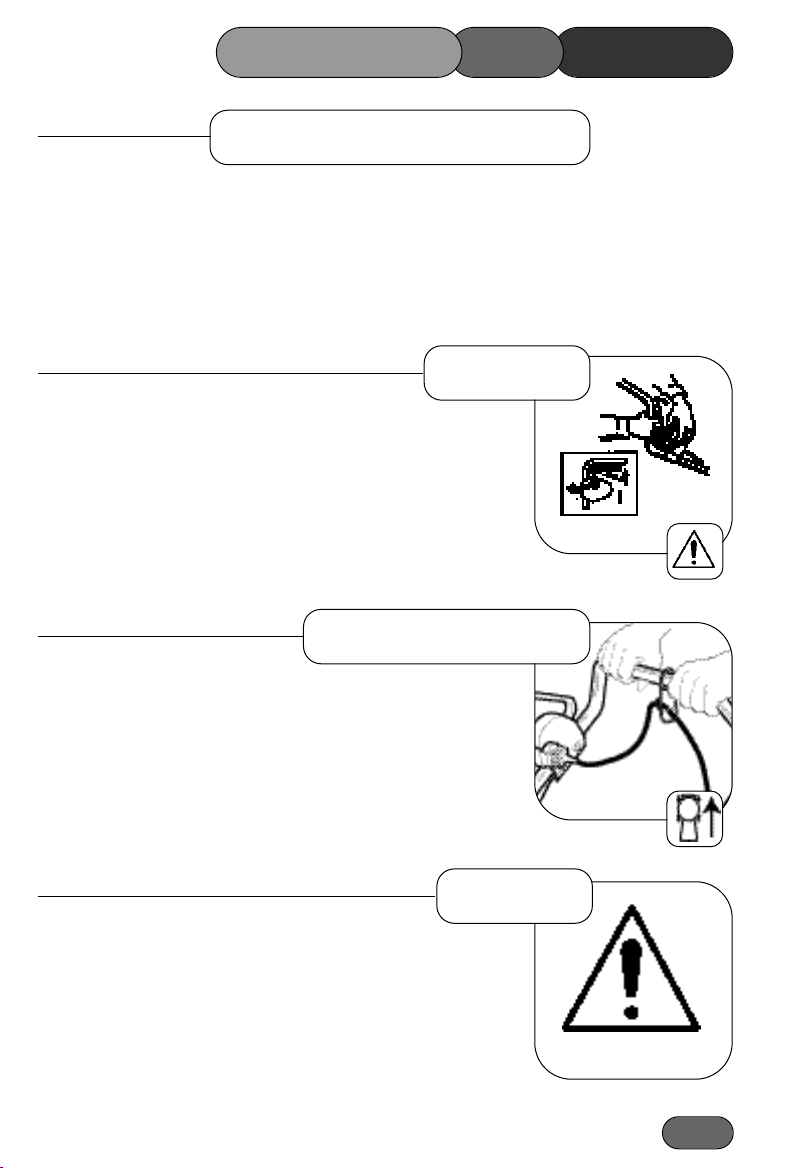

SAFETY PRECAUTIONS

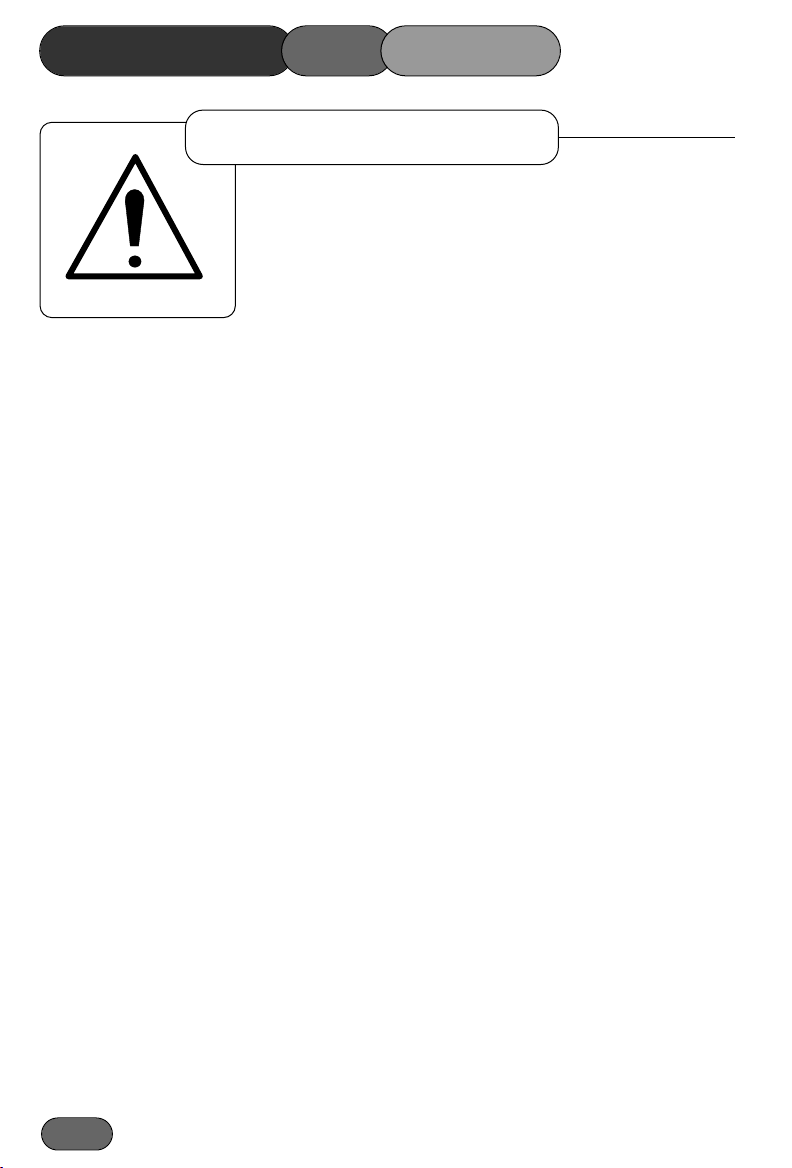

Safety Alert Symbol

his safety alert symbol indicates important safety messages. When
you see this symbol be alert to the possibility of injury. Carefully read
the following and inform others.

Your mower is perfectly safe if used correctly. Failure to observe the
following precautions may result in serious injury.

Training

Read the instructions carefully. Ensure that you are familiar with the con­trols and the proper use of the equipment. Learn how to stop the mower
quickly in an emergency.

Never allow children or people unfamiliar with these instructions to use
the mower.

Never mow while people, especially children, or pets are nearby.

Keep in mind that the user is responsible for accidents or hazards occur­ring to other people or their property.

1.6

Preparation

It is recommended that a high sensitivity Residual Current - Operated
Circuit - Breaker (RCCB) with a trip current of not more than 30mA is
installed at the mains power socket. This will provide the user with addi­tional protection against electric shock. The fuse installed in the plug only
provides protection for the electrical equipment and will not safeguard
against electrocution. Always check the RCCB before using the mower.

WARNING: Regularly inspect the supply cable for signs of damage or
ageing. Replace immediately if defective.

Always wear substantial footwear and long trousers while mowing. Do
not operate the equipment when barefoot or wearing sandals.

Thoroughly inspect the area where the mower is to be used and remove all
stones, sticks, wires, bones and other foreign objects.

PRECAUTIONSSAFETY

Preparation

Always ensure that the mower is in a safe operating condition.
Frequently check all nuts, bolts and screws for tightness. Use only gen­uine Hayter parts.

Damaged cutterblades and loose fixing bolts are major hazards. Before
use, visually inspect the cutting mechanism to ensure that it is in good
condition. A damaged cutterblade must be replaced immediately with
a genuine Hayter replacement part. Cutterblades which are slightly
worn can be resharpened. Ensure that both cutting edges are resharp­ened equally to maintain balance.
An unbalanced cutterblade may cause serious damage to your
machine. Refer to "Maintenance."

Operation

SWITCH OFF AND REMOVE PLUG FROM MAINS.

- Before clearing blockages or unclogging the discharge chute.

- Before cleaning, checking or working on the mower.

- Whenever you leave the mower.

- After striking a foreign object. Inspect the mower for damage
and make repairs before re-starting and operating the mower.

- If the mower starts to vibrate abnormally (check immediately).

- If the supply cable is entangled.

THE CUTTERBLADE CAN CONTINUE TO ROTATE AFTER
THE MACHINE IS SWITCHED OFF.

Keep the supply cable clear of the cutterblade at all times.

Do not mow across the supply cable. Immediately disconnect the cable
from the mains supply if this occurs and check for damage. Do not use
a defective supply cable.

Mow only in the daylight or in good artificial light.

Avoid using the mower on wet grass, where feasible.

Always be sure of your footing on slopes.

Walk, never run.

Mow across the face of slopes, never up and down.

Exercise extreme caution when changing direction on slopes.

Do not mow excessively steep slopes.

1.7

SAFETY PRECAUTIONS

Operation

Use extreme caution when reversing or pulling the mower towards
you.

Switch off if the mower has to be tilted for transportation when cross­ing surfaces other than grass and when transporting the mower to and
from the area to be mowed.

Never operate the mower unless the guards are securely in position and
in good condition.

Start the mower carefully, with feet well away from the cutterblade.

Do not tilt the front of the mower more than is absolutely necessary
when starting.
Never lift the rear of the mower.

Do not put hands or feet near or under rotating parts.

Never pick up or carry a mower while it is running or connected to the
mains supply.

Do not lift the rear deflector plate whilst the mower is in operation,
particularly when using without a grassbag.

1.8

Maintenance & Storage

Keep all nuts, bolts and screws tight to ensure that the mower is in a
safe working condition.

Carefully examine the supply cable for signs of damage or ageing.
Replace immediately if defective.

Check the grassbag frequently for wear or deterioration and replace if
necessary.

Wear strong work gloves when removing and reassembling the cut­terblade.

Replace worn or damage parts for safety.

SAFETY PRECAUTIONS

305113

2

4

6

Safety Symbols

Safety Alert - Be aware to the
possibility of injury.

Carefully read the Owners
Handbook before using the
machine.

Danger of severing toes or fin­gers in cutting mechanism.

Switch off and remove plug
from mains before performing
maintenance or repair work.

Danger of being hit by thrown
objects.

Keep bystanders at a safe dis­tance from the mower.

Control Symbols

Switch

(Symbol)

Height of Cut Adjustment

(Symbol)

Height of Cut Indicator

(Symbol)

1.9

ASSEMBLING THE MOWER

Delivery Checklist

Remove the mower from the packaging and check that the following
items have been supplied correctly. If any items are missing contact,
your local Hayter dealer.

1. Owner’s Handbook.

2. Grassbag.

3. Supply Cable - (309A Only)

To prevent accidents cut off the long ribbon attached to the grass­bag and discard.

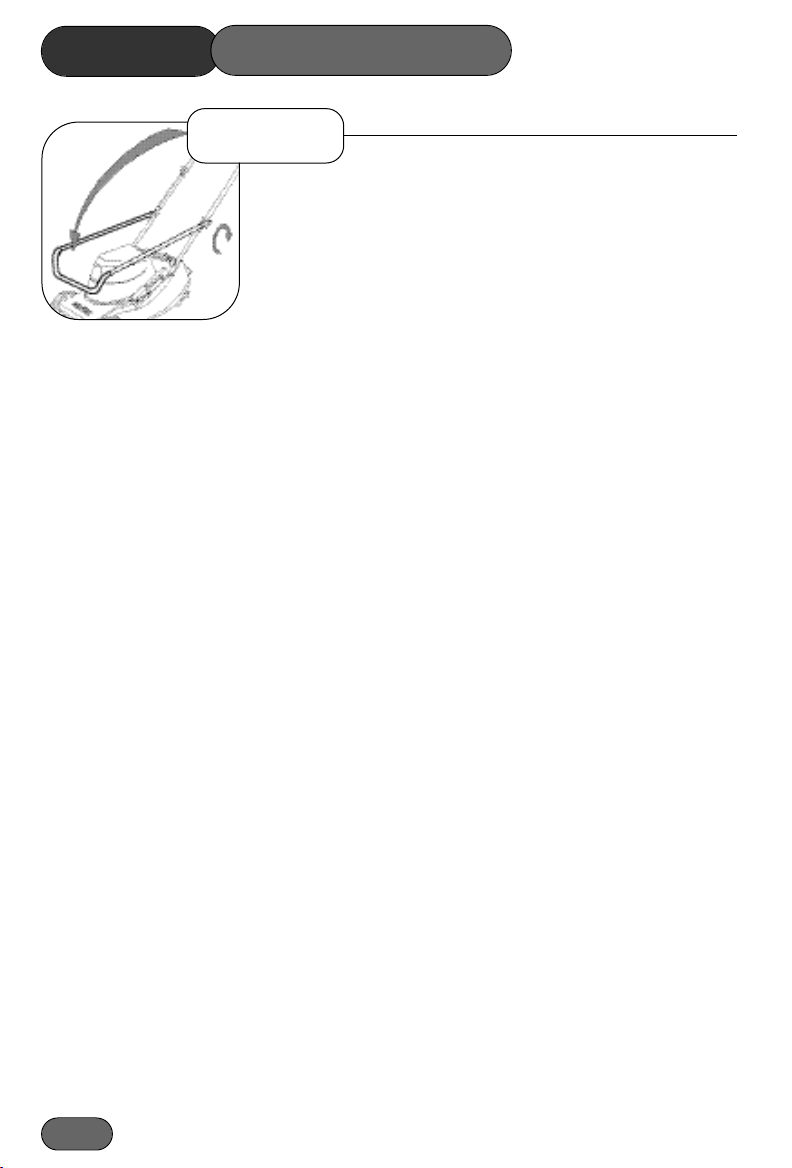

Handlebar

Unscrew the handlebar securing knobs sufficiently to allow the han­dlebar to pivot. Hold the engine stop lever in towards the handlebar
and unfold the handlebar to the operating position, before releasing.
Tighten both handlebar knobs to secure in position.

Take care to ensure that the control cables do not become snagged at
the pivot point.

Grassbag Attachment

1.10

Raise the rear deflector, lower the grassbag through the handlebar and
hook in position. Lower the deflector to rest on the grassbag

Supply Cable

Unpack the supply cable and identify the female socket end which is
to be attached to the mower. Fold back the hinged protector cap and
plug into the handlebar switch control unit. The hinged cap should
snap into position behind the control unit when fully engaged.

Route the supply cable loosely across to the cable cleat on the left side
of the handlebar. Make a loop in the supply cable and secure to the
cable cleat.

Electrical Connection

Position the mower on the grass area to be cut. Carefully uncoil the
supply cable clear of the mower and take the plug end connection to
the mains socket outlet. Ensure that the mains socket is switched
'OFF' before locating the RCCB unit - Refer to "Safety Precautions"

- Preparation. Switch 'ON' and check the operation of the RCCB unit.
Switch 'OFF' before installing the mower supply cable plug and final-
ly switch on.

Starting

Locate the switch control lever mounted on the handlebar and ensure
that your feet are clear of the mower deck. Depress the safety button
with the left hand and pull the lever towards the handlebar with the
right hand. The motor will now start. The safety button will remain
depressed until the lever is released.

Failure to depress the safety button before operating the lever
can cause permanent damage to the switch control unit.

MOWERTHEOPERATING

Forward Travel

Hold and push against the handlebar with both hands to move the
mower forwards.

Turning

To make a wide turn steer the mower with the handlebar whilst trav­elling forward.

To make a tight turn apply downward pressure on the handlebar to
raise the front wheels of the mower just above ground level and steer
the mower using the handlebar in the required direction.

To prevent accidents do not raise the front of the mower exces­sively when making a turn. Never raise the rear of the mower
when the motor is running.

1.11

OPERATING THE MOWER

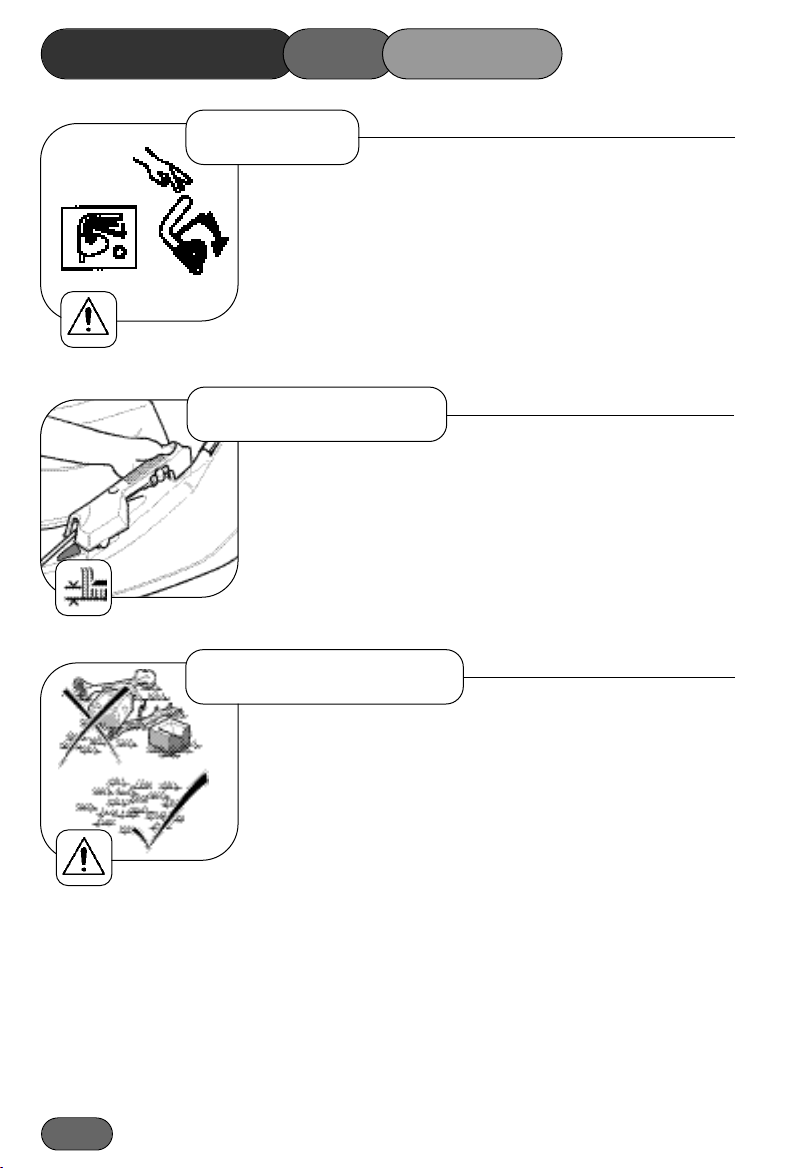

Stopping

Release the motor switch control lever to stop the motor.

WARNING: AVOID ACCIDENTS - The cutterblade may contin­ue to rotate after the mower is switched off

Height of Cut

Hold the trigger against the handle and raise or lower the mower using
the handle to achieve the desired height of cut. Release the trigger to
secure the mower at the required position.
There are seven height of cut positions. The setting is indicated by the
position of the connecting rod relative to the height of cut indicator.

Always select a height of cut to suit operating conditions. Aim to pre­vent motor overloading and blockages by avoiding low cuts in long
grass conditions. Be prepared to make two cuts when the grass is long.

1.12

Before Mowing

To prevent accidents thoroughly inspect the area and remove all
objects which when contacted by the mower cutterblade could
become dangerous projectiles. Inspect the area for hidden obstruc­tions which when contacted by the cutterblade could risk health
and safety. Remember the location of these obstructions and
ensure that you mow around them.

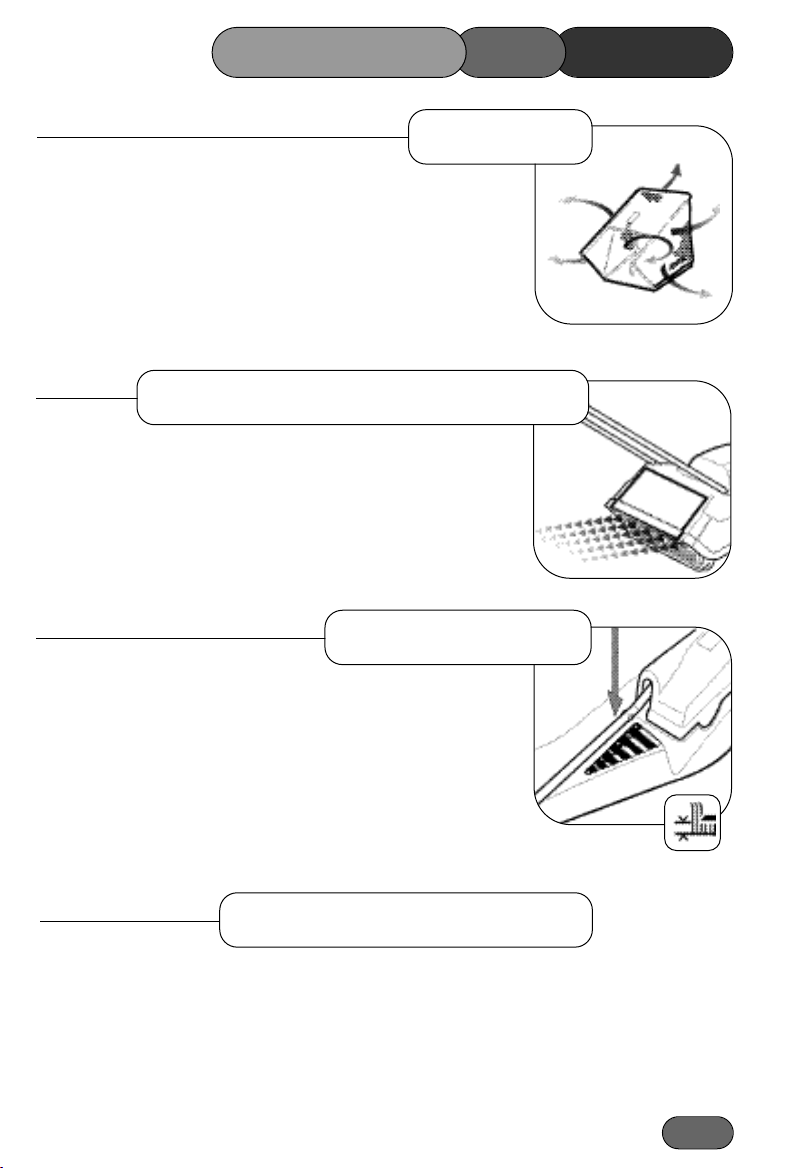

Grassbag

Raise the rear deflector and lift the grassbag through the handlebar
and lower the rear deflector to rest against the rear of the mower.

To empty the grassbag, pour out the grass clippings and shake the
grassbag vigorously to clean the airways. Good grass collection
depends on good air flow through the grassbag. When collecting
grass clippings it is important that the grassbag is emptied
regularly to prevent blockages and motor overloading.

Without Grass Collection

Remove the grassbag and operate the mower with the rear
deflector in the closed position.

MOWERTHEOPERATING

Heavey Growth

Areas of heavy growth should be mown without collecting the
clippings. If collection is required, first mow the area without the
grassbag at the maximum height of cut setting. Allow the grass
clippings to dry out and then mow the area at the maximum height
of cut setting with the grassbag fitted. Reduce the height of cut and
mow the area again as necessary until the required finish is
obtained.

To prevent grass damage do not remove more than one third of
grass height in one cut.

Non-Grassed Areas

When moving the mower across non-grassed areas, stop the motor
and set the mower to the maximum height of cut to protect the
cutting mechanism.

1.13

OPERATING THE MOWER

Safe Mower Practice

WARNING: PREVENT ACCIDENTS -Take extreme care do not
mow across the supply cable. If this should occur, switch off immedi­ately and disconnect the plug from the power supply. Carefully exam­ine the cable for cuts and damage. A defective cable must be replaced
before the mower is used again. Always be aware of the location of the
supply cable in relationship to the mower and the grass area. Do not
allow the cable to become hidden in uncut grass. Keep the cable over
the cut area at all times. A cable which is out of sight is out of mind
and this could lead to a hazardous situation. Plan a 'cutting scheme'
which works away from the power supply point and ensures that the
cable is trailed out over the cut area. Work up and down the lawn in
rows. Turn the machine round at the end of the row and step across the
cable so that the cable is trailed along in the cut area on the return run.

When working around flower beds, prevent the cable from trailing
across the cultivated area by positioning a stake at the corner of the
bed. Do not allow the cable to be pulled around sharp obstructions.
Stop mowing immediately if cable resistance is felt and remove the
obstruction. Do not allow the cable to become entangled.

WARNING: PREVENT ACCIDENTS - Switch off, remove plug
from mains before adjusting, cleaning or if the cable is entangled.

1.14

Overloading Protection

Do not let the motor labour or slow down through being overloaded in
work. When this situation occurs, raise the front of the mower slightly
by bearing down on the handlebar, allow the motor to reach maximum
speed and proceed to mow at a slower pace. Alternatively readjust to a
higher cut position. If the motor continues to labour, switch off and
remove the plug from the mains supply. Remove and empty the grass­bag. Examine the discharge chute and remove any blockage. Turn the
machine on its side and clear any obstruction from the cutterblade and
the underside of the mower deck. Place the machine upright and
replace the grassbag. Readjust to a higher cut position if necessary.
Restart the mower and proceed to mow at a pace which does not over­load the mower.

IMPORTANT: PREVENT DAMAGE - DO NOT continue to
operate the motor in an overloaded condition. If this does occur,
stop mowing and allow the motor to run at maximum speed for
one minute. This will allow the motor to cool down to its normal
working temperature.

MOWERTHEOPERATING

1.15

LAWN CARE CALENDAR

To be used as a guide only..

January

There is very little work to do this month apart from brushing away
leaves. Keep off the grass if frozen or waterlogged.

February

Rake the grass thoroughly. Spike the lawn to aerate and stimulate soil
organisms and root growth and apply lawn sand if necessary.

March

The yearly lawn work programme really starts this month. As soon as
the ground conditions are suitable, the first cut can be made. The first
cut should merely “top” the grass as close cutting at this stage could
result in severe yellowing or browning. Two cuts are generally suffi­cient this month.

April

Mow often enough to stop grass growing away. Dig out patches of
coarse grass or resistant weed. Re-seed bare patches.

1.16

May

Keep mowing increasing the frequency as required. Treat with selec­tive weed killers or combined weed/feed preparations if you did not
feed the lawn in April.

June

Summer mowing should now be under way. It should be necessary to
mow the lawn twice a week. Raking before mowing is important this
month as the combined action keeps runners of clover under control.
Water the grass if necessary, and remember to soak thoroughly.

July

Treat the grass with the second application of fertiliser or weed
killer/fertiliser. Water when necessary and rake occasionally. As a gen­eral rule the grass clippings should be removed each time you mow. If
weather conditions are dry and hot and the grass is weed free, leave the
clippings on the lawn to help maintain ground moisture.

LAWN CARE

1

2

1CG480V05A

August

Keep mowing regularly and watering as necessary. Fill any cracks
caused by drought with a mixture of sharp sand and soil. In dry weath­er conditions leave the grass longer to help retain ground moisture.

September

Raise the height of cut to allow the grass to thicken and protect the
roots from the winter frost and snow.

October

Rake out the thatch from the turf and spike the lawn to assist in
drainage. Brush in peat and sharp sand.

November

Use a stiff broom to disperse worm casts before mowing. Keep turf
free from leaves.

December

CALENDAR

Apart from brushing away leaves, December is a slack end of a busy
year. Keep off the lawn if it is very wet or frozen.

Lawn Stripes

The way to achieve a neat striped effect is for the lawn being cut in
parallel stripes, alternate stripes being mown in opposite directions. A
much more important routine is to cut at right angles to the line of the
previous mowing. If the work has been carried in a north-south line,
then the next cutting should be in an east-west direction. The cross­cutting keeps down the coarse weed grasses.

To prevent grass damage do not remove more than one third of the
grass height in one cut.

1.17

MAINTENANCE SCHEDULE

Follow the hourly or calendar intervals, whichever occurs first. More
frequent service will be required if working for prolonged periods
under dusty, dry conditions, or when airborne debris is present or after
extensive operation cutting tall, dry grass.

Daily

Remove grass debris from around the motor and air ways in the cowl
and underside of the deck housing.

Remove grass debris from the grassbag and check for signs of damage.

Check the condition of guards and safety devices.

Check condition of cutterblade.

25-50 Hrs or Every Season

Lubricate wheels, pivot points and linkages and grease the inner con­trol cables at point of entry and exit from their outer casing.

Sharpen the cutterblade.

1.18

Flash test (Dealer) to ensure complete safety.

Check cables/switch and connection

MOWER

MAINTENANCE

Deck Housing

Remove grass debris from the top and underside of the deck housing
immediately after use.

To prevent accidents fertilisers and top dressings are particularly
corrosive. Thoroughly clean the mower deck immediately after use
on treated grass and store well away from corrosive materials.

Securing Nuts & Bolts

Regularly check that all securing nuts and bolts are tight. Replace
missing or damaged items immediately.

Lubrication

Lubricate the wheels, pivot points and linkages with engine oil every
25 operating hours.

Motor

The motor is maintenance free.

Switch Control Unit

The switch control unit is maintenance free.

1.19

MOWER

MAINTENANCE

Cutterblade Removal

Turn the mower on its side.

Firmly grip the end of the cutterblade with a gloved hand and remove
the bolt. The carrier may be removed from the shaft. This should be
cleaned and replaced. Ensure that the flats on the shaft locate correct­ly with the flats on the carrier. Ensure that the new cutterblade is the
correct way up with the turned edges facing towards the motor before
locating onto the two carrier pins. Secure the cutterblade fixing bolt­insulating and tighten to the specified torque of 27Nm.

The cutterblade has sharp edges. ALWAYS wear strong gloves to
protect your hands when working on the cutterblade. DO NOT
rotate tools towards the cutting edges to avoid the risk of injury
should the tool slip. ALWAYS use genuine Hayter replacement
parts.

The condition of the cutterblade and its mounting arrangement should
be checked regularly for signs of wear or damage. Ensure that the cut­terblade is not bent or cracked.

A damaged cutterblade that is out of balance will vibrate excessively
and may break. DO NOT use an unbalanced cutterblade.

1.20

Regularly check that the bolt securing the cutterblade is tightened to
the specified torque of 27Nm.

Replace the cutterblade every 2 years of sooner if excessively worn or
damaged.

To prevent injury it is wise to seek assistance when turning the mower
on its side.

MOWER MAINTENANCE

Cutterblade Sharpening

A slightly worn cutterblade may be re-sharpened. Both blade edges
must be sharpened equally to ensure balance. Sharpen the cutterblade
every 25 mowing hours or more frequently if conditions require.
Remove the cutterblade from the mower and clean using a brush and
water. Inspect the cutterblade for signs of damage.Sharpen both cut­ting edges with a flat file to restore performance.

Ensure that the cutterblade is balanced. Use a screw driver with a
round shaft to support the cutterblade through its centre hole. Hold the
cutterblade horizontal and then release. A balanced cutterblade will
remain horizontal.

If the cutterblade is not balanced the heavy end will rotate downwards.
Sharpen the heavy end until the cutterblade is correctly balanced.

Supply Cable

Check the condition of the supply cable for damage or ageing. Replace
immediately if defective.

1.21

MOWER

MAINTENANCE

Storage

Handlebar storage: To lower the handlebar unscrew the 2 securing
knobs sufficiently to allow it to be pivoted forwards to rest against the
mower. Take care to ensure that the power cable does not become
snagged at the pivot point.

Storage for long periods: To ensure your mower is maintained in
good working order it is important that the following procedure is
adopted when the mower is stored for periods in excess of one month.
Refer to the Maintenance section as necessary.

Clean all areas of the mower and ensure that the grassbag is clean.

Lubricate the mower.

Treat metal parts with a water repellent anti-corrosion product.

Lower the handlebar if desired.

Cover the mower with a protective sheet and store it in a dry area.

Rest the mower deck on wooden blocks to remove the weight of the
mower from its wheels / roller.

1.22

TROUBLE SHOOTING

PROBLEM POSSIBLE FAULT REMEDY

Motor fails to start. Mains supply socket dead. Test socket by plugging in

RCCB tripped. Remove mower plug and check

Plug pulled out of mains Re-engage plug.
socket.

Fuse failure. Fit a new 13 amp fuse.

Supply cable damaged. Disconnect from the mains and

Cutterblade obstructed. Disconnect from the mains and

Cable socket pulled out of Re-engage cable socket.
switch control unit.

Motor will not stop. Faulty switch control unit. Ensure switch lever has returned

another appliance.

RCCB action. Check the supply
cable for any obvious signs of
damage and replace immediately
if defective. If no obvious faults
are found a serious fault is

indicated. Contact your Hayter

Dealer.

check the supply cable for any
obvious signs of damage. Replace
immediately if defective.

remove any obstructions.

to the 'OFF' position. Disconnect
from the mains and contact your
Hayter Dealer.

Cutterblade runs on Faulty brake unit. Contact your Hayter Dealer.
excessively after switching
'OFF'.

1.23

TROUBLE

PROBLEM POSSIBLE FAULT REMEDY

Motor vibrates excessively. Mounting bolts loose. Tighten bolts.

Uneven cut Undulating ground contours. Change direction of travel.

Discharge chute blocks. Grass is wet. Mow dry grass.

Mower is hard to push. Cut height too low. Increase cut height.

SHOOTING

Cutterblade bolt loose. Tighten bolt.

Cutterblade out of balance. Balance cutterblade.

Cutterblade worn. Sharpen the cutterblade.

Cutterblade out of balance. Balance cutterblade.

Wheels / Roller damaged. Inspect and replace as necessary.

Cut height too low. Increase cut height.

Grassbag full. Empty grassbag.

No airflow through the Clean the grassbag.
grassbag.

Wheels / Roller damaged. Inspect and lubricate or replace as

Poor grass collection. No airflow through the Clean the grassbag.

grassbag.

Discharge chute blocked. Remove blockage.

Wet grass. Mow dry grass.

Grassbag full. Empty grassbag.

necessary.

1.24

CONFORMITYOFDECLARATION

EC DECLARATION OF CONFORMITY

HAYTER LIMITED,
Spellbrook, Bishop’s Stortford, Herts CM23 4BU ENGLAND

declare that the lawnmowers:

Models: Harrier 41 Harrier 41
Machine Type No. CODE 309A CODE 311A
Category: Push Electric Push Electric
Type: Pedestrian Rotary Pedestrian Rotary
Motor: Manufacturer: Nuova Ibmie 1.5kw Nuova Ibmie 1.5kw

Speed of rotation: 2950 rpm 2950 rpm
Width of cutting device: 41cm 41cm
Speed of rotation of the cutting device: 2950 rpm 2950 rpm

Complies with the provisions of Directive: 98/37/EC Essential Health & Safety Requirements Relating to the
Design & Construction of Machinery and Safety Components, as amended and the regulations transposed into
national law.

Also Directive 89/336/EEC Electromagnetic Compatibility, as amended and the regulations transposed into
national law.

Also Directive 2000/14/EC Noise emission in the environment by equipment for use outdoors, and the regu­lations transposed into national law procedure applied for the conformity assessment: ANNEX VI, procedure

1. Notified Body: Sound Research Laboratories Ltd. Holbrook House, Little Waldingfield,
Sudbury, Suffolk, ENGLAND
Notified body identification No: 1088

Measured sound power level: 91 dB(A) 91 dB(A)
Guaranteed sound power level: 96 dB(A) 96 dB(A)

Standards Used: EN2921, EN836 and EN55014, EN61000-3-2, EN61000-3-3

Signed Date: 13.03.02

M.A. WRIGHT Spellbrook, Bishop’s Stortford,
(Technical Director) Herts CM23 4BU ENGLAND

Declaration done and Technical Documentation kept at:
HAYTER LIMITED,

VIBRATION INFORMATION

Lawnmower vibration information. RMS acceleration measured in 3 - axes at operators contact position on

the handlebars. CODE 309A = 1.1 ms-2.. CODE 311A= 1.1 ms-2.

1.25

PARTS LIST

ITEM NO.

1 Deck 305101V 1 1
2 Handle Height Adjuster 305112 1 1
3 Screw - M6 x 16 09596 6 6
4 Spring - Trigger 300067 1 1
5 Trigger 300066 1 1
6 Screw - M6 x 20 Taptite 09575 3 3
7 Ferrule - Plastic Dia. 8 305115 2 2
8 Spring - Deflector R/H 305111 1 1
9 Spring - Deflector L/H 305110 1 1
10 Coachbolt - M8 x 45 09375 2 2
11 Compensating Spring 300070 1 1
12 Washer - Plain M6 09472 6 6
13 Throwplate 300124 1 1
14 Pillar 300137 1 1
15 Nut - M6 Nylon Ins 'T' Type 09544 1 1
16 Plate - Securing 219037 3 3
17 Screw - 6 x 16 Pozidrive 09634 2 2
18 Grip-Fix 02385 2 2
19 Rear Roller Frame 308050W 1 1
20 Washer - 3/8" Plain 09271 2 2
21 Nut - 3/8” UNF 09216 1 1
22 Axle Support 305130 1 1
23 Screw - M6 x 16 Hex W/Hd 09365 2 2
24 Roller - Black 201007 2 2
25 Hub Cap 219143 2 2
26 Nut - Wheel Nyloc 4486 2 2
27 6” Wheel 305016 2 2
28 Screw - M6 x 12 09546 4 4
29 Axle Bush 305108 2 2
30 Axle - Front Assembly 300111 1 1
31 Rod - Connecting 305109 1 1
32 Cutterblade 234019 1 1
33 Carrier 234018 1 1
34 Axle Bolt 308021 1 1
35 Decal - Hayter / Royal Warrant 410087 1 1
36 Decal - Height of Cut 305113 1 1
37 Decal - Hand and Foot 331045 1 1
38 Fixing Bolt - Nylon 234020 1 1
39 Nut - M8 Nylon Ins. ‘P’ 09442 5 5
40 Washer - M8 09475 5 5

DESCRIPTION

PART NO.

QTY.

309A 311A

ITEM NOTE

1.26

PARTS LIST

ITEM NO. DECRIPTION PART NO. QTY. ITEM NO

41 Base Plate Motor 309019 1 1
42 Motor Flange 309024 1 1
43 Bolt - M8 x 40 Hex. Hd 09681 3 3
44 Motor Screen 309025 1 1
45 Capacitor 309039 1 1
46 Screw - No. 14 x 1.1/4” Self Tap 09670 4 4
47 Motor - 1.5 kw 309011 1 1
48 Motor Cover Mk2 309046 1 1
49 Screw - No. 14 x 1.1/2” Self Tap 09669 4 4
50 Cable Clip 70-09-109 1 1
51 Motor Cover Top 309020 1 1
52 Decal - Harrier 41 Electric 309040 1 1
53 Screw - No.8 x 1” Plastite 09528 2 2
54 Decal - Warning 309028 1 0

Decal - Warning 311012 0 1
55 Handlebar - Lower RH 309033 1 1 Inc. Insulator
56 Handlebar - Lower LH 309034 1 1 Inc. Insulator
57 Plug - Tube 320048 2 2
58 Handwheel 226013 2 2
59 Bolt - M8 x 45 Handlebar 226024 2 2
60 Cable Tie 3966 3 3
61 Switch 309026 1 0

Switch 311010 0 1
62 Screw - Ejot KA40 x 25 09719 2 2
63 Coupler Cable Assembly 309027 1 0
64 Hose Clip - Black 234029 1 1
65 Cleat 234014 1 1
66 Frame - Grassbag 305105W 1 1
67 Fabric - Grassbag 305104 1 1
68 Grassbag Assembly 305118 1 1 Inc. items 25 & 32
69 Handlebar - Upper 309036 1 1
70 Deflector 305102 1 1
71 Decal - Serial Number N/A 1 1
72 Pin - 6.35 x 295 305103 1 1
73 Decal - Grass Blade 410064 1 1

309A 311A

1.27

LISTPARTS

1.28

Notes:-

NOTES

1.29

NOTES

Notes:-

1.30

Notes:-

NOTES

1.31

CUSTOMER

Serial No:

Motor Type:-Nuova Ibmie 1.5kw Code 309A
Motor Type:-Nuova Ibmie 1.5kw Code 311A

Date of Sale:-

Your Local Dealer:-

INFORMATION

DEALER STAMP

1.32
