Page 1

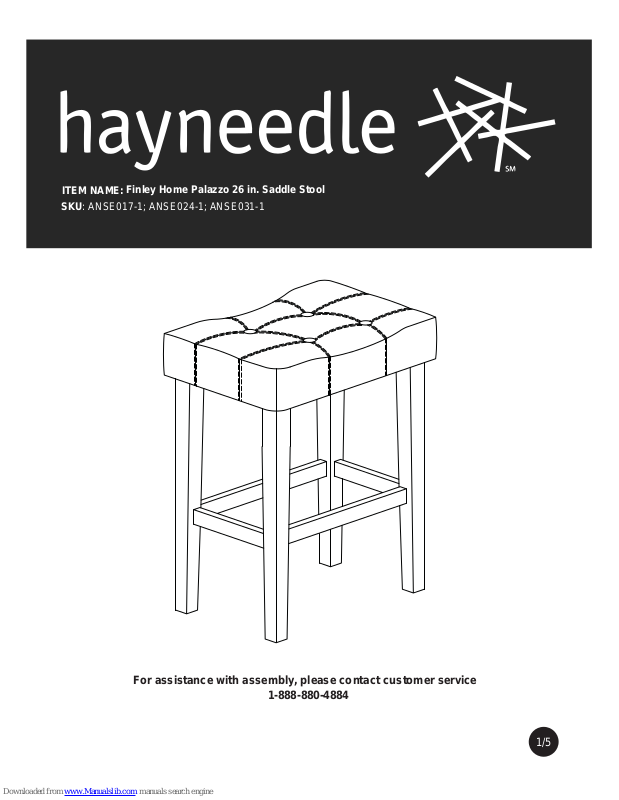

ITEM NAME:
Finley Home Palazzo 26 in. Saddle Stool
SKU: ANSE017-1; ANSE024-1; ANSE031-1
For assistance with assembly, please contact customer service
1-888-880-4884
1/5
Page 2
PRE-ASSEMBLY PREPARATION:
PANEL AND FITTINGS IDENTIFICATION:
!
DO NOT LET CHILDREN PLAY IN OR AROUND THE UNIT DUE TO THE POSSIBLE
RISK OF FINGER ENTRAPMENT
• Please read through these instructions before beginning assembly.
• Clear out the space for assembly and lay out all parts based on Parts List, extra room
will allow you to easily determine if all the pieces are present.
• Save all packing materials until assembly is complete to avoid accidentally discarding
smaller parts or hardware.
• Keep small parts and pieces away from children until fully assembled.
• Please check for any loose screws and tighten them before you use.
Seat (1) Qty:1
Bolt (A)
Qty:8
Short Bar (2) ty:2 Long Bar (3) Qty:2 Leg (4) Qty:4
Screw (B)
Qty:8
Flat Washer (C)
Qty:8
Spring Washer (D)
Qty:8
2/5
HARDWARE LIST:
Allen Key (E)
Qty:1
525mm
56mm
80mm
8mm
225mm
340mm
415mm
605mm
37mm
22mm
4mm
13mm
Page 3
STEP-BY-STEP ASSEMBLY:
STEP 1:
Assemble the Long Bar (03) and Short Bar (02) to the Legs (04) using Screws (B), Tighten
with hand screwdriver.
3/5
1
STEP 2:
Remove the seat cover.
Insert the legs assembled into Seat (01).
2
B
B
01
01
02
02
02
03
03
03
04
04
04
04
04
Page 4
STEP-BY-STEP ASSEMBLY:
STEP 3:
Assemble the Legs using Bolts (A) with Spring Washers (D) and Flat Washers (C), Tighten
with Allen Key (E).
4/5
3
A
C
D
E
Page 5
STEP-BY-STEP ASSEMBLY:
STEP 4:
Cover the seat back using seat cover.
5/5
4
MAINTENANCE AND CARE TIPS
-Check and re-tighten screws/blots after the product has been used for a period of time.
-Do not stand on the unit as it with a soft surface to load the weight of body.
-It is best to keep your furniture in a climate controlled environment. Extreme temperature and humidity changes can
