Hayes Modem Installation Manual

Modem Installation Guide

Notice

The manufacturer reserves the right to make improvements to the product described
in this document at any time and without notice.

This document contains proprietary information protected by copyright, and this
Installation Guide and all the accompanying hardware, software, and documentation are
copyrighted. All rights are reserved. No part of this document may be photocopied or
reproduced by mechanical, electronic, or other means in any form.

The manufacturer does not warrant that the hardware will work properly in all
environments and applications, and makes no warranty and representation, either implied
or expressed, with respect to the quality, performance, merchantability, or fitness for a
particular purpose of the software or documentation. The manufacturer reserves the right
to make changes to the hardware and Installation Guide content without obligation to
notify any person or organization of the revision or change.

This document is copyrighted. All rights are reserved. This document may not, in
whole or part, be copied, photocopied, reproduced, translated, or reduced to any
electronic medium or machine-readable form without prior consent, in writing, from
the manufacturer.

All brand and product names are the trademarks of their respective owners.

©1999
All rights reserved.

CONTENTS

INTRODUCTION............................................................................ 1

WHAT YOU NEED......................................................................... 2

EXTERNAL MODEMS ALSO NEED............................................... 3

VOICE MODEMS MAY REQUIRE... .............................................. 3

INSTALLING AN INTERNAL PLUG-N-PLAY MODEM.................. 5

INSTALLING A PLUG-N-PLAY MODEM WITHOUT WINDOWS 95/98

.................................................................................................. 6

USING SETCOM16 .................................................................... 7

INSTALLING A PLUG-N-PLAY MODEM WITH WINDOWS 95/98..... 9

CHANGING RESOURCES IN WINDOWS 95/98............................10

INSTALLING A NON-PLUG-N-PLAY INTERNAL MODEM..........12

UNDERSTANDING COM PORTS AND IRQ SETTINGS.................13

POSSIBLE JUMPER SETTINGS...................................................14

DISABLING A COM (SERIAL) PORT ...........................................19

DISCONNECTING THE COMPUTER ............................................20

INSTALLING THE MODEM ..........................................................21

CONNECTING THE PHONE CABLE.............................................22

SETTING UP YOUR COMMUNICATIONS SOFTWARE..................23

USING DOS APPLICATIONS WITH WINDOWS 95/98.................24

SHUTTING DOWN TO DOS........................................................25

OPENING A DOS WINDOW .......................................................27

USING F4 OR F8 TO OPEN DOS ...............................................28

INSTALLING AN EXTERNAL MODEM ........................................29

CONNECTING TO A PHONE OUTLET..........................................30

CONNECTING TO A POWER OUTLET.........................................31

CONNECTING TO A PC..............................................................32

CONNECTING TO A MACINTOSH ...............................................33

CHECKING THE CONNECTIONS.................................................34

SETTING UP YOUR COMMUNICATIONS SOFTWARE..................35

INSTALLING AN EXTERNAL MODEM WITH WINDOWS 95/98 ......36

CONNECTING VOICE MODEMS .................................................38

CONNECTING A MICROPHONE..................................................39

CHANGING THE MICROPHONE WITH ACCURA INTERNAL

SPEAKERPHONE AND MESSAGE MODEMS...............................40

CONNECTING A VOICE MODEM TO A SOUND CARD..................42

TROUBLESHOOTING..................................................................43

COM PORT PROBLEMS.............................................................43

GENERAL TROUBLESHOOTING.................................................48

REGULATORY & WARRANTY INFORMATION...........................50

Introduction

Your new modem will allow you to quickly communicate with most
modem-equipped computers in the world. You can transfer files to
your office or home or connect to an Internet Service Provider (ISP)
or online service such as CompuServe or America Online.

We designed this manual to make connecting your modem as easy
as possible. The communications software, included in your modem
package, provides menus to use your modem once it is installed.

Important Note on Modem Throughput

Your Hayes 56K modem is capable of download speeds of 56Kbps
when connected to an ISP or remote access server supporting V.90
or K56flex. Still, like other modem speeds, actual modem
throughput (the actual speed of data transfer) is dependent on
analog telephone line conditions, which vary considerably. Many
users of 56K modems will experience throughput in the range of 42­56Kbps under normal conditions—again, depending on phone
quality.

Please do not interpret throughput speeds of less than 56Kbps as a
modem problem, because it is most likely a function of telephone
line conditions and Internet traffic.

Connecting your modem may be your first introduction to COM ports
and IRQs. If you are connecting your modem to a Macintosh-based
computer or a PC using Windows 95 or 98, your computer handles
COM ports and IRQs for you. However, with other computers or
software, you must select a COM port and IRQ yourself. COM port
and IRQ settings are discussed later in this guide.

Before You Get Started...

Please read the Regulatory & Warranty Information.

Introduction 1

What You Need

To install and operate the modem, you will need the following items.

They are included in your modem package.

Communications software provides menus that allow you to set up
and use your modem to connect to other computers and go online.

• Telephone Cable

Your modem is designed to operate over a standard telephone
line through its telephone cable connection. Do not connect the
modem to a party line or coin-operated telephone line.

2 Hayes Modem Installation Guide

External Modems Also Need....

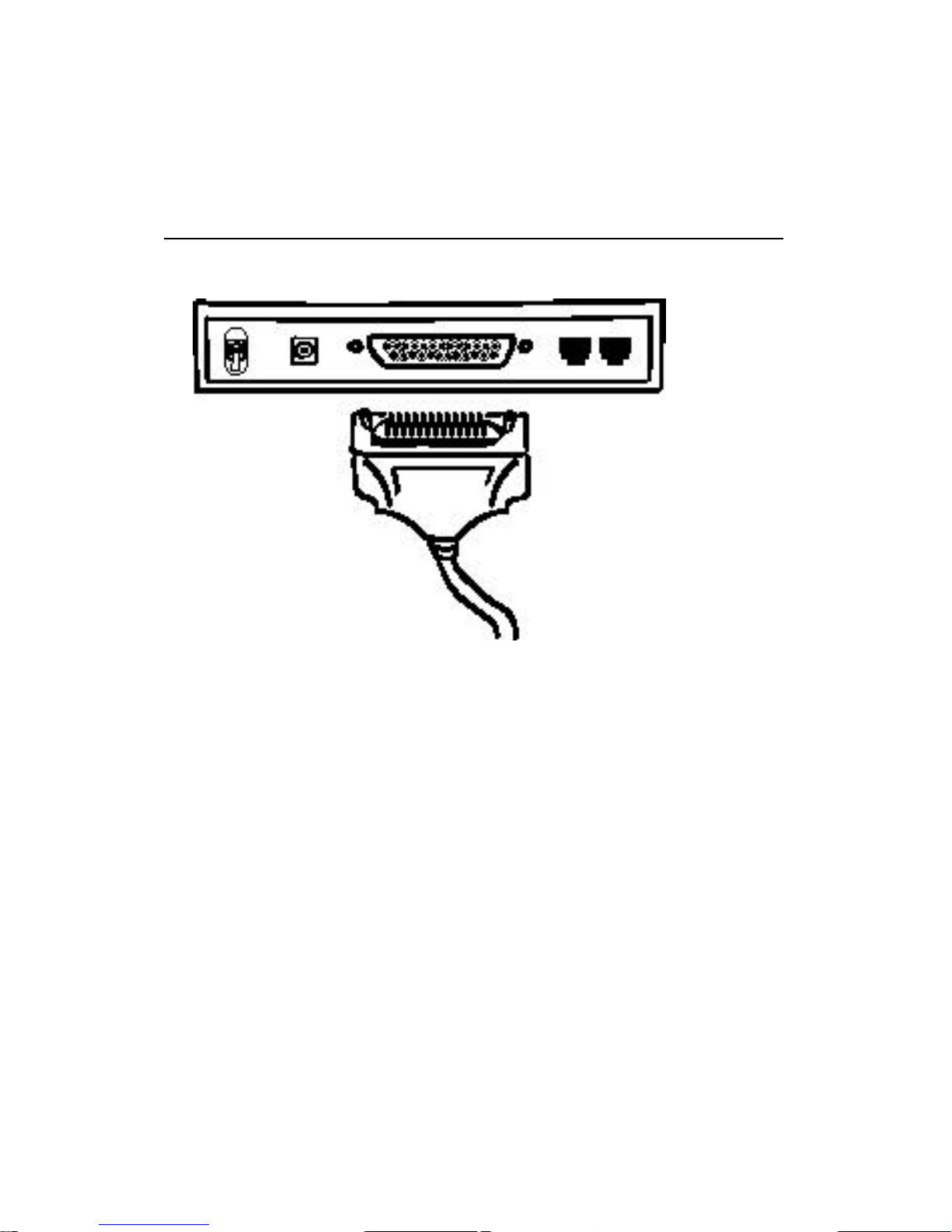

• Serial Cable

Ask your computer store dealer for a shielded, straight-through
modem cable to connect the modem to your computer. The cable
requires either a 25-pin male D-type connector or a 9-pin male D­type connector on one end of the cable. Look at the back of the
modem to determine which of these connectors is a match.

The computer end of the cable should also be either a 9-pin or a 25­pin female connector on the other end, depending on your computer.
Check the back of your computer to determine which cable you
need.

Note: Do not purchase a null modem, crossover, or eliminator cable.
Although these cables connect to your serial port, they are designed
to connect a PC to a PC, not to a modem. Your computer dealer
should be able to help you select an appropriate cable.

Note: A cable is included with Macintosh modems because all
Macintosh-based computers use a standard cable.

Voice Modems May Require...

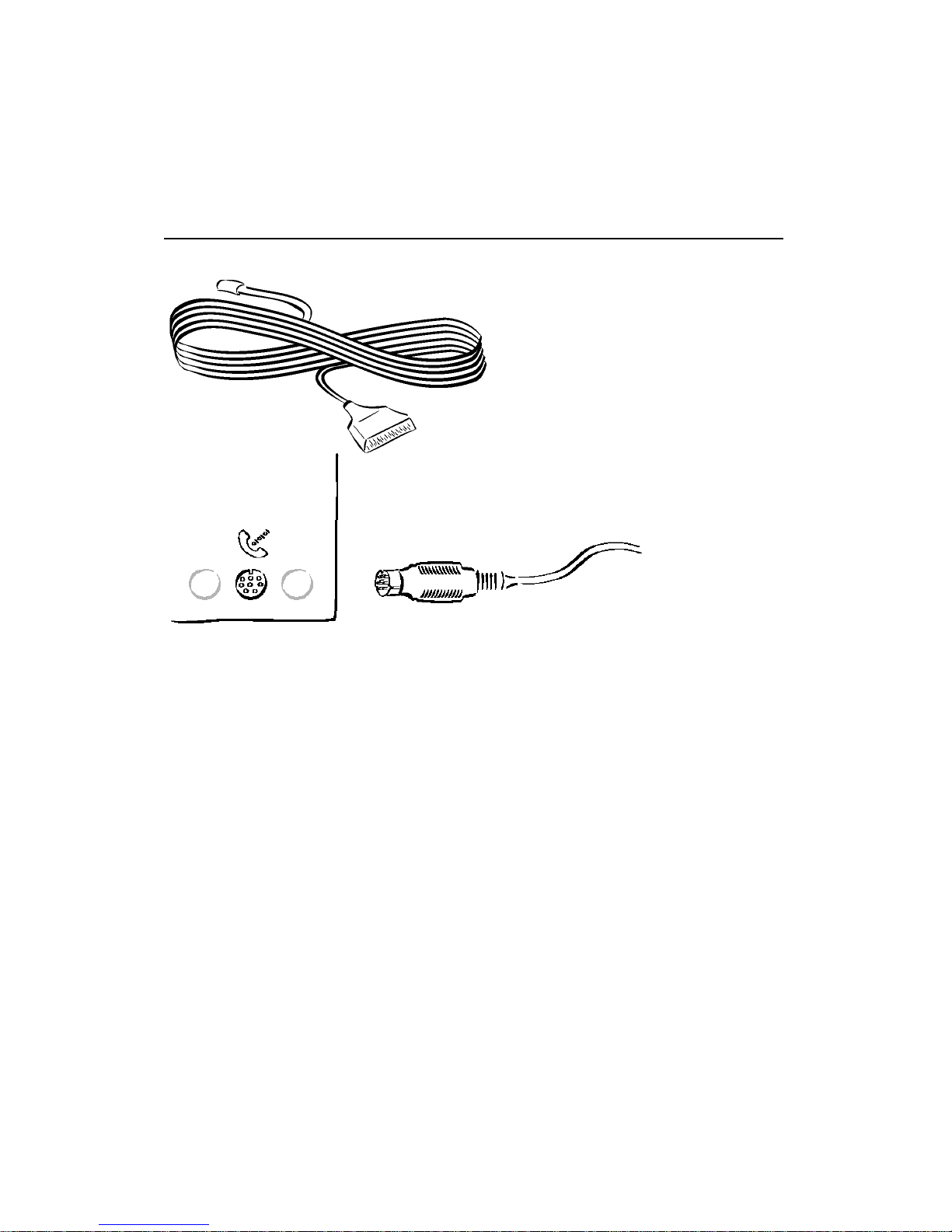

• Stereo-to-stereo cable

If your computer already has speakers connected to a sound card,
you can connect your voice modem and the sound card to use the
same speakers. Refer to “Connecting A Voice Modem to a Sound
Card," later in this guide for more information. You can purchase a
stereo-to-stereo cable at an electronics or computer store.

Introduction 3

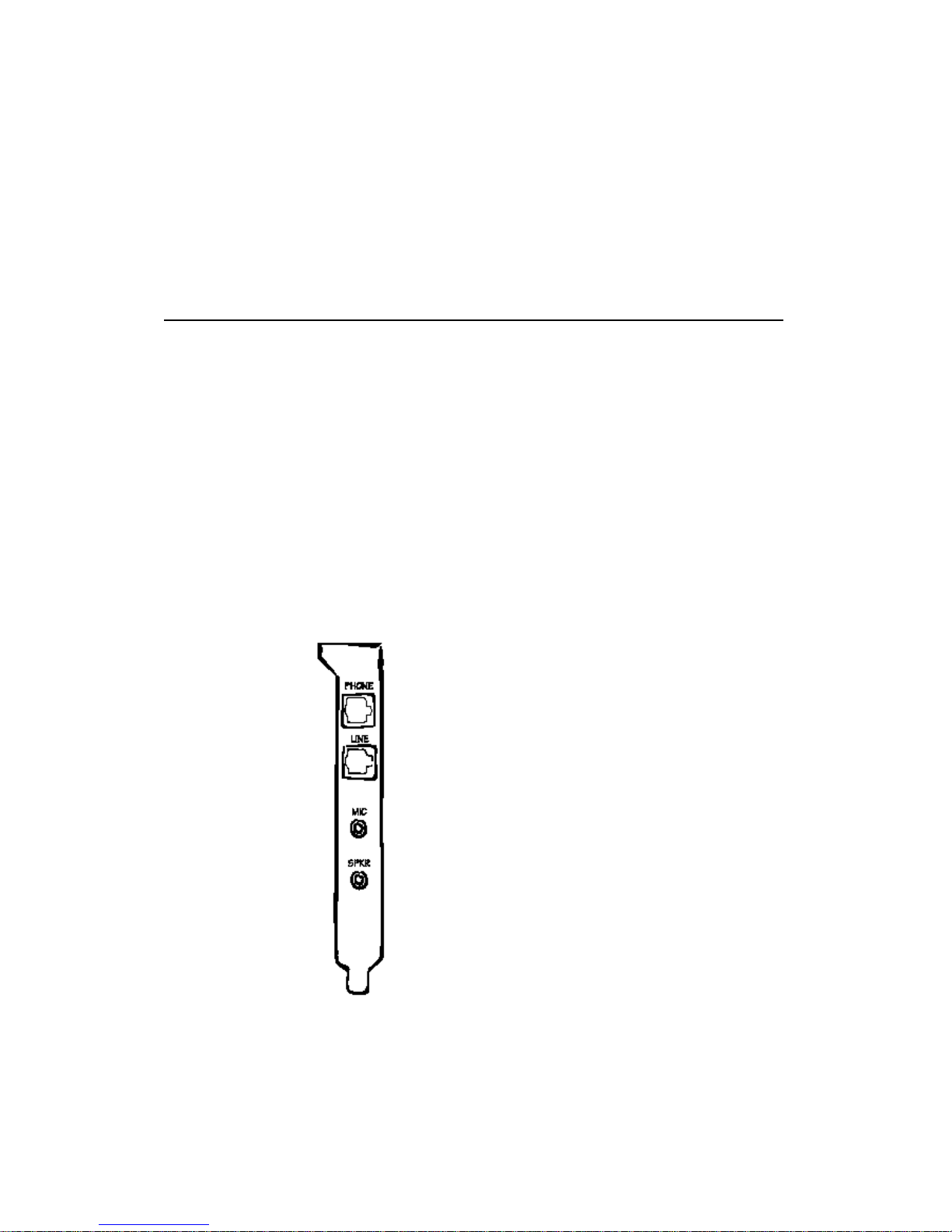

• Microphone

We recommend an electret microphone you can plug into the MIC
connector at the back of the modem for use with internal voice
modems. You can purchase a microphone at an electronics or
computer store.

4 Hayes Modem Installation Guide

Installing an Internal
Plug-n-Play Modem

The options for installing a Plug-n-Play modem are:

• Installing a Plug-n-Play modem without Windows 95/98

• Installing a Plug-n-Play modem with Windows 95/98

• Changing the COM Port (Windows 95/98)

• Using DOS Applications with Windows 95/98
Because all systems do not support Plug-n-Play devices, Hayes

products include utilities to configure the modem in non Plug-n-Play
environments. The following pages explain how to install your Plug­n-Play modem with Windows 95/98 and without Windows 95/98.

When installing your new modem, follow the directions below, and
refer to your Windows User’s Guide.

Note: Windows 95/98 users that want to use the modem with DOS
applications, such as interactive games, need to also read the
section, “Using DOS Applications with Windows 95/98.”

Installing an Internal Plug-n-Play Modem 5

Installing a Plug-n-Play Modem
without Windows 95/98

Plug-n-Play modems are designed to be configured for a COM port
by the Windows 95/98 hardware detection program. However, your
Plug-n-Play modem can still be used under Unix, Windows NT 4.0,
Windows 3.11, Windows 3.x, or DOS. There are three ways that a
Plug-n-Play modem can be configured for use in a non-Plug-n-Play
environment:

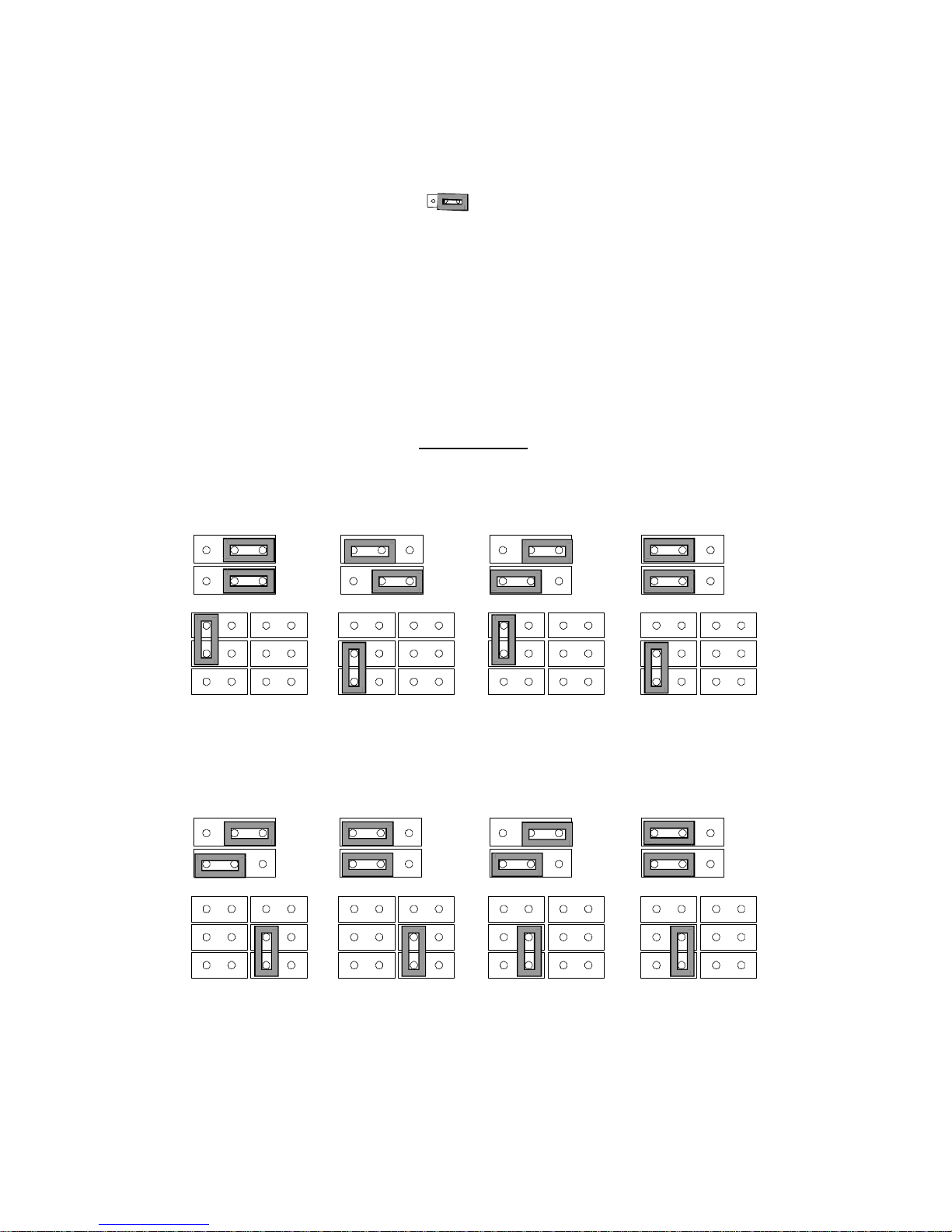

• Jumper Settings – Changing the jumper setting overrides
the Plug-n-Play capability of the modem. To do so, you need to
remove the jumper from the Plug-n-Play jumper block and place it
over one of the manual jumpers. Please refer to “Possible Jumper
Settings” on page 14 for details on how to configure your modem
using jumper settings.

• Plug-n-Play BIOS - Some computers are designed with a
Plug-n-Play BIOS. A Plug-n-Play BIOS also configures your Plug-n­Play modem for you. With Plug-n-Play BIOS, no additional software,
such as Plug-n-Play manager, is usually required to support Plug-n­Play. Do not load SETCOM16.

• SETCOM16 - If you do not have Plug-n-Play manager or
Plug-n-Play BIOS, you need to use the INSTALL.EXE program
provided on the Driver and Utilities diskette or CD included with your
modem to load SETCOM16.

6 Hayes Modem Installation Guide

Using SETCOM16

Installing the Modem Using SETCOM16:

The following steps outline modem installation using the
INSTALL.EXE program to configure the modem.

1. Before you open your computer to install the modem, unplug it
from the power outlet.

2. Select an empty slot and remove the slot cover plate.

3. Hold the modem by the top and gently slide it into the slot.

4. When you turn on your system, start at the DOS prompt, insert

the Driver and Utilities diskette or CD. Get the A: or D: prompt. Type
INSTALL.EXE. This will install the SETCOM16 program to the hard
drive.

5. Follow the screen instructions to configure your modem for COM
ports 1-4.

Note: If you need to change the configuration of the modem later,
you will need to type: C:\SETCOMM\SETCOM16.EXE. See below
for more detailed information.

Changing the modem configuration using SETCOM16:

Step 1: From the SETCOMM directory on your hard drive,

(usually C:\SETCOMM) type: SETCOM16. Press
Enter.

Step 2: Follow the instructions above to change the

configuration. The AUTOEXEC.BAT file updates
automatically.

Note: If your DOS-based programs are not communicating properly
with the modem, make sure the SETCOM16 utility is configuring the

Installing an Internal Plug-n-Play Modem 7

modem for an IRQ setting supported by your DOS software. Refer to
your DOS software manual for the proper IRQ settings supported by
the software.

To complete your modem installation, refer to Connecting the Phone
Cable.

8 Hayes Modem Installation Guide

Installing a Plug-n-Play Modem
with Windows 95/98

If you are using Windows 95/98, follow the steps below to install a
Plug-n-Play modem.

1. Before you open your computer to install the modem, unplug it
from the power outlet.

2. Select an empty slot and remove the slot cover plate.

3. Hold the modem by the top and gently slide it into the slot.

4. When you turn on your machine and start Windows 95/98, the
New Hardware Found window will display. To install your new
hardware, select Driver from the provided diskette or CD. Press OK.
The Install from Disk window will display.

5. Insert the Driver and Utilities CD or diskette, type D: or A:, and
press OK. Select your modem name and version. Press OK.
Windows 95/98 will install the necessary .INF files onto your hard
drive.

Note: Make sure you select the same modem speed and type as
appears on the modem packaging.

Windows 95/98 configures your new Plug-n-Play modem
automatically. This eliminates the need for you to set COM ports
with jumpers. However, because Windows 95/98 recognizes more
than four COM ports and some software only recognizes four, you
may want to change the Windows 95/98 automatic selection. Also,
in some instances, Windows may mistakenly assign the COM port to
a resource that conflicts with another device. Refer to Changing
Resources in Windows 95/98 for more detailed information.

Installing an Internal Plug-n-Play Modem 9

Changing Resources
in Windows 95/98

In most cases, Windows 95/98 will set up your modem to work
properly. Unfortunately, Plug-n-Play does not always work correctly;
when this occurs, you can usually trace it to a few common
problems.

One problem is your computer has insufficient resources available
to install your modem.

Often the modem gets mistakenly assigned to an I/O range or IRQ
already in use by another device. To change the resources that your
modem is using, do the following:

1. Click on the Start button. Select Settings and choose Control
Panel.

2. Double-click on the System icon and select Device Manager.
Select the Modem tab and highlight the modem to reconfigure.
Press Properties. All the modem properties will be displayed.

3. Select Resources.

4. If the conflicting device list shows a conflict, you need to change
the resources currently assigned to it. If no conflicts show up, then
the problem lies elsewhere.

5. To change the resources, deselect the Use Automatic Settings
indicator box. Try scrolling through the different basic configurations
until you find one that doesn’t report any conflicts. If you can’t find a
basic configuration that does not report a conflict, you’ll need to
manually assign the resources.

10 Hayes Modem Installation Guide

6. To manually assign the resources, select the last Basic
configuration available (typically Basic configuration 0006).

7. If the I/O range reports a conflict double, click on Input/Output
Range. The Edit Input/Output Range dialog box will appear.
Select one of the following values that does not report a conflict:

Value COM Port

03F8-03FF COM 1
02F8-02FF COM 2
O3E8-03EF COM 3
O2E8-02EF COM 4

8. Press OK to accept the value.

9. If the Interrupt Request is reporting a conflict, double-click on
Interrupt Request. The Edit Interrupt Request dialog box should
appear.

10. Scroll through the interrupts until you find one that doesn’t report
a conflict.

11. Press OK to accept the value. Then Press OK to close the
window. A warning window will display to verify that you want to
create a forced configuration. Press Yes.

Note: If you find you don’t have enough resources available, you
may need to disable a COM port. See the “Disabling a COM (Serial)
Port” section on page 19.

Installing an Internal Plug-n-Play Modem 11

Installing a
Non-Plug-n-Play
Internal Modem

The steps for installing an internal modem are:

• Configuring the modem

• Disconnecting the computer

• Installing the modem

• Connecting the phone cable

• Setting up your communications software.
Each of these steps is explained in the following pages. Before you

begin check your equipment to make sure that you have everything
that you need:

• computer

• modem

• software

• necessary cable(s)

• power outlet

• phone outlet.

12 Hayes Modem Installation Guide

Understanding COM Ports
and IRQ Settings

To successfully install your modem, you need to select a COM port
and IRQ setting that your computer's operating system is not using.

COM Ports

A COM port is a serial setting built into your computer's
motherboard. DOS version 3.3 and higher supports four COM ports.
Windows 95/98 and OS/2 support eight COM ports. COM ports use
IRQ lines to access your computer's processor.

IRQ Settings

An IRQ setting describes an interrupt line that is allocated to a
peripheral device, such as a modem, printer, or sound card. The
address allows the device to interrupt your computer's processor for
attention so that it can perform another function or activity.

Here are some common default COM port and IRQ settings for your
reference.

COM
Port

1 3f8 4
2 2f8 3
3 3e8 4
4 2e8 3

Installing a Non-Plug-n-Play Internal Modem 13

Address Default IRQ

Possible Jumper Settings

To determine the manual settings for your modem, follow the
instructions below, depending on what your modem looks like. Every
modem has a cylindrical on-board speaker (also known as a
squawker) located on it.

If your modem’s on-board speaker is located on the bottom
righthand corner (next to the bracket), you need to remove the
jumper from the JP2 jumper and place it on JP1 for both the COM
port and the IRQ settings.

The example below illustrates specific jumper positions for both the
COM port and the IRQ. At the bottom is a sample of how your
jumper setting may appear after setting both the COM port and the
IRQ.

14 Hayes Modem Installation Guide

If your modem board resembles the one below, with the cylindrical
onboard speaker located in the upper lefthand corner, the
locations of jumper blocks JP1, JP2, JP3, and JP4 should appear
the way they do below.

Jumper Locations

JP4
JP3
JP2

JP1

The jumper diagram above shows the default factory settings for
your fax modem. The jumper JP2 is set for Plug-n-Play mode, which
is used by Windows 95 and 98 computers.

Jumper Function
JP1 Sets the IRQ

JP3, JP4 Set the port address
JP2 Selects either jumpered configuration or Plug-n-Play (default)

To disable the board’s Plug-n-Play feature for Windows 3.1, 3.11,
NT 4.0, and DOS installation, make sure the JP2 jumper is over the
right and center pins.

Plug-n-Play Disabled

Installing a Non-Plug-n-Play Internal Modem 15

JP2

JP1

JP1

JP1

JP1

JP1

JP3

JP3

JP4

JP4

COM1

COM2

COM3

COM4

Address 02E8

Address 02E8

(The shaded area indicates jumper position.)

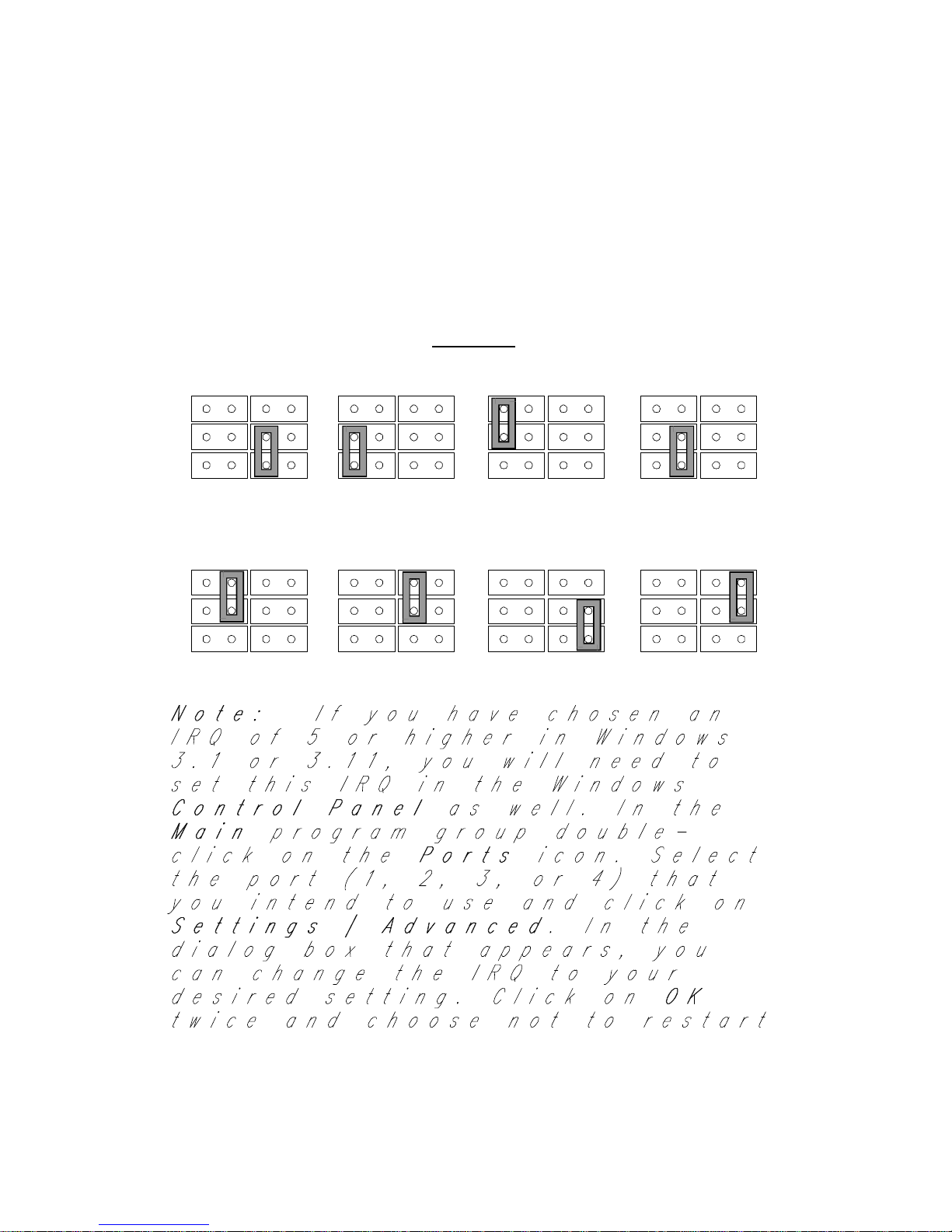

Use one of the jumper combinations as shown in the following
diagram to set COM1 through COM8. The JP1 setting determines
IRQ, and the JP3 and JP4 settings determine the address of the fax
modem. To set the appropriate COM port jumper combination, use
the settings you determined earlier in this chapter. The fax modem
is pre-set at the factory for COM 4, IRQ 3.

Jumper Settings

Address 03F8

Address 02F8

IRQ4

JP4
JP3

JP1

COM5

Address 03E8

COM6

Address 02E8

IRQ2

JP4
JP3

IRQ3

JP4
JP3

JP1

IRQ2

JP4
JP3

Address 03E8

IRQ4

JP4

JP3

JP1

COM7

COM8

Address 03E8

IRQ5

JP4

JP3

IRQ3

IRQ5

If you set your modem to one of the settings (COM1 to COM8) as
shown above, you can proceed to Installing Your Fax Modem.

16 Hayes Modem Installation Guide

Additional IRQ Settings

JP1

JP1

IRQs 2 and 9

IRQ3

IRQ4

IRQ5

The following table contains a summary of all the available IRQ
settings. There is a small chance that you will need to use an IRQ
other than 2, 3, 4, or 5 in systems that have many peripherals (such
as a soundcard, CD-ROM, etc.).

IRQ Settings

JP1

IRQ7

JP1

JP1

IRQ10

JP1

JP1

IRQ12

JP1

IRQ15

Installing a Non-Plug-n-Play Internal Modem 17

18 Hayes Modem Installation Guide

Disabling a COM (Serial) Port

You can disable your COM ports three different ways:
Through the

CMOS

Through the
mother­board
jumper

Through the
jumper on
the I/O Card

Most of today's newer computer systems allow you to
disable your COM port in the CMOS. Refer to your
computer manual for this procedure.

If your COM port is built into your motherboard, then
move a motherboard jumper to disable the COM port.
Refer to your computer manual for this procedure.

If the COM port is not located directly on your
motherboard, but is on a serial expansion card, then
refer to either your serial card manual or the
computer manual for this procedure.

Installing a Non-Plug-n-Play Internal Modem 19

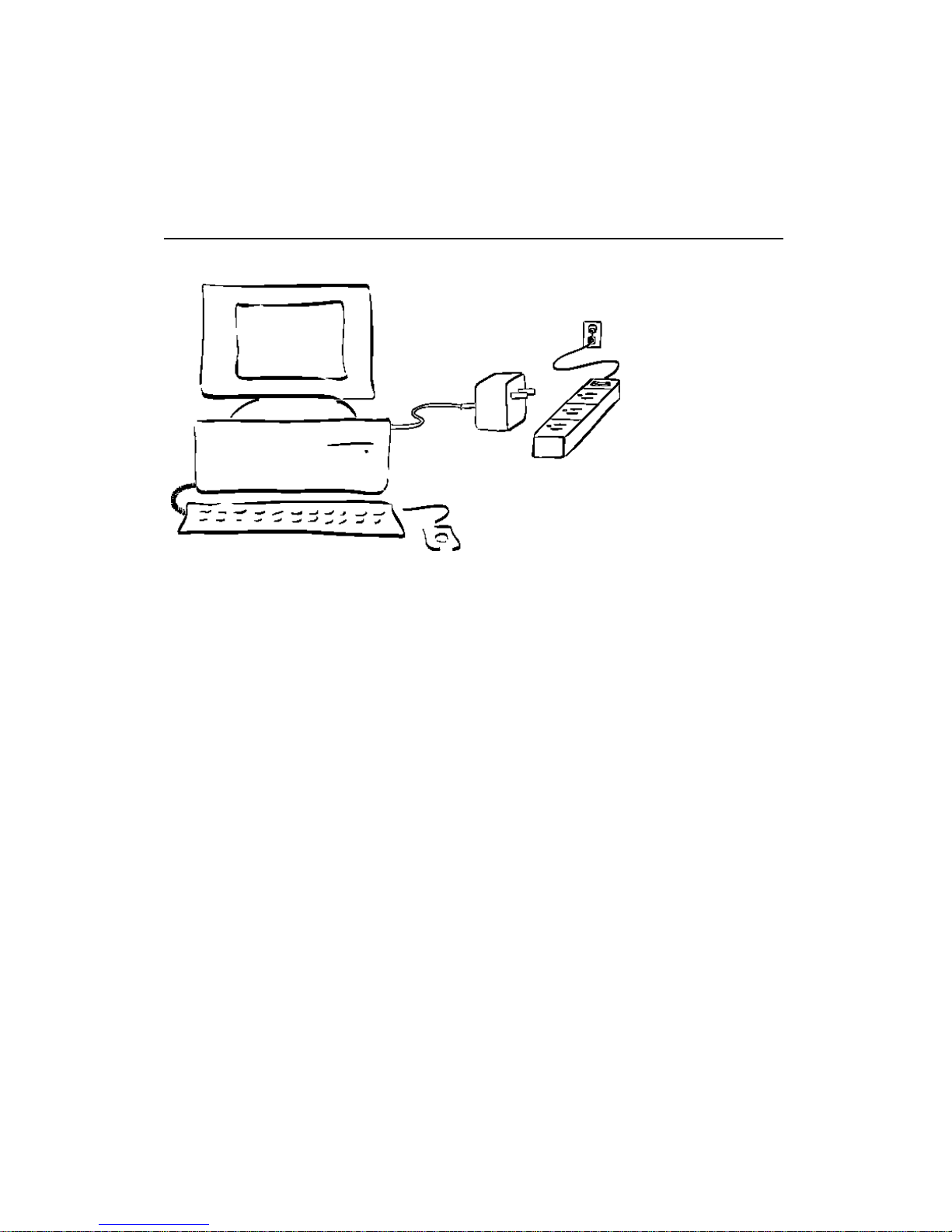

Disconnecting the Computer

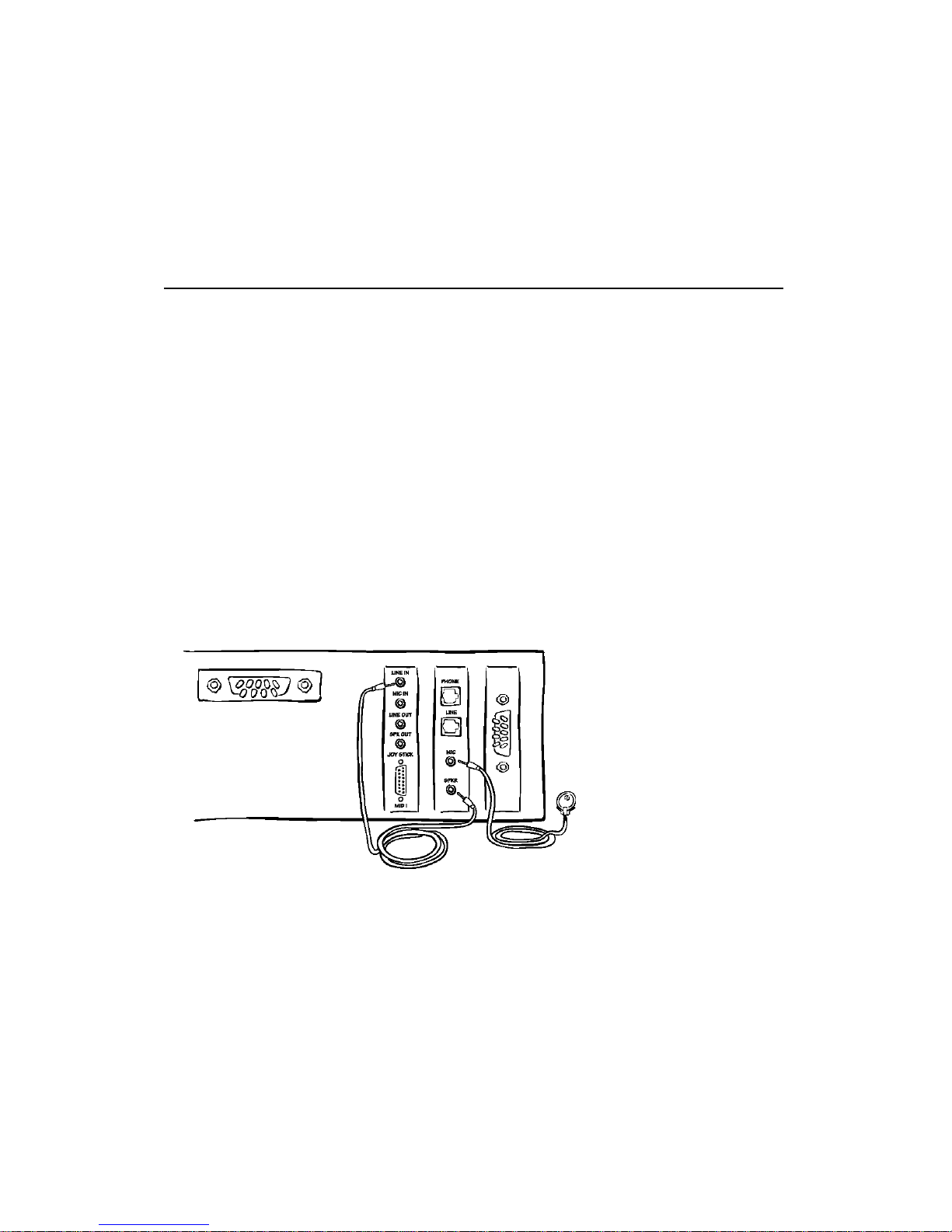

1. Before you open your computer to install the modem, unplug it
from the power outlet.

20 Hayes Modem Installation Guide

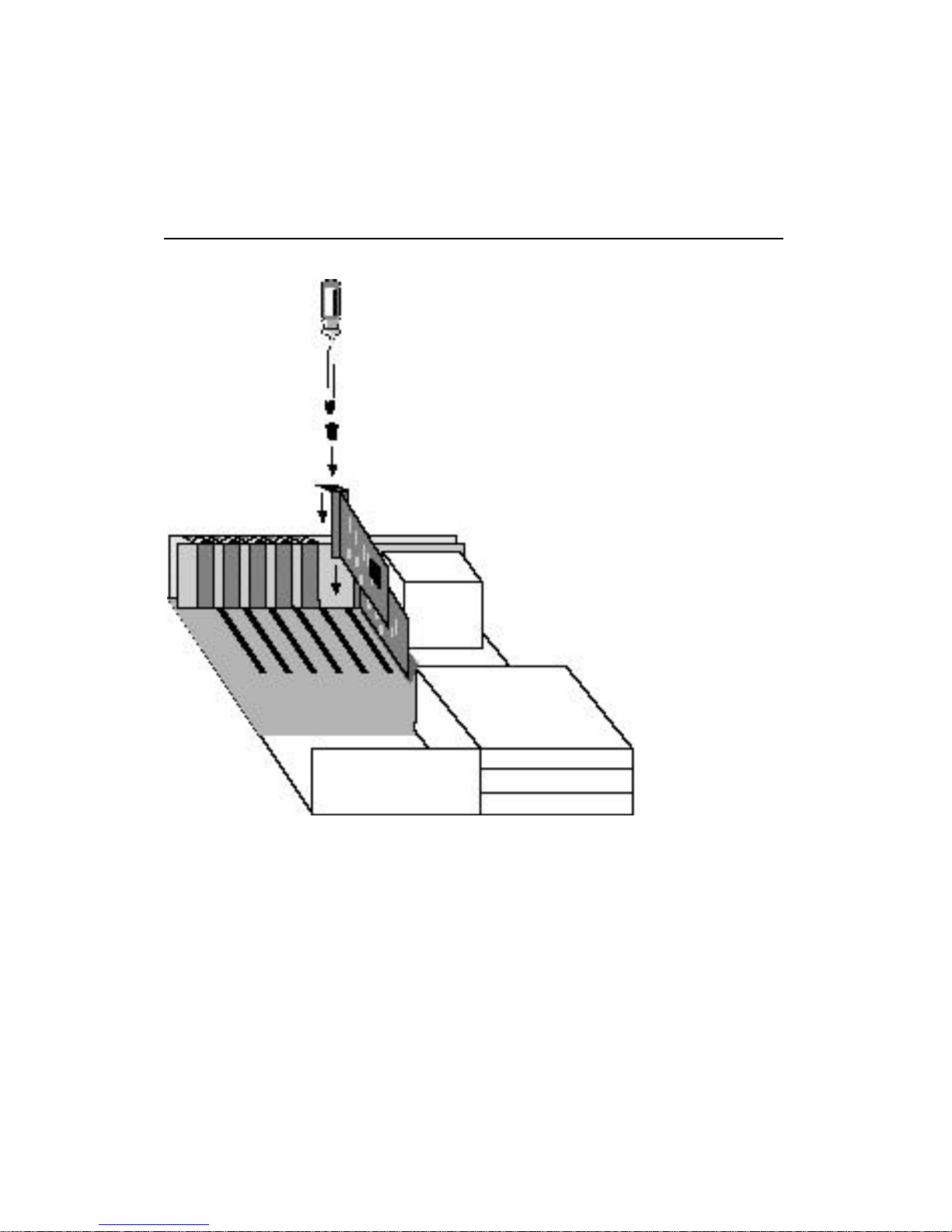

Installing the Modem

1. Select an empty slot and remove the slot cover plate.

2. Hold the modem by the top and gently slide it into the slot.

Installing a Non-Plug-n-Play Internal Modem 21

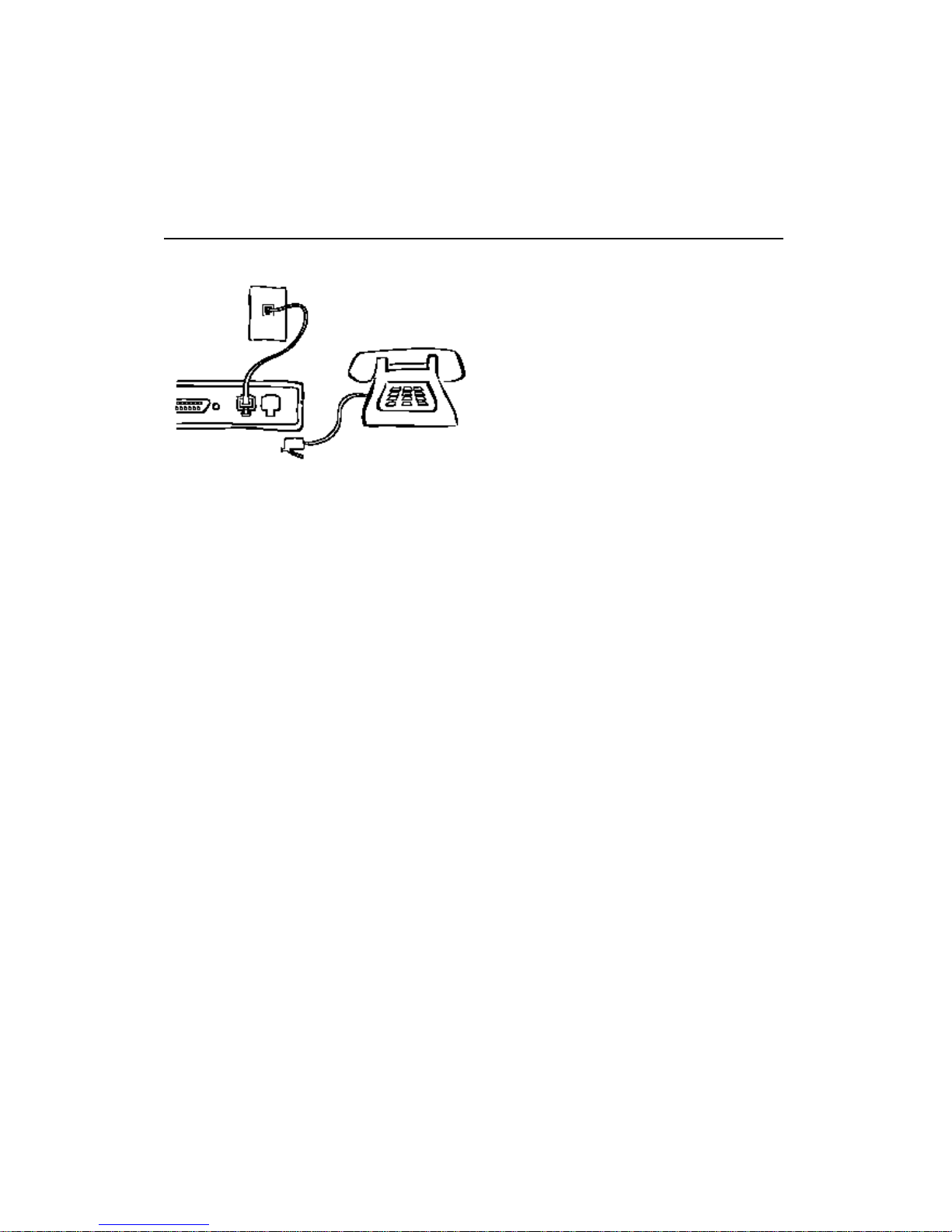

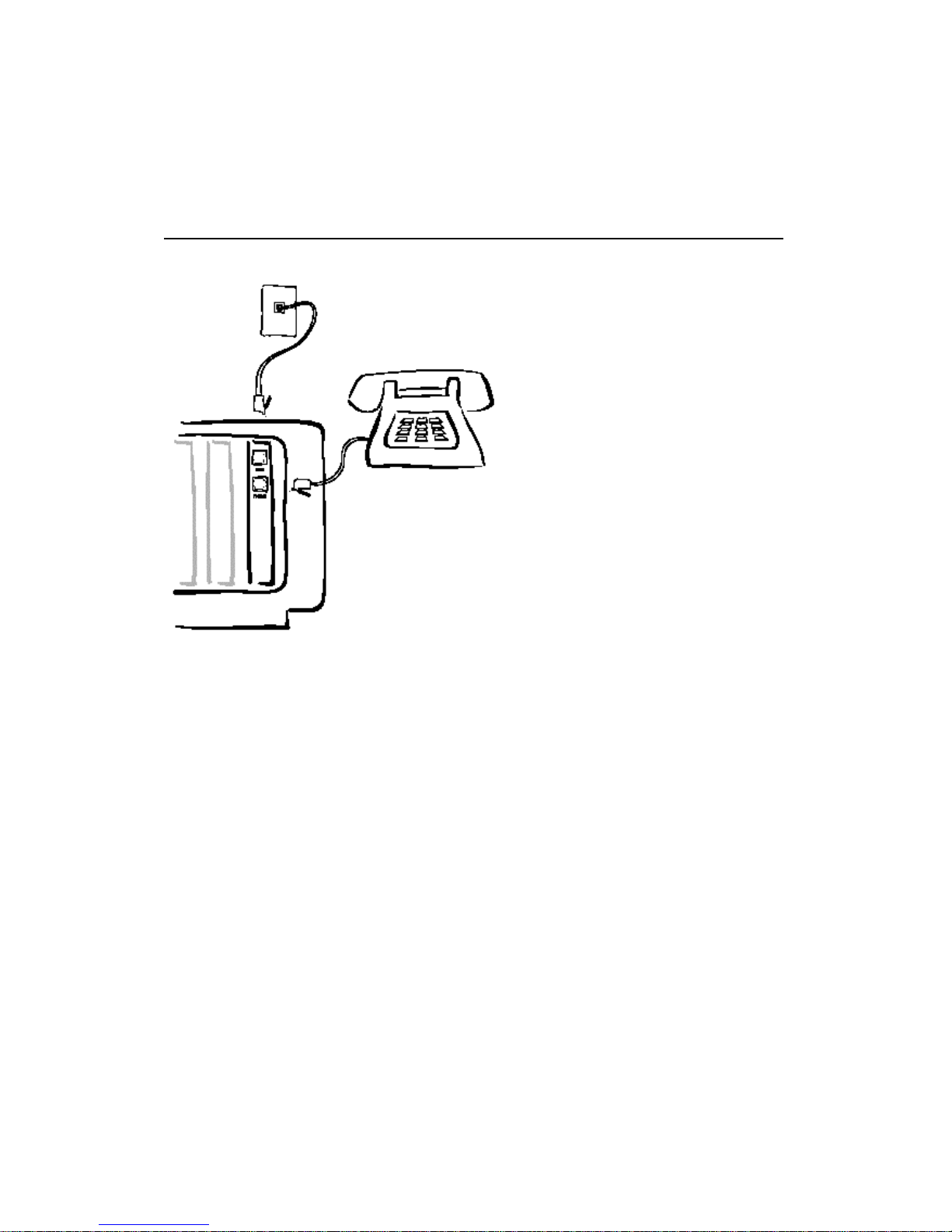

Connecting the Phone Cable

LINE

connector.

2. Plug the other end into the telephone wall jack.

3. If you want to use a telephone on the same line as the modem,
plug one end of the telephone cable into your phone and plug the
other end into the PHONE connector on the modem.

22 Hayes Modem Installation Guide

Setting Up Your
Communications Software

Please refer to your communications software manual for specific
details about your software.

For Windows users: Start the communications software and open
the screen, which allows for the modem configuration. Select the
COM port that the modem is configured for.

- or ­For DOS users: Start the communications software and open the
screen, which allows for the modem configuration. Select the COM
port and IRQ that the modem is configured for.

Installing a Non-Plug-n-Play Internal Modem 23

Using DOS
Applications with
Windows 95/98

With Windows 95/98, when you first try to run a DOS application
that requires your internal modem (such as some interactive
games), your computer may have trouble locating it. When you are
using Windows 95/98 applications, the computer locates the modem
automatically. DOS applications need to be told your modem’s
address.

You can enter a DOS mode three different ways with Windows
95/98. Because the directions vary, please read the steps carefully.

• Shutting down to DOS

• Opening a DOS window

• Using F4 or F8 to open DOS.

24 Hayes Modem Installation Guide

Shutting Down to DOS

You can shut down Windows 95/98 and start DOS to run DOS
applications.

1. From the Start icon, choose Shutdown. Select Restart
Computer in MS-DOS Mode.

2. After restarting, get the A prompt (or B if you are using the B
drive.) Insert the Driver and Utilities diskette or CD and type
INSTALL. This loads the SETCOM16 program.

3. The SETCOM16 EXE program will suggest an address for the
modem. Use the tab to select OK or select Manual to change the
address.

4. SETCOM16 EXE will ask if you want to update the Windows
SYSTEM.INI file. Use the tab key to select None.

Note: Because you are running Windows 95/98, you only want to
update the AUTOEXEC.BAT file. Selecting None will do this
automatically.

5. When you return to DOS, type C:\AUTOEXEC.BAT. Scroll
through the text for a line that looks like the following example:

C:\SETCOMM\SETCOM16.EXE 3E8 5.

6. Copy the line, including the I/O address and IRQ after the .EXE.

7. Type Win at the C:\ prompt to return to Windows 95/98.

8. From the Start icon, select Programs, then Accessories.
Choose Notepad.

Installing an Internal Modem (Non Plug-n-Play) 25

9. Type the SETCOM16 line from the AUTOEXEC.BAT file into this
window.

10. From the File menu, select Save As.... Save the file in your

Windows directory as DOSSTART.BAT.

26 Hayes Modem Installation Guide

Opening a DOS Window

From Windows 95/98, you can open a DOS window to run DOS
applications. First, you need to make sure the modem address is
accessible by a DOS application. DOS applications can usually only
access standard COM ports COM 1, 2, 3, and 4. Follow the steps
below to check your modem settings in Win 95/98 to confirm that
your modem is configured for an address accessible by your DOS
application.

1. From the Start icon, select Control Panel. Double-click on the
System icon.

2. Select Device Manager. Choose the Modem tab, and highlight
the modem you want to use. Press Properties.

3. Select the Resources tab to see the input/output range and
setting display for the modem.

4. Use the displayed information to configure your DOS application.

Note: Because some DOS applications do not support the higher
addresses that Windows 95/98 supports, you may need to “move”
the modem to a different address. Refer to “Changing the COM Port
(Windows 95/98)” to change the address of the modem.

Installing an Internal Modem (Non Plug-n-Play) 27

Using F4 or F8 to Open DOS

When you installed Windows 95/98 initially on your machine, if you
chose to keep your old DOS version, you can press F4 when your
computer is loading Windows 95/98 to stop and return to DOS.
Otherwise, you can press F8 when the “Loading Windows 95/98”
window appears.

1. At the DOS C:\ prompt, get the A:\ prompt (or B is you are using
the B drive.) Insert the Driver and Utilities diskette or CD and type
INSTALL. This loads the SETCOM16 program.

2. The SETCOM16 program will suggest an address for the modem.
Use the tab to select OK or select Manual to change the address.

3. SETCOM16 will ask if you want to update the Windows
SYSTEM.INI file. Use the tab key to select None.

Note: Because you are running Windows 95/98, you only want to
update the AUTOEXEC.BAT file. Selecting None will do this
automatically.

28 Hayes Modem Installation Guide

Installing an
External Modem

The steps for installing an external modem are:

• Connecting to a phone outlet

• Connecting to a power outlet

• Connecting to a PC or Macintosh

• Checking the connections

• Setting up your communications software

• Installing an external modem with Windows 95/98.
Each of these steps is explained in the following pages. Before you

begin, check your equipment to make sure that you have everything
that you need:

• computer

• modem

• power cable

• phone cable

• communications software

• power outlet

• phone outlet.
Also, you will need to purchase a serial cable for your modem

(unless you are connecting your modem to a Macintosh).

Installing an External Modem 29

Connecting to a Phone Outlet

1. Plug one end of the telephone cable into the modem’s LINE
connector.

2. Plug the other end into the telephone wall jack.

3. If you want to use a telephone on the same line as the modem,
plug one end of the telephone cable into your phone and plug the
other end into the PHONE connector on the modem.

30 Hayes Modem Installation Guide

Connecting to a Power Outlet

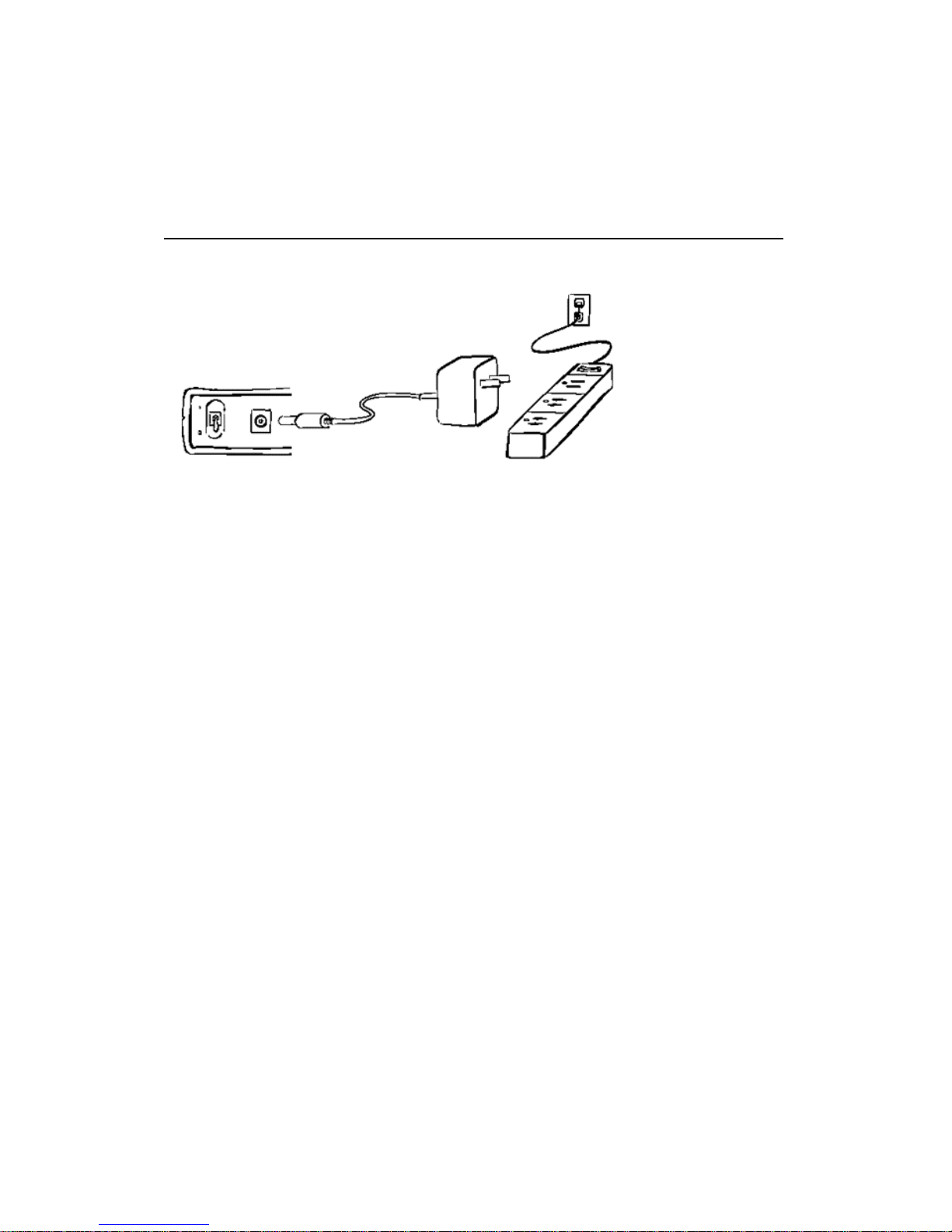

1. Plug the power cable into the 9.0V~AC connector.

2. Plug the power supply into a wall outlet. Plugging the power
supply into a power strip is recommended.

Note: Some type of surge protection (like that found in common
power strips) is recommended.

Installing an External Modem 31

Connecting to a PC

1. Turn the modem and computer off.

2. Plug the male end of the modem cable into the female connector
marked DTE INTERFACE on the modem’s rear panel and tighten
the screws.

3. Plug the other end of the cable into the serial port on the back of
your computer.

Note: The port on the back of your computer that the modem plugs
into is a COM port. You need to be sure that the communications
software you will be using knows the COM port “number” (e.g.,
COM1, COM2, COM3, etc.) where the modem is located.

32 Hayes Modem Installation Guide

Connecting to a Macintosh

1. Turn the modem and computer off.

2. Plug the serial end of the Mac-to-modem cable, included with
your modem, into the female connector marked DTE
INTERFACE on the modem’s rear panel and tighten the screws.

3. Plug the round end of the cable into the port marked with a
telephone on the back of your Macintosh.

Installing an External Modem 33

Checking the Connections

1. Raise the switch on the left to turn the modem on.

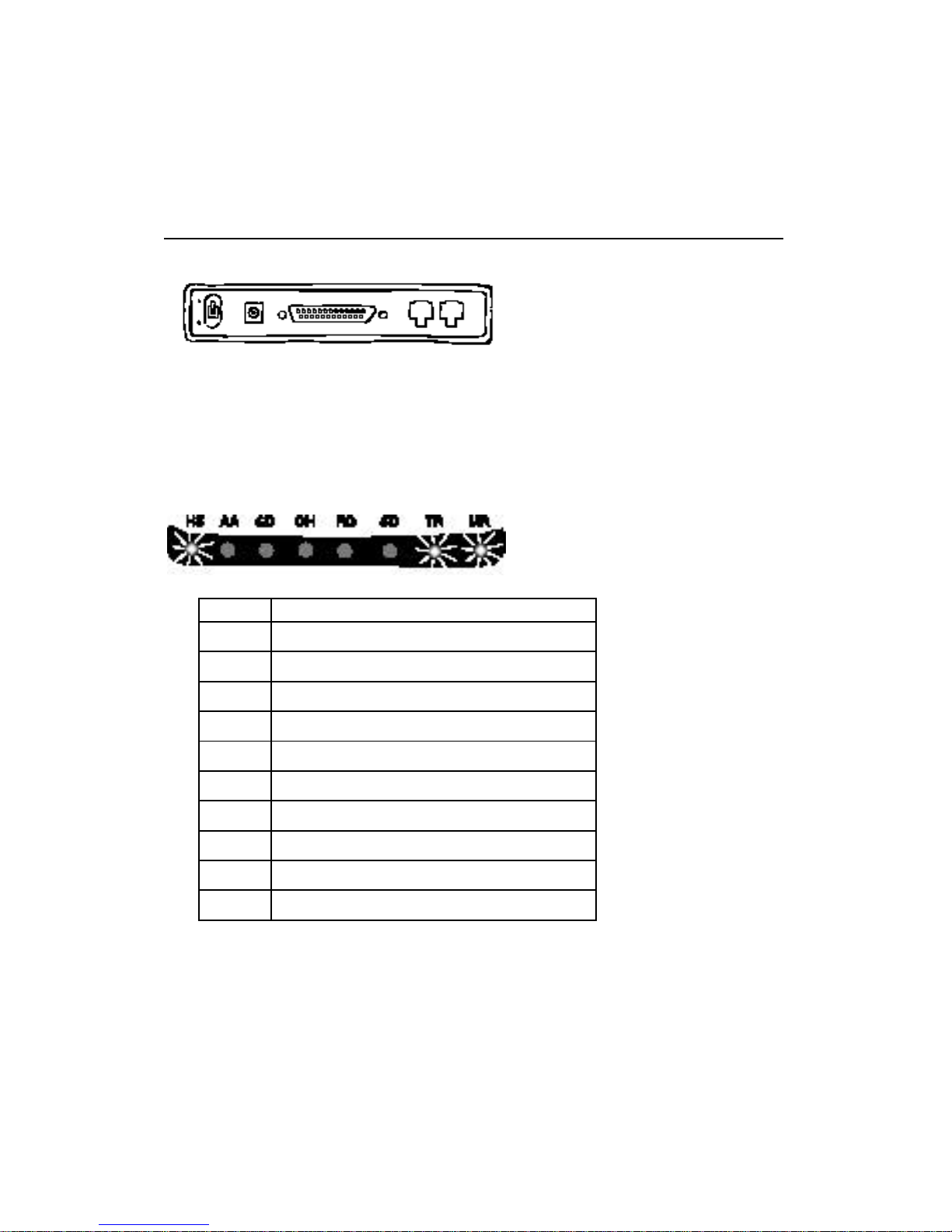

2. Check the modem's front panel lights (LEDs). If none of the lights
come on, refer to the “Troubleshooting” section of this booklet.

Sample LED

LED Meaning

HS High-speed (4,800 and above)
AA Auto-answer
CD Carrier detect
OH Off hook
RD Receive data
SD Send data
TR Terminal ready
MR Modem ready
VO Voice
RI Ring Indicator

34 Hayes Modem Installation Guide

Setting Up Your
Communications Software

Please refer to your communications software manual for specific
details about your software.

For Windows users: Start the communications software and open
the menu that contains the modem configuration. Select the COM
port that the modem is configured for.

- or -

For DOS users: Start the communications software and open the
menu that contains the modem configuration. Select the COM port
and IRQ that the modem is configured for.

- or -

For Mac users: Start the communications software and open the
menu that contains the modem configuration. Select the
phone/modem port with the specific common software use.

Installing an External Modem 35

Installing an External Modem
with Windows 95/98

Windows 95/98 recognizes new hardware differently than earlier
Windows versions. When installing your new non Plug-n-Play or
external modem with Windows 95/98, follow the directions below.

1. Turn off your computer and install the modem as described
previously in this manual.

2. Insert the Driver and Utilities diskette or CD that contains the .INF
file for your modem. Press Have Disk.

3. Verify the disk drive and press OK. Select your modem from the
list and press Next.

4. Select the COM port the modem is connected to, and press Next.
Windows 95/98 has completed installation. Press Finish.

Note: Make sure you select the same modem speed and type as
appears on the packaging.

If Windows Does Not Recognize Your External
Modem

First go to Start|Settings|Control Panel|System|Device Manager,
and hit Refresh several times. If that doesn’t work, follow these
steps:

1. Turn on your system and start Windows 95/98. Click the Start
icon. Select Settings and choose Control Panel.

2. Double-click on the Install New Hardware icon. The Add New

Hardware Wizard will open. Follow the instructions, and press
Next. Select the No indicator box to select your own hardware.
Press Next to select the type of hardware you are installing.

36 Hayes Modem Installation Guide

3. Select Modem and press Next. Windows 95/98 will ask you if it
should detect the modem. Select the indicator box to pick your
modem from a list.

Installing an External Modem 37

Connecting Voice
Modems

The Hayes OPTIMA™ voice modem and the Hayes ACCURA™ voice
modem each have different voice capabilities. When you install a
voice modem, you can connect external audio devices into the
modem to enhance the voice performance, or use a telephone
handset.

With ACCURA Speakerphone modems, you can plug an amplifier
input device or amplified speakers into the SPKR connector.

With OPTIMA Business modems, you can plug headphones or
amplified speakers (8 ohms or greater) into the SPEAKER
connector on the side of external models.

(Internal model shown)

38 Hayes Modem Installation Guide

Connecting a Microphone

We recommend an electret microphone you can plug into the MIC
connector at the back of the modem for use with internal ACCURA
Speakerphone modems. If you want to change the microphone
setting, refer to "Changing the Microphone with ACCURA Internal

Speakerphone Modems."

With external ACCURA Speakerphone modems, you can record
your voice using the handset of your telephone.

With OPTIMA Business modems, you can plug a self-powered
electret microphone into the MICROPHONE connector on the side
of the external models.

For best results, with the least amount of feedback, microphones
should be mounted to the top, front center of your monitor.

Note: If you have a sound card with an internal ACCURA
Speakerphone modem, the microphone must be plugged into the
modem, not the sound card, for the speakerphone to work.

Connecting Voice Modems 39

Changing the Microphone
with ACCURA Internal
Speakerphone
and Message Modems

We recommend that you use an electret microphone with your
internal ACCURA Speakerphone modem. You can also connect a
dynamic microphone (>600 ohms), a self-powered electret
microphone, or a Plantronics (6K) microphone into your modem’s
MIC jack.

We also recommend that you use an electret microphone with your
internal ACCURA Message modem. However, if you want to
connect a dynamic microphone (>600 ohms), a self-powered
electret microphone, or a Plantronics (6K) microphone into this
modem’s MIC jack, you will need to adjust a jumper on your modem.
Follow these steps:

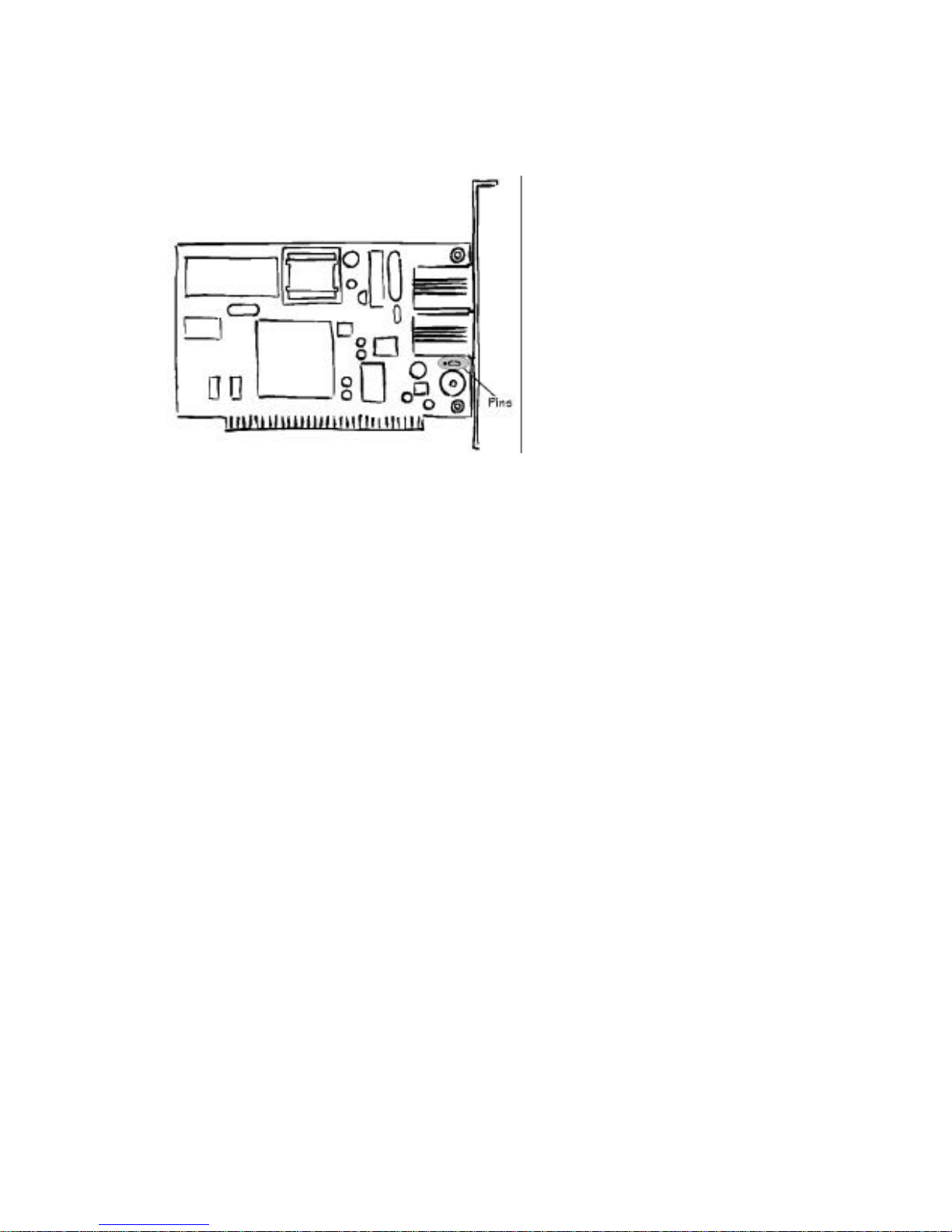

1. Locate the three pins beside the speaker, near the mounting

bracket. The jumper is currently on pins 2 and 3 for an electret
microphone, as shown in the illustration.

2. For a dynamic or self-powered electret microphone, move the

jumper onto pin 1 ONLY. (This is the pin farthest away from the
bracket.)

3. For a Plantronics (6K) microphone, move the jumper onto pins 1

and 2. (These are the two pins farthest away from the bracket.)

40 Hayes Modem Installation Guide

(Illustration shows jumper on pins 2 and 3.)

Note: If you have a sound card with an internal ACCURA
Speakerphone or Message modem, the microphone must be
plugged into the modem, not the sound card, for the speakerphone
to work.

Connecting Voice Modems 41

Connecting a Voice Modem
to a Sound Card

If your computer already has speakers attached to a sound card, you
can connect an internal voice modem and the sound card to use the
same speakers.

With OPTIMA Business modems and ACCURA external models,
you can set the modem and sound card to use the same speakers
through software.

For internal speakerphone modems:

1. Using an 8 inch stereo-to-stereo cable, plug one end into the SPK
connector in the back of the modem.

2. Plug the other end of the stereo-to-stereo cable into the LINE IN
connector on the back of the sound card.

(Internal ACCURA Speakerphone modem shown)

42 Hayes Modem Installation Guide

Troubleshooting

COM Port Problems

This section lists some of the most common troubleshooting issues.
When you install an internal modem, you must assign the modem a

unique COM port setting, or with Windows 95/98, you sometimes
must change the COM port automatically selected with Plug-n-Play
modems. If your modem is set to use a COM port that is being used
by another device, you may experience COM port or IRQ conflicts.

Symptoms of COM Port or IRQ Conflict:

• The communications software cannot find the modem.

• Your computer locks up when accessing the modem.

• The modem doesn’t respond to AT commands.

• The modem works in some software applications, but not in others.

• The modem used to work, but doesn’t anymore.

• The serial mouse doesn’t function properly.

Troubleshooting 43

Resolving COM Port or Interrupt Conflicts:

COM port or IRQ conflicts can be resolved by selecting a unique
COM port setting for the modem. If you are a Windows 95 or 98
user, please refer to “Changing Resources
in Windows 95/98” on page 10. If you are a Windows 3.x user, there
are several steps you can follow to prevent COM port conflicts:

1. Identify Serial Ports already being used by your computer. Most
computers using Windows will have a utility to diagnose COM
ports.

Turn your computer off. Remove your modem, and reboot your
system. Exit Windows 3.1, or 3.11.

Type MSD E at the C: prompt. The COM Ports field identifies
how many COM ports your computer has. Type C to identify your
port address. Refer to the following table to identify COM ports.

COM Port Interrupt Base I/0

COM1 IRQ4 03F8
COM2 IRQ3 02F8
COM3 IRQ4 03E8
COM4 IRQ3 02E8

2. If you are using Windows, COM port settings can be found in

the Control Panel. Any changes you make in the Control Panel
must match the jumper settings of the modem and apply to all
Windows communications programs.

For Plug-n-Play modems with Windows 3.1 or 3.11, use
SETCOMM.EXE, or SETCOM16.EXE to set the COM Port.

Once you have selected a configuration in the Control Panel, you
may select the COM port in the communications software without
having to change the IRQ setting because the Control Panel will
change both automatically.

44 Hayes Modem Installation Guide

Troubleshooting 45

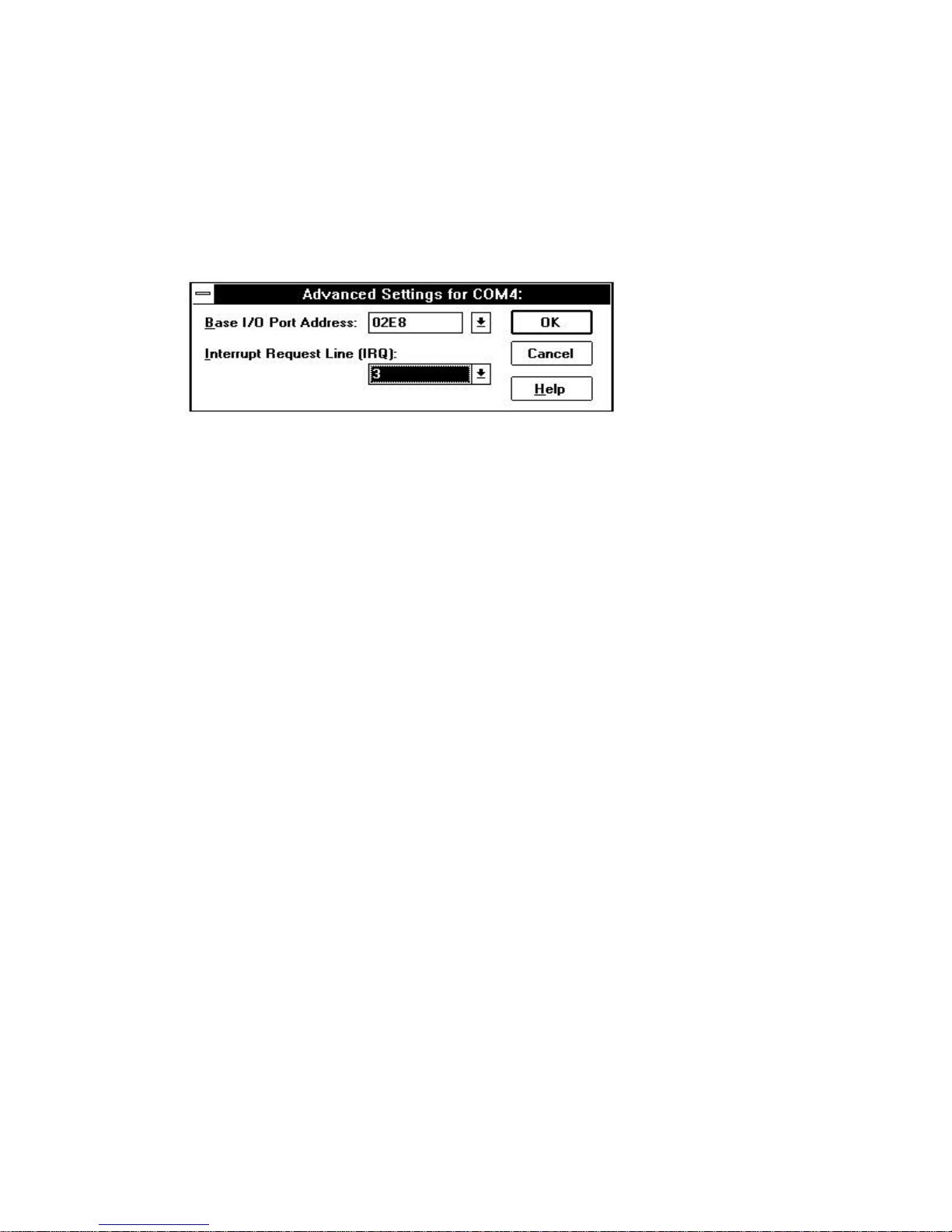

Selecting a COM port from the Windows Control
Panel Menu:

Example:

Selecting COM4 from the Windows 3.1 Control Menu:

1. Open Microsoft Windows.

2. Select Main and then Control Panel.

3. Select Ports.

4. Select the COM4 icon.

5. Select Settings.

6. Select Advanced.

7. Change the base I/O Port address from default to 02E8.

8. Change the IRQ setting from default to 3.

9. Select OK and Restart Windows now.

46 Hayes Modem Installation Guide

Selecting a COM port in your Communications
Software Program:

After you have configured the COM port and IRQ setting in the
Control Panel, you must select the same COM port in your
communications software.

Example:

Selecting COM4 in a Communications Software Program:

1. Open your communications software.

2. Locate the COM port settings.

3. Select COM4 or whichever COM port you selected in the
Windows Control Panel.

4. Quit your communications software program.

Troubleshooting 47

General Troubleshooting

If you cannot connect an external modem to your
computer...

Make sure that you are using a modem-to-computer cable. If you
are not sure, contact the store where you bought the modem and
verify that you have the right cable.

If the modem lights are not lit...

If the modem lights are not lit, plug the modem into another outlet
to check the power. If this problem occurs with a previously
working modem, your modem may have been damaged by a
power surge over the electrical or telephone lines.

If the RD and/or SD lights come on or are flashing...

When you’re not online, your modem cable may be damaged.
Turn the modem off, disconnect the modem cable, and turn the
modem back on. If the RD or SD light is still on, you should
contact Customer Service.

If the CD or OH light remains on...

If the CD or OH lights remain on after you have disconnected your
OPTIMA Business modem, contact Customer Service. If you
cannot communicate with the modem, make sure that you have
properly installed your communication software.

48 Hayes Modem Installation Guide

If the modem will not connect over the line to
another modem...

Check your modem and telephone connections, then try dialing
the number on your phone. If you hear a high-pitched whistle, then
another modem is answering the call. If the connections are
secure and the number is correct, the modems may be having
trouble negotiating.

Try a lower speed. Change this in your communications software.

If the modem will not answer an incoming call...

Auto-answer may not be enabled. Refer to your software
instructions to enable auto-answer.

If the modem disconnects unexpectedly...

Try dialing the number again. Also, check for loose connections
between the modem and computer or between the modem and
telephone. If the connections seem secure, you may have had a
bad connection. Try again. Also, you may want to disable Call
Waiting.

Troubleshooting 49

Regulatory &
Warranty Information

FCC Part 15 Emissions Statement

This modem has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Part 68 Telecommunications Statement

The Federal Communications Commission (FCC) has established rules which permit this device
to be directly connected to the telephone network. This device is registered with the Federal
Communications Commission (FCC) for direct connection to the telephone line using a
standardized RJ-11C telephone jack. This device complies with the Part 15, Subpart B, and Part
68 requirements of the FCC rules.

The telephone company may make changes in its technical operations and procedures; if such
changes affect the compatibility or use of the device, the telephone company is required to give
adequate notice of the changes.

If the telephone company requests information on what equipment is connected to the line, inform
them of:

1. The telephone number that this unit is connected to

2. The ringer equivalence number

3. The USOC jack required [RJ-11C]

4. The FCC Registration Number.

Items (2) and (4) are indicated on the label on the bottom case of the modem. The ringer
equivalence number is used to determine how many devices can be connected to your telephone

50 Hayes Modem Installation Guide

line. In most cases, the sum of the RENs of all devices on any one line should not exceed five
(5.0). If too many devices are attached, they may not ring properly.

If this device should malfunction, it may also cause harm to the telephone network; should this
occur, this device should be disconnected from the network until the source of the problem can be
determined and repair has been made. If a device which harms the network is not removed, the
telephone company may temporarily disconnect service.

In the event of equipment malfunction, all repairs should be performed at an authorized repair
facility. It is the responsibility of users requiring service to report the need for service to such a
facility. Service facilities are listed on the product’s warranty flyer.

The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a
computer or other electronic device to send any message via telephone fax machine unless such
message clearly contains in a margin at the top or bottom of each transmitted page, or on the first
page of the transmission, the date and time sent, the identification of the business, entity, or
individual sending the message, and the telephone number of the sending machine. In order to
program this information into your fax machine, refer to your faxmodem software documentation for
information on enabling fax branding.

Industry Canada Emissions Statement

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.

European Regulations

External Modems & Internal Modem Cards
WARNING: Users should be aware that, if their software automatically generates repeat call

attempts, they must ensure that no more than 15 repeated call attempts are made to the same
number and that there is at least 5 seconds between each attempt. Failure to observe this
requirement would be in contravention of the approval for connection to the PSTN.

Line and Phone Ports

The circuits on the port on the rear of the modem marked LINE and PHONE are TNV circuits.
Compliance with EN41003 is only maintained if they are connected to ports on other equipment
which contain only TNV circuits as defined in EN41003 clause 4.2.

Speaker & Microphone Port (FDSP modems)

The circuits on the port on the rear of the modem marked SPK and MIC are SELV circuits.
Compliance with EN60950 is only maintained if it is connected to ports on other equipment which
only contain SELV circuits as defined in EN60950 clause 2.3.

Disconnect Devices

Before opening the case for servicing the modem should be disconnected from the mains supply
and the telephone network. To this end, the mains and telephone socket outlets should be installed
near the modem and should be easily accessible.

External Modems
Power Module Requirements

Regulatory & Warranty Information 51

This modem is intended to be used with the power supply module provided with this unit. Use of
any other power supply module will invalidate any approval given to this modem if as a result it
ceases to comply with EN60950. Please contact the manufacturer for details of approved power
supply modules.

DTE port

The circuits on the port on the rear of the modem marked DTE are SELV circuits. Compliance with
EN60950 is only maintained if it is connected to ports on other equipment which only contain SELV
circuits as defined in EN60950 clause 2.3.

Internal Modem Cards

This modem requires power supply voltages of -5V DC, +5V DC and +12V DC. The modem is
intended for use with a computer expansion connector supplying -5V @ 20mA, +5V @ 300mA and
+12V @ 35mA.

WARNING: The user must make sure that their host equipment is capable of supplying the
additional power required by this card and any other cards that may be connected at the same
time. It is the users’ responsibility to further ensure that the power supply in their host equipment
meets the requirements for SELV equipment.

WARNING: The modem card must be installed in the host in such a manner that with the
exception of the connections to the host, the clearances and creepages specified in the table
below are maintained between the modem card and any other assembly or option cards. The
distances in brackets apply where the local environment within the host is subject to either
conductive pollution or dry non-conductive pollution that may become conductive when wet due to
condensation.

Clearance (mm) Creepage (mm) Voltage used or generated by

host or other cards.

2.0 2.4 (3.4) Up to 50 Vrms or DC

2.6 3.0 (4.8) Up to 125 Vrms or DC

4.0 6.4 (10.0) Up to 300 Vrms or DC
Advice from a competent telecommunications engineer MUST
be obtained before installing the modem card near to (or
installing) an option card that uses or generates voltages in this
range.

Above 300 Vrms or DC

Failure to maintain these distances will invalidate the approval. If in doubt, seek advice from a
competent telecommunications engineer before installing the modem or other option cards.

ALWAYS switch off the power to the host and disconnect it from the mains supply before
attempting to install or remove a modem card.

WARNING: This modem card must only be used in a host that has a screw down lid or cover.
This modem has an analogue telecommunications interface that is intended to be connected to
telecommunication network voltage (TNV) circuits which may carry dangerous voltages. All
telephone cords must remain disconnected from the modem until it has been installed within a
host which provides the necessary protection of the user.

ALWAYS disconnect telephone cords from the modem prior to any subsequent opening of the
host.

Sweden
External Modems & Internal Modem Cards

52 Hayes Modem Installation Guide

Users in Sweden should be aware that Loop Disconnect (Pulse) Dialling as implemented on these
products must NOT be used in Sweden.

Australia
External Modems & Internal Modem Cards

Modems connected to the Australian telecommunications network must have a valid AUSTEL
permit. This modem has been specifically configured to ensure compliance with AUSTEL
Standards.

Modem Commands:

Command Default Permissible Range
ATB B0 Do not set for Bell mode
AT&G &G2 &G0
AT&P &P1 &P1 only

S Register Default Permissible Range
S0 0 0, 2 to 255
S6 2 2 - 5
S11 95 70 - 255
S45 10 10 - 15

S89 10 10 - 15
AUSTEL Technical Standard 002 Sections 5.3.6.4/5 prescribes how outgoing calls must be made
to avoid contravention of the Telecommunications Act of 1991. Users should be aware that if their
software automatically generates repeat call attempts, they must ensure that no more than 3
repeated call attempts are made to the same number and that there is at least 2 seconds between
each call attempt. If the call sequence is unsuccessful, there shall be a delay of at least 30 minutes
before attempting to call that number again. Failure to observe this requirement would be in
contravention of the approval for connection to the PSTN.

NOTE - This modem has been set up with a factory default of ATX4. This setting enables the
detection of service tones (such as “busy”).

Failure to set the modem or any application software used with the modem to the values shown
above will result in the modem being operated in a non-compliant manner. Consequently, there
would be no permit in force for this modem and the Telecommunications Act of 1991 prescribes a
penalty of $12,000 for the connection of non permitted equipment.

Internal Modem Cards

This modem requires power supply voltages of -5V DC, +5V DC and +12V DC. The modem is
intended for use with a computer expansion connector supplying -5V @ 20mA, +5V @ 300mA and
+12V @ 35mA.

WARNING: The user must make sure that their host equipment is capable of supplying the
additional power required by this card and any other cards that may be connected at the same
time.

The modem card must only be used in a data terminal equipment (DTE) e.g., computer, that has a
screw down cover/lid. As unsafe voltages (TNV) exist on the modem card, disconnect the modem
card from the telephone line while the cover (lid) of the DTE (computer) is removed.

Installation of the modem card into a DTE (computer) which does not require a tool to open the
cover (lid) will render the permit void.

Ensure that the modem card is installed in the host in such a manner that with the exception of the
connections to the host there is a minimum of 2mm air gap between the modem card and other
components in the DTE.

Regulatory & Warranty Information 53

New Zealand
External Modems & Internal Modem Cards

The grant of a Telepermit for a device in no way indicates Telecom acceptance of responsibility for
the correct operation of that device under all operating conditions. This equipment shall not be
used in any manner which could constitute a nuisance to other Telecom customers.

Some parameters required for compliance with Telecom’s PTC specifications are dependent upon
the equipment within which this modem is installed. The equipment shall be set to operate within
the following limits for compliance with Telecom specifications.

When the user manually initiates a call via equipment to which the modem card is installed, the
equipment shall operates as follows:

Not more than five call attempts shall be made to the same number within a one hour period.
There shall be at least 60 seconds between call attempts.
Not more than a total of ten call attempts shall be made to the same number for any single manual

call initiation.
Automatic calls to different numbers shall not be less than five seconds apart.
The user must immediately disconnect this modem should it become physically damaged and

arrange for either its disposal or repair.
Only Telepermitted equipment may be connected to the telephone port.
The correct setting for use with this modem in New Zealand are:

ATB0 (CCITT operation)
AT&G2 (1800Hz guard tone)
AT&P1 (Pulse dialling make/break ratio of 33:67)
ATS0=0 (Auto-answer is disabled)
ATS11=65 (DTMF on/off duration = 65ms)
ATX2 (Dialtone detect but not USA call progress detect)

When used in auto-answer mode, the S0 register must be set to a value between 2 and 5. This
ensures that a calling party to your modem will hear at least one burst of ringing before the modem
answers, This

1. Confirms that the call has been correctly switched through the network.

2. Allows time for Caller Display information to be transmitted.
This device is NOT intended for connection in parallel with any other devices. The operation of

this equipment on the same line as telephones or equipment with audible warning devices or
automatic ring detectors may give rise to bell tinkle or other noises which may cause false tripping
of the modems ring detection circuit. The use should NOT report such occurrences as faults.

WARNING: New Zealand “Reverse dialling” standard is NOT implemented on this modem. The
preferred method of dialling is to use DTMF tones - call initiation is faster and more reliable than
pulse dialling. If for some reason you must use pulse dialling, your communications program must
be set up to record numbers using the following translation table:

Number to be dialled: 0 1 2 3 4 5 6 7 8 9

54 Hayes Modem Installation Guide

Number to program into computer:0 9 8 7 6 5 4 3 2 1
NOTE: - DTMF digits are entered and dialled in the normal manner.
This modem does not fully meet Telecom’s impedance requirements. Performance limitations

may occur when used in conjunction with some parts of the network. Telecom will accept no
responsibility for any difficulties that may arise from such situations.

The transmit level from this modem is set at a fixed level. Because of this, there may be
circumstances where the performance of this modem will be less than optimal. Before reporting
such occurrences as faults, check the line with a standard Telepermitted telephone and do NOT
report it immediately as a fault.

WARNING: It is recommended that this modem be disconnected from the telephone line during
electrical storms.

When disconnecting this equipment, always disconnect the Telecom line before removing the
power. When reconnecting, connect the power first, then the Telecom line.

NOTE: Failure to meet any of the above requirements may negate the users rights under the
Telecom terms of service.

Limited Warranty—North America

(This Limited Warranty applies to Products sold within the borders of the United States of America
and Canada.)

Who is Covered by This Warranty? This limited warranty (“Warranty”) is extended by Zoom
Telephonics, Inc. (“Zoom”) only to the original end user purchaser of the accompanying HAYES
HARDWARE PRODUCT (“Hardware”) and/or HAYES SOFTWARE PRODUCT (“Program”)
(separately and together, “Product”).

What Does This Warranty NOT Cover? Zoom does not warrant or guarantee you uninterrupted
service, the correction of any error or elimination of any “bug”. You are solely responsible for any
failure of the Product which results from accident, abuse, misapplication, alteration of the Product,
or use of the Product outside of the borders of the country or countries shown on the Product
package. Zoom assumes no liability for any events arising out of the use of any technical
information accompanying the Product. THIS WARRANTY APPLIES TO THE PRODUCT ONLY
AND DOES NOT COVER ANY OTHER SOFTWARE OR HARDWARE WHICH MAY BE
INCLUDED WITH YOUR PURCHASE OF THE PRODUCT. WITHOUT LIMITING THE
GENERALITY OF THE FOREGOING, ANY SOFTWARE OTHER THAN THE PROGRAM IS
PROVIDED “AS IS” AND WITHOUT WARRANTY OF ANY KIND. INCIDENTAL AND
CONSEQUENTIAL DAMAGES CAUSED BY MALFUNCTION, DEFAULT, OR OTHERWISE WITH
RESPECT TO BREACH OF THIS WARRANTY OR ANY OTHER EXPRESS OR IMPLIED
WARRANTY ARE NOT THE RESPONSIBILITY OF ZOOM AND ARE HEREBY EXCLUDED
BOTH FOR PROPERTY AND, TO THE EXTENT NOT UNCONSCIONABLE, FOR PERSONAL
INJURY DAMAGE. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above exclusion or limitation may not apply to you. This Warranty
gives you specific legal rights and you may also have other legal rights which vary from state to
state.

What is the Period of Coverage? The period of coverage for the enclosed Hardware and/or
Program is set forth in the Warranty Period section of this Guide. If this section indicates that
Zoom offers an Extended Protection Plan (“Plan”) for the enclosed Hardware and/or Program and
you select the Plan, the period of coverage for the Hardware and/or Program would be the total of
the original Warranty Period and the Plan period. ANY AND ALL IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE SHALL TERMINATE
AUTOMATICALLY UPON THE EXPIRATION OF THE PERIOD OF COVERAGE. Some states do

Regulatory & Warranty Information 55

not allow limitations on how long the implied warranty lasts, so the above limitation may not apply
to you.

What Will Zoom Do to Correct Problems? In the event of a malfunction attributable directly to
Defects, Zoom will, at its option, repair the Product, to whatever extent Zoom deems necessary to
restore the Product to proper working condition, or replace the Product with a new or functionally
equivalent product of equal value, or refund an amount equal to the lesser of (l) the purchase price
paid for the Product or (2) the then effective Zoom Estimated Retail Price for the Product. THE
REMEDY DESCRIBED ABOVE IS THE EXCLUSIVE REMEDY EXTENDED TO YOU BY ZOOM
FOR ANY DEFAULT, MALFUNCTION, OR FAILURE OF THE PRODUCT TO CONFORM WITH
THIS WARRANTY OR OTHERWISE FOR BREACH OF THIS WARRANTY OR ANY OTHER
WARRANTY, WHETHER EXPRESSED OR IMPLIED.

How Do You Obtain Warranty Service? To obtain warranty service, you must either call the
appropriate Customer Service number or write to Customer Service at the appropriate address.
You must return the Product, along with the return authorization number given to you by Customer
Service and proof of date of purchase, or after expiration of the Warranty period, Zoom will, at its
option, repair the Product and charge you for parts and labor or replace the Product and charge
you the then effective Estimated Retail Price for the Product, unless Zoom has discontinued the
manufacture or distribution of such products because of technical obsolescence.

North America Limited Warranty Period

Your modem includes a two (2) year limited warranty. Free extension to the limited performance
warranty is available for a total of 5 years with product registration within 90 days of purchase.

Hayes software includes a ninety (90) day limited warranty.

Limited Guarantee — English/International

(This Guarantee applies to Products sold outside of the borders of North America.)
Who is Covered by this Guarantee? This limited guarantee (“Guarantee”) is extended by Zoom

Telephonics, Inc. (“Zoom”) only to the original end user purchaser of the accompanying HAYES
HARDWARE PRODUCT (“Hardware”) and/or HAYES SOFTWARE PRODUCT (“Program”)
(separately and together, “Product”) who purchased the Product from an authorized Zoom reseller.

What Does this Guarantee NOT Cover? Zoom does not warrant or guarantee you uninterrupted
service, the correction of any error, or elimination of any “bug”. You are solely responsible for any
failure of the Product which results from accident, abuse, misapplication, or alteration of the
Product, or, if the Product is designated for use only in a specified country or countries, use of the
Product outside of the borders of the country or countries shown on the Product package. Zoom
assumes no liability for any events arising out of the use of any technical information
accompanying the Product. THIS GUARANTEE APPLIES TO THE PRODUCT ONLY AND DOES
NOT COVER ANY OTHER SOFTWARE OR HARDWARE WHICH MAY BE INCLUDED WITH
YOUR PURCHASE OF THE PRODUCT. WITHOUT LIMITING THE GENERALITY OF THE
FOREGOING, ANY SOFTWARE OTHER THAN THE PROGRAM IS PROVIDED “AS IS” AND
WITHOUT GUARANTEE OR CONDITION OF ANY KIND. Apart from the obligations, guarantees,
limitations and commitments of Zoom specifically set forth in this Guarantee, Zoom expressly
excludes and disclaims all other obligations, guarantees, liabilities, commitments, and similar
undertakings expressed or implied, statutory or otherwise, as to the condition, quality, durability
performance, merchantability and fitness for a particular use or purpose of the Product. TO THE
EXTENT PERMITTED BY LAW, INCIDENTAL AND CONSEQUENTIAL DAMAGES CAUSED BY
MALFUNCTION, DEFAULT OR OTHERWISE WITH RESPECT TO BREACH OF THIS
GUARANTEE OR ANY OTHER EXPRESS OR IMPLIED GUARANTEE, WARRANTY OR
CONDITION ARE NOT THE RESPONSIBILITY OF ZOOM AND ARE HEREBY EXCLUDED BOTH

56 Hayes Modem Installation Guide

FOR PROPERTY DAMAGES AND FOR PERSONAL INJURY DAMAGES, EXCEPT AS CAUSED
BY THE GROSS NEGLIGENCE OR FRAUD OF ZOOM.

What is the Period of Coverage? The period of coverage for the enclosed Hardware and/or
Program is set forth in the Guarantee Period section of this Guide. If this section indicates that
Zoom offers an Extended Protection Plan (“Plan”) for the enclosed Hardware and/or Program and
you select the Plan, the period of coverage for the Hardware and/or Program would be the total of
the original Guarantee Period and the Plan period. There shall be no Guarantee after the
expiration of the period of coverage.

What Will Zoom Do to Correct Problems? In the event of a malfunction attributable directly to
Defects, Zoom will, at its option, repair the Product to whatever extent Zoom deems necessary to
restore the Product to proper operating condition, or replace the Product with a new or functionally
equivalent product of equal value, or refund an amount equal to the lesser of (l) the purchase price
paid for the Product, or (2) the then effective Zoom Estimated Retail Price for the Product. THE
REMEDY DESCRIBED ABOVE IS THE EXCLUSIVE REMEDY EXTENDED TO YOU BY ZOOM
FOR ANY DEFAULT, MALFUNCTION, OR FAILURE OF THE PRODUCT TO CONFORM WITH
THIS GUARANTEE, OR OTHERWISE FOR THE BREACH OF THIS GUARANTEE OR ANY
OTHER GUARANTEE, WARRANTY OR CONDITION, WHETHER EXPRESSED OR IMPLIED.

How Do You Obtain Guarantee Service? To obtain Guarantee service, you must either call the
appropriate Customer Service number or write to Customer Service at the appropriate address
listed at the end of this section. You must return the Product, along with the return authorization
number given to you by Customer Service and proof of date of purchase, or after expiration of the
Guarantee period, Zoom will, at its option, repair the Product and charge you for parts and labor or
replace the Product and charge you the then effective Estimated Retail Price for the Product,
unless Zoom has discontinued the manufacture or distribution of such products because of
technical obsolescence.

To the extent that any of the terms and condition of the English version of this Guarantee conflict
with any of the terms and conditions of any translation thereof, the terms and conditions of the
English version will prevail.

Guarantee Period

Hayes products sold outside of the borders of the United States of America or Canada include a
two (2) year limited guarantee. An optional extended protection plan is also available in some
countries, consisting of a free extension to the limited performance guarantee for a total of 5 years
with product registration within 90 days of purchase.

Hayes software includes a ninety (90) day limited guarantee.

Customer Support and Warranty/Guarantee Service Information

To obtain Warranty/Guarantee Service, call or write to the appropriate Zoom Customer Service
location for a return authorization number, and then return the product to that location along with
(a) the return authorization number, (b) proof of date of purchase, and (c) your mailing address and
telephone number, postage prepaid.

Please note that if the product is returned without proof of purchase or after the expiration of the
warranty/guarantee coverage period, Zoom will, at its option, repair or replace the product and
charge you the then effective Zoom price for out of warranty/guarantee service of the product,
unless Zoom has discontinued the manufacture or distribution of the product because of technical
obsolescence.

Información sobre el Servicio de Garantía

Regulatory & Warranty Information 57

Para obtener el Servicio de Garantía, llame o escriba a la sucursal de Servico al Usuario en Zoom
para que le devuelvan un número de autorización y después devuelva el producto al mismo punto
junto con (a) la devolución del número de autorización, (b) el comprobante de la fecha de compra
y (c) el número de teléfono y la dirección a la que debe remitirse, porte pagado. Tenga en cuenta
que si se devuelve el producto sin el comprobante de compra o una vez haya expirado el período
cubierto por la garantía, Zoom podrá reparar o cambiar el producto y cobrarle el precio regular
para el servicio fuera de garantía del producto, a menos que Zoom no haya suspendido la
fabricación o distribución del producto debido a la caída en desuso del mismo.

Informations service garantie

Pour obtenir un service de garantie, appelez ou écrivez au Point de service client Zoom approprié
pour recevoir un numéro d’autorisation de renvoi, puis renvoyez le produit à ce même endroit avec
a) le numéro d’autorisation de renvoi, b) une preuve de la date d’achat et c) votre adresse postale
et votre numéro de téléphone, par lettre affranchie. Veuillez noter que si le produit nous est
renvoyé sans preuve d’achat ou après la date d’expiration de la période de garantie, Zoom pourra
à sa discretion réparer ou remplacer le produit puis vous facturer le prix alors en vigueur chez
Zoom pour l’entretien du produit hors-garantie, à moins que Zoom n’ait cessé la fabrication ou la
distribution du produit en raison de son obsolescence technique.

Hinweis zum Garantieservice

Bevor das Garantieservice in Inanspruch genommen werden kann, muß zuerst telefonisch oder
schriftlich eine Berechtigungsnummer von der unten genannten Zoom-Kundendienststelle
angefordert werden. Das fehlerhafte Produkt ist dann samt (a) Berechtigungsnummer, (b)
datiertem Kaufnachweis und (c) Ihrer Postanschrift, einschließlich Telefonnummer, sowie
Rückporto an die untenstehende Adresse einzusenden. Bei Einsendung ohne Beleg des
Kaufdatums oder Ablauf der Garantiezeit wird Zoom das Produkt nach eigenem Ermessen
entweder reparieren oder ersetzen und die üblichen Kosten für nicht unter die Garantie fallende
Serviceleistungen in Rechnung stellen, sofern Fertigung oder Vertrieb des Produkts wegen
technischer Überalterung nicht eingestellt wurde.

Informazioni per l’Assistenza in Garanzia

Per ottenere l’Assistenza in Garanzia, chiamate o scrivete all’appropriata sede di Assistenza
Clienti Zoom che fornirà un numero di autorizzazione alla restituzione, e successivamente spedite
il prodotto alla suddetta sede indicando: (a) numero di autorizzazione alla restituzione, (b) prova
della data di acquisto e (c) il vostro indirizzo postale e numero di telefono, tramite posta
prepagata.Si noti che se il prodotto viene restituito senza prova di acquisto o dopo la scadenza del
periodo di copertura dalla garanzia, Zoom, a propria scelta, riparerà o sostituirà il prodotto e vi
addebiterà il prezzo effettivo per la manutenzione fuori garanzia del prodotto, a meno che la
fabbricazione o la distribuzione del prodotto stesso non sia stata cessata da Zoom a causa di
obsolescenza tecnica.

58 Hayes Modem Installation Guide

Statement of Copyright Restriction

The program that you have purchased is copyrighted and your rights of ownership and use are
subject to the limitations and restrictions imposed by the copyright laws and international treaty
provisions outlined below.

It is against the law to copy, reproduce or transmit (including without limitation, electronic
transmission over any network) any part of the program except as provided by the Copyright Act of
the United States (Title 17, United States Code) (the "Laws"). However, you are permitted by Zoom
to write the contents of the program into the machine memory of your computer so that the
program may be executed by a single user. You are also permitted by Zoom to make a back-up
copy of the program subject to the following restrictions:

(1) Each back-up copy must be treated in the same way as the original copy purchased from
Zoom;

(2) If you ever sell or give away the original copy of the program, all back-up copies must also be
sold or given to the same person, or destroyed; and

(3) No copy (original or back-up) may be used while any other copy (original or back-up) is in use.
If you make a back-up copy of the program, you should place the copyright notice that is on the

original copy of the program on every back-up copy of the program. If you ever make any
modification to the program, no copy of the modified version of the program may be transferred
under any circumstances without the written permission of Zoom (See Section 117 of the Copyright
Act).

The above is not an inclusive statement of the restrictions imposed on you under the Laws. For a
complete statement of the restrictions imposed on you under the Laws, see Title 17, United States
Code. If you are in any doubt as to whether your proposed use of the program is prohibited, you
should seek appropriate professional advice.

Certain programs sold by Zoom are copy-protected (in addition to copyright protected) - that is, the
diskette on which the program is recorded is physically designed so that the program cannot be
copied or reproduced. If the program you have purchased is copy protected and a back-up copy of
the program has been provided to you by Zoom, your rights in the back-up copy are also subject to
the restrictions under the Laws referred to above.

1269-B 27755 ©1999
