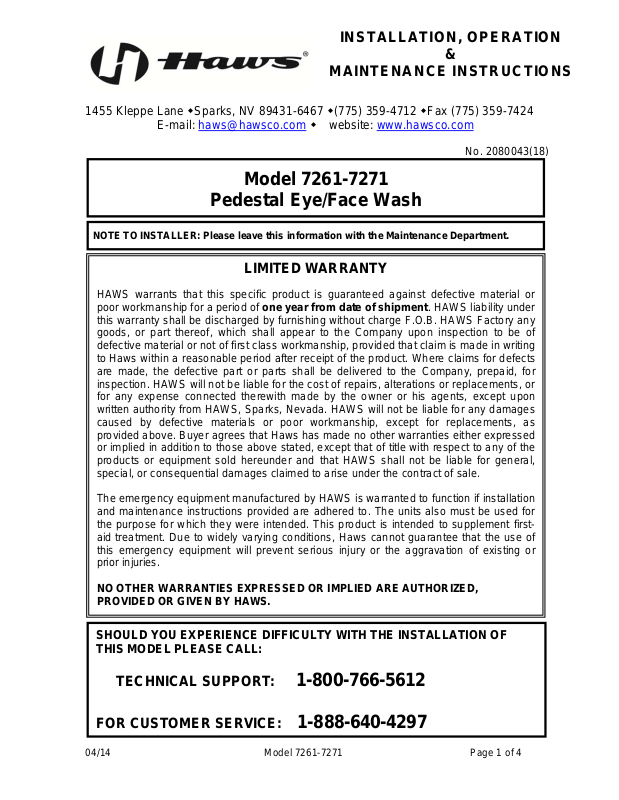

Page 1
)
)
INSTALLATION, OPERATION
&
NO. OOO2076521 (0
MAINTENANCE INSTRUCTIONS
1455 Kleppe Lane Sparks, NV 89431-6467 (775) 359-4712 Fax (775) 359-7424
E-mail: [email protected]
NOTE TO INSTALLER: Please leave this information with the Maintenance Department.
HAWS warrants that this specific product is guaranteed against defective material or
poor workmanship for a period of one year from date of shipment. HAWS liability under
this warranty shall be discharged by furnishing without charge F.O.B. HAWS Factory any
goods, or part thereof, which shall appear to the Company upon inspection to be of
defective material or not of first class workmanship, provided that claim is made in writing
to Haws within a reasonable period after receipt of the product. Where claims for defects
are made, the defective part or parts shall be delivered to the Company, prepaid, for
inspection. HAWS will not be liable for the cost of repairs, alterations or replacements, or
for any expense connected therewith made by the owner or his agents, except upon
written authority from HAWS, Sparks, Nevada. HAWS will not be liable for any damages
caused by defective materials or poor workmanship, except for replacements, as
provided above. Buyer agrees that Haws has made no other warranties either expressed
or implied in addition to those above stated, except that of title with respect to any of the
products or equipment sold hereunder and that HAWS shall not be liable for general,
special, or consequential damages claimed to arise under the contract of sale.
The emergency equipment manufactured by HAWS is warranted to function if installation
and maintenance instructions provided are adhered to. The units also must be used for
the purpose for which they were intended. This product is intended to supplement firstaid treatment. Due to widely varying conditions, Haws cannot guarantee that the use of
this emergency equipment will prevent serious injury or the aggravation of existing or
prior injuries.
NO OTHER WARRANTIES EXPRESSED OR IMPLIED ARE AUTHORIZED,
PROVIDED OR GIVEN BY HAWS.
SHOULD YOU EXPERIENCE DIFFICULTY WITH THE INSTALLATION OF
THIS MODEL PLEASE CALL:
Pedestal Eye/Face Wash
Model 7261-7271
LIMITED WARRANTY
TECHNICAL SUPPORT: 1-800-766-5612
website: www.hawsco.com
No. 2080043(18
FOR CUSTOMER SERVICE: 1-888-640-4297
04/14 Model 7261-7271 Page 1 of 4
Page 2
LOCATION OF UNIT: The Model 7261/7271Eyewash unit should be installed in
close proximity to potential accident areas. It should be clearly identified, free from
obstructions and easy to access.
SUPPLY LINE: The minimum recommended line size is 1/2” IPS with 30-90 psi
(2-6 ATM) flowing pressure. Where sediment or mineral content is a problem, an
inlet filter is recommended.
PLUMBING CONNECTIONS: Inlet supply is female 1/2” IPS. Waste outlet is
1-1/4” IPS.
TROUBLESHOOTING
PROBLEM
1. No flow. 1. Check the main shut-off valve.
2. Insufficient water flow. 2. a. Verify minimum 30psi flowing supply
b. Probable clogging of flow control
c. Remove cap located on L – Strainer
3. Eyewash or face/wash streams
do not meet desired level or are
not balanced.
3. Possible blocked flow control, see
REPAIR CHECKLIST
line pressure.
due to inadequate line flushing.
Unscrew eye/face wash head and
remove the four screws to
disassemble the head. Clean the
flow control and reassemble head.
See SP65 Installation Drawing for
details.
using a 3/8” allen wrench to access
and clean filter screen.
above solution. Possible nonleveled eyewash assembly.
4. Water does not drain properly. 4. Check the main waste line of your
building to see if it does handle the
capacity required for the entire
drainage system.
For more information on Haws products, see our website: www.hawsco.com
© 2014 Haws® Corporation – All Rights Reserved
HAWS
04/14 Model 7261-7271 Page 2 of 4
®
and other trademarks used in these materials are the exclusive property of Haws Corporation.
Page 3
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLI CATION. CONT INUED PRODUCT I MPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WIT HOU T NOTICE.

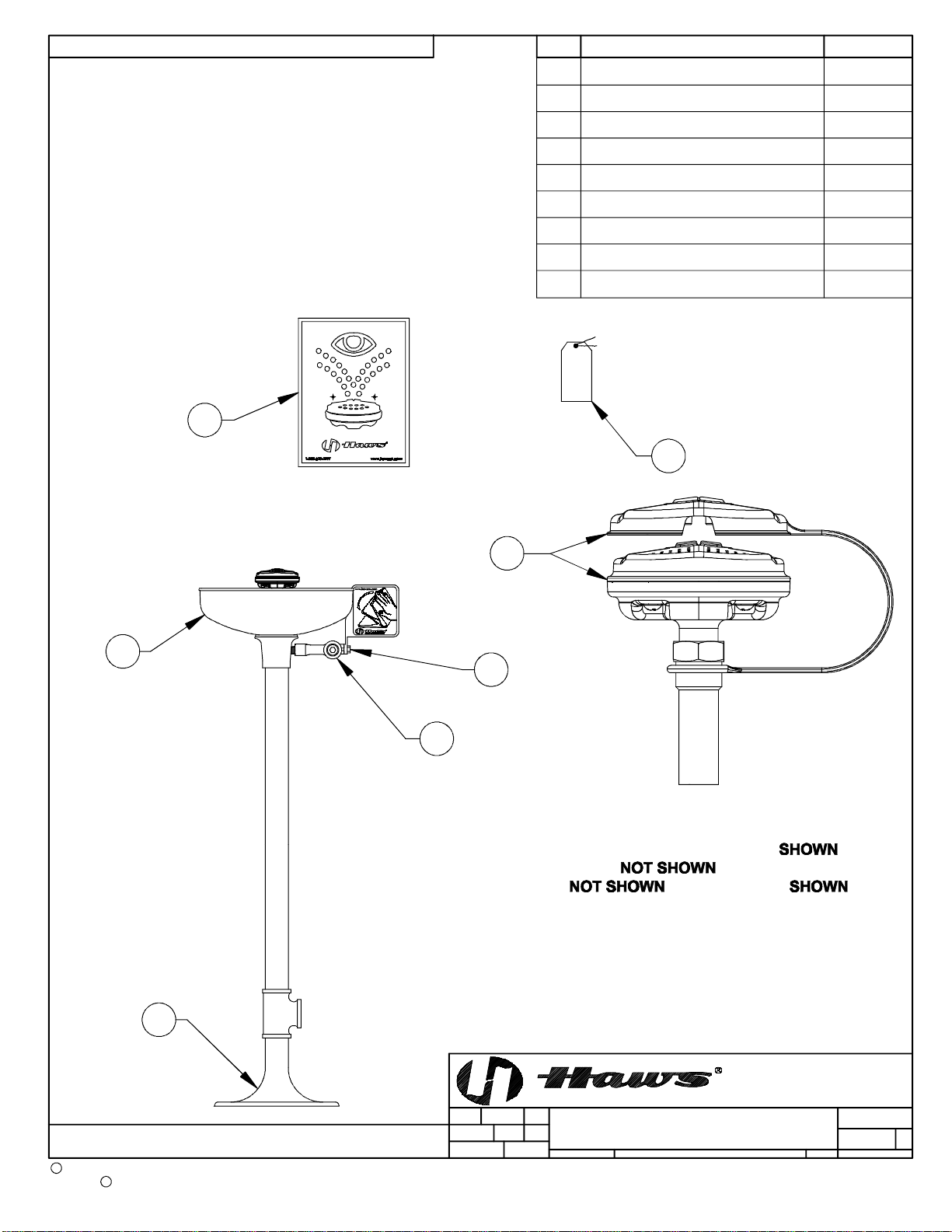

PARTS BREAKDOWN
OPTIONAL
ITEM DESCRIPTION
EYE/FACE WASH ASSY
1
2
FOOT TREADLE (NOT SHOWN)
FLOOR FLANGE
3
VALVE ASSEMBLY
4
BOWL
5
EYEWASH SIGN
6
TEST TAG
7
8
L-STRAINER
PART NO.
SP65
SP220
SP75
SP229
SP93
SP175
SP170
SP509
--
VRKEWSTR STR. REPAIR KIT
--
6
7
1
5
4
8
SP65 EYE/FACE WASH ASSEMBLY
(INCLUDES: EYE/FACE WASH HEAD ( )
EYEWASH H EAD (
CONTROL (
), DUST COVER ( ))
3
BYECN NO.
REVISED PER
ECN:
4910
DATE
DRAWN
CLF
WHEN ORDERING PARTS PLEASE SPECIFY MODEL NUMBER.
C
2014
Haws Corporation - All Rights Reserved
HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
R
APPROVED
02/23/93
DATE
HM
CHKD
MODEL(S)
1:1
SCALE:
7261-7271
DRAWING TYPE: SIZE: A
), EYEWASH FLOW
PARTS BREAKDOWN
1455 KLEPPE LANE
SPARKS, NEVADA 89431
(775) 359-4712 FAX (755) 359-7424
E-MAI L : H AWS@HAWSCO. C O M
WEBSITE: WWW.HAWSCO.C OM
PAGE
PART NUMBER
0002080043
DRAWING NO.
11447C00 18
SHEET OF
11
3 of 4
REV
Page 4
C
Haws Corporation - All Righ ts Reserved.
2014
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
AND ACCEPT ABLE PLUM BING PRACTICES.
- UNIT SHALL BE INSTALLED IN ACCORDANCE WITH MANUFACTURER'S INSTRUCTIONS
1. TO COMPLY WITH ANSI Z358.1 -2009 FOR EMERGENC Y EYEWASH AND EYE/FAC E W ASH:
NOTES:

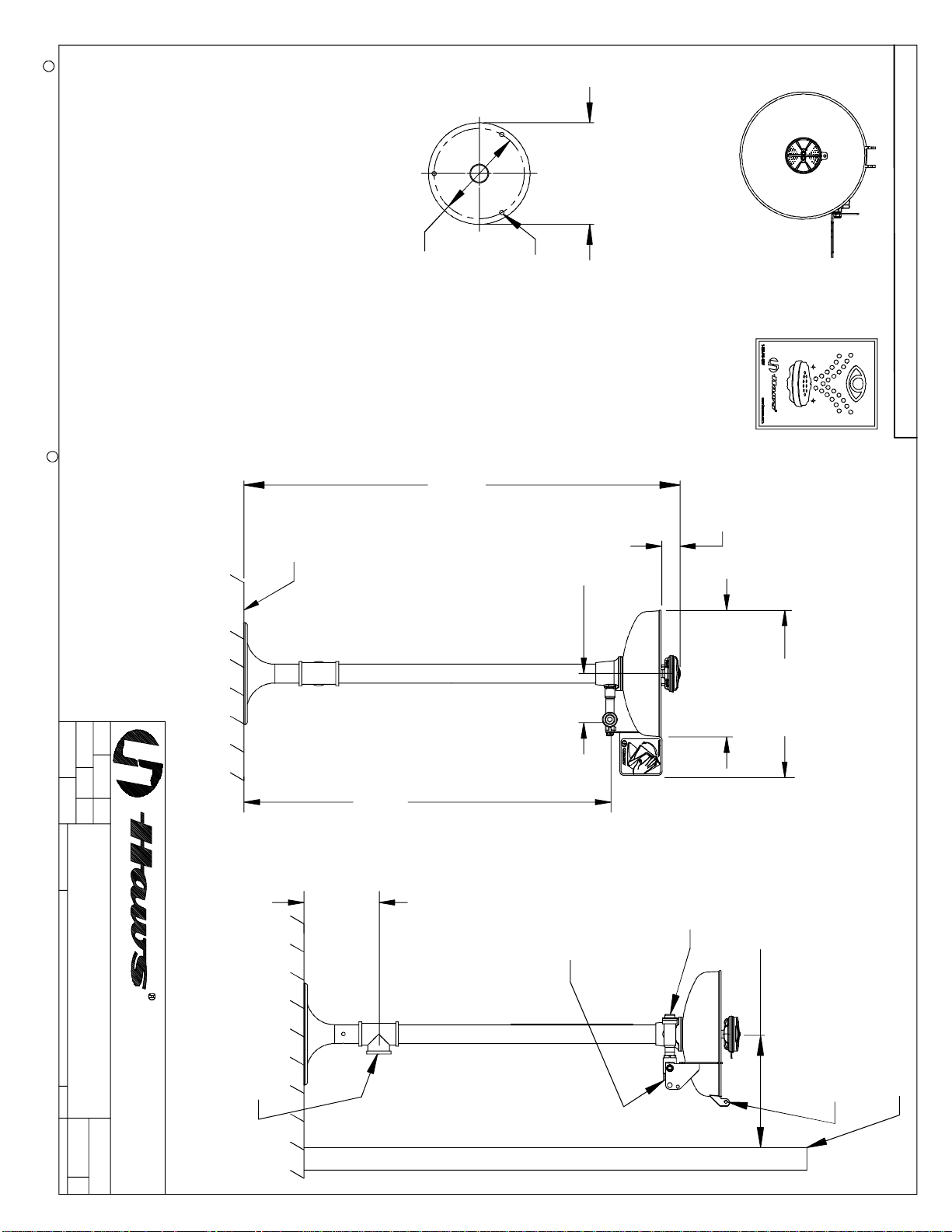

MOUNTING DE TA IL
TOP VIEW
2. *THESE DIMENSIONS MAY VARY
± 1/2" [12.7mm]
- EYEWAS H OR EYE/FACE WASH SHA LL BE POSITIONED WITH NOZZLES NOT LESS T HAN
83.8 CM (33 IN.) AND NO GR EATER THAN 114.3 CM (45 IN.) FROM SURFACE ON WHICH
USER STANDS AND 15.3 CM (6 IN.) MINIMUM FROM WALL OR NEAREST OBSTRUCTION.
Ø229mm
Ø 9"
Ø 203mm
Ø 8"
Ø 10mm
3X
Ø 3/8"
B.C.
HAWS and ot her trade m ar ks used in these materials are the exclusive prope rty of Haws Corporati on.
SIGN IS TO BE POSITIO NED SUCH
THAT IT IS VISIBLE WITHIN THE
AREA SERV ED BY THE EYE W ASH
R
965mm
*38"
32mm
1-1/4"
FLOOR
LINE
105mm
4-1/8"
Ø 286mm
Ø 11-1/4"
381mm
15"
APPROVED:
DRAWN:
CJL
REVISED PER
ECN:
DATE:
04/92
4910
DATE:
BY:ECN NO.
CHK'D.:
HM
SCALE:
MODEL(S)
1:1
DRAWING TYPE: SIZE: A
7261-7271
INSTALLATION
0002080043.D
PART NUMBER
DRAWING NO.
SHEET OF
09398A00 18
11
822mm
*32-3/8"
STRAINER
171mm
*6-3/4"
SUPPLY
1/2" IPS
152mm
6" MIN.
FOR OPTIONAL
DUST COVER
OBSTRUCTION
BRACKET
1-1/4" IPS
(775) 359-4712 FAX (755) 359-7424
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
SPARKS, NEVADA 89431
1455 KLEPPE LANE
WASTE
REV
PAGE
4 of 4
