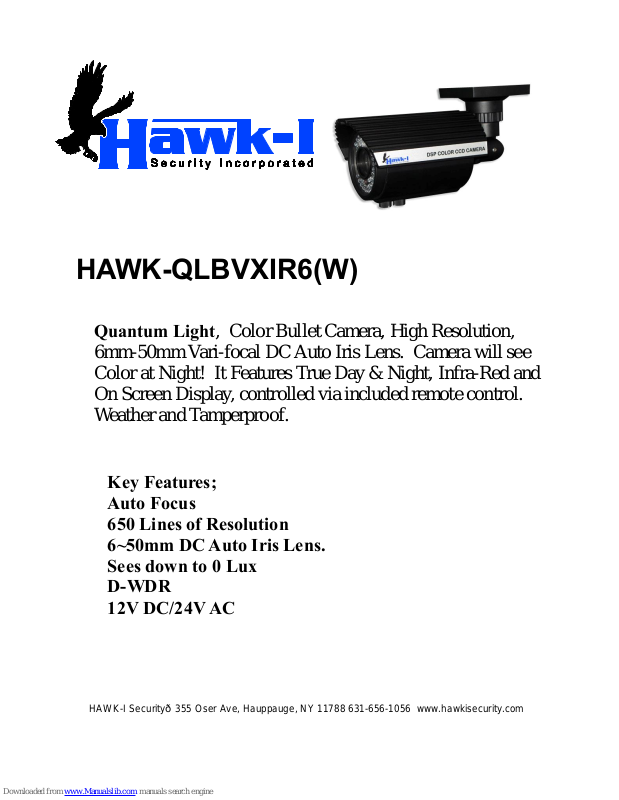

Page 1
HAWK-QLBVXIR6(W)
Quantum Light, Color Bullet Camera, High Resolution,
6mm-50mm Vari-focal DC Auto Iris Lens. Camera will see
Color at Night! It Features True Day & Night, Infra-Red and
On Screen Display, controlled via included remote control.
Weather and Tamperproof.
Key Features;
Auto Focus
650 Lines of Resolution
6~50mm DC Auto Iris Lens.
Sees down to 0 Lux
D-WDR
12V DC/24V AC
HAWK-I Security—355 Oser Ave, Hauppauge, NY 11788 631-656-1056 www.hawkisecurity.com
Page 2
HAWK-QLBVXIR6(W)
Image Sensor 1/3” Sony High Resolution Superhad CCD
Resolution 650 TV Lines, Super High Resolution
Picture Elements 768H x 494V
Synchronizing System Internal
Video Output 1.0 Vp-p Composite 75 ohms
Minimum Illumination .06—.0 Lux (Sensitivity up)
Infrared Max. Distance 150’
Power Supply 12V DC/24V AC
Iris Lens 2.8-11mm Auto-Iris
S/N Ratio ≥50db
OSD Controllable Functions;
Shutter 1/60,1/120,1/250,1/500,1/2000,1/5,000,1/10,000
1/100,000
White Balance ATW/AWB/Manual
Back Light On/Off
Gain Control Off/Low/Medium/High
Mirror On/Off
Motion On/Off
D-WDR On/Off
D-Zoom up to 10X
Gamma 0.45
Current Consumption 800mA
Dimensions 4.25”(w) x 9.5”(l)
Operation Temperture -4˚ ~ 140˚F
Weight 2.8 lbs
HAWK-I Security—355 Oser Ave, Hauppauge, NY 11788, 631-656-1056 www.hawkisecurity.com
