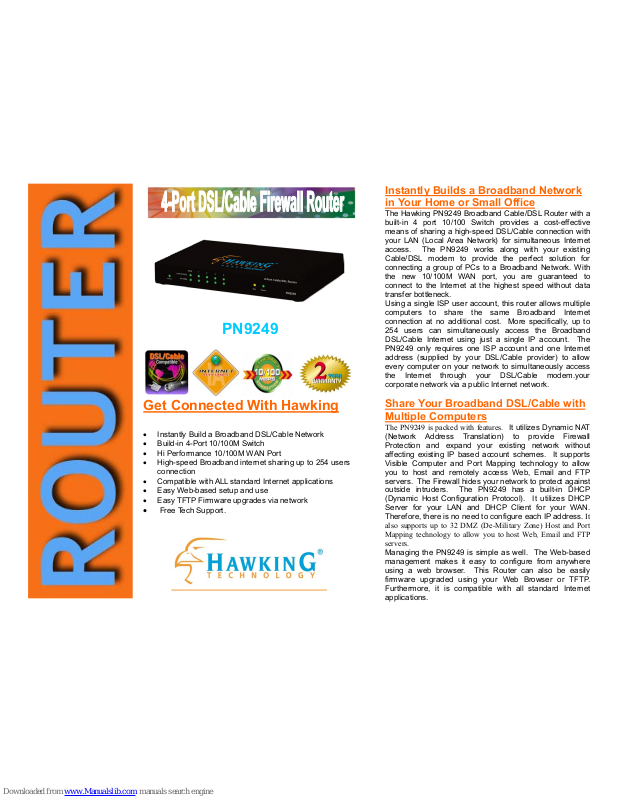

Hawking PN9249 Specifications

PN9249

Get Connected With Hawking

• Instantly Build a Broadband DSL/Cable Network

• Build-in 4-Port 10/100M Switch

• Hi Performance 10/100M WAN Port

• High-speed Broadband internet sharing up to 254 users

connection

• Compatible with ALL standard Internet applications

• Easy Web-based setup and use

• Easy TFTP Firmware upgrades via network

• Free Tech Support.

Instantly Builds a Broadband Network
in Your Home or Small Office

The Hawking PN9249 Broadband Cable/DSL Router with a
built-in 4 port 10/100 Switch provides a cost-effective
means of sharing a high-speed DSL/Cable connection with
your LAN (Local Area Network) for simultaneous Internet
access. The PN9249 works along with your existing
Cable/DSL modem to provide the perfect solution for
connecting a group of PCs to a Broadband Network. With
the new 10/100M WAN port, you are guaranteed to
connect to the Internet at the highest speed without data
transfer bottleneck.
Using a single ISP user account, this router allows multiple
computers to share the same Broadband Internet
connection at no additional cost. More specifically, up to
254 users can simultaneously access the Broadband
DSL/Cable Internet using just a single IP account. The
PN9249 only requires one ISP account and one Internet
address (supplied by your DSL/Cable provider) to allow
every computer on your network to simultaneously access
the Internet through your DSL/Cable modem.your
corporate network via a public Internet network.

Share Your Broadband DSL/Cable with
Multiple Computers

The PN9249 is packed with features. It utilizes Dynamic NAT
(Network Address Translation) to provide Firewall
Protection and expand your existing network without
affecting existing IP based account schemes. It supports
Visible Computer and Port Mapping technology to allow
you to host and remotely access Web, Email and FTP
servers. The Firewall hides your network to protect against
outside intruders. The PN9249 has a built-in DHCP
(Dynamic Host Configuration Protocol). It utilizes DHCP
Server for your LAN and DHCP Client for your WAN.
Therefore, there is no need to configure each IP address. It

also supports up to 32 DMZ (De-Military Zone) Host and Port
Mapping technology to allow you to host Web, Email and FTP
servers.

Managing the PN9249 is simple as well. The Web-based
management makes it easy to configure from anywhere
using a web browser. This Router can also be easily
firmware upgraded using your Web Browser or TFTP.
Furthermore, it is compatible with all standard Internet
applications.

Package Contents:

• One 4-Port Cable/DSL Router

• One AC power adapter

• Once Setup CD

• Easy to follows owner's manual

Systems Requirement:

Network Software Requirements

• Windows 95/98/NT/2000/ME/XP or

• Any TCP/IP-enabled system such as Mac OS or

UNIX

Network Hardware Requirements

• IEEE 802.3 10Base-T or

• IEEE 802.3u 100Base-TX

DSL/Cable Modem Requirements

• DSL modem with RJ-45 (10Base-T) or
Cable modem with RJ 45 (10Base-T)

Ready, Network & Go!

It’s easy to setup, it’s easy to use, and everyone can
use it. Plugs in and installs in minutes.

Steps 1 – Connect modem

Connect DSL/Cable Modem 10Base-T’s Port to the
Router’s WAN port.

Step 2 – Configure LAN

Connect the Router’s LAN port to your computers,
10/100 Hub or Switch.

Step 3 – Configure it

Run Windows-based Setup program or Web Browser
to set Router’s IP Address and DNS Address. IP &
DNS address provided by your ISP.

Hawking Technologies, INC.

6A Faraday, Irvine, California, USA
Sales: [phone], [phone]

Fax: [phone]
Email: [e-mail]
Tech Support: [phone]
Email: [e-mail]
Web Site: www.hawkingtech.com

Network Diagram:

Specification:

WAN Interface: One IEEE 802.3 10/100M RJ45 Port
LAN Interface: Four Auto-sensing 10/100M RJ45 Ports
LEDs: L

AN, WAN and Link/Activity

Dimensions

6.9" L x 4.33" W x 1.1" H
(175 L x 110 W x 27 H mm)

Weight:

8 oz

Power: External 7V, 1A
Certification

FCC Class A, CE Mark
UL and CSA listed

Operation Temp.

32°F to 122°F (0 °C to 50 °C)

Storage Temp.

-4°F to 158°F (-20°C to 70°C)

Operation Hum

.

10% to 85% non-condensing

Storage Hum.

5% to 90% non-condensing

Features

Switch

Ethernet Standards

IEEE 802.2 10BaseT, IEEE 802.3u
100BaseTX

Number of Ports 4 RJ45s, 10/100Mbps MWAY

Switching Method Store and Forward

MAC Address Cache

1024 Media Access Control (MAC)
addresses

WAN

Broadband Connection High-speed DSL or Cable connection

Network Interface 10/100Mbps, UTP (RJ-45)

Cable connections Host Name & Mac Address Clone

DSL Connection Types Always-On & PPPoE DSL

connections

PPPoE DSL Connection Dial-on-Demand & Auto-

disconnection

PPPoE DSL Diagnostics Yes

PPPoE Keep Alive Yes

PPPoE Configurable MTU Yes

PPPoE Echo Time Setting Yes

DHCP (client) Support Yes

Multimedia Streaming
Protocol Support

RTSP (Real Player, QuickTime, IP/TV
Video on Demand, NetMeeting, etc.)

Security/Firewall NAT Firewall

LAN

Protocol Support TCP/IP, NAT

Network Operating
System Support

Windows 95/98/98SE/ME/XP,
Windows NT/2000, Mac OS,
UNIX

Built-in DHCP Server Yes (User-definable IP Ranges &

Fixed IP Table)

TCP/UDP Port Mapping Ye s

Multi-DMZ Host Yes, 32

Static Routing Table Yes

Internet Access Monitor Ye s

Multiple User Internet
Game Pass Through

Yes

URL Content Filtering Yes

VPN Support Yes (PPTP, L2TP & IPSec Pass-

through)

MAC Address Clone Yes

NetMeeting Support Yes

Remote Management Yes (Enable/Disable, from WAN

side)

Tools Ping (on the router)

Management

Management Web browser & Tel net

Firmware Upgrade TFTP

System Log Yes

Reset/Load Default
button

Yes

Ordering Information:

PN9249 4-Port DSL/Cable Router
PN9239 4-Port DSL/Cable Firewall Router
WR254S – Wireless 4-Port DSL/Cable Firewall
Wireless Router
