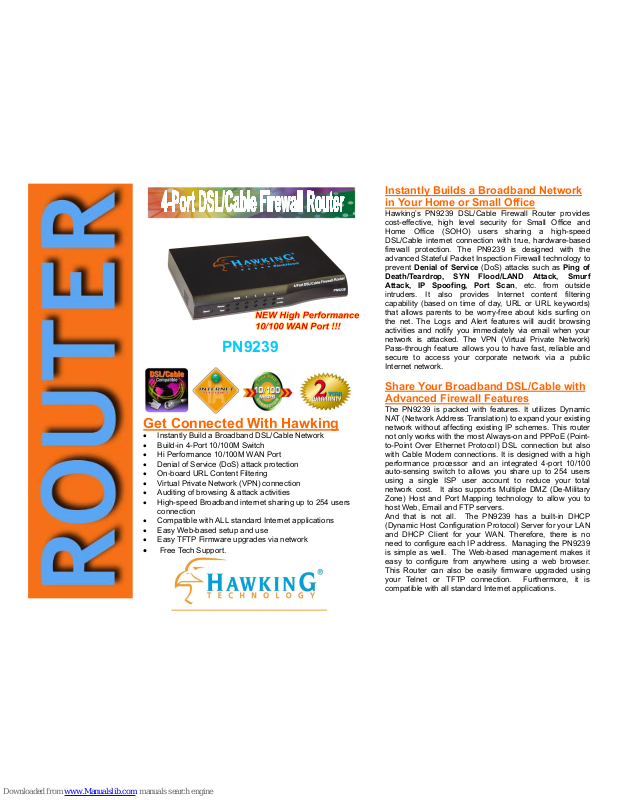

Hawking PN9239 Specifications

PN9239

Get Connected With Hawking

• Instantly Build a Broadband DSL/Cable Network

• Build-in 4-Port 10/100M Switch

• Hi Performance 10/100M WAN Port

• Denial of Service (DoS) attack protection

• On-board URL Content Filtering

• Virtual Private Network (VPN) connection

• Auditing of browsing & attack activities

• High-speed Broadband internet sharing up to 254 users

connection

• Compatible with ALL standard Internet applications

• Easy Web-based setup and use

• Easy TFTP Firmware upgrades via network

•

Free Tech Support.

Instantly Builds a Broadband Network
in Your Home or Small Office

Hawking’s PN9239 DSL/Cable Firewall Router provides
cost-effective, high level security for Small Office and
Home Office (SOHO) users sharing a high-speed
DSL/Cable internet connection with true, hardware-based
firewall protection. The PN9239 is designed with the
advanced Stateful Packet Inspection Firewall technology to
prevent Denial of Service (DoS) attacks such as Ping of

Death/Teardrop, SYN Flood/LAND Attack, Smurf
Attack, IP Spoofing, Port Scan, etc. from outside

intruders. It also provides Internet content filtering
capability (based on time of day, URL or URL keywords)
that allows parents to be worry-free about kids surfing on
the net. The Logs and Alert features will audit browsing
activities and notify you immediately via email when your
network is attacked. The VPN (Virtual Private Network)
Pass-through feature allows you to have fast, reliable and
secure to access your corporate network via a public
Internet network.

Share Your Broadband DSL/Cable with
Advanced Firewall Features

The PN9239 is packed with features. It utilizes Dynamic
NAT (Network Address Translation) to expand your existing
network without affecting existing IP schemes. This router
not only works with the most Always-on and PPPoE (Point­to-Point Over Ethernet Protocol) DSL connection but also
with Cable Modem connections. It is designed with a high
performance processor and an integrated 4-port 10/100
auto-sensing switch to allows you share up to 254 users
using a single ISP user account to reduce your total
network cost. It also supports Multiple DMZ (De-Military
Zone) Host and Port Mapping technology to allow you to
host Web, Email and FTP servers.
And that is not all. The PN9239 has a built-in DHCP
(Dynamic Host Configuration Protocol) Server for your LAN
and DHCP Client for your WAN. Therefore, there is no
need to configure each IP address. Managing the PN9239
is simple as well. The Web-based management makes it
easy to configure from anywhere using a web browser.
This Router can also be easily firmware upgraded using
your Telnet or TFTP connection. Furthermore, it is
compatible with all standard Internet applications.

Package Contents:

• One 4-Port DSL/Cable Firewall Router

• One AC power adapter

• One Setup CD

• Easy to follows owner's manual

Systems Requirement:

Network Software Requirements

• Windows 95/98/NT/2000/ME/XP or

• Any TCP/IP-enabled system such as Mac OS or

UNIX

Network Hardware Requirements

• IEEE 802.3 10Base-T or

• IEEE 802.3u 100Base-TX

DSL/Cable Modem Requirements

• DSL modem with RJ-45 (10Base-T) or
Cable modem with RJ 45 (10Base-T)

Ready, Network & Go!

It’s easy to setup, it’s easy to use, and everyone can
use it. Plugs in and installs in minutes.

Steps 1 – Connect modem

Connect DSL/Cable Modem 10Base-T’s Port to the
Router’s WAN port.

Step 2 – Configure LAN

Connect the Router’s LAN port to your computers,
10/100 Hub or Switch.

Step 3 – Configure it

Run Windows-based Setup program or Web Browser
to set Router’s IP Address and DNS Address. IP &
DNS address provided by your ISP.

Hawking Technologies, INC.

6A Faraday, Irvine, California, USA
Sales: [phone], [phone]

Fax: [phone]
Email: [e-mail]
Tech Support: [phone]
Email: [e-mail]
Web Site: www.hawkingtech.com

Network Diagram:

Specification:

WAN Interface:

One IEEE 802.3 10/100M RJ45 Port

LAN Interface:

Four Auto-sensing 10/100M RJ45 Ports

LEDs: L

AN, WAN and Link/Activity

Dimensions

6.88" L x 4.33" W x 0.98" H
(175 L x 110 W x 25 H mm)

Weight:

8 oz

Power:

External 7V, 1A

Certification

FCC Class A, CE Mark
UL and CSA listed

Operation Temp.

32°F to 122°F (0 °C to 50 °C)

Storage Temp.

-4°F to 158°F (-20°C to 70°C)

Operation Hum

.

10% to 85% non-condensing

Storage Hum.

5% to 90% non-condensing

Features

Switch

Ethernet Standards

IEEE 802.2 10BaseT, IEEE 802.3u
100BaseTX

Number of Ports 4 RJ45s, 10/100Mbps MWAY

Switching Method Store and Forward

MAC Address Cache

1024 Media Access Control (MAC)
addresses

WAN

Broadband Connection High-speed DSL or Cable connection

Network Interface 10/100Mbps, UTP (RJ-45)

Cable connections Host Name & Mac Address Clone

DSL Connection Types Always-On & PPPoE DSL

connections

PPPoE DSL Connection Dial-on-Demand & Auto-

disconnection

PPPoE DSL Diagnostics Yes

DHCP (client) Support Yes

Multimedia Streaming
Protocol Support

RTSP (Real Player, QuickTime, IP/TV
Video on Demand, NetMeeting, etc.)

Firewall Technology

Stateful Packet Inspection (SPI)

Intrusion Detection (Denial

of Service

Protection)

Yes (SYN Flood/LAND, Ping of
Death/Teardrop, IP Spoofing, Smurf
Attack, WinNuke, Port Scan)

LAN

Protocol Support TCP/IP, NAT

Network Operating
System Support

Windows 95/98/98SE/ME,
Windows NT/2000, Mac OS,
UNIX

Built-in DHCP Server Yes (User-definable IP Ranges &

Fixed IP Table)

TCP/UDP Port Mapping Yes

Multi-DMZ Host Yes (8, Multi-NAT/Many-to-Many)

Static Routing Table Yes

Network Access Rules Yes (logs when any rule is

violated)

Internet Access Monitor Ye s

Log & Alerts Yes (Log & E-mail alerts for

intrusions)

URL Content Filtering Yes

RIP I & RIP II Support Yes

VPN Support Yes (PPTP & IPSec Pass-

through)

NetMeeting Support Yes

Remote Management Yes (Enable/Disable, from WAN

side)

Tools Ping (on the router)

Management

Management Web browser & Telnet

Firmware Upgrade TFTP

Reset/Load Default
button

Yes

Ordering Information:

PN9235 4-Port DSL/Cable Router
PN9230 1-Port DSL/Cable VPN Router
PN9239 4-Port DSL/Cable Firewall Router
WR254S – Wireless 4-Port DSL/Cable Firewall
Wireless Router
PN8228 2-Port Analog Modem Router
