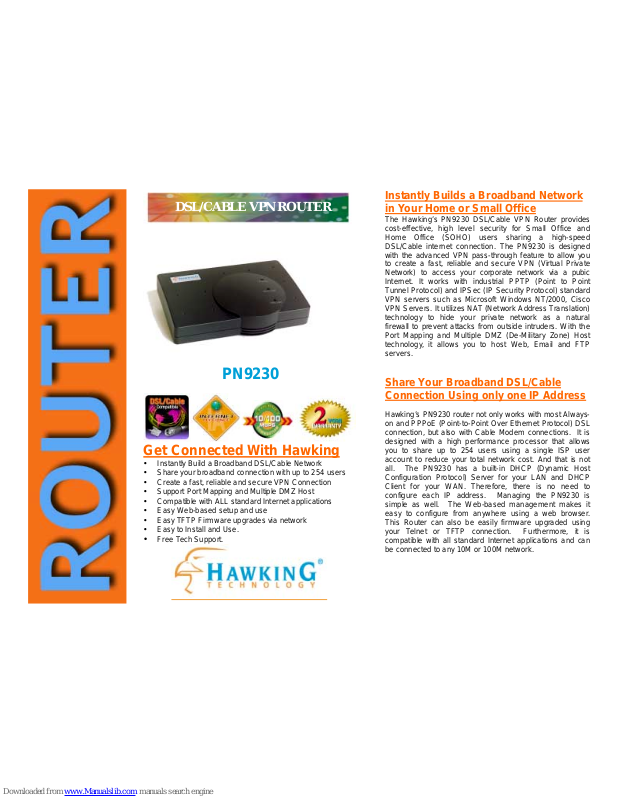

Hawking PN9230 Specifications

PN9230

Get Connected With Hawking

• Instantly Build a Broadband DSL/Cable Network

• Share your broadband connection with up to 254 users

• Create a fast, reliable and secure VPN Connection

• Support Port Mapping and Multiple DMZ Host

• Compatible with ALL standard Internet applications

• Easy Web-based setup and use

• Easy TFTP Firmware upgrades via network

• Easy to Install and Use.

•

Free Tech Support.

Instantly Builds a Broadband Network
in Your Home or Small Office

The Hawking’s PN9230 DSL/Cable VPN Router provides
cost-effective, high level security for Small Office and
Home Office (SOHO) users sharing a high-speed
DSL/Cable internet connection. The PN9230 is designed
with the advanced VPN pass-through feature to allow you
to create a fast, reliable and secure VPN (Virtual Private
Network) to access your corporate network via a pubic
Internet. It works with industrial PPTP (Point to Point
Tunnel Protocol) and IPSec (IP Security Protocol) standard
VPN servers such as Mic rosoft Windows NT/2000, Cisco
VPN Servers. It utilizes NAT (Network Address Translation)
technology to hide your private network as a natural
firewall to prevent attacks from outside intruders. With the
Port Mapping and Multiple DMZ (De-Military Zone) Host
technology, it allows you to host Web, Email and FTP
servers.

Share Your Broadband DSL/Cable
Connection Using only one IP Address

Hawking’s PN9230 router not only works with most Always­on and PPPoE (Point-to-Point Over Ethernet Protocol) DSL
connection, but also with Cable Modem connections. It is
designed with a high performance processor that allows
you to share up to 254 users using a single ISP user
account to reduce your total network cos t. And that is not
all. The PN9230 has a built-in DHCP (Dynamic Host
Configuration Protocol) Server for your LAN and DHCP
Client for your WAN. Therefore, there is no need to
configure each IP address. Managing the PN9230 is
simple as well. The Web-based management makes it
easy to configure from anywhere using a web browser.
This Router can also be easily firmware upgraded using
your Telnet or TFTP connection. Furthermore, it is
compatible with all standard Internet applications and c an
be connected to any 10M or 100M network.

DSL/CABLE VPN ROUTER

Package Contents

:

• One DSL/Cable VPN Router

• One AC power adapter

• Easy to follows owner's manual

Systems Requirement:

Network Software Requirements

• Windows 95/98/NT/2000 or

• Any TCP/IP-enabled system such as Mac OS or

UNIX

Network Hardware Requirements

• IEEE 802.3 10Base-T or

• IEEE 802.3u 100Base-TX

DSL/Cable Modem Requirements

• DSL modem with RJ-45 (10Base-T) or

• Cable modem with RJ 45 (10Base-T)

Ready, Network & Go!

It’s easy to setup, it’s easy to use, and everyone can use
it. Plugs in and installs in minutes.

Steps 1 – Connect modem

Connect DSL/Cable Modem 10Base-T’s Port to the
Router’s WAN port.

Step 2 – Configure LAN

Connect the Router’s LAN port to your 10/100 Hub or
Switch.

Step 3 – Configure it

Run Windows-based Setup program or Web Browser to
set Router’s IP Address and DNS Address. IP & DNS
address provided by your ISP.

Hawking Technologies, INC.

6A Faraday, Irvine, California, USA
Sales: [phone], [phone]

Fax: [phone]
Email: [e-mail]
Tech Support: [phone]
Email: [e-mail]
Web Site: www.hawkingtech.com

Copyright  Hawking Technologies, Inc. 2001. All rights
reserved. All trademarks herein are the property of their
respective owners.

Network Diagram:

Features

WAN connection

Broadband Connection
Support

High-speed DSL or Cable

connection
Network Transmission
Speed & Interface

10Mbps, UTP (RJ-45)
DSL Connection Types Always-On, PPPoE DSL

PPPoE DSL Connection Dial-on-Demand & Auto-

disconnection
PPPoE DSL Diagnostics Yes
Cable connections Host Name & Mac

Address Clone
Protocol Support TCP/IP
DHCP (client) Support Yes
IP Multicast Support Yes (Forwarding)
Multimedia Streaming
Protocol Support

RTSP (Real Player,

QuickTime, IP/TV Video

on Demand, NetMeeting,

etc.
Virtual Private Network
(VPN) Support

Yes (PPTP & IPsec Pass-

through)

LAN Connection

Protocol Support TCP/IP, NAT (Network

Address Translation)
Network Operating System
Support

Windows 95/98/98SE/Me,

Windows NT/2000, Mac

OS, UNIX
Built-in DHCP Server Yes (User-definable IP

Ranges)
TCP/UDP Port Mapping Yes
Multi-DMZ Host (Multi-NAT) Yes (8)
User-definable Static
Routing Table

Yes
Internet Access Control

(Packet Filtering)

Yes

Internet Connection Monitor Yes
System Event Log Yes
RIP I & RIP II Support Yes

Management

Web Management (Built-in
Web Server)

Yes (via Web browser)

Telnet Yes (easy-to-follow menu-

driven)
Software Upgrade TFTP
Reset/Load Default button Yes

Specification:

WAN Interface:

One IEEE 802.3 10Base-T RJ45

Port

LAN Interface:

One Auto-sensing IEEE 802.3

10Base-T/802.3u 100Base-TX RJ45 Port

LEDs:

LAN, WAN and Status

Dimensions:

6 5/8" L x 4 1/4" W x 1 1/8" H

Weight:

9 oz

Power:

External 6VDC, 800mA

Certification:

FCC Class A, CE Mark,

UL and CSA listed

Operation Temp.:

32°F to 122°F (0 °C to 50 °C)

Storage Temp.:

-4°F to 158°F (-20°C to 70°C)

Operation Hum

: 10% to 85% non-condensing

Storage Hum.:

5% to 90% non-condensing

Ordering Information:

PN9225 1-Port DSL/Cable Router
PN9235 4-Port DSL/Cable Router
PN9230 1-Port DSL/Cable VPN Router
PN9245F 4-Port DSL/Cable Firewall Router
PN9255W 4-Port DSL/Cable Firewall Wireless
Router with Print
PN8228 2-Port Analog Modem Router
