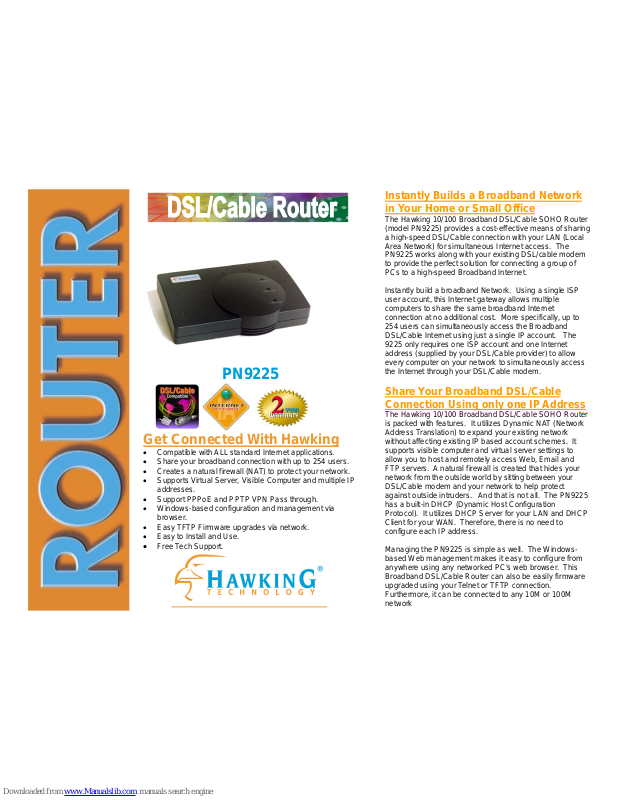

Hawking PN9225 Specifications

PN9225

Get Connected With Hawking

• Compatible with ALL standard Internet applications.

• Share your broadband connection with up to 254 users.

• Creates a natural firewall (NAT) to protect your network.

• Supports Virtual Server, Visible Computer and multiple IP

addresses.

• Support PPPoE and PPTP VPN Pass through.

• Windows-based configuration and management via

browser.

• Easy TFTP Firmware upgrades via network.

• Easy to Install and Use.

• Free Tech Support.

Instantly Builds a Broadband Network
in Your Home or Small Office

The Hawking 10/100 Broadband DSL/Cable SOHO Router
(model PN9225) provides a cost-effective means of sharing
a high-speed DSL/Cable connection with your LAN (Local
Area Network) for simultaneous Internet access. The
PN9225 works along with your existing DSL/cable modem
to provide the perfect solution for connecting a group of
PCs to a high-speed Broadband Internet.

Instantly build a broadband Network. Using a single ISP
user account, this Internet gateway allows multiple
computers to share the same broadband Internet
connection at no additional cost. More specifically, up to
254 users can simultaneously access the Broadband
DSL/Cable Internet using just a single IP account. The
9225 only requires one ISP account and one Internet
address (supplied by your DSL/Cable provider) to allow
every computer on your network to simultaneously access
the Internet through your DSL/Cable modem.

Share Y our Broadband DSL/Cable
Connection Using only one IP Address

The Hawking 10/100 Broadband DSL/Cable SOHO Router
is packed with features. It utilizes Dynamic NA T (Network
Address Translation) to expan d your existing network
without affecting existing IP based account schemes. It
supports visible computer and virtual server settings to
allow you to host and remotely access Web, Email and
FTP servers. A natural firewall is created that hides your
network from the outside world by sitting between your
DSL/Cable modem and your network to help protect
against outside intruders. And that is not all. The PN9225
has a built-in DHCP (Dynamic Host Configuration
Protocol). It utilizes DHCP Server for your LAN and DHCP
Client for your WAN. Therefore, there is no need to
configure each IP address.

Managing the PN9225 is simple as well. The Windows­based Web management makes it easy to configure from
anywhere using any networked PC's web browser . This
Broadband DSL/Cable Router can also be easily firmware
upgraded using your Telnet or TFTP connection.
Furthermore, it can be connected to any 10M or 100M
network

Package Contents:

• One DSL/Cable Router

• One AC power adapter

• 3.5" setup diskette

• Easy to follows owner's manual

Systems Requirement:

Network Software Requirements

• Windows 95/98/NT/2000 or

• Any TCP/IP-enabled system such as Mac OS

or UNIX

Network Hardware Requirements

• IEEE 802.3 10Base-T or

• IEEE 802.3u 100Base-TX

DSL/Cable Modem Requirements

• DSL modem with RJ-45 (10Base-T) or

• Cable modem with RJ 45 (10Base-T)

Ready, Network & Go!

It’s easy to setup, it’s easy to use, and everyone
can use it. Plugs in and installs in minutes.

Steps 1 – Connect modem

Connect DSL/Cable Modem 10Base-T’s Port to the
Router’s WAN port.

Step 2 – Configure LAN

Connect the Router’s LAN port to your 10/100 Hub
or Switch.

Step 3 – Configure it

Run Windows-based Setup program or Web
Browser to set Router’s IP Address and DNS
Address. IP & DNS address are provided by your
ISP.

Copyright © Hawking Technologies, Inc. 2001. All rights
reserved. All trademarks herein are the property of their
respective owners.

Network Diagram:

Features

WAN connection

♦ DSL and Cable Modem connections
♦ DHCP client for WAN port
♦ IP Multicast (IP/TV)
♦ Supports static and dynamic IP addre sses

LAN connection

♦ TCP/IP protocol suite
♦ DHCP server for LAN port
♦ NAT (Network Address Translation)
♦ IP Filtering
♦ Virtual Server
♦ Visible Computer

Management

♦ Web management via browser
♦ Windows-based configuration program
♦ Menu-driven Telnet configuration
♦ TFTP for easy firmware upgrade over network

Additional features:

♦ User-definable Static Routing Table
♦ Embedded high-speed microprocessor
♦ Built-in Flash memory
♦ One reset/factory default button

Specification:

WAN Interface

One IEEE 802.3 10Base-T RJ45 Port

LAN Interface

One Auto-sensing IEEE 802.3 10Base-T/

802.3u 100Base-TX RJ45 Port

LEDs

LAN, WAN and Status

Dimensions

6 5/8" L x 4 1/4" W x 1 1/8" H

Weight

9 oz

Power

External 6VDC, 800mA

Certification

FCC Class A, CE Mark
UL and CSA listed

Operation Temp.

32°F to 122°F (0 °C to 50 °C)

Storage T em p.

-4°F to 158°F (-20°C to 70°C)

Operation Hum

.

10% to 85% non-condensing

Storage Hum.

5% to 90% non-condensing

Ordering Information:

PN9225 1-Port DSL/Cable Router
PN9235 4-Port DSL/Cable Router
PN9230 1-Port DSL/Cable VPN Router
PN9245F 4-Port DSL/Cable Firewall Router
PN9255W 4-Port DSL/Cable Firewall Wireless
Router with Print

Hawking Technologies, INC.

6A Faraday, Irvine, California, USA
Sales: [phone], [phone]

Fax: [phone]
Email: [e-mail]
Tech Support: [phone]
Email: [e-mail]
Web Site: www.hawkingtech.com
