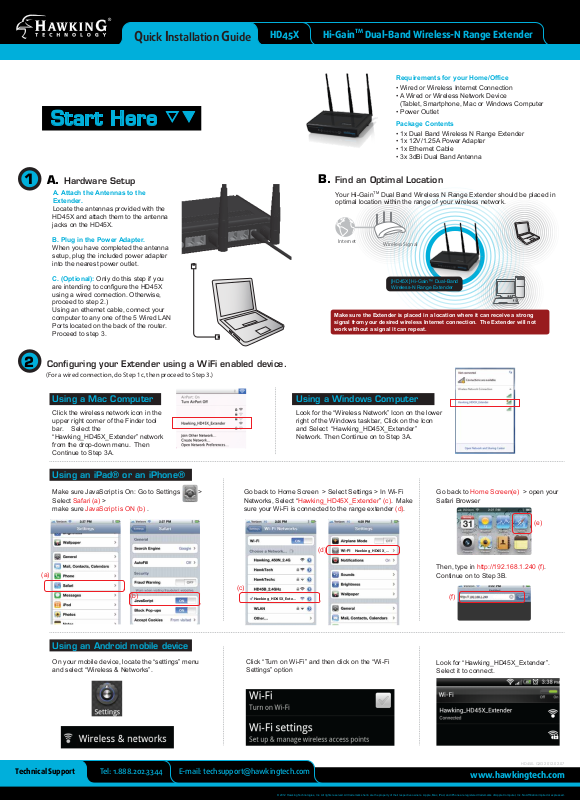

Hawking HD45X Quick Install Guide

Quick Installation Guide

Start Here

 

Hi-GainTM Dual-Band Wireless-N Range Extender HD45X

Requirements for your Home/Office

• Wired or Wireless Internet Connection

• A Wired or Wireless Network Device

(Tablet, Smartphone, Mac or Windows Computer

• Power Outlet

Package Contents

• 1x Dual Band Wireless N Range Extender

• 1x 12V/1.25A Power Adapter

• 1x Ethernet Cable

• 3x 3dBi Dual Band Antenna

1 A. Hardware Setup

A. Attach the Antennas to the
Extender.

Locate the antennas provided with the
HD45X and attach them to the antenna
jacks on the HD45X.

B. Plug in the Power Adapter.

When you have completed the antenna
setup, plug the included power adapter
into the nearest power outlet.

C. (Optional): Only do this step if you

are intending to configure the HD45X
using a wired connection. Otherwise,
proceed to step 2.)
Using an ethernet cable, connect your
computer to any one of the 5 Wired LAN
Ports located on the back of the router.
Proceed to step 3.

B. Find an Optimal Location

Your Hi-GainTM Dual Band Wireless N Range Extender should be placed in
optimal location within the range of your wireless network.

Internet

Make sure the Extender is placed in a location where it can receive a strong
signal from your desired wireless Internet connection. The Extender will not
work without a signal it can repeat.

Wireless Signal

[HD45X] Hi-Gain™ Dual-Band
Wireless-N Range Extender

2 Configuring your Extender using a WiFi enabled device.

(For a wired connection, do Step 1c, then proceed to Step 3.)

Using a Mac Computer

Click the wireless network icon in the
upper right corner of the Finder tool
bar. Select the
“Hawking_HD45X_Extender” network
from the drop-down menu. Then
Continue to Step 3A.

Using an iPad® or an iPhone®

Make sure JavaScript is On: Go to Settings >
Select Safari (a) >
make sure JavaScript is ON (b) .

Go back to Home Screen > Select Settings > In Wi-Fi
Networks, Select “Hawking_HD45X_Extender” (c). Make
sure your Wi-Fi is connected to the range extender (d).

Using a Windows Computer

Look for the “Wireless Network” Icon on the lower
right of the Windows taskbar, Click on the Icon
and Select “Hawking_HD45X_Extender”
Network. Then Continue on to Step 3A.

Go back to Home Screen(e) > open your
Safari Browser

(e)

(a)

(b)

Using an Android mobile device

On your mobile device, locate the “settings” menu
and select “Wireless & Networks”.

(d)

(c)

Hawking_HD45X_Exte...

Click “Turn on Wi-Fi” and then click on the “Wi-Fi
Settings” option

Hawking_HD45X_...

Then, type in http://192.168.1.240 (f).
Continue on to Step 3B.

(f)

Look for “Hawking_HD45X_Extender”.
Select it to connect.

Technical Support Tel: [phone] E-mail: [e-mail]

© 2012 Hawking Tech nologies, Inc. A ll rights reser ved. All tradem arks herin are the p roperty of the ir respective ow ners. Apple, Mac , iPad, and iPhone ar e registered trad emarks of Apple Co mputer, Inc. No Aff iliation impli ed or expressed.

HD45X- QIG 2012.02.07

www.hawkingtech.com

3 Connecting to your Dual-Band Range Extender

A. Using the same computer, open a web browser and

type in the following web address in the web
address bar: http://192.168.1.240

Once the page loads, enter the following login
information:

Login: admin Password: 1234
Click Login to continue.

If this page does not load or you need to get back
into the unit, you can reset the device by holding
the reset button for 15 seconds, power off/on. If
running Windows, you may also run the setup
software to find the device.

B. Click ‘Scan’ to find your wireless Internet

connection. Select a network you would like to
extend, 2.4GHz or 5GHz , and click ‘Connect’.

i

The 2.4GHz networks will appear in blue and 5GHz

networks will appear in orange. While you can select a

2.4GHz network, if available we recommend connecting to a
5GHz network to optimize your speed and throughput.

If the signal strength is low or your network does
not appear, you may need to adjust the location of
your HD45X. Click ‘Scan’ to try again.

C. The Quick Setup will now prompt you to enter a

security key only if the network you are
connecting to is encrypted. Enter the key and
click ‘Continue’.
Note: If there is no security on the original
network, this step will automatically be skipped.

If you do not know the security key of the
network you are connecting to, please consult
your network administrator.

4 Finishing Up

The setup of your HD45X is now complete. A
summary page will appear with all your settings. If
anything is incorrect, click back to re-enter your
settings. Click Finish to complete your setup. The
HD45X will automatically reboot and start repeating
and extending your wireless network.

Placing your Dual Band Range Extender in an Optimal Location

Place the HD45X within the range of your wireless source.

Home Router or AP

Router / HotSpot

(wireless source)

DO NOT place the HD45X outside the range of your wireless source.

Hi-Gain™ Dual Band Wireless N
Range Extender
HD45X

Home Router or AP

Home Router or AP

Wireless Device

(laptop)

i

After the reboot, the HD45X will join the original network
and will no longer be listed as “Hawking_HD45X_Extender”. It
will automatically be renamed to your original network, unless it
was specified during the set up process. If you wish to modify

this name, please refer to the user’s manual.

LED Description

Home Router or AP

Router / HotSpot

(wireless source)

Back Panel Description

Hi-Gain™ Dual Band Wireless N
Range Extender
HD45X

Wireless Device

(laptop)

Power

- LED is on, when the power adapter is connected and
plugged into an outlet

Wireless

- LED is on, (blinking) when wireless data activity is
detected. 2.4G is 2.4GHz wireless, 5G is 5GHz wireless

Wired

- LED is on, when a ethernet cable is plugged into the ethernet port
Top # corresponds to 10/100M connections, bottom is for 1000M connections

Technical Support Tel: [phone] E-mail: [e-mail]

© 2012 Hawking Tech nologies, Inc. A ll rights reser ved. All tradem arks herin are the p roperty of the ir respective ow ners. Apple, Mac , iPad, and iPhone ar e registered trad emarks of Apple Co mputer, Inc. No Aff iliation impli ed or expressed.

Removable Antennas

Removable 3dBi Omni-Directional Antennas

Wireless Radio On / Off Switch

Turns on / off the wireless functions

Reset Switch / WPS

Resets your extender to its default settings / WPS Setup

LAN Ports

Connects your wired network devices and computers to your network

Power (12V / 1.25A)

Power Adapter Plug

HD45X- QIG 02012.02.07

www.hawkingtech.com
