Hawking HD45B User Manual
Hi-GainTM Dual-Band Wireless-N Bridge HD45B
website www.hawkingtech.com
e-mail techsupport@hawkingtech.com
© COPYRIGHT 2012 HAWKING TECHNOLOGIES,INC. ALL RIGHTS RESERVED.
USER’S MANUAL
COPYRIGHT
Copyright ©2012 by Hawking Technologies, Inc. All rights reserved. No part of this
publication may be reproduced, transmitted, transcribed, stored in a retrieval system,
or translated into any language or computer language, in any form or by any means,
electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the
prior written permission of this company
LIMITED WARRANTY
Hawking Technology guarantees that every HD45B Hi-Gain™ Dual Band Wireless N
Access Point/Bridge is free from physical defects in material and workmanship under
normal use for one (1) year from the date of purchase. If the product proves
defective during this one-year warranty period, call Hawking Customer Service in
order to obtain a Return Authorization number. Warranty is for repair or
replacement only. Hawking Technology does not issue any refunds. BE SURE TO
HAVE YOUR PROOF OF PURCHASE. RETURN REQUESTS CAN NOT BE
PROCESSED WITHOUT PROOF OF PURCHASE. When returning a product,
mark the Return Authorization number clearly on the outside of the package and
include your original proof of purchase.
IN NO EVENT SHALL HAWKING TECHNOLOGY’S LIABILTY EXCEED THE
PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE
OF THE PRODUCT, ITS ACCOMPANYING SOFTWARE OR ITS
DOCUMENTATION. Hawking Technology makes no warranty or representation,
expressed, implied or statutory, with respect to its products or the contents or use of
this documentation and all accompanying software, and specifically disclaims its
quality, performance, merchantability, or fitness for any particular purpose.
Hawking Technology reserves the right to revise or updates its products, software, or
documentation without obligation to notify any individual or entity. Please direct all
inquiries to: techsupport@hawkingtech.com
1
Federal Communication Commission
Interference Statement
FCC Part 15
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the
following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
4. Consult the dealer or an experienced radio technician for help.
FCC Caution
This equipment must be installed and operated in accordance with provided
instructions and a minimum 20 cm spacing must be provided between computer
mounted antenna and person’s body (excluding extremities of hands, wrist and feet)
during wireless modes of operation.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the authority to operate equipment.
2
Federal Communication Commission (FCC) Radiation Exposure Statement
This equipment complies with FCC radiation exposure set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the FCC radio frequency
exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches)
during normal operation.
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
R&TTE Compliance Statement
This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF
THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio
equipment and telecommunication terminal Equipment and the mutual recognition of
their conformity (R&TTE).
The R&TTE Directive repeals and replaces in the directive 98/13/EEC
(T el ecommunicati ons Terminal Equipment and Satellite Earth Station Equipment) As
of April 8, 2000.
Safety
This equipment is designed with the utmost care for the safety of those who install
and use it. However, special attention must be paid to the dangers of electric shock
and static electricity when working with electrical equipment. All guidelines of this
and of the computer manufacture must therefore be allowed at all times to ensure the
safe use of the equipment.
EU Countries Intended for Use
The ETSI version of this device is intended for home and office use in Austria,
3
Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Italy, Luxembourg,
the Netherlands, Portugal, Spain, Sweden, and the United Kingdom.
The ETSI version of this device is also authorized for use in EFTA member states:
Iceland, Li echtenstein, Norway, and Switzerland.
EU Countries NOT intended for use
None.
4
Table of Contents
Chapter I: Product Information ...................................................................................... 7
1-1 Introduction and Safety Information ................................................................... 7
1-2 Safety Information ............................................................................................... 8
1-3 System Requirements .......................................................................................... 9
1-4 Package Contents ............................................................................................... 10
1-5 Product Overview .............................................................................................. 11
Chapter II: System and Network Setup ....................................................................... 13
2-1 Build Network Connection ................................................................................ 13
2-2 Definitions of Dual Band and HD45B Supported Modes ................................. 14
2-3 Connecting to the HD45B via Web Browser ..................................................... 17
2-3-1 Windows 95/98/Me IP address setup ......................................................... 18
2-3-2 Windows 2000 IP address setup ................................................................. 19
2-3-3 Windows XP IP address setup .................................................................... 21
2-3-4 Windows Vista/7 IP address setup .............................................................. 23
2-3-5 Mac OS X IP Address Setup ...................................................................... 25
2-3-6 T ablet/Smartphone Setup ........................................................................... 26
2-3-7 Accessing the Web Page User Interface ..................................................... 28
2-4 ‘Quick Setup’ ..................................................................................................... 30
2-4-1 Setup Procedure for ‘Access Point’ ........................................................... 32
2-4-2 Setup Procedure ‘Station-Infrastructure’ (Wireless Bridge) ...................... 35
2-4-3 Setup procedure for ‘AP Bridge-Point to Point’: ....................................... 37
2-4-4 Setup procedure for ‘AP Bridge-Point to Multi-Point’ .............................. 40
2-4-5 Setup Procedure for ‘AP-Bridge WDS’ ..................................................... 43
Chapter III General Setup ............................................................................................ 46
3-1 Time zone and time auto-synchronization ......................................................... 47
3-2 Change Management password ......................................................................... 48
3-3 Wired LAN Configuration ................................................................................. 51
3-3-1 Local Network ............................................................................................ 52
3-3-2 DHCP Server: ............................................................................................. 53
3-4 Wireless Network .............................................................................................. 55
3-4-1 Basic Wireless Settings .............................................................................. 56
3-4-2 Advanced Wireless Settings ....................................................................... 65
3-4-3 Security Settings ......................................................................................... 68
3-4-4 Wireless Access Control ............................................................................. 74
3-4-5 Wi-Fi Protected Setup (WPS) .................................................................... 76
3-4-6 Security Tips for Wireless Network ........................................................... 79
5
Chapter IV Status and Tools ........................................................................................ 80
4-1 System Status ..................................................................................................... 80
4-1-1 System information and firmware version ................................................. 80
4-1-2 Local Network ............................................................................................ 81
4-1-3 System Log ................................................................................................. 82
4-1-4 Security Log ............................................................................................... 83

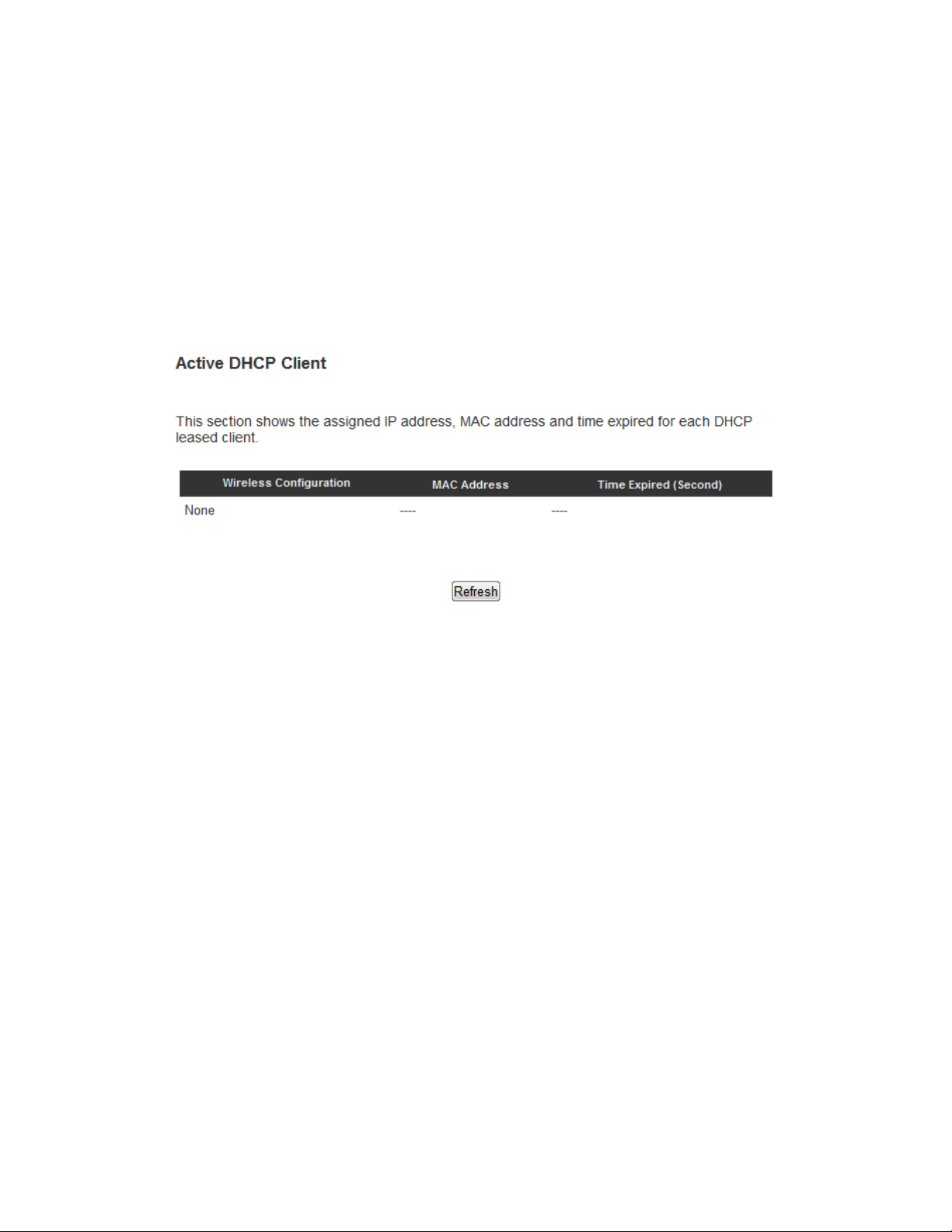

4-1-5 Active DHCP client list .............................................................................. 84
4-1-6 Statistics ..................................................................................................... 85
4-2 Configuration Tools ........................................................................................... 86

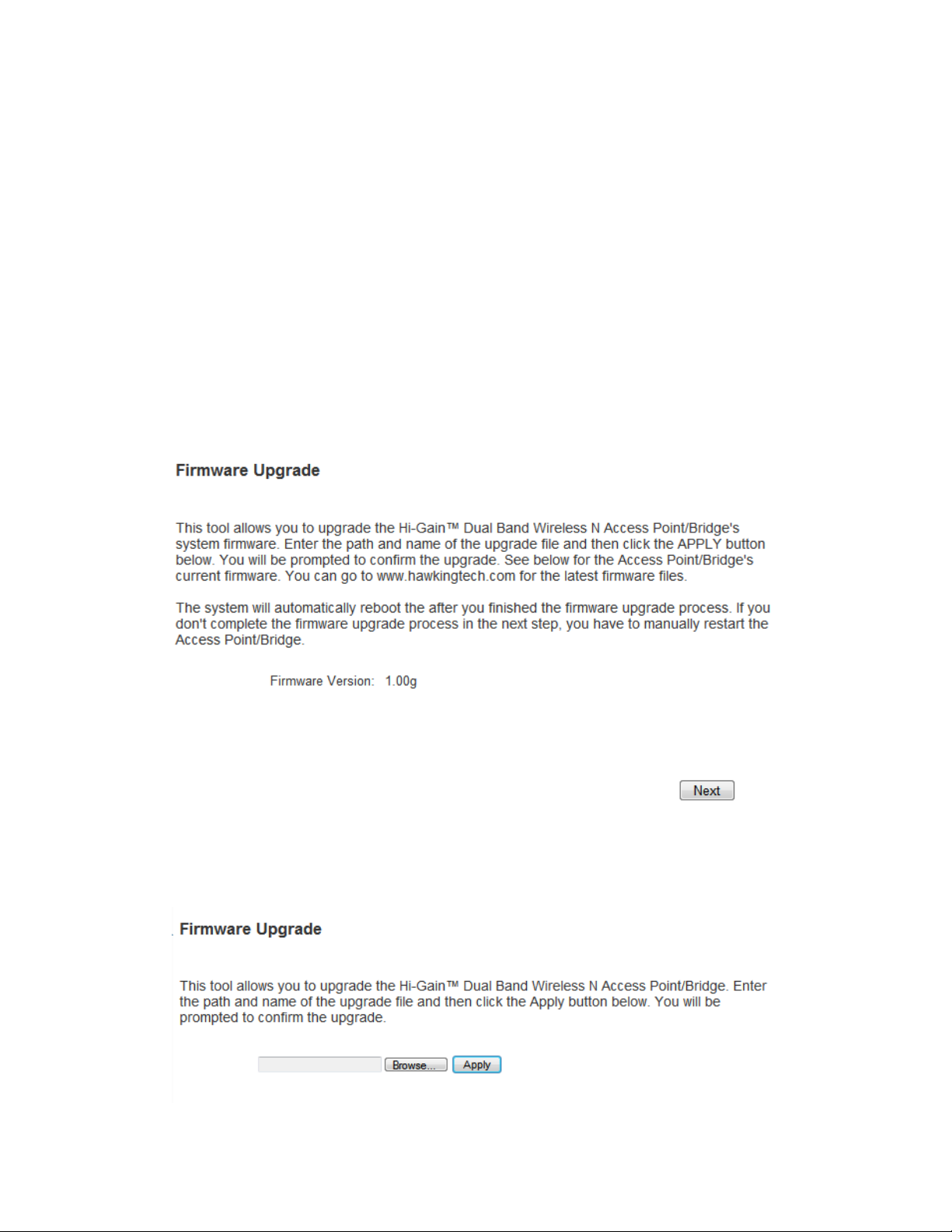

4-3 Firmware Upgrade ............................................................................................. 87
4-4 System Reset...................................................................................................... 89
Chapter V : Appendix .................................................................................................... 90
5-1 Hardware Specification ..................................................................................... 90
5-2 Troubleshooting ................................................................................................. 91
5-3 Glossary ............................................................................................................. 93
6
Chapter I: Product Information
1-1 Introduction and Safety Information
Thank you for purchasing the HD45B Hi-Gain™ Dual Band Wireless N Access
Point/Bridge. This highly efficient access point is the best choice for Small office /
Home office users. It allows computers and network devices to gain wireless access
in several modes throughout their network. Easy install procedures allow any
computer user to setup a network environment in a very short time.
With built-in dual band 2.4GHz and 5GHz radios, this router supports the IEEE
802.11b/g/n and IEEE 802.11a/n wireless network standards simultaneously. All
computers and wireless-enabled network devices (including PDA, cellular phone,
game console, etc.) can connect to this wireless router without additional cabling.
802.11N wireless capability also gives you the highest wireless speeds. With a
compatible wireless card installed in your PC, you can transfer files at up to
750Mbps (combined 2.4GHz and 5GHz transfer data rate)!
Other features of the HD45B include:
Supports 2.4GHz and 5GHz wireless devices simultaneously.
Provides IEEE 802.11b/g/Draft-N wireless LAN capability
5 different Wireless Modes: Access Point, Bridge Client, Bridge Point to
Point, Bridge P oin t to M u lti -P oin t, AP Bridge WDS modes.
Supports 64/128-bit WEP, WPA, and WPA2 wireless data encryption.
Supports MAC address filtering (Only allow specific wireless device of your
choice to connect to this access point).
Five wired LAN ports (10/100/1000M)
Auto MDI / MDI-X function for all wired Ethernet ports.
Provides IEEE 802.11a/b/g/n wireless LAN capability.
Support DHCP (Server/Client) for easy IP-address setup.
Allows you to monitor the access point’s status: DHCP Client Log, System
Log, Security Log and Device/Connection Status.
Easy to use Web-based GUI for network configuration and management
purposes.
7
1-2 Safety Information
In order to keep the safety of users and property, please follow these safety
instructions:
1. This access point is designed for indoor use only; DO NOT place this access point
outdoors.
2. DO NOT put this access point at or near hot or humid places, like kitchens or
bathrooms. Also, do not leave this access point in the car in summer.
3. DO NOT pull any connected cable with force; disconnect them from the access
point first.
4. If you want to place this access point in a high place or hang on the wall, please
make sure the access point is firmly secured. Falling can damage the access point and
its accessories and the warranty will be void.
5. Accessories of this access point, like antennas and power supply, are a danger to
small children under 3 years old. KEEP THIS ACCESS POINT OUT OF THE
REACH OF CHILDREN!
6. The access point will become warm when used for a long period of time (This is
normal and is not a malfunction). DO NOT put this access point on paper, cloth, or
other flammable materials.
7. There are no user-serviceable parts inside the access point. If you have found that
the access point is not working properly, please contact technical support or your
place of purchase and ask for help. DO NOT disassemble the access point, or
warranty will be void.
8. If the access point falls into water when it’s powered on, DO NOT use your hands
to pick it up. Switch the electrical power off before you do anything, or contact an
experienced technician for help.
9. If you smell something strange, or see smoke coming out from the access point or
power supply, remove the power supply or switch the electrical power off
immediately, and call techsupport or your place of purchase for help.
8
1-3 System Requirements
One computer (Mac or PC).
Internet Web Browser (Internet Explorer, Safari, etc.)
A Wired or Wireless network adapter (e.g. Airport card, built-in Ethernet
adapter, etc.)
9
1-4 Package Contents
Before you start to use this access point, please check if there’s anything missing in
the package, and contact your place of purchase or contact Hawking Technologies.
HD45B Hi-Gain™ Dual Band Wireless N Access Point/Bridge (main body, 1
pcs)
Quick Installation Guide (1 pcs)
Setup CD-ROM (1pcs)
A/C power adapter 12V/1.25A (1 pcs)
3dBi Dipole Antennas (3 pcs)
10
1-5 Product Overview
Front Panel
LED Name
PWR On Router is switched on and correctly powered.
2.4G On 2.4GHz Wireless WPS function is enabled.
5G On 5GHz Wireless WPS function is enabled.
Wired 1-5
10/100M
Wired 1-5
1000M
Light Status Description
Off 2.4GHz Wireless network is switched off.
Flashing 2.4GHz Wireless LAN activity (transferring or
receiving data).
Off 5GHz Wireless network is switched off.
Flashing 5GHz Wireless LAN activity (transferring or
receiving data).
On LAN port is linked in 10/100Mbps speed.
Off LAN port is not linked in 10/100Mbps speed.
On LAN port is linked in 1000Mbps speed
Off LAN port is not linked in 1000Mbps speed
11
Back Panel
Item Name Description
Antenna Three SMA antenna connectors for the 3dBi detachable antenna
enclosed with the product.
Power (12V/1A) Power connector, connects to A/C power adapter 12V/1A.
Reset/WPS Reset the router to factory default settings (clear all settings) or
start WPS function. Press this button and hold for 15 seconds to
restore all settings to factory defaults, power off/on. Press this
button for less than 5 seconds to start WPS function.
Network 1-5 Local Area Network (LAN)
NOTE: For 2.4GHz 802.11b and 802.11g mode, the signals can be
transmitted only by antenna 1 (The antenna on the right side of the rear
panel).
For 2.4 GHz 802.11n mode: The router is operating in a 2T2R Spatial
Multiplexing MIMO configuration. Two (2) antennas are for signal
transmitting and two (2) antennas are for signal receiving.
For 5GHz 802.11a/n mode: The router is operating in 3T3R Spatial
Multiplexing MIMO configuration. Three (3) antennas are for signal
transmitting and three (3) antennas are for signal receiving)
12
Chapter II: System and Network Setup
2-1 Build Network Connection
Please follow the following instructions to build the network connection between y our
new HD45B access point and your computers and other network devices:
1. Connect your HD45B to the network port of your computer or connect wirelessly
to it.
2. Connect all your computers and network devices (network-enabled consumer
devices other than computers, like game console, or switch / hub) to the network.
3. Connect the A/C power adapter to the wall socket, and then connect it to the
‘Power’ socket of the access point.
4. Please check all LEDs on the front panel. ‘PWR’ LED should be steadily on, LAN
LEDs should be on if the device is connected to the network. If PWR LED is not
on, or any LED you expected is not on, please recheck the cabling, or jump to ‘5-2
Trouble shooting’ for possible reasons and solutions.
13
2‐2DefinitionsofDualBandandHD45BSupportedModes
2.4GHz vs 5GHz
The HD45B supports 2.4GHz and 5GHz bands.
2.4GHz is the most commonly used wireless bandwidth. It also has a very narrow
range of channels, usually between 1-11. Common household devices such as
microwaves and cordless phones also use the 2.4GHz bandwidth, and can cause
interference with your wireless network. As a result of its heavy usage and narrow
range of channels, the speed and range of typical WiFi devices can be negatively
affected.
5GHz solves this problem by providing a faster, less congested, bandwidth with a
wider range of available channels.
Modes
The HD45 supports 5 different modes.
Access Point: Standard default mode. The HD45B will broadcast a WiFi signal for
other computers and devices to connect to. Must be plugged into the router or
network after setup.
Station – Infrastructure (Bridge): The HD45B will allow you connect wired devices
wirelessly to an existing wireless router or access point. It will “bridge” these
14
devices wirelessly with your network. It will not broadcast any WiFi signal. It will
only make a wireless connection between the Access Point and the HD45B. The
HD45B will only connect to either 2.4GHz or a 5GHz network.
AP Bridge – Point to Point: Similar to station-infrastructure, this requires two
HD45B’s on each end. This will create a wireless bridge between these two points.
No WiFi signal will be broadcast and it will only make a wireless connection between
those two points.
AP Bridge – Point to Multi-Point: Similar to AP Bridge – Point to Point, this allows
you to connect several HD45B’s to one point. No WiFi signal will be broadcast and
it will only make a wireless connection between the HD45Bs.
15
AP Bridge WDS: Wireless Distributing System. This allows you to create a wireless
network using up to four HD45B’s using the same SSID (wireless name). It will
broadcast a WiFI signal.
16
2-3 Connecting to the HD45B via Web Browser
After the network connection is built, the next step you should do is setup the access
point with proper network parameters, so it can work properly in your network
environment.
Before you can connect to the access point and start configuration procedures, your
computer must be set to static IP. Please follow the following instructions to
configure your computer to use a static IP address:
If the operating system of your computer is….
Windows 95/98/Me - please go to section 2-3-1
Windows 2000 - please go to section 2-3-2
Windows XP - please go to section 2-3-3
Windows Vista/7 - please go to section 2-3-4
Mac OS - please go to section 2-3-5
Tablet/Smartphone - please go to section 2-3-6
17
2-3-1 Windows 95/98/Me IP address setup
1. Click ‘Start’ button (it should be located at lower-left corner of your
computer), then click control panel. Double-click Network icon, and
Network window will appear. Select ‘TCP/IP’, then click ‘Properties’.
2. Select ‘Obtain an IP address from a DHCP server’ and then click ‘OK’.
18
2-3-2 Windows 2000 IP addre ss setup
1. Click ‘Start’ button (it should be located at lower-left corner of your
computer), then click control panel. Double-click Network and Dial-up
Connections icon; click Local Area Connection, and Local Area
Connection Properties window will appear. Select ‘Internet Protocol
(TCP/IP)’ and then click ‘Properties’
19
2. Select ‘Obtain an IP address automatically’ and ‘Obtain DNS server
address automatically’, then click ‘OK’.
20
2-3-3 Windows XP IP address setup
1. Click ‘Start’ button (it should be located at lower-left corner of your
computer), then click control panel. Double-click Network and Internet
Connections icon, click Network Connections, and then double-click
Local Area Connection, Local Area Connection Status window will
appear, and then click ‘Properties’
21
2. Select ‘Obtain an IP address automatically’ and ‘Obtain DNS server
address automatically’, then click ‘OK’.
22
2-3-4 Windows Vista/7 IP address setup
1. Click ‘Start’ button (it should be located at lower-left corner of your
computer), then click control panel. Click View Network Status and
Tasks, and then click Manage Network Connections. Right-click Local
Area Network, then select ‘Properties’. Local Area Connection
Properties window will appear, select ‘I nter net Protocol Version 4 (TCP /
IPv4), and then click ‘Properties’
23
2. Select ‘Obtain an IP address automatically’ and ‘Obtain DNS server
address automatically’, then click ‘OK’.
24
2-3-5 Mac OS X IP Address Setup
1)
Go to your system preferences, go to network. Make sure next to “Configure”,
you have it set under “Using DHCP”
25
2-3-6 T ablet/Smartphone Setup
iOS (iPhone or iPad)
Go to your settings on your tablet or smart phone
First, make sure JavaScript is On: Go to Settings icon Select (a) Safari > make sure (b)
JavaScript is ON.
Go back to Home Screen > Select Settings > In Wi-Fi Networks, select (c)
“Hawking_HD45B_2.4GHz” > (d) Make sure your Wi-Fi is connected to
Hawking_HD45B_2.4GHz
26
Android (Android 2.1 +)
Go to Settings
Go to Wireless & Networks
Check “Turn on Wi-Fi” and then click on Wi-Fi settings
Look for Hawking_HD45B_2.4GHz, then select to connect
27
2-3-7 Accessing the Web Page User Interface
After the IP address setup is complete, please open your web browser.
In the address field, please type: ‘192.168.1.241’ and press enter.
The following message should be shown:
Please input user name and password in the field respectively,
Default Username: admin
Default Password: 1234
Press ‘OK’ button, and you will then see the management interface of this access
point:
28
NOTE: If you can’t see the web management interface, and you are
being prompted to input user name and password again, it means you
didn’t input username and password correctly. Please retype user
name and password again. If you are certain that user name and
password you typed are correct, please go to ‘5-2 Troubleshooting’ to
perform a factory reset, to set the password back to default value.
29
