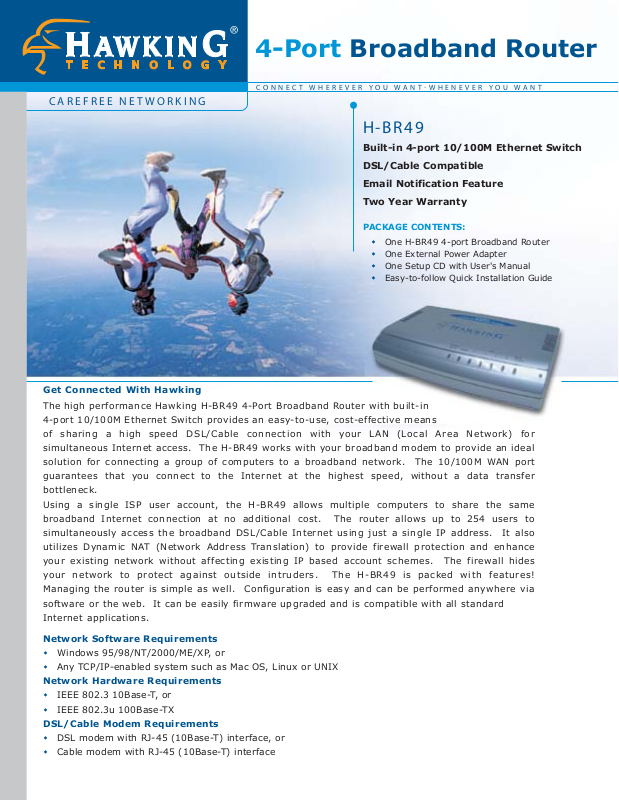

Hawking HBR49 BROCHURE

CAREFREE NETWORKING

4-Port Broadband Router

CONNECT WHEREVER YOU WANT• WHENEVER YOU WANT

H-BR49

Built-in 4-port 10/100M Ethernet Switch

DSL/Cable Compatible

Email Notification Feature

Two Year Warranty

PACKAGE CONTENTS:

 One H-BR49 4-port Broadband Router

 One External Power Adapter
 One Setup CD with User's Manual
 Easy-to-follow Quick Installation Guide

Get Connected With Hawking

The high performance Hawking H-BR49 4-Port Broadband Router with built-in

4-port 10/100M Ethernet Switch provides an easy-to-use, cost-effective means

of sharing a high speed DSL/Cable connection with your LAN (Local Area Network) for

simultaneous Internet access. The H-BR49 works with your broadband modem to provide an ideal

solution for connecting a group of computers to a broadband network. The 10/100M WAN port

guarantees that you connect to the Internet at the highest speed, without a data transfer

bottleneck.

Using a single ISP user account, the H-BR49 allows multiple computers to share the same

broadband Internet connection at no additional cost. The router allows up to 254 users to

simultaneously access the broadband DSL/Cable Internet using just a single IP address. It also

utilizes Dynamic NAT (Network Address Translation) to provide firewall protection and enhance

your existing network without affecting existing IP based account schemes. The firewall hides

your network to protect against outside intruders. The H-BR49 is packed with features!

Managing the router is simple as well. Configuration is easy and can be performed anywhere via

software or the web. It can be easily firmware upgraded and is compatible with all standard

Internet applications.

Network Software Requirements

 Windows 95/98/NT/2000/ME/XP, or

 Any TCP/IP-enabled system such as Mac OS, Linux or UNIX

Network Hardware Requirements

 IEEE 802.3 10Base-T, or

 IEEE 802.3u 100Base-TX

DSL/Cable Modem Requirements

 DSL modem with RJ-45 (10Base-T) interface, or

 Cable modem with RJ-45 (10Base-T) interface

CA R E FR EE NETWORK ING

H-BR49

Built-in 4-port 10/100M Ethernet Switch

DSL/Cable Compatible

Email Notification Feature

Two Year Warranty

SPECIFICATIONS:

Ports

· LAN: (4) 10/100 Mbps switched ports

· WAN: (1) 10/100 Mbps RJ-45 port for
Cable/DSL Modems

Standards

· IEEE 802.3 10Base-T Ethernet

· IEEE 802.3u 100Base-TX Fast Ethernet

· IEEE802.3x Flow Control

Supported Protocols

· IP, NAT, ARP, ICMP, DHCP client/server,
PPPoE, PPP, PAP, CHAP, NTP, HTTP, TFTP, POP3

Cabling Type

· UTP Category 3 or better (10Base-T)

· UTP Category 5 or better (100Base-TX)

Management

· Web-based configuration and management

· GUI program for Windows 98/ME/NT/2000/XP

LED Indicators

· Power/Error - Green for linked, Red for error

· Internet - Green for 10/100M (Flashing
for activity)

· LAN (1-4) - Green for 10/100M (Flashing
for activity)

· New Email - Green (Flashing for received email)

Input Power Specifications

·DC 5V

Dimensions

· 6.23" x 4.06" x 1.06"

Weight

· 7.77 oz

Power Consumption

· DC 9V 500mA (max.)

Operating Temperature

· 0° ~ 50° C

Operating Humidity

· 0 ~ 90% RH Non-condensing

Certifications

· FCC part 15 Class B, CE

· VCCI, C-tick, BSMI

4-Port Broadband Router

CONNECT W HEREV ER YO U WA NT• W HENEV ER YOU W ANT

HAWKING TECHNOLOGIES, INC

USA: Irvine, California Europe: Rotterdam, The Netherlands
Website: www.hawkingtech.com Website: www.hawkingeurope.com
Email: [e-mail] Email: [e-mail]
Tel: [phone] Tel: [phone]
Fax: [phone] Fax: [phone]

READY, NETWORK & GO!

It's easy to install, it's easy to use!

Step 1 - Connect the Modem

Connect your DSL/Cable Modem to the Router

Step 2 - Connect to your Computer

Connect the Router's LAN ports to your computer.

Step 3 - Configure and Go!

Use your web browser to configure the Router. It's that easy!

WIRED NETWORK DIAGRAM:

Product Features

 Superb performance with throughput of up to 35Mbps between Internet and LAN.

 Web and GUI management.

 Supports PPPoE.

 Supports VPN. (PPTP, IP- Sec pass thru)

 Supports Auto MDI/MDIX for the LAN and WAN ports.



Supports rich Internet applications such as MSN, StarCraft, AOE, Battle.net multi-user, Crazy

NetMeeting, ICQ, mIRC, Web browser, FTP, Telnet, E-Mail, News, Ping, PCAnyWhere...

Arcade,

 DHCP server allocates up to 253 client IP addresses.

 Allows for the setting of 32 Static DHCPs.

 Proxy DNS.

 Dynamic DNS (DDNS)

 Allows for the setting of 24 Virtual Servers.

 DMZ host & Multi-DMZ.

 Allows for the setting of 24 Packet Filters.

 Static routing.

 Super manager.

 LED indicator for received E-Mail.

 Allows firmware upgrade through network.

 Supports Windows 95/98/ME/NT/2000/XP, Unix, and Mac.

 Natural firewall keeps hackers out.

 Load/Save device settings from/to a PC file

Copyright © Hawking Technologies, Inc. 2003. All rights reserved. All trademarks herein are the property of their respective owners.
Product specification subjects to change without notice.
