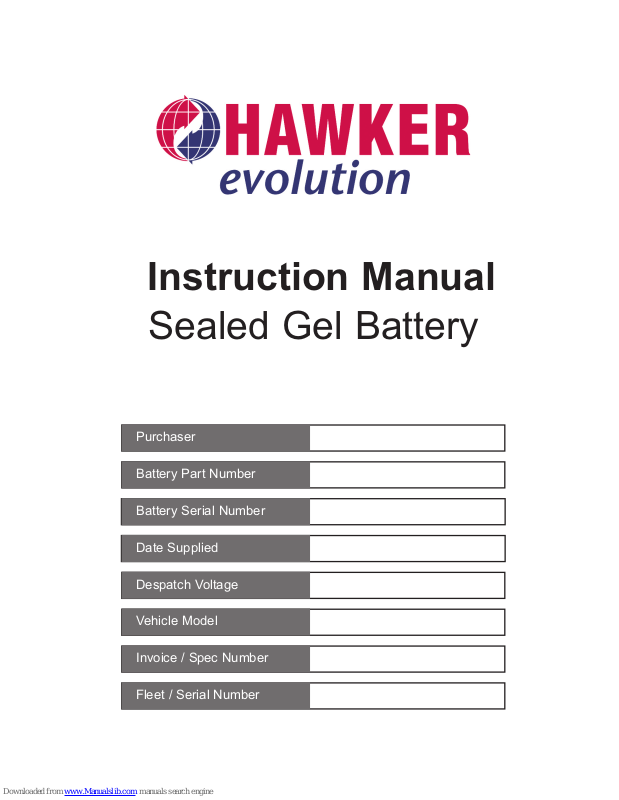

Hawker Evolution Instruction Manual

Instruction Manual
Sealed Gel Battery
Battery Part Number
Purchaser
Vehicle Model
Invoice / Spec Number
Date Supplied
Despatch Voltage
Fleet / Serial Number
The Hawker Evolution®battery is equipped with an easycontrol or Wi-IQ, an electronic device fitted to the battery connectors. The presence of this device is mandatory on each battery.
The battery, including all cables, links and plugs should be inspected upon receipt to ensure it is in perfect physical condition.
The battery should be in a fully charged condition. If it requires charging ,see Item 2.2
Use special plug coding systems for the battery to prevent accidental connection to a wrong type of charger.
The charging cables must be connected to ensure a good contact, taking care that the polarity is correct, otherwise battery, vehicle or charger could be damaged.
Pay attention to the operating instructions and keep them close to the battery. Work on batteries should be carried out by a qualified technician!
Use protective glasses and clothes when working on batteries. Pay attention to the accident prevention rules as well as AS/NZ1337, EN50272-3 & EN 501110-1
No smoking ! Do not expose batteries to naked flames, glowing embers or sparks, as it may cause the battery to explode.
Acid splashes in the eyes or on the skin must be washed with plenty of fresh clean
water. In case of accident, consult a doctor immediately ! Remove contaminated clothing
Risk of explosion and fire Avoid short circuits! Metal parts of a battery are always live. Do not place tools or other metal objects on the battery!
Electrolyte is highly corrosive. Avoid contact with skin and eyes Do not mix with alkaline solutions In normal operation contact with acid is not possible. If cell containers are damaged, the gelled electrolyte is corrosive. Do not remove the battery plugs
Batteries and cells are heavy. Ensure secure installation Use only suitable handling equipment Lifting hooks must not damage the cells, connectors or cables
Dangerous electrical voltage!
Pay attention to the environmental hazards of batteries. Please recycle
Hawker Evolution batteries are VRLA - valve regulated, maintenance free batteries. Unlike conventional wet batteries they have immobilised electrolyte (gelled sulphuric acid). Instead of a vent plug, a valve is used to regulate the internal gas pressure, preventing the ingress
of oxygen from the air and allowing the escape of excess charging gasses. When operating valve-regulated lead-acid batteries the same safety requirements as for vented
cells apply, to protect against hazards from electric current, from explosion of electrolytic gas and with some limitations, from the corrosive electrolyte.
The battery valves should never be removed. These batteries do not require topping-up with water.
Ignoring the operating instructions, repair with non-original parts, using additives for the electrolyte or disconnection of the easycontrolor Wi-IQ
®
monitors will render the warranty
void.
Nominal Capacity C
5
: See Battery plate Nominal Voltage : See Battery plate (2.0V x No. of cells) Discharge Current : C5/ 5h Nominal S.G of Electrolyte* : 1.29 kg/l Rated Temperature : 30ºC
Traction batteries with positive tubular plates type PzV / PzVB
* Will be reached within the first 10 cycles
1. Commissioning Battery
Rating Data
The specified torque loading for the terminal screws of the charging cables and connectors is
25Nm +/- 2Nm.
Never directly connect an electrical appliance (for example: warning beacon) to some cells of the battery. This could lead to a voltage imbalance of the cells during the recharge causing a loss of capacity, the risk of insufficient discharge time and damage to the cells.
THIS MAY EFFECT THE WARRANTY
Standards AS2402.2.2-2005 & EN50272-3 apply to the installation and usage of valve regulated cell traction batteries in industrial trucks.
Ventilation openings must not be sealed or covered.
Electrical connections (e.g. plugs) must only be connected or disconnected in the open circuit condition.
To optimise battery life, deep discharges of more than 80% of nominal capacity must be avoided.One cycle (80% C5) per 24 hour period.
To measure the depth of discharge (DOD) use only recommended discharge indicators with an energy cut-off at 80% (1.83 v.p.c loaded) for a 12 hour recharge, and 60% (1.87 v.p.c loaded) for an 8 hour recharge time.
Both partially and fully discharged batteries must be recharged immediately and not left in a discharged condition.
Batteries can be used in normal duty cycle for a maximum 6 days per week.
Avoid applications where:
• No allowance for battery to cool
• Heavy Duty cycle leading to increase of
battery temperature during operation.
Only direct current must be used for charging. Only connect to an Enersys approved charger
suitable for type and size of battery, to avoid overloading of electric cables and contacts unacceptable gassing and damage to the cells.
IUI profile: Nominal current 0.17 - 0.20 X C5 Voltage regulation 2.37v.p.c @ 30°C Finish constant current C5/200 4rs
A full charge shall be carried out every working day. The charging time for an 80% discharged battery shall be 12 hours or 8 hours for a 60% discharged battery. If the charger was not purchased together with the battery, it is best to have its suitability checked by Enersys. Any changes or repairs to the battey or charger must be performed by our service division.
Gel batteries have a low gas emission, however, during charging, proper provision must be made for venting of the charging gases complying to AS2402.2.2-2005 & EN 50272-3.
Lids and covers of battery compartments must be opened or removed and in the case of a closed battery compartment, the battery must be removed.
The vent plugs should stay on the cells and never be removed.
With the charger switched off connect the battery, ensuring that the polarity is correct. (Positive to Positive, Negative to Negative).
Now switch on the charger. The charger will indicate end of charge. Do not interrupt the charge cycle.
Equalising charges are used to optimise the life of the battery and to maintain its capacity.
4 hrs @ C5/200 With the correct charger, an equalisation charge
is automatically carried out weekly after the end of the normal charge.
The temperature range of use for the battery is between +5 °C and + 35 °C. Any use outside of this range must be approved by Enersys.
Optimal battery life is obtained for a battery temperature of 25 -30 °C. High temperatures reduce battery life according to IEC 1431 technical report, lower temperatures reduce the capacity available.
2. Operation
2.1 Discharging
2.2 Charging
2.3 Equalising Charge
2.4 Temperature
Charge the battery after every discharge. Check that the plugs, links, cables and tray are
in good condition.
Visually inspect after recharge for signs of mechanical damage and cleanliness of battery.
Ensure an equalising charge is carried out (see 2.3).
Following the recharge, with the charger switched on (C5/100), measure and record the cell voltages and temperature using the pages at the end of this document.
If there are significant changes from earlier measurements or differences between the cells are found, further testing and maintenance by the service department should be requested.
Inspect & remove dust from within the charger. Check that the plugs, links, cables and tray are
in good condition. At least once per year the insulation resistance
of the battery must be checked in accordance with EN 1175-1 & EN 1987 part 1.
The insulation resistance of the battery must not be below a value of 50Ω per volt of nominal voltage in compliance with EN 50272-3.
For batteries up to 20V nominal voltage, the minimum is 1000Ω.
The electrolyte is immobilised in a gel. The density of the electrolyte cannot be
measured.
• Never refill with water!
• Never remove the safety valve from the cell In case of accidental damage of the valve,
contact our service department. The battery should always be kept clean and
dry to prevent tracking currents. Damage to the insulation of tray should be
rectified after cleaning, ensuring insulation value is within limits (DW 0510 section 3) and to prevent tray corrosion.
If it is necessary to remove cells, repair plugs or cables contact our service department.
If batteries are taken out of service for a lengthy period they should be stored in the fully charged condition in a dry, frost-free room.
Storage is not allowed when in a dischared state.
Batteries should be recharged after a maximum storage time of 2 mths (30ºC), 3 mths (20ºC).
To ensure the battery is always ready for use a choice of charging methods should be made -
A monthly equalising charge as in point 2.3
• Float charging at 2.27v.p.c X number of cells.
The storage time should be taken into account when considering the life of the battery.
If malfunctions are found on the battery or the charger, our service department should be called without delay.
The measurements taken in point 3.3 will facilitate fault finding and their elimination.
A service contract will make it easier to detect and correct faults promptly.
4. Care Of The Battery
5. Storage and Stabling
6.Malfunctions
3. Maintenance
3.1 Daily
3.2 Weekly
3.3 Monthly
3.4 Annually
The battery is fitted with an onboard battery monitoring device.This is mandatory. There are two devices available - an easycontrol™ or a Wi-IQ®monitor.
These devices capture battery operating data for later reporting and analysis, whilst at the same time offer visual warnings to the operator on the current status of the battery- refer table below.
The Wi-IQ has additional features and will therefore also measure current and Ah throughput. The information is stored in memory and can be transferred to a computer via IR interface (easy) or
wirelessly (Wi-IQ). Propriety connection tools / software are required in both cases. The Red and Green LED’s indicate the state and temperature of the battery. The Blue LED’s indicate the level of electrolyte (wet cell only), voltage balance and communication
status
The easycontrol can enable charge profile adaptation and promote warnings to the Hawker Powertech™ or Lifeplus
®
range of chargers, whilst the Wi-IQ will communicate to the LifeIQ™&
LifespeediQ™ range.
9. easycontrol™ & Wi-IQ®Data Monitors
LED Definition Removal
1 Fixed Green Complete Charge Discharge Battery
Green Flashing Slowly Normal State Discharge Battery
2 Red Flashing Over Temperature Cool / Rest Battery
3 Fixed Red Over-discharged Recharge Battery
Note: Temperature LED has priority over others
4 Blue Flashing Battery voltage imbalance Rectify, reset via software
5 Fixed Blue Low electrolyte level(wet cell only) Water the battery
Note: Electrolyte warning disabled on Gel battery
Wi-IQ
®
device
easycontrol™ device
