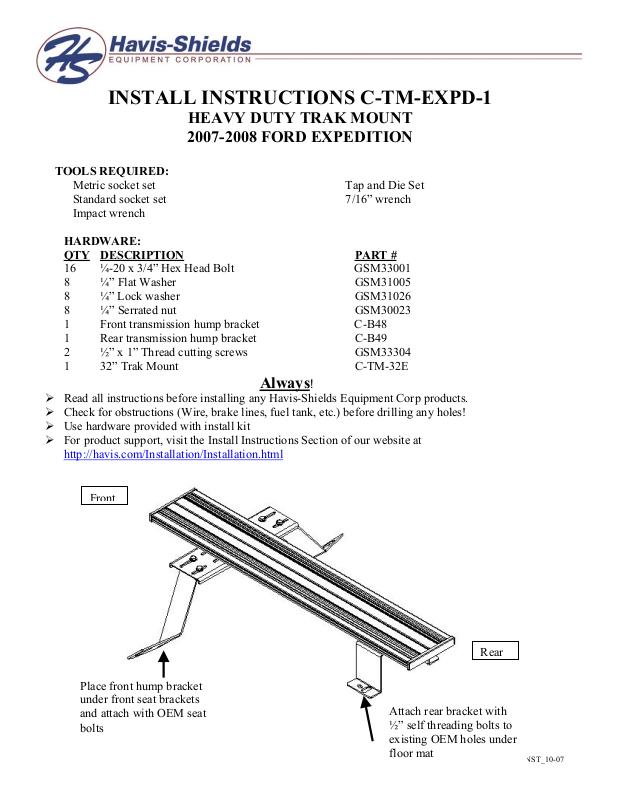

INSTALL INSTRUCTIONS C-TM-EXPD-1
HEAVY DUTY TRAK MOUNT
2007-2008 FORD EXPEDITION
TOOLS REQUIRED:
Metric socket set
Standard socket set
Impact wrench
HARDWARE:
QTY DESCRIPTION PART #
16 ¼-20 x 3/4” Hex Head Bolt GSM33001
8 ¼” Flat Washer GSM31005
8 ¼” Lock washer GSM31026
8 ¼” Serrated nut GSM30023
1 Front transmission hump bracket C-B48
1 Rear transmission hump bracket C-B49
2 ½” x 1” Thread cutting screws GSM33304
1 32” Trak Mount C-TM-32E
Tap and Die Set
7/16” wrench
Always!
Read all instructions before installing any Havis-Shields Equipment Corp products.
Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!
Use hardware provided with install kit
For product support, visit the Install Instructions Section of our website at
http://havis.com/Installation/Installation.html
Place front hump bracket
under front seat brackets
and attach with OEM seat
bolts
Attach rear bracket with
½” self threading bolts to
existing OEM holes under
floor mat
C-TM-EXPD-1_INST_10-07
The 2008 Expedition ( 6/07 built date or newer ) has a Roll Stability Control module ( RSC) in
addition to the side impact control module mounted at forward section of transmission hump.
*** Do NOT Remove or Move these modules ***
INSTALLATION:
1. Remove inner front seat-mounting bolts near transmission hump. Loosen outer bolts
only.
2. Place front hump brackets legs in place under seat brackets. Do not bolt down yet.
3. Attach front hump bracket cross piece to Trak extrusion with ¼” c ¾” bolts and
washers.
Note: Determine desired cross piece location and tighten hardware prior to
attaching to legs. Don’t attach to legs yet.
4. Measure approximately 32” rearward from lower dash and locate the two (2) OEM
floor mount holes under rubber mat. Cut slit in rubber mat to expose mount holes.
Remove rubber plugs and bolt down rear mount bracket with ½”x 1” self-treading
bolts.
Note: Mount holes are not threaded. You will need a heavy duty impact wrench to
run bolts in or use a ½” tap to make threads prior to attaching bolts.
5. Attach Trak with front cross piece to rear bracket using ¼” x ¾” hex bolts and
serrated nuts.
6. Bolt front cross piece assembly to front mounting legs using ¼” x ¾” bolts and
washers.
7. Tighten seat bolts and all hardware.
8. Install nuts in Trak slots as needed and attach console and/or accessories to Trak
platform.
9. Attach Trak plastic End caps to Trak . (peel and stick)
C-TM-EXPD-INST-6-06
