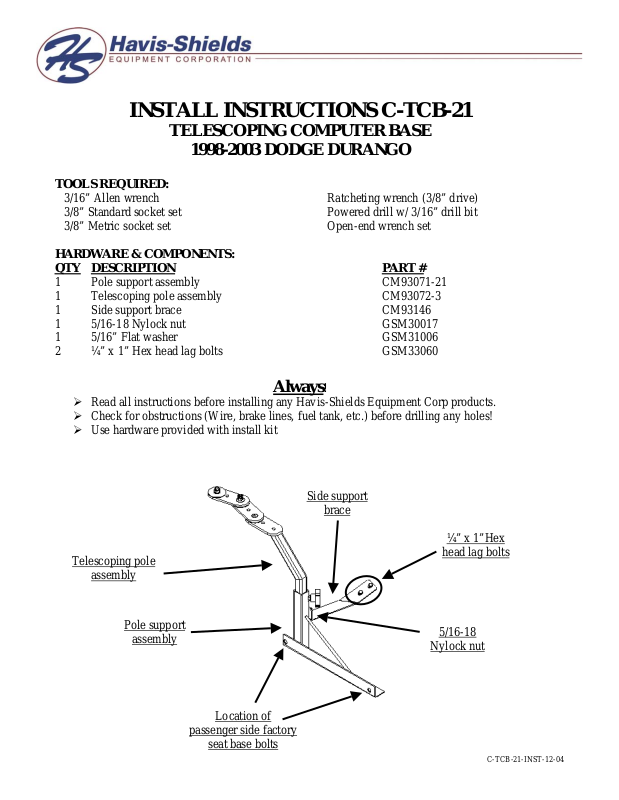

INSTALL INSTRUCTIONS C-TCB-21
TELESCOPING COMPUTER BASE
1998-2003 DODGE DURANGO
TOOLS REQUIRED:
3/16” Allen wrench
3/8” Standard socket set
3/8” Metric socket set
HARDWARE & COMPONENTS:
QTY DESCRIPTION PART #
1 Pole support assembly CM93071-21
1 Telescoping pole assembly CM93072-3
1 Side support brace CM93146
1 5/16-18 Nylock nut GSM30017
1 5/16” Flat washer GSM31006
2 ¼” x 1” Hex head lag bolts GSM33060
Ratcheting wrench (3/8” drive)
Powered drill w/ 3/16” drill bit
Open-end wrench set
Always
Read all instructions before installing any Havis-Shields Equipment Corp products.
Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!
Use hardware provided with install kit
Telescoping pole
assembly
Pole support
assembly
!
Side support
brace
¼” x 1”Hex
head lag bolts
5/16-18
Nylock nut
Location of
passenger side factory
seat base bolts
C-TCB-21-INST-12-04
SUB ASSEMBLY:
1. Confirm receipt of all hardware and components.
2. Remove front inner and outer passenger seat bolts on vehicle.
INSTALLATION:
1. Mount C-TCB-21 into vehicle:
• Position pole support assembly between seat base mount and floor of vehicle
• Align holes in pole support assembly with holes in seat base.
• Loosely attached factory seat bolts that were removed during subassembly.
• Mount side support brace to threaded rod located on pole support assembly using a
5/16-18 Nylock nut
• Mount side support brace to vehicle using ¼” x 1” Hex head lag bolts. A 3/16” pilot
is required.
drilling or lag bolting to floor.
Note: When mounting side support brace to floor of vehicle, be sure to check for obstructions prior to
• Tighten down passenger side factory seat bolts and 5/16-18-nylock nut holding side
support brace to pole support assembly.
• Mount optional C-3090, computer-mounting platform, to telescoping pole assembly
using hardware and instructions provided with C-3090.
C-TCB-21-INST-12-04
