DRIVER and PASSENGER - TRUNK SIDE MOUNTS
TOOLS REQUIRED:
HARDWARE:
LINE DRAWING:
INSTALL INSTRUCTIONS
C-TSM-CV-D and C-TSM-CV-P
1996-2008 CROWN VICTORIA
• Drill with 1/8” and 3/16” drill bits
• Open End Wrench - 3/8”
• Phillips Screwdriver
QTY: DESCRIPTION: PART #:
3 10/32 X 1/2” Machine Screw GSM33118
3 10/32 Keps Nut GSM30028
3 #10 x 3/4” Sheet Metal Screw GSM33195
• Read all instructions before installing any Havis, Inc. products.
• Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!
• Use hardware provided with install kit
Passenger Side shown
# C-TSM-CV-P
Always!
1
C-TSM-CV-P_INST_6-09
Havis, Inc.
75 Jacksonville Road, PO Box 2099
Warminster, PA 18974
T 800-524-9900 F 215-957-0729
www.havis.com

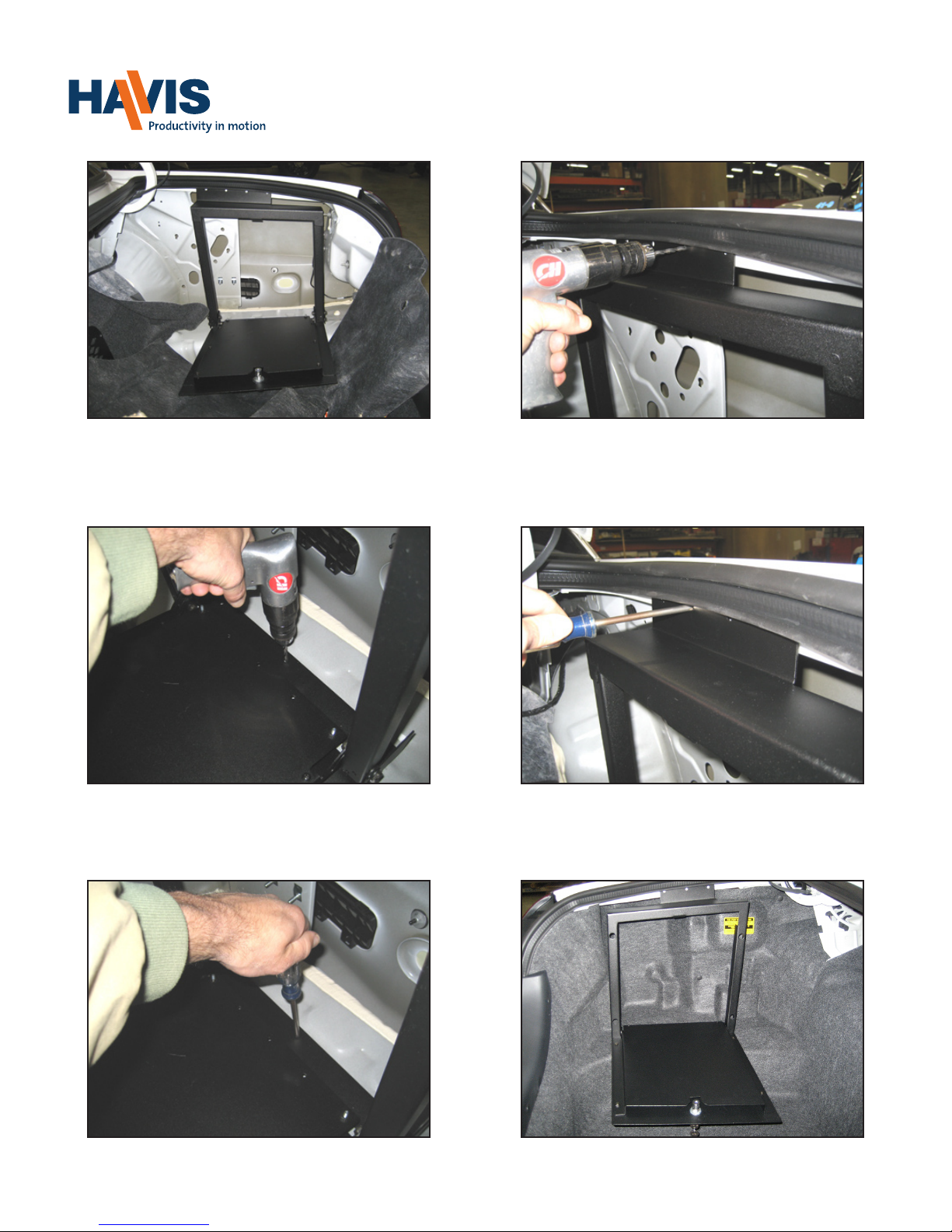

Installation:
Position frame assembly as shown.
Trunk liner does not have to be removed, but
you may want to cut it as needed to improve
access for routing wires.
Bottom frame mount attaches to the trunk
side oor. Drill three pilot holes with a 1/8”
(.125”) drill bit.
* Always check under oor before drilling *
Top frame mount attachs to the trunk
gasket mounting ange.
Drill three holes with a 3/16” (.187”) drill bit.
Attach top frame with three (3) - 10/32” x
1/2” machine screws and keps nuts.
Attach bottom frame with three (3) - # 10 x
3/4” sheet metal screws.
Driver side Trunk Side Mount complete.
Install electrical components as desired.
C-TSM-CV-P_INST_6-09
2
