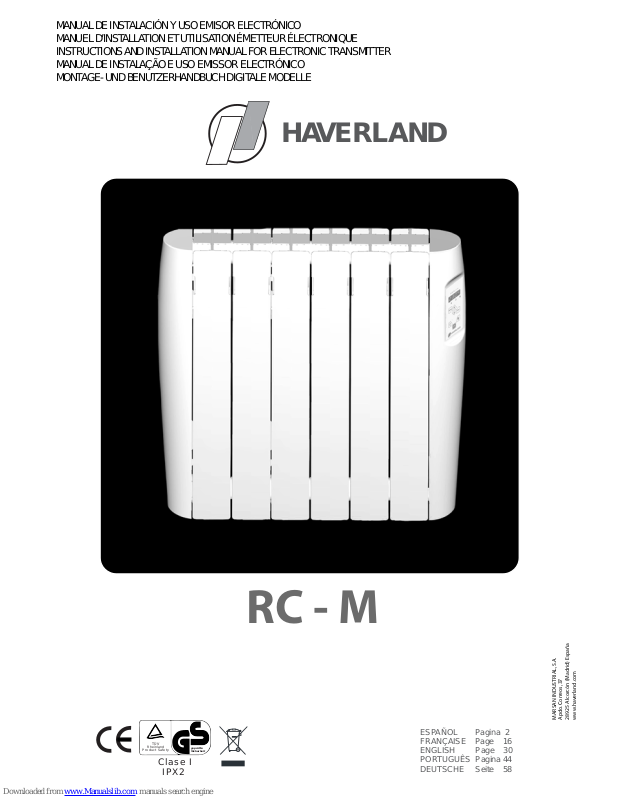

Haverland RC-M Instruction And Installation Manual

HAVERLAND

ESPAÑOL Pagina 2 FRANÇAISE Page 16

PORTUGUÊS Pagina 44 DEUTSCHE Seite 58

ENGLISH Page 30

MANUAL DE INSTALACIÓN Y USO EMISOR ELECTRÓNICO MANUEL D’INSTALLATION ET UTILISATION ÉMETTEUR ÉLECTRONIQUE INSTRUCTIONS AND INSTALLATION MANUAL FOR ELECTRONIC TRANSMITTER MANUAL DE INSTALAÇÃO E USO EMISSOR ELECTRÓNICO MONTAGE- UND BENUTZERHANDBUCH DIGITALE MODELLE

RC - M

MARSAN INDUSTRIAL, S.A.

Apdo. Correos, 37

28925 Alcorcón (Madrid) España

www.haverland.com

Clase I

IPX2

TÜV

Rheinland

Product Safety

geprüfte Sicherheit

The RCM can work with external programming devices or any other device of exterior control, providing that the period of electrical disconnection is not superior to 24 hours.

DANGER:

M

RC4M 500 230 435 x 580 x 99 4

RC6M 750 230 593 x 580 x 99 6

RC8M 1000 230 751 x 580 x 99 8

RC10M 1250 230 909 x 580 x 99 10

RC12M 1500 230 1067 x 580 x 99 12

RC3M 375 230 361 x 580 x 99 3

24 hours

MENU

Y

Mo

Fr

Following these steps the transmitter is configured with the basic functions and will be able to work perfectly. These steps should be followed only when the transmitter has been disconnected for more than 24 hours. The rest of the parameters (plans, programmes) remain in the memory. The configured parameters are ones which come from the manufacturing.

Comfort temperature: 22 ºC Economy temperature: 18 ºC Programmed plan: Plan 1, General use

Following these steps the transmitters is configured to a comfort temperature of 24,5 ºC instead of 22 ºC. Configure the temperature you desire.

Following these steps the transmitters is configured to an economy temperature of

19.5 ºC instead of 18 ºC. Configure the desired temperature in this way.

MENU

continue

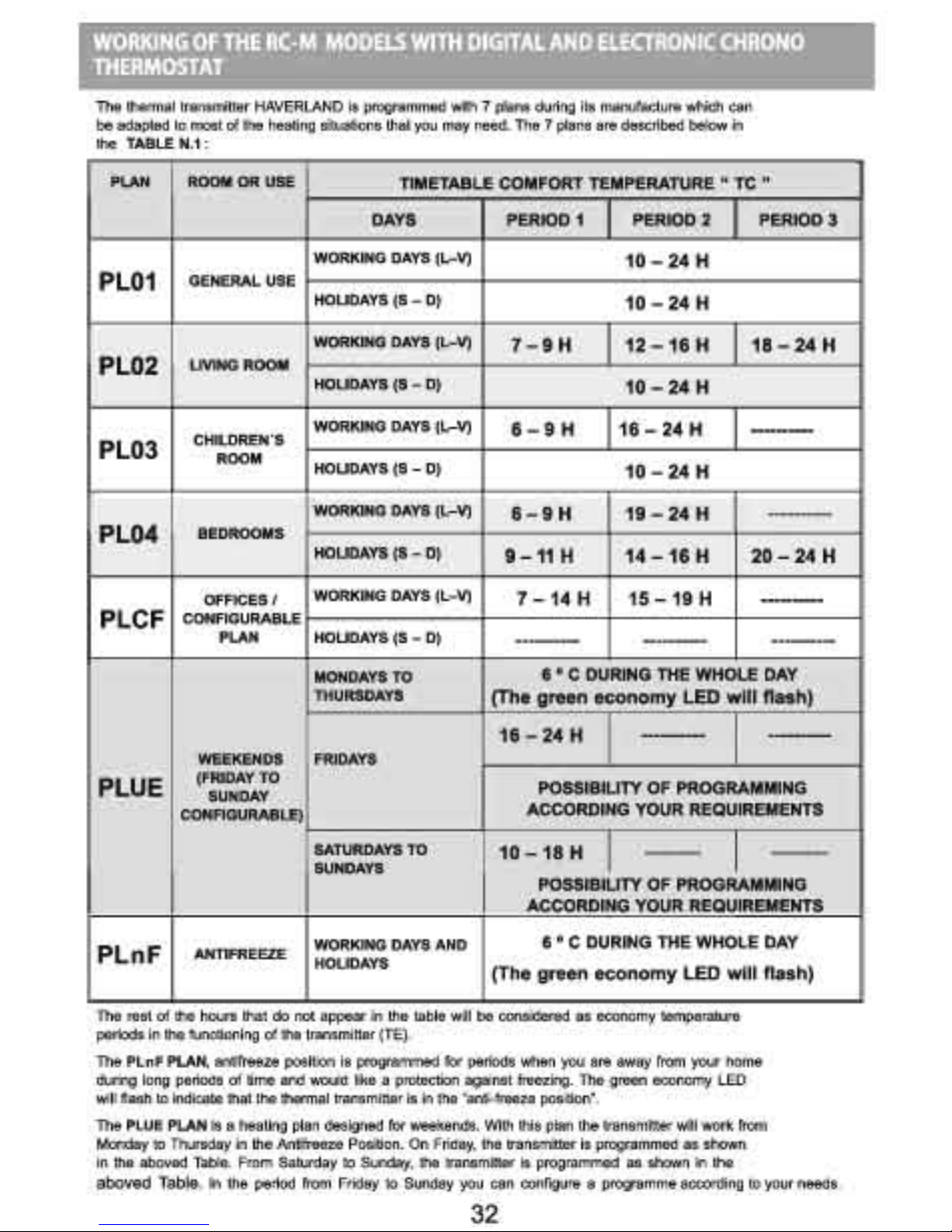

As previosly mentioned, the thermal transmitter is pre-programmed according to the plan 01 which is a general use plan (See aboved table). We are going to explain how to change to the desired plan according to the seven pre-programmed plans.

You have just changed the Plan 01 (genera use) to Plan 03 (children´s room). The values of these programmes can be seen in the Table nº 1 (page 4).

This option is for the case you do not want to use any of the 7 avaible programmes or you do not wish to undertake any configured plan. In this case, the transmitter will work as a normal heating system appliance.
