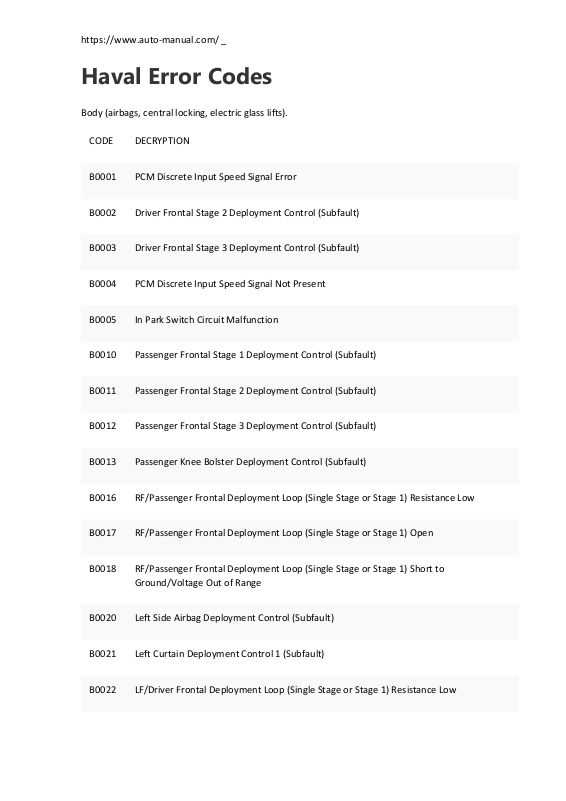

Haval Error Codes

Body (airbags, central locking, electric glass lifts).

CODE

DECRYPTION

B0001

PCM Discrete Input Speed Signal Error

B0002

Driver Frontal Stage 2 Deployment Control (Subfault)

B0003

Driver Frontal Stage 3 Deployment Control (Subfault)

B0004

PCM Discrete Input Speed Signal Not Present

B0005

In Park Switch Circuit Malfunction

B0010

Passenger Frontal Stage 1 Deployment Control (Subfault)

B0011

Passenger Frontal Stage 2 Deployment Control (Subfault)

B0012

Passenger Frontal Stage 3 Deployment Control (Subfault)

B0013

Passenger Knee Bolster Deployment Control (Subfault)

B0016

RF/Passenger Frontal Deployment Loop (Single Stage or Stage 1) Resistance Low

B0017

RF/Passenger Frontal Deployment Loop (Single Stage or Stage 1) Open

B0018

RF/Passenger Frontal Deployment Loop (Single Stage or Stage 1) Short to
Ground/Voltage Out of Range

B0020

Left Side Airbag Deployment Control (Subfault)

B0021

Left Curtain Deployment Control 1 (Subfault)

B0022

LF/Driver Frontal Deployment Loop (Single Stage or Stage 1) Resistance Low

CODE

DECRYPTION

B0024

LF/Driver Frontal Deployment Loop (Single Stage or Stage 1) Short to Ground/Voltage
Out of Range

B0026

LF/Driver Frontal Deployment Loop (Single Stage or Stage 1) Open

B0028

RF/Passenger Side Deployment Loop Resistance Low

B0029

RF/Passenger Side Deployment Loop Open

B002A

Right Curtain Deployment Control 2 (Subfault)

B0030

RF/Passenger Side Deployment Loop Short to Ground/Voltage Out of Range

B0031

Second Row Left Frontal Stage 1 Deployment Control (Subfault)

B0032

Second Row Left Frontal Stage 2 Deployment Control (Subfault)

B0033

Second Row Left Frontal Stage 3 Deployment Control (Subfault)

B0035

ADS Closed/Shorted to Ground

B0036

ADS Open/Missing/Shorted to Battery

B0037

AUX switch closed/shorted to ground

B0038

AUX switch open/shorted to battery

B0039

Second Row Right Frontal Stage 1 Deployment Control (Subfault)

B003A

Second Row Right Frontal Stage 2 Deployment Control (Subfault)

B003B

Second Row Right Frontal Stage 3 Deployment Control (Subfault)

B0040

LF/Driver Side Deployment Loop Resistance Low

CODE

DECRYPTION

B0041

LF/Driver Side Deployment Loop Open

B0042

Third Row Left Frontal Stage 2 Deployment Control (Subfault)

B0043

Third Row Left Frontal Stage 3 Deployment Control (Subfault)

B0045

LF Side Deploy Loop Short to Ground/Voltage Out of Range

B0048

Third Row Right Side Airbag Deployment Control (Subfault)

B0049

Third Row Right Frontal Stage 1 Deployment Control (Subfault)

B004A

Third Row Right Frontal Stage 2 Deployment Control (Subfault)

B004B

Third Row Right Frontal Stage 3 Deployment Control (Subfault)

B0050

driver Seatbelt Sensor ( Subfault )

B0051

Deployment commanded

B0052

Passenger Seatbelt Sensor ( Subfault )

B0053

Deployment Commanded with Loop Malfunctions Present

B0054

Second Row Center Seatbelt Sensor (Subfault)

B0055

Second Row Right Seatbelt Sensor (Subfault)

B0056

Third Row Left Seatbelt Sensor (Subfault)

B0057

RF/Passenger Pretensioner Deployment Loop Resistance Low

B0058

RF/Passenger Pretensioner Deployment Loop Open

B0059

RF/Passenger Pretensioner Deployment Loop Short to Ground/Voltage Out of Range

CODE

DECRYPTION

B0060

Driver Seatbelt Tension Sensor (Subfault)

B0061

Passenger Seatbelt Tension Sensor (Subfault)

B0064

LF/Driver Pretensioner Deployment Loop Resistance Low

B0065

LF/Driver Pretensioner Deployment Loop Open

B0066

LF/Driver Pretensioner Deployment Loop Short to Ground/Voltage Out of Range

B0071

First Row Center Seatbelt Pretensioner Deployment Control (Subfault)

B0073

Supplemental Deployment Loop #1 Resistance Low

B0074

Supplemental Deployment Loop #1 Open

B0075

Supplemental Deployment Loop #1 Short to Ground/Voltage Out of Range

B0076

Third Row Left Seatbelt Pretensioner Deployment Control (Subfault)

B0077

LF/ Driver SIS Malfunction

B0078

RF/ Passenger SIS Malfunction

B0079

Incorrect LF/Driver SIS Installed

B0080

Discard LF/ Driver SIS

B0081

Incorrect RF/Passenger SIS Installed

B0082

Discard RF/ Passenger SIS

B0083

Second Row Left Seatbelt Load Limiter Deployment Control (Subfault)

B0084

Second Row Center Seatbelt Load Limiter Deployment Control (Subfault)

CODE

DECRYPTION

B0085

Second Row Right Seatbelt Load Limiter Deployment Control (Subfault)

B0086

Supplemental Deployment Loop #2 Resistance Low

B0087

Supplemental Deployment Loop #2 Open

B0088

Supplemental Deployment Loop #2 Short to Ground/Voltage Out of Range

B0090

Active switch voltage out of range

B0091

Active switch : wrong state

B0092

PPS passenger detection error

B0093

PPS/CPS self-test malfunction

B0094

CPS childseat detection error

B0095

SDM-PPS/CPS mismatch malfunction

B0096

Right Side Restraints Sensor 1 (Subfault)

B0097

Right Side Restraints Sensor 2 (Subfault)

B0098

Right Side Restraints Sensor 3 (Subfault)

B0099

Roll Over Sensor ( Subfault )

B009A

Left Side Restraints Sensor 4 (Subfault)

B009B

Left Side Restraints Sensor 5 (Subfault)

B009C

Left Side Restraints Sensor 6 (Subfault)

B009D

Right Side Restraints Sensor 4 (Subfault)

CODE

DECRYPTION

B009E

Right Side Restraints Sensor 5 (Subfault)

B009F

Right Side Restraints Sensor 6 (Subfault)

B00A0

Occupant classification System ( Subfault )

B00A1

Occupant position System ( Subfault )

B00B5

Driver Seat Track Position Restraints Sensor (Subfault)

B00B6

Driver Seat Recline Position Restraints Sensor (Subfault)

B00C5

Passenger Seat Track Position Restraints Sensor (Subfault)

B00C6

Passenger Seat Recline Position Restraints Sensor (Subfault)

B00D0

driver Seatbelt Indicator ( Subfault )

B00D1

Passenger Seatbelt Indicator ( Subfault )

B00D2

Restraint System Malfunction Indicator 1 (Subfault)

B00D3

Restraint System Malfunction Indicator 2 (Subfault)

B00D4

Restraint System Malfunction Audible Indicator (Subfault)

B00D5

Restraint System Passenger Disable Indicator (Subfault)

B00DF

Passenger Restraints Disable Switch (Subfault)

B0126

Right Panel Discharge Temperature Fault

B0131

Right Heater Discharge Temperature Fault

B0159

Outside Air Temperature Sensor Circuit Range/Performance

CODE

DECRYPTION

B0164

Passenger Compartment Temperature Sensor #1 (Single Sensor or LH) Circuit
Range/Performance

B0169

In-car Temp Sensor Failure (passenger -not used)

B0174

Output Air Temperature Sensor #1 (Upper; Single or LH) Circuit Range/Performance

B0179

Output Air Temperature Sensor #2 (Lower; Single or LH) Circuit Range/Performance

B0184

Solar Load Sensor #1 CKT Range

B0189

Solar Load Sensor #2 CKT Range

B0248

mode door Inoperative error

B0249

Heater/Defrost/AC Door Range Error

B0268

A/I Door Inoperative Error

B0269

Air Inlet Door Range Error

B0408

Temperature Control #1 (Main/Front) Circuit Malfunction

B0409

Air Mix Door #1 Range Error

B0419

Air Mix Door #2 Range Error

B0423

Air Mix Door #2 Inoperative Error

B0428

Air Mix Door #3 Inoperative Error

B0429

Temperature Control #3 Rear Circuit Range/Performance

B0510

RH Panel Discharge Temp Sensor Failure

CODE

DECRYPTION

B0515

RH Heater Discharge Temp Sensor Failure

B0520

Rear Discharge Temp Sensor Failure

B0530

fuel Level sensor Stuck

B0532

Fuel Sensor Shorted To Ground

B0533

Fuel Sensor Open/Shorted To B+

B0688

Security System Indicator Circuit High

B0768

Service indicator Circuit high

B0846

+5 Volt Reference Out of Range

B0856

Battery 2 Out of Range

Chassis (ABS traction control , ESP, TCS- Traction control System Stability Program)

CODE

DECRYPTION

C0010

Left Front Inlet Control (Subfault)

C0011

Left Front Outlet Control (Subfault)

C0012

Left Front Hydraulic Release Too Long (Subfault)

C0014

Right Front Inlet Control (Subfault)

C0015

Right Front Outlet Control (Subfault)

C0016

Right Front Hydraulic Release Too Long (Subfault)

C0018

Left Rear Inlet Control (Subfault)

CODE

DECRYPTION

C0019

Left Rear Outlet Control (Subfault)

C001A

Left Rear Hydraulic Release Too Long (Subfault)

C001C

Right Rear Inlet Control (Subfault)

C001D

Right Rear Outlet Control (Subfault)

C001E

Right Rear Hydraulic Release Too Long (Subfault)

C0020

ABS Pump Motor Control (Subfault)

C0021

brake Booster Performance ( Subfault )

C0022

brake Booster Solenoid ( Subfault )

C0023

Stop Lamp Control ( Subfault )

C0030

Left Front Tone Wheel (Subfault)

C0031

Left Front Wheel Speed Sensor (Subfault)

C0032

Left Front Wheel Speed Sensor Supply (Subfault)

C0033

Right Front Tone Wheel (Subfault)

C0034

Right Front Wheel Speed Sensor (Subfault)

C0035

Right Front Wheel Speed Sensor Supply (Subfault)

C0036

Left Rear Tone Wheel (Subfault)

C0037

Left Rear Wheel Speed Sensor (Subfault)

C0038

Left Rear Wheel Speed Sensor Supply (Subfault)

CODE

DECRYPTION

C0039

Right Rear Tone Wheel (Subfault)

C003A

Right Rear Wheel Speed Sensor (Subfault)

C003B

Right Rear Wheel Speed Sensor Supply (Subfault)

C003C

Rear tone Wheel ( Subfault )

C003D

Rear Wheel Speed Sensor (Subfault)

C003E

Rear Wheel Speed Sensor Supply (Subfault)

C0047

Brake Booster Pressure Sensor (Subfault)

C0048

Brake Booster Travel Sensor (Subfault)

C0049

brake Fluid ( Subfault )

C004A

Brake Lining Wear Sensor (Subfault)

C0051

Steering Wheel Position Sensor (Subfault)

C0061

Lateral Acceleration Sensor ( Subfault )

C0062

Longitudinal Acceleration Sensor ( Subfault )

C0063

Yaw rate Sensor ( Subfault )

C0064

Roll rate sensor

C0069

Yaw Rate/Longitude Sensors (Subfault)

C006A

Multi-axis Acceleration Sensor (Subfault)

C006B

Stability System Active Too Long (Subfault)

CODE

DECRYPTION

C006C

Stability System

C0071

2/4 Wheel Drive Status Input (Subfault)

C0072

Brake Temperature Too High (Subfault)

C0073

Delivered Driving Torque ( Subfault )

C0074

Requested Driving Torque ( Subfault )

C0075

Extended Brake Pedal Travel, output to PCM (Subfault)

C0076

PWM for Traction Control (Subfault)

C0077

low Tire Pressure ( Subfault )

C0078

Tire Diameter ( Subfault )

C0079

variable Effort Steering ( Subfault )

C0081

ABS Malfunction Indicator ( Subfault )

C0082

Brake System Malfunction Indicator (Subfault)

C0083

Tire Pressure Monitor Malfunction Indicator (Subfault)

C0084

Traction Active Indicator ( Subfault )

C0085

Traction Disable Indicator ( Subfault )

C0086

vehicle Dynamics Indicator ( Subfault )

C0089

TCS Disable Switch ( Subfault )

C008A

TCS Mode Control ( Subfault )

Control of the mixture formation system and the system of add. emission reduction

CODE

DECRYPTION

P0000

No faults found

P0001

Fuel regulator control - open circuit

P0002

Fuel Regulator Control - Circuit Parameters

P0003

Fuel Regulator Control - Low Voltage

P0004

Fuel Regulator Control - High Voltage

P0005

Fuel cut-off valve - open circuit

P0006

Fuel cut-off valve - signal low

P0007

Fuel cut-off valve - signal high

P0008

Phase synchronization system, bank 1 - motor characteristic

P0009

Phase synchronization system, bank 2 - motor characteristic

P000A

Intake Camshaft Position A Bank 1 - Slow Response

P000B

Exhaust Camshaft Position B Bank 1 - Slow Response

P000C

Intake camshaft position A, bank 2 - slow response

P000D

Exhaust camshaft position B, bank 2 - slow response

P000E

Injection pump fuel regulator control - learning limit exceeded

P000F

Fuel system, pressure relief valve activated

P0010

Variable Valve Timing Actuator Intake/LH/Front Bank 1 Circuit Malfunction

CODE

DECRYPTION

P0011

Camshaft position, inlet/left/front, bank 1 - valve opening too early / system
malfunction

P0012

Camshaft Position, Intake/LH/Front, Bank 1 - Valve Angle Too Late

P0013

Variable Valve Timing Actuator Intake/LH/Front Bank 1 Circuit Malfunction

P0014

Variable Valve Timing Actuator Exhaust/LH/Rear Bank 1 Opening Angle Too Early /
System Performance

P0015

Variable Valve Timing Actuator Exhaust/LH/Rear Bank 1 Opening Angle Too Late

P0016

Crankshaft and Camshaft Position Bank 1 Sensor A - No Match

P0017

Crankshaft and Camshaft Position Bank 1 Sensor B - Correlation

P0018

Crankshaft and Camshaft Position Bank 2 Sensor A - Correlation

P0019

Crankshaft and Camshaft Position Bank 2 Sensor B - Correlation

P001A

Intake Camshaft Profile A Control Bank 1 Open Circuit

P001B

Intake Camshaft Profile A Control Bank 1 Low

P001C

Intake Camshaft Profile A Control Bank 1 High

P001D

Intake Camshaft Profile A Control Bank 2 Open Circuit

P001E

Intake Camshaft Profile A Control Bank 2 Low

P001F

Intake Camshaft Profile A Control Bank 2 High

P0020

Variable Valve Timing Actuator Intake/LH/Front Bank 2 Circuit Malfunction

P0021

Camshaft Position, Intake/LH/Front, Bank 2 - Valve Angle Too Early / System
Malfunction

CODE

DECRYPTION

P0022

Camshaft Position, Intake/LH/Front, Bank 2 - Valve Angle Too Late

P0023

Variable Valve Timing Actuator Exhaust/LH/Rear Bank 2 Circuit Malfunction

P0024

Camshaft Position, Exhaust/RH/Rear, Bank 2 - Opening Angle Too Early / System
Performance

P0025

Camshaft Position, Exhaust/RH/Rear, Bank 2 - Opening Angle Too Late

P0026

Intake Valve Control Solenoid Bank 1 Range/Performance

P0027

Exhaust Control Solenoid Bank 1 Range/Performance

P0028

Intake Valve Control Solenoid Bank 2 Range/Performance

P0029

Exhaust Control Solenoid Bank 2 Range/Performance

P002A

Control B profile of the exhaust camshaft, bank 1 - open circuit

P002B

Control B profile of the exhaust camshaft, bank 1 - signal low

P002C

Control B profile of the exhaust camshaft, bank 1 signal high

P002D

Control B profile of the exhaust camshaft, bank 2 - open circuit

P002E

Exhaust Camshaft Profile B Control Bank 2 - Signal Low

P002F

Exhaust Camshaft Profile B Control Bank 2 Signal High

P0030

Heated oxygen sensor 1 bank 1 heater control circuit malfunction

P0031

Heated Oxygen Sensor 1 Bank 1 Heater Control Circuit Low

P0032

Heated oxygen sensor 1, bank 1, heater control - circuit high voltage

CODE

DECRYPTION

P0033

Turbocharger bypass valve - circuit malfunction

P0034

Turbocharger bypass valve - signal low

P0035

Turbocharger bypass valve - signal high

P0036

Heated oxygen sensor 2, bank 1, heater control - circuit malfunction

P0037

Heated Oxygen Sensor 2 Bank 1 Heater Control Circuit Low

P0038

Heated oxygen sensor 2, bank 1, heater control - circuit high voltage

P0039

Turbocharger Wastegate/Supercharger Bypass Valve Control Range/Performance

P003A

Turbocharger/supercharger boost pressure control A - learning limit exceeded

P003B

Control In turbocharger/supercharger boost pressure - learning limit exceeded

P003C

Intake Camshaft Profile A Control Bank 1 - Performance Problems or Stuck Closed

P003D

Intake Camshaft Profile A Control Bank 1 - Stuck Open

P003E

Intake Camshaft Profile A Control Bank 2 - Performance Problems or Stuck Closed

P003F

Intake Camshaft Profile A Control Bank 2 - Stuck Open

P0040

Interchanged connection of oxygen sensors 1, bank 1 and bank 2

P0041

Interchanged connection of oxygen sensors 2, bank 1 and bank 2

P0042

Heated oxygen sensor 3 bank 1 heater control circuit malfunction

P0043

Heated Oxygen Sensor 3 Bank 1 Heater Control Circuit Low

P0044

Heated oxygen sensor 3, bank 1, heater control - circuit high voltage

CODE

DECRYPTION

P0045

Turbo boost pressure control solenoid / supercharger boost pressure control valve ­open circuit

P0046

Turbo boost pressure /supercharger boost pressure control solenoid ­Range/Performance

P0047

Solenoid valve control pressure turbo boost / boost pressure drive supercharger - low
signal level

P0048

Solenoid valve control pressure turbocharging / boost pressure drive supercharger ­high signal level

P0049

Turbine turbocharger / supercharger - overspeed

P004A

Turbocharger/supercharger boost pressure control - open circuit

P004B

Turbocharger/Supercharger Boost Pressure Control Range/Performance

P004C

Turbocharger/supercharger boost pressure control B - signal low

P004D

Turbocharger/Supercharger Boost Pressure Control - Signal High

P004E

Turbocharger/supercharger boost pressure control A - intermittent/erratic signal

P004F

Turbocharger/Supercharger boost pressure control - intermittent/erratic signal

P0050

Heated oxygen sensor 1 bank 2 heater control circuit malfunction

P0051

Heated Oxygen Sensor 1 Bank 2 Heater Control Low

P0052

Heated Oxygen Sensor 1 Bank 2 Heater Control High

P0053

Heated oxygen sensor 1, bank 1 - heater resistance

P0054

Heated oxygen sensor 1, bank 2 - heater resistance

CODE

DECRYPTION

P0055

Heated Oxygen Bank 1 Sensor 3 - Heater Resistance

P0056

Heated oxygen sensor 2, bank 2, heater control - circuit malfunction

P0057

Heated oxygen sensor 2, bank 2, heater control - heater circuit low voltage

P0058

Heated Oxygen Sensor 2 Bank 2 Heater Control High

P0059

Heated oxygen sensor 1, bank 2 - heater resistance

P005A

Control In Exhaust Camshaft Profile, Bank 1 - Performance Problems or Stuck Closed

P005B

Control B profile of the exhaust camshaft, bank 1 - stuck open

P005C

Control In Exhaust Camshaft Profile, Bank 2 - Performance Problems or Stuck Closed

P005D

Control B profile of the exhaust camshaft, bank 2 - stuck open

P005E

Turbocharger/supercharger boost pressure control - low supply voltage

P005F

Turbocharger/supercharger boost pressure control - high supply voltage

P0060

Heated Oxygen Sensor Bank 2 Sensor 2 - Heater Resistance

P0061

Heated Oxygen Sensor Bank 2 Sensor 3 - Heater Resistance

P0062

Heated oxygen sensor 3, bank 2, heater control - circuit malfunction

P0063

Heated Oxygen Sensor 3 Bank 2 Heater Control Low

P0064

Heated Oxygen Sensor 3 Bank 2 Heater Control High

P0065

Auxiliary Air Nozzle - Range/Performance

P0066

Injector with additional air passage - circuit malfunction / low voltage

CODE

DECRYPTION

P0067

Nozzle with additional air channel - circuit voltage high

P0068

Manifold Absolute Pressure Sensor/Air Flow Sensor (MAF) Throttle Position Mismatch

P0069

Manifold Absolute Pressure Sensor / Atmospheric Pressure Sensor - Correlation

P006A

Manifold Absolute Pressure Sensor / Air Mass Sensor Bank 1 - Correlation

P006B

Intake Manifold Absolute Pressure Sensor/Exhaust Pressure - Correlation

P006C

Manifold Absolute Pressure (MAP) Sensor / Boost Pressure Sensor
(Turbocharger/Supercharger Actuator) - Correlation

P006D

Atmospheric pressure sensor / pressure sensor at the inlet to the turbocharger /
supercharger - correlation

P006E

Turbocharger/supercharger boost pressure control A - supply voltage low

P006F

Turbocharger/supercharger boost pressure control A - supply voltage high

P0070

Ambient air temperature sensor - circuit malfunction

P0071

Ambient Air Temperature Sensor Range/Performance

P0072

Ambient temperature sensor - low signal

P0073

Ambient Air Temperature Sensor - High Output

P0074

Ambient temperature sensor - unreliable contact of the electrical circuit

P0075

Intake valve control solenoid bank 1 circuit malfunction

P0076

Intake valve control solenoid bank 1 circuit low

P0077

Intake valve control solenoid bank 1 circuit high voltage

CODE

DECRYPTION

P0078

Exhaust control solenoid bank 1 circuit malfunction

P0079

Exhaust control solenoid bank 1 circuit low

P007A

aftercooler temperature sensor , bank 1 - circuit malfunction

P007B

Intercooler Temperature Sensor Bank 1 Range/Performance

P007C

Air aftercooler temperature sensor bank 1 low

P007D

Air aftercooler temperature sensor bank 1 high

P007E

Intercooler Intercooler Temperature Sensor Bank 1 Intermittent/Random Signal

P007F

aftercooling temperature sensor , bank 1/2 - correlation

P0080

Exhaust Control Solenoid Bank 1 Circuit High

P0081

Intake valve control solenoid bank 2 circuit malfunction

P0082

Intake valve control solenoid bank 2 low

P0083

Intake valve control solenoid bank 2 high

P0084

Exhaust valve control solenoid bank 2 circuit malfunction

P0085

Exhaust valve control solenoid bank 2 low

P0086

Exhaust valve control solenoid bank 2 high

P0087

System/Fuel Rail Pressure Too Low

P0088

System/Fuel Rail Pressure Too High

P0089

Fuel pressure regulator 1 - operation

CODE

DECRYPTION

P008A

Fuel system low pressure line - pressure too low

P008B

Fuel system low pressure line - pressure too high

P008C

Coolant pump control (fuel system) - open circuit

P008D

Coolant pump relay (fuel system) - signal low

P008E

Coolant pump (fuel system) - control signal high

P008F

Coolant Temperature/Fuel Temperature - Correlation

P0090

Fuel pressure regulator 1 open circuit

P0091

Fuel pressure regulator 1 - short to ground

P0092

Fuel pressure regulator 1 - short to +

P0093

Significant leak in the fuel system

P0094

Minor leak in the fuel system

P0095

Intake air temperature sensor 2 - circuit malfunction

P0096

Intake Air Temperature Sensor 2 Range/Performance

P0097

Intake air temperature sensor 2 - low input

P0098

Intake air temperature sensor 2 - high input

P0099

Intake air temperature sensor 2 - circuit intermittent / intermittent

P009A

Intake manifold air temperature/ambient air temperature - correlation

P009B

Fuel pressure relief system - control circuit open

CODE

DECRYPTION

P009C

Fuel Pressure Relief System - Control Circuit Low

P009D

Fuel Pressure Relief System - Control Circuit High

P009E

Fuel Pressure Relief System - Performance Problems or Stuck Closed

P009F

Fuel Pressure Relief System - Valve Stuck

P00A0

Air aftercooler temperature sensor bank 2 - circuit malfunction

P00A1

Intercooler Temperature Sensor Bank 2 Range/Performance

P00A2

aftercooling temperature sensor , bank 2 - signal low

P00A3

Air aftercooler temperature sensor bank 2 high

P00A4

Air aftercooler temperature sensor bank 2 intermittent/erratic signal

P00A5

Intake air temperature sensor 2, bank 2 - circuit malfunction

P00A6

Intake Air Temperature Sensor 2 Bank 2 Range/Performance

P00A7

Intake Air Temperature Sensor 2 Bank 2 Low

P00A8

Intake Air Temperature Sensor 2 Bank 2 High

P00A9

Intake air temperature sensor 2, bank 2 intermittent/erratic signal

P00AA

Intake air temperature sensor 1, bank 2 - circuit malfunction

P00AB

Intake Air Temperature Sensor 1 Bank 2 Range/Performance

P00AC

Intake air temperature sensor 1, bank 2 - signal low

P00AD

Intake air temperature sensor 1, bank 2 - signal high

CODE

DECRYPTION

P00AE

Intake air temperature sensor 1, bank 2 - intermittent/erratic signal

P00AF

Turbocharger / supercharger boost pressure control A - characteristics of the control
unit

P00B0

Turbocharger/Supercharger Boost Pressure Control - Control Unit Characteristics

P00B1

Radiator temperature sensor - circuit malfunction

P00B2

Cooling Radiator Temperature Sensor Range/Performance

P00B3

Radiator temperature sensor of the cooling system - low signal level

P00B4

Radiator temperature sensor of the cooling system - high signal level

P00B5

Radiator temperature sensor of the cooling system - missing / chaotic signal

P00B6

Radiator coolant temperature/engine coolant temperature - correlation

P00B7

Low coolant flow - performance problems

P00B8

Manifold absolute pressure (MAP) sensor / mass air flow sensor, bank 2 - correlation

P00B9

Fuel pressure sensor - pressure too low

P00BA

Low Fuel Pressure - Forced Power Limit Mode

P00BB

Injector, insufficient flow - forced power limitation mode

P00BC

Air Mass Sensor (MAF) A - Range/Performance

P00BD

Air Mass Sensor (MAF) A - Range/Performance

P00BE

Air Mass Sensor (MAF) B - Range/Performance

CODE

DECRYPTION

P00BF

Air Mass Sensor (MAF) B - Range/Performance

P00C0

Turbocharger/supercharger bypass valve B - control circuit

P00C1

Turbocharger/supercharger bypass valve B - signal low

P00C2

Turbocharger/Supercharger Bypass Valve B - Signal High

P00C3

Turbocharger/Supercharger Bypass Valve B Range/Performance

P00C4

Turbocharger/supercharger bypass valve B - mechanical failure

P00C5

Turbine turbocharger / supercharger - overspeed

P00C6

Fuel rail pressure sensor, starter cranking - pressure too low

P00C7

Intake Air Pressure Measurement - Sensor Correlation

P00C8

Solenoid valve fuel pressure regulator - open circuit

P00C9

Solenoid valve control fuel pressure regulator - low signal level

P00CA

Solenoid fuel pressure control valve - signal high

P00CB

Fuel regulator - open circuit

P00CC

Fuel regulator - signal low

P00CD

Fuel regulator - signal high

P00CE

Intake air temperature measurement - sensor correlation

P00CF

Atmospheric pressure sensor / boost pressure sensor A (turbocharger / supercharger
actuator) - correlation

CODE

DECRYPTION

P00D0

Atmospheric pressure sensor / boost pressure sensor B (turbocharger / supercharger
actuator) - correlation

Control of the mixing system

CODE

DECRYPTION

P0100

Air flow sensor (mass - MAF) / (volumetric - VAF) - circuit malfunction

P0101

Air mass sensor (MAF) / (VAF) - range / performance

P0102

Air flow sensor (MAF) / (VAF) - low input

P0103

Air mass sensor (MAF) / (VAF) - high input

P0104

Air flow sensor (MAF) / (VAF) - unreliable contact of the electrical circuit

P0105

Manifold absolute pressure (MAP) sensor/atmospheric pressure sensor - circuit
malfunction

P0106

Manifold absolute pressure sensor/atmospheric pressure sensor range/performance

P0107

Manifold absolute pressure sensor/atmospheric pressure sensor - signal low

P0108

Manifold absolute pressure sensor/atmospheric pressure sensor - signal high

P0109

Manifold absolute pressure (MAP) sensor / atmospheric pressure sensor - unreliable
electrical circuit contact

P010A

Air mass sensor B - circuit malfunction

P010B

Control unit In the exhaust gas recirculation (EGR) system - communication malfunction

P010C

Air mass sensor B - signal low

P010D

Air mass sensor B - signal high

CODE

DECRYPTION

P010E

Air flow sensor B - intermittent / erratic signal

P010F

Air mass sensor A/B - correlation

P0110

Intake air temperature sensor - circuit malfunction

P0111

Intake Air Temperature Sensor Range/Performance

P0112

Intake air temperature sensor - signal low

P0113

Intake air temperature sensor - high input

P0114

Intake air temperature sensor - unreliable electrical circuit contact

P0115

Coolant temperature sensor - circuit malfunction

P0116

Coolant Temperature Sensor Range/Performance

P0117

Coolant temperature sensor - low signal

P0118

Coolant temperature sensor - high input

P0119

Coolant temperature sensor - unreliable electrical circuit contact

P011A

Coolant temperature sensor 1/2 - correlation

P011B

Coolant temperature/intake air temperature - correlation

P011C

Charge Air Temperature /Intake Air Temperature Bank 1 - Correlation

P011D

Charge Air Temperature /Intake Air Temperature Bank 2 - Correlation

P011E

Coolant Temperature Sensor 1 / Ambient Air Temperature Sensor - Correlation

P011F

Coolant Temperature Sensor 2 / Ambient Air Temperature Sensor - Correlation

CODE

DECRYPTION

P0120

Throttle Position Sensor A / Accelerator Pedal Position Sensor A Circuit Malfunction

P0121

Throttle Position Sensor A / Accelerator Pedal Position Sensor A Range/Performance

P0122

Throttle Position Sensor A / Accelerator Pedal Position Sensor A Low

P0123

Throttle Position Sensor A / Accelerator Pedal Position Sensor A High

P0124

Throttle position sensor A / accelerator pedal position sensor A - circuit intermittent

P0125

Coolant temperature not sufficient for closed loop fuel control

P0126

The coolant temperature is insufficient for stable operation

P0127

Intake air temperature too high

P0128

Cooling system thermostat - coolant temperature below thermostat opening
temperature

P0129

Too low atmospheric pressure

P012A

Turbocharger/supercharger inlet pressure sensor - circuit malfunction

P012B

Turbocharger/Supercharger Inlet Pressure Sensor Range/Performance

P012C

Turbocharger / supercharger inlet pressure sensor - low signal level

P012D

Pressure sensor at the inlet to the turbocharger / drive supercharger - high signal level

P012E

Pressure sensor at the inlet to the turbocharger / supercharger - intermittent / chaotic
signal

P0130

Heated oxygen sensor 1 bank 1 circuit malfunction

P0131

Heated oxygen sensor 1, bank 1 low voltage

CODE

DECRYPTION

P0132

Heated oxygen sensor 1, bank 1 voltage high

P0133

Heated oxygen sensor 1, bank 1 - slow response

P0134

Heated oxygen sensor 1, bank 1 - no response

P0135

Heated oxygen sensor 1 bank 1 heater control circuit malfunction

P0136

Heated oxygen sensor 2 bank 1 circuit malfunction

P0137

Heated oxygen sensor 2, bank 1 low voltage

P0138

Heated oxygen sensor 2, bank 1 voltage high

P0139

Heated oxygen sensor 2, bank 1 - slow response

P013A

Heated oxygen sensor 2, bank 1 - slow rich to lean response

P013B

Heated oxygen sensor 2, bank 1 - slow lean to rich response

P013C

Heated Oxygen Sensor 2, Bank 2 - Slow Rich to Lean

P013D

Heated oxygen sensor 2, bank 2 - slow lean to rich response

P013E

Heated Oxygen Sensor 2 Bank 1 - Rich to Lean Response Delay

P013F

Heated Oxygen Sensor 2 Bank 1 Lean to Rich Response Delay

P0140

Heated oxygen sensor 2, bank 1 - no response

P0141

Heated oxygen sensor 2, bank 1, heater control - circuit malfunction

P0142

Heated oxygen sensor 3 bank 1 circuit malfunction

P0143

Heated oxygen sensor 3, bank 1 low voltage

CODE

DECRYPTION

P0144

Heated oxygen sensor 3, bank 1 - high voltage

P0145

Heated Oxygen Sensor 3 Bank 1 Slow Response

P0146

Heated oxygen sensor 3, bank 1 - no response

P0147

Heated oxygen sensor 3 bank 1 heater control circuit malfunction

P0148

Incorrect fuel supply

P0149

Incorrect injection timing

P014A

Heated Oxygen Sensor 2 Bank 2 - Rich to Lean Response Delay

P014B

Heated Oxygen Sensor 2 Bank 2 Lean to Rich Response Delay

P014C

Heated Oxygen Sensor 1, Bank 1 - Slow Rich to Lean

P014D

Heated oxygen sensor 1, bank 1 - slow lean to rich response

P014E

Heated Oxygen Sensor 1, Bank 2 - Slow Rich to Lean

P014F

Heated oxygen sensor 1, bank 2 - slow lean to rich response

P0150

Heated oxygen sensor 1, bank 2 circuit malfunction

P0151

Heated oxygen sensor 1, bank 2 low voltage

P0152

Heated oxygen sensor 1, bank 2 - high voltage

P0153

Heated oxygen sensor 1, bank 2 - slow response

P0154

Heated oxygen sensor 1, bank 2 - no response

P0155

Heated oxygen sensor 1 bank 2 heater control circuit malfunction

CODE

DECRYPTION

P0156

Heated oxygen sensor 2, bank 2 circuit malfunction

P0157

Heated oxygen sensor 2, bank 2 - voltage low

P0158

Heated oxygen sensor 2, bank 2 - high voltage

P0159

Heated oxygen sensor 2, bank 2 - slow response

P015A

Heated Oxygen Sensor 1 Bank 1 - Rich to Lean Response Delay

P015B

Heated Oxygen Sensor 1 Bank 1 Lean to Rich Response Delay

P015C

Heated Oxygen Sensor 1 Bank 2 - Rich to Lean Response Delay

P015D

Heated Oxygen Sensor 1 Bank 2 Lean to Rich Response Delay

P0160

Heated oxygen sensor 2, bank 2 - no response

P0161

Heated oxygen sensor 2, bank 2, heater control - circuit malfunction

P0162

Heated oxygen sensor 3, bank 2 circuit malfunction

P0163

Heated oxygen sensor 3, bank 2 - voltage low

P0164

Heated oxygen sensor 3, bank 2 - high voltage

P0165

Heated oxygen sensor 3, bank 2 - slow response

P0166

Heated oxygen sensor 3, bank 2 - no response

P0167

Heated oxygen sensor 3, bank 2, heater control - circuit malfunction

P0168

Fuel temperature too high

P0169

Incorrect fuel composition

CODE

DECRYPTION

P016A

Mixture control - overtime entering the feedback mode

P016B

Ratio control (closed-loop operation), limit reached - mixture too rich

P016C

Ratio control (closed-loop operation), limit reached - mixture too lean

P016D

Fuel Pressure Control - Closed Loop Entry Timeout

P016E

Fuel pressure control (closed loop operation), limit reached - pressure too high

P016F

Fuel pressure control (closed loop operation), limit reached - pressure too low

P0170

Fuel Balance Bank 1 Malfunction

P0171

Too lean air-fuel mixture, bank 1

P0172

Too rich air-fuel mixture, bank 1

P0173

Fuel Balance Bank 2 Malfunction

P0174

Too lean air-fuel mixture, bank 2

P0175

Too rich air-fuel mixture, bank 2

P0176

Mixture ratio sensor - circuit malfunction

P0177

Ratio Sensor - Range/Performance

P0178

Mixture ratio sensor - signal low

P0179

Mixture ratio sensor - signal high

P017A

Cylinder head temperature sensor - circuit malfunction

P017B

Cylinder Head Temperature Sensor Range/Performance

CODE

DECRYPTION

P017C

Cylinder head temperature sensor - low signal

P017D

Cylinder head temperature sensor - signal high

P017E

Cylinder head temperature sensor - intermittent / erratic signal

P0180

Fuel temperature sensor A - circuit malfunction

P0181

Fuel Temperature Sensor A - Range/Performance

P0182

Fuel temperature sensor A - signal low

P0183

Fuel Temperature Sensor A - High Input

P0184

Fuel temperature sensor A - unreliable contact of the electrical circuit

P0185

Fuel temperature sensor B - circuit malfunction

P0186

Fuel Temperature Sensor B - Range/Performance

P0187

Fuel Temperature Sensor B - Low Input

P0188

Fuel Temperature Sensor B - High Input

P0189

Fuel temperature sensor B - unreliable contact of the electrical circuit

P018A

Fuel pressure sensor B - circuit malfunction

P018B

Fuel Pressure Sensor B Range/Performance

P018C

Fuel pressure sensor B - signal low

P018D

Fuel pressure sensor B - signal high

P018E

Fuel pressure sensor B - intermittent / erratic signal

CODE

DECRYPTION

P018F

Fuel Pressure Relief System - Frequent Activation

P0190

Fuel rail pressure sensor - circuit malfunction

P0191

Fuel Rail Pressure Sensor Range/Performance

P0192

Fuel rail pressure sensor - signal low

P0193

Fuel Rail Pressure Sensor - High Input

P0194

Fuel rail pressure sensor - unreliable electrical circuit contact

P0195

Engine oil temperature sensor - circuit malfunction

P0196

Engine Oil Temperature Sensor Range/Performance

P0197

Engine oil temperature sensor - low signal

P0198

Engine Oil Temperature Sensor - High Input

P0199

Engine oil temperature sensor - unreliable contact of the electrical circuit

P0200

Injector - electrical circuit malfunction

P0201

Injector 1 - electrical circuit malfunction

P0202

Injector 2 - electrical circuit malfunction

P0203

Injector 3 - electrical circuit malfunction

P0204

Injector 4 - electrical circuit malfunction

P0205

Injector 5 - electrical circuit malfunction

P0206

Injector 6 - electrical circuit malfunction

CODE

DECRYPTION

P0207

Injector 7 - electrical circuit malfunction

P0208

Injector 8 - electrical circuit malfunction

P0209

Injector 9 - electrical circuit malfunction

P020A

Injection advance angle, cylinder 1

P020B

Injection advance angle, cylinder 2

P020C

Injection advance angle, cylinder 3

P020D

Injection advance angle, cylinder 4

P020E

Injection advance angle, cylinder 5

P020F

Injection advance angle, cylinder 6

P0210

Injector 10 - electrical circuit malfunction

P0211

Injector 11 - electrical circuit malfunction

P0212

Injector 12 - electrical circuit malfunction

P0213

Cold start injector 1 - circuit malfunction

P0214

Cold start injector 2 - circuit malfunction

P0215

Solenoid fuel cut-off valve - electrical circuit malfunction

P0216

Fuel Injection Advance Control Circuit Malfunction

P0217

Engine overheating

P0218

Transmission overheating

CODE

DECRYPTION

P0219

Exceeding the permissible frequency of rotation of the crankshaft

P021A

Injection advance angle, cylinder 7

P021B

Injection advance angle, cylinder 8

P021C

Injection advance angle, cylinder 9

P021D

Injection advance angle, cylinder 10

P021E

Injection advance angle, cylinder 11

P021F

Injection advance angle, cylinder 12

P0220

Throttle position sensor B / accelerator pedal position sensor B - circuit malfunction

P0221

Throttle Position Sensor B / Accelerator Pedal Position Sensor B Range/Performance

P0222

Throttle Position Sensor B / Accelerator Pedal Position Sensor B - Low Input

P0223

Throttle Position Sensor B / Accelerator Pedal Position Sensor B High Input

P0224

Throttle position sensor B / accelerator pedal position sensor B - circuit intermittent

P0225

Throttle position sensor C / accelerator pedal position sensor C - circuit malfunction

P0226

Throttle Position C Sensor / Accelerator Pedal Position C Sensor Range/Performance

P0227

Throttle Position C Sensor / Accelerator Pedal Position Sensor C - Low Input

P0228

Throttle Position C Sensor / Accelerator Pedal Position Sensor C High Input

P0229

Throttle Position Sensor C / Accelerator Pedal Position Sensor C - Poor Electrical Circuit
Contact

CODE

DECRYPTION

P022A

Intercooler Bypass Actuator A - Open Circuit

P022B

Intercooler Bypass Actuator A Control Low

P022C

Intercooler Bypass Actuator A - Signal High

P022D

Intercooler bypass actuator control - open circuit

P022E

Intercooler bypass actuator control B - signal low

P022F

Intercooler Bypass Actuator Control High Signal

P0230

Fuel pump relay - circuit malfunction

P0231

Fuel pump relay - circuit low voltage

P0232

Fuel pump relay - circuit high voltage

P0233

Fuel pump relay - unreliable electrical circuit contact

P0234

Turbo boost pressure - upper limit exceeded

P0235

Manifold absolute pressure sensor A, turbo system - circuit malfunction

P0236

Manifold Absolute Pressure (MAP) Sensor A, Turbocharging System Range/Performance

P0237

Manifold absolute pressure (MAP) sensor A, turbocharging system low

P0238

Manifold absolute pressure (MAP) sensor A, turbocharging system high

P0239

Manifold absolute pressure (MAP) sensor B, turbo system - circuit malfunction

P023A

Intercooler cooling pump - open circuit

P023B

Intercooler Cooling Pump Circuit Low

CODE

DECRYPTION

P023C

Intercooler Cooling Pump - Control Signal Low

P023D

Manifold absolute pressure (MAP) sensor / Boost pressure sensor A - correlation

P023E

Manifold absolute pressure (MAP) sensor / Boost pressure sensor B - correlation

P023F

Secondary fuel pump - circuit malfunction

P0240

Manifold Absolute Pressure (MAP) Sensor B, Turbocharging System Range/Performance

P0241

Manifold absolute pressure (MAP) sensor B, turbocharging system - signal low

P0242

Manifold absolute pressure (MAP) sensor B, turbocharging system - signal high

P0243

Supercharger bypass valve A - circuit malfunction

P0244

Supercharger Bypass Valve A - Range/Performance

P0245

Supercharger Bypass Valve A - Signal Low

P0246

Supercharger Bypass Valve A - Signal High

P0247

Supercharger Bypass Valve B Circuit Malfunction

P0248

Supercharger Bypass Valve B - Range/Performance

P0249

Supercharger Bypass Valve B Circuit Low

P024A

Intercooler Bypass Actuator A Range/Performance

P024B

Intercooler Bypass Actuator A - Actuator Stuck

P024C

Intercooler Bypass Actuator A Position Sensor Circuit Malfunction

P024D

Intercooler Bypass Actuator A Position Sensor Range/Performance

CODE

DECRYPTION

P024E

Intercooler Bypass Actuator Position Sensor A Low

P024F

Intercooler Bypass Actuator Position Sensor A High

P0250

Supercharger Bypass Valve B - Signal High

P0251

Fuel Meter A Rotor/Cam/Injector Circuit Malfunction

P0252

Fuel Meter A, Rotor/Cam/Injector Range/Performance

P0253

Fuel Meter A Rotor/Cam/Injector Low

P0254

Fuel Meter A, Rotor/Cam/Injector - Signal High

P0255

Fuel dispenser A, rotor/cam/nozzle - circuit intermittent

P0256

Fuel Meter B Rotor/Cam/Injector Circuit Malfunction

P0257

Fuel Meter B, Rotor/Cam/Injector Range/Performance

P0258

Fuel Meter B Rotor/Cam/Injector Low

P0259

Fuel Meter B Rotor/Cam/Injector High Signal

P025A

Fuel pump control unit - open circuit

P025B

Fuel Pump Control Module Range/Performance

P025C

Fuel pump control unit - signal low

P025D

Fuel pump control unit - signal high

P025E

Boost pressure sensor A (turbocharger / supercharger drive) - intermittent / erratic
signal

CODE

DECRYPTION

P025F

Boost pressure sensor B (turbocharger / supercharger drive) - intermittent / erratic
signal

P0260

Fuel dispenser B, rotor/cam/nozzle - circuit intermittent

P0261

Injector 1 - signal low

P0262

Injector 1 - high signal level

P0263

Cylinder 1 - wrong power balance

P0264

Injector 2 - signal low

P0265

Injector 2 - high signal level

P0266

Cylinder 2 - wrong power balance

P0267

Injector 3 - signal low

P0268

Injector 3 - high signal level

P0269

Cylinder 3 - wrong power balance

P026A

-to- air intercooler - less than required efficiency

P026B

Injection advance - operation

P026C

Fuel supply - volume below required

P026D

Fuel supply - volume above required

P0270

Injector 4 - signal low

P0271

Injector 4 - signal high

CODE

DECRYPTION

P0272

Cylinder 4 - wrong power balance

P0273

Injector 5 - signal low

P0274

Injector 5 - high signal level

P0275

Cylinder 5 - wrong power balance

P0276

Injector 6 - signal low

P0277

Injector 6 - high signal level

P0278

Cylinder 6 - wrong power balance

P0279

Injector 7 - signal low

P027A

Fuel pump control module B - open circuit

P027B

Fuel Pump Control Module B - Range/Performance

P027C

Fuel pump control module B - signal low

P027D

Fuel pump control module B - signal high

P0280

Injector 7 - high signal level

P0281

Cylinder 7 - wrong power balance

P0282

Injector 8 - signal low

P0283

Injector 8 - high signal level

P0284

Cylinder 8 - wrong power balance

P0285

Injector 9 - signal low

CODE

DECRYPTION

P0286

Injector 9 - high signal level

P0287

Cylinder 9 - wrong power balance

P0288

Injector 10 - signal low

P0289

Injector 10 - high signal level

P0290

Cylinder 10 - incorrect power balance

P0291

Injector 11 - signal low

P0292

Injector 11 - high signal level

P0293

Cylinder 11 - wrong power balance

P0294

Injector 12 - signal low

P0295

Injector 12 - high signal level

P0296

Cylinder 12 - wrong power balance

P0297

Vehicle overspeeding

P0298

Engine oil temperature too high

P0299

Turbocharger / supercharger drive - low boost pressure

P029A

Fuel Balance Cylinder 1 - Maximum Control Limit Reached

P029B

Fuel Balance Cylinder 1 - Minimum Control Limit Reached

P029C

Nozzle 1 - blockage

P029D

Nozzle 1 - leakage

CODE

DECRYPTION

P029E

Fuel Balance Cylinder 2 - Maximum Control Limit Reached

P029F

Fuel Balance Cylinder 2 - Minimum Control Limit Reached

P02A0

Nozzle 2 - leakage

P02A1

Nozzle 2 - leakage

P02A2

Fuel Balance Cylinder 3 - Maximum Control Limit Reached

P02A3

Fuel Balance Cylinder 3 - Minimum Control Limit Reached

P02A4

Nozzle 3 - leakage

P02A5

Nozzle 3 - leakage

P02A6

Fuel Balance Cylinder 4 - Maximum Control Limit Reached

P02A7

Fuel Balance Cylinder 4 - Minimum Control Limit Reached

P02A8

Nozzle 4 - leakage

P02A9

Nozzle 4 - leakage

P02AA

Fuel Balance Cylinder 5 - Maximum Control Limit Reached

P02AB

Fuel Balance Cylinder 5 - Minimum Control Limit Reached

P02AC

Cylinder 5 - injector leakage

P02AD

Nozzle 5 - leakage

P02AE

Fuel Balance Cylinder 6 - Maximum Control Limit Reached

P02AF

Fuel Balance Cylinder 6 - Minimum Control Limit Reached

CODE

DECRYPTION

P02B0

Nozzle 6 - leakage

P02B1

Nozzle 6 - leakage

P02B2

Fuel Balance Cylinder 7 - Maximum Control Limit Reached

P02B3

Fuel Balance Cylinder 7 - Minimum Control Limit Reached

P02B4

Nozzle 7 - leakage

P02B5

Nozzle 7 - leakage

P02B6

Fuel Balance Cylinder 8 - Maximum Control Limit Reached

P02B7

Fuel Balance Cylinder 8 - Minimum Control Limit Reached

P02B8

Nozzle 8 - leakage

P02B9

Nozzle 8 - leakage

P02BA

Fuel Balance Cylinder 9 - Maximum Control Limit Reached

P02BB

Injector 9 - training offset to the minimum limit

P02BC

Nozzle 9 - leakage

P02BD

Nozzle 9 - leakage

P02BE

Fuel Balance Cylinder 10 - Maximum Control Limit Reached

P02BF

Fuel Balance Cylinder 10 - Minimum Control Limit Reached

P02C0

Nozzle 10 - leakage

P02C1

Nozzle 10 - leakage

CODE

DECRYPTION

P02C2

Fuel Balance Cylinder 11 - Maximum Control Limit Reached

P02C3

Fuel Balance Cylinder 11 - Minimum Control Limit Reached

P02C4

Nozzle 11 - leakage

P02C5

Nozzle 11 - leakage

P02C6

Fuel Balance Cylinder 12 - Maximum Control Limit Reached

P02C7

Fuel Balance Cylinder 12 - Minimum Control Limit Reached

P02C8

Nozzle 12 - blockage

P02C9

Nozzle 12 - leakage

P02CA

Turbocharger/Supercharger B Overboost

P02CB

Turbocharger/supercharger B - boost pressure too low

P02CC

Injector 1 - training offset to the minimum limit

P02CD

Injector 1 - offset training to the maximum limit

P02CE

Injector 2 - training offset to the minimum limit

P02CF

Injector 2 - offset training to the maximum limit

P02D0

Injector 3 - offset training to the minimum limit

P02D1

Injector 3 - offset training to the maximum limit

P02D2

Injector 4 - training offset to the minimum limit

P02D3

Injector 4 - training offset to the maximum limit

CODE

DECRYPTION

P02D4

Injector 5 - training offset to the minimum limit

P02D5

Injector 5 - training offset to the maximum limit

P02D6

Injector 6 - training offset to the minimum limit

P02D7

Injector 6 - training offset to the maximum limit

P02D8

Injector 7 - training offset to the minimum limit

P02D9

Injector 7 - offset training to the maximum limit

P02DA

Injector 8 - training offset to the minimum limit

P02DB

Injector 8 - offset training to the maximum limit

P02DC

Injector 9 - training offset to the minimum limit

P02DD

Injector 9 - training offset to the maximum limit

P02DE

Injector 10 - training offset to the minimum limit

P02DF

Injector 10 - offset training to the maximum limit

P02E0

Variable geometry intake damper actuator - open circuit

P02E1

Variable geometry intake damper actuator - functioning problems

P02E2

Variable geometry intake damper actuator - signal low

P02E3

Variable geometry intake damper actuator - signal high

P02E4

Variable geometry intake damper actuator - actuator stuck open

P02E5

Variable geometry intake damper actuator - actuator stuck closed

CODE

DECRYPTION

P02E6

Variable geometry intake damper actuator position sensor - circuit malfunction

P02E7

Variable geometry intake damper actuator position sensor range/performance

P02E8

Variable geometry intake damper actuator position sensor - low signal level

P02E9

Variable geometry intake damper position sensor - signal high

P02EA

Variable geometry intake damper actuator position sensor - intermittent/erratic signal

P02EB

Intake Manifold Variable Motor (Diesel) Range/Performance

P02EC

Intake manifold changeover motor (diesel) - high air consumption

P02ED

Intake Manifold Variable Motor (Diesel) - Low Air Consumption

P02EE

Injector 1 - Range/Performance

P02EF

Injector 2 - Range/Performance

P02F0

Injector 3 - Range/Performance

P02F1

Injector 4 - Range/Performance

P02F2

Injector 5 - Range/Performance

P02F3

Injector 6 - Range/Performance

P02F4

Injector 7 - Range/Performance

P02F5

Injector 8 - Range/Performance

P02F6

Injector 9 - Range/Performance

P02F7

Injector 10 - Range/Performance

CODE

DECRYPTION

P02F8

Injector 11 - Range/Performance

P02F9

Injector 12 - Range/Performance

P02FA

Intake manifold geometry change actuator position sensor (diesel) - operation of the
minimum / maximum opening limiter

Ignition system and misfire control system

CODE

DECRYPTION

P0300

Random/Multiple Misfires (Ignitions)

P0301

Cylinder 1 - misfire (ignition)

P0302

Cylinder 2 - misfire (ignition)

P0303

Cylinder 3 - misfire (ignition)

P0304

Cylinder 4 - misfire (ignition)

P0305

Cylinder 5 - misfire (ignition)

P0306

Cylinder 6 - misfire (ignition)

P0307

Cylinder 7 - misfire (ignition)

P0308

Cylinder 8 - misfire (ignition)

P0309

Cylinder 9 - misfire (ignition)

P0310

Cylinder 10 - misfire (ignition)

P0311

Cylinder 11 - misfire (ignition)

P0312

Cylinder 12 - misfire (ignition)

CODE

DECRYPTION

P0313

Misfire (ignition) - low fuel level

P0314

Misfire (ignition) in one cylinder - cylinder number is not recognized

P0315

Crankshaft - no position change

P0316

Misfire (ignition) at start-up - first 1000 rpm

P0317

No data on roughness characteristics of the road surface

P0318

Road condition sensor A - circuit malfunction

P0319

Road condition sensor B - circuit malfunction

P0320

Crankshaft position sensor / crankshaft speed sensor - circuit malfunction

P0321

Crankshaft Position Sensor/Crankshaft Speed Sensor Range/Performance

P0322

Crankshaft Position Sensor/Crankshaft Speed Sensor - No Signal

P0323

Crankshaft position sensor / crankshaft speed sensor - unreliable electrical circuit
contact

P0324

Error in the knock control system

P0325

Knock sensor 1, bank 1 circuit malfunction

P0326

Knock Sensor 1 Bank 1 Range/Performance

P0327

Knock Sensor 1 Bank 1 Low

P0328

Knock Sensor 1 Bank 1 - High Input

P0329

Knock sensor 1, bank 1 - circuit intermittent

CODE

DECRYPTION

P032A

Knock sensor 3, bank 1 circuit malfunction

P032B

Knock Sensor 3 Bank 1 Range/Performance

P032C

Knock Sensor 3 Bank 1 Low

P032D

Knock Sensor 3 Bank 1 High

P032E

Knock sensor 3, bank 1 signal intermittent

P0330

Knock sensor 2, bank 2 circuit malfunction

P0331

Knock Sensor 2 Bank 2 Range/Performance

P0332

Knock Sensor 2 Bank 2 Low

P0333

Knock Sensor 2 Bank 2 - High Input

P0334

Knock sensor 2, bank 2 circuit malfunction

P0335

Crankshaft position sensor - circuit malfunction

P0336

Crankshaft Position Sensor Range/Performance

P0337

Crankshaft Position Sensor - Low Signal

P0338

Crankshaft position sensor - signal high

P0339

Crankshaft position sensor - unreliable contact of the electrical circuit

P033A

Knock sensor 4, bank 2 circuit malfunction

P033B

Knock Sensor 4 Bank 2 Range/Performance

P033C

Knock sensor 4, bank 2 - signal low

CODE

DECRYPTION

P033D

Knock sensor 4, bank 2 - signal high

P033E

Knock sensor 4, bank 2 - circuit intermittent

P0340

Camshaft position sensor A, bank 1 circuit malfunction

P0341

Camshaft Position Sensor A Bank 1 Range/Performance

P0342

Camshaft Position Sensor A Bank 1 Low

P0343

Camshaft position sensor A, bank 1 - high input

P0344

Camshaft position sensor A, bank 1 - circuit intermittent

P0345

Camshaft position sensor A, bank 2 circuit malfunction

P0346

Camshaft Position Sensor A Bank 2 Range/Performance

P0347

Camshaft position sensor A, bank 2 - signal low

P0348

Camshaft position sensor A, bank 2 - signal high

P0349

Camshaft position sensor A, bank 2 - circuit intermittent

P0350

Ignition coil, primary/secondary - circuit malfunction

P0351

Ignition Coil A Primary/Secondary Circuit Malfunction

P0352

Ignition Coil B Primary/Secondary Circuit Malfunction

P0353

Ignition Coil C Primary/Secondary Circuit Malfunction

P0354

Ignition Coil D Primary/Secondary Circuit Malfunction

P0355

Ignition coil E, primary/secondary - circuit malfunction

CODE

DECRYPTION

P0356

Ignition coil F, primary/secondary - circuit malfunction

P0357

Ignition Coil G Primary/Secondary Circuit Malfunction

P0358

Ignition Coil H Primary/Secondary Circuit Malfunction

P0359

Ignition coil I, primary/secondary - circuit malfunction

P0360

Ignition Coil J Primary/Secondary Circuit Malfunction

P0361

Ignition coil K, primary/secondary - circuit malfunction

P0362

Ignition coil L, primary/secondary - circuit malfunction

P0363

Misfire (ignition) - lack of fuel supply

P0365

Camshaft Position Sensor B Bank 1 Circuit Malfunction

P0366

Camshaft Position Sensor B Bank 1 Range/Performance

P0367

Camshaft Position Sensor B Bank 1 Low

P0368

Camshaft Position Sensor B Bank 1 High

P0369

Camshaft position sensor B, bank 1 - unreliable contact of the electrical circuit

P0370

Phase synchronization reference high resolution signal A - malfunction

P0371

Phase synchronization reference, high resolution signal A - too many pulses

P0372

Phase synchronization reference, high resolution signal A - too few pulses

P0373

Phase synchronization reference, high resolution signal A - erratic/dropping pulses

P0374

Phase synchronization reference, high resolution signal A - no pulses

CODE

DECRYPTION

P0375

Phase Sync Reference High Resolution Signal B - Malfunction

P0376

Phase synchronization reference, high resolution signal B - too many pulses

P0377

Phase Sync Reference High Resolution Signal B - Too Few Pulses

P0378

Phase synchronization reference, high resolution B signal - erratic/dropping pulses

P0379

Phase synchronization reference, high resolution signal B - no pulses

P037D

Glow plug monitoring - electrical circuit malfunction

P037E

Glow plug monitoring - signal low

P037F

Glow plug monitoring - signal high

P0380

Glow plugs, circuit A - malfunction

P0381

Glow plug indicator - circuit malfunction

P0382

Glow plugs, circuit B - malfunction

P0383

Glow plug control unit - signal low

P0384

Glow plug control unit - signal high

P0385

Crankshaft position sensor B - circuit malfunction

P0386

Crankshaft Position Sensor B - Range/Performance

P0387

Crankshaft Position Sensor B - Low Input

P0388

Crankshaft Position Sensor B - High Input

P0389

Crankshaft position sensor B - circuit intermittent

CODE

DECRYPTION

P0390

Camshaft Position Sensor A Bank 2 Circuit Malfunction

P0391

Camshaft Position Sensor B Bank 2 Range/Performance

P0392

Camshaft Position Sensor B Bank 2 - Low Input

P0393

Camshaft Position Sensor B Bank 2 - High Input

P0394

Camshaft position sensor B, bank 2 - circuit intermittent

P0395

Cylinder pressure sensor, cylinder 1 - circuit malfunction

P0396

Cylinder pressure sensor, cylinder 1 range/performance

P0397

Cylinder pressure sensor, cylinder 1 - signal low

P0398

Cylinder pressure sensor, cylinder 1 - signal high

P0399

Cylinder pressure sensor, cylinder 1 - circuit intermittent/intermittent

P039A

Cylinder 1 - pressure too low

P039B

Cylinder 1 - pressure too high

P039C

Cylinder 1 - low pressure change

P039D

Cylinder 1 - large pressure change

P039E

Cylinder 1 - combustion process

P039F

Cylinder pressure sensor, cylinder 2 - circuit malfunction

P03A0

Cylinder pressure sensor, cylinder 2 - range/performance

P03A1

Cylinder pressure sensor, cylinder 2 - signal low

CODE

DECRYPTION

P03A2

Cylinder pressure sensor, cylinder 2 - signal high

P03A3

Cylinder pressure sensor, cylinder 2 - circuit intermittent/erratic contact

P03A4

Cylinder 2 - pressure too low

P03A5

Cylinder 2 - pressure too high

P03A6

Cylinder 2 - small pressure change

P03A7

Cylinder 2 - large pressure change

P03A8

Cylinder 2 - combustion process

P03A9

Cylinder pressure sensor, cylinder 3 - circuit malfunction

P03AA

Cylinder pressure sensor, cylinder 3 range/performance

P03AB

Cylinder pressure sensor, cylinder 3 - signal low

P03AC

Cylinder pressure sensor, cylinder 3 - signal high

P03AD

Cylinder pressure sensor, cylinder 3 - circuit intermittent/erratic contact

P03AE

Cylinder 3 - pressure too low

P03AF

Cylinder 3 - pressure too high

P03B0

Cylinder 3 - low pressure change

P03B1

Cylinder 3 - large pressure change

P03B2

Cylinder 3 - combustion process

P03B3

Cylinder pressure sensor, cylinder 4 - circuit malfunction

CODE

DECRYPTION

P03B4

Cylinder pressure sensor, cylinder 4 - range/performance

P03B5

Cylinder pressure sensor, cylinder 4 - signal low

P03B6

Cylinder pressure sensor, cylinder 4 - signal high

P03B7

Cylinder pressure sensor, cylinder 4 - circuit intermittent/erratic contact

P03B8

Cylinder 4 - pressure too low

P03B9

Cylinder 4 - pressure too high

P03BA

Cylinder 4 - small pressure change

P03BB

Cylinder 4 - large pressure change

P03BC

Cylinder 4 - combustion process

P03BD

Cylinder pressure sensor, cylinder 5 - circuit malfunction

P03BE

Cylinder Pressure Sensor, Cylinder 5 Range/Performance

P03BF

Cylinder pressure sensor, cylinder 5 - signal low

P03C0

Cylinder pressure sensor, cylinder 5 - signal high

P03C1

Cylinder pressure sensor, cylinder 5 - circuit intermittent/intermittent

P03C2

Cylinder 5 - pressure too low

P03C3

Cylinder 5 - pressure too high

P03C4

Cylinder 5 - small pressure change

P03C5

Cylinder 5 - large pressure change

CODE

DECRYPTION

P03C6

Cylinder 5 - combustion process

P03C7

Cylinder pressure sensor, cylinder 6 - circuit malfunction

P03C8

Cylinder Pressure Sensor, Cylinder 6 Range/Performance

P03C9

Cylinder pressure sensor, cylinder 6 - signal low

P03CA

Cylinder pressure sensor, cylinder 6 - signal high

P03CB

Cylinder pressure sensor, cylinder 6 - circuit intermittent/intermittent

P03CC

Cylinder 6 - pressure too low

P03CD

Cylinder 6 - pressure too high

P03CE

Cylinder 6 - low pressure change

P03CF

Cylinder 6 - large pressure change

P03D0

Cylinder 6 - combustion process

P03D1

Cylinder pressure sensor, cylinder 7 - circuit malfunction

P03D2

Cylinder Pressure Sensor, Cylinder 7 Range/Performance

P03D3

Cylinder pressure sensor, cylinder 7 - signal low

P03D4

Cylinder pressure sensor, cylinder 7 - signal high

P03D5

Cylinder pressure sensor, cylinder 7 - circuit intermittent/intermittent

P03D6

Cylinder 7 - pressure too low

P03D7

Cylinder 7 - pressure too high

CODE

DECRYPTION

P03D8

Cylinder 7 - small pressure change

P03D9

Cylinder 7 - large pressure change

P03DA

Cylinder 7 - combustion process

P03DB

Cylinder pressure sensor, cylinder 8 - circuit malfunction

P03DC

Cylinder pressure sensor, cylinder 8 - range/performance

P03DD

Cylinder pressure sensor, cylinder 8 - signal low

P03DE

Cylinder pressure sensor, cylinder 8 - signal high

P03DF

Cylinder pressure sensor, cylinder 8 - circuit intermittent/intermittent

P03E0

Cylinder 8 - pressure too low

P03E1

Cylinder 8 - pressure too high

P03E2

Cylinder 8 - small pressure change

P03E3

Cylinder 8 - large pressure change

P03E4

Cylinder 8 - combustion process

Auxiliary emission control systems

CODE

DECRYPTION

P0400

Exhaust gas recirculation (EGR) system - malfunction of the system channels

P0401

Exhaust gas recirculation (EGR) system - insufficient recirculation

P0402

Exhaust Gas Recirculation (EGR) - Excessive Recirculation Level

CODE

DECRYPTION

P0403

Exhaust gas recirculation (EGR) system - circuit malfunction

P0404

Exhaust Gas Recirculation (EGR) System Range/Performance

P0405

Exhaust gas recirculation (EGR) valve position sensor A - low signal

P0406

Exhaust gas recirculation (EGR) valve position sensor A high

P0407

Exhaust gas recirculation (EGR) valve B position sensor - low input

P0408

Exhaust gas recirculation (EGR) valve B position sensor - high input

P0409

Exhaust gas recirculation (EGR) sensor A - circuit malfunction

P040A

Exhaust gas temperature sensor A in the exhaust gas recirculation (EGR) circuit
malfunction

P040B

Exhaust Gas Temperature Sensor A - Exhaust Gas Recirculation (EGR)
Range/Performance

P040C

Exhaust Gas Temperature Sensor A - Exhaust Gas Recirculation (EGR) Low

P040D

Exhaust Gas Temperature Sensor A - Exhaust Gas Recirculation (EGR) High

P040E

Exhaust gas temperature sensor A in the exhaust gas recirculation (EGR) system ­intermittent / erratic signal

P040F

Exhaust gas temperature sensor A / B in the exhaust gas recirculation (EGR) system ­correlation

P0410

Exhaust air supply system - malfunction

P0411

Exhaust air supply system - incorrect flow

P0412

Solenoid valve A for air supply to the outlet - a malfunction of the electrical circuit

CODE

DECRYPTION

P0413

Solenoid valve A for air supply to the outlet - open circuit

P0414

E / m valve A air supply to the outlet - short circuit

P0415

Exhaust air supply solenoid valve B - circuit malfunction

P0416

Solenoid valve B for air supply to the outlet - open circuit

P0417

Solenoid valve B for air supply to the outlet - short circuit in the circuit

P0418

Exhaust air pump A relay - circuit malfunction

P0419

Exhaust air pump relay B - circuit malfunction

P041A

Exhaust gas temperature sensor B in the exhaust gas recirculation (EGR) system - circuit
malfunction

P041B

Exhaust Gas Temperature Sensor B - Exhaust Gas Recirculation (EGR)
Range/Performance

P041C

Exhaust Gas Temperature Sensor B - Exhaust Gas Recirculation (EGR) Low

P041D

Exhaust gas temperature sensor B in the exhaust gas recirculation (EGR) system - high
signal level

P041E

Exhaust gas temperature sensor B in the exhaust gas recirculation (EGR) system ­intermittent / erratic signal

P041F

Switching solenoid valve A for air supply to the outlet - low signal level

P0420

Catalytic Converter Bank 1 Efficiency Less Than Required

P0421

Catalytic Converter Warm-up Bank 1 Efficiency Less Than Required

P0422

Primary Catalytic Converter Bank 1 Efficiency Less Than Required

CODE

DECRYPTION

P0423

Heated Catalytic Converter Bank 1 Efficiency Less Than Required

P0424

Heated Catalytic Converter Bank 1 Efficiency Less Than Required

P0425

Catalytic Converter Temperature Sensor Bank 1

P0426

Catalytic Converter Temperature Sensor Bank 1 Range/Performance

P0427

Catalytic Converter Temperature Sensor Bank 1 Circuit Low

P0428

Catalytic Converter Temperature Sensor Bank 1 - High Input

P0429

Catalytic Converter Heater Bank 1 Circuit Malfunction

P042A

Catalytic converter temperature sensor 2, bank 1 - circuit malfunction

P042B

Catalytic Converter Temperature Sensor 2 Bank 1 Range/Performance

P042C

Catalytic Converter Temperature Sensor 2 Bank 1 Circuit Low

P042D

Catalytic Converter Temperature Sensor 2 Bank 1 High

P042E

Exhaust Gas Recirculation (EGR) Valve Actuator A - Actuator Stuck Open

P042F

Exhaust Gas Recirculation (EGR) Valve A Actuator - Actuator Stuck Closed

P0430

Catalytic Converter Bank 2 Efficiency Less Than Required

P0431

Catalytic Converter Warm Up Bank 2 - Less Efficiency

P0432

Primary Catalytic Converter Bank 2 Efficiency Less Than Required

P0433

Heated Catalytic Converter Bank 2 Efficiency Less Than Required

P0434

Heated catalytic converter, bank 2 - temperature below the required

CODE

DECRYPTION

P0435

Catalytic Converter Temperature Sensor Bank 2

P0436

Catalytic Converter Temperature Sensor Bank 2 Range/Performance

P0437

Catalytic Converter Temperature Sensor Bank 2 - Low Input

P0438

Catalytic Converter Temperature Sensor Bank 2 - High Input

P0439

Catalytic Converter Heater Bank 2 Circuit Malfunction

P043A

Catalytic converter temperature sensor 2, bank 2 - circuit malfunction

P043B

Catalytic Converter Temperature Sensor 2 Bank 2 Range/Performance

P043C

Catalytic Converter Temperature Sensor 2 Bank 2 Circuit Low

P043D

Catalytic Converter Temperature Sensor 2 Bank 2 High

P043E

Evaporative Emission Leak Detection Pilot Jet - Low Flow

P043F

Evaporative Emission System Leak Detection Pilot Jet - Excessive Flow

P0440

Evaporative emission system - malfunction

P0441

Evaporative Emission System - Incorrect Flow Rate

P0442

Evaporative Emission System - Minor Leak

P0443

Evaporative accumulator solenoid valve - circuit malfunction

P0444

Solenoid valve EVAP accumulator - open circuit

P0445

E / m valve of the fuel vapor accumulator - short circuit

P0446

Evaporative emission system, purge control - circuit malfunction

CODE

DECRYPTION

P0447

EVAP system, purge control - open circuit

P0448

EVAP system, purge control - short circuit

P0449

Evaporative emission system, purge control valve - circuit malfunction

P044A

Exhaust gas recirculation (EGR) sensor C - circuit malfunction

P044B

Exhaust Gas Recirculation (EGR) Sensor C Range/Performance

P044C

Exhaust gas recirculation (EGR) sensor C - low signal

P044D

Exhaust gas recirculation (EGR) sensor C - signal high

P044E

Exhaust gas recirculation (EGR) sensor C - intermittent / erratic signal

P044F

Switching e / m valve A for air supply to the outlet - high signal level

P0450

Evaporative emission system pressure sensor - circuit malfunction

P0451

Evaporative Emission System Pressure Sensor Range/Performance

P0452

Evaporative emission system pressure sensor - signal low

P0453

Evaporative emission system pressure sensor - signal high

P0454

Evaporative emission system pressure sensor - unreliable electrical circuit contact

P0455

Evaporative Emission System - Significant Leak

P0456

Evaporative Emission System - Extremely Minor Leak

P0457

Evaporative emission system - leak (loose or open fuel filler cap)

P0458

Evaporative Emission System, EVAP Accumulator Valve - Signal Low

CODE

DECRYPTION

P0459

Evaporative Emission System, Evaporative Accumulator Valve - Signal High

P045A

Exhaust gas recirculation (EGR) valve B actuator - circuit malfunction

P045B

Exhaust Gas Recirculation (EGR) Valve B Range/Performance

P045C

Exhaust Gas Recirculation (EGR) Valve Actuator - Low Signal

P045D

Exhaust Gas Recirculation (EGR) Valve Actuator - High Signal

P045E

Exhaust Gas Recirculation (EGR) Valve Actuator B - Actuator Stuck Open

P045F

Exhaust Gas Recirculation (EGR) Valve B - Valve Stuck Closed

P0460

Fuel level sensor - circuit malfunction

P0461

Fuel Level Sensor Range/Performance

P0462

Fuel level sensor - signal low

P0463

Fuel level sensor - high input

P0464

Fuel level sensor - unreliable electrical circuit contact

P0465

Fuel vapor accumulator flow sensor - circuit malfunction

P0466

Evaporative Accumulator Flow Sensor - Range/Performance

P0467

Fuel vapor accumulator flow sensor - signal low

P0468

Fuel vapor accumulator flow sensor - signal high

P0469

Flow sensor through the fuel vapor accumulator - unreliable contact of the electrical
circuit

CODE

DECRYPTION

P046A

Catalytic converter temperature sensor 1/2, bank 1 - correlation

P046B

Catalytic converter temperature sensor 1/2, bank 2 - correlation

P046C

Exhaust gas recirculation (EGR) valve position sensor A range/performance

P046D

Exhaust gas recirculation (EGR) sensor A - intermittent/erratic signal

P046E

Exhaust Gas Recirculation (EGR) Sensor B Range/Performance

P046F

Exhaust gas recirculation (EGR) sensor B - intermittent / erratic signal

P0470

Exhaust gas pressure sensor - circuit malfunction

P0471

Exhaust Gas Pressure Sensor Range/Performance

P0472

Exhaust gas pressure sensor - signal low

P0473

Exhaust gas pressure sensor - high input

P0474

Exhaust gas pressure sensor - unreliable contact of the electrical circuit

P0475

Exhaust gas pressure control valve - circuit malfunction

P0476

Exhaust pressure control valve - range/performance

P0477

Exhaust pressure control valve - signal low

P0478

Exhaust pressure control valve - high input

P0479

Exhaust gas pressure control valve - unreliable electrical circuit contact

P047A

Exhaust gas pressure sensor B - circuit malfunction

P047B

Exhaust Gas Pressure Sensor B Range/Performance

CODE

DECRYPTION

P047C

Exhaust gas pressure sensor B - signal low

P047D

Exhaust gas pressure sensor B - signal high

P047E

Exhaust gas pressure sensor B - intermittent / erratic signal

P047F

Exhaust pressure control valve - valve stuck open

P0480

Cooling fan 1 motor - circuit malfunction

P0481

Cooling fan motor 2 - circuit malfunction

P0482

Cooling fan motor 3 - circuit malfunction

P0483

Cooling fan motor, normal test - malfunction

P0484

Cooling fan motor circuit over-current

P0485

Cooling Fan Motor Power/Ground - Circuit Malfunction

P0486

Exhaust gas recirculation (EGR) valve position sensor B - circuit malfunction

P0487

Exhaust gas recirculation (EGR) system, throttle position control - circuit malfunction

P0488

Exhaust Gas Recirculation (EGR) Throttle Position Control - Range/Performance Issues

P0489

Exhaust gas recirculation (EGR) system - circuit low voltage

P048A

Exhaust control actuator - actuator stuck closed

P048B

Exhaust actuator position sensor/switch - circuit malfunction

P048C

Exhaust Control Actuator Position Sensor/Switch Range/Performance

P048D

Exhaust Gas Pressure Control Valve Position Sensor/Switch Low

CODE

DECRYPTION

P048E

Exhaust Pressure Control Valve Position Sensor/Switch High

P048F

Exhaust actuator position sensor/switch - intermittent/erratic signal

P0490

Exhaust gas recirculation (EGR) system - circuit high voltage

P0491

Exhaust air supply system, bank 1 - malfunction

P0492

Exhaust air supply system, bank 2 - malfunction

P0493

Exceeding the frequency of rotation of the electric motor of the fan of the cooling
system (clutch lock)

P0494

Cooling fan motor - low speed

P0495

Cooling fan motor - high speed

P0496

Evaporative Emission System - High Purge Flow

P0497

Evaporative Emission System - Low Purge Flow

P0498

Evaporative emission system, purge control - signal low

P0499

Evaporative Emission System Purge Control High Signal

P049A

Exhaust Gas Recirculation (EGR) Valve Actuator B - Flow Problems

P049B

System B Exhaust Gas Recirculation (EGR) - Insufficient Recirculation Level

P049C

Exhaust Gas Recirculation (EGR) Valve Actuator - Excessive Flow

P049D

Exhaust gas recirculation (EGR) valve A actuator - upper learning limit exceeded

P049E

Exhaust gas recirculation (EGR) valve actuator B - upper learning limit exceeded

CODE

DECRYPTION

P049F

Exhaust pressure control valve B

P04A0

Exhaust Pressure Control Valve B Range/Performance

P04A1

Exhaust pressure control valve B - signal low

P04A2

Exhaust pressure control valve B - signal high

P04A3

Exhaust pressure control valve B - circuit intermittent

P04A4

Exhaust pressure control valve B - valve sticking open

P04A5

Exhaust pressure control valve B - valve sticking closed

P04A6

Exhaust pressure control valve position sensor/switch B - circuit malfunction

P04A7

Exhaust Pressure Control Valve Position Sensor/Switch B Range/Performance

P04A8

Exhaust Pressure Control Valve Position Sensor/Switch B Low

P04A9

Exhaust Pressure Control Valve Position Sensor/Switch B High

P04AA

Exhaust pressure control valve position sensor/switch B - circuit intermittent/erratic

P04AB

Evaporative accumulator solenoid valve B - open circuit

P04AC

Evaporative accumulator solenoid valve B - signal low

P04AD

Evaporative accumulator solenoid valve B - signal high

P04AE

Evaporative accumulator solenoid valve B - functioning / valve stuck open

P04AF

Evaporative accumulator valve B - stuck closed

P04B0

Fuel vapor control valve when refueling - open circuit

CODE

DECRYPTION

P04B1

Fuel vapor control valve when refueling - signal low

P04B2

Fuel vapor valve when refueling - signal high

P04B3

Evaporative bypass valve when refueling - functioning / valve sticking in the open
position

P04B4

Fuel vapor control valve when refueling - valve sticking in the closed position

P04B5

Cap/ Fuel Cap - Stuck Open

P04B6

Fuel Cap/ Fuel Cap - Stuck Closed

P04B7

Fuel filler cap sensor/switch - circuit intermittent/intermittent

P04B8

Fuel filler cap sensor/switch - circuit malfunction

P04B9

Fuel filler cap sensor/switch - low signal

P04BA

Fuel filler cap sensor/switch high

P04BB

Fuel filler cap lock control (lock) - open circuit

P04BC

Fuel Filler Cap Lock Control (Lock) - Range/Performance

P04BD

Fuel filler cap lock control (lock) - signal low

P04BE

Fuel filler cap lock control (lock) - signal high

P04BF

Fuel filler cap lock control (unlock) - open circuit

P04C0

Fuel filler cap lock control (unlock) - Range/Performance

P04C1

Fuel filler cap lock control (unlock) - signal low

CODE

DECRYPTION

P04C2

Fuel filler cap lock control (unlock) - signal high

P04C3

Fuel filler cap lock sensor/ switch - circuit malfunction

P04C4

Fuel filler cap lock sensor/switch range/performance

P04C5

Fuel filler cap lock sensor/switch - signal low

P04C6

Fuel filler cap lock sensor/ switch high

P04C7

Fuel filler cap lock sensor/switch - circuit intermittent/intermittent

P04C8

Fuel filler cap open sensor/switch - circuit malfunction

P04C9

Fuel filler cap open sensor/switch - performance/stuck off

P04CA

Fuel filler cap open sensor/switch - signal constantly low

P04CB

Fuel filler cap open sensor/switch - signal constantly high

P04CC

Fuel filler cap open sensor/switch - intermittent/erratic signal

P04CD

Fuel filler cap open sensor/switch - stuck on

P04CE

Exhaust gas recirculation (EGR) temperature sensor C - circuit malfunction

P04CF

Exhaust gas recirculation (EGR) temperature sensor C - circuit malfunction

P04D0

Exhaust gas recirculation (EGR) temperature sensor C - low signal

P04D1

Exhaust gas recirculation (EGR) temperature sensor C - signal high

P04D2

Exhaust gas recirculation (EGR) temperature sensor C - intermittent/erratic signal

P04D3

Exhaust brake - input signal circuit malfunction

CODE

DECRYPTION

P04D4

Exhaust Brake - Input Circuit Range/Performance

P04D5

Exhaust brake - input circuit low

P04D6

Exhaust brake - input circuit high

P04D7

Exhaust brake - unreliable / missing contact of the electrical circuit

P04D8

Exhaust Gas Recirculation (EGR) Control - Closed Loop Entry Timeout

P04D9

Exhaust Gas Recirculation (EGR) Control (Closed Loop Operation), Control Limit Reached

- Low Flow

P04DA

Exhaust Gas Recirculation (EGR) Control (Closed Loop Operation), Control Limit Reached

- High Flow

P04DB

Crankcase ventilation system disconnected

Vehicle speed control, idle system and other systems

CODE

DECRYPTION

P0500

Vehicle speed sensor - circuit malfunction

P0501

Vehicle Speed Sensor Range/Performance

P0502

Vehicle speed sensor - signal low

P0503

Vehicle speed sensor - signals chaotic / intermittent / high

P0504

Stop Lamp A/B Switch (Brake Pedal Position Sensor) - Correlation

P0505

Idle speed control system - malfunction

P0506

Idle speed control system - speed below the permissible

CODE

DECRYPTION

P0507

Idle speed control system - overspeed

P0508

Idle Air Bypass Control - Signal Low

P0509

Idle air control - signal high

P050A

Air bypass control valve at idle, cold start - performance problems

P050B

Ignition timing, cold start - performance problems

P050C

Coolant temperature sensor, cold start - performance

P050D

Rough idle after cold start

P050E

Exhaust gas temperature, cold start - out of range

P050F

Brake booster system pressure sensor - low

P0510

Fully closed throttle position sensor - circuit malfunction

P0511

Air bypass control at idle - circuit malfunction

P0512

Starter control circuit - malfunction

P0513

Incorrect immobilizer key (wrong code)

P0514

Battery Temperature Sensor Range/Performance

P0515

Battery Temperature Sensor Circuit Malfunction

P0516

Battery temperature sensor - circuit low voltage

P0517

Battery temperature sensor - circuit high voltage

P0518

Air bypass control at idle - unreliable contact of the electrical circuit

CODE

DECRYPTION

P0519

Idle air control - operation

P051A

Crankcase pressure sensor - circuit malfunction

P051B

Crankcase Pressure Sensor Range/Performance

P051C

Crankcase Pressure Sensor - Low Signal

P051D

Crankcase pressure sensor - high signal level

P051E

Crankcase pressure sensor - unreliable contact of the electrical circuit

P051F

Crankcase ventilation system valve - clogging of the ventilation system filter

P0520

Engine oil pressure sensor - circuit malfunction

P0521

Engine Oil Pressure Sensor Range/Performance

P0522

Engine oil pressure sensor - low voltage

P0523

Engine oil pressure sensor - high voltage

P0524

Engine oil pressure too low

P0525

Cruise Control (Cruise Control), Drive Control - Range/Performance

P0526

Cooling fan motor, speed sensor - circuit malfunction

P0527

Cooling Fan Motor, Speed Sensor Range/Performance

P0528

Cooling fan motor, speed sensor - no signal

P0529

Cooling fan motor, speed sensor - poor electrical circuit contact

P052A

Camshaft position - cold start, bank 1 - overshoot ahead

CODE

DECRYPTION

P052B

Camshaft position - cold start, bank 1 - retarded overshoot

P052C

Camshaft position - cold start, bank 2 - overshoot ahead

P052D

Camshaft position - cold start, bank 2 - retarded overshoot

P052E

The regulator of system of forced ventilation of a crankcase - functioning

P052F

Glow plug control unit - incorrect voltage

P0530

Air conditioning refrigerant pressure sensor - circuit malfunction

P0531

A/C Refrigerant Pressure Sensor Range/Performance

P0532

Air conditioning refrigerant pressure sensor - signal low

P0533

A/C Refrigerant Pressure Sensor - High Input

P0534

Lack of refrigerant in the air conditioning system

P0535

Temperature sensor behind the evaporator (air conditioner) - electrical circuit
malfunction

P0536

Temperature sensor behind the evaporator (air conditioner) - range / performance

P0537

Temperature sensor behind the evaporator of the air conditioning system - low signal
level

P0538

Temperature sensor behind the evaporator of the air conditioning system - high signal
level

P0539

Temperature sensor behind the evaporator of the air conditioning system - unreliable
contact of the electrical circuit

P053A

Crankcase breather heater - open circuit

CODE

DECRYPTION

P053B

Crankcase breather heater - signal low

P053C

Crankcase breather heater - signal high

P053D

Crankcase breather heater - operation

P053F

Fuel pressure at cold start - operation

P0540

Intake air heater A - circuit malfunction

P0541

Intake air heater A - circuit low voltage

P0542

Intake air heater A - circuit high voltage

P0543

Intake air heater A - open circuit

P0544

Exhaust Gas Temperature Sensor 1 Bank 1 Circuit Malfunction

P0545

Exhaust Gas Temperature Sensor 1 Bank 1 - Low Input

P0546

Exhaust Gas Temperature Sensor 1 Bank 1 High Input

P0547

Exhaust gas temperature sensor 1, bank 2 circuit malfunction

P0548

Exhaust gas temperature sensor 1, bank 2 - signal low

P0549

Exhaust gas temperature sensor 1, bank 2 - signal high

P054A

Camshaft position sensor B, cold start - overshoot ahead

P054B

Camshaft position sensor B, cold start - retarded overshoot

P054C

Camshaft position sensor B, cold start - overshoot ahead

P054D

Camshaft position sensor B, cold start - retarded overshoot

CODE

DECRYPTION

P054E

Idle speed control - fuel supply less than required

P054F

Idle speed control - more fuel than required

P0550

Power steering pressure sensor/switch circuit malfunction

P0551

Power Steering Pressure Switch Range/Performance

P0552

Power steering pressure sensor/switch - signal low

P0553

Power steering pressure sensor/switch high

P0554

Power steering pressure sensor/switch - circuit intermittent

P0555

Brake booster system pressure sensor - circuit malfunction

P0556

Brake Booster System Pressure Sensor Range/Performance

P0557

Brake booster system pressure sensor - signal low

P0558

Brake Booster System Pressure Sensor - High Input

P0559

Pressure sensor in the brake booster system - unreliable contact of the electrical circuit

P055A

Engine oil pressure sensor B - circuit malfunction

P055B

Engine Oil Pressure Sensor B - Range/Performance

P055C

Engine oil pressure sensor B - signal low

P055D

Engine oil pressure sensor B - signal high

P0560

System voltage (on-board network) - malfunction

P0561

System voltage (on-board network) - instability

CODE

DECRYPTION

P0562

System voltage (on-board network) - low

P0563

System voltage (on-board network) - high

P0564

Cruise Control System (Cruise Control) Multifunction Switch (Input A) Circuit
Malfunction

P0565

Main switch of the cruise control system (cruise control), signal ON - malfunction

P0566

Main switch of the cruise control system (cruise control), signal OFF - malfunction

P0567

Cruise control (cruise control) mode select switch, RESUME signal - malfunction

P0568

Main switch of the cruise control system (cruise control), SET signal - malfunction

P0569

Cruise Control (Cruise Control) Operation Mode Selector Switch, COAST Signal
Malfunction

P056A

Incorrect signal to increase the distance of the cruise control system

P056B

Incorrect signal to reduce the distance of the cruise control system

P056C

Cruise control (cruise control), shutdown signal

P0570

Cruise control system, accelerator pedal position sensor signal - malfunction

P0571

Brake pedal switch A (cruise control) - circuit malfunction

P0572

Brake pedal switch A (cruise control system) - signal low

P0573

Limit switch A of the brake pedal (cruise control system) - signal high

P0574

Cruise control (cruise control) - vehicle speed too high

P0575

Cruise Control System (Cruise Control) - Input Circuit Malfunction

CODE

DECRYPTION

P0576

Cruise Control (Cruise Control) - Low Input

P0577

Cruise Control (Cruise Control) High Input

P0578

Cruise Control (Cruise Control) Multifunction Switch (Input A) - Circuit Inhibited

P0579

Cruise Control (Cruise Control), Multifunction Switch (Input A) - Range/Performance

P057A

Brake pedal position sensor - open circuit

P057B

Brake Pedal Position Sensor Range/Performance

P057C

Brake pedal position sensor - signal low

P057D

Brake pedal position sensor - signal high

P057E

Brake Pedal Position Sensor - Intermittent/Missing Electrical Circuit Contact

P0580

Cruise Control (Cruise Control) Multifunction Switch (Input A) Signal Low

P0581

Cruise Control (Cruise Control) Multifunction Switch (Input A) Signal High

P0582

Cruise Control (Cruise Control), Vacuum Control - Open Circuit

P0583

Cruise Control (Cruise Control), Vacuum Control - Circuit Low Voltage

P0584

Cruise Control (Cruise Control), Vacuum Control - Circuit High Voltage

P0585

Cruise Control (Cruise Control), Multi-Function Switch (A/B Input) - Correlation

P0586

Cruise control (cruise control), purge control - open circuit

P0587

Cruise control system (cruise control), purge control - circuit low voltage

P0588

Cruise Control (Cruise Control), Purge Control - Circuit High Voltage

CODE

DECRYPTION

P0589

Cruise Control (Cruise Control) Multifunction Switch (Input B) Circuit Malfunction

P0590

Cruise Control (Cruise Control) Multifunction Switch (Input B) Circuit Malfunction
(Lockout)

P0591

Cruise Control (Cruise Control), Multifunction Switch (Input B) - Range/Performance

P0592

Cruise Control (Cruise Control) Multifunction Switch (Input B) Signal Low

P0593

Cruise Control (Cruise Control) Multifunction Switch (Input B) Signal High

P0594

Cruise control (cruise control), drive control - open circuit

P0595

Cruise control (cruise control), drive control - signal low

P0596

Cruise control (cruise control), drive control - signal high

P0597

Thermostat heater control system - open circuit

P0598

Thermostat heater control system - circuit low voltage

P0599

Thermostat heater control system - circuit high voltage

ECM / PCM / TCM control units and other systems

CODE

DECRYPTION

P0600

CAN data bus - malfunction

P0601

Electronic engine control unit - memory checksum error

P0602

Electronic engine control unit - programming error

P0603

Electronic engine control unit - KAM memory error

P0604

Electronic engine control unit - RAM memory error

CODE

DECRYPTION

P0605

ECM - ROM memory error

P0606

Electronic engine control module (ECM) / powertrain control module (PCM) - processor
malfunction

P0607

Electronic engine control unit - operation

P0608

Engine control module, vehicle speed sensor (output signal A) - malfunction

P0609

Engine control module, vehicle speed sensor (output signal B) - malfunction

P060A

Electronic engine control unit, monitoring processor functioning problems

P060B

Electronic engine control unit, ADC operation

P060C

Electronic engine control unit, problems with the functioning of the main processor

P060D

Electronic engine control unit, accelerator pedal position - operation

P060E

Electronic engine control unit, throttle position - operation

P060F

ECM, coolant temperature - operation

P0610

Electronic engine control unit - vehicle option error

P0611

Fuel injector control unit - operation

P0612

Fuel Injector Control Module - Relay Control Circuit

P0613

Transmission control module (TCM) - processor error

P0614

Electronic engine control module (ECM) / electronic transmission control module (TCM)

- mismatch

P0615

Starter relay - circuit malfunction

CODE

DECRYPTION

P0616

Starter relay - low

P0617

Starter relay - high

P0618

Alternative fuel control unit - KAM memory error

P0619

Alternative fuel control unit - RAM/ROM memory error

P061A

Electronic engine control unit, engine torque - functioning problems

P061B

Electronic engine control unit, engine torque calculation - functioning problems

P061C

Electronic engine control unit, engine speed - functioning problems

P061D

Electronic engine control unit, air flow through the engine - functioning problems

P061E

Engine Control Module, Stop Lamp Switch (Brake Pedal Position Sensor) - Operation

P061F

Engine ECM, Throttle Actuator Controller - Operation

P0620

Generator control - electrical circuit malfunction

P0621

Charging indicator - electrical circuit malfunction

P0622

Generator, field winding control - circuit malfunction

P0623

Charging indicator, control - circuit malfunction

P0624

Filler cap open indicator, control - circuit malfunction

P0625

Generator field winding output - signal low

P0626

Generator field winding output - signal high

P0627

Fuel pump control - open circuit

CODE

DECRYPTION

P0628

Fuel pump control - signal low

P0629

Fuel pump control - signal high

P062A

Fuel Pump A - Control Circuit Range/Performance

P062B

Electronic engine control unit, fuel injection control - functioning problems

P062C

Electronic engine control unit, vehicle speed - operation

P062D

Injector control unit, bank 1 - functioning problems

P062E

Injector control unit, bank 2 - functioning problems

P062F

Electronic engine control unit - EEPROM error

P0630

VIN is not programmed or does not fit - ECM/PCM

P0631

The automatic transmission electronic control unit is not programmed or does not
match the vehicle identification number

P0632

Odometer not programmed - ECM/PCM

P0633

Immobilizer key not programmed - ECM/PCM

P0634

Powertrain/Engine/Transmission Control Module (PCM/ECM/TCM) High Internal
Temperature

P0635

Power steering control - circuit malfunction

P0636

Power steering control - signal low

P0637

Power steering control - signal high

P0638

Throttle Actuator Control Bank 1 Range/Performance

CODE

DECRYPTION

P0639

Throttle Actuator Control Bank 2 Range/Performance

P063A

Generator voltage monitoring - electrical circuit malfunction

P063B

Alternator Voltage Monitoring - Range/Performance

P063C

Alternator voltage monitoring - signal low

P063D

Generator voltage monitoring - signal high

P063E

Throttle control unit, automatic configuration - no input signal

P063F

Coolant temperature sensor, automatic configuration - no input

P0640

Intake air heating control - circuit malfunction

P0641

Sensor reference voltage A - open circuit

P0642

Sensor reference voltage A - signal low

P0643

Sensor reference voltage A - signal high

P0644

Driver display, communication (serial) - circuit malfunction

P0645

A/C compressor magnetic clutch relay - circuit malfunction

P0646

A/C Compressor Magnetic Clutch Relay - Low

P0647

A/C Compressor Magnetic Clutch Relay High

P0648

Immobilizer indicator , control - circuit malfunction

P0649

Cruise Control Indicator (Cruise Control) Control - Circuit Malfunction

P064A

Fuel pump control unit - malfunction

CODE

DECRYPTION

P064B

Power take-off control unit - malfunction

P064C

Glow plug control unit - malfunction

P064D

Engine Control Module Heated Oxygen Sensor Processor Bank 1 Performance Problems

P064E

Engine control module, oxygen sensor processor, bank 2 - performance problems

P064F

Unauthorized software - use of non-original equipment for calibration was detected

P0650

Malfunction indicator light (MIL), control - circuit malfunction

P0651

Sensor B reference voltage - open circuit

P0652

Sensor B Reference - Low

P0653

Sensor Reference B - Circuit High Voltage

P0654

Engine speed, output - circuit malfunction

P0655

Engine overheating indicator - electrical circuit malfunction

P0656

Fuel level indication - circuit malfunction

P0657

Drive supply voltage - open circuit

P0658

Drive supply voltage - circuit low voltage

P0659

Drive supply voltage - circuit high voltage

P065A

Generator - operation

P065B

Alternator - Control Circuit Range/Performance

P065C

Alternator - mechanical failure / functioning

CODE

DECRYPTION

P065D

Recovery system malfunction indicator - electrical circuit malfunction

P065E

Intake Manifold Change Actuator Bank 1 - Performance Problems

P065F

Intake Manifold Variable Actuator Bank 2 Operation

P0660

Solenoid valve for variable geometry intake manifold, bank 1 - open circuit

P0661

Intake manifold geometry control solenoid bank 1 low

P0662

Solenoid valve of the intake manifold geometry control system, bank 1 - high signal
level

P0663

Intake manifold geometry control solenoid bank 2 - open circuit

P0664

Intake manifold geometry control solenoid bank 2 low

P0665

Intake manifold geometry control solenoid bank 2 high

P0666

Engine/Transmission/Powertrain Control Module (ECM/PCM/TCM) Internal
Temperature Sensor Circuit Malfunction

P0667

Engine/Transmission/Powertrain Control Module (ECM/PCM/TCM) Internal
Temperature Sensor Range/Performance

P0668

Engine/Transmission/Powertrain (ECM/PCM/TCM) Internal Temperature Sensor Low

P0669

Engine/Transmission/Powertrain (ECM/PCM/TCM) Internal Temperature Sensor High

P066A

Glow plug, cylinder 1 - signal low

P066B

Glow plug, cylinder 1 - signal high

P066C

Glow plug, cylinder 2 - signal low

P066D

Glow plug, cylinder 2 - signal high

CODE

DECRYPTION

P066E

Glow plug, cylinder 3 - signal low

P066F

Glow plug, cylinder 3 - signal high

P0670

Glow plug control unit - circuit malfunction

P0671

Glow plug, cylinder 1 - circuit malfunction

P0672

Glow plug, cylinder 2 - circuit malfunction

P0673

Glow plug, cylinder 3 - circuit malfunction

P0674

Glow plug, cylinder 4 - circuit malfunction

P0675

Glow plug, cylinder 5 - circuit malfunction

P0676

Glow plug, cylinder 6 - circuit malfunction

P0677

Glow plug, cylinder 7 - circuit malfunction

P0678

Glow plug, cylinder 8 - circuit malfunction

P0679

Glow plug, cylinder 9 - circuit malfunction

P067A

Glow plug, cylinder 4 - signal low

P067B

Glow plug, cylinder 4 - signal high

P067C

Glow plug, cylinder 5 - signal low

P067D

Glow plug, cylinder 5 - signal high

P067E

Glow plug, cylinder 6 - signal low

P067F

Glow plug, cylinder 6 - signal high

CODE

DECRYPTION

P0680

Glow plug, cylinder 10 - circuit malfunction

P0681

Glow plug, cylinder 11 - circuit malfunction

P0682

Glow plug, cylinder 12 - circuit malfunction

P0683

Glow Plug Control Module Communication with ECM/PCM

P0684

Glow Plug Control Module Communication with ECM/PCM, Communication Error ­Range/Performance

P0685

Engine management system relay - open circuit

P0686

Engine control system relay - signal low

P0687

Engine management system relay - short to ground

P0688

Engine management system relay - short to +

P0689

Engine control system relay - control circuit low

P068A

Engine management system relay - early shutdown

P068B

Engine management system relay - late shutdown

P068C

Glow plug, cylinder 7 - signal low

P068D

Glow plug, cylinder 7 - signal high

P068E

Glow plug, cylinder 8 - signal low

P068F

Glow plug, cylinder 8 - signal high

P0690

Engine management system relay - control circuit high

CODE

DECRYPTION

P0691

Cooling fan 1 motor - signal low

P0692

Cooling fan 1 motor - signal high

P0693

Cooling fan motor 2 - signal low

P0694

Cooling fan motor 2 - signal high

P0695

Cooling fan motor 3 - signal low

P0696

Cooling fan motor 3 - signal high

P0697

Reference voltage C sensor - open circuit

P0698

Reference voltage C of the sensor - low level

P0699

Reference voltage C of the sensor - circuit high voltage

P069A

Glow plug, cylinder 9 - signal low

P069B

Glow plug, cylinder 9 - signal high

P069C

Glow plug, cylinder 10 - signal low

P069D

Glow plug, cylinder 10 - signal high

P069E

Fuel pump control unit - engine malfunction indicator activation request

P069F

Throttle control indicator - circuit malfunction

P06A0

Variable displacement A/C compressor control - circuit malfunction

P06A1

Variable displacement A/C compressor control - signal low

P06A2

Variable displacement A/C compressor control signal high

CODE

DECRYPTION

P06A3

Sensor reference voltage D - open circuit

P06A4

Sensor reference voltage D - circuit low voltage

P06A5

Sensor reference voltage D - circuit high voltage

P06A6

Sensor A Reference Voltage - Range/Performance

P06A7

Sensor B Reference Voltage Range/Performance

P06A8

C Sensor Reference Voltage - Range/Performance

P06A9

D Sensor Reference Voltage - Range/Performance

P06AA

Electronic Engine Control Module (ECM) / Electronic Transmission Control Module
(TCM) B - High internal temperature

P06AB

Engine control module (ECM) / transmission control module (TCM), internal
temperature sensor B - circuit malfunction

P06AC

Engine Control Module (ECM) / Transmission Control Module (TCM), Internal
Temperature Sensor B - Range/Performance

P06AD

Electronic engine control module (ECM) / electronic transmission control module
(TCM), internal temperature sensor B - circuit low

P06AE

Electronic engine control module (ECM) / electronic transmission control module
(TCM), internal temperature sensor B - signal high

P06AF

Torque control system - forced engine stop mode

P06B0

Sensor power A - open circuit

P06B1

Sensor supply A - signal low

P06B2

Sensor supply A - signal high

CODE

DECRYPTION

P06B3

Sensor B supply - open circuit

P06B4

Sensor supply B - signal low

P06B5

Sensor supply B - signal high

P06B6

Internal control unit, knock sensor processor 1 - performance

P06B7

Internal control unit, knock sensor processor 2 - performance

P06B8

Internal control unit - non-volatile memory error

P06B9

Glow Plug Cylinder 1 Range/Performance

P06BA

Glow Plug, Cylinder 2 Range/Performance

P06BB

Glow Plug Cylinder 3 Range/Performance

P06BC

Glow Plug Cylinder 4 Range/Performance

P06BD

Glow Plug Cylinder 5 Range/Performance

P06BE

Glow Plug Cylinder 6 Range/Performance

P06BF

Glow Plug Cylinder 7 Range/Performance

P06C0

Glow Plug, Cylinder 8 - Range/Performance

P06C1

Glow Plug, Cylinder 9 - Range/Performance

P06C2

Glow Plug Cylinder 10 Range/Performance

P06C3

Glow Plug Cylinder 11 Range/Performance

P06C4

Glow Plug Cylinder 12 Range/Performance

CODE

DECRYPTION

P06C5

Glow plug, cylinder 1 - malfunction

P06C6

Glow plug, cylinder 2 - malfunction

P06C7

Glow plug, cylinder 3 - malfunction

P06C8

Glow plug, cylinder 4 - malfunction

P06C9

Glow plug, cylinder 5 - malfunction

P06CA

Glow plug, cylinder 6 - malfunction

P06CB

Glow plug, cylinder 7 - malfunction

P06CC

Glow plug, cylinder 8 - malfunction

P06CD

Glow plug, cylinder 9 - malfunction

P06CE

Glow plug, cylinder 10 - malfunction

P06CF

Glow plug, cylinder 11 - malfunction

P06D0

Glow plug, cylinder 12 - malfunction

P06D1

Internal control unit, ignition coil control - operation

P06D2

Reference voltage E of the sensor - open circuit

P06D3

Reference voltage E of the sensor - low signal level

P06D4

Reference voltage E of the sensor - high signal level

P06D5

Sensor Reference Voltage E - Range/Performance

P06D6

Reference voltage F of the sensor - open circuit

CODE

DECRYPTION

P06D7

Reference voltage F of the sensor - low signal level

P06D8

Reference voltage F of the sensor - high signal level

P06D9

Reference voltage F of the sensor - range / performance

P06DA

Engine oil pressure control - open circuit

P06DB

Engine oil pressure control - signal low

P06DC

Engine oil pressure control - signal high

P06DD

Engine oil pressure control - operation

P06DE

Engine oil pressure control - control circuit malfunction, turn on signal

P06DF

Glow plug control unit - memory checksum error

P06E0

Glow Plug Cylinder 11 Control Circuit Low

P06E1

Glow Plug Cylinder 11 Control Circuit High

P06E2

Glow Plug Cylinder 12 Control Circuit Low

P06E3

Glow Plug Cylinder 12 Control Circuit High

P06E4

Control unit, wake-up signal - signal error

P06E5

Glow plug control unit - operation

Transmission

CODE

DECRYPTION

P0700

Automatic transmission control, fault interrogation (MIL) - circuit malfunction

CODE

DECRYPTION

P0701

Automatic transmission control system - range / performance

P0702

Automatic transmission control system - electrical fault

P0703

Stop lamp switch B - circuit malfunction

P0704

Clutch pedal limit switch (position sensor) - circuit malfunction

P0705

Transmission selector position sensor, PRNDL input - circuit malfunction

P0706

Transmission Selector Position Sensor Range/Performance

P0707

Automatic transmission selector position sensor - low signal level

P0708

Automatic transmission selector position sensor - high input level

P0709

Automatic transmission selector position sensor - unreliable contact of the electrical
circuit

P070A

Automatic transmission fluid level sensor - circuit malfunction

P070B

Automatic Transmission Fluid Level Sensor Range/Performance

P070C

Automatic transmission fluid level sensor - low signal level

P070D

Automatic transmission fluid level sensor - high signal level

P070E

Transmission fluid level sensor - intermittent / erratic signal

P070F

Transmission Fluid Level - Low

P0710

Automatic transmission fluid temperature sensor - circuit malfunction

P0711

Transmission Fluid Temperature Sensor Range/Performance

CODE

DECRYPTION

P0712

Transmission fluid temperature sensor - low signal

P0713

Transmission Fluid Temperature Sensor - High Input

P0714

Transmission fluid temperature sensor - unreliable contact of the electrical circuit

P0715

Automatic transmission input shaft speed sensor (torque converter turbine) - circuit
malfunction

P0716

Automatic Transmission Input Shaft Speed Sensor (Torque Converter Turbine)
Range/Performance

P0717

Automatic transmission input shaft speed sensor (torque converter turbine) - no signal

P0718

Automatic transmission input shaft speed sensor (torque converter turbine) - unreliable
electrical circuit contact

P0719

Stop Lamp Switch B - Signal Low

P071A

Automatic transmission mode select switch A - circuit malfunction

P071B

Automatic transmission mode selector switch A - low signal level

P071C

Switch A for automatic transmission mode selection - high signal level

P071D

Switch B for automatic transmission mode selection - electrical circuit malfunction

P071E

Switch B for automatic transmission mode selection - low signal level

P071F

Switch B for automatic transmission mode selection - high signal level

P0720

Output shaft speed sensor - circuit malfunction

P0721

Output Shaft Speed Sensor Range/Performance

P0722

Output shaft speed sensor - no signal

CODE

DECRYPTION

P0723

Output shaft speed sensor - unreliable contact of the electrical circuit

P0724

Stop lamp switch B - signal high

P0725

Engine speed, input - circuit malfunction

P0726

Engine Speed Input - Range/Performance

P0727

Engine speed, input - no signal

P0728

Engine speed, input signal - unreliable contact of the electrical circuit

P0729

6th gear - incorrect gear ratio

P072A

Transmission system - locked in neutral

P072B

Gearbox system - locked in reverse gear

P072C

Transmission system - locked in first gear

P072D

Transmission system - locked in second gear

P072E

Transmission system - locked in third gear

P072F

Transmission system - locked in fourth gear

P0730

Incorrect gear ratio

P0731

1st gear - incorrect gear ratio

P0732

2nd gear - incorrect gear ratio

P0733

3rd gear - incorrect gear ratio

P0734

4th gear - incorrect gear ratio

CODE

DECRYPTION

P0735

5th gear - incorrect gear ratio

P0736

Reverse gear - incorrect gear ratio

P0737

AT ECM, RPM - Output Circuit

P0738

Automatic transmission control unit, speed - low output signal

P0739

Automatic transmission electronic control unit, speed - high output signal

P073A

Transmission system - locked in fifth gear

P073B

Transmission system - locked in sixth gear

P073C

Transmission system - locked in 7th gear

P073D

Gearbox system - neutral gear does not turn on

P073E

Gearbox system - reverse gear does not turn on

P073F

Gearbox system - first gear does not turn on

P0740

Torque converter clutch solenoid - circuit malfunction

P0741

Torque Converter Clutch Solenoid - Performance or Stuck Closed

P0742

Torque converter clutch solenoid valve - stuck open

P0743

Torque converter clutch solenoid valve - electrical fault

P0744

Torque converter clutch solenoid valve - unreliable electrical circuit contact

P0745

Transmission fluid pressure control solenoid - circuit malfunction

P0746

Transmission Fluid Pressure Control Solenoid - Performance or Stuck Closed

CODE

DECRYPTION

P0747

Transmission Fluid Pressure Control Solenoid - Sticking Open

P0748

Transmission fluid pressure control solenoid - electrical fault

P0749

Transmission fluid pressure control solenoid valve - unreliable electrical circuit contact

P074A

Transmission system - second gear does not turn on

P074B

Transmission system - third gear does not turn on

P074C

Gearbox system - fourth gear does not turn on

P074D

Gearbox system - fifth gear does not turn on

P074E

Gearbox system - sixth gear does not turn on

P074F

Gearbox system - seventh gear does not turn on

P0750

Shift solenoid A - circuit malfunction

P0751

Shift solenoid A - functioning or sticking closed

P0752

Shift Solenoid A - Sticking Open

P0753

Solenoid valve A shift - electrical fault

P0754

Solenoid valve A gearshift - unreliable contact of the electrical circuit

P0755

Solenoid valve B shift - electrical circuit malfunction

P0756

Solenoid valve B shift - functioning or sticking closed

P0757

Solenoid valve B shift - sticking open

P0758

Solenoid valve B shift - electrical fault

CODE

DECRYPTION

P0759

Solenoid valve B shift - unreliable contact of the electrical circuit

P075A

Solenoid valve G shift - malfunction

P075B

Shift Solenoid G - Functioning or Sticking Closed

P075C

Shift Solenoid G - Sticking Open

P075D

Shift solenoid valve G - electrical fault

P075E

Shift Solenoid G - Intermittent Malfunction

P075F

Automatic transmission fluid level - high

P0760

Solenoid valve C shift - electrical circuit malfunction

P0761

Solenoid valve C shift - functioning or sticking closed

P0762

Solenoid valve C shift - sticking open

P0763

Solenoid valve C shift - electrical fault

P0764

Solenoid valve C shift - unreliable contact of the electrical circuit

P0765

Shift Solenoid D - Circuit Malfunction

P0766

Solenoid valve D shift - functioning or sticking closed

P0767

Shift Solenoid D - Sticking Open

P0768

Solenoid valve D shift - electrical fault

P0769

Solenoid valve D shift - unreliable contact of the electrical circuit

P076A

Solenoid valve H shift - malfunction

CODE

DECRYPTION

P076B

Shift Solenoid H - Functioning or Sticking Closed

P076C

Shift Solenoid H - Sticking Open

P076D

Shift solenoid valve H - electrical fault

P076E

Shift Solenoid H - Intermittent Malfunction

P076F

Transmission system - incorrect 7th gear ratio

P0770

Shift Solenoid E - Circuit Malfunction

P0771

Shift Solenoid E - Functioning or Sticking Closed

P0772

Shift Solenoid E - Sticking Open

P0773

Solenoid valve E shift - electrical fault

P0774

Solenoid valve E shift - unreliable contact of the electrical circuit

P0775

Solenoid valve B pressure control - malfunction

P0776

Pressure Control Solenoid B - Functioning or Sticking Closed

P0777

Pressure Control Solenoid B - Sticking Open

P0778

Solenoid valve B pressure control - electrical fault

P0779

Solenoid valve B pressure control - unreliable contact of the electrical circuit

P077A

Output shaft speed sensor - loss of direction signal

P077B

Output Shaft Speed Sensor - Direction Error

P077C

Output shaft speed sensor - low signal level

CODE

DECRYPTION

P077D

Output shaft speed sensor - signal high

P077E

Transmission Fluid Temperature Measurement - Sensor Correlation

P077F

Reverse gear 2 - incorrect gear ratio

P0780

Gear Selection - Shift Malfunction

P0781

Gear selection, 1-2 - shift fault

P0782

Gear selection, 2-3 - shift fault

P0783

Gear selection, 3-4 - shift fault

P0784

Gear selection, 4-5 - shift fault

P0785

Shift/timing solenoid valve - circuit malfunction

P0786

Shift/Sync Solenoid - Range/Performance

P0787

Shift Timing Solenoid - Low

P0788

Shift Timing Solenoid - High

P0789

Shift timing solenoid valve - unreliable electrical circuit contact

P078A

Shift Solenoid B Shift Time Malfunction

P078B

Shift Solenoid B Range/Performance

P078C

Shift Solenoid B Shift Time Low

P078D

Shift Solenoid B Shift Time High

P078E

Solenoid valve B shift - intermittent fault

CODE

DECRYPTION

P078F

Automatic transmission mode select switch C - circuit malfunction

P0790

Automatic transmission mode select switch - circuit malfunction

P0791

Transmission intermediate shaft speed sensor - circuit malfunction

P0792

Transmission Intermediate Shaft Speed Sensor Range/Performance

P0793

Gearbox Intermediate Shaft Speed Sensor - No Signal

P0794

Gearbox intermediate shaft speed sensor - unreliable contact of the electrical circuit

P0795

Transmission fluid pressure control solenoid C - circuit malfunction

P0796

Transmission fluid pressure control solenoid C - malfunctioning or sticking closed

P0797

Transmission Fluid Pressure Control Solenoid C - Sticking Open

P0798

Transmission fluid pressure control solenoid valve C - electrical fault

P0799

Transmission fluid pressure control solenoid C - poor electrical circuit contact

P079A

Transmission Friction Elements A - Slip

P079B

Transmission Friction Elements B - Slippage

P079C

Transmission Friction Elements C - Slip

P079D

Transmission Friction Elements D - Slip

P079E

Transmission Friction Elements E - Slip

P079F

Transmission Friction Elements F - Slip

P07A0

Transmission friction elements G - slippage

CODE

DECRYPTION

P07A1

Transmission friction elements H - slippage

P07A2

Transmission Friction Elements A - Performance or Stuck Off

P07A3

Transmission Friction Elements A - Stuck On

P07A4

Transmission Friction Elements B - Functioning or Stuck Off

P07A5

Transmission Friction Elements B - Stuck On

P07A6

Transmission Friction Elements C - Functioning or Stuck Off

P07A7

Transmission Friction Elements C - Stuck On

P07A8

Transmission Friction Elements D - Functioning or Stuck Off

P07A9

Transmission Friction Elements D - Stuck On

P07AA

Transmission Friction Elements E - Functioning or Stuck Off

P07AB

Transmission Friction Elements E - Stuck On

P07AC

Transmission Friction Elements F - Functioning or Stuck Off

P07AD

Transmission Friction Elements F - Stuck On

P07AE

G Transmission Friction Elements - Functioning or Stuck Off

P07AF

G Transmission Friction Elements - Stuck On

P07B0

Transmission Friction Elements H - Functioning or Stuck Off

P07B1

Transmission Friction Elements H - Stuck On

P07B2

Transmission position P sensor/switch A - open circuit
