Hausmann 5560, 5560-100 Installation & Operation Instructions
Product Specifications
Width
Depth
Height
Weight Capacity
34”
19”
71”
300 lbs
Part Lists
Part
Qty
Description
A 1 Weight Rack Chassis
B
1
Pegboard Panel with (11) Safety Hooks
C
2
Dumbbell Rack
D 1 Glass Mirror/ANSI Backing
E
1
Base Plate with T-Molding
F
4
3” Diameter Casters
G 6 6 5/8” Wood Dowel Dispenser Rods
H
12
Open Flange Dowel Holders
I 1 Blunt-tip Scissor with Scissor Holder

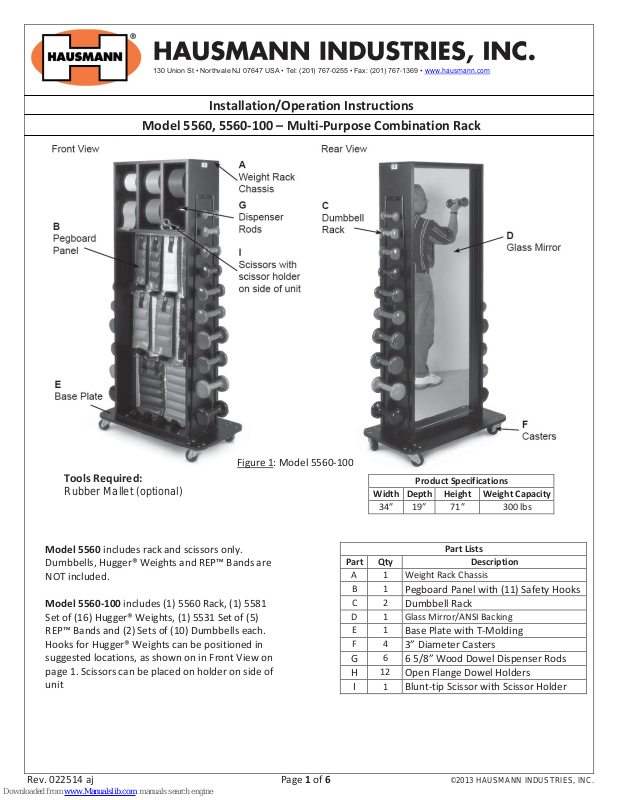

Figure 1: Model 5560-100
130 Union St • Northvale NJ 07647 USA • Tel: (201) 767-0255 • Fax: (201) 767-1369 • www.hausmann.com
Installation/Operation Instructions
Model 5560, 5560-100 – Multi-Purpose Combination Rack
Tools Required:
Rubber Mallet (optional)
Model 5560 includes rack and scissors only.
Dumbbells, Hugger® Weights and REP™ Bands are
NOT included.
Model 5560-100 includes (1) 5560 Rack, (1) 5581
Set of (16) Hugger® Weights, (1) 5531 Set of (5)
REP™ Bands and (2) Sets of (10) Dumbbells each.
Hooks for Hugger® Weights can be positioned in
suggested locations, as shown on in Front View on
page 1. Scissors can be placed on holder on side of
unit
Rev. 022514 aj Page 1 of 6 ©2013 HAUSMANN INDUSTRIES, INC.
Figure 2: Casters Installation
A) INSTALLATION INSTRUCTIONS
Caster Attachment:
1. Lay unit flat on the ground with the peg-
board facing down to install all four
casters as shown in Figure 2.
2. Use a rubber mallet to lightly tap caster
fully into place if necessary.
3. Carefully stand unit up, making sure the
casters do not roll while lifting the unit.
Rev. 022514 aj Page 2 of 6 ©2013 HAUSMANN INDUSTRIES, INC.
