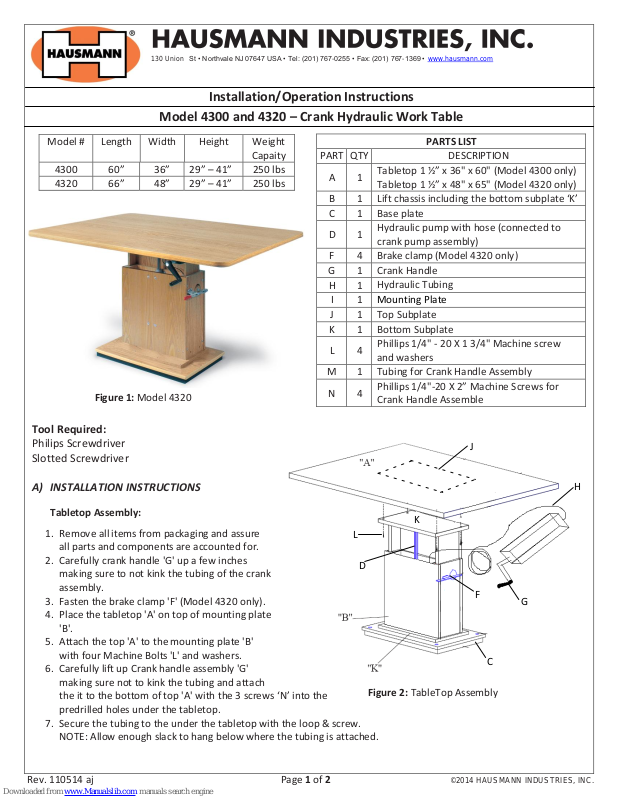

Hausmann 4300, 4320 Installation & Operation Instructions

PARTS LIST
PART
QTY
DESCRIPTION
A
1
Tabletop 1 ½” x 36" x 60" (Model 4300 only) Tabletop 1 ½” x 48" x 65" (Model 4320 only)
B
1
Lift chassis including the bottom subplate ‘K’
C
1
Base plate
D
1
Hydraulic pump with hose (connected to crank pump assembly)
F
4
Brake clamp (Model 4320 only)
G
1
Crank Handle
H
1
Hydraulic Tubing
I
1
Mounting Plate
J
1
Top Subplate
K
1
Bottom Subplate
L
4
Phillips 1/4" - 20 X 1 3/4" Machine screw and washers
M
1
Tubing for Crank Handle Assembly
N
4
Phillips 1/4"-20 X 2” Machine Screws for Crank Handle Assemble
Model #
Length
Width
Height
Weight Capaity
4300
60”
36”
29” – 41”
250 lbs
4320
66”
48”
29” – 41”
250 lbs
Figure 1: Model 4320
G
Figure 2: TableTop Assembly
D
C
F
H
J
K
L
130 Union St • Northvale NJ 07647 USA • Tel: (201) 767-0255 • Fax: (201) 767-1369 • www.hausmann.com
Model 4300 and 4320 – Crank Hydraulic Work Table
Tool Required:
A) INSTALLATION INSTRUCTIONS
Installation/Operation Instructions
Tabletop Assembly:
1. Remove all items from packaging and assure
all parts and components are accounted for.
2. Carefully crank handle 'G' up a few inches
making sure to not kink the tubing of the crank assembly.
3. Fasten the brake clamp 'F' (Model 4320 only).
4. Place the tabletop 'A' on top of mounting plate
'B'.
5. Attach the top 'A' to the mounting plate 'B'
with four Machine Bolts 'L' and washers.
6. Carefully lift up Crank handle assembly 'G'
making sure not to kink the tubing and attach the it to the bottom of top 'A' with the 3 screws ‘N’ into the predrilled holes under the tabletop.
7. Secure the tubing to the under the tabletop with the loop & screw.
NOTE: Allow enough slack to hang below where the tubing is attached.
Rev. 110514 aj Page 1 of 2 ©2014 HAUSMANN INDUSTRIES, INC.
B) OPERATION INSTRUCTIONS
To raise table height:
1. Release brake clamps 'F', by pulling red brake clamp handles away from the unit (Model #4320 only).
2. Crank the handle 'G' clockwise to raise the tabletop to desired height and retract the handle under tabletop to lock the
height in position.
3. Lock brake clamps 'F', by pushing on red locking handle towards the inside of the unit to engage the locking pad in the
position. (Model # 4320 only)
To lower table height:
1. Release brake clamps 'F', by pulling red brake clamp handles away from the unit (Model #4320 only).
2. Crank the handle 'G' counter clockwise to lower the tabletop to desired height and retract the handle under tabletop
to lock the height in position.
3. Lock brake clamps 'F', by pushing on red locking handle towards the inside of the unit to engage the locking pad in the
position. (Model # 4320 only)
CAUTION: Do not crank the handle when brake is engaged, or damage can occur.
Rev. 110514 aj Page 2 of 2 ©2014 HAUSMANN INDUSTRIES, INC.
