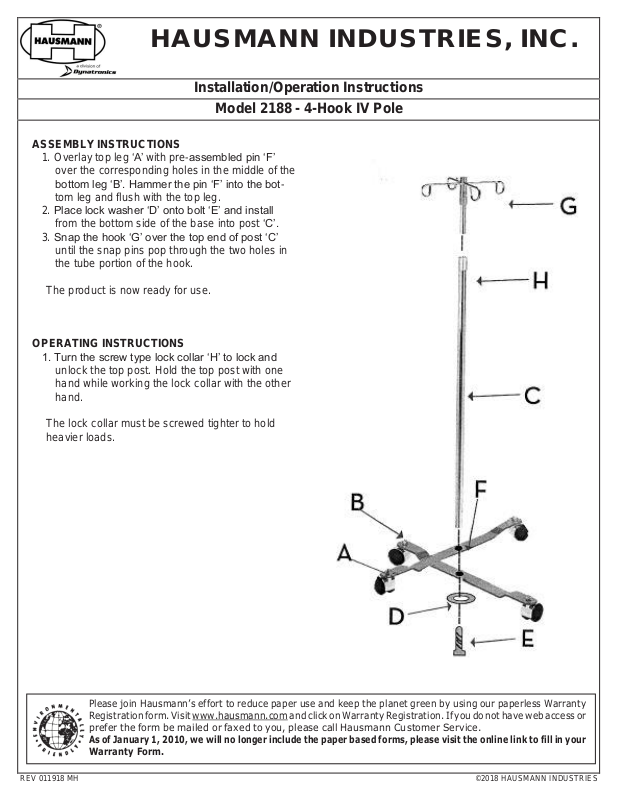

Installation/Operation Instructions
Model 2188 - 4-Hook IV Pole

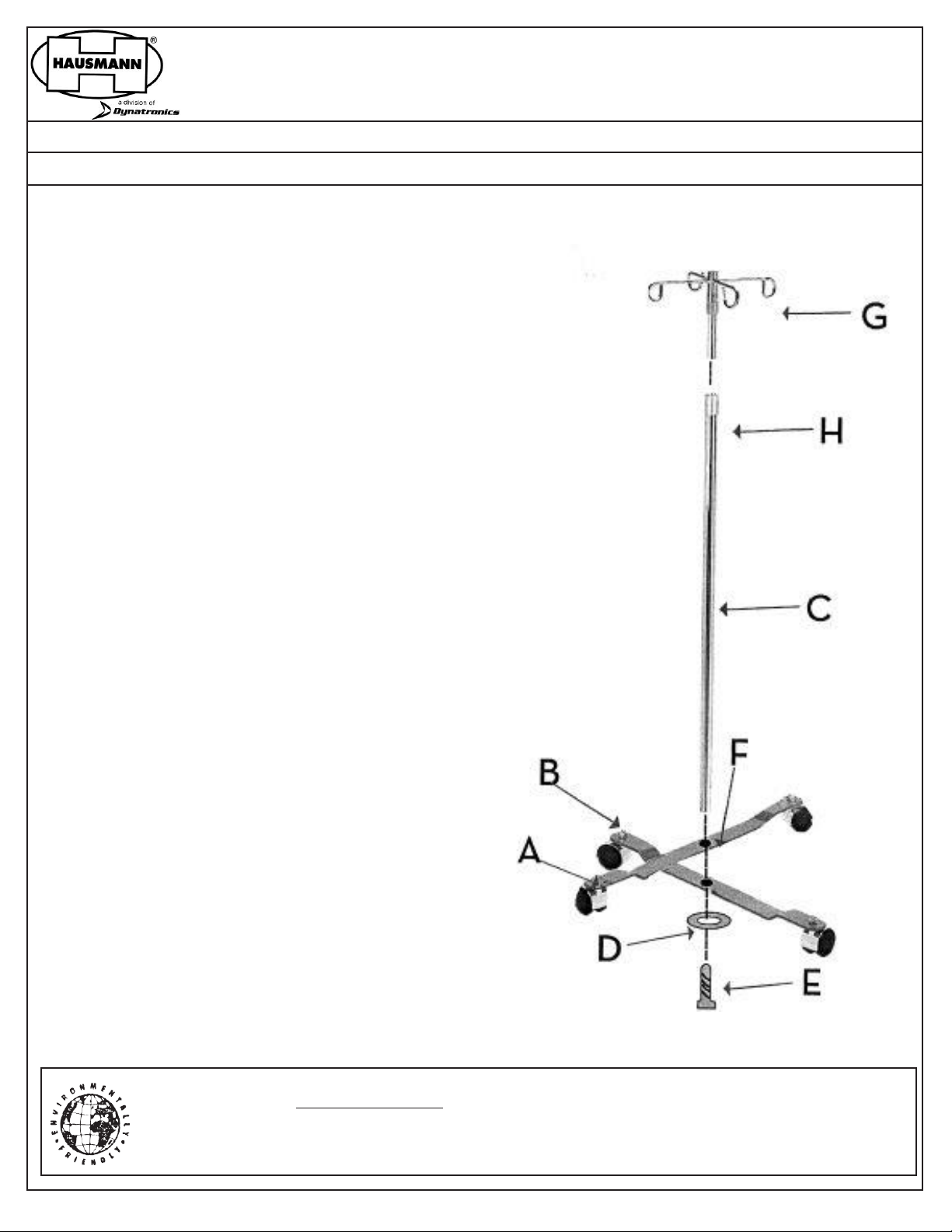

ASSEMBLY INSTRUCTIONS
1.
Overlay top leg ‘A’ with pre-assembled pin ‘F’
over the corresponding holes in the middle of the
bottom leg ‘B’. Hammer the pin ‘F’ into the bottom leg and flush with the top leg.
2.
Place lock washer ‘D’ onto bolt ‘E’ and install
from the bottom side of the base into post ‘C’.
3.
Snap the hook ‘G’ over the top end of post ‘C’
until the snap pins pop through the two holes in
the tube portion of the hook.
The product is now ready for use.
OPERATING INSTRUCTIONS
1. Turn the screw type lock collar ‘H’ to lock and
unlock the top post. Hold the top post with one
hand while working the lock collar with the other
hand.
The lock collar must be screwed tighter to hold
heavier loads.
